We want you to know all about your new telephone, how to install it, the
features it provides, and the services you can expect from its use. We have
included this information in your Owner's Instruction Manual.
PLEASE READ BEFORE INSTALLING AND
USING YOUR NEW TELEPHONE
1
Important Safety Instructions
Always follow basic safety precautions when using your telephone to reduce the risk of fire,
electical shock and injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
5. Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To
protect it from overheating, these openings must not be blocked or covered. The openings
should never be blocked by placing the product on the bed, sofa, rug, or other similar
surface. This product should never be placed near or over a radiator or heat register. This
product should not be placed in a built-in installation unless proper ventilation is
provided.
7. This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply to your home, consult your
dealer or local power company.
2
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord
will be damaged by persons walking on it.
9. Do not overload wall outlet extension cords, as this can result in the risk of fire or electric
shock.
10. Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric
shock. Never spill liquid of any kind on this product.
11. To reduce the risk of electric shock, do not disassemble this product. Instead, when some
repair work is required, take the unit to a qualified technician. Opening or removing
covers may expose you to dangerous voltages or other risks. Incorrect reassembly can
cause electric shock when the appliance is subsequently used.
12. Unplug this product from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
a. When the power supply cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions,
adjust only those controls that are covered by the operating instructions because
improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to normal operation.
e. If the product has been dropped or cabinet has be damaged.
3
f. If the product exhibits a distinct change in performance.
13. Avoid using a telephone during an electrical storm. There may be a risk of electrical shock
from lightning.
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
15. Plug the power adaptor into an electrical outlet that is near the equipment and easily
accessible.
Safety Instructions for Handset Battery Pack
CAUTION:
There is a danger of explosion if the batteries are incorrectly replaced. Use only approved
batteries in the handset of your telephone. To reduce the risk of fire or injury, be careful not to
short the batteries with conducting materials such as rings, bracelets, and keys. The batteries
or conducting material may overheat and cause burns.
CONTAINS NICKEL-METAL HYDRIDE BATTERY. BATTERY MUST BE
RECYCLED OR DISPOSED OF PROPERLY
1. Do not dispose of the batteries in a fire. They may explode. Check with local codes for
possible special disposal instructions.
4
2. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if swallowed.
3. Exercise care in handling batteries in order not to short the battery with conducting
materials such as rings, bracelets and keys. The battery or conductor may overheat and
cause burns.
4. Charge the batteries only in accordance with the instructions and limitations specified in
this manual.
5. Observe proper polarity orientation for the batteries as marked in the telephone.
6. Do not mix old and new batteries.
7. Do not mix batteries of different sizes or from different manufacturers.
8. Use only the power supply which came with the phone.
5
Prior To Use
n Unpacking

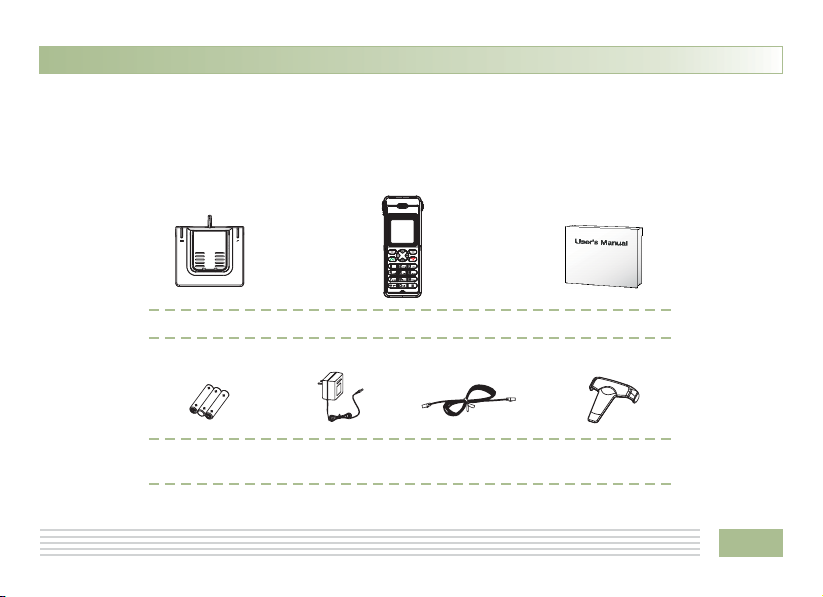

Once you have unpacked your phone, make sure that all the parts shown below are available. If any
pieces are missing or broken, please promptly call your dealer.
Base
3AAANi-MH
batteries
Handset
Line cord*Adapter* Carrying clip
User's manual
6
n Phone Layout and Keys Function

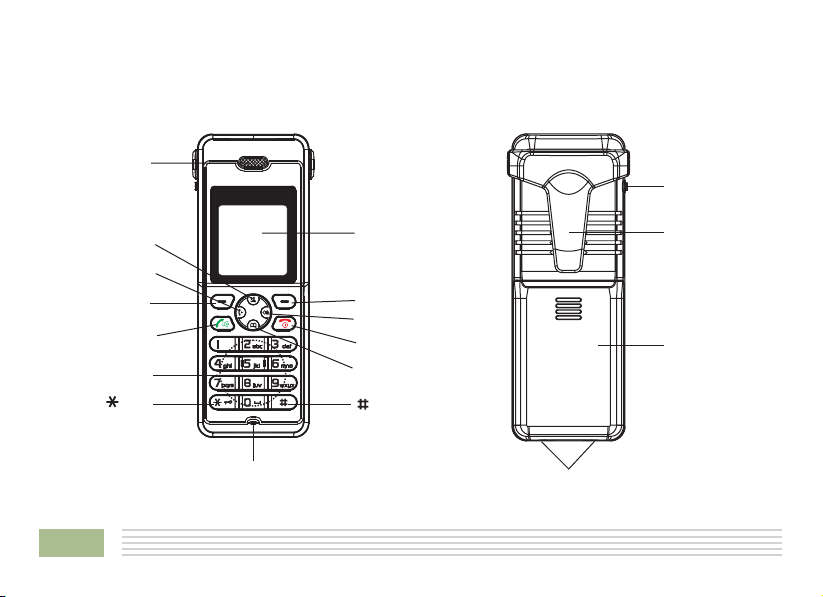

Handset
Earpiece
Up/CID key
Left/Int key
Left soft key
Dial/Speaker key
Alph numeric
a
keys
key
7
Microphone
Display
Right soft key
Right/Redial key
End key
Down
/Phonebook key
key
Charging contacts
Ear-microphone
jack
Carrying clip
Battery
compartment
cover
n Phone Layout and Keys Function (continued)

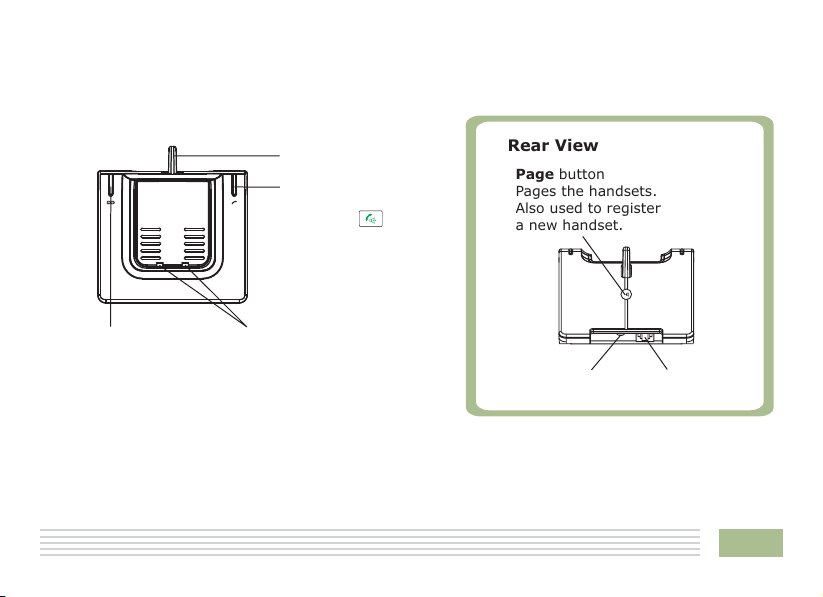

Base
Charge indicator
lights
steadily
while the handset
is charging.
Antenna
In use indicator
flashes when you
press the key.
It also flashes
when you page
the handset.
Charge pins
Rear View
Page button
Pages the handsets.
Also used to register
a new handset.
Power Jack
Phone Line Jack
8

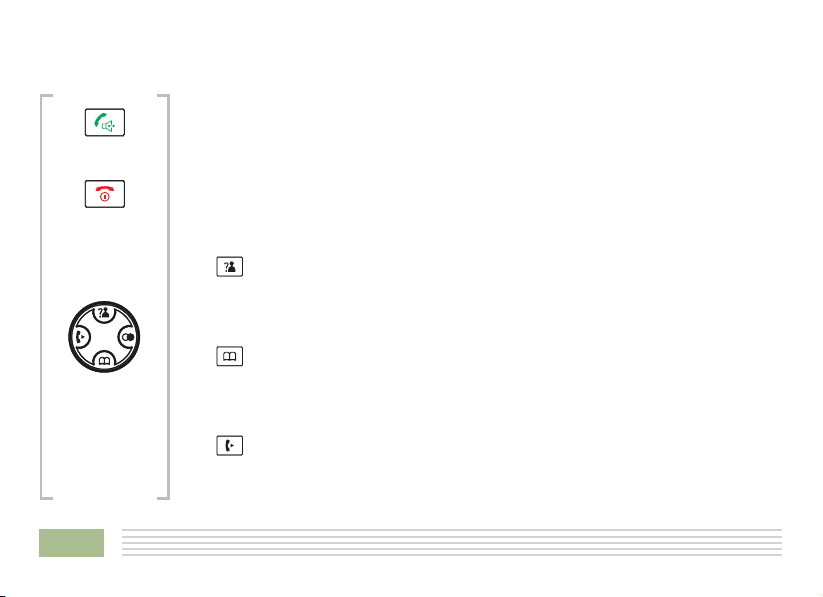

n Keys Description
Dial/Speaker key
Make/Answer a call.
Activates the speakerphone if pressed during a call
End key
End a call.
Long press to activate power on/off, as described in page 12.
Navigation key:
Up/CID key
Scroll up through lists and menu options.
Increase the earpiece/speakerphone volume during a call.
Enter the CID book, as described in page 19.
Down/Phonebook key
Scroll down through lists and menu options.
Decrease the earpiece/speakerphone volume during a call.
Enter the Phonebook, as described in page 29.
Left/Int key
Set up an internal call to another handset.
Transfer an incoming call to another handset.
Set up a conference call with an external line and an internal handset.
9
, as described in page 25.
n Keys Description (continued)
Right/Redial key
Enter the redial book, as described in page 17.
Insert a pause when pre-dialing a number.
Left/Right soft key
Perform the functions indicated by the text immediately over it (on the bottom
line of the display) which changes time by time.
key
Press and hold to turn on/off keypad lock function.
Set up a conference call, as described in page 39.
10

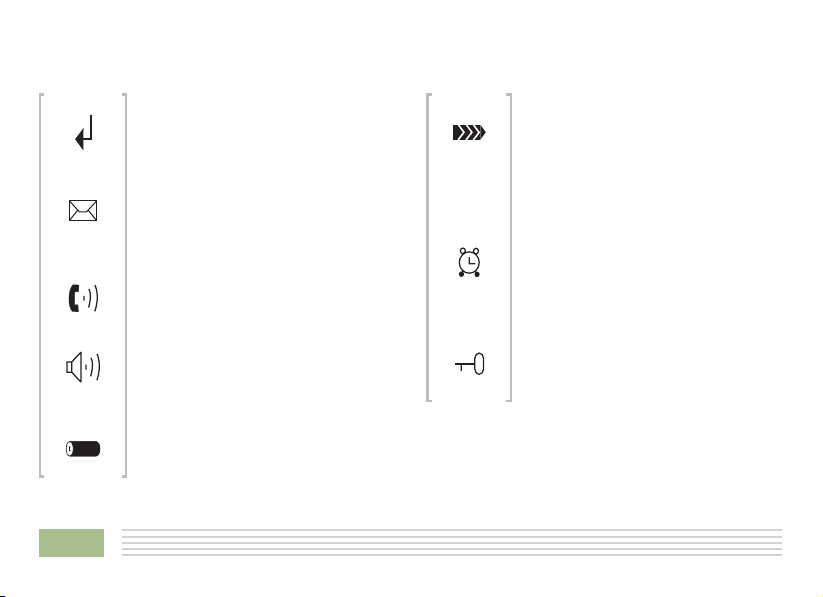

n LCD Window Icons Description
11
New Call
Indicates you have missed one
or more calls.
MSG Waiting
Indicates you have one or more
voice messages.
Off Hook
Indicates the line is engaged.
Hands-free
Indicates the handsfree function
is enabled.
Battery Icon
Indicates battery charge level.
Signal Icon
Indicates whether the current
signal exists or not. If the
handset is too far from the base,
this icon will blink on the LCD.
Alarm Icon
This icon appears when you set
an alarm to ring at a specified
time.
Keypad lock
This icon appears when the
keypad is locked.
n Connecting Lines
1.
Connect one end of the phone line cord to the phone
line jack of the base, and the other end to a
standard phone wall outlet.
Connect the modular end of the AC power adapter to
2.
the power jack of the base, then plug the AC
adapters into a standard AC wall outlet.
n Installing Batteries
The rechargeable Ni-MH batteries (AAA size, 1.2V,
600mAh) come with your phone. Install the batteries
before use.
1.
Slide the battery cover in the direction of the
arrow and pull it out.
Insert new batteries as indicated, matching
2.
correct polarity (+,-).
To AC wall outlet
Note:
Reversing the orientation may damage
the handset.
Tophonewalloutlet
12
n Installing Batteries (continued)
3.
To replace the battery
cover, slide the cover up
until it snaps in place.

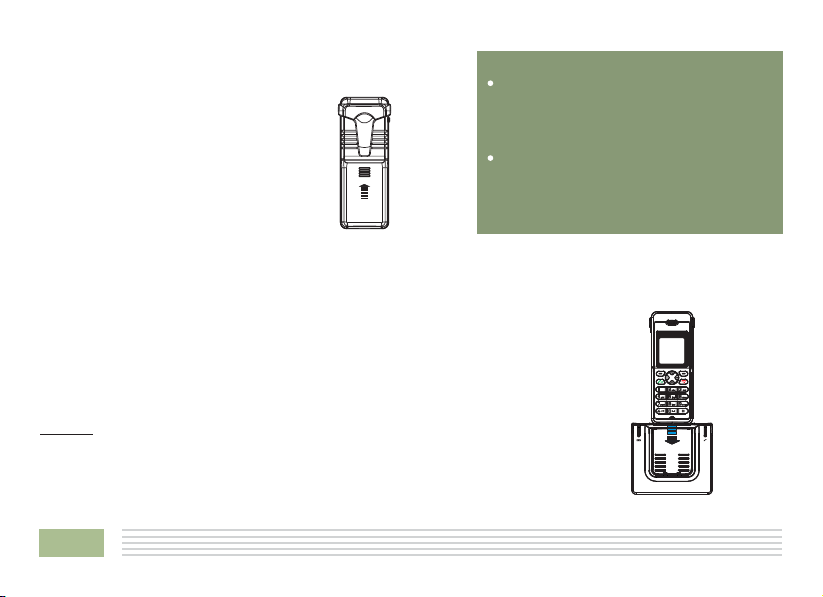

n Charging Handset
Notes:
The batteries need to be replaced if
they do not recover their full storage
capacities after recharging.
When replacing the batteries, always
use good quality Ni-MH re-chargeable
batteries. Never use other batteries
or conventional alkaline batteries.
! Important Note YOU SHOULD FULLY
To charge the handset, you should place it on the base.
Result: When you place the handset on the base, the handset
automatically turns on and the indicator lights on
during the charge.
: Before initial operation,
CHARGE THE HANDSET 15
for about hours.
Charge
13

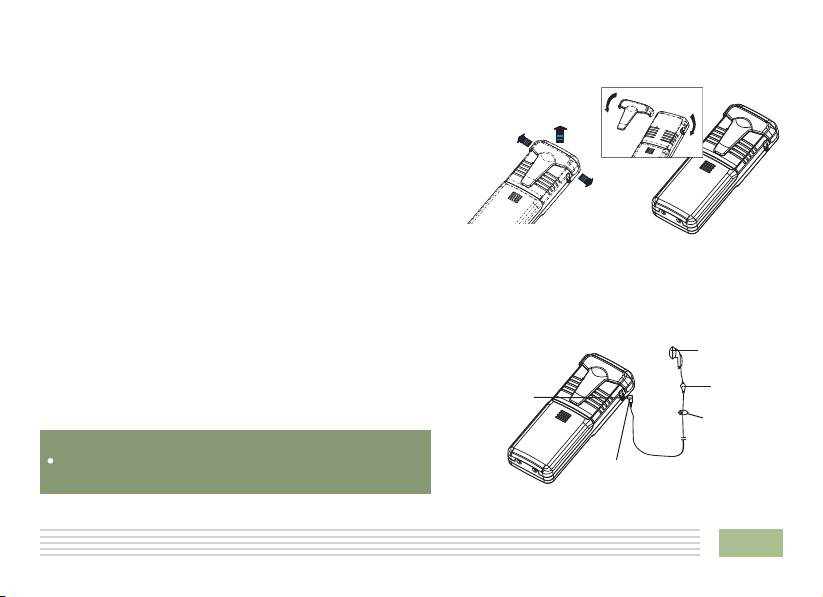

n Using Handset Carrying Clip
The supplied handset carrying clip allows you to
conveniently carry the handset with you. It clips
easily to your belt, waist band, or shirt pocket.
If you want to remove the carrying clip:
Insertascrewdriveralongtheedgeofoneof
itsarmsandreleasetheclip.Thenliftitoff.
n Using Headset (optional)
The headset jack is located in the left side of the
handset and is standard plug. Simply plug
the into the jack and the will be
headset headset
activated.
Note:
When the headset is plugged into the headset jack
the microphone on the handset will be deactivated.
2.5mm
Headset jack
Earphone
Microphone
Clip
Headset plug
14
n Turning Handset On/Off
When the handset is in power off mode and you
place it on the base, it automatically turns on. To
turn the handset on or off in standby mode,
follow these steps:
1. , press and hold the
To turn the handset on
key until the display is switched on. While the
handset searches for a base, the signal icon
will flash and the following message will be
displayed.
Searching...
2. , keep the key
To turn off the handset
pressed until the display is switched off.
15
When the handset has found the base, it will
enter the standby mode, the display will show
handset number and the handset name (if you
have one saved as described on page 23), signal
icon, battery icon and current time. If the
handset is unsuccessful in finding a base, the
handset will behave according to the Out of
Range condition.
Note
:
If the battery power is very low when you
place the handset on the base, the following
message will be displayed.
FULLY CHARGE THE HANDSET BEFORE
USING.
YOU SHOULD
Charging...
Basic Functions
All descriptions in this manual assume that the handset is in standby mode. Set the telephone to
standby mode by pressing the key.
n Making a Call
1. Pick up the handset and press the key.
Result: The indicator flashes and the
2. Dial a telephone number.
3. To end the call, either press the
or replace the handset on the base.
Note
To make a call to the last number you dialed,
use the feature. For details, see page
17.
In use
icon appears on the LCD.
key
:
Redial
You can enter the desired phone number in
standbymode,whichallowsyoutomake
corrections before dialing. Follow these steps:
1. Enter a telephone number (up to 32 digits).
Check it. You can also use the key to
insert a pause.
Note
:
If you make a mistake while entering a
number, press the soft key to clear
thelastdigit.
2. When the number appears correctly, press
the key.
Erase
16
n Receiving a Call
he indicator
When a call is received, t
on the base will blink. The
information will appear, too.
If the caller can be identified, the caller's
phone number is displayed. If the caller
cannot be identified, only the
information If you have a voice
message, the icon and " "
will be shown on the LCD.
1. To answer the call, press the key. If
you have activated the Auto Answer
function, when the handset is on the
base,simplyliftituptoanswer.
2. To end the call, either press the key
or replace the handset on the base.
displays.
17
In use
New Call
New Call
MSG WTG ON
Result: After you hang up, the LCD displays the
call duration.
Notes:
You can select the ringer volume by using
the or key when the phone rings with
an incoming call.
If you want to deactivate the icon, press
the key in standby mode, then press and
hold the key. After that, press the key
to return to standby mode. (The handset
must be registered to the base.)
If the polyphonic ring tone is set, the ring
tone may continue for 4 seconds after the
caller's hang-up or after the parallel phone
had answered the call.
4
ghi
n Muting the Microphone
During a conversation, you can temporarily
switch your phone's microphone off, so that the
other party cannot hear you.
Example: You want to say something to another
person in the room but do not want
the other party to hear you.
n Adjusting Voice Volume
During a conversation, you can use the
to adjust the level of the earpiece (or
key
the handsfree speakerphone one, if activated)
volume from to . The selected volume
will be displayed on the LCD.
V.1 V.5
or
To mute your microphone, press the soft
key during the conversation. The " "
appears on the LCD.
To unmute the microphone, press the soft
key again. You will restore the normal condition.
You can also select the earpiece volume or the
speaker volume by the in Menu
under , as described in page 34.
HS Settings
Audio Setup
Mute
Call Muted
Mute
18
n Ringer Setting
You can select your own external (from the
telephone Network) or internal (from other
handsets registered to the same base) ring tone
and adjust the volume.
1.Press the soft key.
2.Press or key to choose
menu, then press the soft key.
3.Press or key to choose ,
press the soft key.
4.Press the soft key to choose
Ring EXT
Ring Select
5.Press or key to choose or
Volume Select
Menu
HS Settings
Select
Ring Setup
Select
Select INT
or press the key to choose
, press the soft key.
Melody
, press the soft key.
19
Result: You can select the ring tone from
Melody 1 to 10 or adjust the volume
fromVolume1to5,oroff.Whenyou
adjust the ring tone or volume, the
phone plays the selected melody or
sounds the selected loudness.
6.Press the soft key to confirm.Save
Note
:
If you set the volume to " ", when a
call comes in, only the
information appears on the LCD.
Off
New Call
n Last Number Redial
1. Press the key or the soft key in
standby mode.
Result:
2.Pressthe keytodialoutthenumber.
Your phone allows you to retrieve the last 10
numbers you have dialed and recall them
quickly.
The LCD displays the last number you
dialed.
Redial
Search for and dial a number in
Redial Book
1. Press the soft key in standby mode.
2. If you want to scroll through the memory,
press repeatedly until you
find out the number you want to dial.
3. Press the key to dial out the number.
Redial
or key
Notes
:
If no numbers are found, " " is
displayed.
When the redial book is full, each time you
dial a new number, the oldest number
stored in the redial book is automatically
erased.
Empty
Use Redial Book options
Using the redial book options, you can add a
number to phone book or delete a number in
the redial book.
1.Pressthe softkey.
2. Scroll to the desired number by using the
3. When the number appears on the display,
press the soft key to choose the
desired option:
Redial
or key
More
.
20
Add to PB:
phone book. Complete storing the entry by
starting from step 4 described in par."Adding the
Phone Book Entries" (obviously, you will find the
number already entered in the appropriate field).
Delete:
Delete All:
book.
allows you to add the number to the
allowsyoutodeletetheselectednumber.
allows you to delete the whole redial
4. To return to standby mode, press the
key.
Note
:
At step 3, when you select or
Delete All Confirm ?
options, a message " "
Delete
will further ask you to confirm the deletion.
To confirm press the or soft key,
to escape press the soft key.
Del Del All
Cancel
21
n CID Book
When you receive a call, if the caller's
information is transmitted from the network
on which the call was made (and the caller
doesn't hide it), the caller's phone number is
displayed. Moreover, if you missed one or
more calls, the icon will appear on the LCD.
If the CID memory is full, the icon will
flash on the LCD.
Out Of Area
someone calls from an area where the
telephone company is not offering the caller
identification services or is not yet providing
number delivery to your area.
Private
to prevent his name and number from being
sent, the message will show on the LCD.
- This message will display when
- If the caller has exercised the option
View and dial any of the CID
numbers
1. Press the soft key.
Menu
2. Use the soft key to choose the ,
3. Use to view the numbers, you can
Note:
Select CID Book
and if available, the numbers are displayed. (You
can also access the CID book directly by pressing
the key in standby mode.)
or key
make a call by a press of the key. You can
also add the entry to the phonebook.
At step 3, each item of the incoming list is
marked with the icon if the call has been
reviewed or with the icon if the call hasn't
been reviewed yet.
Add CID Number to Phone Book
1. Press the soft key.
2. Use the soft key to choose the .
3. Use to view the numbers, when the
desired number displays on the LCD, press the
More Add to PB
Menu
Select CID Book
or key
soft key to enter menu.
22
4. Press the soft key, you are prompted to
enter the name.
5. Enter the name and press the soft key,
then you can modify the number you want to
store.
6. Press the soft key, you are able to select
the ring tone from Melody 1 to Melody 10,
press the soft key to confirm and exit,
you will hear a confirm beep.
Select
Next
Next
Save
Delete a number in the CID Book
1.Pressthe softkey.
2. Use the soft key to choose the
Book
3. Scroll to the number you want to delete by
using .
4. When the desired number appears on the
display, press the soft key.
Menu
Select CID
.
or key
More
23
5. Use to choose , press
the soft key. The display will show
" ". Press the soft key to
confirm, you will hear a beep and the LCD
shows the next number.
or key
Select
Confirm ? Del
Delete
Delete all numbers in the CID Book
1. Press the soft key.
2. Use the soft key to choose the
Book
3. Press the soft key and use the
press the soft key.
4. The display shows " ", press the
Del All
Result:
Menu
Select CID
.
More
to choose menu, then
key
Select
soft key to confirm.
You hear a beep and the phone
returns to the standby mode after
clearing all the CID numbers.
Delete All
Confirm ?
or
n Key Lock
If you turn on this feature, all keys will be locked.
You can answer calls by using the key. But
when you hang up, the phone returns to the
locked mode. This feature is useful to avoid
pressing keys by mistake.
To lock the keys, in the standby mode just keep
the key pressed till the display shows "
", then the icon appears.
Locked
To unlock the keys, keep the key pressed
again till the key lock icon disappears from
the display.
Note
:
In locked mode, if you press any key, the
phone will generate a warning tone, and the
HS Locked
" " message will be redisplayed.
HS
24
n Auto Answer
With this feature, you can answer a call by
just picking up the handset from the base
without pressing any key.
1. Press the soft key.Menu
2. Press repeatedly to choose
or key
,pressthe key.HS Settings Select
n Selecting a Language
The handset supports 9 predefined languages,
English, French, Spanish, German, Polish,
Slovak, Czech, Turkish and Greek. You can
change the language used to display the
menu messages.
1. Press the soft key.
2. Press repeatedly to choose
25
Menu
or key
,pressthe key.
softHS Settings Select
3. Use to choose ,
then press the soft key.
4. Use the to choose / to
enable/ disable the function, then press the
Save
3. Use to choose , then
press the soft key.
4. The languages will be displayed. Use the
or key
language will be displayed in its own native
translation.
5. Press soft key to select the required
language and you will hear a confirm beep.
or key
Select
or key
softkey,youwillhearaconfirmbeep.
or key
Select
to scroll through the options. Each
Save
Auto Answer
On Off
Language
n HS Name
Using this feature, you can define a name of the
handset in order to easily recognize your handset
if you have more than one registered on the
same base. To set the handset name:
1. Press the soft key.
2. Press repeatedly to choose
Settings Select
Menu
or key
, press the soft key.
HS
n Range Alarm
A beep will sound when the handset is out of
range of the Base. You are able to select to
enable/disable this audible warning.
1.Pressthe softkey.
2. Press repeatedly to choose
HS Settings Select
Menu
or key
, press the soft key.
3. Use to choose , then
press the soft key.
4. You can enter the handset name (up to 12
3. Use to choose ,
4. Press the to choose ,
then press the soft key.
5. Use to choose / to
or key
Select
characters) by using the alphanumeric keys
(use the soft key to delete the incorrect
characters), then press the soft key to
confirm and exit. The handset name will be
displayed above your handset number in
standby mode.
then press the soft key.
enable/disable this audible warning, then
press the soft key, you will hear a
confirm beep.
Erase
or key
Select
key
Select
or key
Save
HS Name
Save
Tone Setup
Range Alarm
On Off
26
n Paging
You can page the handset from the base unit
making it ring with a special tone. It's useful to
locate a lost handset.
Press the key on the base unit (less than 5
seconds), all the handsets registered to the
base will ring for about 60 seconds.
n Dial Mode
You can select to change the dial mode by the
following steps:
1. Press the soft key.
2. Press repeatedly to choose
Settings Select
3. Press the to choose , then
press the soft key.
27
Menu
or key
, and press the soft key.
key
Select
Dial Mode
BS
To stop paging, press the key on the base again
or any key on the handset.
Note:
On a long key press, more than or equal to
5 seconds, the base will enter subscription
mode. For details, see page 37.
4. You can press to select the required
dial mode options ( / ) and press the
soft key. A confirm beep will be heard.
Save
Note:
If you are not sure which dialing mode should
be selected, please contact your local service
provider.
or key
Tone Pulse
n Handsfree
During a call, you may turn on the
speakerphone built in the handset. In this
mode you can simply put your handset on a
surface (e.g. a desk) and enjoy the comfort
of the handsfree conversation.
To turn the feature on key
during a call (line engaged). The icon
appears on the LCD.
,pressthe
n Flash Signal
When the line is engaged, pressing the soft
key sends the Flash signal. This key is used in
conjunction with special services (e.g. call waiting)
which can be available in your phone network.
For further details please contact your network
telephone company.
Flash
To turn the feature off, and keep on talking in
normal mode, press the key again. The
icon will disappear.
Notes:
Before putting the handset near your ears,
be sure you have turned the speakerphone
off.
To adjust the speakerphone volume, see
page 15 or page 34.
To use the said special services, just press the
soft key while the line is engaged: the
Flash
display will show .
R
28
Advanced Functions
n Menu Navigation
To access a menu option:
1. To display menu items, press the
soft key.
2. To scroll through menu options, press the
or key
3. To select a menu, press the soft key
when the desired menu appears on the LCD.
4. Repeat if necessary.
repeatedly.
Select
Menu
29
To return to standby mode:
BackIf you press the soft key from any menu,
the phone returns to the previous screen.
To return to standby mode, press the key.
Also, the phone will automatically return to
standby mode from any menu if no key is
pressed in the next 40 seconds.
Note:
In standby mode, you can press key to
switch the backlight on/off.
n Menu Map
1. CID Book
2. Phonebook
New
(see page 32)
Edit
(see page 33)
Delete
(see page 33)
Delete All
PB Status
3. BS Settings
Term in ate HS
Dial Mode
Flash Time
Modify PIN
BS Reset
(see page 33)
(see page 33)
(see page 27)
(see page 35)
(see page 22)
(see page 34)
(see page 34)
(see page 35)
4. HS Settings
Alarm
(see page 36)
Audio Setup
Ring Setup
Tone Se t up
Language
HS Name
Auto Answer
LCD Contrast
Date&Time
Select Base
HS Reset
5. Registration
(see page 25)
(see page 26)
(see page 39)
(see page 37)
(see page 19)
(see page 26, 37)
(see page 25)
(see page 38)
(see page 38)
(see page 39)
(see page 40)
30
n Phone Book
The phonebook built in your cordless phone allows you to store frequently used numbers so that you can
easily make a call without having to remember or enter the phone number.
Character Map
To enter a specific alphanumeric character, press one or more times the relevant key for the required
character according to the following table: once for the first character, twice for the second and so on.
31
Key
0
1
2
3
4
5
6
7
8
9
Characters in the displayed order
(spc)
1@
A
D
G
J
M
PQ
TUV
WX
?
0
_
B
C
E
F
H
I
L
K
N
O
R
Y
/
&
-"
+
a
b
de f
g
h
j
k
m
no
pq
S
uv8
t
wxyz9
Z
.
c
i
l
,
!
()
2
3
4
5
6
s7
r
%
Adding the Phone book Entries
1. Press the soft key.
2. Press to choose , press
the key.
3. Press the soft key to choose .
4. The display shows " ". Enter the name
you want to use, then press the soft key
to confirm. The display shows " ".
Enter the desired number (up to 20 digits),
press the soft key.
5.*Use to select the ring you like to
associate with the number, press the
soft key to confirm.
6. Repeat if necessary.
* If you want to set a VIP number, you should
select a special ring tone for it. The ring tone
should be different from the external ring you
have set. You can set up to 9 VIP ring tones
associate with 9 VIP numbers/groups.
Menu
the key
Select
soft
Select New
Name ?
Next
or key
Phonebook
Next
Number ?
Save
Note:
If you make a mistake while entering a
number, use the soft key to correct it.
Each time you press the key, the last digit is
deleted.
Erase
Using a Pause
A pause is useful when you access an interactive
voice response system, such as an automated
banking system. A pause provides a delay of 3
seconds. If you want to insert a pause when you
dial a number in standby mode or store a number
in memory, press the key. The letter will
appear at the pause entry.
P
Viewing the Phone book Entries
1. In the standby mode, press the key.
2. Press repeatedly until the desired
entry is displayed.
or key
32
Dialing a Number from Phone book
Find out the number you want to dial. Refer to
"Viewing the Phone book Entries". Then press the
key or soft key.Dial
Editing the Phone book Entries
1. Press the soft key.
2. Press to choose the ,
press the key.
3. Press to choose menu. Press
the soft key.
4. Press repeatedly until the entry
you want to edit displays, press the soft
key to confirm.
5. If necessary, press the soft key to clear
the digit(s) then enter the desired name and
number, press the soft key to save.
6. Use to select the ring you like to
associate with the number, press the soft
key to confirm.
Menu
the key
Select
the key
Select
or key
or key
soft
Phonebook
Edit
Select
Erase
Next
Save
33
Deleting the Phone book Entries
1. Press the soft key.
2. Press to choose the ,
press the key.
3. Press to choose . Press the
Select
4. Press repeatedly until the name
you want to delete displays, then press the
Select Confirm ?
You can press the soft key to delete it or
press the key to exit.
5. At step 3, if you choose menu and
press the soft key, the display will show
Confirm ? Del All
" ". You can press the soft
key to delete all the entries or press the
Cancel
Menu
the key
Select
soft
or key
soft key.
or key
soft key. The display shows " ".
Cancel
Select
key to exit.
Del
Phonebook
Delete
Delete All
PB Status
The PB Status shows the number of phone book
entries already stored. When the
shows on the LCD, press the soft key to
enter it.
PB Status
Select
n BS Settings
Terminate HS
This function allows you to delete a handset
registration from the base.
1. Press the soft key.
2. Press or key to choose ,
then press the .
3. Press the soft key to choose the
Terminate HS
" " to prompt you to enter the PIN Code
(The default PIN Code is "0000"). Then press
the soft key.
4. Use to select a handset. If you
select the current handset or a non-existent
handset, a warning tone will be heard.
5. Press the soft key to confirm, and the
selected handset will behave according to
the unregistered condition.
PIN?
OK
Menu
Select
Select
or key
Select
soft key
BS Settings
menu. The display shows
Flash Time
You can select to change the Flash time by the
following steps:
1. Press the soft key.
2. Press or key to choose ,
then press the .
3. Use or key to choose menu.
Press the soft key.
4. The display shows the current setting. Use the
press the soft key.
Menu
Select soft key
Select
or key to select / ,
Save
BS Settings
Flash Time
Flash-1 Flash-2
34
Modify PIN
This function allows you to change the PIN
number of the currently active Base. The default
PIN is 0000.
1. Press the soft key.
2. Press or key to choose ,
then press the .
3. Use to choose menu,
press the soft key.
4. The display shows " ". Enter the current
PIN, then press the key. If the old PIN
code is correct, you will be prompted to enter
a new PIN code, otherwise a warning beep will
sound and the handset will return to the
Modify PIN
5. Enter the new PIN, press the key. You
will be requested to confirm the PIN code.
Enter the new PIN again then press the
soft key to confirm and exit.
Menu
or key
Select
menu.
Select soft key
BS Settings
Modify PIN
PIN?
Next
Next
Save
35
BS Reset
If you reset the base, all the features under
Settings
initial setting: Dial Mode and Flash Time.
1. Press the soft key.
2. Press or key to choose ,
3. Press to choose menu,
4. Enter the PIN code (the default PIN is 0000),
Result:
menu will be restored to the factory
Menu
then press the .
press the soft key. You will be
prompted to enter the PIN code.
then press the soft key. If the PIN
code is validated all Base settings will be
reset to the factory default, otherwise the
settings will remain.
After resetting, the handset will return
to standby mode.
Select soft key
or key
Select
Reset
BS Settings
BS Reset
BS
n HS Settings
Setting Alarm
You are able to set the alarm on the handset
and adjust the alarm settings.
1. Press the soft key.Menu
2. Press or key to choose ,
then press the .
3. Press the soft key to choose
menu.
4. The display shows the current set. Use the
or key to select / , press the
Select
5. If you select , the display indicates you
to enter the time in : format. Use
the numeric keypad to enter.
Select soft key
Select Alarm
soft key.
On
HH MM
H
On Off
S Settings
6. Press the soft key, a beep sounds and
the display shows you can
press or key to enable or disable the
snooze function on the alarm and press the
Save
7. When the alarm sounds, press any key to
stop the ring.
Notes
At step 5 you need to enter the time in 24Hour format.
If you press any key at the right time the
alarm to ring, the alarm will be silent.
If you choose , the alarm will
ring at regular intervals of 11 minutes. If
you press the key when the alarm
sounds, the option will be switched to
Snooze Off
Next
Snooze On/Off,
soft key.
:
Snooze On
.
36
Audio Setup
You can also use the menu to adjust the audio
volume.
1. Press the soft key.
2. Press or key to choose ,
then press the .
3. Press the key to choose
menu, press the soft key.
4. Use or key to choose or
Earpiece V. Select
5. The display shows the current setting. Use the
(Volume 1 -Volume 5), press the soft key.
Menu
S Settings
Select soft key
Select
, press soft key.
or key to choose the volume level
H
Audio Setup
Speaker V.
Save
37
Key Tone
Every time you press a key, your handset
acknowledges it with a key tone. You can
disable the key tones for a silent use. I
error conditions, a warning tone will sound
when an incorrect key is pressed.
1. Press the soft key.
2. Press or key to choose ,
then press the .
3. Press to choose
menu, press the soft key.
4. Press the soft key again to choose
Key Tone
5. You can use to choose or
to enable or disable the function.
6. Press the soft key.
Note:
For normal use, we recommend you
leave the key tone enabled. This makes
the phone easier to use.
Menu
Select
or key
Select
Select
.
or key
Save
soft key
ncertain
H
S Settings
Tone Setup
On Off
LCD Contrast Setting
The adjustment allows you to optimize the
visibility of the display by changing its contrast
according to the environment conditions.
1. Press the soft key.
2. Press or key to choose ,
then press the .
3. or key repeatedly to choose
Press
Contrast Select
4. Use or key repeatedly to choose among
the 17 available contrast levels, then press the
Save
5. Press the key to return to standby mode.
Menu
Select soft key
, then press the soft key.
soft key.
H
S Settings
LCD
Setting Date & Time
1. Date & Time Format
1. Press the soft key.
2. Press or key to choose ,
then press the .
Menu
HS Settings
Select soft key
3. or key to choose
Press
menu, press the soft key.
4. Use or key to choose or
Time Format Select
5. You can use or key to choose the Date
Format ( / ) or the Time Format
( / ), press the soft key
to save.
2. Setting date & time
1. Perform steps 1 to 3 of previous paragraph.
2. Press or key to choose or
Time Select
3. Enter the current date/time by numeric keypad
and press the soft key to save and exit.
Notes
DD-MM MM-DD
12-Hour 24-Hour Save
menu, press the soft key.
:
If you select , / will appear
on the right of the time in standby mode.
At step 3 you need to enter the time in 24Hour format.
Select
, press the soft key.
Save
12-Hour AM PM
Date & Time
Date Format
Set Date Set
38
Selecting a Base
This function allows you to select a base from
those already registered to the handset. You can
access the options by scrolling the menu.
1. Press the soft key.
2. Press or key to choose ,
then press the .
3. Press to choose
menu, press the soft key.
4. You can use to select the base
you want, then press the soft key. If
you select a non-existent base, the handset
will sound a warning tone.
5. The display will show . Press the
Select
be heard.
Menu
Select soft key
or key
Select
or key
Selected BSX
soft key to confirm. A confirm tone will
HS Settings
Select Base
Select
39
HS Reset
If you reset the handset, all the features under
Settings
initial setting: Alarm, Audio Setup, Ring Setup,
Tone Setup, Language, HS Name, Auto Answer
and Date & Time. But LCD Contrast can not be
restored.
1. Press the soft key.
2. Press or key to choose ,
3. Press to choose the
4. Enter the PIN code (the default one is 0000),
Result:
menu will be restored to the factory
Menu
then press the .
menu, press the soft key. You will be
prompted to enter the PIN code.
then press the soft key. If the PIN code
is validated all handset settings will return to
the factory default, otherwise a warning tone
will be heard and the settings will remain.
After resetting, the handset will return to
standby mode.
Select soft key
or key
Select
Reset
HS Settings
HS
HS Reset
n Registration
The supplied handset is already registered with
the number 1.
additional handsets (up to 5 in total) in order to
share the same line with other people.
Before registering a handset to the base,
should press and hold base unit key for about
5 seconds until the indicator starts
flashing rapidly
1. Press the soft key.
2. Press or key repeatedly to choose
the , then press the
Registration
soft key
3. Use to scroll through the Base
names list, press the soft key to
chooseabasetoyournecessary.The
handset will search for the requested base
and the relevant information will flash on
the LCD.
You can register to your base
you
In Use
.
Menu
Select
.
or key
Select
4. If the base is found, you will be prompted to
enter the PIN code (the default one is 0000).
Enter it then press the
PIN code is correct, the Registration tone will
sound and then the base assigns a number to
the handset, otherwise a warning tone will
sound, and then the handset returns to the
previous registration state.
5. If the base is not found, the handset will
behave according to the Out of Range
condition.
the . IfSelect soft key
40
n Calling with more than one Handset
If you have more than one handset registered to
the same base, you can make internal calls and
transfer an external call between the registered
handsets.
Making an internal call
1. Press , the LCD displays as follows,
2. If the destination handset is unavailable, the
3. At the end of your conversation, press the
the key
then enter the number of the handset you
want to call.
handset will return to standby mode. If the
handset entered is valid, the called handset
will ring and display . The
handset user can press the key to answer
the internal call.
key.
Intercom
12345
HSX Calling
41
Note:
During the internal call, if an external call
comes in, the LCD will show the caller's
number. You should press the key to end
the internal call first then press the key
to answer the call.
Call transfer between handsets
You can transfer an external call between the
handsets those are registered to the same base.
1. During an external call, press the key then
enter the number of the handset you want to
transfer the call to.
2. If the called party can answer your call, he/she
can press the key to talk with you. At this
time you can inform him/her of the incoming
call.
3. When the called party answers, press the
key or replace the handset to the base to
complete the transfer.
Setting up a 3-way conference call
When you have both an external call and an
intercom call in progress, you can set up a threeway conference call, like this:
1. During an external call, press and
then the number of the handset you want to
join the 3-way call.
2. The called party press key to answer.
3. The calling party can press the key to start
the 3-way call.
4. Either of the two internal handsets can press
the key to leave the conference call at any
time.
Note:
If one of the handsets drops the conference
call, the remaining handsets will continue the
conference.
the key
42
n Caller ID on call waiting
When you subscribe to Call Waiting service
from your local telephone company, the
telephone will display the name and number
of the second caller while you are having a
conversation.
Caller ID info displayed
Caller 1
4361234
1.When you are on the line, the telephone will
automatically display the name and number of
the second caller.
2.Press the soft key to answer the second
caller.
3.When you have finished, press the soft
key to continue with your conversation with the
first caller.
Flash
Caller two's information
is displayed
Caller 1
4
Caller 2
2915678
Flash
43
Note:
If you have transferred an external call to
another handset, you cannot use the call
waiting function via the second handset.
Feature List
DECT 6.0 technology
5 row dots matrix LCD display (128 x 64
dots matrix display)
Up to 5 handsets for optional for one base
Up to 4 bases for optional for one handset
LCD contrast adjustable
Phonebook with up to 50 groups
9 VIP ring tones setting for phonebook
entries
Redial book with up to 10 entries
10 melody ringer and volume selectable
Key tone ON/OFF selectable
Range alarm
Full handsfree speakerphone
Internal call
Call transfer
3-way conference call
Receiver/Speaker volume adjustable
Mute
PIN protection
Predialing
Redial, Flash, Pause
TONE/PULSE dialing mode selectable
FLASH time selectable
Call duration display
Date & Time setting
Keypad lock
9 languages selectable
Auto answer ON/OFF selectable
Alarm clock include snooze option
Handset Name setting
Backlit LCD screen and keypad
Caller ID
FSK and DTMF dual system Caller ID
Caller ID / Call Waiting
Caller ID list with up to 40 entries
Incoming calls can be called back/added
to phonebook/deleted
New call indicator
Message waiting
Note:
The caller ID feature is only available if you
subscribe to a Caller Display service from
your network provider.
44
Troubleshooting
Symptom
No operation
No dial tone
Nothing appears
on the display
Handset seems
to have veryshort
battery life
Caller s number
is not displayed
45
Check & Remedy
Check that thepower adapter is properly connected.
Check that thetelephone line cord is properly connected.
Check that thehandset batteries are fully charged.
Check that thehandset batteries are installed properly.
Check that thetelephone line cord is properly connected.
Check that thepower adapter is properly connected.
Check that thehandset batteries are installed properly.
Check that thehandset batteries are fully charged.
Check that thehandset is on.
Check the charge contacts.
Consistently short battery life mayindicate that replacement of the batteries isnecessary.
Make sure the right batteriesare used.
’
Make sure you have subscribed to a Caller ID service via your network provider.
The caller may have withheld their details.
Let the phone ring a couple of times as there may be a delay in receiving the Caller ID information.

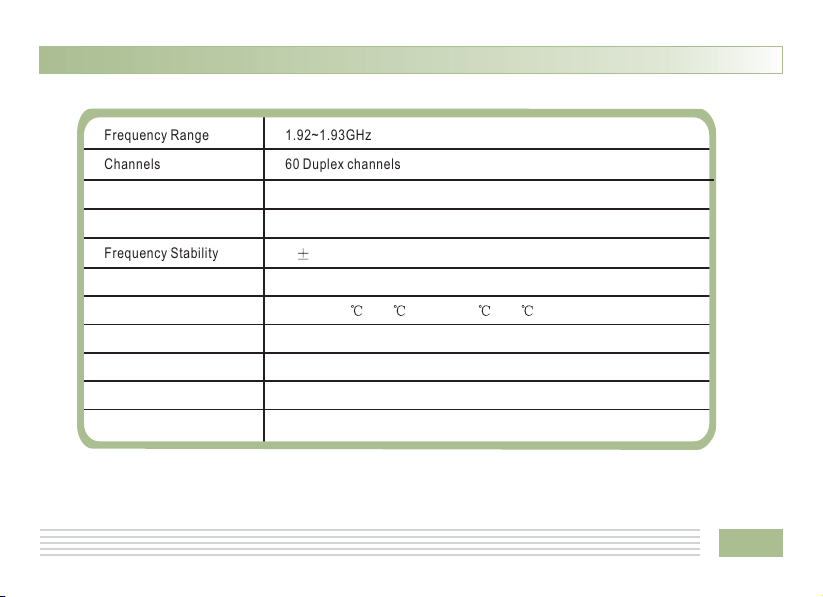

Technical Specifications
Frequency Range
Channels
Carrier Power
Modulation
Frequency Stability
Charging time
Ambient temperature
Humidity
Weight (grams)
Dimensions (mm)
Power Supply
?
Design and specifications are subject to change without notice.
1.92~1.93GHz
60 Duplex channels
<100mW
GFSK
< 50 KHz
15 hours
15 ~ 35 , Extreme:0 ~ 40
Normal:
0%~90%
Base: 131.4; Handset:82.8
Base: Handset:141x95x70; 125x46x24
Base input: 9V, 300mA;Handsetinput: Ni-MH: 1.2V 3, 600mAh
x
46
FCC Information
Part 68
FCC prior to its connection to the network. This equipment complies with Part 68 of FCC
rules. On the bottom of the telephone is a label that contains, among other information, the
FCC Registration Number and the Ringer Equivalence Number (REN) for this equipment.
You must, upon request, provide this information to your telephone company.
The , which is used to determine the number of devices you may
connect to your phone line, indicates the amount of power that your telephone draws from the
telephone company line during ringing. If you have more than one telephone (or other terminal
device) connected to the telephone company line, you should total the ringer equivalence
numbers (REN s), and be sure that the total is not more than five. Your telephones may not ring
if the total is more than five. Also, in some rural locations, your telephone may not ring if the
REN total is more than three.
RESTRICTIONS
INSTALLATION
through a modular jack. The required USOC for the modular jack is RJ11C for desk mounting
and RJ11W for wall mounting. The USOC number is printed on the label on the bottom of your
telephone.
is a Federal regulation which requires equipment to be tested and registered with the
Ringer Equivalence Number
You must not connect your telephone to coin-operated lines or party lines.
This model telephone must be connected to the telephone company lines
47
HEARING-AID COMPATIBILITY
magnetically-coupled hearing aids. You can use a hearing aid equipped with a T (Telephone)
switch.
IN CASE OFTROUBLE
telephone company can temporarily disconnect your service. The telephone company must
then notify and allow you to correct the problem.
The telephone company may from time to time change its lines or equipment. They must notify
you if planned changes will affect your telephone service, to allow you to take steps to prevent
interruptions.
Part 15
to radio, television, and other wireless devices. This telephone complies with Part 15 of the
FCC Rules. In the unlikely event that interference occurs, move the telephone and/or radio,
television, etc. to increase the separation distance.
regulates the electromagnetic energy emitted by equipment to minimize interference
If your telephone should cause problems on the telephone line, the
The handset on your telephone will work with
48
Telephone Repair
DO NOT ATTEMPT TO REPAIR THIS PRODUCT YOURSELF. Telephones manufactured by CORTELCO must be returned to us for repair. You can return your
telephone to CORTELCO for repair or replacement in accordance with our LIMITED
WARRANTY.
CORTELCO warrants THIS PRODUCT against defects in material and workmanship
in accordance with our LIMITED WARRANTY. If your telephone is returned for
repair, include a copy of your sales receipt containing the date-of-purchase. DO NOT
INCLUDE THE ORIGINAL SALES RECEIPT.
If date-of-purchase is not included, the factory date printed on the label on the
bottom of your telephone will be used as the date-of-purchase. The factory date
allows six months for distribution and sale of this product. If you return your
telephone for repair, the warranty period is not extended. The original date-ofpurchase continues to apply to your warranty.
49
OUT-OF-WARRANTY REPAIR We will repair this product for a nominal fee after
the LIMITED WARRANTY has expired if you send it to us in a complete and
undamaged condition. The repaired unit will be shipped to you C.O.D., freight
collect.
RETURN-FOR-REPAIR PACKAGING If you are returning a unit to us for
repair, package it carefully, preferably in the original carton. Be sure to include
your return address, a copy of the sales receipt showing date-of-purchase, and a
note describing the problem you have with your Telephone. Shipping must be
prepaid. If the telephone is in warranty, it will be repaired or replaced, at our
option, at no cost to you, and it will be returned shipping prepaid.
Ship your telephone (shipping prepaid) to:
CORTELCO
REPAIR CENTER
1703 SAWYER ROAD
CORINTH, MS 38834
50
LWIMITED ARRANTY
If you purchased this product new in the U.S. or Puerto Rico, warrants it against
defects in material and workmanship for a period of one (1) year from the date of original
purchase. This warranty is in lieu of all other express warranties. During the warranty period,
CORTELCO
without charge for parts or labor. This is your exclusive remedy. This warranty does not cover
damage resulting from accident, misuse, abuse, improper installation or operation, lack of
reasonable care, the affixing of any attachment not provided by with the
product and loss of parts. The warranty is voided in the event any unauthorized person alters
or repairs the unit.
Telephone companies use different types of equipment and offer various types of services to
customers.
equipment of any particular phone company or the services provided by it
agrees to repair or, at its option, replace the defective product, or any part of it
CORTELCO does not warrant that this product is compatible with the type of
CORTELCO
CORTELCO
.
CORTELCO
OF MERCHANTABILITYAND THE WARRANTYOF FITNESS FOR A PARTICULAR
PURPOSE, AS OF THE DATE ONEYEAR FROM THE ORIGINAL
DISCLAIMS ANY IMPLIED WARRANTY, INCLUDING THE WARRANTY
51
PURCHASE OF THE PRODUCT. ASSUMES NO RESPONSIBILITY FOR
ANY SPECIAL, INCIDENTALOR CONSEQUENTIAL DAMAGES.
THIS WARRANTYGIVES YOU SPECIFIC LEGALRIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARYFROM STATE TO STATE. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INCIDENTALOR
CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONGAN IMPLIED
WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT APPLY
TO YOU.
If failure occurs and your telephone is in warranty, service shall be provided by returning it to
CORTELCO - RepairCenter, 1703 Sawyer Road, Corinth, Mississippi 38834, shipping
prepaid
to be defective. Telephones received damaged as a result of shipping will require you to file a
claim with the carrier.
. The product will be repaired or replaced if examination by us determines the product
CORTELCO
52
Loading...
