Cat Back Exhaust System
Single Side Exit w/ 4.0” Pro-Series Tips
2015+ Ford F150
PN 14836 & 14836BLK and 14837 & 14837BLK

Bill of Materials

1. 13MV7057 – Hardware Kit

2. 16TA3000 – Tip Assembly

3. 20FF2025 – Rear Muffler Assembly (5.0L)

4. 20FF2027 – Rear Muffler Assembly (2.7L/3.5L)

5. 20FF4145 – Tailpipe Assembly

Please take time to read and understand these installation instructions.

CORSA recommends that the installation of this system be performed by a qualified service center or professional
muffler installer who has the necessary equipment, tools and experienced personnel. However, if you decide to
perform this install, the use of a hoist and an additional person will be required.

CAUTION: Never work on a hot exhaust system. Allow time for the vehicle to cool. Always wear eye protection when
working under a vehicle.

Recommended Tools:

 3/8” drive ratchet
 3/8” drive 13mm socket
 3/8” drive 15mm deep socket
 10” 3/8” ratchet extension
 Grommet pullers

Please confirm that all parts are present according to the bill of materials before beginning the installation.

If something is missing call Tech Support at 1- 800-486-0999

 Soap and water solution
 Torque Wrench
 Penetrating lubricant spray
 Safety glasses

4/8/2015

INS5329

CORSA Performance · 140 Blaze Industrial Pkwy · Berea, OH 44017 · P: [phone] · F: [phone]

3

E - M a i l : s a l e s @ c o r s a p e r f o r m a n c e . c o m · w w w . c o r s a p e r f o r m a n c e . c o m

Cat Back Exhaust System
Single Side Exit w/ 4.0” Pro-Series Tips
2015+ Ford F150
PN 14836 & 14836BLK and 14837 & 14837BLK

Factory Exhaust System Removal:

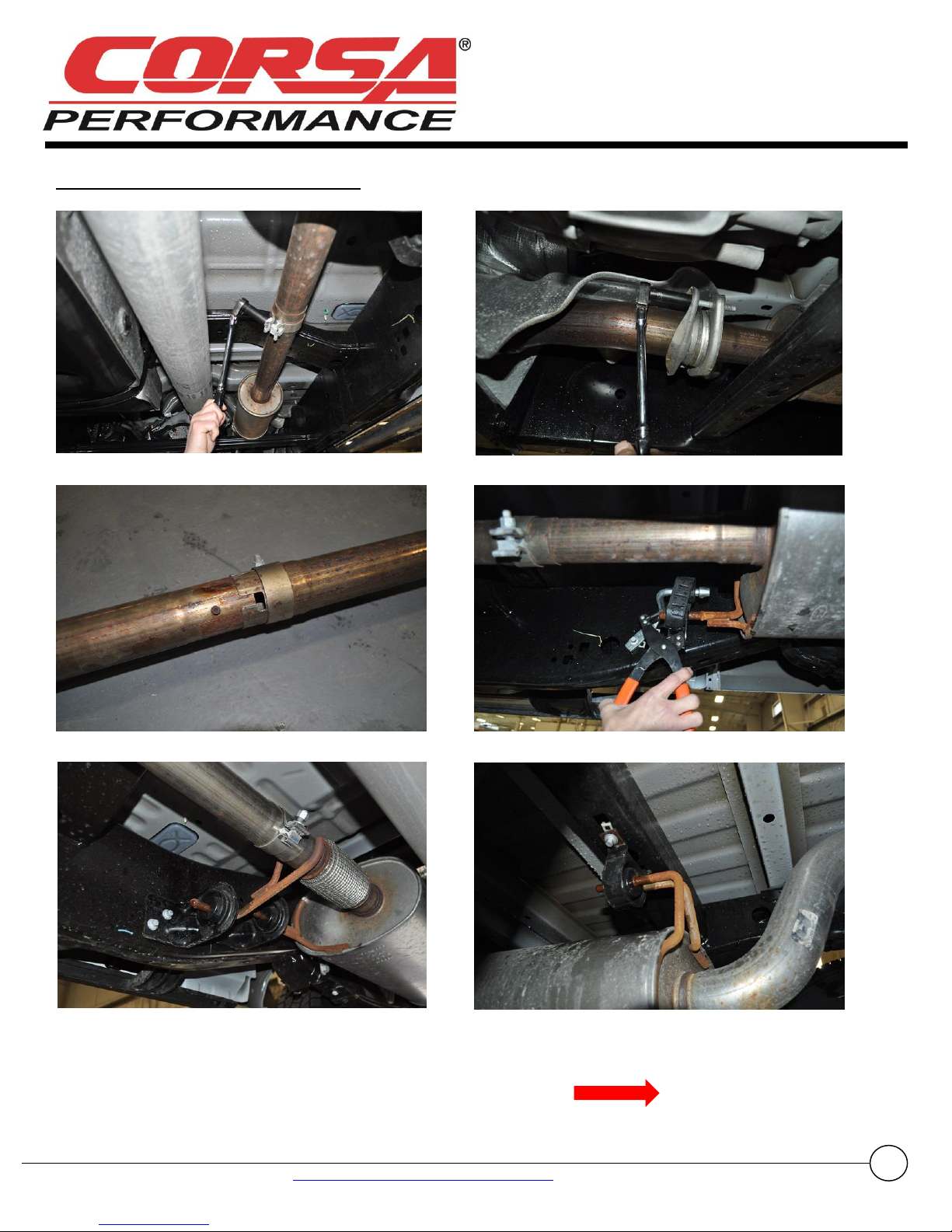

1. Loosen the clamp connection located after the stock resonator using a 15mm deep socket and ratchet. The stock

clamp is welded to the resonator assembly and cannot be removed or rotated. (Fig A)

2. Loosen the two 13mm bolts at the resonator flange connection. Do not completely remove these bolts. (Fig B)

Place a jack stand or similar device under the outlet end of the resonator for support.

3. Rotate the stock resonator clockwise until the retaining boss on the stock cat-back exhaust is aligned with the

slot on the resonator. (Fig C)

4. For the 5.0L engine only - Use the grommet pullers to remove only the front muffler hanger from its grommet.

(Fig D)

Note: The use of a soapy water solution may aid in the removal of hangers.

5. Slide the entire stock system rearward to free all remaining hangers from their grommets. Also, make sure that

the front muffler pipe cleanly separates from the resonator pipe. Use caution at this step as the weight of the
exhaust system will no longer be supported by the grommets. (Fig E, F, & G)

Note: The use of a soapy water solution may aid in the removal of hangers.

6. Once all hangers are removed from their grommets, remove the entire system from the vehicle by lowering it

down as you slide it forward and allowing the tailpipe to travel over the rear axle. (Fig H)

7. The stock exhaust should now be clear of the vehicle. (Fig I for the 5.0L)(Fig J for the 2.7L/3.5L)

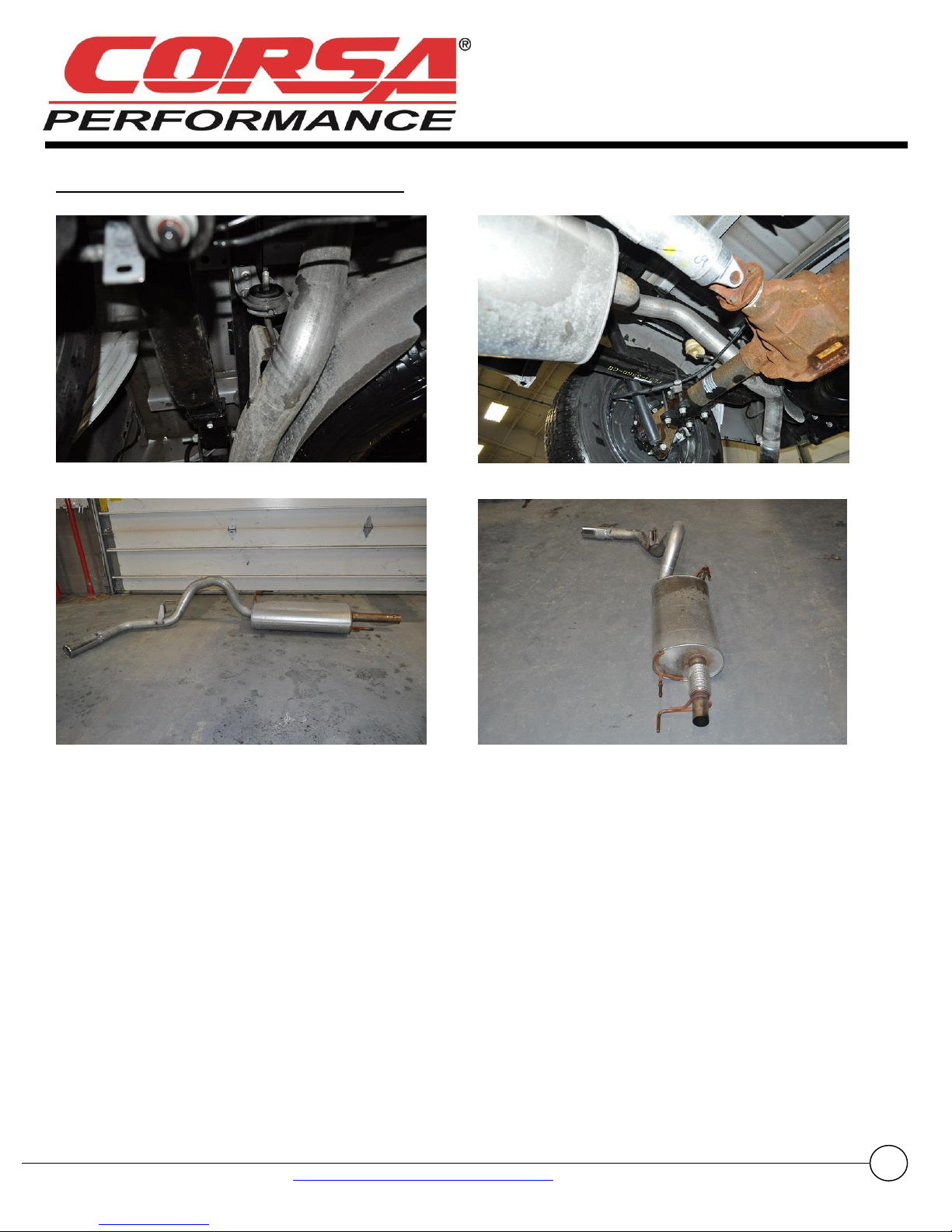

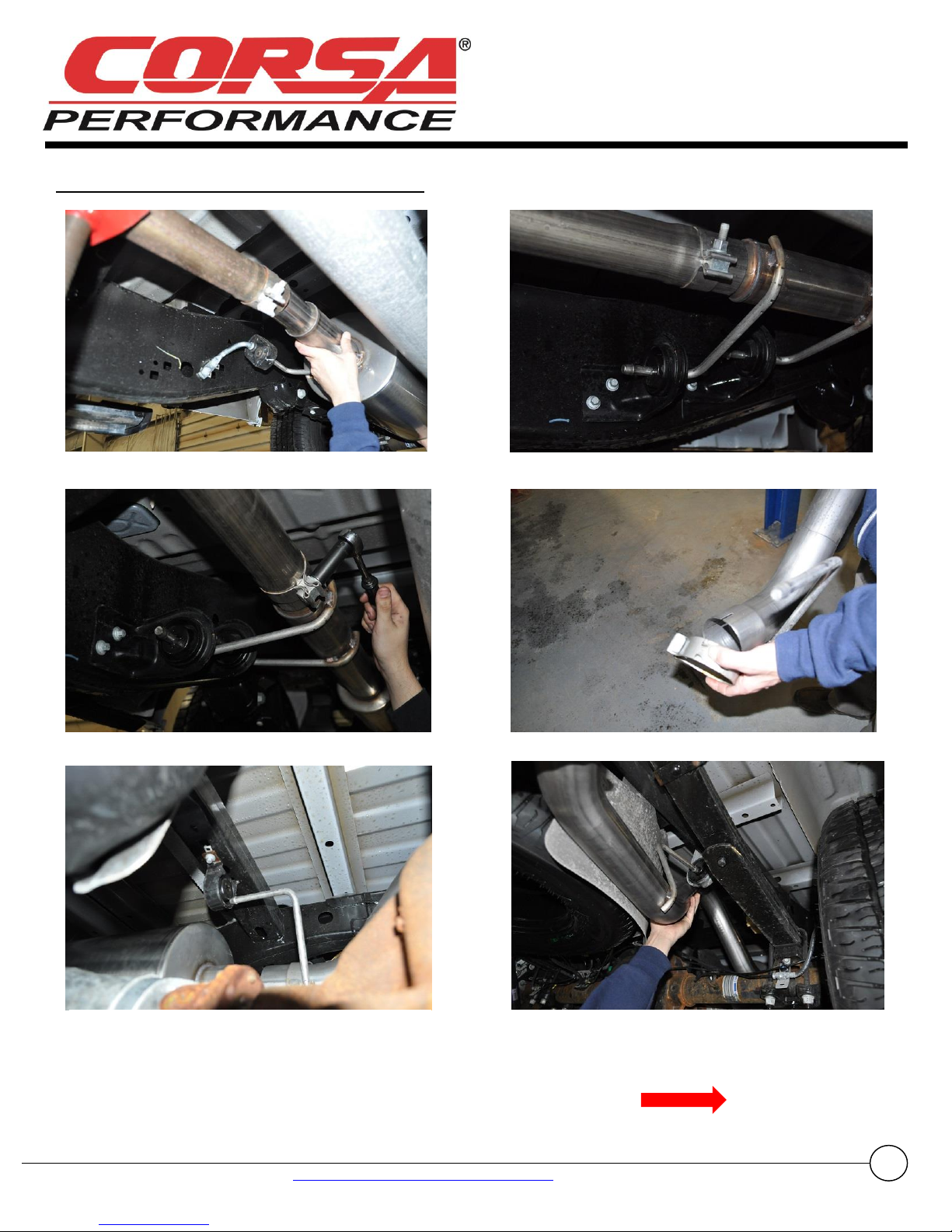

REMOVAL PICTURES ON NEXT PAGE
