Page 1

K5 ES HP PX CONDENSING DRIER

USER MANUAL

Page 2

CORROVENTA LTD

Unit 29, Irlam Business Centre, Irlam, Manchester,

England, M44 6GP • Tel +44 (0) 161-2449523

www.corroventa.com

DO YOU HAVE ANY QUESTIONS OR DO YOU NEED OUR SUPPORT?

Please visit www.corroventa.com or call us at +44 (0)161-244 95 23 and speak to an expert.

We have the knowledge and the equipment to ﬁnd a solution as eciently as possible.

Corroventa develops, manufactures, sells and hires out high quality products for dealing with water damage, moisture, odours and radon. We are market leaders and specialise in innovation within the industry. Our products are compact, eective, ergonomic and energy ecient. In emergency situations and during ﬂooding, Corroventa’s customers have access to one of the largest rental parks in Europe. We have sales oces and machine depots in several locations throughout Europe. All our manufacturing takes place in Bankeryd, Sweden.

www.corroventa.com

Page 3

2017.07

1 (31)

Table of Contents

Area of use........................................................................................................................................... 2

Delivery check ..................................................................................................................................... 2

Manufacture directive ......................................................................................................................... 3

Safety information ............................................................................................................................... 4

This is how the dryer works ................................................................................................................. 5

Overview, controls and connections ................................................................................................... 7

Electrical connection ........................................................................................................................... 8

Starting and operating ......................................................................................................................... 8

User instructions ES product family .................................................................................................... 9

Intended use .................................................................................................................................... 9

ES product family, menus and operation .......................................................................................... 10

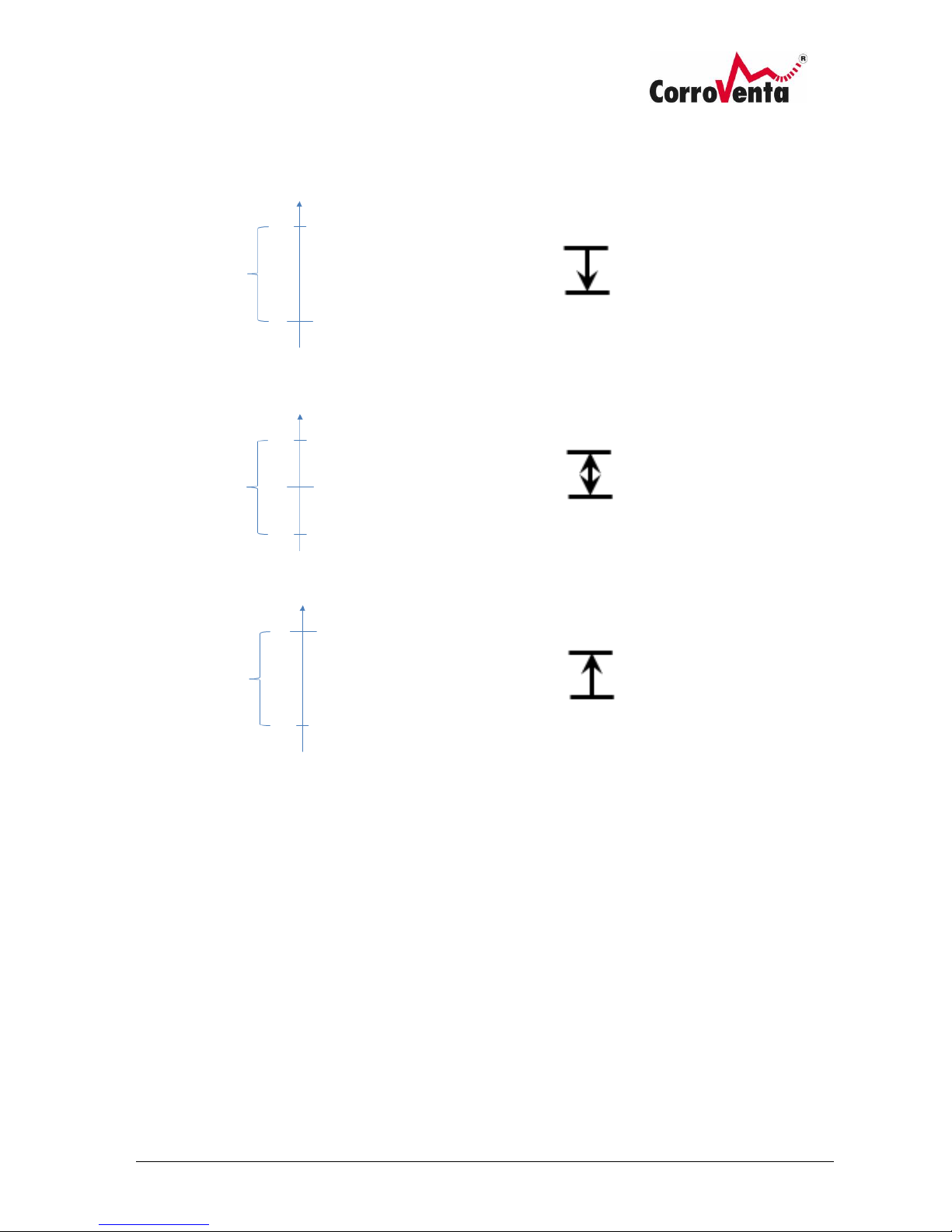

Control mode and hysteresis ............................................................................................................ 20

Alarms ................................................................................................................................................ 22

Network functions ............................................................................................................................. 23

Connecting machines to a Network .................................................................................................. 24

Service reminder ............................................................................................................................... 25

Transportation ................................................................................................................................... 25

Storage .............................................................................................................................................. 26

Bucket ................................................................................................................................................ 27

Maintenance and service .................................................................................................................. 28

Accessories and consumables ........................................................................................................... 30

Fault tracing ........................................................................................................................................... 30

Technical data ....................................................................................................................................... 31

Page 4

2017.07

2 (31)

User instructions K5 ES HP PX

Area of use

Condensing dryer K5 ES HP PX is primarily intended for professional use. It has been specially developed for use in occupied areas in event of emergency damage or where it is difficult to eliminate the humid air from an adsorption dehumidifier or run-off water from a more stationary condensing dryer. K5 ES HP PX has a built-in pump to allow continuous operation and a bucket for occasions when it is difficult to get rid of condensation water. K5 ES HP PX is compatible with and can be used together with Supervision for remote control and monitoring.

Properties:

• High capacity level

• Robust

• Fan has high and low speeds, quiet

operation

• Demand controlled defrosting

• Easy to transport

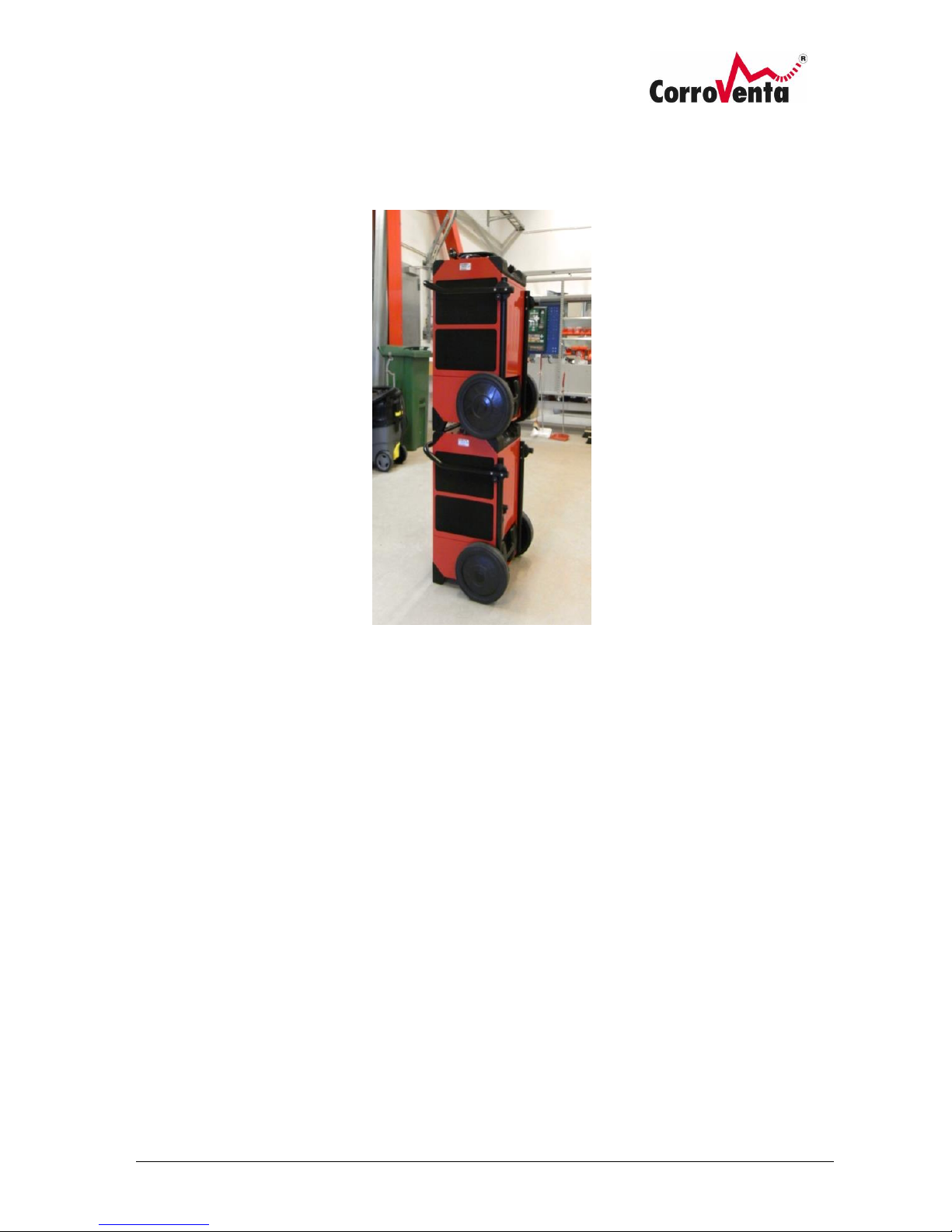

• Stackable

• Service-friendly

• Easy-to-understand user interface

• Very compact

• Low weight

• Ergonomic

• Energy efficient

• Portable and rollable

• Digital interface with network

function

• Energy and time meter – resettable

work counter

• K5 ES HP PX has an extra heater with

full temperature control that improves the drying effect

Delivery check

K5 ES HP PX is delivered fully assembled and ready to use.

The packaging contains:

Designation

K5 ES HP PX Dryer Corroventa

Page 5

2017.07

3 (31)

Manufacture directive

Condensing dryer K5 ES HP PX is CE approved.

Disclaimer

• Incorrect installation and/or incorrect use can cause property damage as well as injury.

• The manufacturer assumes no liability for damage arising as a result of failing to follow these

instructions. Such damage is not covered by the warranty.

• Changes or modifications to the machine must not be performed without written

permission from Corroventa Avfuktning AB.

• The product, technical data and/or installation and operating instructions are subject to

change without notice.

• These user instructions contain information protected by copyright laws. No part of this

document may be reproduced, stored in an information storage system or transmitted in any way or by any means without Corroventa AB's written consent.

Any comments regarding the content of this document must be sent to:

Corroventa Avfuktning AB Tel +46 (0) 36-37 12 00 Mekanikervägen 3 Fax +46 (0) 36-37 18 30 564 35 Bankeryd, SWEDEN E-post [email protected]

Page 6

2017.07

4 (31)

Safety information

The device can be used by children over 8 years old and people (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they have received guidance or information on how to use the device safely and understand the risks that may occur. Children must not play with the device. Cleaning and maintenance must not be carried out by children without the supervision of an adult.

Electrical installations carried out in connection with the dryer installation must be done by a qualified electrician in accordance with local and national regulations.

1. The dryer is only intended for indoor use.

2. The dryer must not be covered during operation, as this may cause overheating and fire.

3. The dryer's protective covers and shields must always be in place during operation.

4. The dryer must not be used as a work table, trestle or stool.

5. The dryer is not intended to stood or climbed on.

6. Never operate the dryer without installing the filter as this may damage the dryer. Ensure

that the filter is clean. If it is blocked, the machine may overheat.

7. Avoid sucking oil, grease or similar into the dryer.

8. The dryer may not be used in areas where it can produce explosive gases.

9. Do not insert objects into the intake or exhaust vents as this could damage the dryer and

people.

10. The machine must be used and transported upright.

11. The dryer must always be upright when it is in operation. Place the dryer on a firm and flat

surface so that it cannot overturn.

12. Do not damage the electrical cable. Extension cables must be intact and of the right quality

and dimension. They must nor run through water or over sharp edges.

13. Never carry or drag the dryer by the electrical cable or the drain hose.

14. Using electrical equipment in very damp or wet conditions can be dangerous. Do not operate

the dryer if it is standing in water.

15. Always use an earth-fault breaker to minimise the risk of electric shock.

16. Water must not come into contact with the dryer's electrical components. If it does, ensure

that they are dried thoroughly before the dryer is used again.

17. Never open the dryer for cleaning or service without first ensuring that the dryer is

disconnected from power.

18. Repairs and maintenance of the dryer's cooling system must be performed by a qualified

refrigeration engineer.

19. Repairs and maintenance of the dryer's electrical system must be performed by a qualified

electrician.

20. The dryer must not be used with accessories other than those described in this manual or

approved by Corroventa Avfuktning AB.

21. The dryer must be placed at a distance of at least half (0.5) a metre from walls and ceilings to

ensure that air can circulate.

Contact the supplier of this dryer for further advice on the safety and use of the product.

Page 7

2017.07

5 (31)

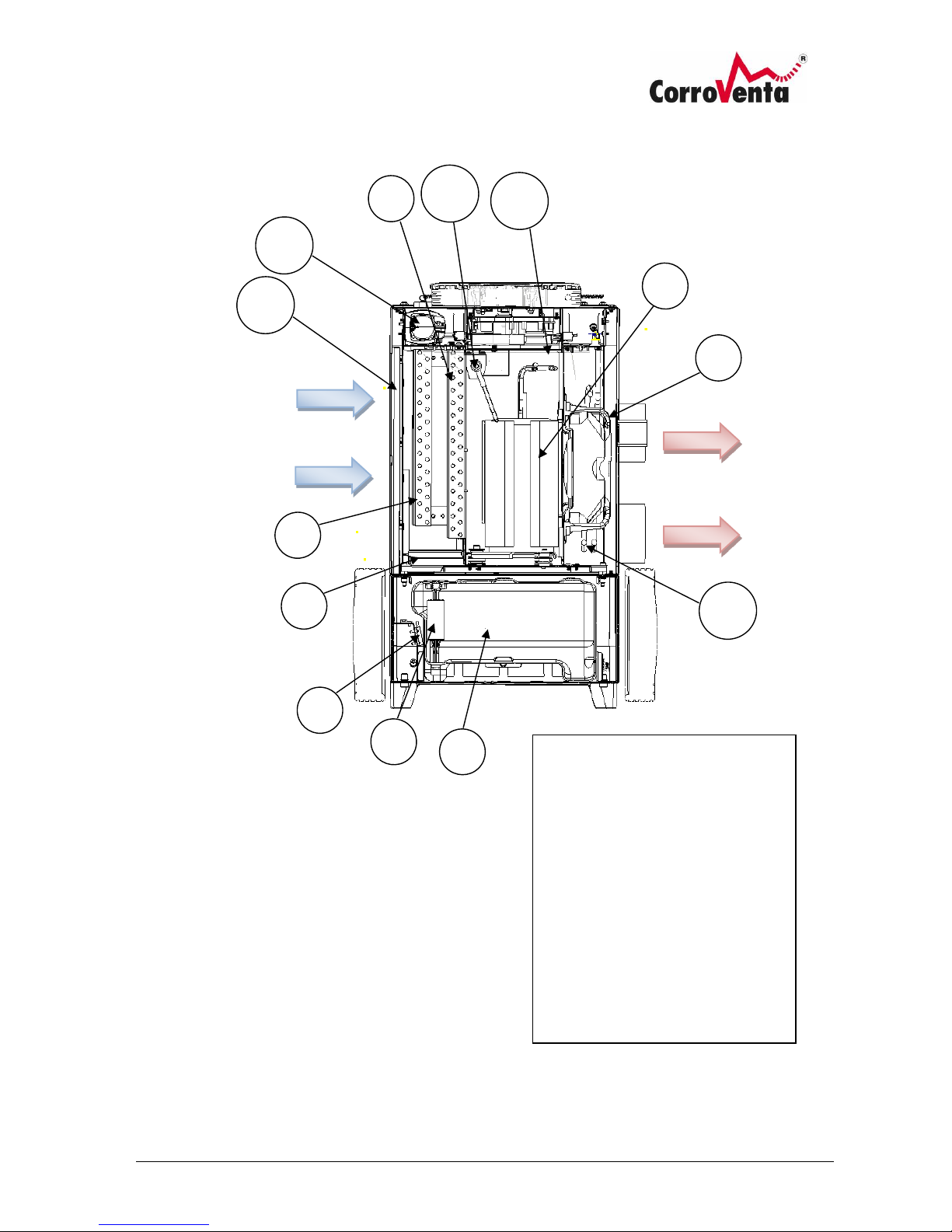

This is how the dryer works

1. Process air filter

2. Evaporator

3. Condenser

4. Drip tray/condensation filter

5. Overflow sensor

6. Float

7. Bucket

8. Compressor

9. Fan

10. Water pump

11. Additional heater

12. Defrosting valve

13. Electronic control

Page 8

2017.07

6 (31)

The integrated fan (9) circulates the room air through the dryer. When the moist air passes through the evaporator (2) it is cooled down to dew point and condensation water is deposited. The water runs down into the bucket (7) via a condensation filter (4). The condensation water is evacuated from there automatically by the integrated water pump (10), which can manage a height of up to five metres. The pump runs continuously and if it does not manage to drain the water because of a pinched hose or other fault, the overflow sensor (5) activates, which stops the machine. The dry and cold air then goes through the condenser (3) where it is heated, partly by the compressor heater and partly by the energy recovered during the previous transformation of water vapour to water. The dry and hot air is then blown into the premises again.

For optimal operation, machine defrosting is demand controlled and is only activated when the temperature and humidity conditions are such that frost forms on the cooling coil.

Page 9

2017.07

7 (31)

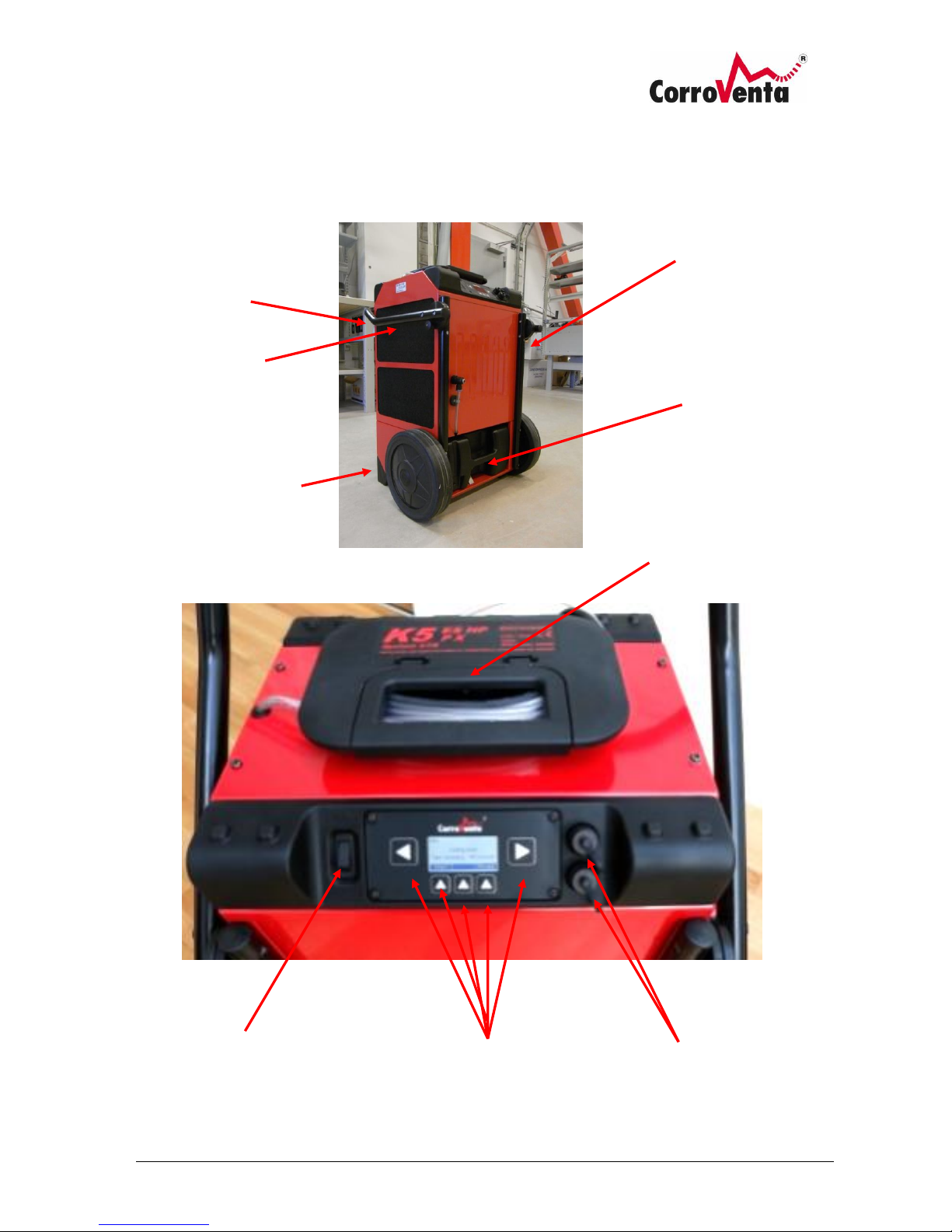

Overview, controls and connections

The images below show Corroventa K5 ES HP PX with its external parts and controls.

Process air filter Filter

Connectors for hose connection

Folding handle as well as cable/ condensation water hose parking

Durable feet that allow stackability and prevent damage to surfaces.

Connector for connection of network equipment.

Menu buttons

Switch on/off

Bucket

Folding handle/ Carry handle

Page 10

2017.07

8 (31)

Electrical connection

The machine is connected to the earthed 230V/50Hz socket. K5 ES HP PX can be connected to a 10A, max 16A, fuse. Electronic control delays the start max 2 minutes.

Starting and operating

• Operating range humidity: 30-100% RH

• Operating range temperature: +3°C to +38°C

• The dryer must reach ambient temperature before starting, if stored in colder conditions.

1. Place the dryer on a firm and flat surface where it is not at risk of overturning. The surface

should not be sensitive to water as some spillage may occur, for example when handling the bucket and condensation water hose.

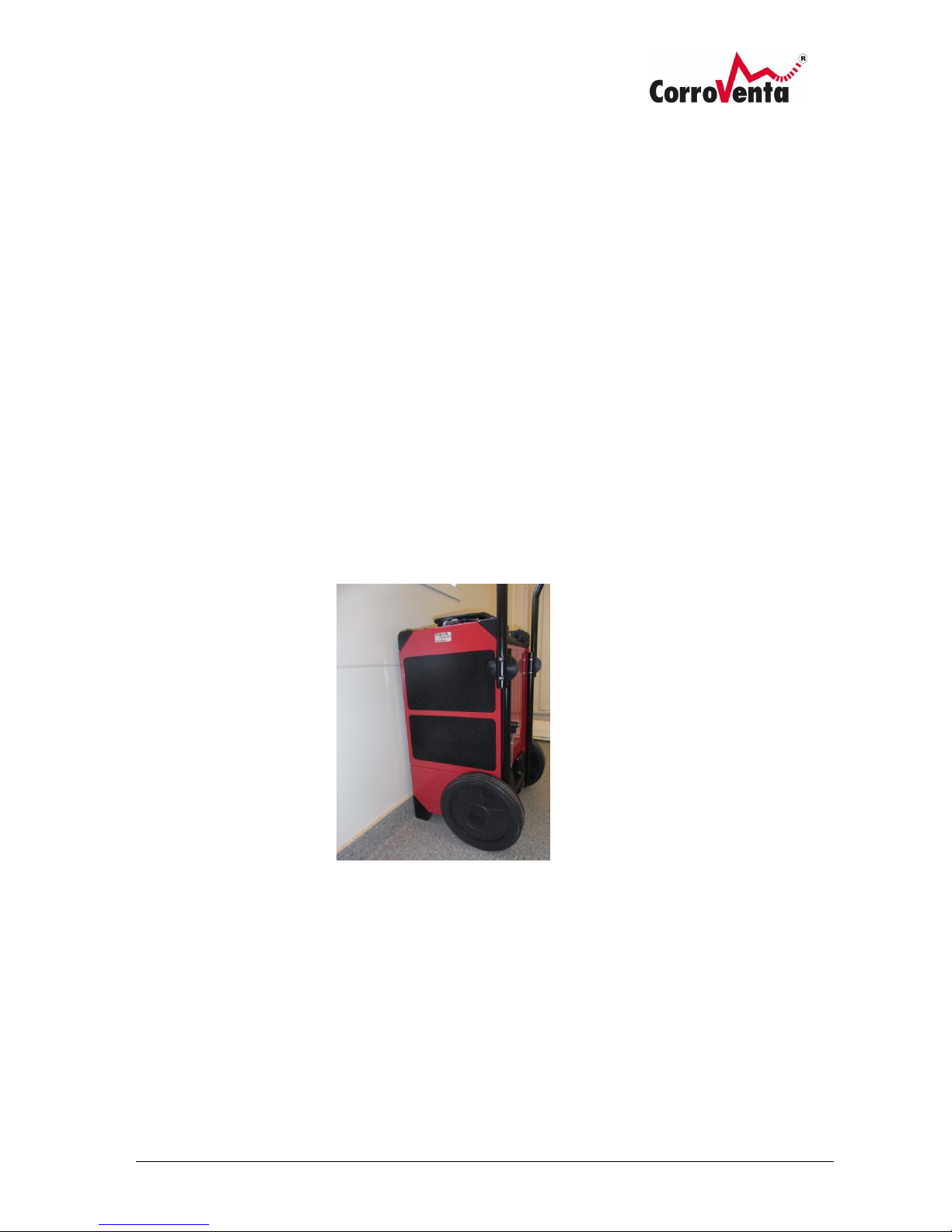

2. The dryer can be positioned against a wall as illustrated. In all other cases, the dryer must be

placed at a distance of at least half (0.5) a metre from walls and ceilings to ensure that air can circulate.

3. If possible, close doors and windows etc. to use all the dehumidification capacity in the

intended space rather than to dry the whole house/building. To minimise power consumption, try to ensure that the ambient temperature is approximately 20°C.

4. If using a condensation water hose, ensure that it is routed to a drain, sink or similar frost-

free runoff for continuous operation.

5. The ambient temperature must be +3°C to +38°C.

6. K5 ES HP PX is equipped with demand controlled defrosting. If ice forms on the evaporator,

the dryer defrosts automatically with help from hot gas defrosting. The machine resumes automatically when the evaporator is clear of ice.

Page 11

2017.07

9 (31)

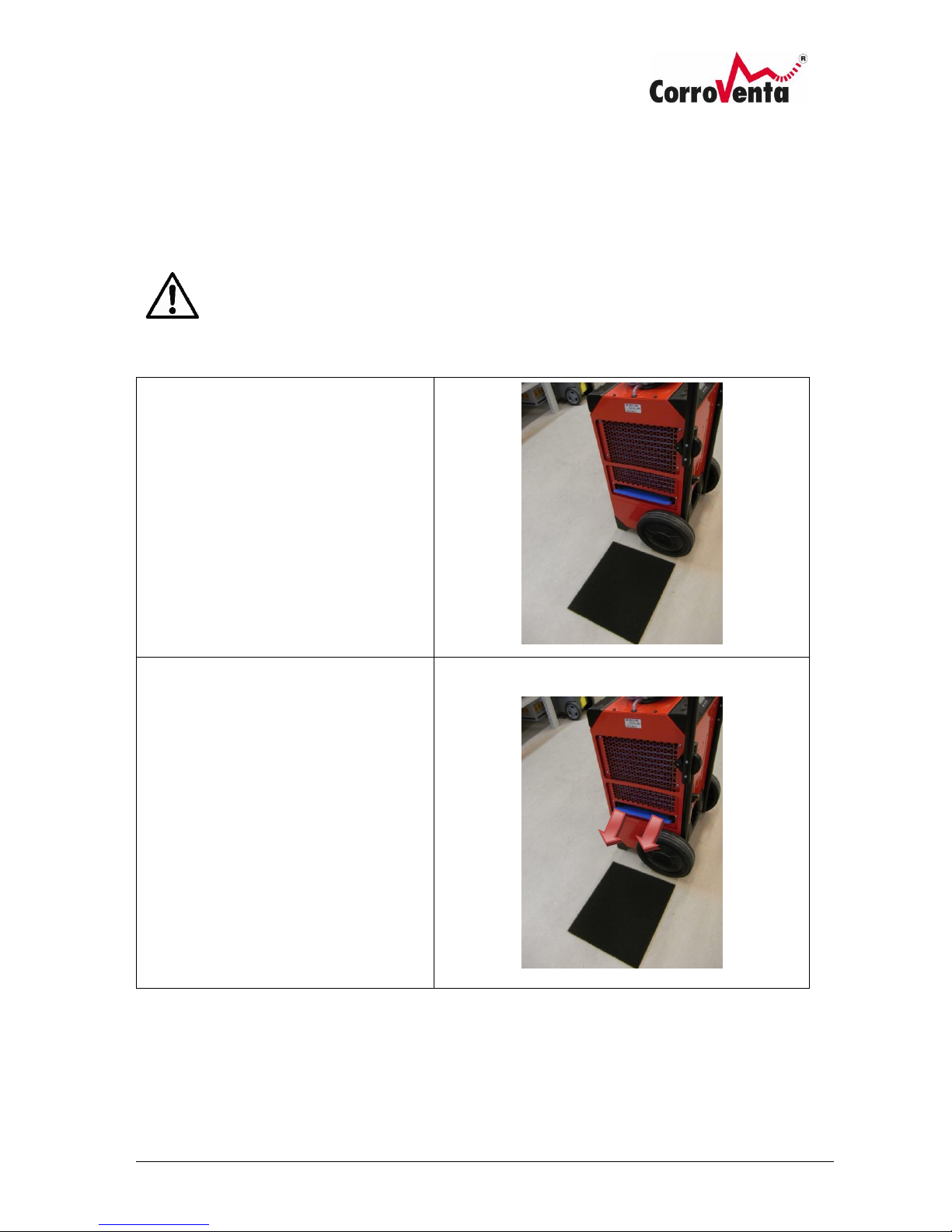

For use on sensitive surfaces, note the following:

When the machine is turned off, any frost on the evaporator thaws and, if there is a lot of frost, this can cause spillage because the pump is off.

User instructions ES product family

Intended use

The adsorption dehumidifiers in the ES range have been developed and designed for drying water damage and building moisture. The dehumidifiers can be used freestanding or in combination with turbines, for pressure and suction drying of a layered construction for example. Via the control panel, the user of K5 ES HP PX can optimise the operation for the intended job, set the capacity and volume, control the fan as well as use integrated or external sensors for temperature and relative humidity to achieve the desired effect in combination with the lowest possible energy consumption. K5 ES HP PX can also be used in networks and is prepared for remote monitoring and remote control. The unit has a folding carry handle designed for both pulling the machine along the ground and for lifting it. It also has handles with holders for the electrical cable and the hose, while its light weight means it is easy to carry, roll and install. The durable but flexible feet protect the floor surfaces and also make it possible to stack the machines. The dehumidifiers have a naturally robust construction that gives a long service life.

Page 12

2017.07

10 (31)

ES product family, menus and operation

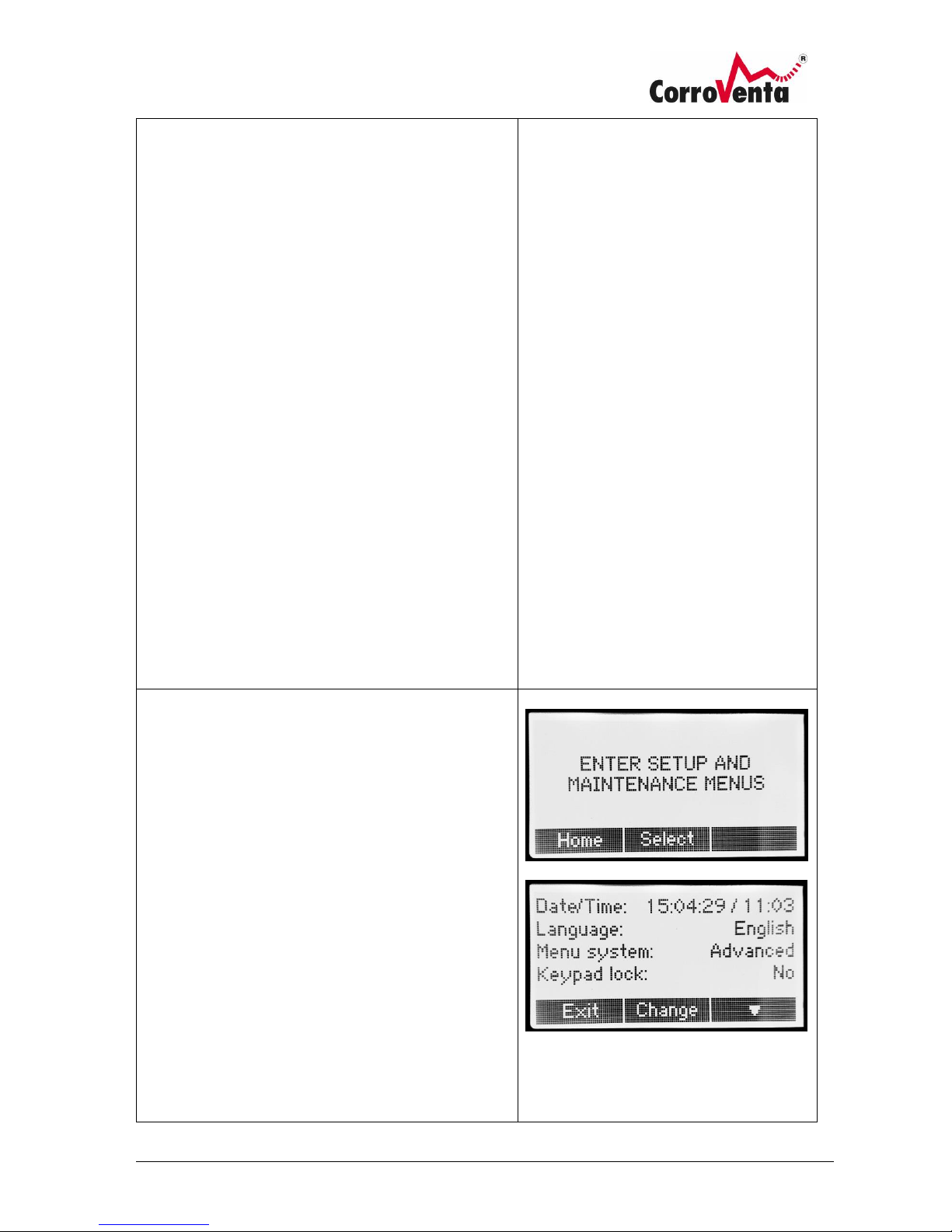

K5 ES HP PX has an easy-to-use user interface with a display and five buttons. The two larger buttons on each side of the display are used to select between different menus. These buttons are only intended for navigation and cannot be used to change the settings.

The three smaller buttons are used for selection and editing and their functions are always presented as text at the bottom of the screen. On the upper menus, the left-hand button is called the HOME button. One push of this button takes you straight back to the standard view. In many of the views there is an Info button that presents information that can be useful for inexperienced users.

If the display's background lighting goes out after the preset time, the first button push only illuminates the display.

If no button is pushed for ten minutes, a keylock is activated. The machine then must be unlocked by pushing the two upper button simultaneously. This procedure is presented as text and as an image on the display.

Upper buttons to the left and right – Only menu navigation. Never change

any settings.

Home button Return to standard view.

Info button Presents information.

Electronic user instructions.

Page 13

2017.07

11 (31)

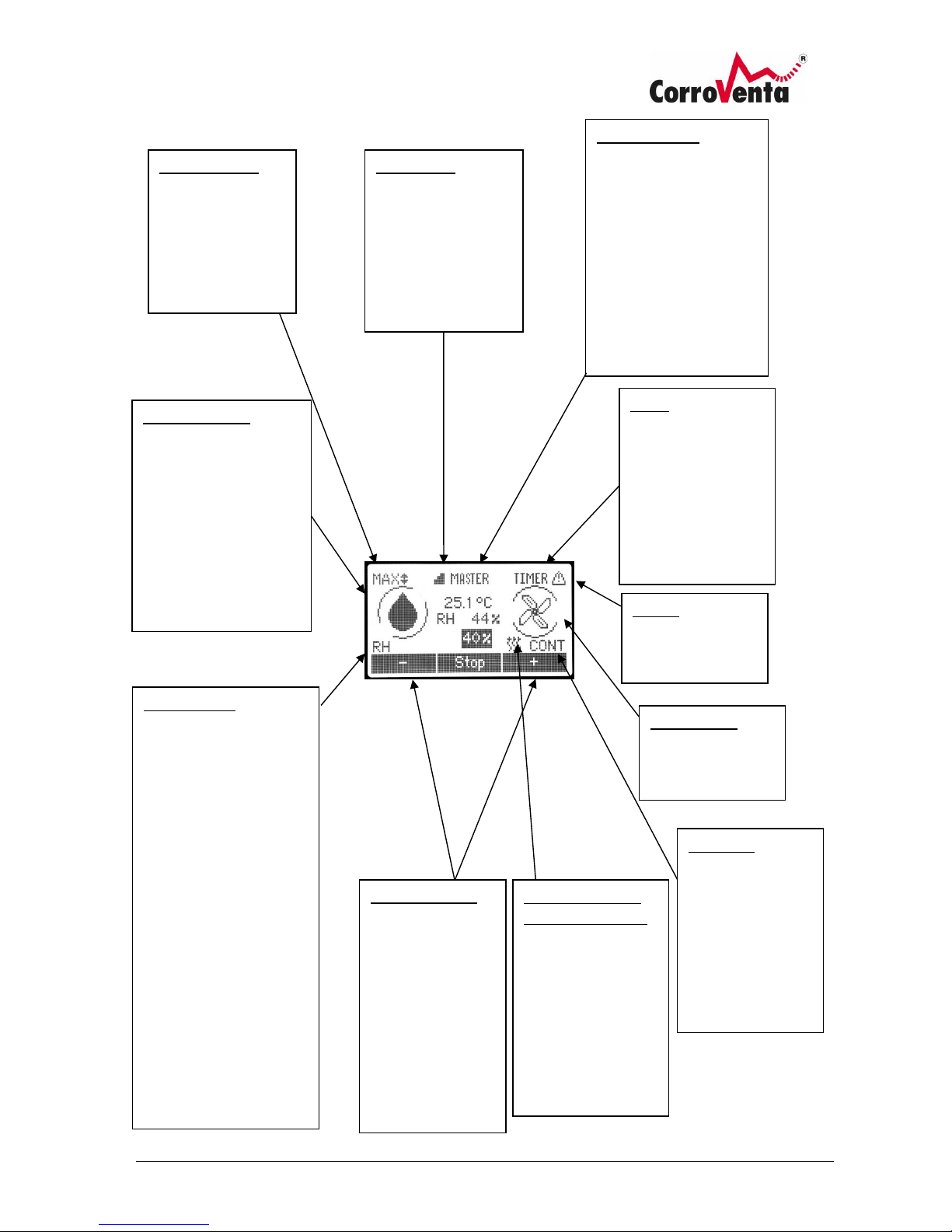

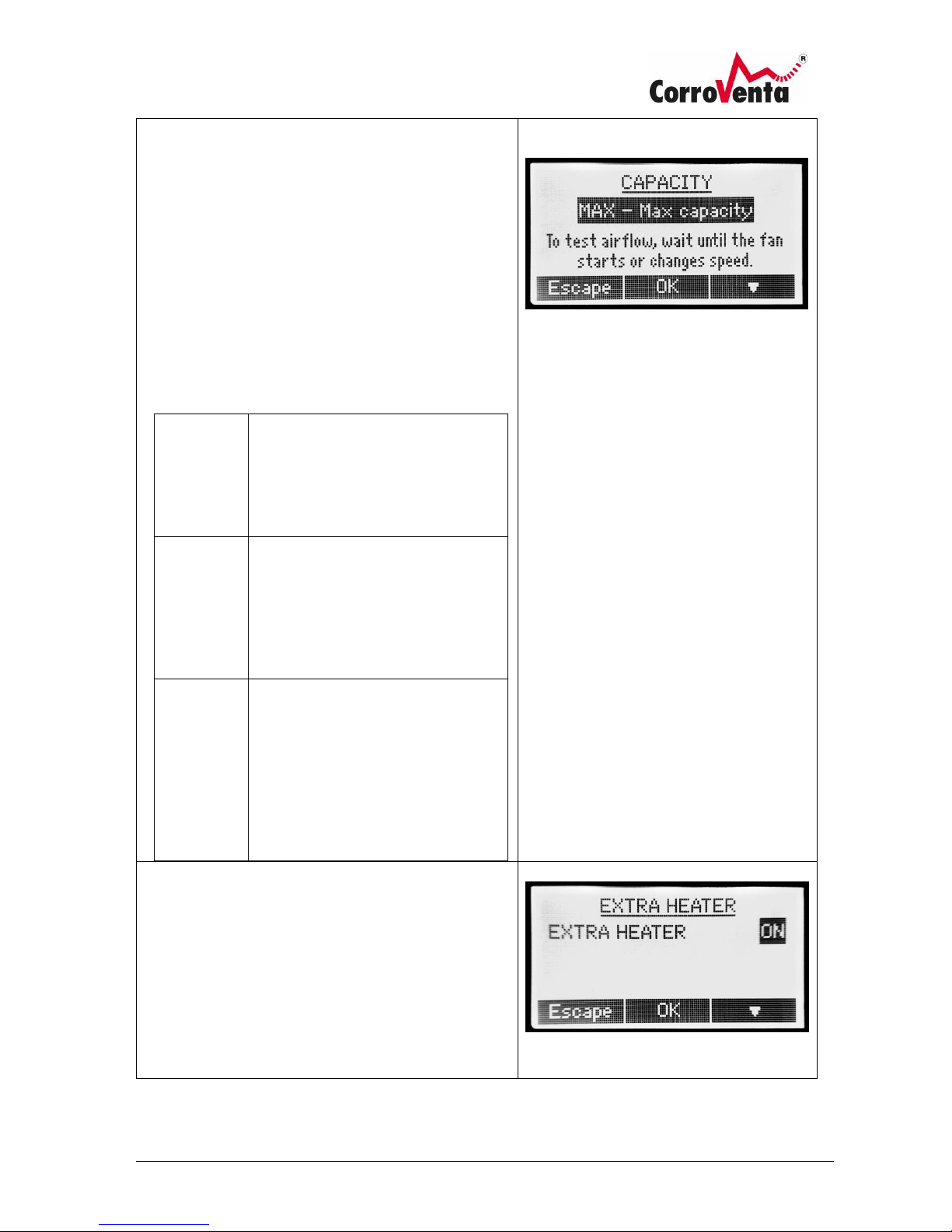

Capacity mode

Indicates the selected capacity mode, Max, Eco or

ΔX.

SuperVision

Appears when the machine is connected to Supervision for remote monitoring and remote control.

Network status

”Master” or ”slave”

If the machine is connected to a local network this mode is indicated if the machine controls the network (Master), or if it is controlled by another machine and thus is Slave.

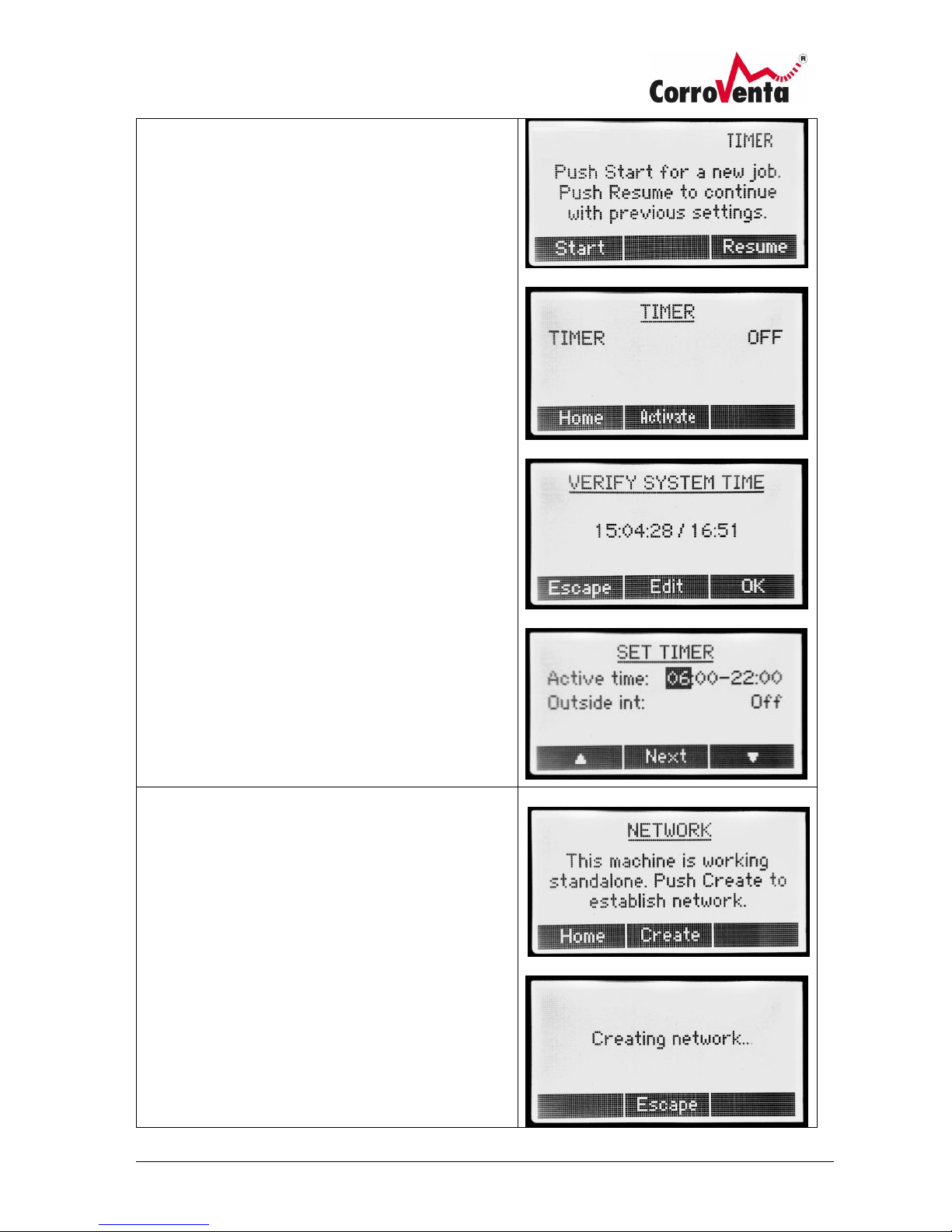

Timer

Indicates when the machine is set to timer mode.

Slave – indicates that the machine is being controlled by another machine.

Alarms

The machine has detected a fault.

Drying indicator

Moves when drying is in progress and during defrosting. Also shows the start delay as well as alarm symbol in the event of high/low ambient temperatures.

Fan indicator

Moves when the fan is running.

Fan mode

Cont – continuous

fan. If this information does not appear, the fan only runs when drying is required.

Control mode

Indicates how drying is controlled, if it is continuous (MAN = manual) or if it works to a preset setpoint for Relative Humidity (RH), Mixing ratio (X), or dew point (DP). It can also be controlled from an external hygrostat (HYG).

If an external sensor for relative humidity and temperature is used, E.RF, E.X or E.DP appears in this mode.

Additional heater

(ESX product family)

Appears when extra heater is activated.

The symbol moves when the extra heater is connected.

Setting setpoint

The left and right buttons below the screen are used to increase and decrease the setpoint that is shown against a black background.

Page 14

2017.07

12 (31)

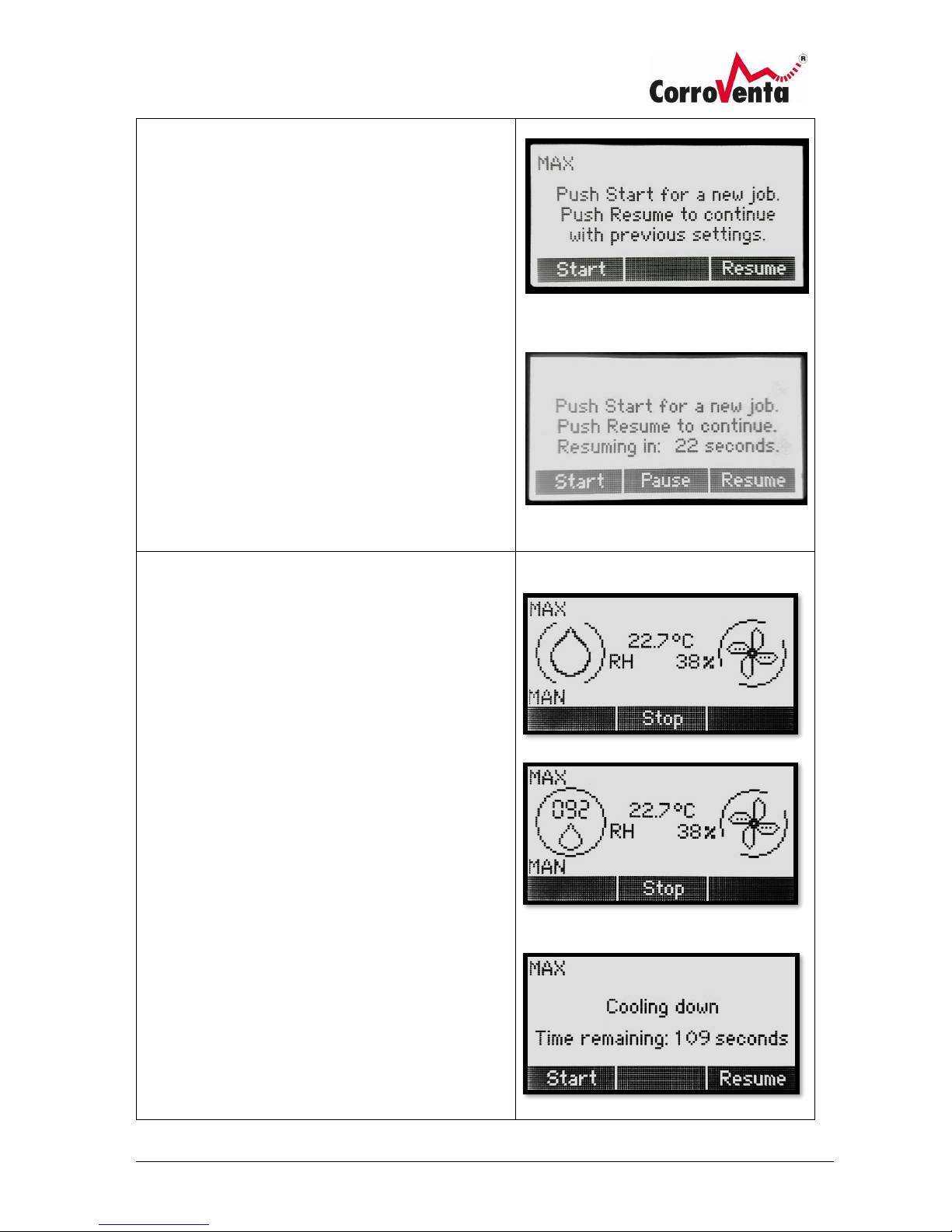

Start view

When K5 ES HP PX starts up, two options appear for the user on the display:

Start: Starts the machine with standard settings, continuous operation with maximum capacity. Previous settings such as use of sensor control, timer etc.

Resume: The machine resumes operation with the same settings that previously applied.

If the user did not press the stop button before the power was interrupted the last time the machine was used, the machine will automatically resume operation when the timer has counted down to zero. The countdown can be stopped by pressing the Stop button, which then switches the machines to standby until it is started manually.

Normal start

Start after power cut –

automatic resumption of operation

Standard view

When K5 ES HP PX is in operation, the machine can always be stopped (set to standby) using the middle button below the display.

When the machine is running in a control mode instead of in manual mode, the setpoint (which is marked with black background in the middle of the screen) can be increased or decreased using the negative (-) and positive (+) buttons.

When the compressor has stopped, the start is delayed for at least 120 seconds. The remaining time until start appears in the round circle to the left. Also shown here is whether the machine is defrosting and if it has stopped and gives an alarm for too high or too low ambient temperature.

In the event of a dehumidification process stoppage, the fan runs-on for post cooling for 120 seconds.

Standard view graphics. The machine is

running.

Page 15

2017.07

13 (31)

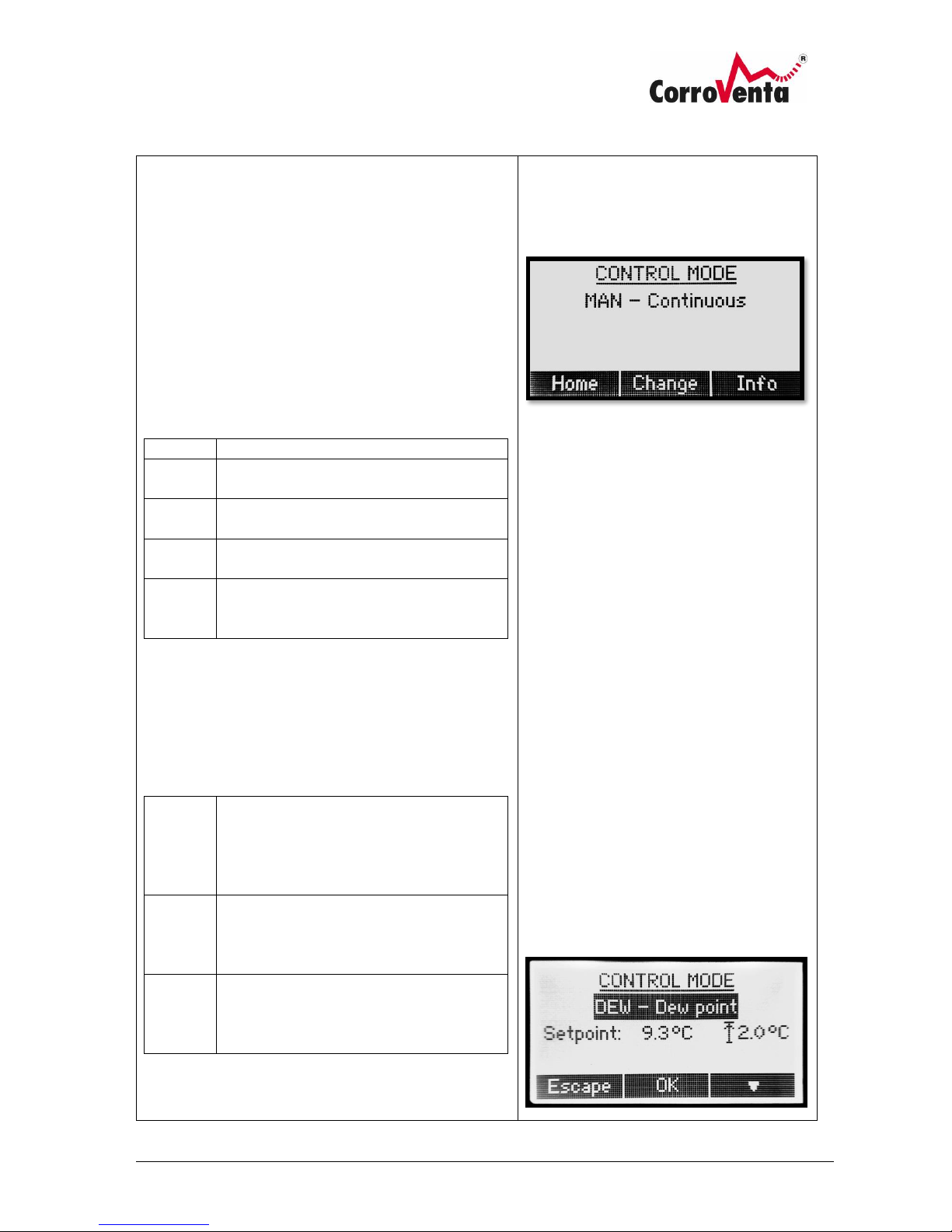

Control mode

In control mode, it is determined whether drying should occur continuously (MAN - manual mode) or is only to be activated when necessary, on the basis of the ambient climate.

The selected control mode is displayed in the lower, left-hand corner in standard view.

Open the screen for selecting control mode by pressing the upper, right-hand button.

The following basic control modes are available:

MAN

Manual, continuous drying.

Dehumidification for selectable relative humidity (%).

Dehumidification for selectable mixing ratio (g/kg).

Dehumidification for selectable dew point (°C).

HYG

Dehumidification is controlled by an external hygrostat that is connected to the machine.

Thanks to its network functions, you can also connect the machine to external temp. and RH sensors, and use their values to control operation, instead of the built-in sensor for relative humidity and temperature. The following modes for external sensors exist for this purpose:

E.RH

Dehumidification for selectable relative humidity (%) according to the input values from the external temp and RF sensor(s) that are connected to the machine.

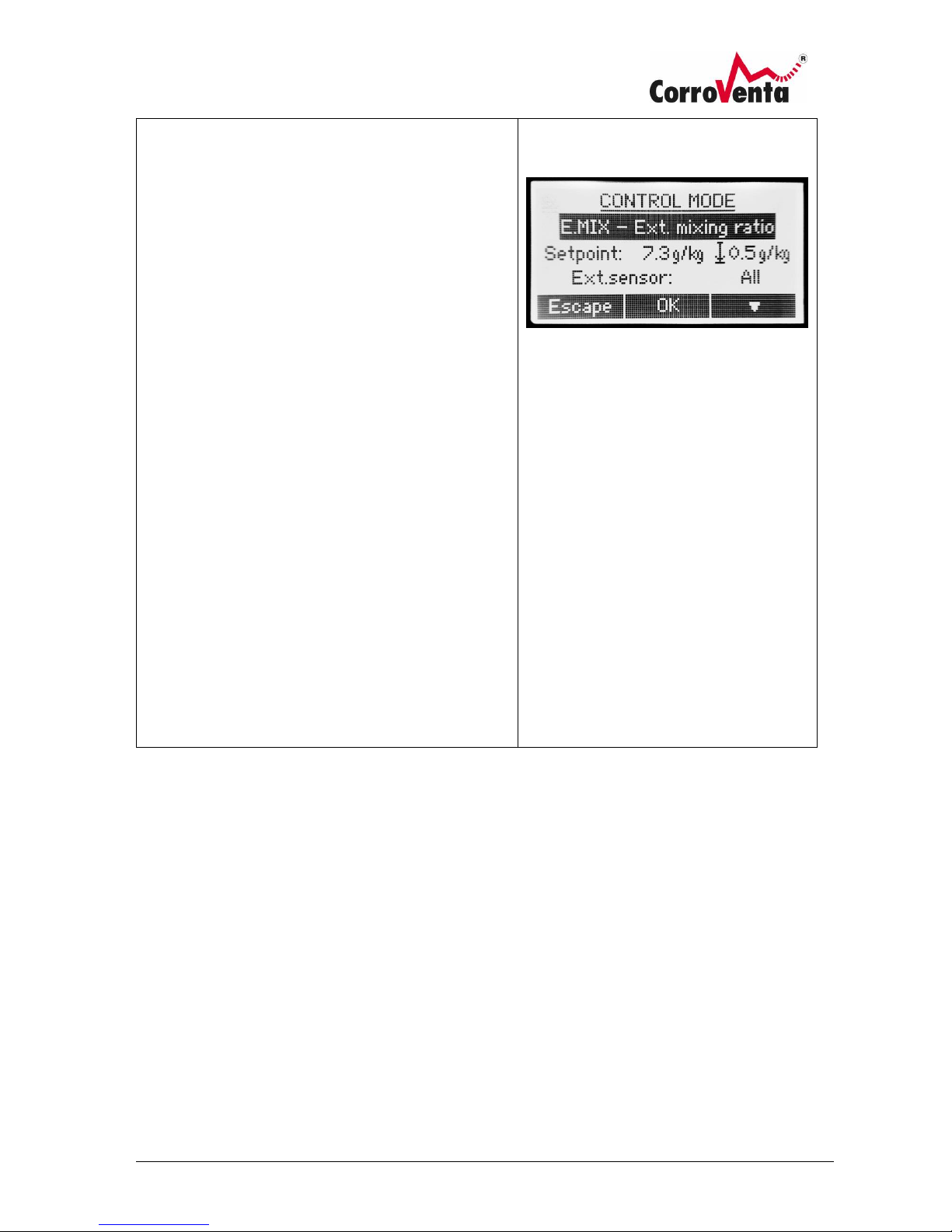

E.X

Dehumidification for selectable mixing ratio (g/kg), according to the input values from the external sensor(s) that are connected to the machine.

E.DP

Dehumidification for selectable dew point (°C), according to the input values from the external sensor(s) that are connected to the machine.

The external control mode requires that the machine is network connected and connected to an external temp. and RH sensor. If the machine is not already connected

Page 16

2017.07

14 (31)

to the network, the machine asks whether to create a network. If there are several sensors in the network and if the <All< option has been selected (instead of a single sensor, e.g. RHT61) the machine works on the "worst case scenario" and runs for as long as any of the sensors detects that the humidity is above the setpoint.

If the machine selects a mode other than MAN, the user will note that the setpoint can be set.

When the setpoint has been reached, drying stops automatically. If the humidity later rises above the setpoint again, drying resumes automatically.

Hysteresis

When one of control modes; RH, DP or X is selected, a symbol and a hysteresis value appears to the right of the display. The symbol shows the setpoint value's position in the operation range as below.

↕ - centre

↓ - bottom

↑ - top

Page 17

2017.07

15 (31)

Capacity mode

The drying capacity of K5 ES HP PX can be optimised for a given work task and situation with three different operating modes. When setting MAX (maximum) the machine works to remove as much water as possible. If the machine's total power is not required, it can instead be set to ECO (eco-mode) where the energy consumption per litre of removed water is minimised. For localised water damage where the dry air quantity

is not required, the machine can be set to ΔX (ΔX

mode). In this mode, the machine produces a smaller amount of even drier air that further accelerates the drying process.

MAX

For maximum capacity.

• High fan speed

• Hot gas defrosting

• Min temp 3°C

• Max temp 38°C

• RH min 0 %

ECO

For minimal energy consumption per litre of removed water.

• High fan speed

• Stop defrosting

• Min temp 14°C

• Max temp 38°C

• RH min 35 %

ΔX

For maximum ΔX, as dry air as

possible. Reduced air amounts suitable for e.g. local, isolated water damage.

• Low fan speed

• Hot gas defrosting

• Min temp 3°C

• Max temp 38°C

• RH min 0 %

Extra heater K5 ES HP PX

K5 ES HP PX is equipped with an additional heater that increases the dry air temperature and thus improves the drying effect further. When this function is selected, an icon for the extra heater appears below the fan symbol in standard view. The extra heater is of course only active when the fan is active. Note! The extra heater may not be used if dry air is fed into another machine, because it can overheat.

Page 18

2017.07

16 (31)

Timer

K5 ES HP PX has an integrated timer function that allows the user to determine when the machine is to run. When the timer function is used, the word Timer appears in the standard view's upper, right-hand corner according to the graphic to the right.

Activate the timer by pressing the right-hand arrow button four times to open the timer menu. Press Activate.

When the timer has been activated, the machine begins by prompting the user to check that the time and date have been set correctly. If they have been, press OK. If the time or date need changing, press Edit and adjust the values before continuing.

In the next step the user can set the time interval that the machine is to work within. The machine remembers the timer settings from the previous time it was used and shows its settings as the start values. The Other time setting determines whether the machine, during the day's remaining hours, must be in standby mode or run at lower fan speed for minimal noise.

Network

Note! Install all system cables before the machines are started.

K5 ES HP PX has network functions that enable local interaction between machines, for example pressure drying and use of external sensors for relative humidity and temperature control of the machine. The network functions also prepare the machine for a future SuperVision system that will allow remote monitoring and remote control of the machines via Internet.

A network is established by installing the machines in the intended way and connecting them to each other using system cables before they are started.

Page 19

2017.07

17 (31)

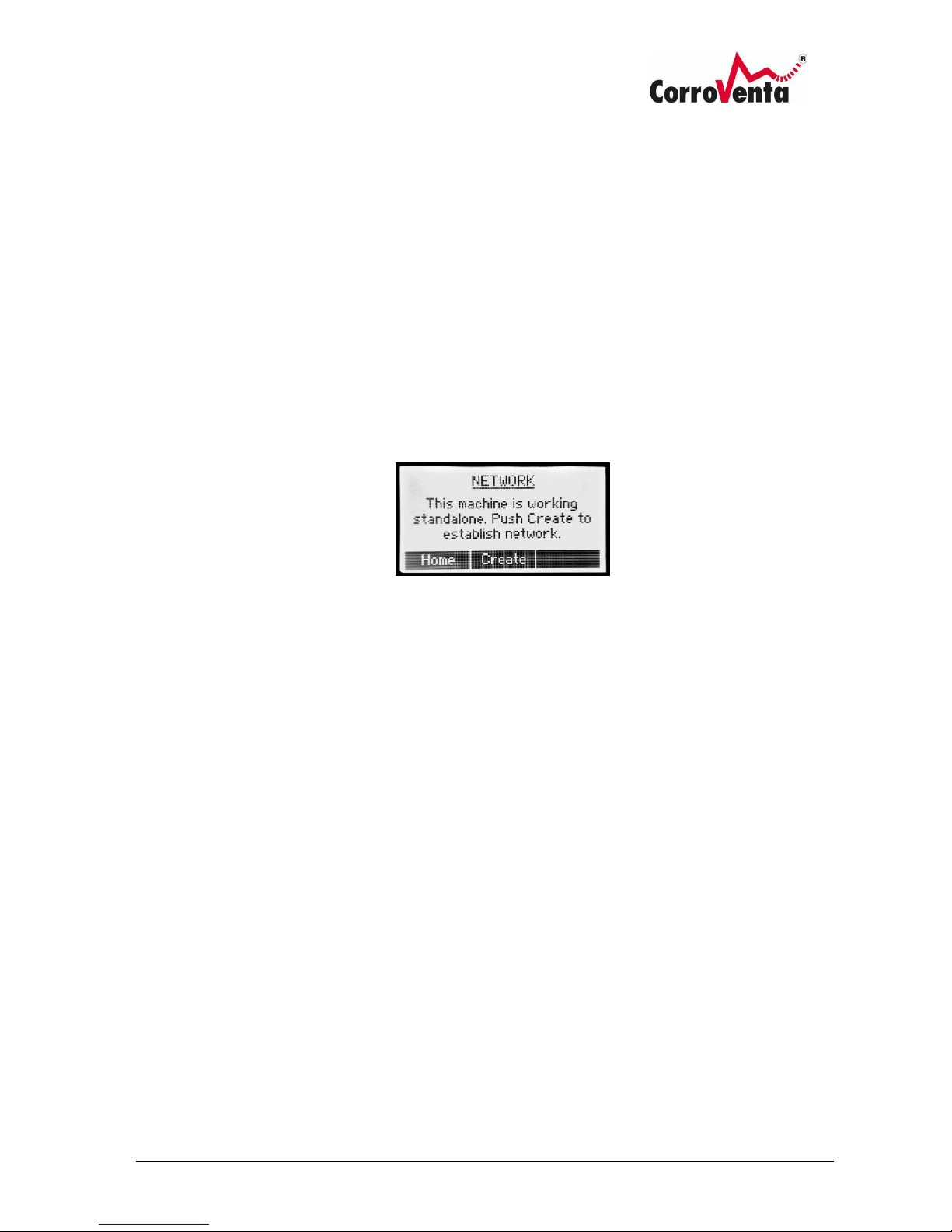

Open the network menu on the machine which is to be master, i.e. control the others. Press Create and wait while the machine establishes the network. This can take up to one minute.

Once the network has been established, the display switches between the slave units in the network menu. These are indicated by type (e.g. A4) and bus address (e.g. 101).

To change the settings for a slave unit, press Change and select the slave unit. The background lighting for the selected unit starts to flash to confirm that the unit has been selected.

Desired settings can also be made directly on the relevant machine.

Start the master machine when all desired settings have been made. The slaves start automatically within one minute. The machines are stopped in the same way. Press stop on the master machine and the slaves stop automatically shortly afterwards.

As the network is controlled by the master machine, a slave unit that is started manually is stopped when the master machine is in standby. In the same way, a slave unit that is stopped manually is restarted manually when the master machine is in operation.

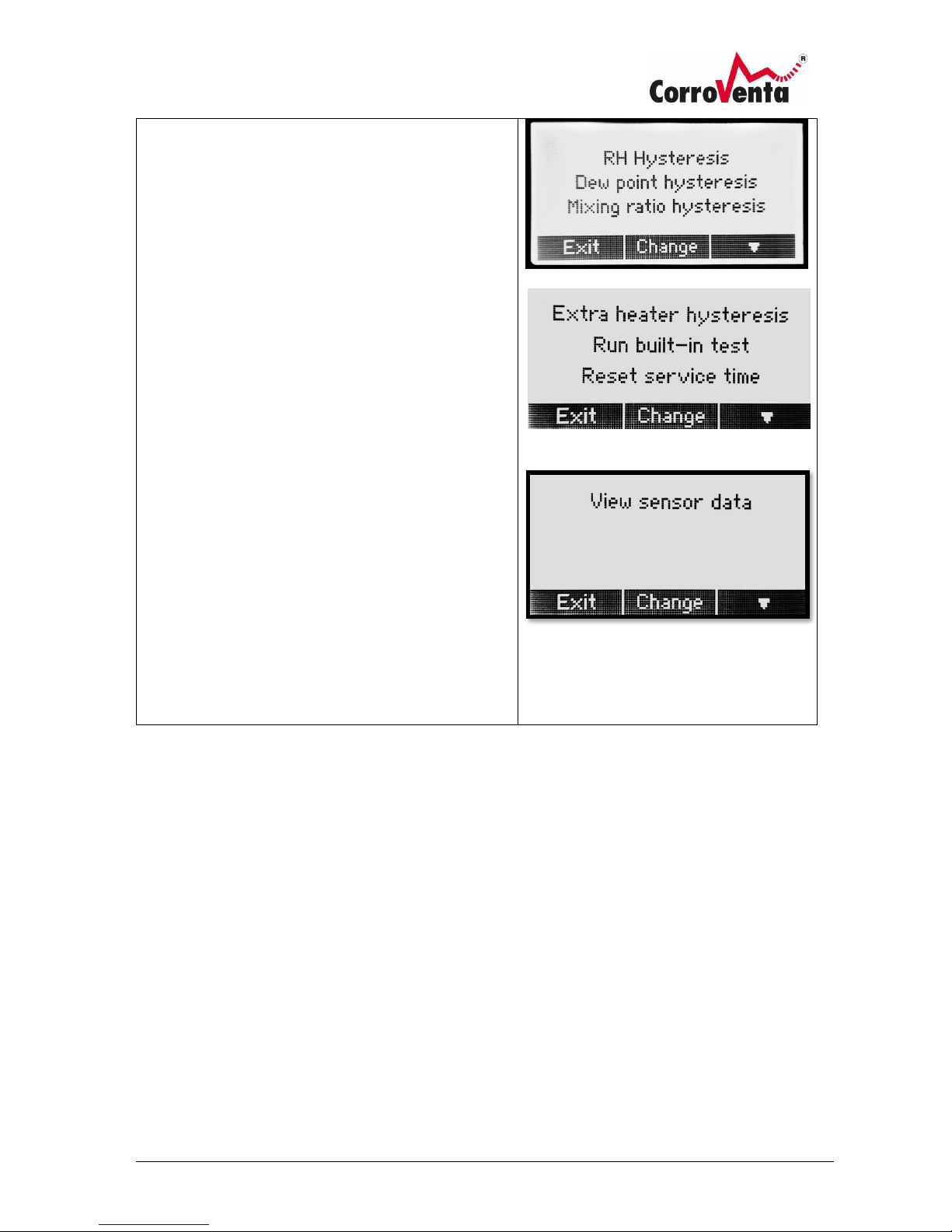

Setup and maintenance menus

The setup and maintenance menus contain functions that are not needed for normal operations.

Date and time: Setting system date and system time: The format is YY:MM:DD / HH:MM.

Language: Language selection for the interface.

Menu system: The menu system is set to Advanced as

standard with all functions visible and available. If it is set to Basic, the more advanced functions are removed from the menu system.

Keylock: Option to activate/deactivate the keylock:

RH hysteresis: Option to adjust the hysteresis settings

for control mode RH. The setpoint's position in the operation interval and the hysteresis value can be set from here.

Page 20

2017.07

18 (31)

Dew point (DP) hysteresis: Option to adjust the hysteresis settings for control mode dew point (DP). The setpoint's position in the operation interval and the hysteresis value can be set from here.

Mixing ratio (X) hysteresis: Option to adjust the hysteresis settings for control mode mixing ratio (X). The setpoint's position in the operation interval and the hysteresis value can be set from here.

Run built-in test: A built-in self-test that is available to service technicians.

Reset service time: The machine is set to remind you about a service once a year. Once the service has been carried out, the service reminder can be reset using this function.

See sensor data: Function intended for service technicians.

Page 21

2017.07

19 (31)

Counters

This screen shows time and energy counters. The resettable work counters are displayed at the top. The date when the counters were reset is displayed below. After the date, the number of hours that have passed since the last reset are indicated to enable a quick comparison.

Press Reset to reset the work counters. Confirm to reset the counters by pressing OK on the following screen.

The counters for energy and hours for the entire service life of the machine are displayed at the bottom. These counters cannot be reset.

Statistics

Statistics are provided to assist the user's observation of the drying process and to enable the monitoring and follow-up of machine operation. The following graphs appear below the statistics menu:

• Average relative humidity for the last twelve

hours and the last 14 days.

• Average temperature for the last twelve hours

and the last 14 days.

• Number of hours in drying mode for the last 14

days.

• Consumed energy in kWh for the last 14 days.

The last value, the bar at the far right in the respective graph, is the current hour or the current day.

Alarms

Identified alarms are shown on this screen. As soon as an alarm is identified, a pop-up window also appears. Additionally, a warning symbol appears in the standard view's upper right corner, as long as the fault remains.

The user does not have to erase the alarms that are shown. As soon as the machine detects that the function has been reset, the alarm disappears automatically.

Page 22

2017.07

20 (31)

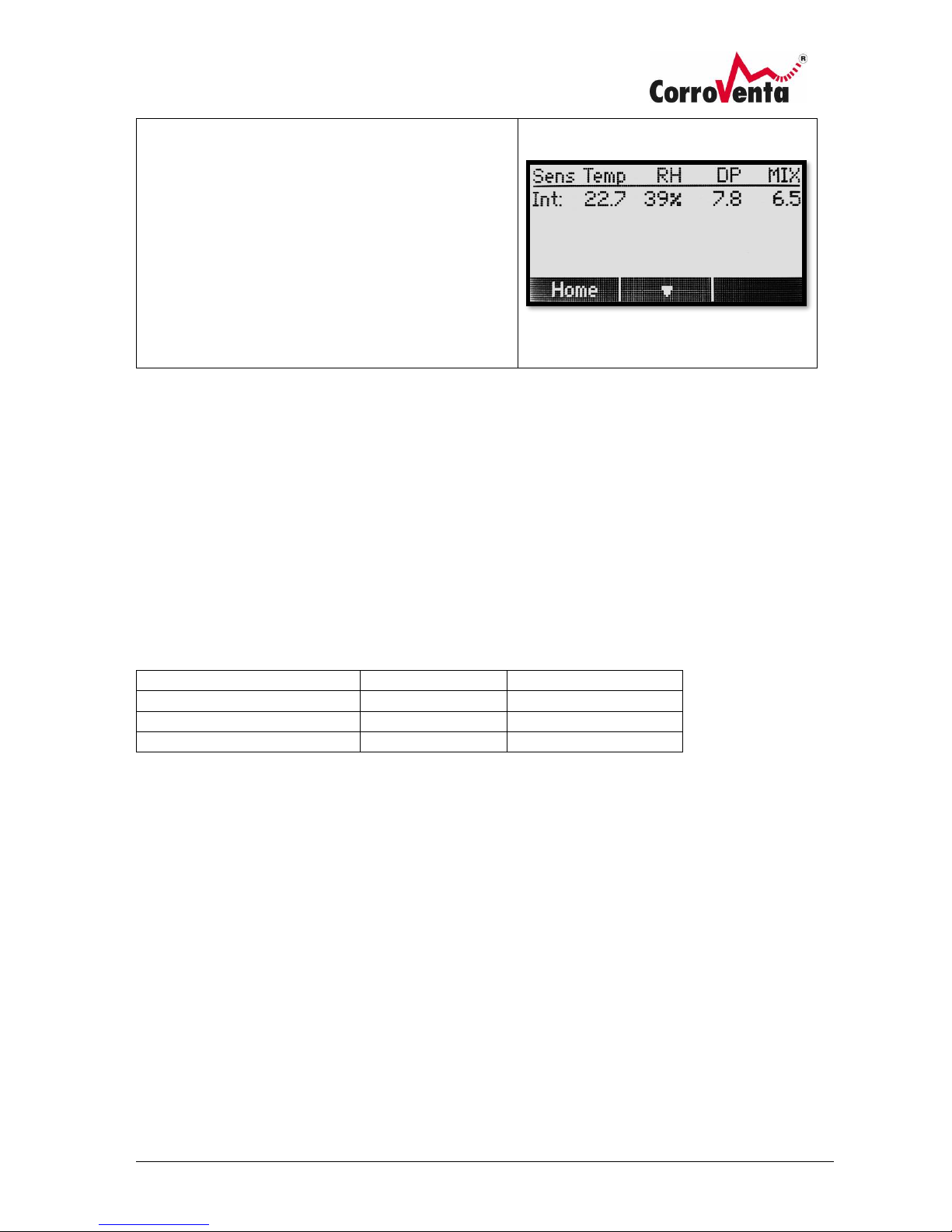

Sensor data

This screen shows the internal RT sensor's values. Only for reading off.

Control mode and hysteresis

In addition to the normal, continuous drying operation, the operation of K5 ES HP PX can also be controlled via its built-in sensors for relative humidity and temperature as well as via its external hygrostat or external, networked sensor.

If a built-in or external electronic sensor is used, the machine uses a software controlled hysteresis that stabilises machine operation and prevents too many restarts.

The table below shows the machine's standard settings. If changes are required, these can be made in the setup and maintenance menus.

Control mode

Hysteresis

Setpoint's position

4 %

Bottom

Dew point

2°C

Top

Mixing ratio

0.5 g/kg

Bottom

Page 23

2017.07

21 (31)

The illustrations below describe the different hysteresis settings; bottom, centre and top.

Setpoint RH 60 %

Start drying = 65 %

Hysteresis 5 %

Bottom

Setpoint RH 60 %

Start drying = 62.5 %

Stop drying = 57.5 %

Hysteresis 5 %

Centre

Setpoint RH 60 %, start drying

Hysteresis 5 %

Stop drying = RH 55 %

Top

Page 24

2017.07

22 (31)

Alarms

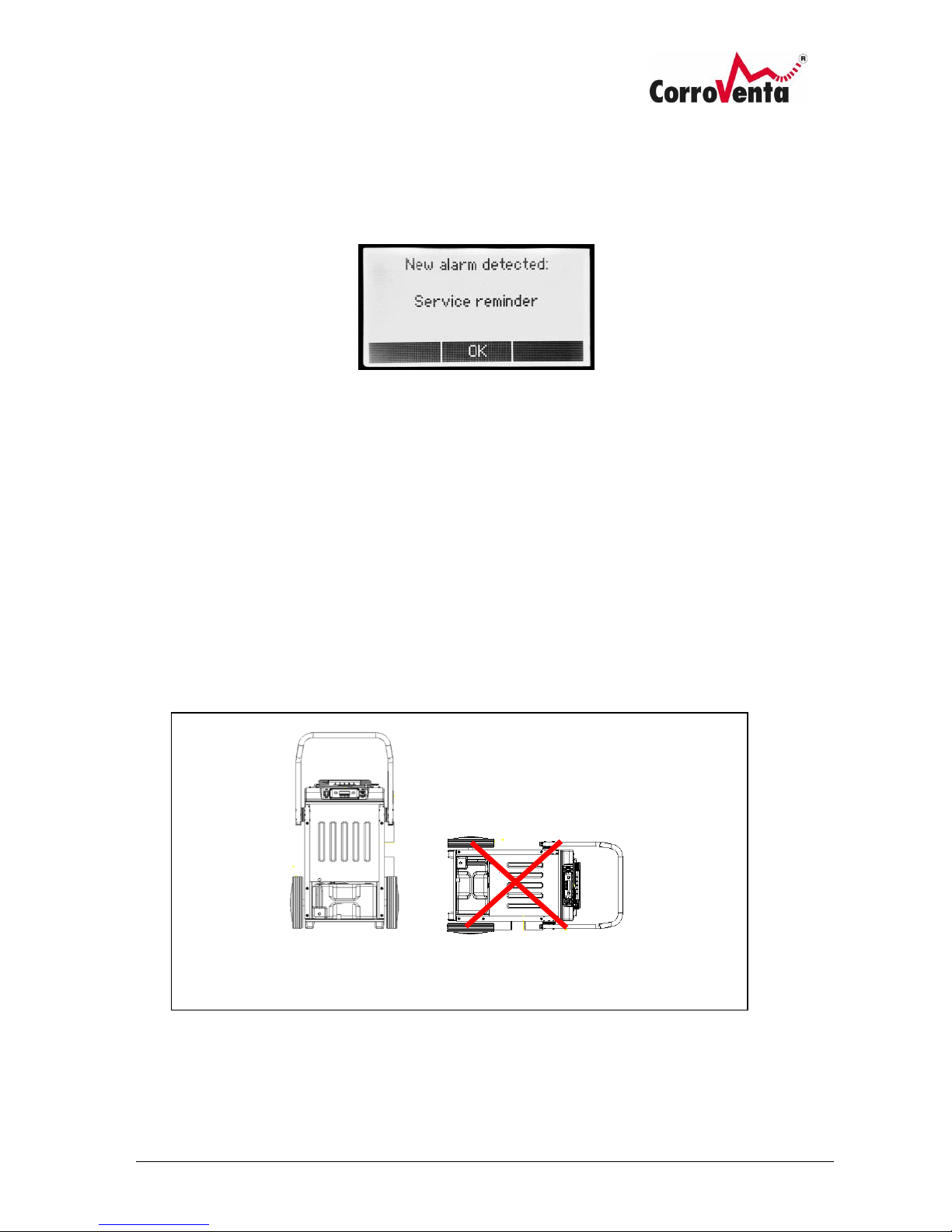

If the machine detects a fault, corresponding information appears in a pop-up window. Additionally, a warning symbol appears in the standard view's upper right corner, as long as one or more problems remain. The following alarms can appear. Recommended corrective action is also given for each alarm.

Alarms

Action/advice

On or more slaves not responding

This alarm appears when the machine is used as master in a network that has lost contact with one or more of its slave machines. If this alarm appears, check all system cables and the power supply to all machines. When communication has been re-established the alarm disappears automatically again.

Ambient temperature too high!

The machine has switched off all heaters due to too high ambient temperature (above 40 degrees Celsius). If continuous fan is selected, the fan continues to run. The machine resumes operation automatically if the temperature drops.

Ambient temperature too low

The machine resumes operation automatically if the temperature rises. Check the function of the extra heater.

No contact with internal control board
