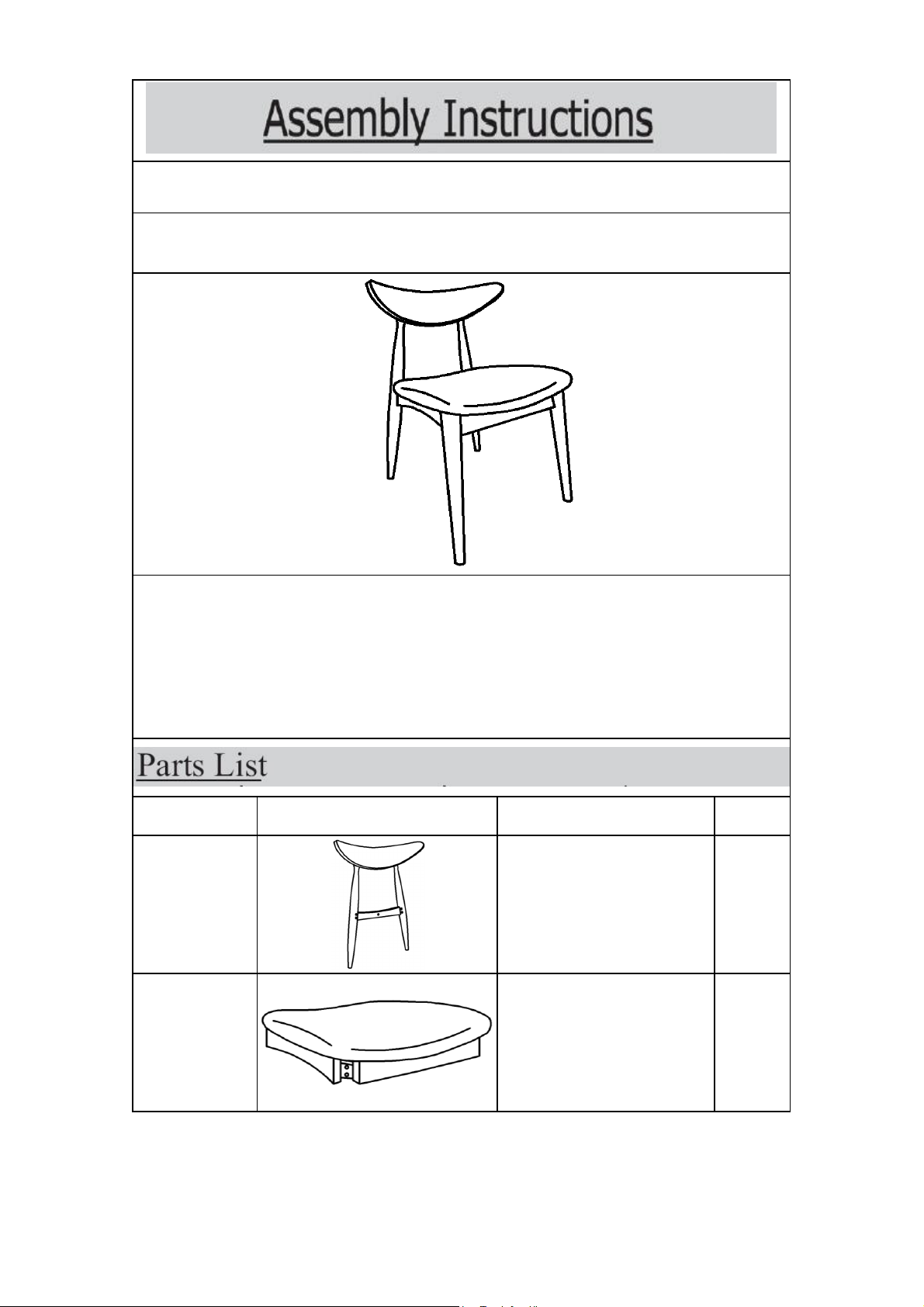

Corrigan Studio W004996128 Assembly Instructions

Label Picture Description QTY
A Back Rest 1
B Chair Seat 1
Caution : You must read this before you proceed
CHAIR
WARNING: These Chairs are intended only for normal use with all four Chair legs on the ground.These Chairs have relatively thin legs and are not designed to be sat in with only two legs on the ground(as from tipping back, forward, or to the side), as such usage can cause stress and failure of one or more Chair legs. Any misuse of the Chairs voids any warranties, expressed or implied.
Page 1 OF 6

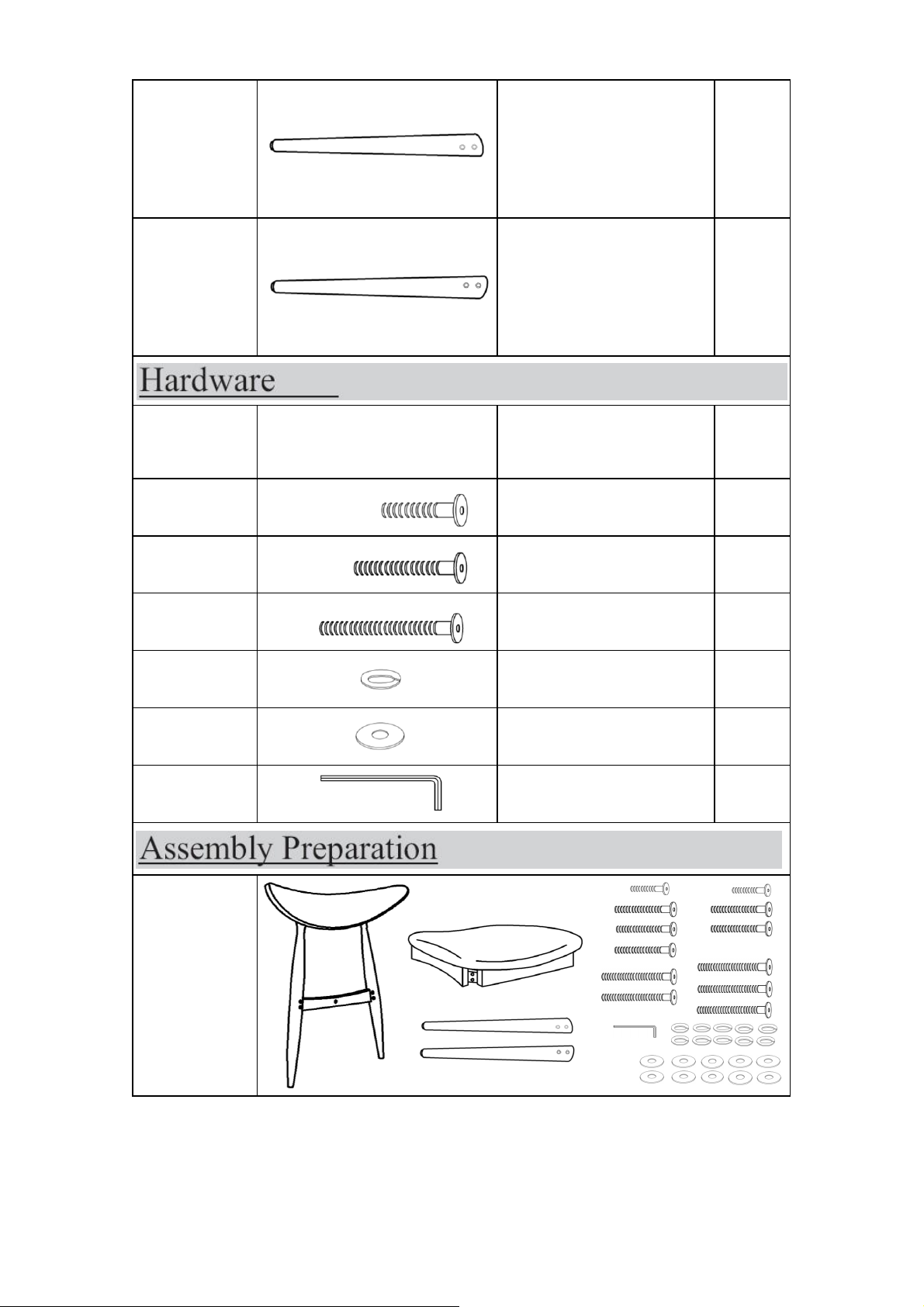

C Front Leg (L) 1
D Front Leg (R) 1
Label Picture Description QTY
Bolt
(M6 x 35mm)
2
Bolt
(M6 x 60mm)
5
Bolt
(M6 x 80mm)
5
Spring Washer 10
Washer 10
Allen Key 1
Before
Beginning
Assembly:
Page 2 OF 6
Step 1
Overview
Attach Chair Seat(B) to Back Rest(A) using Bolt(), Spring Washer(), and Washer() with Allen Key().
Do not fully tighten the Bolts.
This Chair has multiple parts and may require up to 30 minutes to assemble. To give you an overview of the Chair parts, the above picture is to help you put the various parts into perspective. Please read through the instructions below to familiarise yourself with the parts and steps before assembly.
FRONT FACING
Back Rest (A)
Chair Seat (B)
Front Leg (D)
Front Leg (C)
Page 3 OF 6

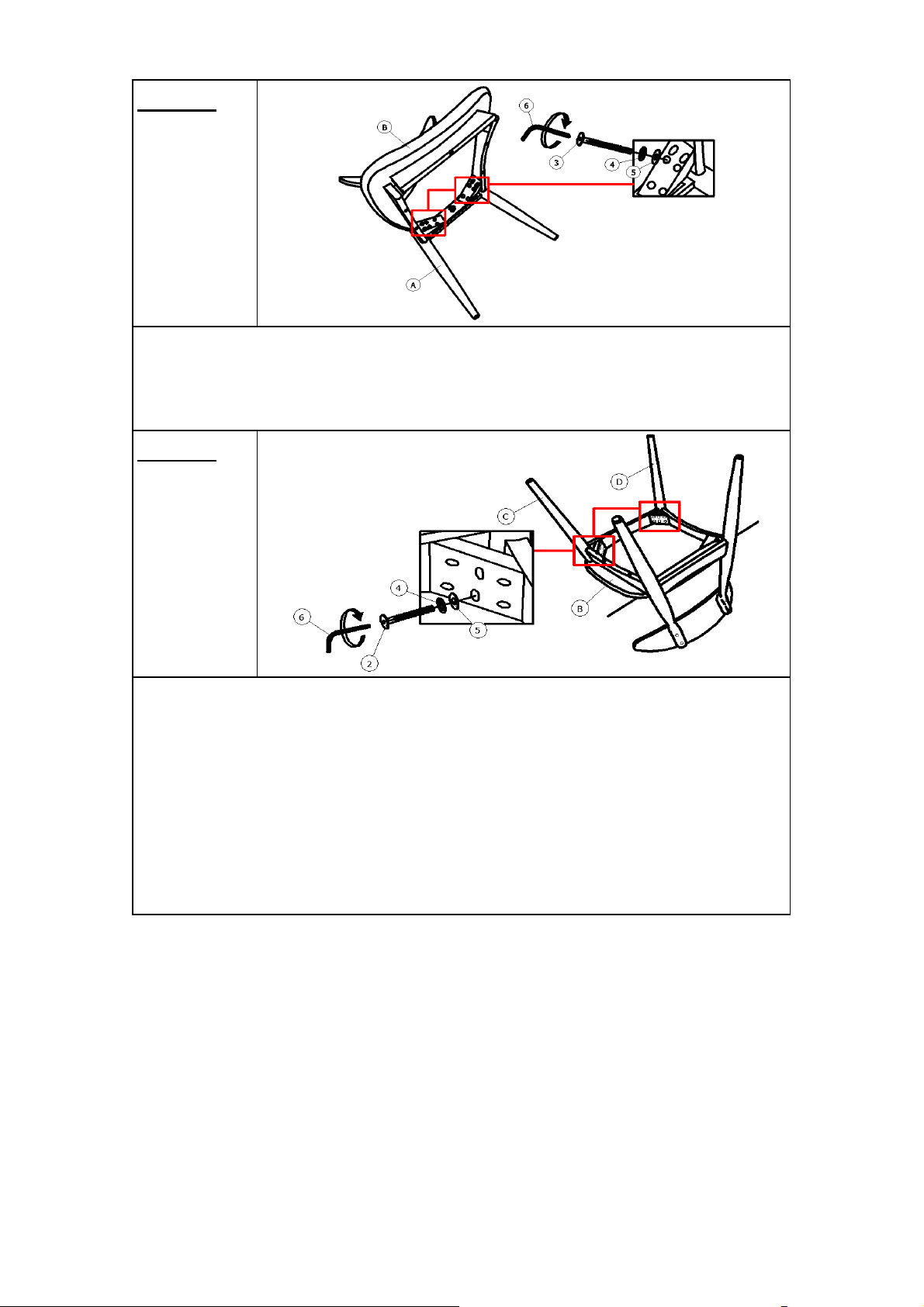

Step 2
Step 3
Attach Chair Seat(B) to Back Rest(A) using Bolts(), Spring Washers(), and Washers() with Allen Key().
Do not fully tighten the Bolts.
Carefully place the Chair facedown on a clean, non-marring surface. Insert Front Leg(C) and Front Leg(D) into Chair Seat(B) as shown above. Attach Front Leg(C) and Front Leg(D) to Chair Seat(B) using
Bolts(), Spring Washers(), and Washers() with Allen Key().
Do not fully tighten the Bolts.
Page 4 OF 6

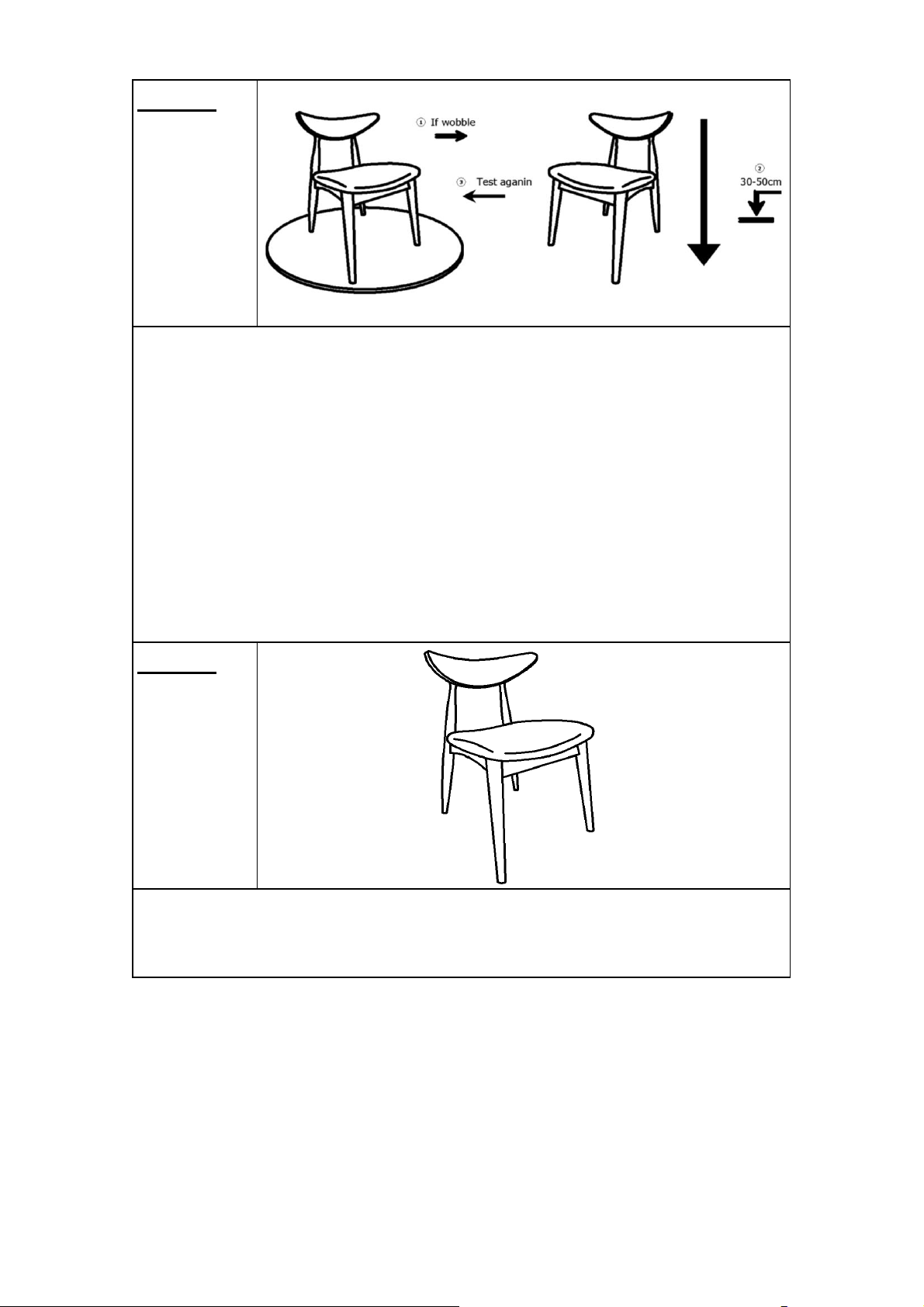

Step 4
Step 5
Your Chair is ready for use. This Chair can only be used on a flat, level surface.
Place the Chair on a Level Surface to check for wobbles. If it wobbles, lift the Chair some 30 to 50 cm high from the ground, keep your feet and toes well away from the drop zone, and drop the Chair vertically with all four Legs, hitting the ground at the same time. The Drop Test will help to ensure that all Bolts and gaps reach full alignment. Test again for evenness on a Level Surface. If no wobbles are found, proceed to tighten all the Bolts.
When tightening the Bolts, tighten sequentially. Do not tighten any Bolt fully and then move on to the next one, this could cause the frame to warp. If it still wobbles, loosen the Bolts and execute this same drop test. If the Chair is not Stable it could lead to damage to the product.
Page 5 OF 6
Care & Maintenance
Page 6 OF 6
