PALLADIA

It is designed and manufactured to customer speciﬁcations, to protect from the sun and elements, snowfall excluded; PALLADIA

must be ﬁxed to a suitable supporting wall and may be used in winds of up to force 8 on the Beaufort scale as shown in chart (pag.

39). In the event the above conditions are exceeded, the awning must be folded up. It is very dangerous to leave the awning open as it can cause injury.

PALLADIA FLAT VERSION

It is designed and manufactured to customer speciﬁcations, to protect from the sun and elements, snowfall excluded; PALLADIA must be ﬁxed to a suitable supporting wall and may be used in winds of up to force 6 on the Beaufort scale as shown in chart 1 (page 39).

MANUAL CONTROL

If PALLADIA® is ﬁtted with manual drive, to open and close the canvas, insert the manual winding handle in the seat of the gearbox and turn clockwise (to raise the canvas) or anticlockwise (to lower the canvas).

ELECTRIC COMMAND

In case of PALLADIA with a wall-switch, push the switch in the low area in order to move the awning downwards, push it in the up area to move the awning upwards. Once you release the switch the awning will stop. The drive must be installed between 90 and 120 cm oﬀ the ground.

RADIOCOMANDO

In case of PALLADIA with a radiocontrol, use the respective switches to move the awning upwards, downwards or to stop it (see ﬁg.).

A working height of < 2.50 m can generate a risk of shearing/ crushing between the moving part (front terminal tube) and the ﬁxed part of the structure. The person starting the manoeuvre MUST be present until the end of the manoeuvre to ensure that no obstacles or persons are in the proximity of the potential hazard zone; alternatively the electric drive can be installed as described on the next page.

Keep out of reach of children

Replacing radio control 1 battery

In order to replace the battery remove the screw on the back of the radiocontrol and replace the batteries with a similar model

(alkaline 12 Vdc mod. 23 A).

Replacing radio control 2 battery

This transmitter is powered by a CR2032 type 3 Volt battery. To replace it, open the plate on the back and remove the ﬂat battery, then replace it with a new one, ensuring the polarity is correct. Reposition the plate.

Attention: do not invert polarity. Attention: do not use an incorrect battery type. Risk of explosion if the battery is replaced with a model dierent from that specied. Dispose of the used battery in the appropriate containers.

HOW TO CONTROL PALLADIA

USAGE

Awning going upwards

Stop

Awning going upwards

Awning going downwards

Led Indicates the battery state (red is working)

Awning going downwards

Page 3

29 of 121

CORRADI SPA - USER MANUAL - PALLADIA

ITALIANOENGLISHDEUTSCHFRANÇAISESPAÑOL

20.05.2013

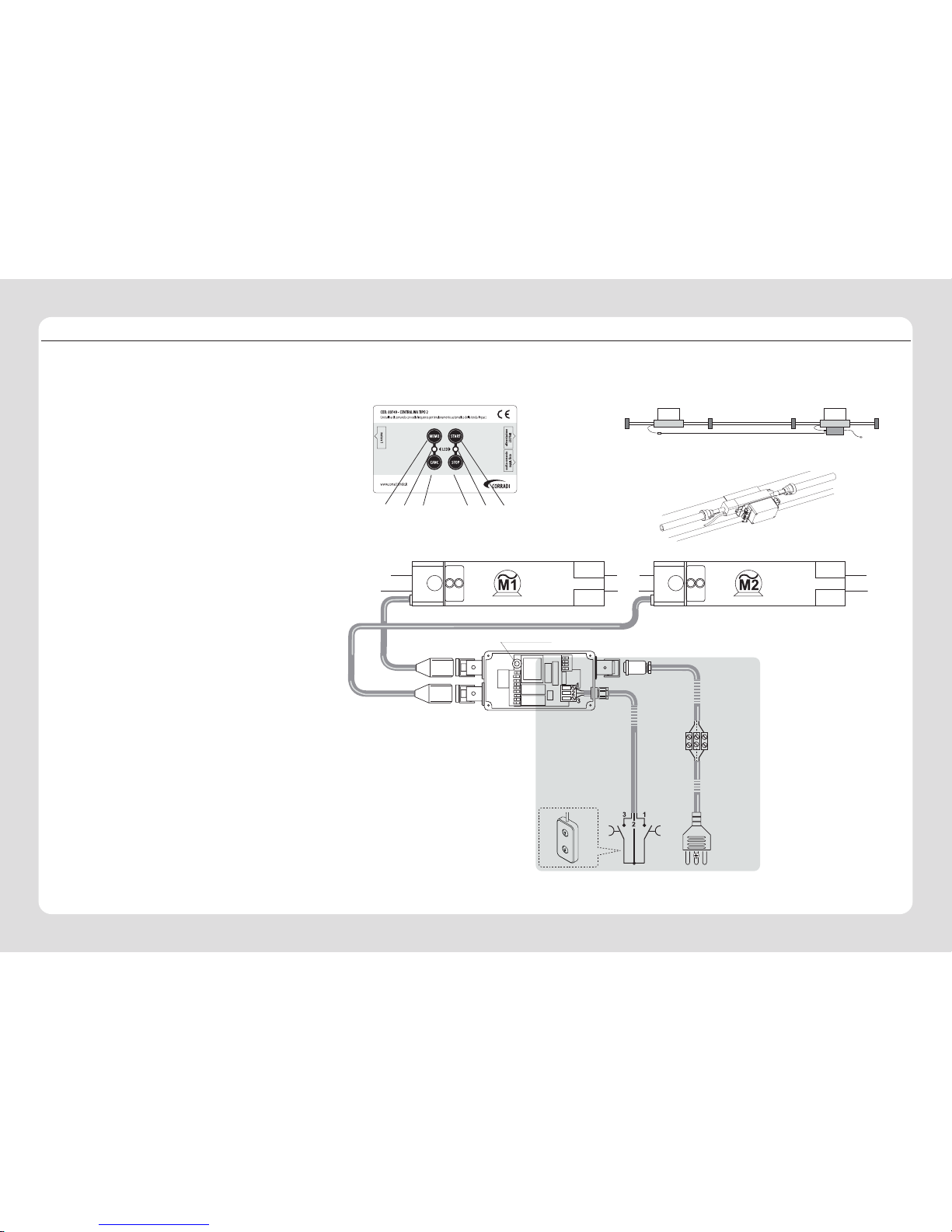

VERSIONS AND MOTORISATIONS

220 volt / 218 watt motor reducer complete with limit switch. Required for 2, 3 or 4 runner awning, ﬂat version, where the awning remains slack, or for the taut, tilted version, with a maximum projection of 350 cm.

220 volt / 218 watt motor reducer with microchip canvas tension controlled and a radio command (433.92 MHz). Required for a 2 or 3 - runner awning, tilted version, which guarantees constant correct tension despite changes in fabric properties caused by diﬀering environmental circumstances.

220 volt / 218 watt + 218 watt motor reducer with a microchip that powers 2 motors and controls the canvas tension, a radio command (433,92 MHz) with 2 channel emitter. Required for a 4 runner awning, tilted version, which guarantees constant correct tension despite changes in fabric properties caused by diﬀering environmental circumstances.

ELECTRIC DRIVE TYPE 1

PLAN motor

ELECTRIC DRIVE TYPE 2

SLOPE motor remote computing system exchange MO NO

ELECTRIC DRIVE TYPE 3

SLOPE motor 1 (command) PLUS motor 2 remote computing system exchange TANDE M

PALLADIA 2 RUNNERS

PALLADIA 3 RUNNERS

PALLADIA 4 RUNNERS

TILTED VERSION PALLADIA

FLAT VERSION PALLADIA

1 2

WIDTH PROJECTION

WALL BEAM HEIGHT

PILLAR

Page 4

30 of 121

CORRADI SPA - USER MANUAL - PALLADIA 20.05.2013

PALLADIA 2 RUNNERS

ELECTRIC DRIVE TYPE 1

00775-1 PLAN Motor reducer

ELECTRIC DRIVE TYPE 2

00775-2 SLOPE Motor reducer 00749 MONO Exchange

Wall mounted protection cover

Electric drive

Non spinning crosspiece

Frontal crosspiece

Bracket cover

protection hood

Frontal beam (optional)

Frontal beam support

Runner kit cover

Runner kit

Crosspiece drive

Modular awning protection cover

Wall bracket

Bracket cover protection hood

Lh/rh upper brackets

Crossbar supports

Awning protection cover cap

Runner

Fixing plate lower bracket

Lower bracket

Pillar

Pillar foot

Page 5

31 of 121

CORRADI SPA - USER MANUAL - PALLADIA

ITALIANOENGLISHDEUTSCHFRANÇAISESPAÑOL

20.05.2013

PALLADIA 3 RUNNERS

ELECTRIC DRIVE TYPE 1

00775-1PLAN Motor reducer

ELECTRIC DRIVE TYPE 2

00775-2 SLOPE Motor reducer 00749 MONO Exchange

Tettuccio a parete

Wall mounted protection cover

Electric drive

Non spinning crosspiece

Frontal crosspiece

Frontal beam (optional)

Frontal beam support

Runner kit cover

Runner kit

Crosspiece drive

Modular awning protection cover

Crossbar supports

Lh/rh upper brackets

Wall bracket

Awning protection cover cap

Runner

Fixing plate lower bracket

Lower bracket

Foot

Pillar foot

Bracket cover protection hood

Page 6

32 of 121

CORRADI SPA - USER MANUAL - PALLADIA 20.05.2013

PALLADIA 4 RUNNERS

Wall mounted protection cover

Modular awning protection cover

Crossbar supports

Lh/rh upper brackets

Wall bracket

Awning protection cover cap

Runner

Fixing plate lower bracket

Lower bracket

Pillar

Pillar foot

Electric drive

Non spinning crosspiece

Frontal crosspiece

Frontal beam (optional)

Frontal beam support

Runner kit cover

Runner kit

Crosspiece drive

ELECTRIC DRIVE TYPE 1

00775-1 PLAN Motor reducer

ELECTRIC DRIVE TYPE 3

00775-2 SLOPE Motor reducer 00775-3 SLOPE Motor reducer 00757 TANDEM Exchange

Bracket cover protection hood

Page 7

33 of 121

CORRADI SPA - USER MANUAL - PALLADIA

ITALIANOENGLISHDEUTSCHFRANÇAISESPAÑOL

20.05.2013

TROUBLESHOOTING

PALLADIA

MANUAL VERSION

PALLADIA

ELECTRIC DRIVE

PROBLEM

The awning moves erratically.

The motor won’t start.

The motor starts but the awning won’t move.

The awning moves erratically.

Dirty runners, runners not properly aligned.

There is no electricity.

It is not plugged in.

The motor has overheated.

Problem setting the limit switch.

Possibly broken belts, or disconnection from drive shaft.

Dirty runners, runners not properly aligned.

Clean the runners (see instructions in chapter on maintenance). Realign the runners.

Check the electric current.

Check that the plug is correctly connected to a suitable socket.

Wait 5-10 minutes to allow the motor to cool down. If the problem persist check the limit switch.

Set the limit switch.

Contact dealer.

Clean the runners (see instructions in chapter on maintenance). Realign the runners.

CAUSE CHECKS AND SOLUTIONS

Page 8

34 of 121

CORRADI SPA - USER MANUAL - PALLADIA 20.05.2013

DEAR CUSTOMER,

Thank you for choosing a Corradi product. We invite you to look at the table below, which shows the characteristics of components and materials used in Corradi Group products: Pergotenda®, sail awnings, outdoor furniture. These features identify the materials’ peculiarities and shouldn’t be considered as manufacturing imperfections. We take this opportunity to underline that, to enter in our production cycle, materials must pass all the tests scheduled by our company quality system, according to UNI EN ISO 9001:2000 Certiﬁcation. Thank you for your attention, Corradi SPA

PRODUCT FEATURES NON COMPLIANCE/ DEFAULT WARNINGS

GENERAL Defaults have to be reported within 8 days

starting on installation date on the customer’s site (point of reference is the date indicated on the declaration of correct installation issued to the end user by the installer). See general sales term.

The structure is not watertight. In case of particularly violent storms with strong winds water seepage may occur.

In case wind values should exceed those shown on the statement of correct installation, it is necessary to close the awning. It is possible to use a properly calibrated anemometer.

The product does not guarantee the snow load. In presence of snow, even of low intensity, the canvas should be closed.

To have your product warranty the certiﬁcate of proper installation is MANDATORY. A copy must be given to the ﬁnal customer and a copy shall be sent to Corradi SpA. The reception of the duly completed certiﬁcate will activate the product warranty.

Any change to the product not expressly authorized by Corradi SpA leads to loss of warranty.

The structures that are located in an urban environment are subject to pollutants (smog, acid rain), smoke from chimneys, fumes from cooking, and weather in general. It is normal for the fabric and the structure to get dirty. The structures and the fabric are NOT selfcleaning.

SELFSUPPORTING

By applying a lateral load on the pillar an oscillation in the structure may occur. This movement is not a sign of structural weakness, but is considered normal for the type of structure. The structure has been calculated by qualiﬁed engineers using the Eurocodes and is guaranteed to wind up to the level indicated in the EC certiﬁcate and in the Declaration of correct installation.

PRODUCTS FEATURES

Page 9

35 of 121

CORRADI SPA - USER MANUAL - PALLADIA

ITALIANOENGLISHDEUTSCHFRANÇAISESPAÑOL

20.05.2013

PRODUCTS FEATURES

PRODUCT FEATURES NON COMPLIANCE/ DEFAULT

CANVAS Depending on the installation conditions, it is possible that the cloth gets dirty (pollutants, smoke from chimneys, smog, etc.).

In this case it may be necessary to clean the fabric more frequently as indicated in the section maintenance. The cloth is not immune from burns caused by cigarette butts, etc.. In particular situations of use of the structure, condensation may occur on the inside of the fabric. To limit this condition proceed

with an adequate ventilation of the room. The appearance of mold in the embossing of the fabric is due to the presence of moisture on the sheet that favores the

formation of micro-organisms. It is therefore necessary to clean the fabric at regular intervals, more frequently if necessary. The presence of folds on the fabric after the ﬁrst installation may be due to packaging. It is necessary to keep the fabric in

position for at least 10 days, and evaluate the quality of the product after this period of time.

The presence of folds on the fabric after 10 days has to be considered a default.

FALSE CEILING In particular situations of use the structure may present condensation in the area between the canvas and the ceiling. This may

cause dirt and / or mold in the intermediate zone. Remove the false ceiling and wash it.

GUTTER Periodically check that the drain pipes of the gutter and downspouts are clean. Discard leaves and other detritus that can clog

the drain holes. In case of very heavy rainfall it is possible that the gutter is not able to drain the water. This may cause water inﬁltrations. The water-conducting to the ground may not be controlled by Corradi SpA, but by the ﬁnal customer. The installation conditions,

slopes and any collection wells, are the sole responsibility of the ﬁnal customer.

LAMPS To maintain good eﬃciency in the seals, thereby ensuring the IP product protection level (shown in the manual), you must do

the maintenance indicated in the manual.

AWNING SAILS The presence of folds on the sail is due to the long winding of the sail on the roller tube. To limit this phenomenon and to have

the warranty the use of the sailcover is mandatory. The presence of folds on the sail immediately after the ﬁrst installation may be due to packaging. The folds will disappear

completely after about 6 months of installation.

VELOMBRA FABRICS

The fabrics are “dyed in the piece”, this can cause a non-perfect uniformity and consistency of color.

WOOD WARNING: It is good to remember that any kind of wood type placed outside, and directly exposed to weather elements, may

look “lived” even after a relatively short period of time. This manifests itself mainly with:

• discoloration of the surface (the degradation varies depending on the moisture content to which the wood is subject)

• with the irregularity of the surface due to cyclic phenomena of swelling and shrinkage and possible mechanical wear of the

surface. Since wood is a natural material, there are diﬀerences in color and grain and therefore all elements are diﬀerent. Furthermore,

depending on the viewing angle the aspect is quite diﬀerent because of the iridescent nature of the material. The samples and photographic reproductions are thus regarded as indicative and not binding.

The detachment of a slat from the beams is considered a defect.

Page 10

36 of 121

CORRADI SPA - USER MANUAL - PALLADIA 20.05.2013

PRODUCT FEATURES NON COMPLIANCE/ DEFAULT

The beams may present vertical stripes of diﬀerent shades. This is normal and is due to stacking that occurs inside the autoclave during the impregnation treatment (the beams are spaced apart by transverse beams).

The presence of resin is a characteristic of coniferous wood. A dimensional variation of wood products after exposure to moisture is normal. The reference humidity for

the measuring is 12% (deﬁned in the UNI EN390: 1997).

FLOOR The ﬂoor may dent in collisions or falling objects and the implementation of concentrated loads on a small

area, such as chairs with wheels, high heels and ladders is not suitable. The ﬂoor can scratch as a result of contact with small objects such as nails or stones present beneath the

soles of shoes. At the time of delivery, the ﬂoor may be diﬀerent from that of the samples after exposure to light which

causes a change in the wood color.

MOTORS Electrical system: it must be performed by a licensed electrician who shall issue a certiﬁcate of conformity

of the electrical system. The system has to have an appropriate degree of protection being installed outside. A licensed electrician is

able to properly size the system and choose the right components (adequate IP protection). Any voltage drop or radio interference may result in loss of the limit switches of the engines. In this case it is

necessary to proceed with a new programming as indicated in the Manual.

STAINLESS STEEL

The components in stainless steel require no maintenance. The appearance of micro-oxidation, most frequently in maritime environments characterized by salt spray, does not aﬀect the quality and durability of the product such oxidations are believed to be normal. In case you need to remove these oxidized points you can use a steel wool or a metal bristle brush (in stainless steel). The protective ﬁlm of chromium oxide (autopassivation) will reset in a natural way with the only exposure to air, without any intervention by the user.

ALUMINIUM The presence of marks and scratches is considered a fault only if these are visible at a distance of 2 meters. If the signs and/or dents are visible at a distance of 2 meters these are to be

considered a defect.

Do not use acid to clean the painted aluminum, but only mild soap and water.

FINISH Orange peel: the surface of the coating ﬁlm has an uneven look like orange peel.

Blistering: bumps on the surface of the coating ﬁlm in various sizes and frequency. Sagging of the outer layer: localized and well deﬁned irregular accumulations of

coating products, in the form of rounded edges and shallow that aﬀect the outer layer.

Posting - Veneer: the coating ﬁlm lifts from the substrate in form of small ﬂakes

PRODUCTS FEATURES

Page 11

37 of 121

CORRADI SPA - USER MANUAL - PALLADIA

ITALIANOENGLISHDEUTSCHFRANÇAISESPAÑOL

20.05.2013

PRODUCT FEATURES NON COMPLIANCE/ DEFAULT

Porosity - Cissing: Small holes like craters or indentations in the surface of the coating ﬁlm, ranging in size: from small pinhole up to a diameter of up to 1 cm.

Impurities in the outer and inner layers: the coating ﬁlm has a rough and irregular surface, easily perceptible to the touch.

Scrapings for interference: the coating ﬁlm is damaged and presents lesions of varying depth and extent depending on the cause.

GLAZING For aluminum frames refer to the ALUMINIUM voice. ERMETIKA The temperature inside the protection hood can reach very high values, if exposed to direct sunlight during the summer. This

may result in bonding of the fabric if the awning is not handled for long periods. It is recommended to open and close the awning on a frequent basis to avoid this problem.

If the fabric is rolled up for long periods creases and wrinkles may appear on the fabric. The fabric is made of PVC and its nature is not comparable to a glass. It is necessary to keep the awning stretched for at least 48h to soften creases and wrinkles.

In case of installation in areas aﬀected by dust and wind (e.g. beach facing the sea) it is possible that the fabric may be damaged losing the transparency due to the combined action of wind and sand.

To maintain a good eﬃciency on the awning and the locking device it is necessary to maintain the vertical runners clean as shown in the maintenance chapter.

Make sure there are no obstructions that may impede the orderly movement of the awning. This may cause malfunction of the locking devices of the awning.

If there is ice/snow runners should be cleaned thoroughly before operating the awning.

RUNNERS After some time from the installation and if no periodic maintenance is performed on the runners, as indicated in the manual,

there may be noise in the runners and sliders.

Noise on the runners soon after the installation is is considered a default.

PRODUCTS FEATURES

Page 12

38 of 121

CORRADI SPA - USER MANUAL - PALLADIA 20.05.2013

MAINTENANCE

WARNING:

THE RUNNERS SHOULD NEVER BE LUBRICATED

UNDER ANY CIRCUMSTANCES.

WARNING:

During all maintenance and repair operations or product registration, the electric supply must always be disconnected. It is also advisable to place a warning sign over the mains supply switch with the following phrase:

“DO NOT TOUCH: work in progress”.

The use of ladders, access platforms or the like is restricted to specialist personnel only, who must comply with current safety regulations and must use personal protective equipment.

PREMESSA

PALLADIA is a unique product that oﬀers the highest quality and longest lifespan thanks to its construction and the materials used. Routine maintenance is therefore minimal, thus allowing users to keep the product perfectly functional and attractive with just a few operations. The few, simple rules to be followed are given below:

RUNNERS

Once a year in normal conditions of use, or once a month when exposed to sea air, wash the inside of the runners with a jet of water and if possible use a brush to remove all traces of dirt and/or incrusted salt, as described in ﬁg. 1. Warning: the runners should never be lubricated under any circumstances.

CANVAS

Canvas maintenance is limited to cleaning. Se si desidera mantenere come nuova la parte esposta alle intemperie, è necessario lavarla 2 o 3 volte l’anno in modo da evitare che la polvere o lo smog che si depositano sul telo si ﬁssino su di esso attraverso l’azione del sole.

Per lavare il telo procedere spruzzando acqua e sapone neutro sullo stesso, aspettare qualche minuto per far si che il prodotto abbia il tempo di agire, dopodichè, mediante l’utilizzo di una spugna, rimuovere lo sporco senza però fare eccessiva pressione meccanica, ripetere se necessario, e sciacquare abbondantemente.

HARDWARE

The hardware is made of stainless steel. Once a year under normal conditions, or once a month if exposed to salinity, the hardware must be rinsed with a water jet to remove any trace of dirt and/or salt incrustation. The appearance of small rust spots, more frequent in coastal areas with salt spray, does not jeopardise the quality and duration of the product; these spots are to be considered as normal. Should you wish to remove the rust spots, use a scouring pad or metal bristle brush (stainless steel). The protective ﬁlm of chromium oxide (selfpassivation) will restore itself naturally when exposed to the air, without the need for any intervention by the user.

Page 13

39 of 121

CORRADI SPA - USER MANUAL - PALLADIA

ITALIANOENGLISHDEUTSCHFRANÇAISESPAÑOL

20.05.2013

TABLES

TABLE 1 - STRENGTH AND EFFECTS OF WIND ON BEAUFOR T SCALE

TABLE 2 - MAXIMUM SIZE

TABLE 3 - DEFLECTION (minimum values in cm for single canvas at PALLADIA)

* According to the UNI EN 13561 standard

Values in cm for the maximum size of single canvases

Degree Class* Load (N/mq) Knots Km/h m/s Envir. conditions Eects of wind

0 0 < 40 0-1 0-1 < 0,3 Calm Smoke rises vertically 1 0 < 40 1-3 1-5 0,3-1,5 Light air Direction of wind shown by smoke drift, but not by weather vanes 2 0 < 40 4-6 6-11 1,6-3,3 Light breeze Wind felt on face, ordinary vanes moved by wind

3 0 < 40 7-10 12-19 3,4-5,4 Gentle breeze Leaves and small twigs in constant motion 4 1 40 11-16 20-28 5,5-7,9 Moderate breeze Raises dust and loose paper; small branches are moved 5 2 70 17-21 29-38 8-10,7 Fresh breeze incominciano ad oscillare i piccoli alberi 6 3 110 22-27 39-49 10,8-13,8 Strong breeze Large branches in motion; umbrellas used with diﬃculty 7 >3 >110 28-33 50-61 13,9-17,1 Strong wind Whole trees in motion; inconvenience felt when walking against wind 8 >3 >110 34-40 62-74 17,2-20,7 Fresh gale Branches break oﬀ trees; generally impedes progress

9 >3 >110 41-47 75-88 20,8-24,4 Strong gale Tiles come oﬀ roofs 10 >3 >110 48-55 89-102 24,5-28,4 Whole gale Trees uprooted 11 >3 >110 56-63 103-117 28,5-32,6 Storm Serious damage to buildings 12 >3 >110 >64 >118 > 32,7 Hurricane Immense damagei

Model Nr. of

runners

Width Projection

PALLADIA ﬂat 2 350 650

3 700 650 4 1050 650

PALLADIA tilted 2 500 650

3 900 650 4 1300 650

Width (cm)

250 300 350 400~500 550~600 650~700 750~900 950~1050

11 14 17 11 14 17 14 17

2 runners 3 runners 4 runners

Page 14

40 of 121

CORRADI SPA - USER MANUAL - PALLADIA 20.05.2013

TABLES

TABLE 6 - MINIMUM SLOPE (minimum values in cm for single canvas tilted Palladia)

Width (cm)

200 250 300 350 400 450 500 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300

250 15 20 25 29 34 39 43 20 23 25 27 29 32 34 37 39 27 28 29 32 33 34 37 38 300 19 25 30 36 41 47 52 25 28 30 33 36 39 41 44 47 34 35 36 39 40 41 45 46

46 22 29 36 42 48 55 61 29 33 36 39 42 45 48 52 55 40 41 42 46 47 48 53 54 400 26 34 41 48 56 63 71 34 38 41 45 48 52 56 60 63 46 47 48 54 55 56 61 62 450 31 39 47 55 63 72 80 39 43 47 51 55 59 63 68 72 53 54 55 61 62 63 70 71 500 35 44 53 62 71 80 90 44 49 53 58 62 67 71 76 80 60 61 62 69 70 71 78 79 550 39 49 59 69 79 89 99 49 54 59 64 69 74 79 84 89 67 68 69 77 78 79 87 88 600 43 54 65 76 87 98 109 54 60 65 71 76 82 87 93 98 74 75 76 85 86 87 96 97 650 48 60 71 83 95 107 119 60 66 71 77 83 89 95 101 107 81 82 83 93 94 95 105 106

Projection (cm)

2 runners 3 runners 4 runners

Page 15

41 of 121

CORRADI SPA - USER MANUAL - PALLADIA

ITALIANOENGLISHDEUTSCHFRANÇAISESPAÑOL

20.05.2013

WARRANTY

ART. 1 - USE:

PALLADIA is a pergola with retractable awning to cover outdoor areas such as gardens, balconies, rooftop gardens, yards, etc. PALLADIA and its components have been designed, patented and registered as trademarks by Corradi Spa - Bologna, Italy - and have been manufactured in accordance with applicable technical standards. The warranties hereunder are valid if installation and use of the awning conform to the speciﬁcations indicated in the articles and tables below. Only the ﬁnest materials, suited to outdoor use, have been used in the manufacture of PALLADIA components. PALLADIA is designed and manufactured to customer speciﬁcations, to protect from the sun and precipitations with a resistance to water accumulation over Class 2 (56 lt/hour x mq) of the UNI EN 13561, snowfall excluded and a wind resistance over Class 3 (49 km/hour) of the UNI EN 13561.

ART. 2 - VERSIONS:

PALLADIA TILTED VERSION must be ﬁxed to a suitable supporting wall and may be used in winds of up to force 8 on the Beaufort scale as shown in table 1.

PALLADIA FLAT VERSION must be ﬁxed to a suitable supporting wall and may be used in winds of up to force 6 on the Beaufort scale as shown in table 1.

ART. 3 - INSTALLATION:

PALLADIA shall always be ﬁxed to a suitable supporting structure (wall or ceiling): all conditions in table 2 “Maximum size”, table 3 “Deﬂection “ table 4-5 “Maximum load”, table 6 “Minimum slope” shall be complied with. The retailer has to give the “USER MANUAL” to the client.

ART. 4 – WARRANTY VALIDITY:

The warranty is only valid if the installation and utilisation conditions as speciﬁed in art. 3 are observed. The warranty covers the repair or entire replacement free of charge (labour excluded) of all components that may be nonconforming or faulty, including transport charges. Damage from non-enjoyment of PALLADIA for any period of non-use before and during the repair shall not be covered. No compensation may be claimed for “actual damages or lost proﬁt”. The above mentioned warranty will be eﬀective only in the state in which the retailer or the concessionaire has his own oﬃce.

ART. 5 - WARRANTY STARTING POINT:

The warranty starts from the date on which work ends with delivery of the User Manual and, in any case, from the date on which Corradi Spa receives copy of the declaration of correct installation complete in all its parts and signed by the end buyer and by the authorised retailer.

ART. 6 – WARRANTY EXCLUSIONS:

The warranty is not valid in the cases listed below, by way of illustrative and non-limiting example: a) For damage arising from impact or extraordinary natural events (lightning, ﬂooding, earthquake, hail, etc.) b) For damage caused by the actions of persons or technicians not authorised by Corradi Spa; c) If the electrical voltage has a variation above or below 5% of the rated value (IEC standard 2-3 July 1988)

ART. 7 - DURATION OF WARRANTY:

5 YEARS (ﬁve): For the structure, the handling system and the ECLISSI fabric.

2 YEARS (two): CRISTAL and VINITEX fabric for any outer fasteners (roll up canvases, sliding canvases, canvases with zippers, etc. The wind resistance of these components depends on the solution installed and will be certiﬁed, upon request, for each single installation.

ART. 8 - COMPLAINT:

According to art. 1495 sub-section 1 and 1511 sub-section 1 of the Civil Code, the customer may inform the retailer of any apparent fault found on the goods in writing only and no later than 8 (eight) days of receiving the goods. According to art. 1495 sub-section 1 of the Civil Code, the customer may inform the retailer of any non-apparent fault found on the goods in writing only and no later than 8 (eight) days of the discovery date, providing photographic proof of the fault. Both legal actions by the buyer towards the retailer become statutebarred one year after receiving/ installing the goods (Art. 1495 sub-section 2). According to art. 1512 of the Civil Code, the customer may inform the retailer of any operating fault in writing only and no later than 15 (ﬁfteen) days of discovery under penalty of cancellation of the warranty.

Page 16

42 of 121

CORRADI SPA - USER MANUAL - PALLADIA 20.05.2013

WARRANTY

The legal action by the buyer towards the retailer becomes statutebarred six months after discovery (Art. 1512 subsection 1). The customer may inform the retailer of any non-conformity covered by articles 128 to 1134 of legislative decree 206 / 2005 (Consumers Code) in writing only and no later than 2 (two) months of discovery. The legal action by the buyer towards the retailer becomes statutebarred within 26 months of the discovery date announced in the terms (Art. 132 sub-section 4 Consumers Code).

ART. 9 - TERRITORIAL EXTENTION OF THE WARRANTY:

The above mentioned warranty will be eﬀective only in the state in

which the client has his own domicile. Products directly or indirectly sold, installed or granted for commodate to customers outside the client’s domicile ar e speciﬁcally excluded from warranty unless agreed in writing by Corradi Srl.

Page 17

43 of 121

CORRADI SPA - USER MANUAL - PALLADIA

ITALIANOENGLISHDEUTSCHFRANÇAISESPAÑOL

20.05.2013

CE MARKING

Crushing hazard

Electric shock hazard

MARKING

CE MARKING PALLADIA 2-3-4-5 RUNNERS VERSIONS

Corradi Srl - Via G. Brini, 39 - 40128 Bologna Italy Model: PALLADIA 2-3-4-5 runners

Serial nr: 00000/00 Power supply: 230 V ~ Number of phases: 2 Wind-resistance: Class 3 EN 13561

Power: 218 W Frequency: 50 Hz

Year of production: 0000

Page 18

CORRADI SPA - USER MANUAL - PALLADIA

44 of 121

20.05.2013

CE DECLARATION OF CONFORMITY

The following CE Declaration of Conformity is subordinated to the observance of constraints and indications in the product warranty, as well as the correct installation done by the person in charge in accordance with the installation and lay-out instructions established by Corradi Spa.

The person authorised to draw up technical documentation is: EngineerGianmarco Biagi C/o sede Corradi via Brini, 39 40128 Bologna

THE MANUFACTURER I declare that the above described product conforms to the indications and requirements in the above mentioned Directives.

CHIEF EXECUTIVE OFFICER Eng. Gianmarco Biagi

(*) Directives exclusively applicable to products with motorizations and automations [see User manual ] (**) Wind resistance class: the wind resistance class has been veriﬁed using installation supports with features as in the Load table in the Installation manual

Costruttore: Corradi Spa Via G. Brini, 39 - 40128 Bolgna Italy

Descrizione del prodotto: PALLADIA Modello: PALLADIA 2 - 3 - 4 - 5 runners Numero di matricola: (see CE marking on product) Anno di fabbricazione: (see CE marking on product) Destinazione d’uso: (see Userhandbook-Original Instructions and concerning Warranty)

With the following document the company declares on its own responsibility, that the above mentioned product satisﬁes the Directives indicated on the side:

REFERENCE DIRECTIVES appliable to the following CE Declaration of Conformity

Construction Production Directive 89/106/CEE; Electromagnetic Compatibility Directive2004/108/CE(*); Machinery Directive 2006/42/CE(*); Low Voltage Directive 2006/95/CE(*);

The conformity has been veriﬁed with the aid of the following norms:

- Performance requirements, safety included UNI EN 13561:2009

- Wind resistance class: Class 3(**) (method according to UNI EN 1932: 2002);

INDICATION / CONDITIONS TO WHICH THE USAGE OF THE PRODUCT IS SUBJECT:

The CORRADI product is subject to the installation activity done for the Client. The Authorized Installer has to draw up and hand over the suitable DECLARATION OF CORRECT INSTALLATION AND CLASSIFICATION OF WIND RESISTANCE to the user, which testiﬁes the correct installation, in accordance with the instructions supplied by the manufacturer and applied in accordance with the state and morphology of the installation site and corresponding to the using conditions for which it has been realized.

The Installer has to follow the reference instructions in the “INSTALLATION HANDBOOK” and “USER HANDBOOK” . The Installer ﬁlls out and signs the DECLARATION OF CORRECT INSTALLATION AND CLASSIFICATION OF WIND RESISTANCE, in accordance with the model in the USER HANDBOOK.

Page 19

45 of 121

CORRADI SPA - USER MANUAL - PALLADIA

ITALIANOENGLISHDEUTSCHFRANÇAISESPAÑOL

20.05.2013

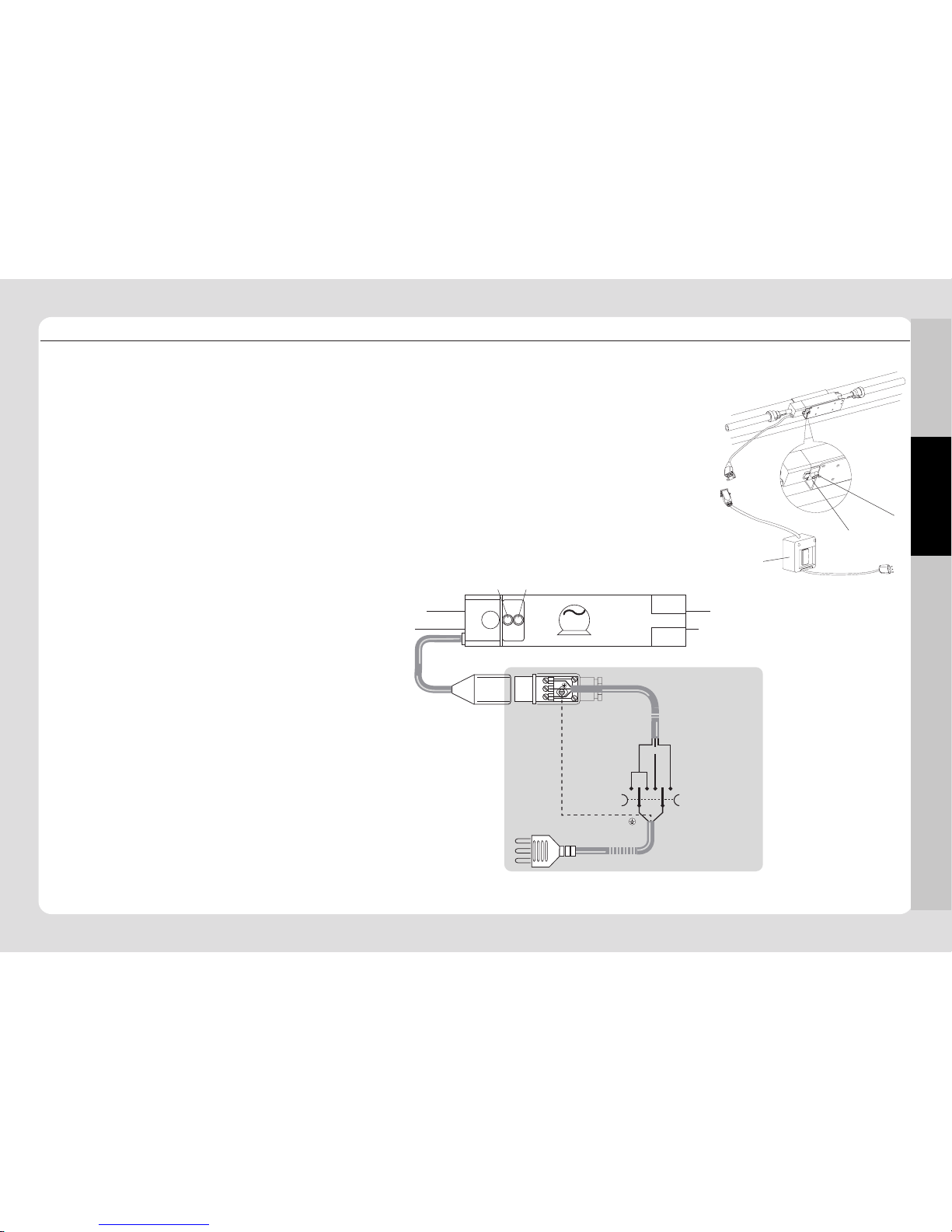

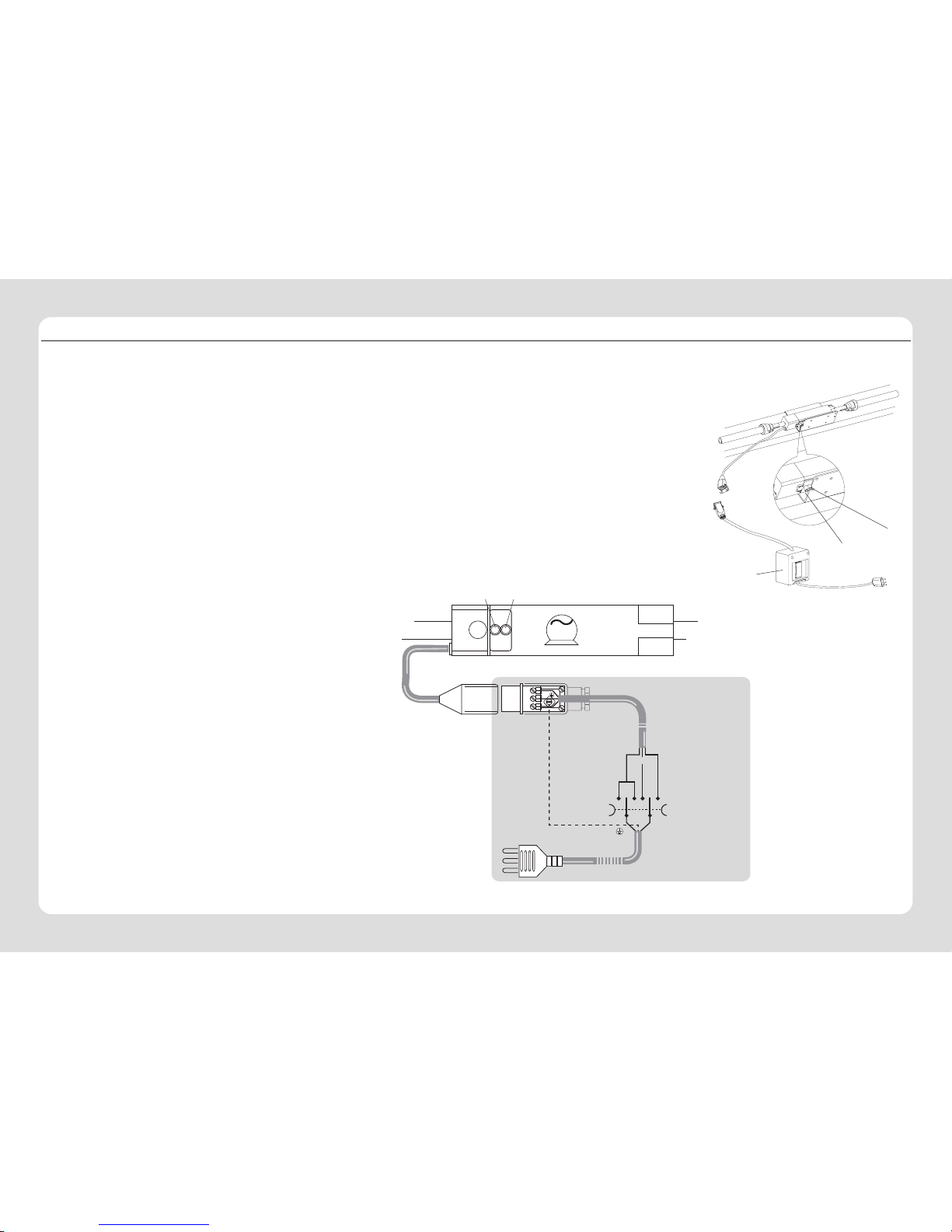

PROCEDURE FOR INSTALLING THE PLAN 75  TYPE 1 MOTOR ONLY FOR INSTALLERS

Panel

PLAN 75 Motor 230 V/50 Hz In= 0,97 A Pn= 218 W IP= 54

Open male plug supplied

Insulated extend button 230 V

WIRE TYPE FG70R 3X1,5 mmq

WORK MUST BE CARRIED OUT BY INSTALLER

COMMON

EXTEND

RETRACT

Insulated retract button 230 V

RESERVED FOR QUALIFIED TECHNICIANS

WARNING a qualied technician must initially adjust the motor.

When there is an electrical current, proceed with maximum caution in accordance with the safety regulations in force. When everything has been assembled, check that the transmission system is properly connected: shafts, tubes, side shafts and motor heads, with the sliders stacked at the top of the awning. The motor is in neutral in this position. Before assembling the awning proceed as follows:

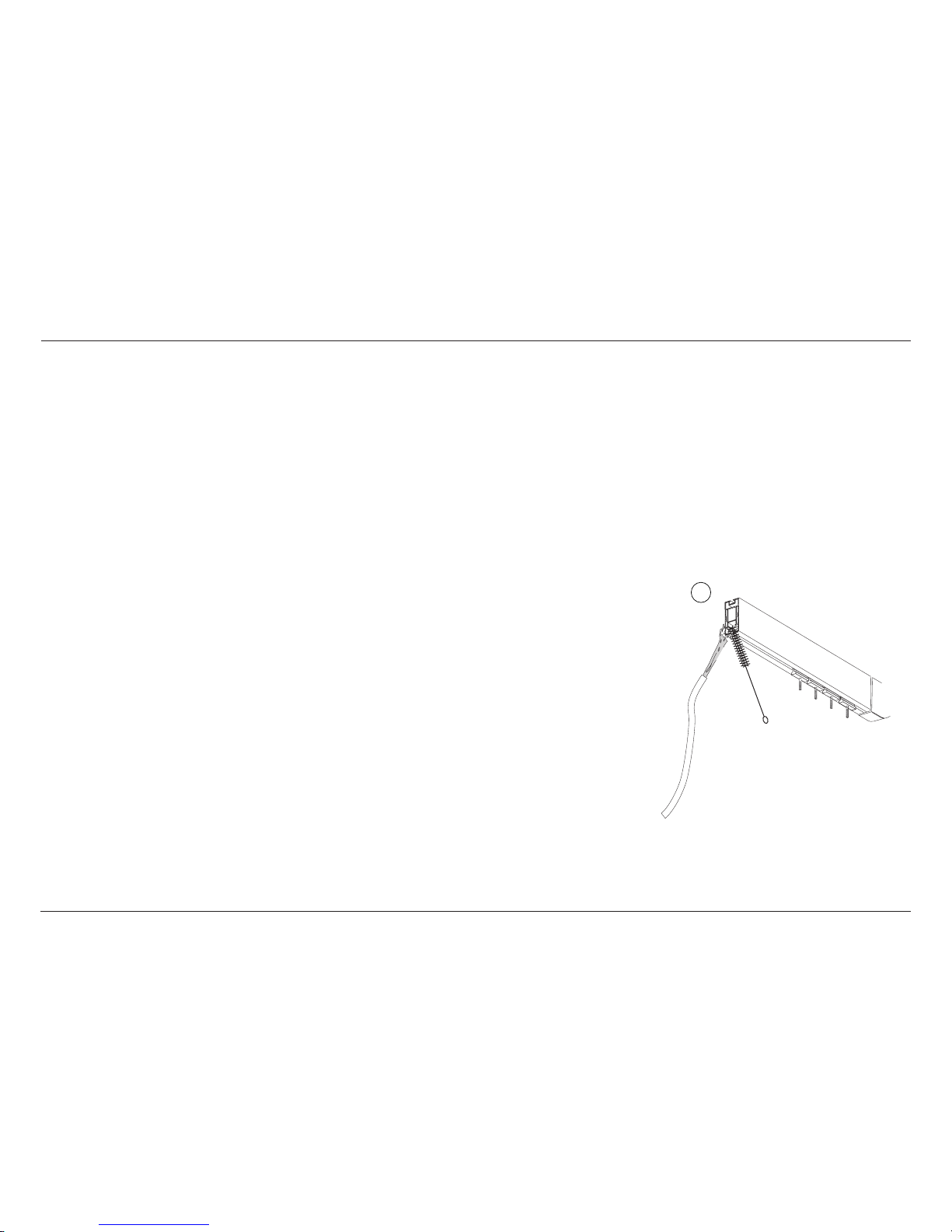

1)TEMPORARY ADJUSTMENT OF THE OPENING LIMIT SWITCH

Press push-button A and B with a screwdriver, turning it slightly in order to secure the push-button. Press the pushbutton panel to move the awning to 3/4 of the runner. To store the limit switch and quit the procedure press push-button A and B with a screwdriver and turn slightly to release, to store the limit switch position and quit the procedure.

2) ASSEMBLING THE AWNING

Assemble the end and intermediate tubes to the structure, securing them to the sliders.

3) ADJUSTING THE CLOSING LIMIT SWITCH, WITH AWNING RETRACTED

Go back to the neutral position, retracting the awning until it stops, then press push-button B* with a screwdriver, turning it slightly in order to secure the push-button. Set the closing limit switch 5 cm ahead of the neutral position, so that the sliders are slightly slack. Press push-button B with a screwdriver and turn slightly to release, to store the limit switch position and quit the procedure.

4) PERMANENT ADJUSTMENT OF THE OPENING LIMIT SWITCH

Open the awning until it stops (temporary opening limitswitch) then press push-button a with a screwdriver, turning it slightly in order to secure the push-button. Roll down the awning until it reaches the right opening position. To store the limit switch and quit the procedure press pushbutton a with a screwdriver and turn slightly to release, to store the limit switch position and quit the procedure.

* Do not try to force the push-button if it does not move when pressed, but ensure that the motor is positioned on the limit switch.

Page 20

CORRADI SPA - USER MANUAL - PALLADIA

46 of 121

20.05.2013

ADJUSTING THE COMMANDS

ELECTRIC DRIVE TYPE 1 PLAN 75 MOTOR

PLAN 75 Motor 230 V/50 Hz In= 0,97 A Pn= 218 W IP= 54

Open male plug supplied

Insulated extend button 230 V

WIRE TYPE FG70R 3X1,5 mmq

WORK MUST BE CARRIED OUT BY INSTALLER

COMMON

EXTEND

RETRACT

Insulated retract button 230 V

RESERVED FOR QUALIFIED TECHNICIANS

LIMIT STOP ADJUSTMENT PLAN 75 MOTOR

The end user of the product must refer to the limit stop adjustment procedure described here below. This procedure diﬀers from the initial adjustment of the motor set by the technical installer (see Installation Manual).

LIMIT SWITCH: OPENING AWNING EXTENDED

If the INSTALLATION KIT panel is present, connect it to the motor so that it can be manoeuvred.

N.B. For those who don’t have a push-button panel ask a qualied technician to realize one, as in the wiring scheme.

Run down the awning to the pre-set position for the opening limit switch; the awning must be in this position to set the opening limit switch. Push the A* button on the motor box using a screwdriver, making a slight rotation, block the push-button in depressed position. The actual limit switch will be cancelled. When the push-button is pushed inside, operate the panel until the awning is in the right limit switch position. Press pushbutton A with a screwdriver and turn slightly to release, to store the limit switch position and quit the procedure.

*Do not try to force the push-button if it does not move when pressed, but ensure that the motor is positioned on the limit switch.

LIMIT SWITCH: CLOSING AWNING RETRACTED

Connect the panel to the motor. Raise the awning to the preset position for the closing limit switch. The awning must be in this position to set the closing limit switch. Press push-button B* on the motor body with a screwdriver, turning it slightly in order to secure the push-button.

When the push-button is pushed inside and secured, operate the panel until the awning is in the right limit switch position. Press push-button B with a screwdriver and turn slightly to release, to store the limit switch position and quit the procedure.

Page 21

47 of 121

CORRADI SPA - USER MANUAL - PALLADIA

ITALIANOENGLISHDEUTSCHFRANÇAISESPAÑOL

20.05.2013

RESERVED FOR QUALIFIED TECHNICIANS

ADJUSTING THE COMMANDS

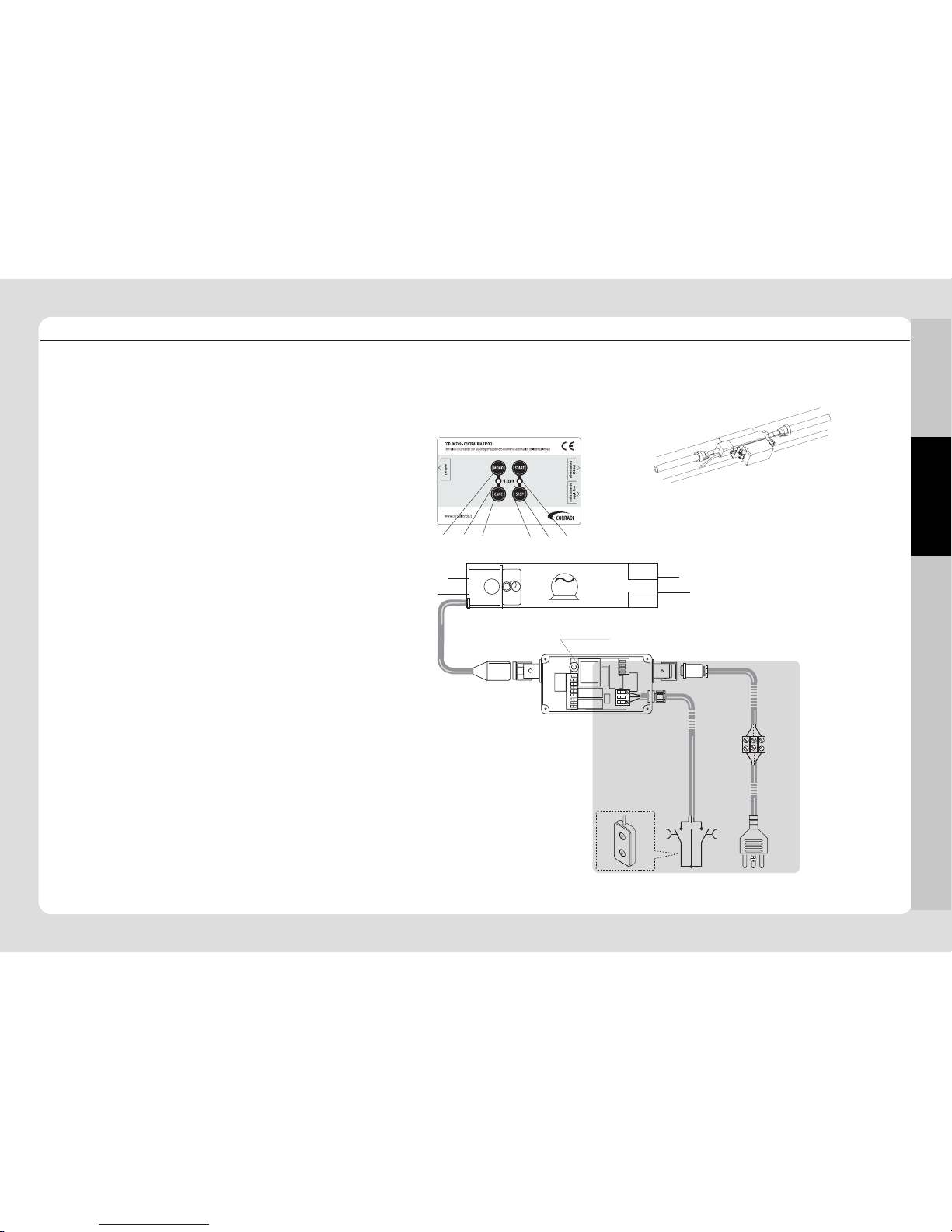

ELECTRIC DRIVE TYPE 2 SLOPE 95 MOTOR

Fusibile 250V/200m A

Push-button panel maintained, supplied and installed by an electrician. Positioned within the awning’s operating ﬁeld

Mono 00749 Exchange

cWith automatic opening limit switch

including a remote control.

Sintonizzazione dei trasmettitori

Per sintonizzare un trasmettitore

premere MEMO; dopo 2 lampeggi

del LED (mantenendo premuto

Memorizzazione dei necorsa

Premere START per un secondo;

all’accensione del LED, rilasciare il

pulsante. La tenda parte in discesa,

5 6

LIMIT STOP ADJUSTMENT SLOPE 95 MOTOR

Proceed with maximum caution in accordance with the safety regulations in force.

- Check that the motor is correctly connected to the exchange and that the exchange is correctly connected to the mains. If not present make the connections as indicated in the wiring scheme.

- Push the START button (1) on the remote computing system exchange and wait for the led to turn RED (2), and then release the switch.

- Push the STOP button (3) as soon as you reach the point where you would like to have the limit switch on the upper side.

It is then possible to use the remote control supplied. Then proceed with assembly of the awning. The tension of the canvas when opening is managed by the exchange, whilst the point at which the stacked awning stops is the point memorised with the STOP button. If the motor stops (because of overheating), the red LED (2) ﬂashes: after approximately 5 minutes the light goes oﬀ and the motor can be used again.

TUNING A NEW REMOTE CONTROL

Press the MEMO button (4), the LED (5) ﬂashes twice, keep the MEMO button (4) pushed down and press the remote control button at the same time, the LED (5) ﬂashes twice indicating that the remote control has been recognised.

CANCELLING REMOTE CONTROL MEMORY

You can cancel all the remote control codes by pressing the CANC button (6) and waiting for the LED (5) to stay permanently red.

SLOPE 95 Motor 230 V/50 Hz In= 0,97 A Pn= 218 W IP= 54

WORK MUST BE CARRIED OUT BY INSTALLER

5V low voltage wire

COMMON

EXTEND

RETRACT

Page 22

CORRADI SPA - USER MANUAL - PALLADIA

48 of 121

20.05.2013

Push-button panel maintained, supplied and installed by an electrician. Positioned within the awning’s operating ﬁeld

ADJUSTING THE COMMANDS

ELECTRIC DRIVE TYPE 3 SLOPE 95 AND PLUS 96 MOTORS

LIMIT STOP ADJUSTMENT SLOPE 95 AND PLUS 96 MOTORS

Proceed with maximum caution in accordance with the safety regulations in force.

- Check that the motor is correctly connected to the exchange and that the exchange is correctly connected to the mains. If not present make the connections as indicated in the wiring scheme.

- Push the START button (1) son the remote computing system exchange and wait for the led to turn RED (2), and then release the switch. The awning starts to descend; once it gets to the limit switch it will stop for approximately 1 second and then it will move upwards automatically.

- Push the STOP button (3) as soon as you reach the point where you would like to have the limit switch on the upper side.

TUNING A NEW REMOTE CONTROL

CANCELLING REMOTE CONTROL MEMORY:

You can cancel all the remote control codes by pressing the CANC button (6) and waiting for the LED (5) to stay permanently red.

TANDEM 00757 Exchange

With automatic opening limit switch for two motors including a remote control

Sintonizzazione dei trasmettitori

Per sintonizzare un trasmettitore

premere MEMO; dopo 2 lampeggi

del LED (mantenendo premuto

Memorizzazione dei necorsa

Premere START per un secondo;

all’accensione del LED, rilasciare il

pulsante. La tenda parte in discesa,

5 64 3 2 1

SLOPE 95 Motor 230 V/50 Hz In= 0,97 A Pn= 218 W IP= 54

PLUSE 96 Motor

230 V/50 Hz

In= 0,97 A

Pn= 218 W

IP= 54

WORK MUST BE CARRIED OUT BY INSTALLER

5V low voltage wire

Fu 250V/200mA

RESERVED FOR QUALIFIED TECHNICIANS

COMMON

EXTEND

RETRACT

Page 23

Pergotenda® e accessori

Pergotenda® and accessories Pergotenda® et accessoires Pergotenda® und Zubehörteile Pergotenda® y accesorios

Corradi Spa

39, Via G. Brini 40128 Bologna Italy

T +39 051 4188 411 F +39 051 4188 400 E [email protected]

Vele ombreggianti

Sail awnings Voiles d’ombrage Sonnensegel Velas de sombra

Velombra Srl

18, Via A. Einstein 47122 Forlì - Italy

T +39 0543 796617 F +39 0543 794339 E [email protected]

Arredamento per esterni e complementi

Outdoor furniture and accessories Ameublement d’extérieur et accessoires Außenausstattung und Komplemente Mobiliario de exterior y accesorios

Corradi Arredi Srl

28/30, Via Jesi 61122 Pesaro Italy

T +39 0721 287503 F +39 0721 220354 E [email protected]

www.corradi.eu
