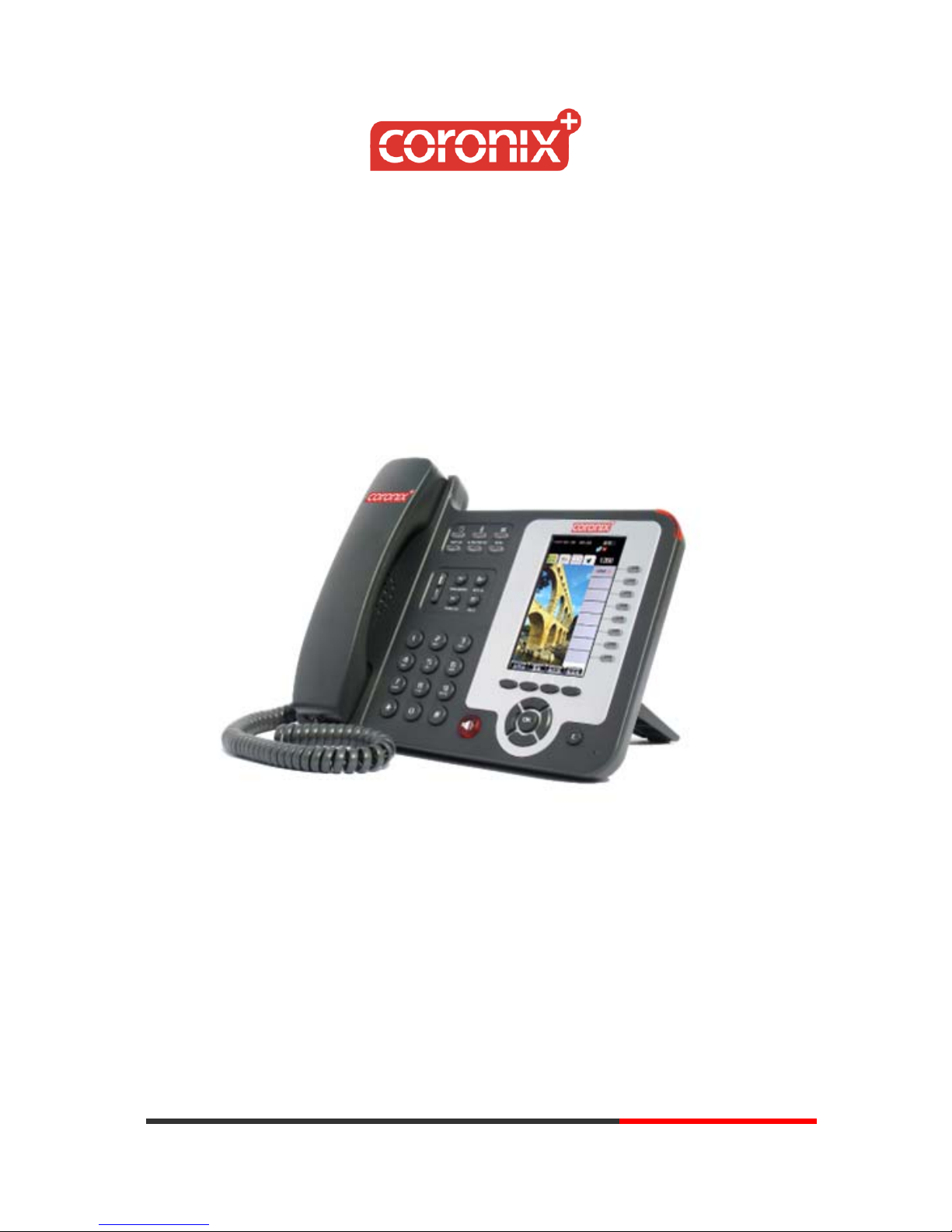

CX62PE Dual-Module IP Phone
Technical Manual
www.coronix.com
Page 2
Content
1. General Comments .................................................................................................................... 3
2. Product Appearance and models ............................................................................................... 4
3. Product Features:....................................................................................................................... 6
4. Technical Features: ................................................................................................................... 7
www.coronix.com
Page 3
CX62PE IP Phone
1. General Comments
Coronix had bright out CX62PE dual-module IP phone for corporate customer. It provides
both VoIP and PSTN network to meet the high-end customers high availability demand and
efficient work.
CX62PE IP Phone is a fashionable, beautifully shaped and high-tech product. Its excellent
speech quality gives you an unprecedentedly comfortable talking and its rich function keys make
the operation very convenient. One key dial can be easily achieved with proper settings. 4.3” high
resolution LCD displayer provides you a friendly user interface. Benefit from which, more detail
information can be displayed. With the help of the integrated browser, users can access any XML
based information, and extend more commercials.
CX62PE IP Phone support multi account registering and multi call management. Call Waiting,
Call Queuing and Call Forward can be well implemented; meanwhile, it makes conference to be
created very quickly. No matter how busy the calls will be, CX62PE IP Phone can easily satisfy
the requirement.
CX62PE IP Phone supports 6 extend modules that totally contain 192 programming buttons.
With the Busy Lamp Field（BLF）and Lines Share (BLA) function, operators can manage and
monitor the calls more efficiently. It provides headset jack that compatible with professional
microphone headsets, which will finely satisfy the call centre.
www.coronix.com
Page 4
CX62PE IP Phone
2. Product Appearance and models

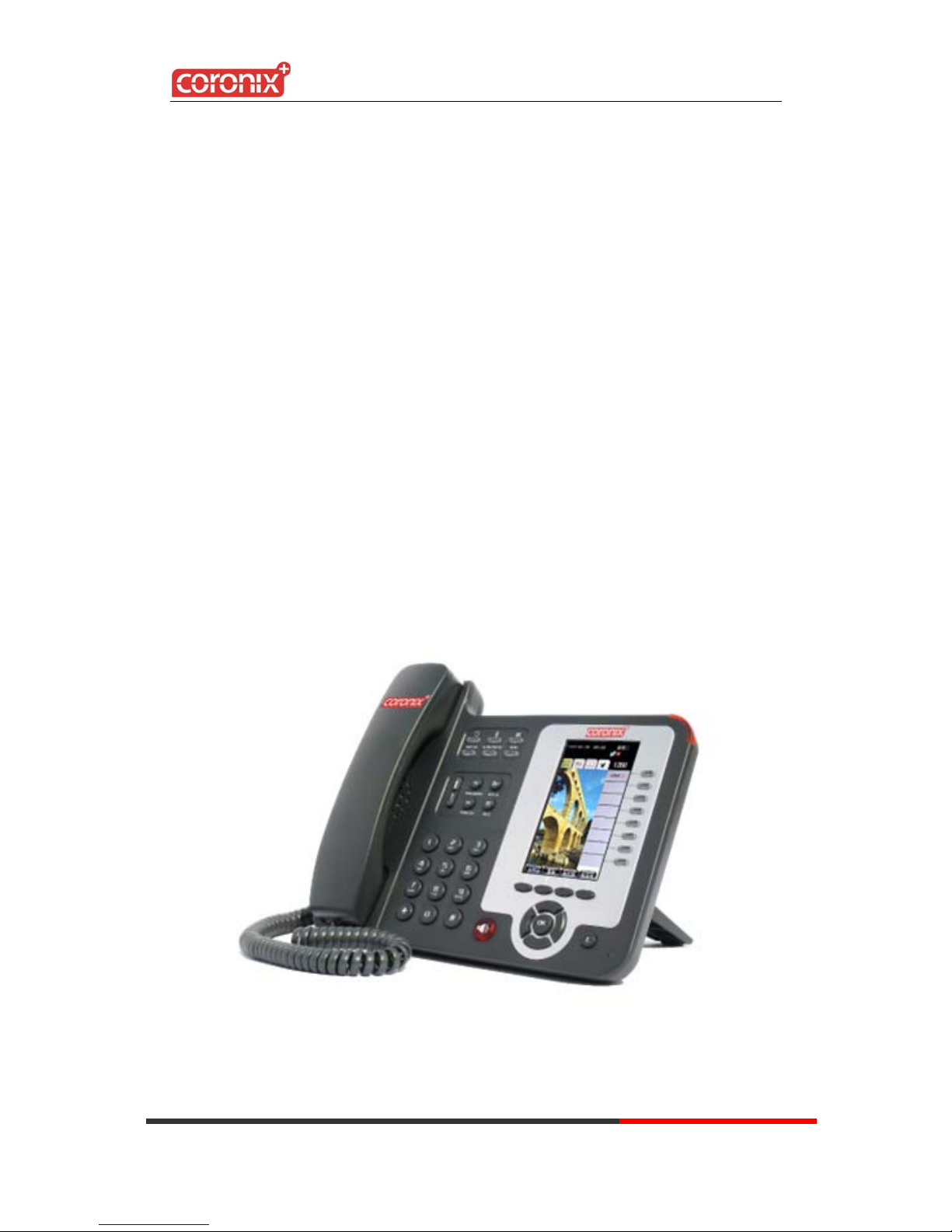

（1）Product Appearance

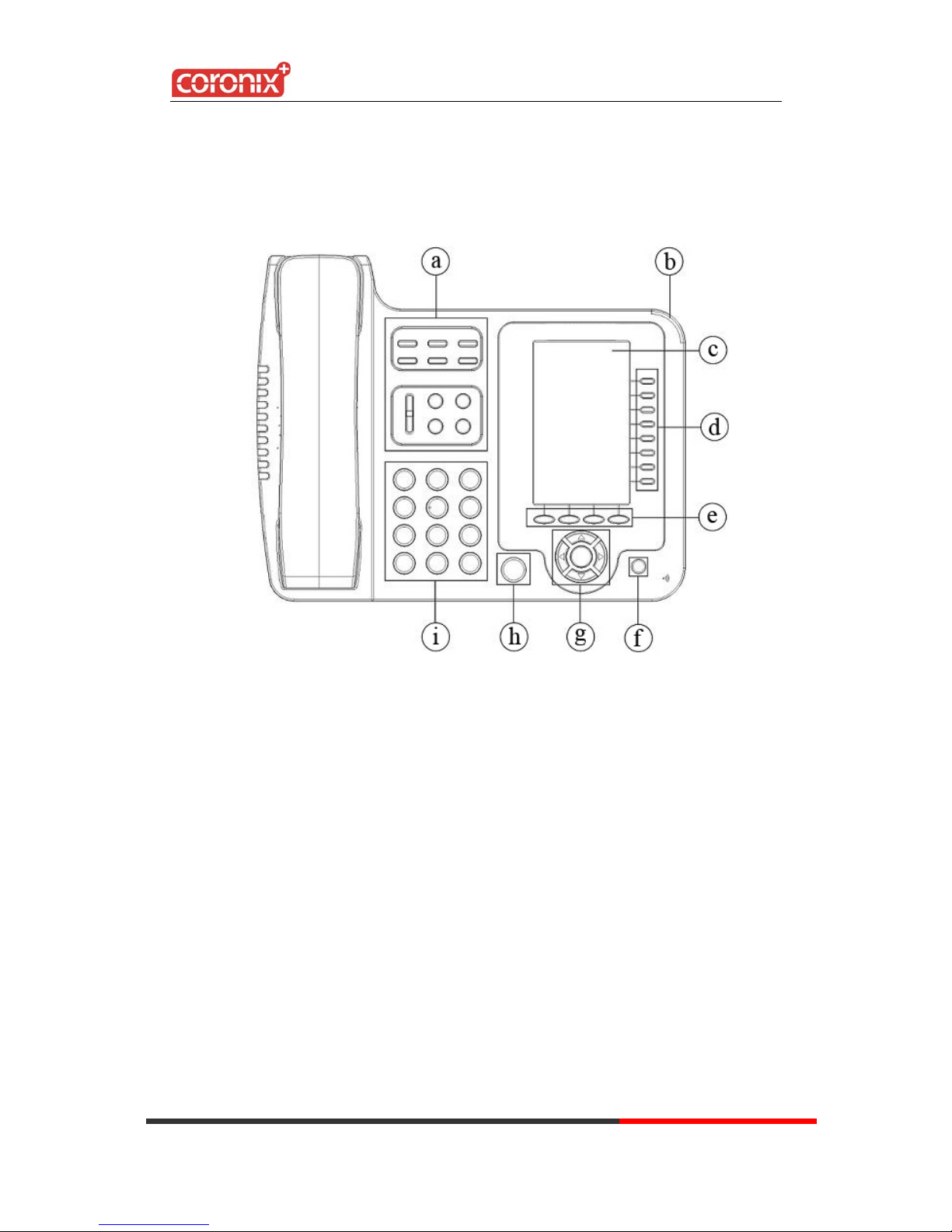

a. Function Key(Simple, convenient, fast)
b. Call instructions light
c. Screen display（4.3” high resolution, Caller info, Phone status, etc）
d. Line Keypad（Line Status, Line Switch, Speed Dial, Call Queuing）
e. Software keypad(Operation screen shortcut, Speed Dial, Call Queuing)
f. Delete key
g. Navigation keypad(arrow keys, shortcut keys, determine key)
h. Hands-free key
i. Dial keypad(Figures, Chinese alphabet, English alphabet)
www.coronix.com
Page 5
CX62PE IP Phone
Function keys include: closed-tone button, message button, DIRECTORIES, menu
button, conference button, transfer key, redial key, hold key, service button.
Navigation key areas：up, down, left, right, confirm key. The down key "m issed call
list" shortcut key, the left key "received calls list" shortcut key, the right key
"telephone list" shortcut key.

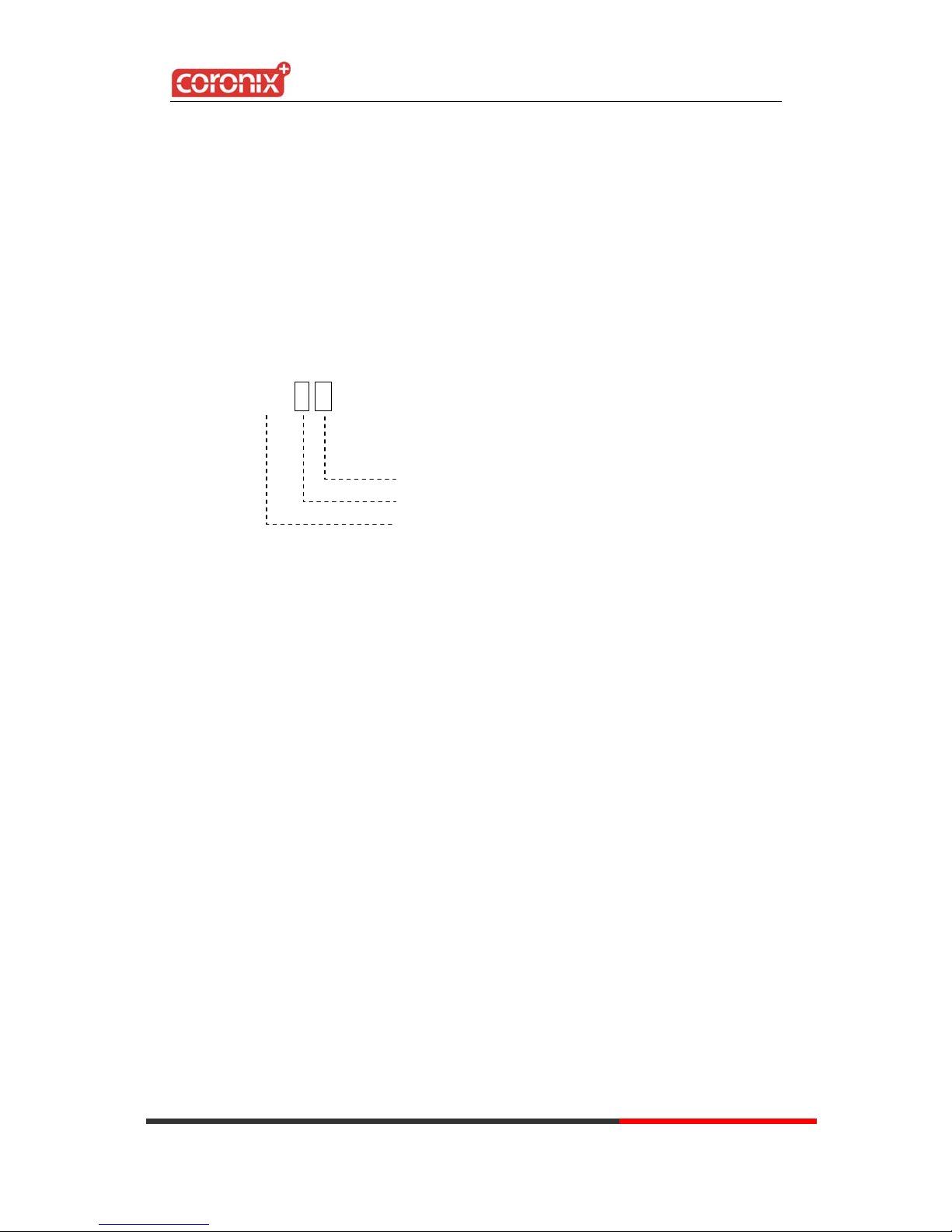

Model Rules Description
CX6X -P E
E-ESM32 Expansion Module
P-POE
Models：1-CX61（Black and white screen）
2-CX62（Color Screen）
www.coronix.com
Page 6
CX62PE IP Phone
3. Product Features:
Dual-module（VoIP+PSTN）ports
Dual-module IP PHONE can provide both PSTN and VOIP network work together, and
meet customers high availability demand and efficient work.
4.3”High Resolution Screen
480*272 Pixel high resolution color LCD gives you a sharp visual impact. Benefit from the
high resolution LCD, pictures can be displayed clearly, which may give convenience in
customizing advance applications.
Clear Voice
CX62PE series through the unique voice processing technology that enables voice calls for
more clarity and realistic, and communication more fluid.
Advance Call Process
Support 8 lines queuing, Call Sharing/Bridged Lines, multi programming function buttons
and Speed Dial buttons.
Enterprise Address Book Application
Support business contacts (coordinate with Wide Link system) and the private phone book
applications, to help users quickly find the number and a key to call.
Value-added business applications faster Station
CX62PE series of phone can make use of Extensible Markup Language (XML) to quickly
access the server Web-based information access through the telephone can be easily
customized features or operating business enterprise.
Extend Modules
Supports 6 extend modules that totally contain 192 programming buttons. With the Busy
Lamp Field function, operators can manage and monitor the calls more efficiently.
PoE Support and AC power adapter
Support Auto-provision/HTTP/TFTP for upgrade software
www.coronix.com
Page 7
CX62PE IP Phone
4. Technical Features:
Item CX61PE CX62PE
High-definition Graphic LCD
Screen
Line
Language
Function Keys
VoIP protocol
Network Protocol
Codec
QoS
Network
Speech
Call Processing
Expansion
Interface
Application
Security
with Background light
480*272 pixel
8 lines for VoIP and PSTN switch
English
4 soft keys, 8 Line keys
6 Navigation keys(Arrow button, OK button, C button)
Volume adjust, Hands-free, Mute, Headset, Message, Menu
Directory, Service, Hold, Redial, Conference, Transfer
SIP 2.0
HTTP , BOOTP , FTP , T FTP , IEEE 802.1Q , *IEEE 802.1X
G.723.1 , G.729 A/B , G.711 A/U , G.722
TOS，Jiffer Buffer，VAD ，CNG，G.168 (32ms)
2×RJ45 10/100M Ethernet Interfaces (LAN/PC)
IP Assignment: static IP、DHCP、PPPoE
DNS Client, *VPN(L2TP), VLAN
HD Codec, HD Handset
Handle, Headset and Hands-free mode available
Support call centre headsets and PC headsets
Separated 9 Level Volume Adjustment
Line Status Indicator Multi Account
Call Waiting, Call Queuing, Line Switching
Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback
One Key Dial, Redial
Phone directory speed dial, call record direct dial
3-way conference
DnD, *Blacklist
Voice mail, Voice Prompt, Voice Message
BLF, BLA
EXT: ESM32 programmable Key module
*USB port
Support PSTN and VoIP
Public phone directory
Private phone directory
* Built-in browser to access the server through the web information
Login LCD by password
Login the website by password
Signaling encryption
High-definition color LCD with
Background light
www.coronix.com
Page 8
CX62PE IP Phone
Media encryption
Upgrade: HTTP/TFTP/Auto-provision
Management
Power Supply
Specifications
Package Features
Certifications CE，FCC, RoHS
Note: “*” Sign means function has not been published yet.
Configurations: Phone/HTTP/Auto-provision
Debug: T elnet/Phone/ Web
PSTN line can work under no external power supply
Power adapter:AC100~240V input and DC12V/1A output
PoE (IEEE 802.af)
Storage Temperature:0℃ ~ 60℃
Operating Humidity:10% ~ 90%
Size:254mm*205mm*87mm
Net W eight:1.37kg
Qty/CTN:10 PCS
N.W/CTN:13.7kg
G.W/CTN:14.2kg
Measurement:0.081CBM
Carton Measurements: 525mm*430mm*360mm
