CX32PE IP Phone
1. General Comments
CORONIX had bright out CX32X dual-module IP phone for corporate customer. It provides
both VoIP and PSTN network to meet the high-end customer’s high availability demand and
efficient work.
CX32X is a small-screen business type of Dual-module series IP phone, the appearance of
fashion and technology, excellent voice quality, powerful features, is a new generation of smart
phones to replace the traditional desktop office terminal.
CX32X IP Phone support 2 accounts registering and 2 calls management. Call Waiting, Call
Queuing and Call Forward can be well implemented; meanwhile, it makes conference to be
created very quickly. No matter how busy the calls will be, CX32X IP Phone can easily satisfy the
requirement.
CX32X IP Phone supports 6 extend modules that totally contain 192 programming buttons.
With the Busy Lamp Fiel d（BLF）and Lines share (BLA) function, operators can manage and
monitor the calls more efficiently. It provides headset jack that compatible with professional
microphone headsets, which will finely satisfy the call centre.
www.coronix.com
Page 4
CX32PE IP Phone
2. Product Appearance and models

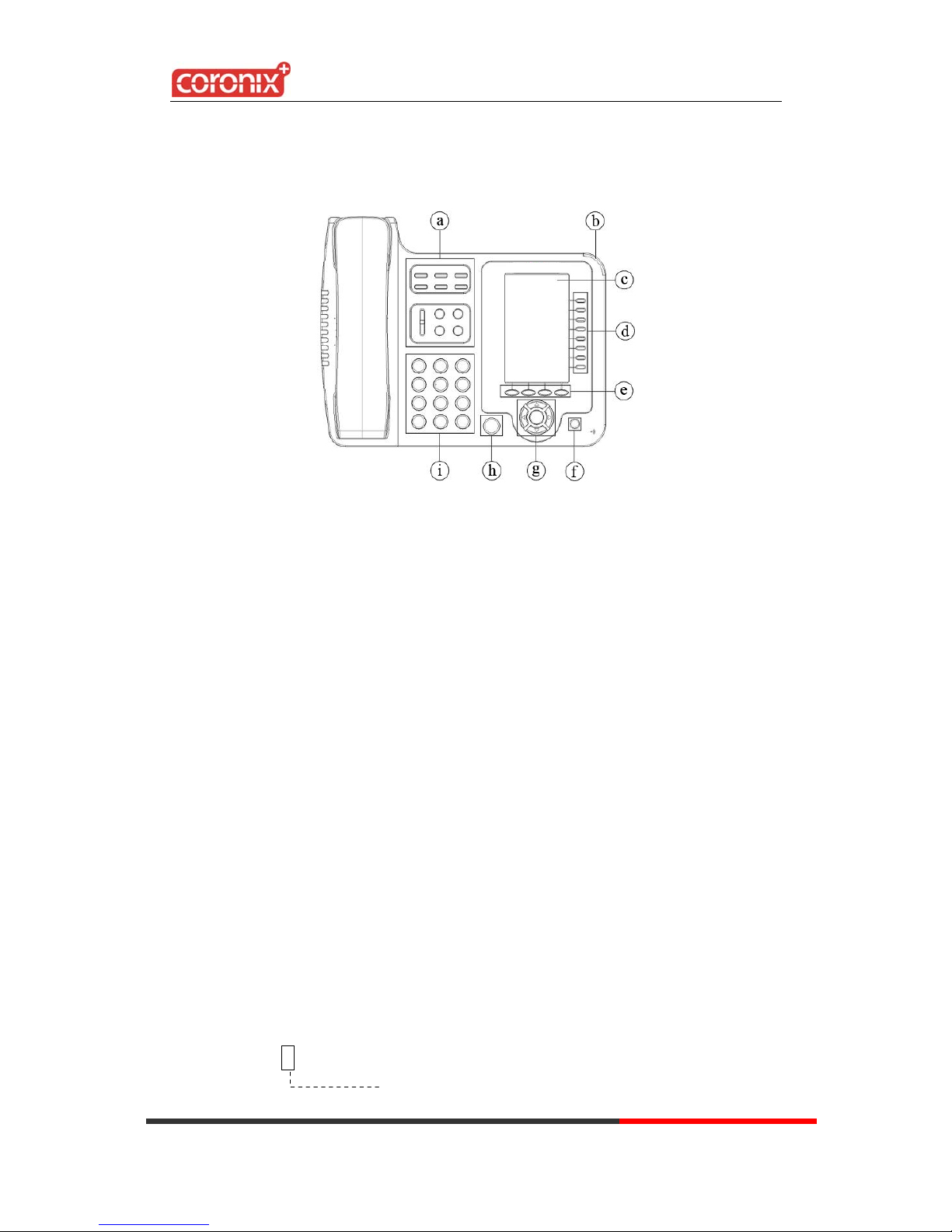

a. Function Key Area (Simple, convenient, fast)
b. Incoming call Indicator light
c. Caller display (Support Chinese/English display, Caller info, Phone status, etc)
d. Software keypad (Operation screen shortcut，user-defined keyboard shortcuts)
e. Line Keypad（Line Status，Line Switch，Speed Dial，Call Queuing）
f. Programmable Keypad（BLF, BLA, Speed Dial）
g. Delete key
h. Navigation keypad（arrow keys, shortcut keys, confirm key）
i. Hands-free key
j. Dial keypad（Figures, Chinese alphabet and English alphabet）

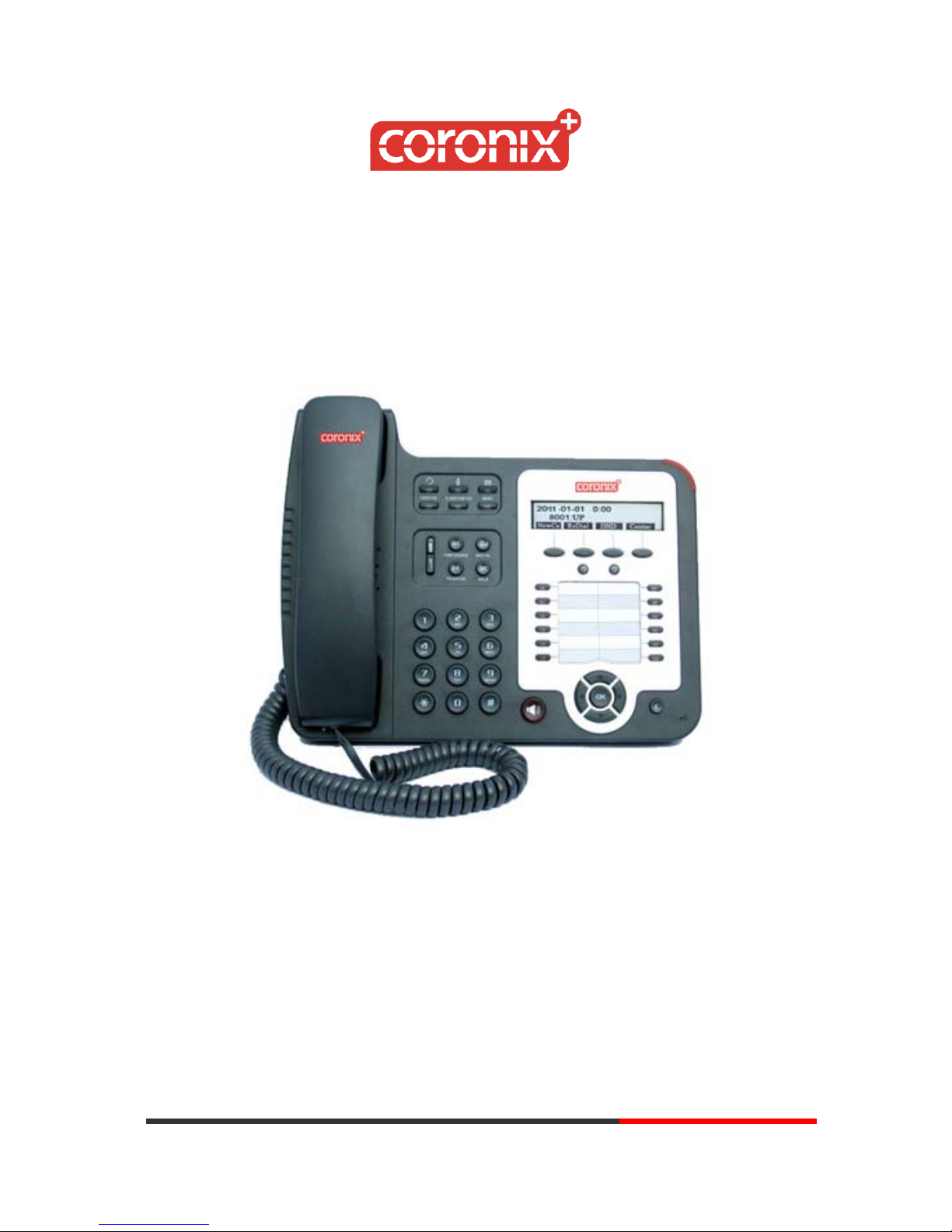

Product Appearance
i. Function keys include: headset key, closed-tone key, message key, menu key,
conference key, transfer key, redial key, maintaining key.
ii. Navigation key areas: up keys, down key, left key, right key, confirm key. Up
key "high-speed call list" shortcut , down keys "missed calls list" shortcut ,
left key "have received call list" shortcut .
iii. Programmable keypad: 12 programmable keys. Support BLF, high-speed dial
and other functions.
Model Rules Description
CX32 -P
P-POE
www.coronix.com
Page 5
CX32PE IP Phone

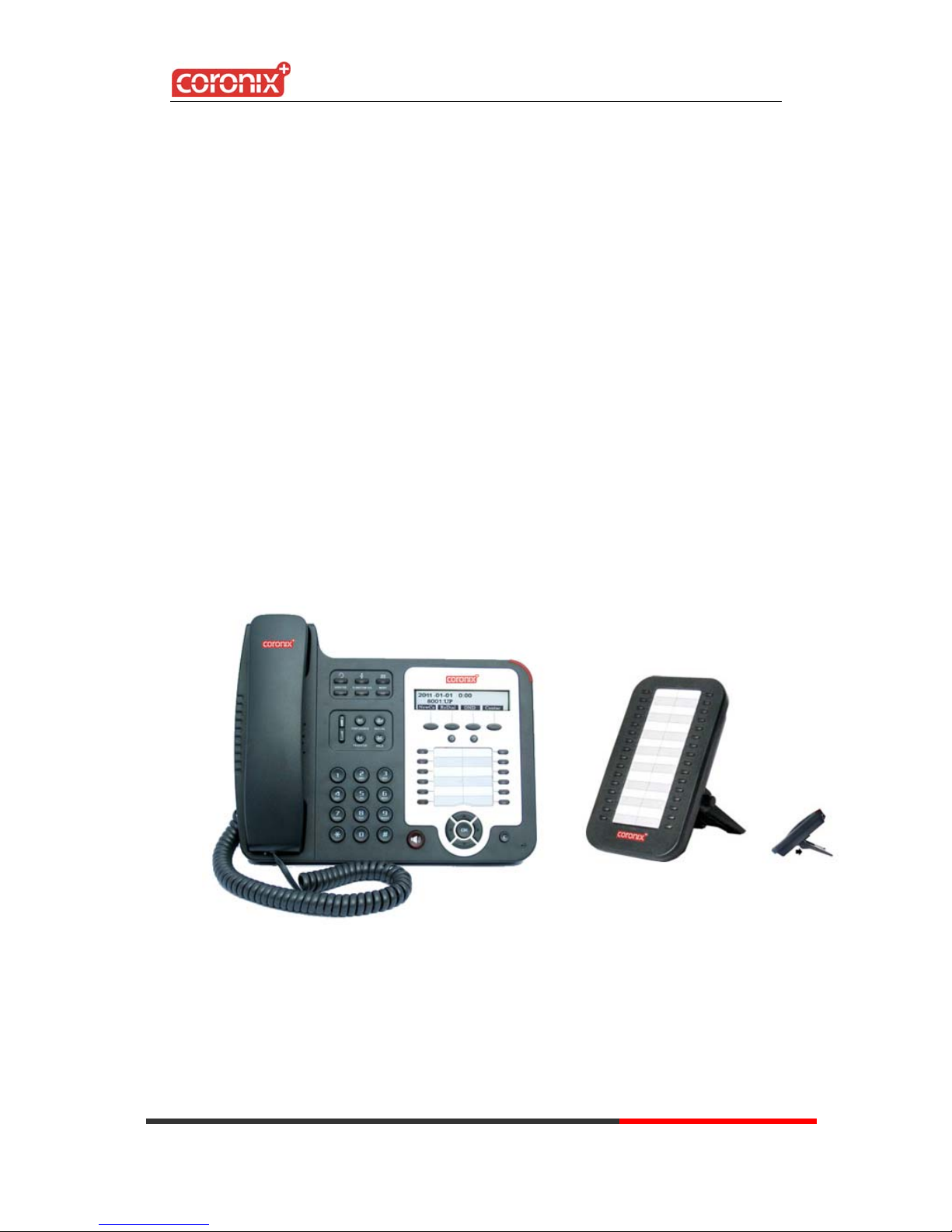

3. Product Features
Dual-module（VoIP+PSTN）ports
Dual-module IP PHONE can provide both PSTN and VOIP network work together, and
meet customer’s high availability demand and efficient work.
S upport Chinese display
160*32 Pixel screen support Chinese display, include Chinese phonebook and interface
setting, it is easy to use for Chinese.
Clear voice
CX32X through the unique voice processing tec hnology that enables voice calls for more
clarity and realistic, and communication more fluent.
Ad vanced Call Process
Support 8 lines bicolor indicator light circuit, managing two lines at the same time, carrying
out call queuing and circuit switch, it’s also convenient for teleconfere nce and call transfer,
meet the communication requirement at the busy time.
Support 12 Programmable Keys
Programmable keys can be defined as speed call key or other functional key to the appointed
contact for improving the operating efficiency, 12 pieces Programmable Keys support the
indicator light in busy line.
*Enterprise Address Book Application
Support business contacts and the private phone book applications, to help with flowers
quickly find the call number and a key.
Extend Modules
Supports 6 extend modules that totally contain 192 programming buttons. With the Busy
Lamp Field function, operators ca n manage and monitor the calls more efficiently.
PoE Support and AC power adapter
Support Auto-provision/http/TFTP for upgrade software
www.coronix.com
Page 6
CX32PE IP Phone
4. Technical Features
Item CX32X
Screen
Line
Function Keys
Programmable
Keys
VoIP Protocol
Network Protocol
Codec
Grayscale LCD with background light
160*32 pixel
2 lines for VoIP and PSTN switch
4 Soft keys
2 Line keys
6 Navigation keys (Arrow button, OK button, C button)
Volume adjust , Hands-free, Mute, Headset, Message
Menu, Directory, Service, Hold, Redial, Conference, Transfer
12
SIP 2.0
HTTP、BOOTP、FTP、TFTP、IEEE 802.1Q、*IEEE 802.1X
G.723.1 (5.3K 6.4K b/S)、G.729 A/B(8Kb/s)、G .71 1 A/U (64Kb/S)、G722
QoS
Network
Voice
Call Processing
Expansion
Interface
Application
TOS，Jiffer Buffer，VAD ，CNG，G.168 (32ms)
2×RJ45 10/100M Ethernet Interfaces (LAN/PC)
IP Assignment: static IP、DHCP、PPPoE
DNS Client, *VPN(L2TP), VLAN
HD Codec, HD Handset
Handle, Headset and Hands-free mode available
Support call centre headsets and PC headsets
Separated 9 Level Volume Adjustment
Call Sharing/Bridged Lines
Line Status Indicator
Multi Account
Call Waiting, Call Queuing, Line Switching
Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback
One Key Dial, Redial
Phone directly speed dial, Call record direct dial
3-way conference
DnD, *Blacklist
Voice mail, Voice Prompt, Voice Message
BLF, BLA
EXT: ESM32 programmable key module
*USB port
Support PSTN and VoIP
*Public phone directory
Private phone directory
www.coronix.com
Page 7
CX32PE IP Phone
Login LCD by password
Security
Management
Power Supply
Specifications
Package Features
Certifications
Note: “*” Sign means function has not been published yet.
Login the website by password
Signaling encryption
Media encryption
Upgrade: HTTP/TFTP/Auto-provision
Configurations: Phone/HTTP/Auto-provision
Debug: T elnet/Phone/ Web
Power adapter:AC100~240V input an DC 12V/1A output
PoE(IEEE 802.af)
Storage Temperature: 0℃ ~ 60℃
Operating Humidity: 10%~90%
Size: 254mm*205mm*87mm
Net weigh: 1.36kg
Qty/CTN:10 PCS
N.W/CTN: 13.6kg
G.W/CTN: 14.1kg
Measurement: 0.081CBM
Carton Measurements: 525mm*430mm*360mm
CE、FCC、RoHS
