COROB™ FLEX 900
Page 3
COROB™ AUTOMATIC DISPENSER
QUICK GUIDE
At the beginning of the working day
• Check that the nozzle center is clean.
• Check that the sponge is clean and saturated; if it is necessary to saturate, use only appropriate liquid (the
choice of the liquid depends on the nature of the colorants, and must be done directly by the manufacturer
of the products used).
• Carry out system Initialization and Purge.
Things to remember
• Never let the machine OFF.
• In the canisters, stirring of each colorant takes place automatically (stirring times can however be
customized).

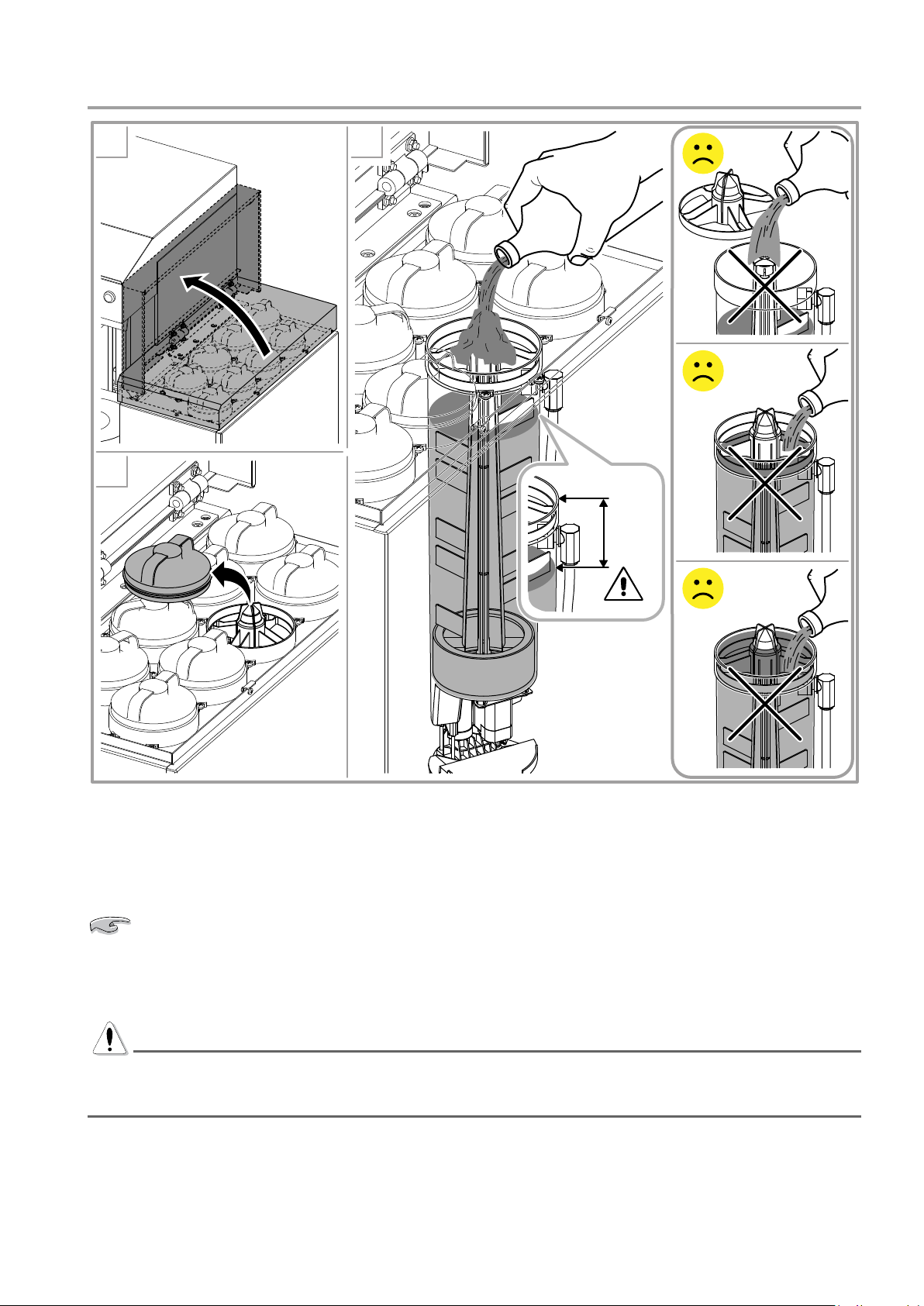

• Be careful not to ll the canisters with too much colorant. In case of overlling, act as indicated in the user’s
manual.
• The colorant to be poured inside the canisters must be stirred manually. Do not use automatic shakers.
• Close the canisters with their lids right after lling operations.
• Remember to update accordingly the canisters lling levels via the management software.
• The sponge must be saturated at least twice a week (the frequency of intervention is indicative, since it
depends on the nature of colorants and the environment conditions).
At the end of the working day
• Rell the canisters.
• Update the canister lling levels in the management software.
• Shut down the computer. Do not shut off the machine.
It is recommended to carefully read the user’s manual.
COROB™ FLEX 900
Page 4
COROB™ FLEX 900
Page 5
CONTENTS
- 1
CONTENTS
1 GENERAL INFORMATION ......................................................................................................... 3
1.1 Purpose and use of this manual .........................................................................................3
1.1.1 Conventionally used graphics .................................................................................3
1.2 Identifying information.....................................................................................................3
1.3 Intended and improper use ..............................................................................................4
1.4 Denitions ...................................................................................................................4
2 SAFETY ...................................................................................................................................5
2.1 General warnings ............................................................................................................5
2.2 Warnings on the use of colorants ....................................................................................... 6
2.3 Residual risks .................................................................................................................7

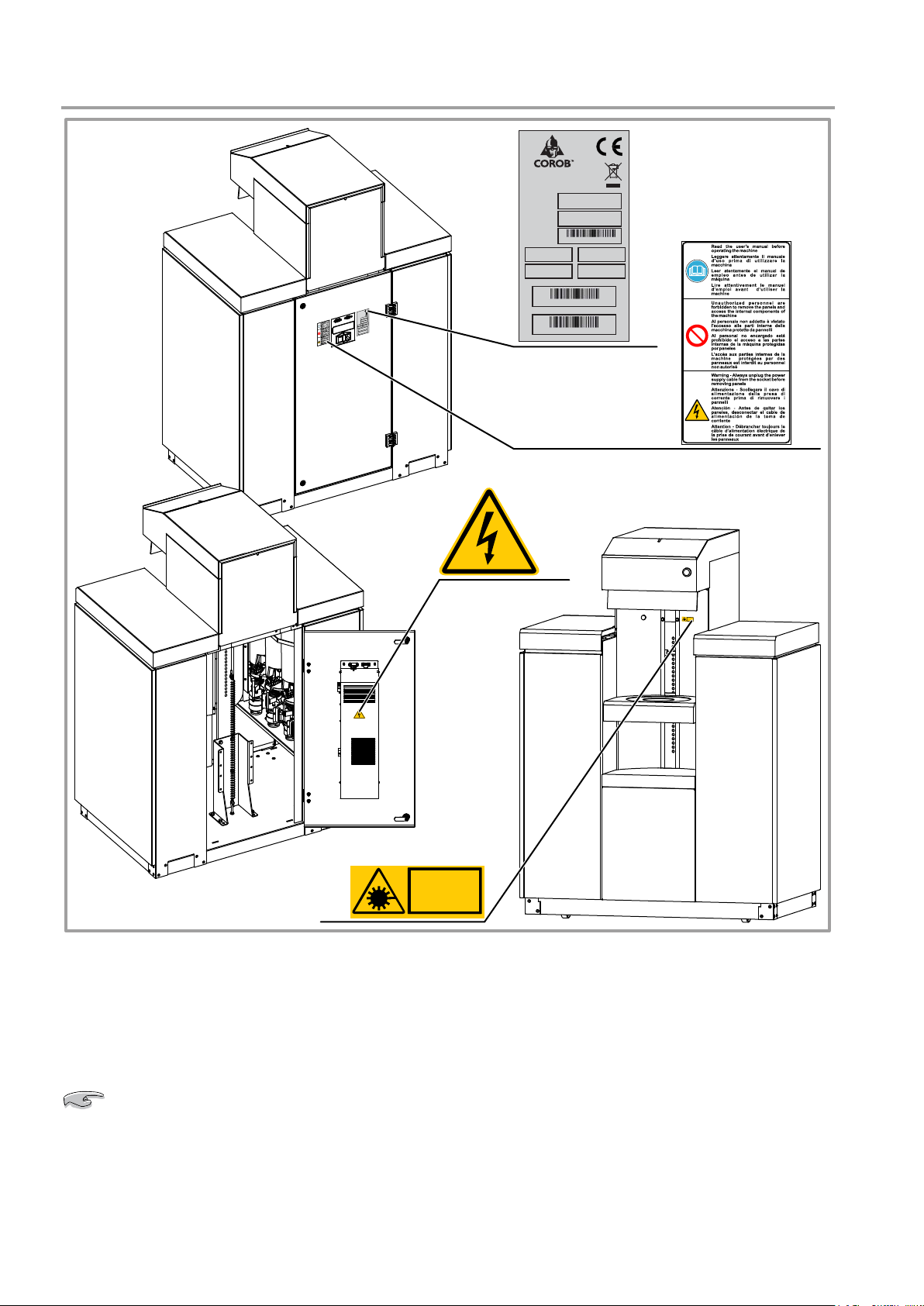

2.4 Position of labels .............................................................................................................8
3 FEATURES ...............................................................................................................................9

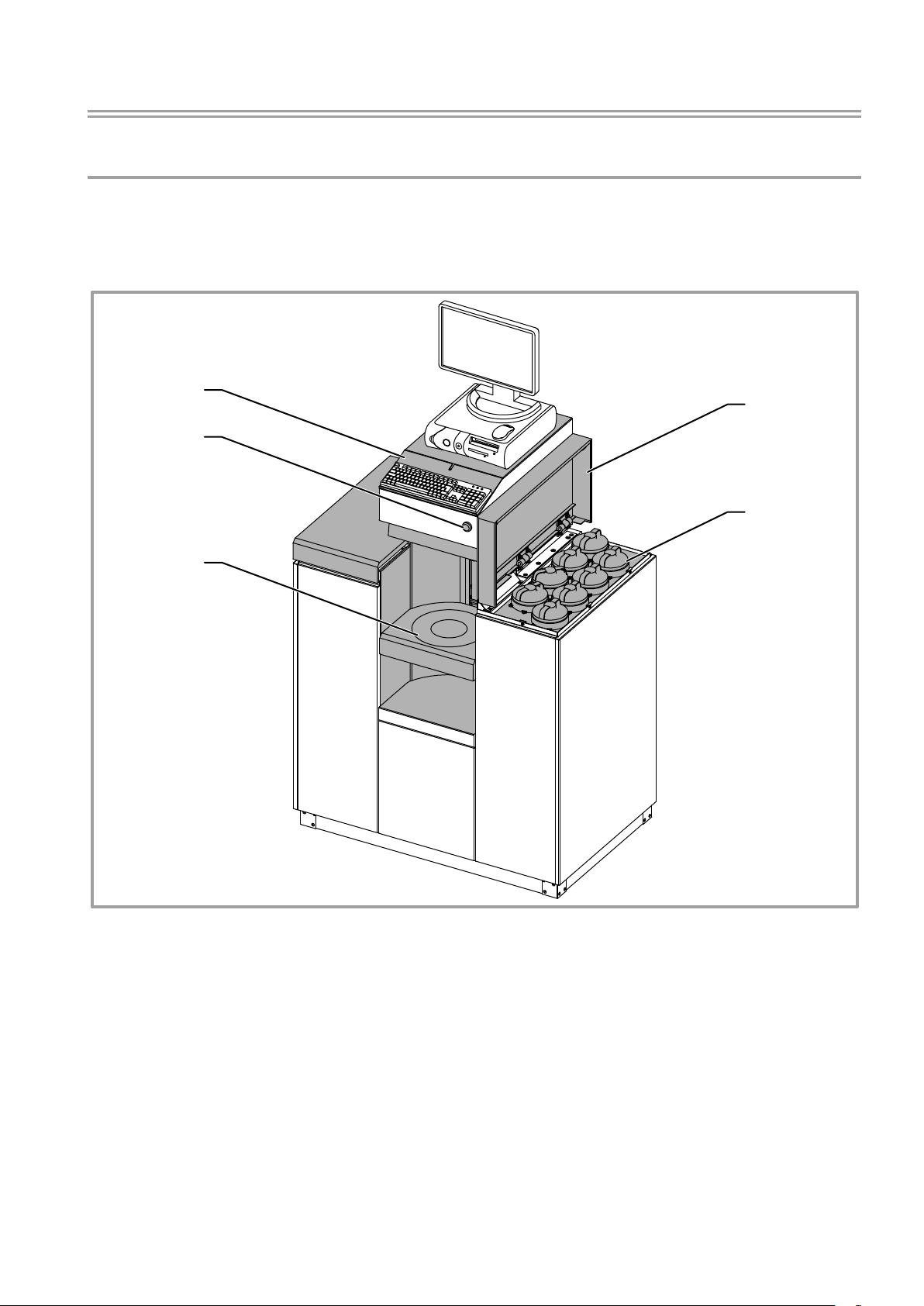

3.1 Description of the machine ...............................................................................................9
3.2 Description of units ....................................................................................................... 10
3.3 Standard and optional congurations ............................................................................... 12
3.4 Usable cans .................................................................................................................. 12
4 SHIPPING, HANDLING AND UNPACKING ............................................................................... 13
4.1 General warnings .......................................................................................................... 13
4.2 Environment conditions of the installation site .................................................................. 13

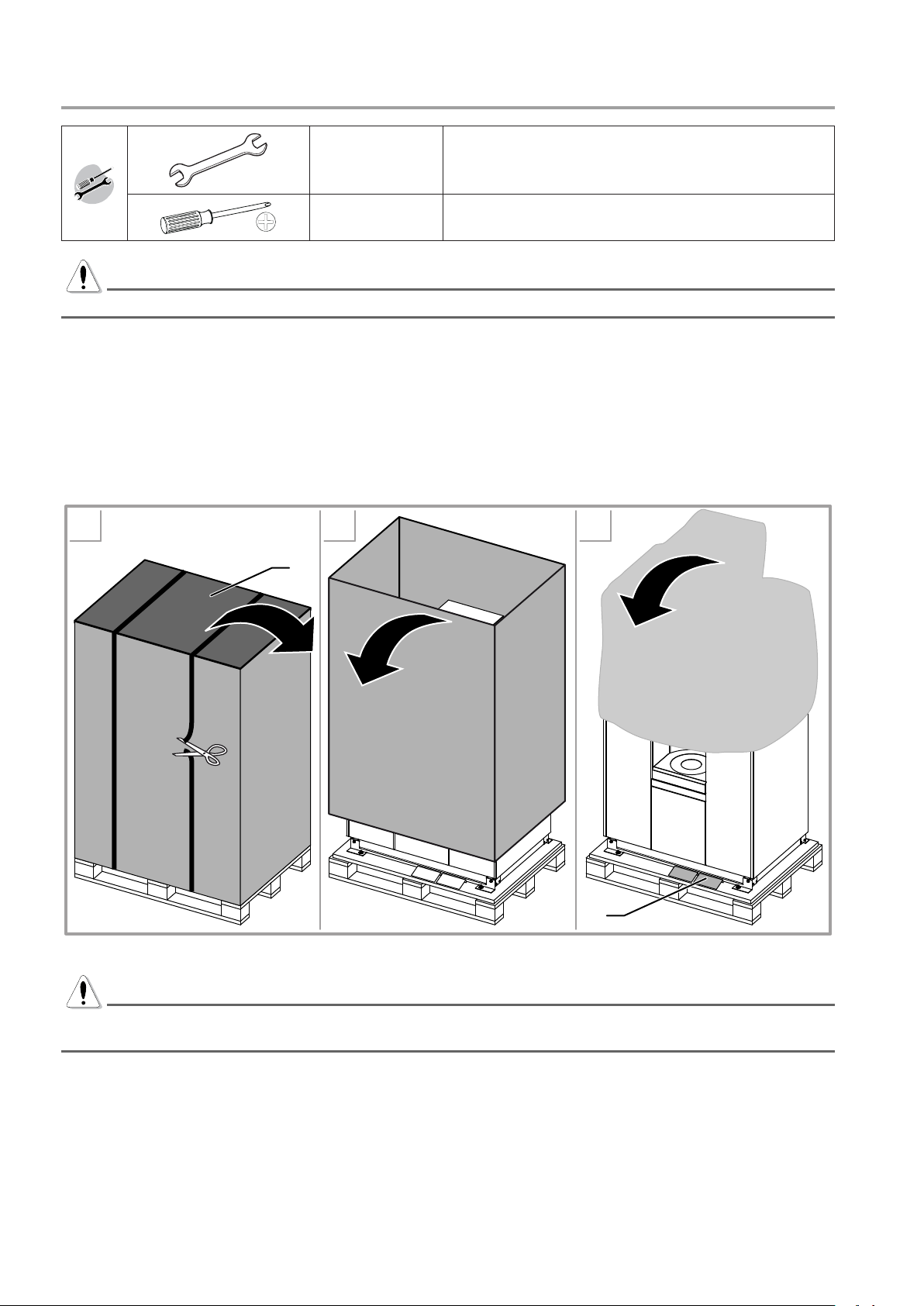

4.3 Unpacking and placement .............................................................................................. 14
4.3.1 Adjusting the support feet ................................................................................... 16
4.3.2 Standard material supplied .................................................................................. 17
4.4 Installation ................................................................................................................... 17
4.5 Packing and handling ..................................................................................................... 17
5 START-UP .............................................................................................................................19
5.1 General warnings .......................................................................................................... 19
5.2 Control devices and connections ...................................................................................... 20
5.3 Electrical connection and start-up .................................................................................... 21
5.4 Machine conditions ........................................................................................................ 22
5.5 Initialization ................................................................................................................. 22
5.6 Use of the off-line button ............................................................................................... 22
5.7 Shut-down ................................................................................................................... 23
6 USING THE DISPENSER ......................................................................................................... 25
6.1 General warnings .......................................................................................................... 25
6.2 At the beginning of the working day................................................................................. 25
6.3 Running the machine .................................................................................................... 25
6.3.1 Adjusting the can shelf height .............................................................................. 26
6.3.2 Loading the can ................................................................................................. 26
6.3.3 Use of the can centering device ........................................................................... 27
6.3.4 Use of the Bung Hole Locator ............................................................................... 27
6.3.5 Dispensing ........................................................................................................ 28
6.4 Automatic timed processes ............................................................................................. 28
6.5 Relling the canisters ..................................................................................................... 29
6.6 Troubleshooting ............................................................................................................ 31
7 ORDINARY MAINTENANCE ....................................................................................................33
7.1 General warnings .......................................................................................................... 33
7.2 Maintenance table ......................................................................................................... 33
7.3 Products to be used ....................................................................................................... 33
7.4 External cleaning .......................................................................................................... 34
7.5 Cleaning the nozzle center .............................................................................................. 34
COROB™ FLEX 900
Page 6
CONTENTS
2 -
7.6 Cleaning and moistening the humidier cap sponge ........................................................... 36
8 TECHNICAL SPECIFICATIONS ...............................................................................................39
8.1 Technical data ............................................................................................................... 39
8.2 Dimensions .................................................................................................................. 40
8.3 Declaration of conformity ............................................................................................... 40
8.4 Reference standards ...................................................................................................... 41
8.5 Warranty ...................................................................................................................... 41
COROB™ FLEX 900
Page 7
GENERAL INFORMATION - 3
1 GENERAL INFORMATION
1.1 Purpose and use of this manual
This manual, inserted in the product packing, contains instructions on the use and routine maintenance needed
to uphold the machine’s performance over time.
Read this manual carefully before using the machine.
The manual is to be considered an integral part of the machine, and must be stored until it is fully dismantled.
The manual contains all information available at the time of preparation regarding the machine and any
accessories; for accessories, the manual includes any variations or changes that involve different operating
procedures.
Should it be lost or partially ruined, so that its contents can no longer be read in full, you must request a new
manual from the manufacturer.
Some of the illustrations in this manual were taken from prototypes; some details may differ on
machines in standard production.
1.1.1 Conventionally used graphics
Boldface type is used to highlight notes or information of particular importance to a topic.
DANGER
Indicates a risk of personal injury.
WARNING
Indicates a risk of damage to the machine that could interfere with its operation.
Indicates important instructions referring to precautionary rules and/or measures to adopt.
Indicates situations and/or operations that involve the management software installed on the computer.
Indicates that to carry out the intervention described, the use of the specied tools is required.
1.2 Identifying information
The machine has an identication plate (chapter 2.4), indicating:
1. Manufacturer’s name.
2. CE and WEEE marking.
3. Machine model.
4. Year of manufacture.
5. Serial number.
6. Electrical specications.
Do not remove or tamper with the identication plate in any way.
COROB™ FLEX 900
Page 8
4 - GENERAL INFORMATION
1.3 Intended and improper use
The machine must be used only within the limitations set forth by the technical specications and according to
the procedures described in this manual.
Any use other than that stated, which cannot be implied or deduced from this manual, is to be considered
prohibited.
1.4 Denitions
A person familiar with the methods to produce paints or similar products, assigned to
OPERATOR
MAINTENANCE
TECHNICIAN
operate and use the machine by its controls and to load and unload production materials
with all safety devices enabled. He or she must work only in safety conditions and is
allowed to carry out routine maintenance operations.
Specialist prepared and trained in a technical eld (mechanical and electrical) and
assigned to work on the machine to perform adjustments, repair breakdowns or carry
out maintenance.
COROB™ FLEX 900
Page 9
SAFETY - 5
2 SAFETY
2.1 General warnings
COMPULSORY
• Read the user’s manual carefully before carrying out any operation on the machine.
• The machine must be used only for its intended purpose.
• Pay close attention to the signs on the machine.
• The substances that may be used on the machine -- such as colorants, paints, solvents, lubricants and
cleansers -- may be hazardous to your health; handle, store and dispose of these substances in keeping
with current regulations and the instructions provided with the product.
• Only qualied and appropriately trained personnel (MAINTENANCE TECHNICIANS) are authorized to access
the machine parts protected by panels for maintenance and repair interventions.
• During routine maintenance operations, scrupulously follow the safety instructions given in the corresponding
chapters before accessing the dangerous area.
PROHIBITED
• The OPERATOR must not carry out operations reserved to the MAINTENANCE TECHNICIAN. The manufacturer
CANNOT BE HELD RESPONSIBLE for damages deriving from the non-observance of this prohibition.
• It is strictly forbidden to bypass or disable the protections and any safety devices present on the machine.
• The panels must be kept closed at all times.
• THE MACHINE IS NOT EXPLOSION-PROOF AND MUST NOT BE USED IN AREAS AT RISK FOR
EXPLOSION.
• Do not stare the light source of the Laser Bung Hole Locator (Class II laser product).
• If the machine catches re, never use water. Use only dry powder or carbon dioxide re extinguishers, and
strictly follow the instructions and warnings indicated by the manufacturer and listed on the extinguisher.
ELECTRICAL DANGER
• In the event of a sudden power outage, when power returns the machine will automatically be switched on
to allow the automatic processes to prevent products from drying out.
• The machine must not be powered by a power source having specications other than those listed on the
identication plate.
• Incorrect grounding may lead to the risk of electrical shock; always plug the machine into a socket that
ensures proper grounding. The line must be protected from overloads, short-circuits and direct contacts
according to current accident prevention regulations.
• To prevent any risk of electric shock or injuries, the machine must be used indoors only.
• Always unplug the power supply cable from the socket outlet before carrying out any maintenance operations.
• The machine is isolated from the power supply line when the power cable is disconnected; it must therefore
be installed near an easily accessible mains socket outlet.
• Do not use extension cords to power the machine.
• Do not use multisockets to connect other equipment to the same socket that powers the machine.
• Periodically check the condition of the power supply cable; if it is damaged, replace it with a new cable
supplied by the manufacturer.
COROB™ FLEX 900
Page 10
6 - SAFETY
2.2 Warnings on the use of colorants
DANGER
The machine is suitable for use with tinting products in general. Scrupulously follow the instructions for use
given on the colorant package and carefully read the SAFETY DATA SHEET that the dealer or manufacturer
of the product is required to provide. Observe all of the safety instructions provided. When compulsory, use
personal protection equipment for eyes and hands.
Below are some of the most common warnings and safety precautions provided by colorant manufacturers.
1. Harmful if swallowed.
2. Avoid eye and skin contact. In case of eye and skin contact, rinse with plenty of water.
3. Keep out of the reach of children.
4. When compulsory, wear protecting equipment for eyes and hands.
5. In case of accidental product leaks or spills, thoroughly ventilate the area and proceed as indicated in this
manual and in the instructions provided with the product itself.
6. Do not dispose of colorant in the sewage system. Follow local regulations when disposing of waste.
COROB™ FLEX 900
Page 11

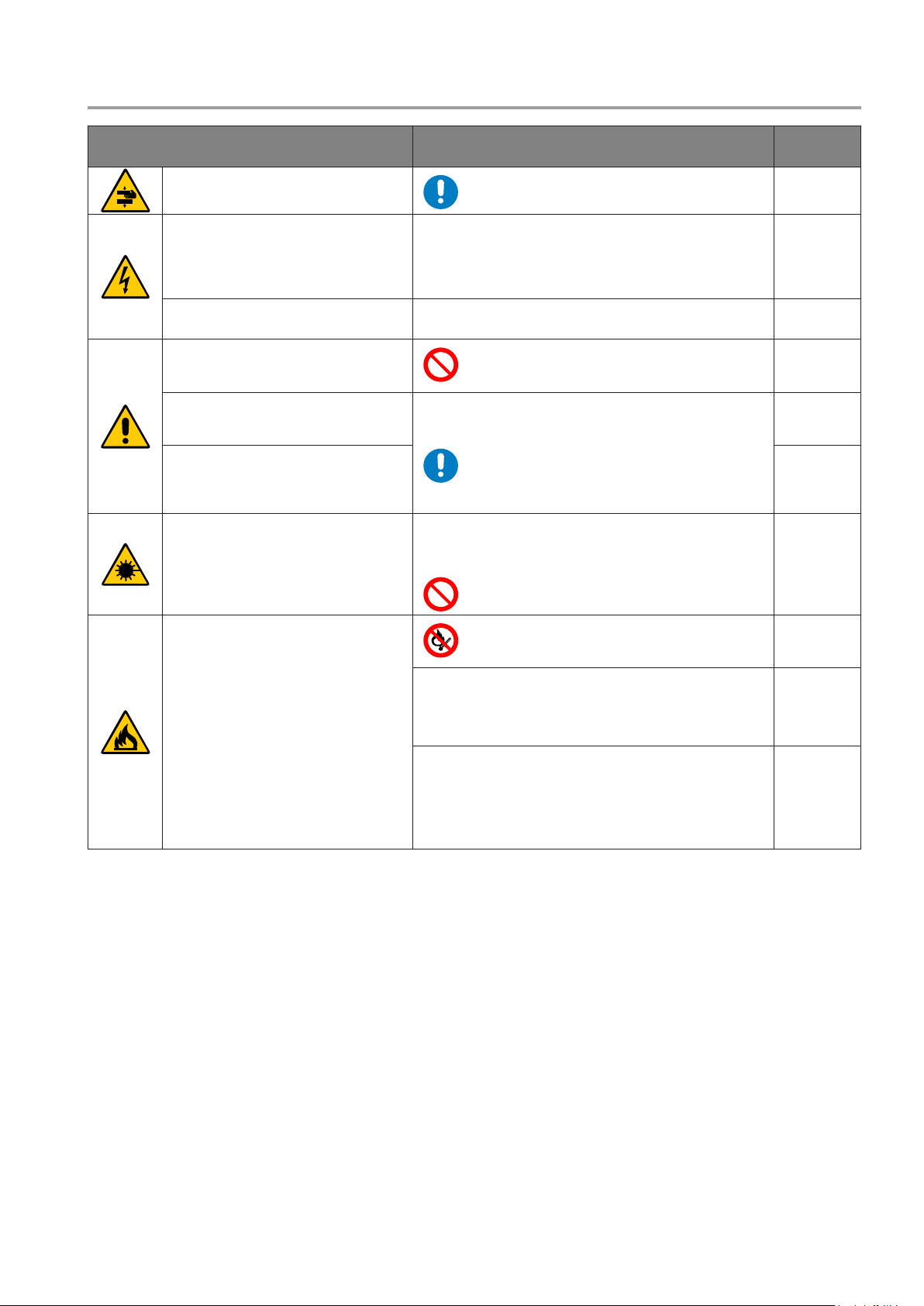

2.3 Residual risks
SAFETY - 7
Risk Preventive measure
Risk of crushing during the cans
loading and unloading operations.
Risk of electrocution if you
perform any operation without
rst cutting off electrical power.
Risk of electrocution caused by
high leakage current.
Dorsal/lumbar injuries caused by
handling of heavy loads.
Contact or inhalation of colorants
during the canister relling
operations.
Contact or inhalation of colorants
during the cleaning operations of
the nozzle center and moistening
of the humidier cap sponge.
Exposure to laser beam.
Wear appropriate personal protective equipment
(shoes and gloves).
The operator is not authorized to access the machine
parts protected by panels.
Before removing the panels, unplug the power supply
cable from the mains socket outlet.
Power the machine through a grounded socket outlet. chapter 5.3
Do not exceed the weight limits stated by the
current regulations in force (kg 20 for women, kg
30 for men).
Keep the room suitably ventilated.
Wear appropriate personal protective equipment
(safety goggles, gloves and mask).
The Bung Hole Locator (B.H.L.) uses red laser light
sources which can be potentially dangerous for the eyes.
AVOID STARING AT THE LIGHT SOURCE.
Re. in the
manual
chapter 6
chapter 2.1
chapter 6
chapter 2.2
chapter 6.5
chapter 2.2
chapter 7
chapter 6
Fire due to the use of colorants
containing volatile solvents.
Do not use naked ames, electrical tools or other
types of devices that could cause sparks or re
hazards close to the machine.
The room in which the machine is installed must be
spacious, with good ventilation (air exchange) and no
type of parts must be leant against or stocked close to
the machine.
Canister top up must be carried out opening one canister
at the time.
If during this operation, some colorant should spill out of
the canister, immediately disconnect the machine from
the mains before cleaning.
chapter 4.2
chapter 6.5
COROB™ FLEX 900
Page 12
8 - SAFETY
2.4 Position of labels
COROB S.p.A.
Via Agricoltura 103
S. Felice s/P (MO) ITALY
MODEL
YEAR
S/N
XXXXXXXX
MODEL
YEAR
S/N
COMMESSA
CODICEMACCHINA
XXXXX
XXXXX
1
2
7261011370
4
LASERRADIATION
DONOTSTAREINTOBEAM
CLASSIILASERPRODUCT
1mWmax
630-650nm
EN60825-1:2003
7261010772
7261011370
3
1. Identication plate (chapter 1.2)
2. Label “General warnings”
3. Label “Laser danger” (only with Laser BHL)
4. Label “Electrical danger”
Do not remove or make illegible the safety or instruction labels. Replace any label which has become
illegible or is missing, by requesting it to the manufacturer.
COROB™ FLEX 900
LASER RADIATION
DO NOTSTARE INTO BEAM
CLASS IILASER PRODUCT
1 mW max
630-650 nm
EN 60825-1: 2003
7261010772
Figure 1
Page 13
FEATURES - 9
3 FEATURES
3.1 Description of the machine
The COROB™ FLEX 900 automatic dispenser is a device to automatically dispense uid colorant products into
containers (metal or plastic canisters, cans or bins) of the size indicated in this manual, pre-lled with base, to
produce nished products such as paints, dyes, enamels, and inks of the desired hue, chosen by means of the
machine management software.
5
2
1
3
4
Figure 2
The dispenser consists of:
1. Dispensing area and can handling system.
2. Off-line button.
3. Upper covers.
4. Canister lling area.
5. Computer support surface.
The dispenser is fully managed by a normal personal computer that can be provided upon request, since it is
not supplied as standard together with the machine. The manufacturer can also supply a wide range of software
applications to manage all of the machine’s functions.
COROB™ FLEX 900
Page 14
10 - FEATURES
3.2 Description of units
Canisters
The machine canisters are suitable for containing the product to be dispensed.
Covers in the upper part of the machine provide access for lling the canisters.
Nozzle Center
The ends of the dispensing pipes coming from the canisters converge and
are xed to the nozzle center, from which the tinting product to ll the can is
dispensed.

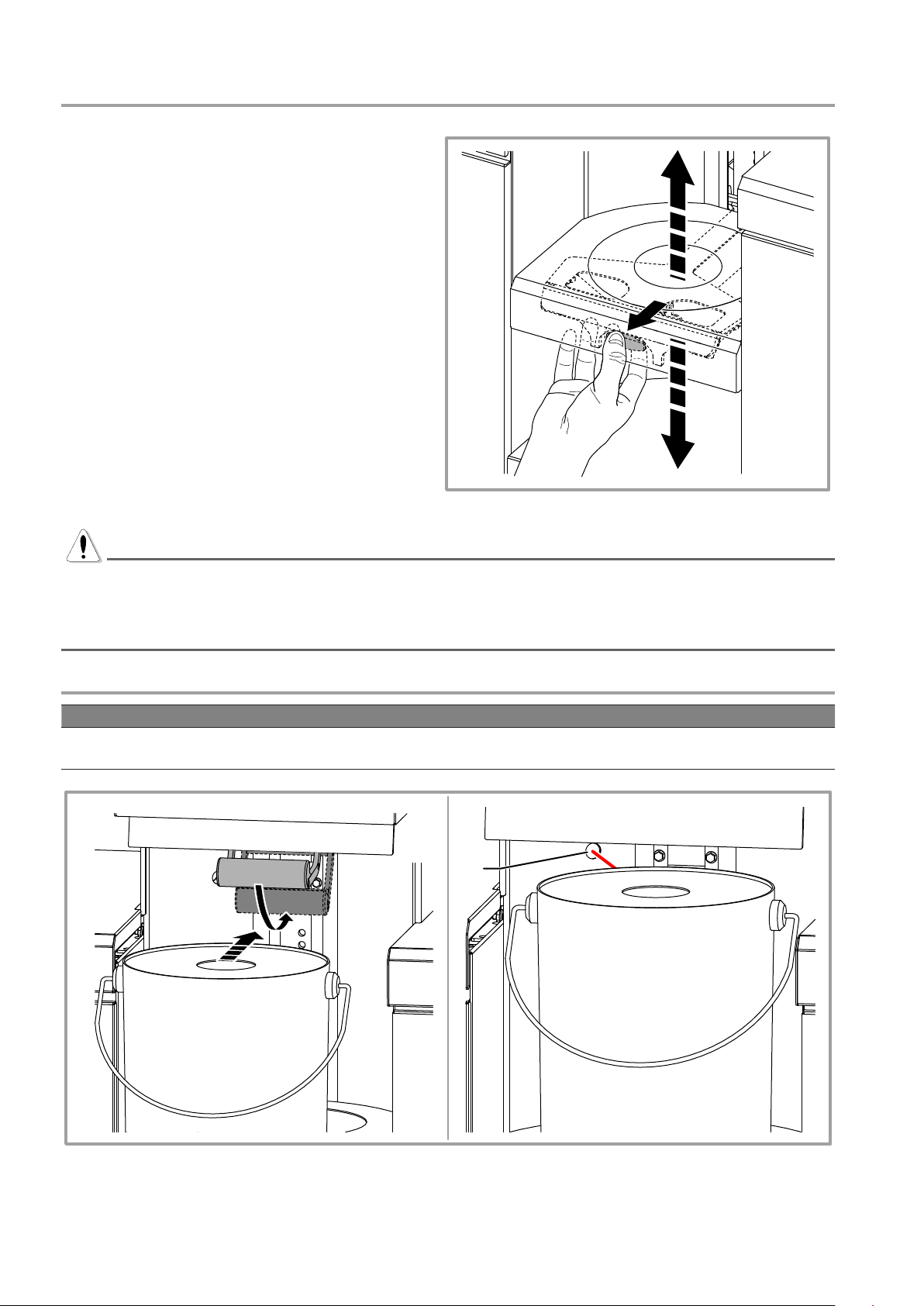

Shelf
The can shelf allows for the correct positioning of the can under the dispensing
nozzles.
The Lift manual shelf is xed to the machine and can be raised or lowered
by the operator. The shelf is provided with a locking handle that must be
pulled to release the shelf and allow it to be moved to the desired height.
Can centering device
The can centering device is useful for positioning pre-punched cans right under
the dispensing center and is custom-made based on the size of the cans to be
handled.

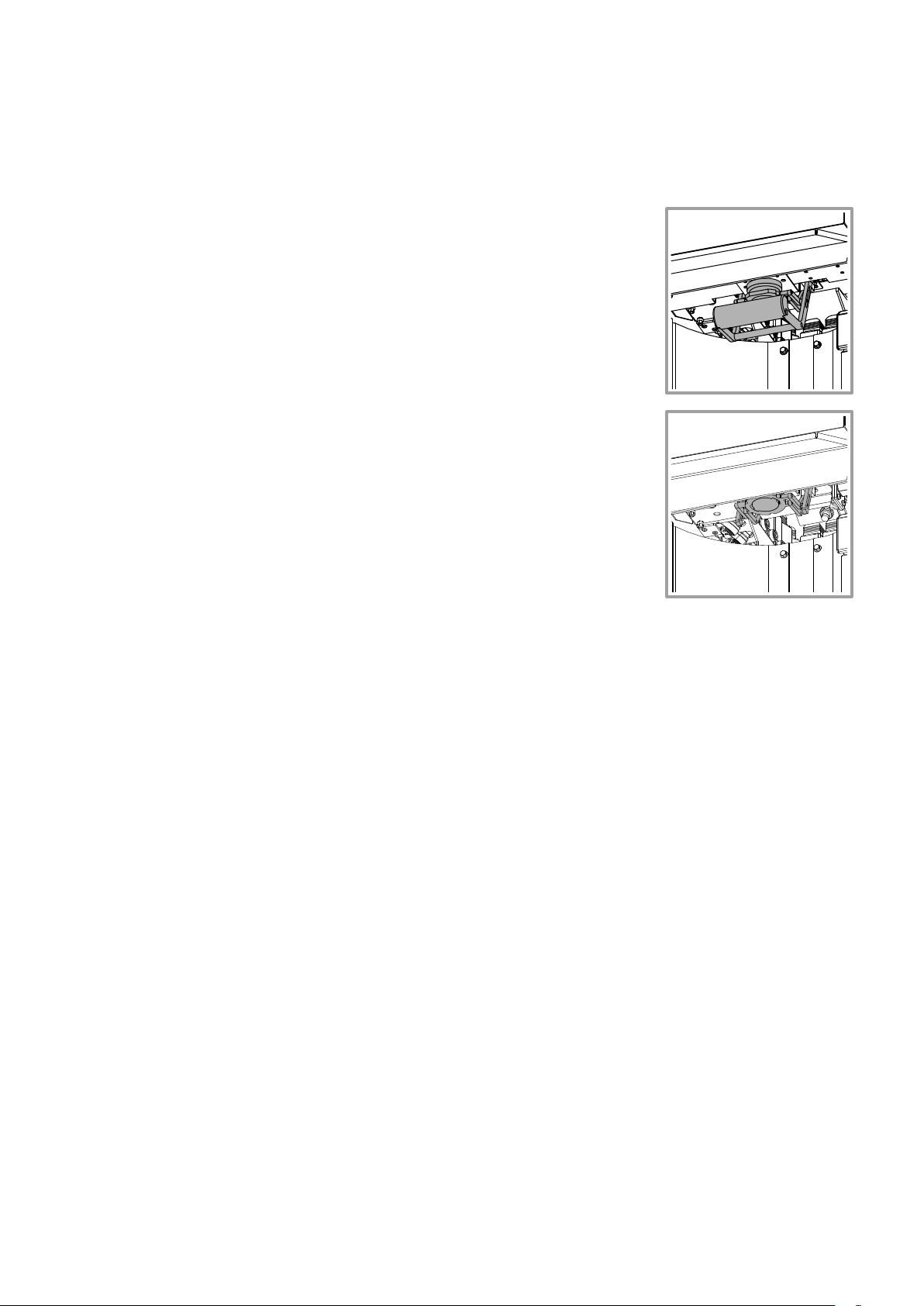

Bung Hole Locator (B.H.L.)
This is a system that emits laser beams that allow the positioning of pre-punched
cans, so that the hole is in line with the center of the dispensing nozzles.
COROB™ FLEX 900
Page 15
FEATURES - 11
Nozzle Humidier Cap
Colorants tend to dry out; this tendency may be more or less strong depending on the type of colorant and
the environment conditions (temperature, relative humidity, etc.). To prevent colorants from drying out in the
nozzle center, the machine is equipped with a humidier cap which requires constant maintenance.
The Sliding cap is a simple cap, which opens thanks to the push applied
to the opening bar while the can is being positioned. The cap closes when
the can is removed. The system checks that the cap is properly opened
and conrms the can presence to begin dispensing.
The Sliding Autocap is an automatically activated cap, whose movement
is managed by the application program, which opens it automatically
before dispensing and closes it automatically immediately afterwards. A
photocell prevents dispensing from taking place when no can is resting
on the shelf.
COROB™ FLEX 900
Page 16
12 - FEATURES
3.3 Standard and optional congurations
Canister capacity 2.3 liters
Number of circuits maximum 16
Circuit ow rate 0.2 l/min
Nozzle center ow diameter* 31 mm
Lift manual shelf standard
Sliding cap standard
Sliding Autocap optional
Laser Bung Hole Locator (B.H.L.) optional
Side computer support arm optional
* Hole diameter for pre-punched cans = ow diameter + 15 mm.

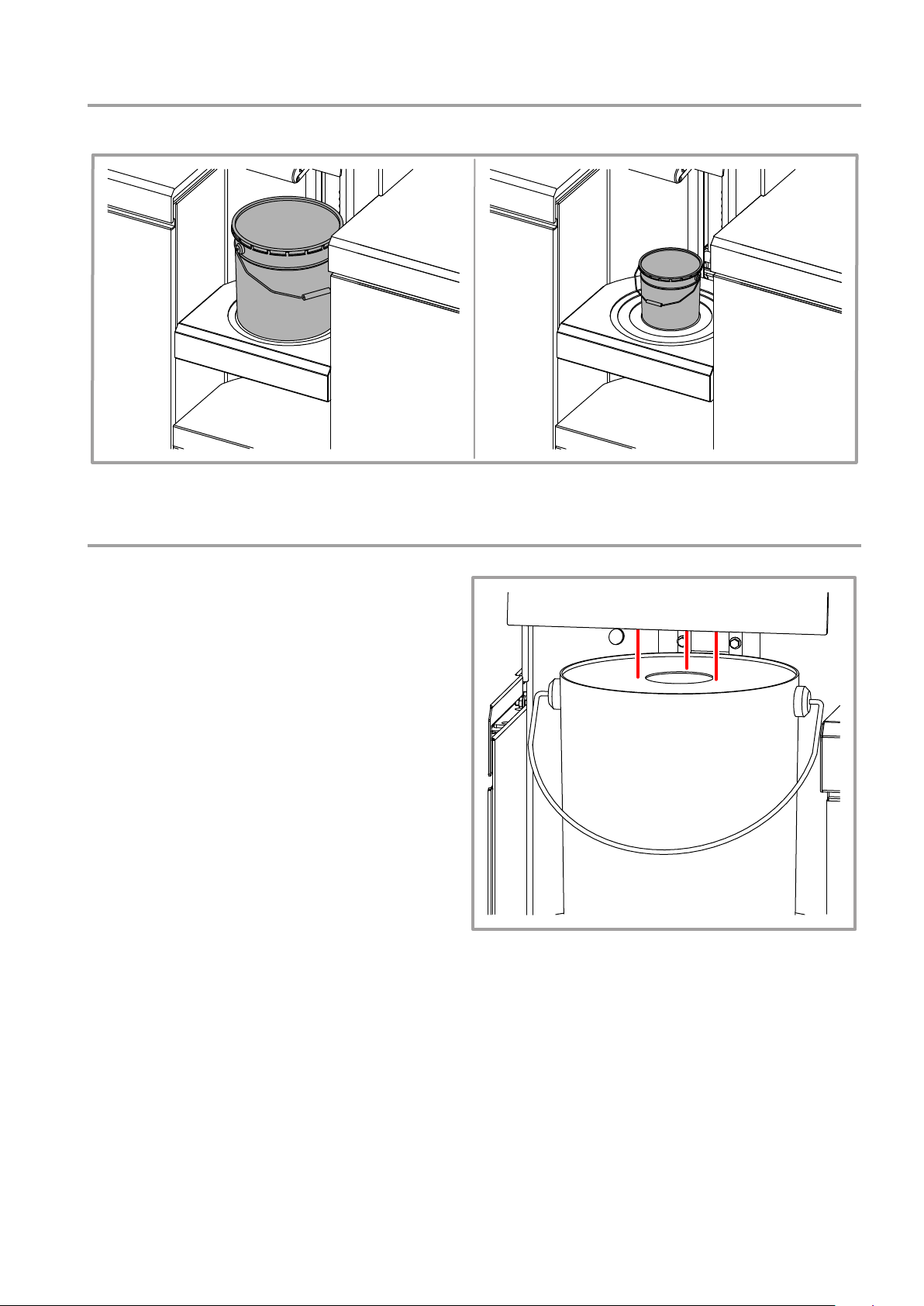

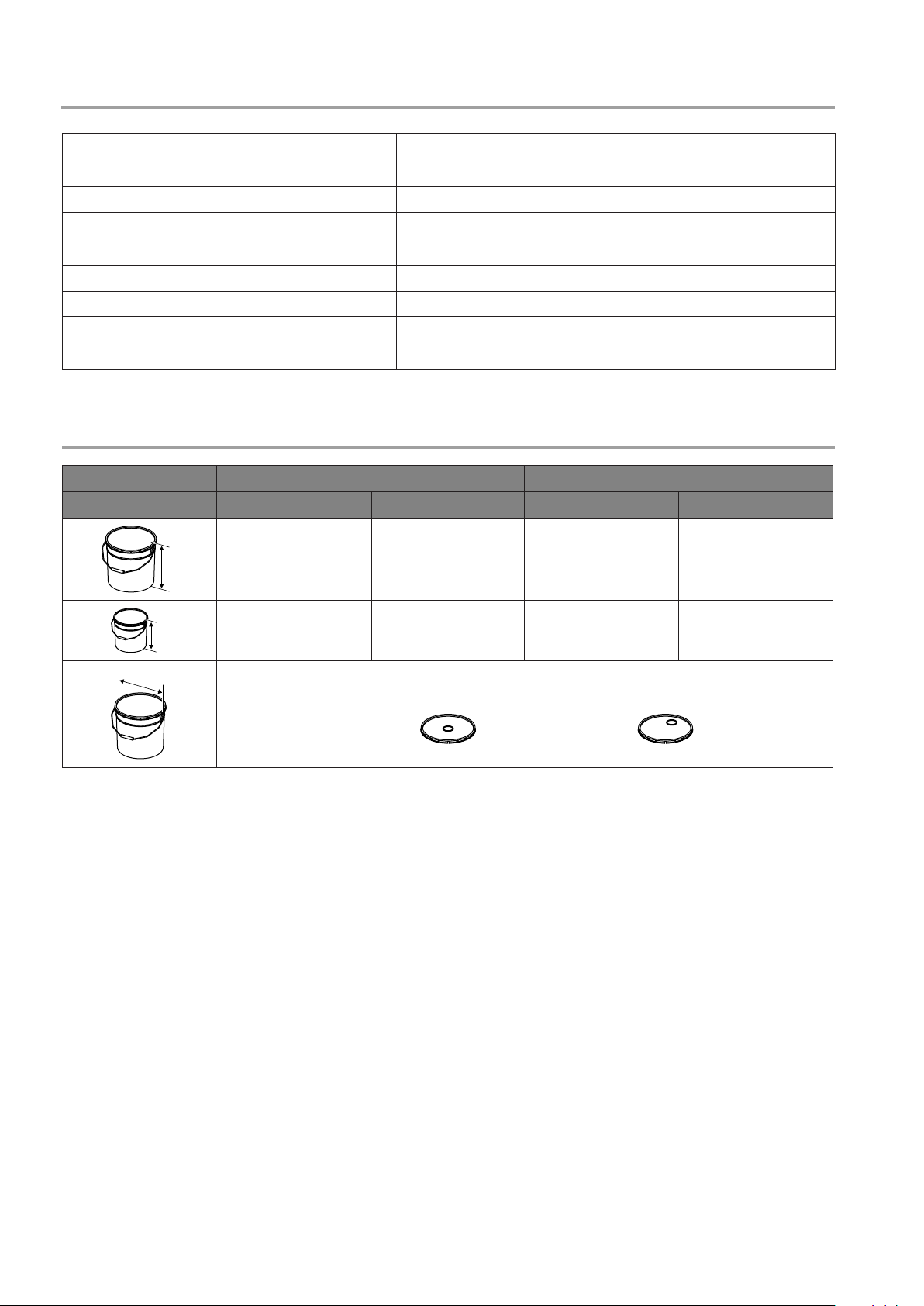

3.4 Usable cans
Humidier cap > sliding cap sliding autocap
Panels > sheet metal ABS sheet metal ABS
505 mm 490 mm 490 mm 475 mm
MAX
75 mm 60 mm 35 mm 20 mm
MIN
MAX
230 mm 340 mm
COROB™ FLEX 900
Page 17
SHIPPING, HANDLING AND UNPACKING - 13
4 SHIPPING, HANDLING AND UNPACKING
4.1 General warnings
DANGER
To avoid personal injuries and property damage, use the utmost care and caution when handling the machine,
and carefully follow the instructions given in this chapter.
The packing must be handled only by skilled personnel using appropriate handling equipment.
4.2 Environment conditions of the installation site
Environment requirements for the site where the machine is to be used:
• Clean and dust-free.
• With level and stable oor.
• Fitted with a grounded power supply socket.
• Equipped with sufcient lighting to ensure good visibility from every point of the machine.
• Ventilated to prevent the concentration of harmful fumes.
• Temperature between 10 °C (50 °F) and 40 °C (104 °F) and relative humidity between 5% and 85%,
without condensation.
WARNING
The environment working conditions are strictly related to the type of colorants used (ask for information
from the paint manufacturer). The requirements indicated above are valid for the machine only.
Do not place the machine near heat sources or in direct sunlight. Also humidity sources should be avoided.
The machine must be used indoors only.
Environment conditions outside the values indicated (chapter 8.1) may cause serious damage to the machine,
especially the electronic equipment.
DANGER
When using colorants containing volatile solvents the room in which the machine is installed must be
spacious, with good ventilation (air exchange) and no type of parts must be leant against or stocked close
to the machine.
If the machine is installed near a wall, keep it at least 10 cm away to allow the upper covers to be
opened and prevent the cables from being crushed.
COROB™ FLEX 900
Page 18
14 - SHIPPING, HANDLING AND UNPACKING
4.3 Unpacking and placement
1 x 10 mm
2 x 13 mm
PH2 To x the packing cover
DANGER
The following procedure must be carried out by at least 2 people.
Store the packing material for future use, or dispose of it according to current regulations. In any case, we
recommend that you keep it for the entire duration of the machine warranty.
Make sure the packing has not suffered any damage or tampering during shipping; if so, contact the
authorized technical service or your dealer.
1. Remove cover A.
2. Remove cardboard box.
3. Remove machine wrapping.

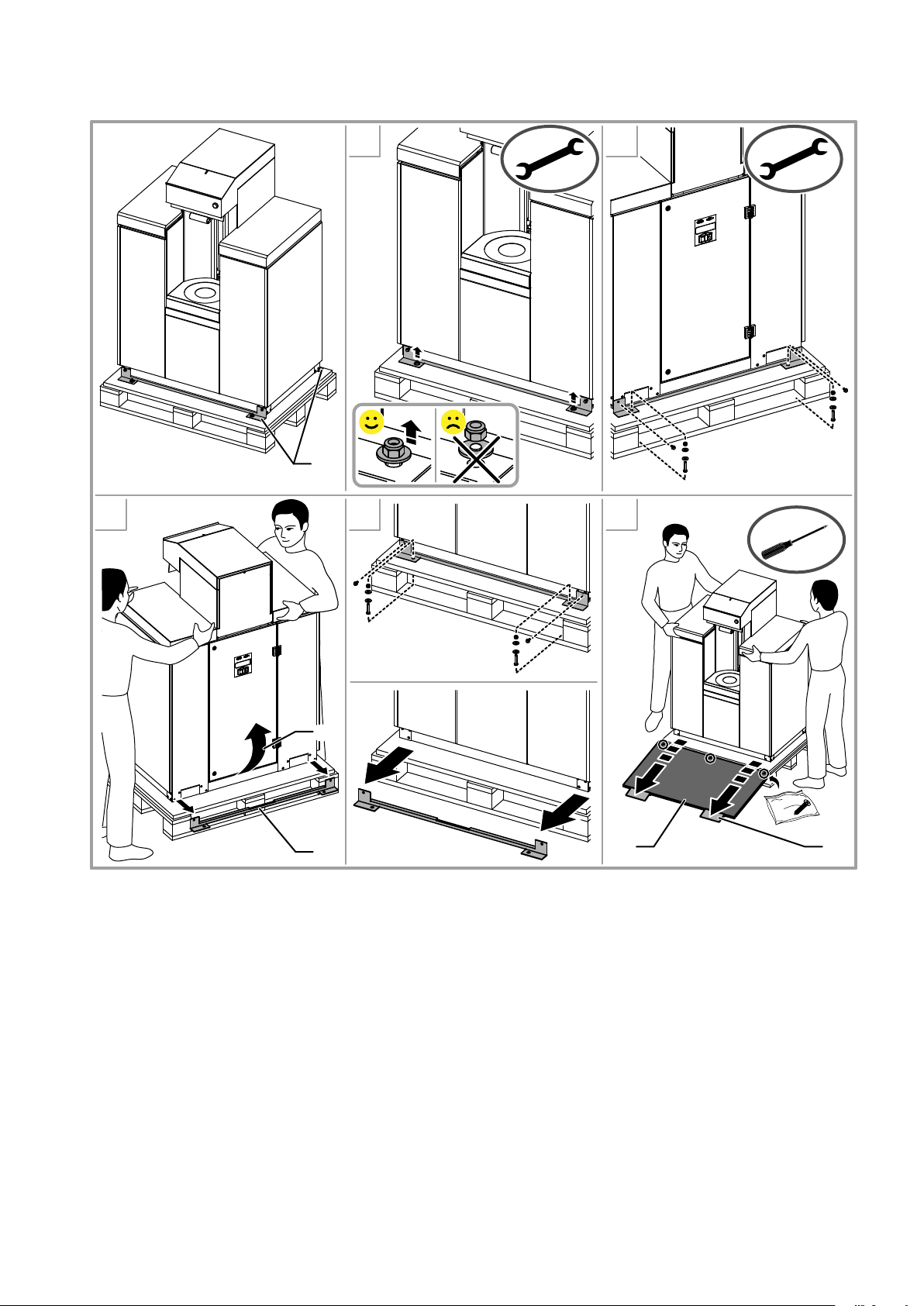

To remove the xing brackets
1 32
A
B
Figure 3
DANGER
Should the machine appear damaged during shipping, do not attempt to start it and contact the authorized
technical service or dealer.
4. Slightly loosen the two screws that x the front bracket to the base of the pallet.

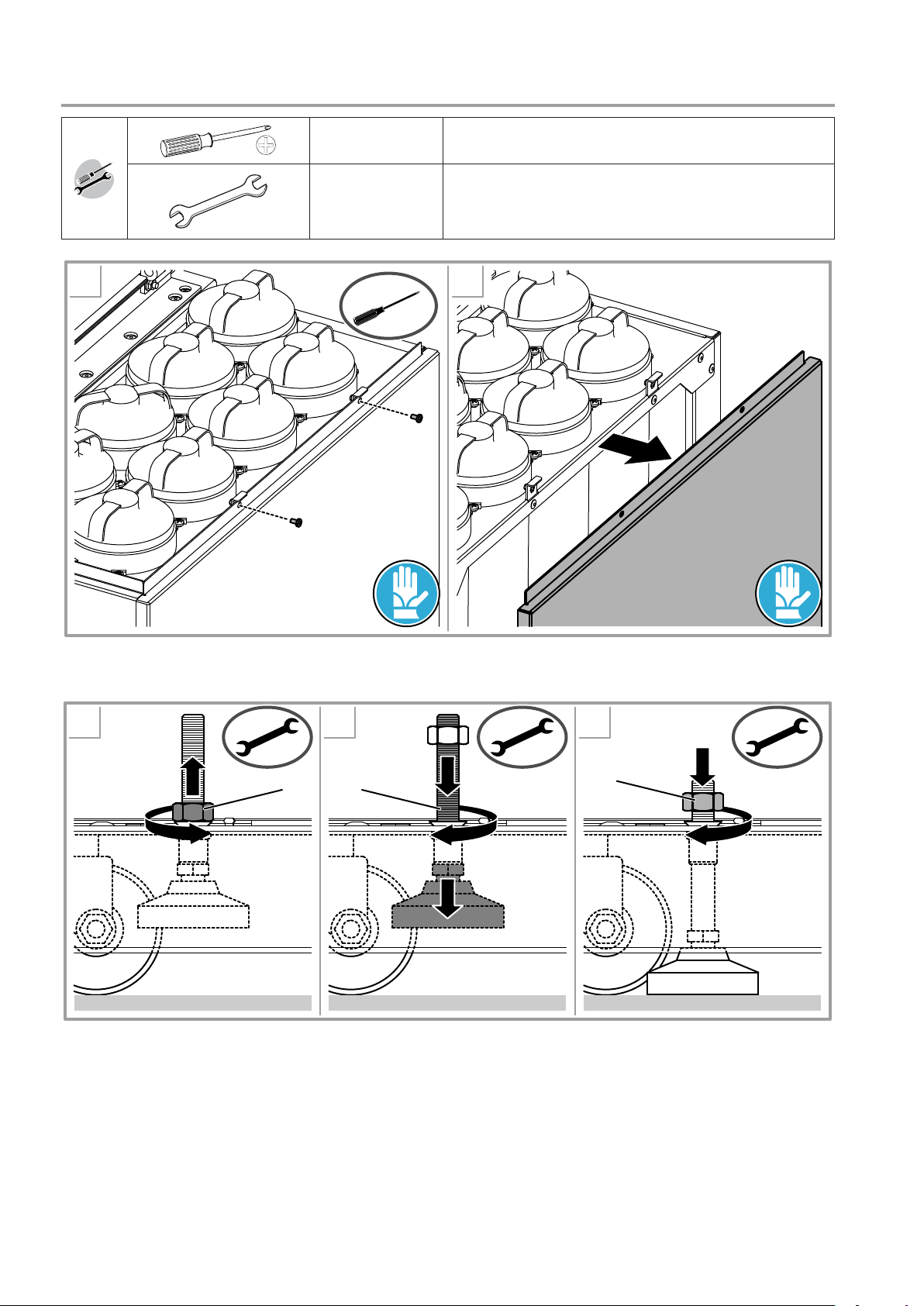

5. Lower the feet (chapter 4.3.1) until the wheels are no longer resting on the pallet surface.
6. Remove all screws and nuts that x the rear bracket to the machine and to the pallet.
7. Operating from the front side, with one person at each corner, tilt the machine frontally until the rear
bracket is free and can be removed by a third person.
8. Now remove the front bracket.
COROB™ FLEX 900
Page 19
SHIPPING, HANDLING AND UNPACKING - 15
9. Raise the feet (chapter 4.3.1) until the wheels touch the pallet surface.
C
4
8
6
107
aa
3x
b
Figure 4
10. Fix cover A frontally to the pallet and place the two sliding plates B previously removed from inside the
packing. Grasp then the machine on the sides, then slide it slowly to the ground along the cover.
11. Lower the feet (chapter 4.3.1) to support and level the machine properly, and make sure that the wheels
are not resting.
BA
COROB™ FLEX 900
Page 20
16 - SHIPPING, HANDLING AND UNPACKING
4.3.1 Adjusting the support feet
PH2 To open machine panels
1 x 17 mm To adjust machine feet
1 2
Figure 5
1
2
a b
3
a
Figure 6
COROB™ FLEX 900
Page 21
SHIPPING, HANDLING AND UNPACKING - 17

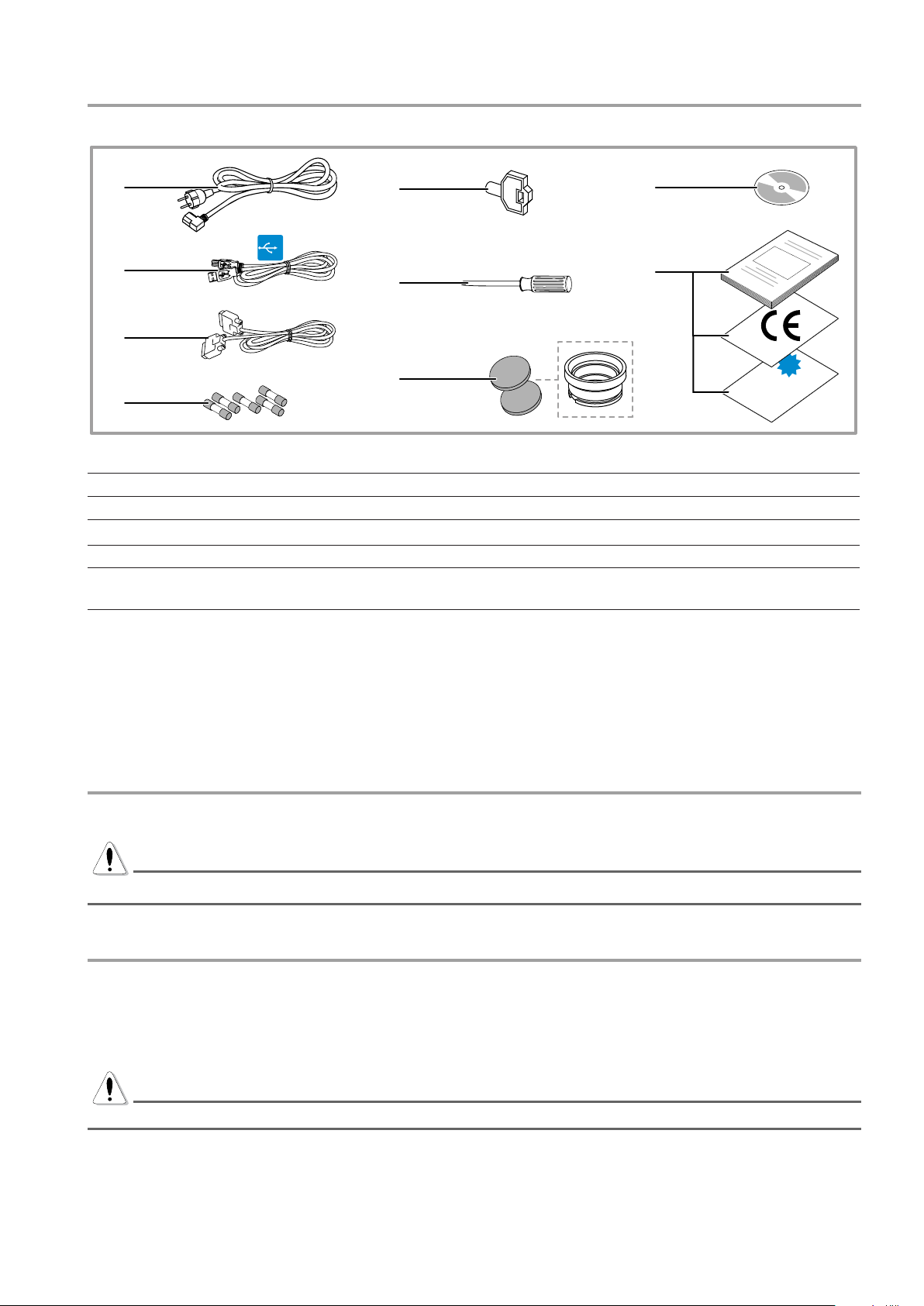

4.3.2 Standard material supplied
After unpacking the machine, make sure the following items are present:
1
2
5
6
8
9
3
7
4
Figure 7
1. Power supply cable. 2. USB cable.
3. RS232 cable. 4. Spare fuses.
5. Panel key. 6. Phillips screwdriver.
7. Spare parts for humidier cap. 8. Equipment software tools standard CD.
9. User’s manual, CE declaration of conformity and
installation and warranty start form.
WARRANTY
Depending on the options specied on the purchase order, you may also nd:
• Management software and protection key.
• Any accessories to be installed on the machine.
Make sure that all of the above items are included in the packing; if not, contact the manufacturer.
4.4 Installation
Once the machine has been unpacked and placed in its operating site, it must be installed.
WARNING
Only qualied and appropriately trained personnel are authorized to install the machine.
4.5 Packing and handling
To repack the machine, follow the unpacking instructions in reverse order. We recommend reusing the original
packing any time the dispenser must be moved or shipped.
Use appropriate equipment to move the packed machine. If stored, the machine must be kept in a protected,
dry environment, not subjected to harsh weather, to avoid damaging the electrical components.
WARNING
Do not stack items on the packing.
COROB™ FLEX 900
Page 22
18 - START-UP
COROB™ FLEX 900
Page 23
START-UP - 19
5 START-UP
5.1 General warnings
DANGER
THIS EQUIPMENT MUST BE GROUNDED.
Check the grounding of the power supply system before connecting the machine.
Do not use extension cords to power the machine.
Do not use multisockets to connect other equipment to the same socket that powers the machine.
WARNING
Do not attempt to power the machine from a source having specications other than those listed on the
identication plate.
The machine is isolated from the power supply line when the power plug is disconnected; it must therefore
be installed near an easily accessible mains socket outlet.
COROB™ FLEX 900
Page 24
20 - START-UP

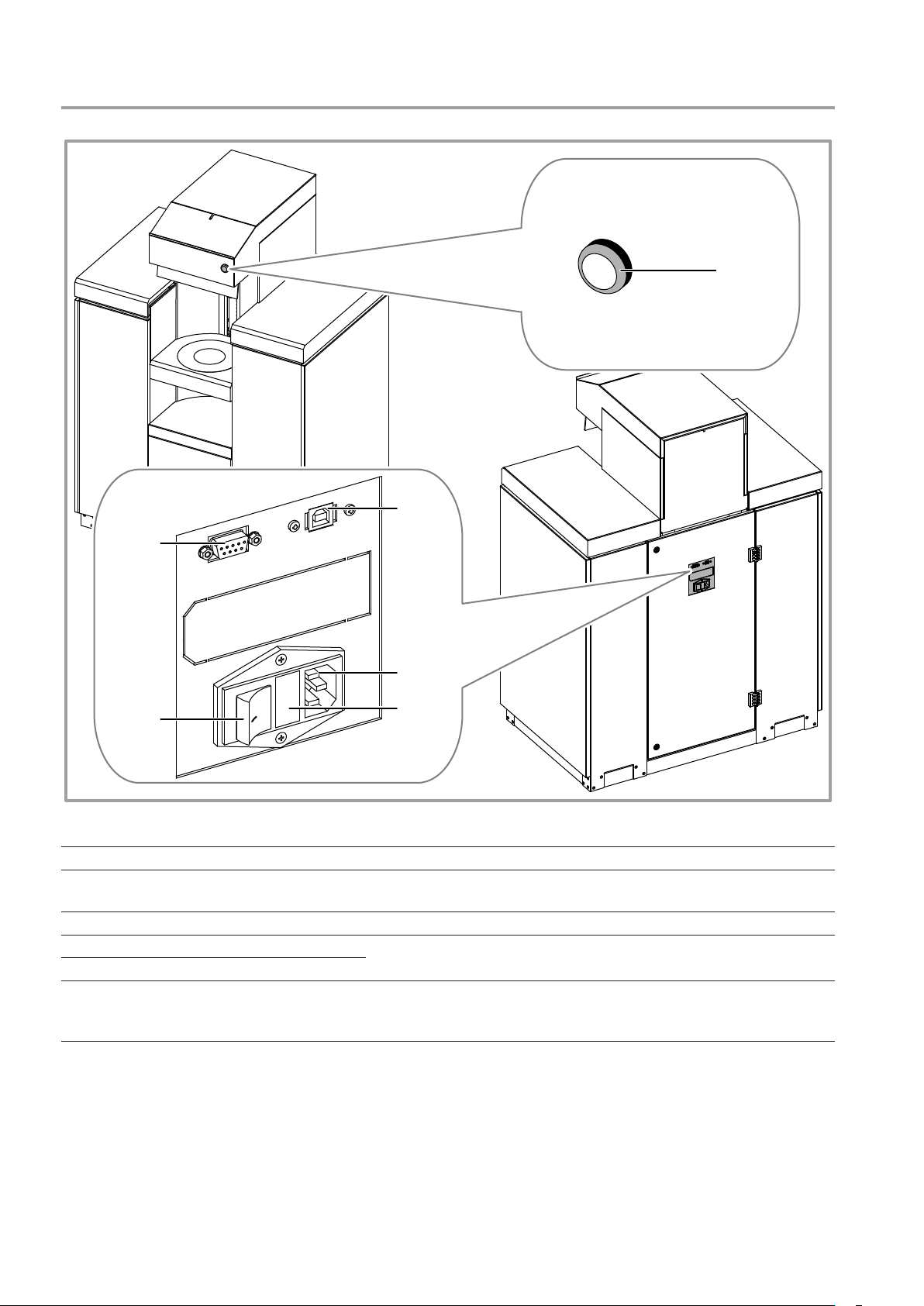

5.2 Control devices and connections
6
4
1
1. Machine main switch.
2. Fuse compartment.
3. Main plug.
4. RS232 serial port.
5. USB serial port.
6. Off-line button with ON lamp.
0
5
3
2
Figure 8
The value of fuses is shown in the technical specications table
(chapter 8.1).
For the connection to the management computer.
To interrupt machine functions, without shutting it off; it also
enables to open and close the Autocap (if present) to allow
cleaning the nozzles.
COROB™ FLEX 900
Page 25

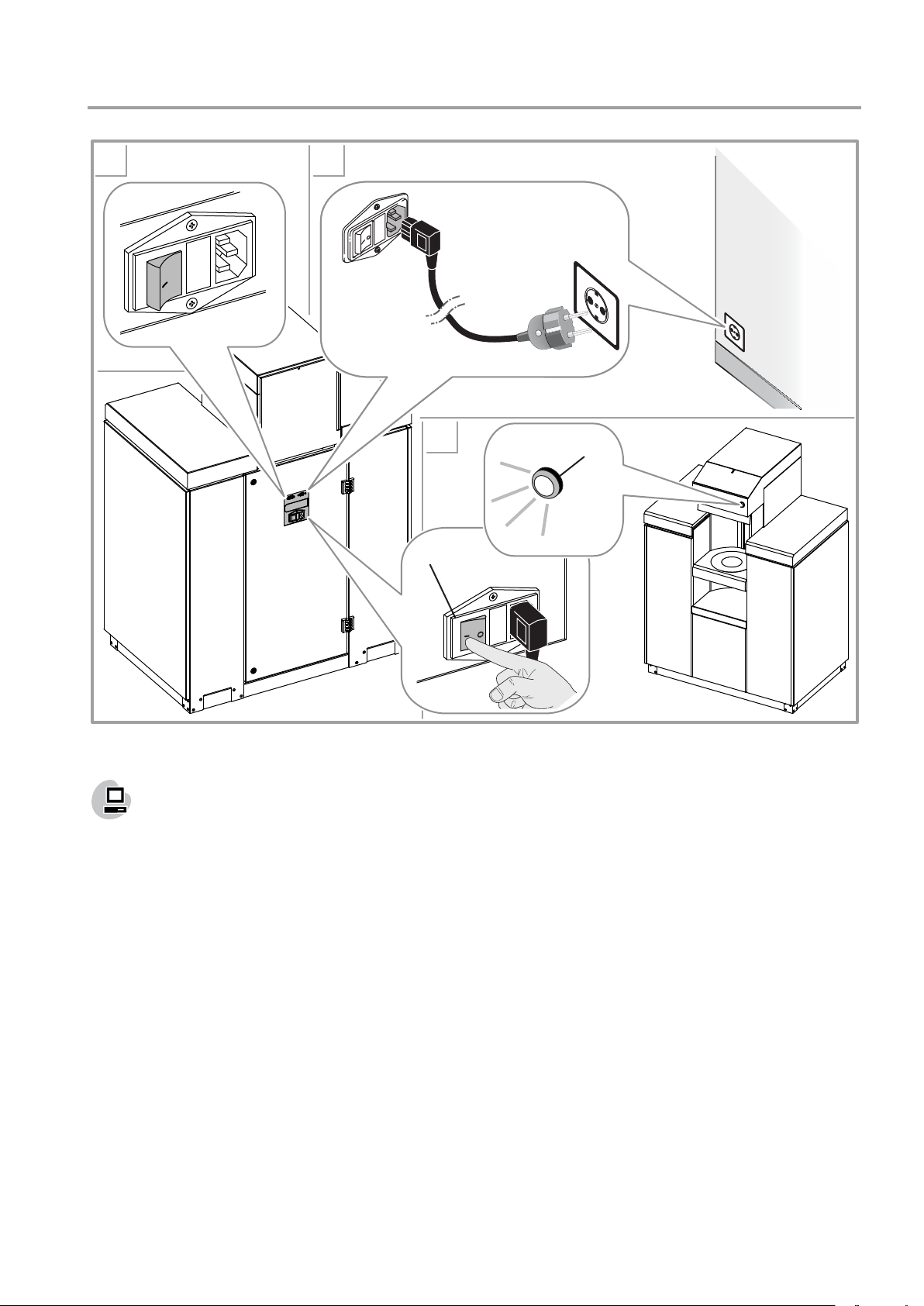

5.3 Electrical connection and start-up
START-UP - 21
1
0
2
3
b
a
Figure 9
When the software is launched it offers the operator a series of procedure requests, including
initialization (chapter 5.5).
COROB™ FLEX 900
Page 26
22 - START-UP
5.4 Machine conditions
The status of the ON lamp highlights the condition in which the machine is:
Status of the ON lamp Machine condition Meaning
ON On-line
Blinking slowly Off-line 1
Blinking fast (only with
sliding Autocap)
OFF Off The machine is OFF.
Off-line 2
The machine is ON and ready to receive commands
coming from the computer.
Machine functions are interrupted and the commands
coming from the computer are refused.
The Autocap is open, machine functions are interrupted
and the commands coming from the computer are
refused.
5.5 Initialization
INITIALIZATION is a preparatory phase that must be carried out when the machine is turned on.
If the computer is turned off and back on again, initialization is not strictly necessary, even if required
by the software; it is solely at the discretion of the operator.
DANGER
If the Autocap is open, initialization automatically closes it.
Moreover, initialization must be carried out in the following cases:
• At the beginning of each work shift, even if only the computer had been shut down.
• To send new operating parameters set via the management software.
For more information about the Initialization function, refer to the software user’s manual.
5.6 Use of the off-line button
When the off-line button is pressed, all functions of the machine are interrupted; the ON lamp blinks to indicate
that the machine is switched on but with the functions blocked (off-line 1 or off-line 2 condition). In these
conditions, any commands coming from the computer are refused.
Initial machine
condition
On-line ...for an instant Off-line 1 Blinking slowly
Off-line 1 ...for an instant On-line ON
Off-line 1
On-line
Off-line 2 (only with
sliding Autocap)
The machine on-line condition can also be restored by sending a Reset command via software, from off-line 1
or off-line 2 machine status.
Push the off-line
button...
...for a few seconds Off-line 2 Blinking fast
...for a few seconds On-line ON
...for an instant Off-line 2 Blinking fast
Final machine
condition
ON lamp
WARNING
Pressing the off-line button while a formula is being dispensed will cause dispensing to be interrupted. Once
the machine has been restored to normal operation, IT WILL NOT BE POSSIBLE to continue dispensing the
formula previously interrupted.
COROB™ FLEX 900
Page 27
START-UP - 23

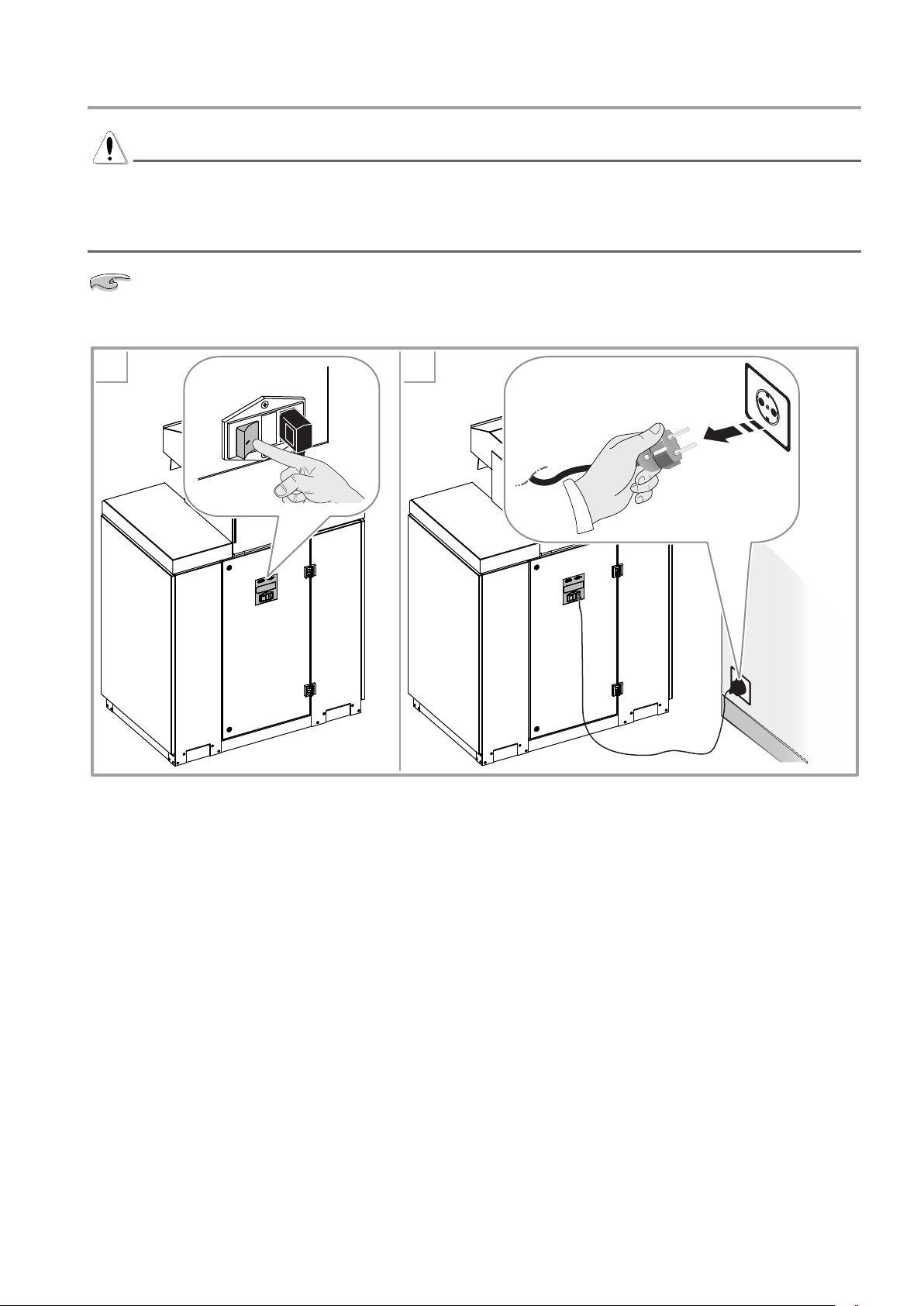

5.7 Shut-down
WARNING
WE RECOMMEND THAT YOU NEVER SHUT DOWN THE MACHINE, even when closed for business,
because the automatic, timed functions help keep the colorant preserved and homogeneous.
Should it be essential to shut down the machine, avoid keeping it off for extended periods of time. When the
machine is not being used, shut off only the computer.
Very little power is used by the machine itself when inactive or during a stirring cycle.
Shut off the machine as follows:
1
0
2
Figure 10
COROB™ FLEX 900
Page 28
24 - USING THE DISPENSER
COROB™ FLEX 900
Page 29
USING THE DISPENSER - 25
6 USING THE DISPENSER
6.1 General warnings
DANGER
The machine must be used by a single operator.
It is strictly forbidden to bypass and disable the safety devices and protections.
Do not, for any reason, place your hands in the dispensing area when running the machine, except for loading
and unloading the cans.
The panels must be kept closed at all times.
6.2 At the beginning of the working day
At the beginning of each work shift, always carry out the following operations:
• Check that the nozzle center is clean.
• Check that the sponge is clean and saturated; if it is necessary to saturate, use only appropriate liquid (the
choice of the liquid depends on the nature of the colorants, and must be done directly by the manufacturer
of the products used).
• Carry out system Initialization and Purge.
6.3 Running the machine
The operator is guided in running the machine by the COROB™ management software, which displays the
instructions to be carried out and the actions performed by the machine.
Steps Options Reference
Make the selections from the management software
(selection of the product, formula and cansize).
Adjust the height of the can shelf. chapter 6.3.1
Load the can in the machine. chapter 6.3.2
Adjust can position with respect to the dispensing
center.
Via the software, enter the formula dispensing
command.
When dispensing is nished, remove the can and
proceed with another dispensing process.
with can centering device chapter 6.3.3
with Laser B.H.L. chapter 6.3.4
chapter 6.3.5
COROB™ FLEX 900
Page 30
26 - USING THE DISPENSER
6.3.1 Adjusting the can shelf height
1. Release the shelf by pulling the handle.
2. Raise or lower the shelf, adjusting its height
based on the size of the can to be used.
3. Release the handle to lock the shelf in the
desired position.
Figure 11
WARNING
With sliding cap: the shelf position must be such that it allows the can -- to be lately placed -- to push the
cap opening bar.
With sliding Autocap: the shelf position must be such that it does not cause the can to interfere with the
opening movement of the autocap, but must anyway ensure proper engagement of the photocell.
6.3.2 Loading the can
with sliding cap with sliding Autocap
Place the can on the shelf to push the cap opening bar
inward and thus cause it to open.
Place the can on the shelf, making sure that photocell
(A) is obscured.
A
COROB™ FLEX 900
Figure 12
Page 31

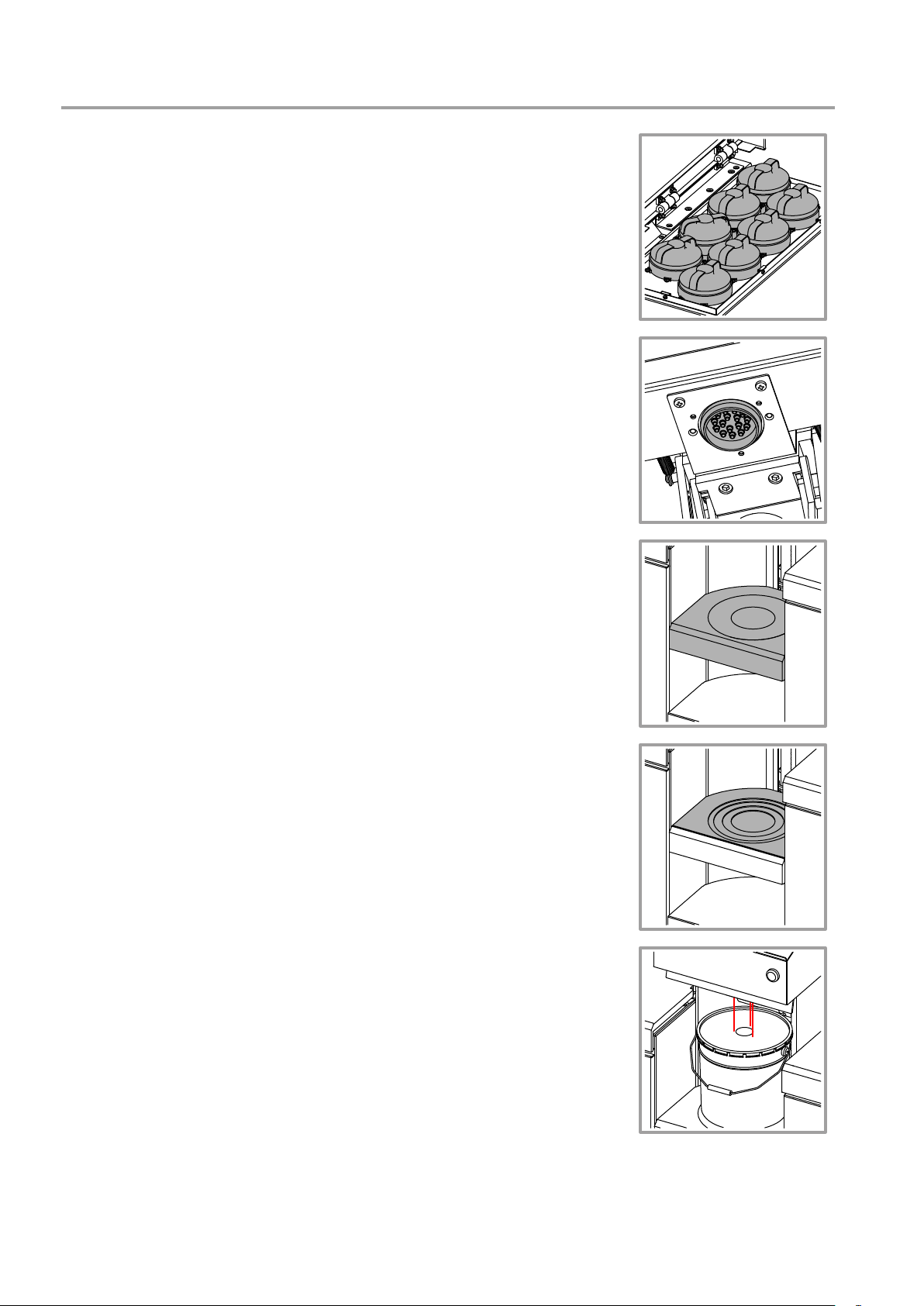

6.3.3 Use of the can centering device
Place the can in the centering ring of the suitable diameter.
Figure 13
USING THE DISPENSER - 27
6.3.4 Use of the Bung Hole Locator
1. After having correctly loaded the can on the shelf
(chapter 6.3.2), the laser beams will switch on.
2. Position the can in such a way that the hole on
the lid is in the center of the laser beams.
Figure 14
COROB™ FLEX 900
Page 32
28 - USING THE DISPENSER
6.3.5 Dispensing
When the dispensing command is entered, the Autocap (if present) opens to expose the nozzles and the machine
begins to dispense the products included in the formula in the set amounts; the Autocap will automatically close
when dispensing is nished.
The dispensing system depends on the machine version (sequential or simultaneous).
6.4 Automatic timed processes
Colorant stirring is a timed process, activated automatically to properly store the product in the canisters and
keep it in ideal, homogeneous conditions for dispensing, through the movement of stirring paddles inside
canisters.
The recirculation process circulates the colorant through the dispensing circuits, avoiding pigment sedimentation
in the various parts of the circuit. The colorant leaves the bottom of the canister and returns in the canister
through the recirculation connector, without being dispensed through the nozzle center.
The duration and the interval between one stirring or recirculation cycle and another can be customized via
the conguration software (refer to the CorobTECH user’s manual), based on the nature of the products used
on the machine.
We recommend to keep the canisters closed with their corresponding lids; do not insert hands in the
canister even when no colorant is present.
When an automatic timed process is in progress, the machine can still be used; the process will be suspended
and restarted after a few seconds that the machine is inactive.
COROB™ FLEX 900
Page 33
6.5 Relling the canisters
USING THE DISPENSER - 29
2
4
3
6 cm
2”
Figure 15
1. Push the off-line button for an instant (chapter 5.6).
2. Open the upper covers.
3. Remove the lid of the canister to be lled.
Shake the container of colorant to be poured into the canister manually. Do not use automatic shakers.
4. Make sure that the bottle draining system is correctly positioned, then add the desired colorant to the
canister, by pouring it directly on the bottle drainer, so as to avoid spattering or creating air emulsions in
the colorant.
WARNING
To avoid colorant spills from the shaft of the stirring system, it is essential that you DO NOT REMOVE the
bottle drainer while topping up. The colorant level MUST NOT exceed the maximum level, placed at 6 cm from
the upper edge of the canister. Colorant spills cause the circuit pumping unit to be blocked.
5. Close the canister with its corresponding lid.
6. Repeat the above steps to ll other canisters.
7. Close the upper covers and restore the machine by pressing for an instant the off-line button (chapter 5.6).
COROB™ FLEX 900
Page 34
30 - USING THE DISPENSER
8. Update the colorant level value for the topped up canisters in the machine management software (refer to
the software user’s manual).
WARNING
In case of improper actions, which caused canister overlling with colorant:
• In case the colorant has poured inside the machine, do not try to clean; turn the machine off at once and
contact an authorized service center.
• If, on the contrary, the product has already poured out of the canister, it is necessary to shut off the
machine immediately and clean with paper or a moistened cloth. Whenever possible, leave the colorant to
dry itself and remove with a spatula.
• If the product has not yet come out of the canister borders, it is necessary to avoid closing the canister
with its lid and provide immediately to dispense the exceeding colorant until the correct level is reached.
Clean carefully the upper border of the canister with paper or a moistened cloth before closing it with the
lid.
NEVER USE WATER OR SOLVENT-BASED CLEANING PRODUCTS TO CLEAN THE MACHINE.
DANGER
When using colorants containing volatile solvents the canister top up must be carried out opening one
canister at the time.
WARNING
Failure to update the colorant levels in the canisters may compromise the accuracy of the hue produced or,
worse yet, lead to emptying the machine canisters and circuits.
If “SOLVENT FREE” colorants are used, or those that dry out quickly, we recommend that you keep the
canisters full at all times by topping up frequently.
After topping up the colorant, it is advisable to carry out the stirring process using the functions provided in the
management software, to eliminate any air that may be emulsied and incorporated into the colorant.

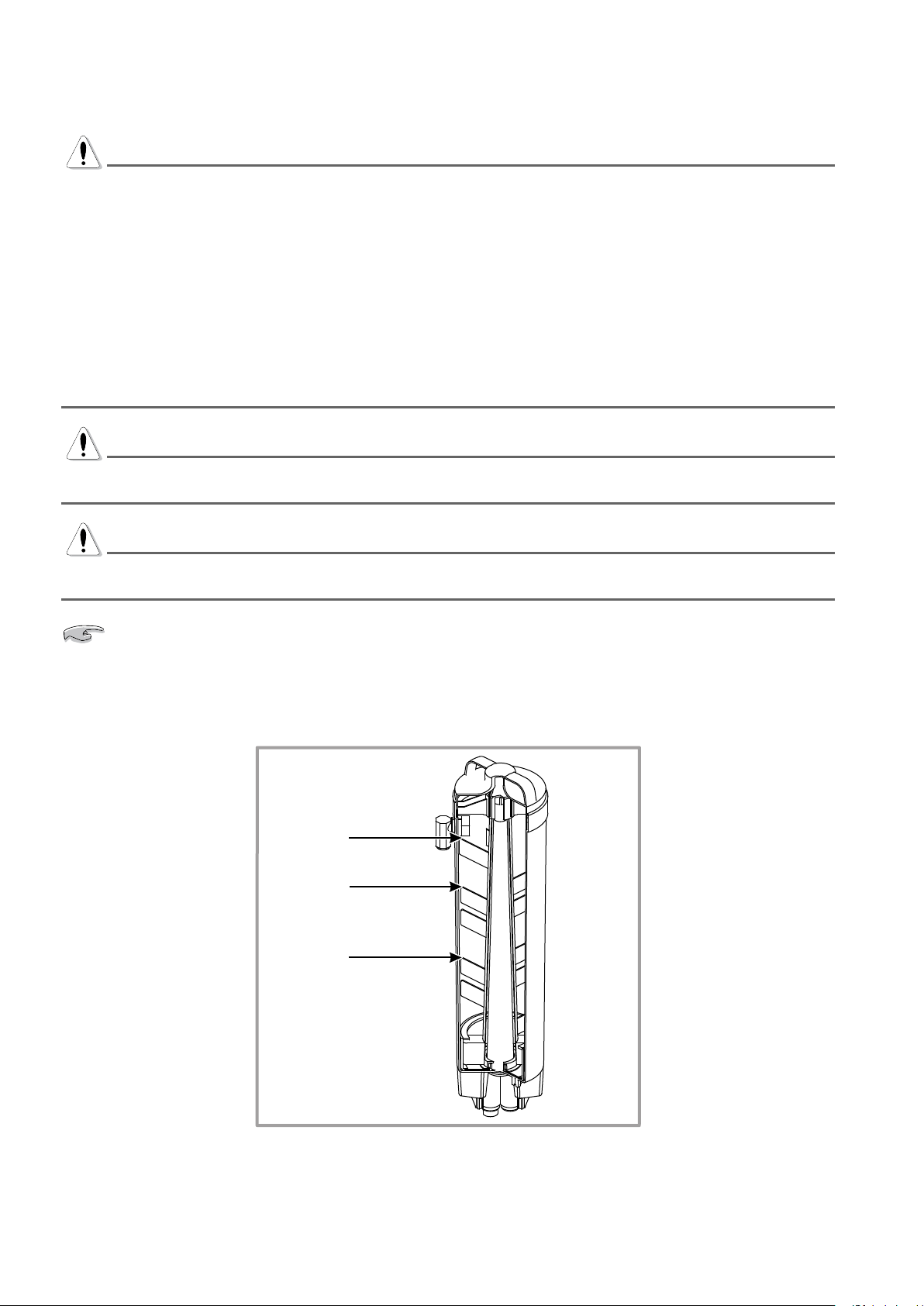

Here below you will nd a reference diagram to perform canister lling.
MAX 2.3 l
2.4 qt
1.8 l
1.9 qt
1 l
1 qt
COROB™ FLEX 900
Figure 16
Page 35
6.6 Troubleshooting
Problem Cause Solution
Check the connections at the back of the
machine (chapter 5.3).
Set the main switch to the ON position (I)
(chapter 5.3).
Replace any blown fuse inside the fuse
compartment (chapter 5.2).
Wait a few minutes and try to restart the
machine. If the problem persists, contact
the authorized technical service.
Contact the authorized technical service.
Turn the machine on (chapter 5.3) and
restart the management software.
Check the connections at the back of the
machine (chapter 5.3).
Use the conguration and calibration
software to make sure you have correctly
congured the port used to communicate
with the machine.
Repair the computer serial port or USB
port.
Replace the communication cable using
manufacturer’s original spare parts.
Bring the machine to the on-line condition
by using the off-line button or by sending
a Reset command (chapter 5.6).
Close the Autocap and bring the machine
to the on-line condition by using the
off-line button or by sending a Reset
command (chapter 5.6).
The machine does not turn
on.
The management software
shows an error in the
communication protocol.
The ON lamp blinks slowly
and the machine refuses the
commands.
The ON lamp blinks fast and
the machine refuses the
commands.
Power supply is missing.
Main switch in OFF position (O).
One or more fuses may be blown
up.
The power supply unit is in
overcurrent.
Electrical connections are
defective.
Machine is OFF.
Machine disconnected from the
computer.
Computer serial port or USB port
wrongly congured or defective.
Serial cable damaged.
Connection defective. Contact the authorized technical service.
The machine is in the off-line 1
condition.
The Autocap is open and the
machine is in the off-line 2
condition.
USING THE DISPENSER - 31
COROB™ FLEX 900
Page 36
32 - ORDINARY MAINTENANCE
COROB™ FLEX 900
Page 37
ORDINARY MAINTENANCE - 33
7 ORDINARY MAINTENANCE
7.1 General warnings
DANGER
Before carrying out any maintenance operations, you must turn off the machine and unplug the power supply
cable from the mains socket outlet.
During machine maintenance operations there is a high risk of contact with the coloring product; strictly
follow the indications of chapter 2.2.
7.2 Maintenance table
WARNING
The frequencies indicated are approximate, since they depend on the type of colorants, environment conditions
and frequency of use of the machine.
Frequency
Operations
Initialize and purge machine
Clean the nozzle center
Check the sponge is clean
Check the sponge is saturated
Moisten the sponge
Clean the sponge
Clean the dispenser externally
beginning
of shift
twice a
week
when
necessary
7.3 Products to be used
We recommend to use products compatible with the type of colorants in the machine when cleaning the nozzle
center and moistening the humidier cap sponge.
Type of colorant Suggested product
Solvent-based colorants slow-evaporating solvent, compatible with the colorants used
Water-based colorants water
Mixed systems
Should growths form in the cap or in the sponges, it is advisable to use the following uids:
• Propylene glycol solution, 50% by volume, in water;
• AgCl solution in water;
• Bleach (dilution 1%).
the choice depends on the type of vehicles used to produce the colorants; for
more information, contact the dealer or colorant manufacturer.
COROB™ FLEX 900
Page 38
34 - ORDINARY MAINTENANCE
7.4 External cleaning
WARNING
NEVER USE WATER OR SOLVENT-BASED CLEANING PRODUCTS TO CLEAN THE MACHINE.
In case the colorant has poured inside the machine, do not try to clean; turn the machine off at once and
contact an authorized service center.
In case of paint spills, clean the machine immediately.
1. Disconnect power supply (chapter 5.7).
2. Clean coverings, panels and control devices
of the machine, to remove dirt, dust and any
colorant stains, using a soft and dry cloth, or
slightly moistened with a mild cleansing solution.
3. Connect power supply and switch on the machine
(chapter 5.3).
See the manufacturer manual for instructions on
cleaning the computer.

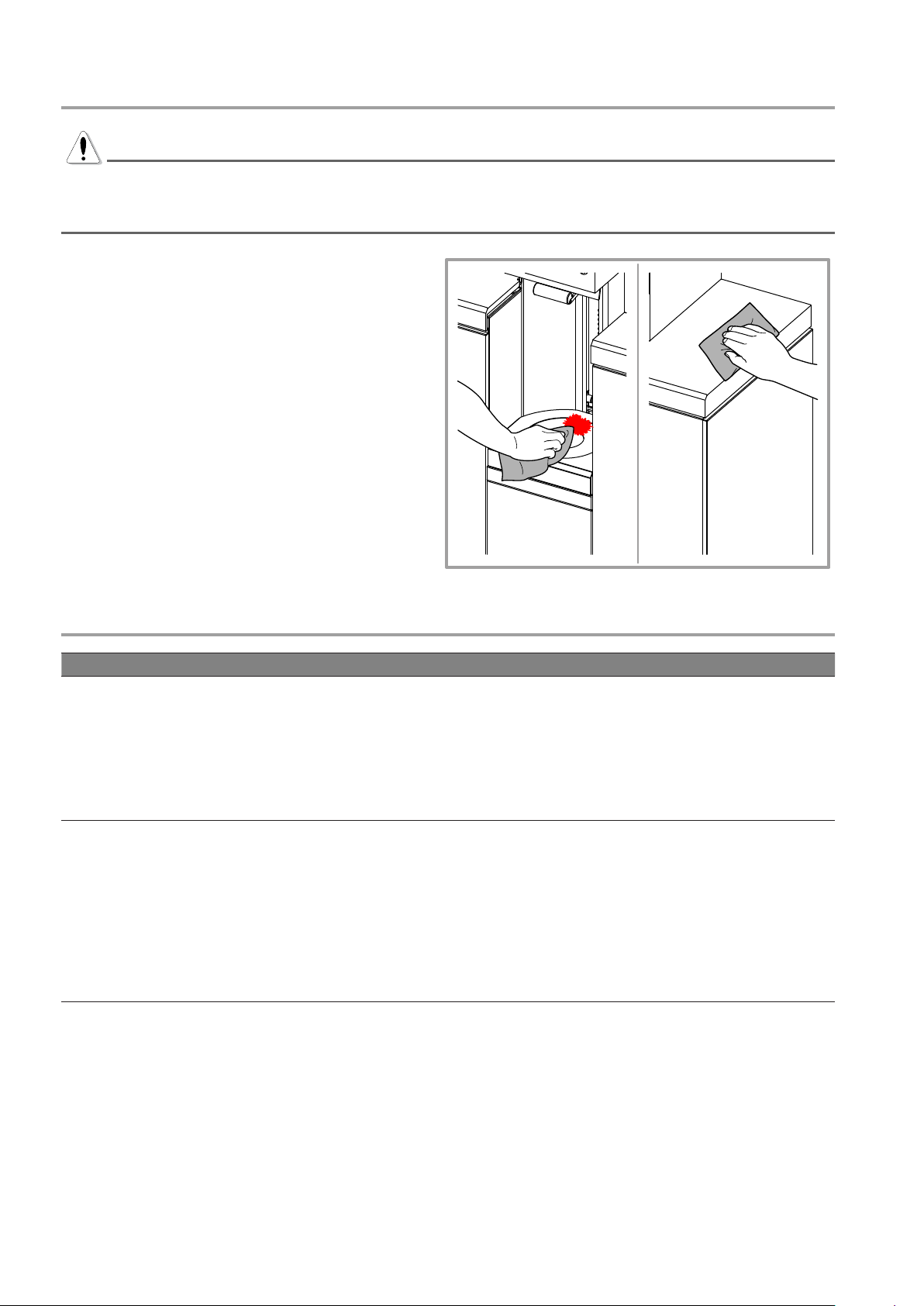

Figure 17

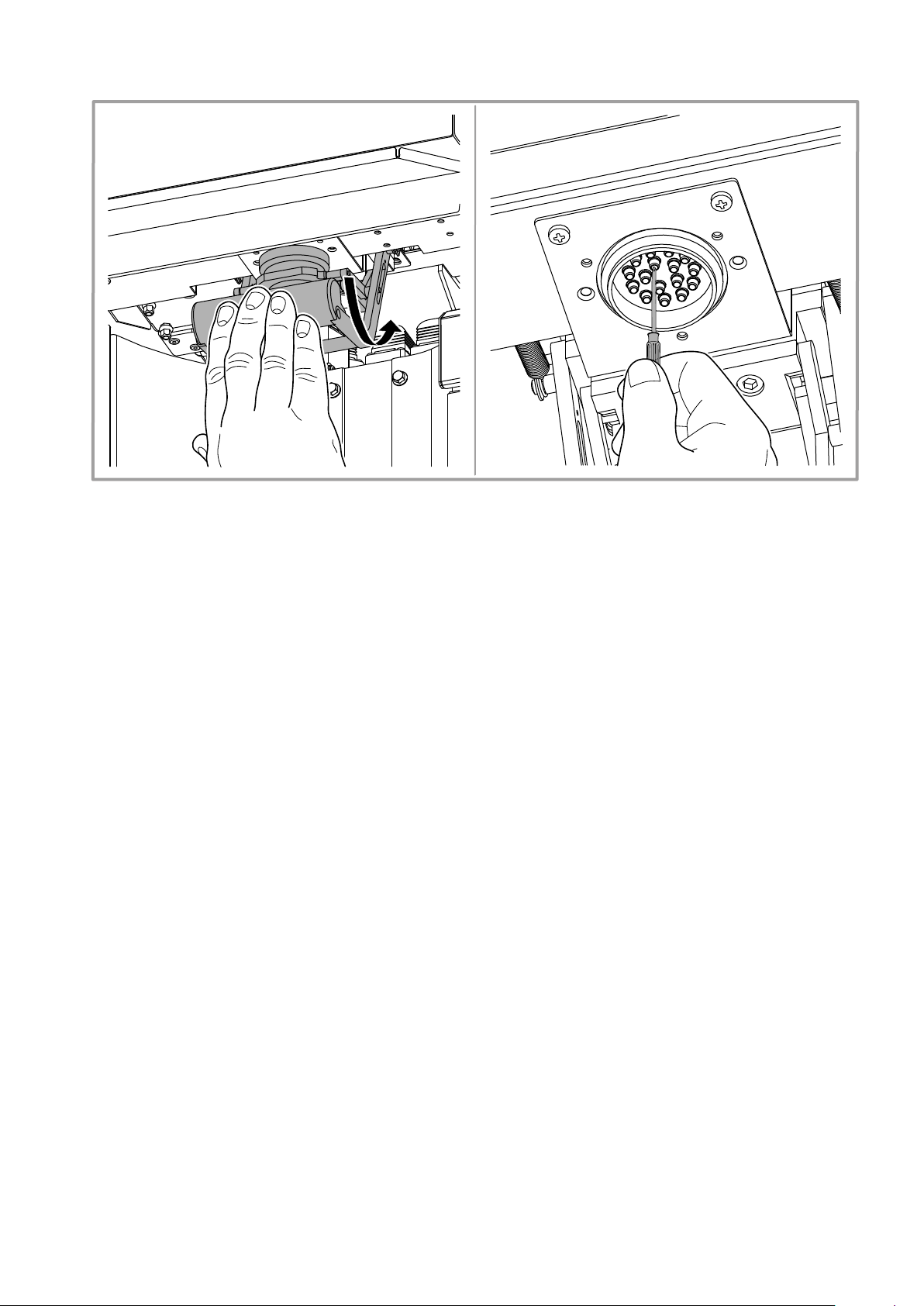

7.5 Cleaning the nozzle center
Cap model Operations
1. Disconnect power supply (chapter 5.7).
2. Open the cap by pushing the opening bar inward with your hand.
Sliding cap
Sliding Autocap
3. Accurately clean the nozzles using a sharp tool; remove any dried colorant
residue delicately, to avoid damaging the ends of the circuits.
4. Bring back the cap in its closed position.
5. Connect power supply and switch on the machine (chapter 5.3).
1. Open the Autocap bringing the machine to the off-line 2 condition, by means of
the off-line button (chapter 5.6).
2. Disconnect power supply (chapter 5.7).
3. Accurately clean the nozzles using a sharp tool; remove any dried colorant
residue delicately, to avoid damaging the ends of the circuits.
4. Connect power supply and switch on the machine (chapter 5.3).
5. Close the Autocap bringing the machine to the on-line condition, by means of
the off-line button (chapter 5.6).
COROB™ FLEX 900
Page 39
ORDINARY MAINTENANCE - 35
Figure 18
COROB™ FLEX 900
Page 40
36 - ORDINARY MAINTENANCE
7.6 Cleaning and moistening the humidier cap sponge
In case of sponge replacement, use only those supplied with the machine.
Cap model Operations
1. Disconnect power supply (chapter 5.7).
2. Open the cap by pushing the opening bar inward with your hand.
3. Unscrew the sponge holding lid and remove it.
4. Bring back the cap in its closed position.
Sliding cap
Sliding Autocap
a. Wash the holding lid, check the condition of the sponge and moisten as needed.
The level of the humidifying liquid must not exceed the height of the sponge. If
it is very dirty, remove the sponge from the cap and wash it thoroughly. If the
sponge is severely damaged, replace it.
5. Open the cap with your hand and screw back the sponge holding lid.
6. Connect power supply and switch on the machine (chapter 5.3).
1. Open the Autocap bringing the machine to the off-line 2 condition, by means of
the off-line button (chapter 5.6).
2. Disconnect power supply (chapter 5.7).
3. Unscrew the sponge holding lid and remove it.
a. Wash the holding lid, check the condition of the sponge and moisten as needed.
The level of the humidifying liquid must not exceed the height of the sponge. If
it is very dirty, remove the sponge from the cap and wash it thoroughly. If the
sponge is severely damaged, replace it.
4. Screw back the sponge holding lid.
5. Connect power supply and switch on the machine (chapter 5.3).
6. Close the Autocap bringing the machine to the on-line condition, by means of
the off-line button (chapter 5.6).
COROB™ FLEX 900
Page 41
ORDINARY MAINTENANCE - 37

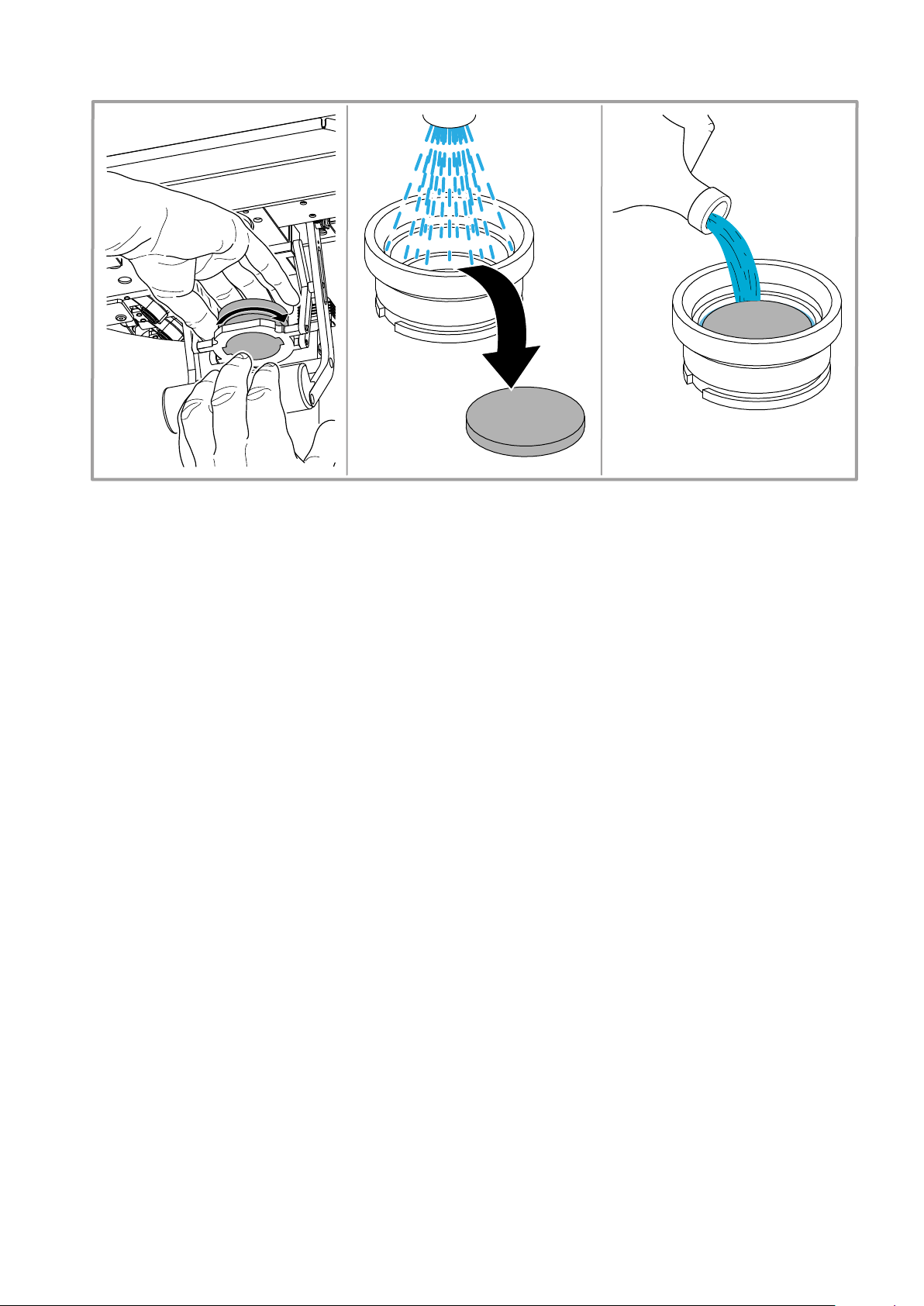

Figure 19
COROB™ FLEX 900
Page 42
38 - TECHNICAL SPECIFICATIONS
COROB™ FLEX 900
Page 43
TECHNICAL SPECIFICATIONS - 39
8 TECHNICAL SPECIFICATIONS
8.1 Technical data
Power supply Single-phase 100 - 240 V ~ ± 10%
Frequency 50/60 Hz
Fuses* F 10 A
Maximum power absorbed*
Noise level Level of equivalent acoustic pressure: < 70 dB (A)
Environment working conditions**
Vibrations
Dispensing technology bellow pump
Dispensing system sequential and/or simultaneous
Dispensing center internal
Type of canisters all-purpose (POM acetalic resin)
Type of valves electrovalves
Minimum dispensed quantity*** 1/384 US oz (0.077 ml) STANDARD pump
Theoretical resolution*** 0.00625 cc/step STANDARD pump
350 W - simultaneous only or mixed (sequential + simultaneous)
200 W - sequential only
Temperature: between 10 °C (50 °F) and 40 °C (104 °F)
Relative humidity: between 5% and 85%, without condensation
The machine does not transmit vibrations to the oor that may
compromise the stability and precision of any nearby equipment.
Machine 142 kg
****
Packed machine 174 kg
* The power information is purely indicative, and depends strictly on the machine conguration.
** The environment working conditions are strictly related to the type of colorants used (ask for information from the paint manufacturer).
The data shown are valid for the machine only.
*** Values highly affected by the nature of the colorants and their rheological properties.
**** Data refer to the machine with empty canisters.
COROB™ FLEX 900
Page 44
40 - TECHNICAL SPECIFICATIONS

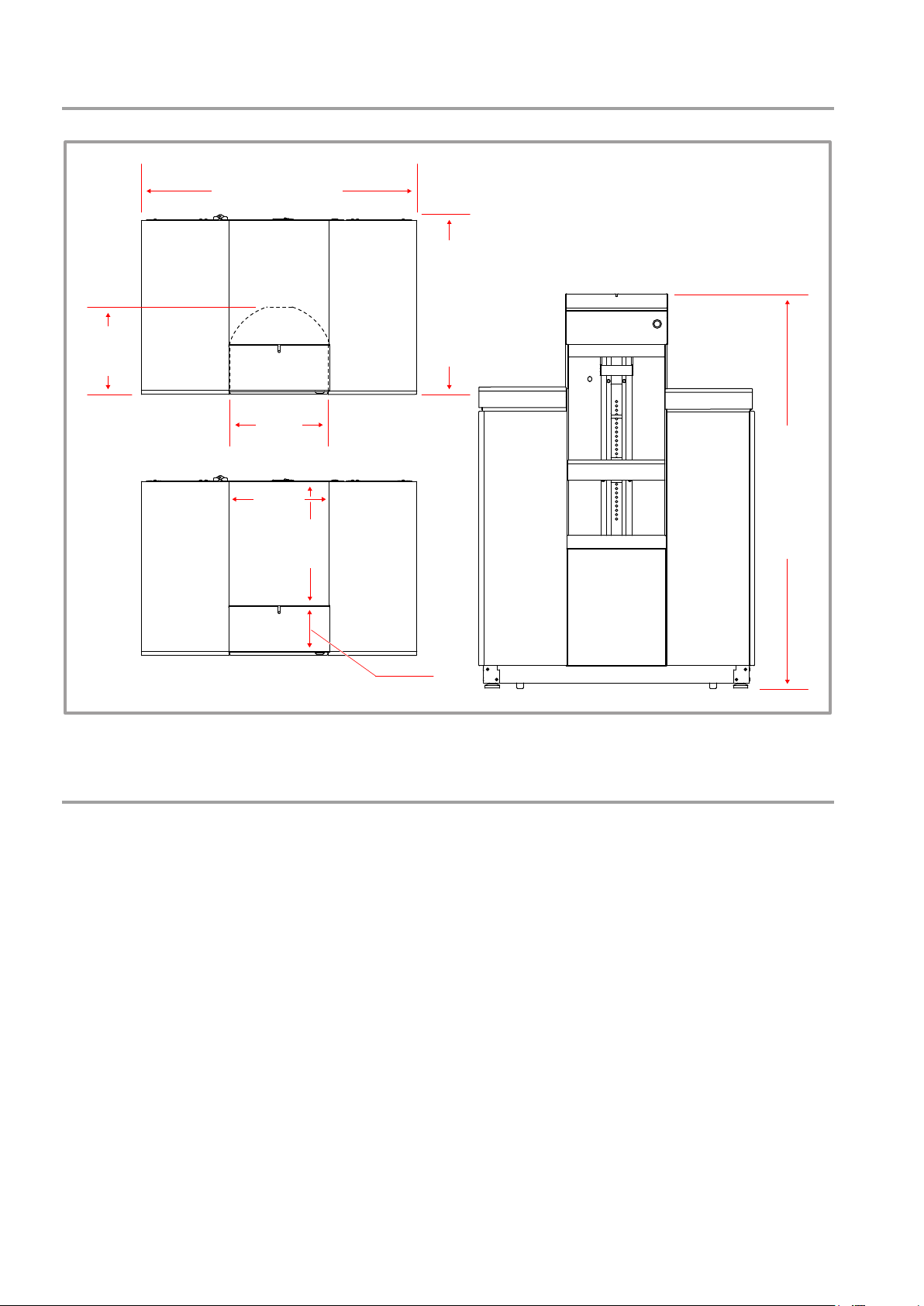

8.2 Dimensions
VL 950 mm - 37.4”
VP 966 mm - 38”
11.6”
295 mm
334 mm
13”
350 mm
13.8”
16.9”
428 mm
8.3 Declaration of conformity
166 mm
6.5”
VL 600 mm - 23.6”
VP 675 mm - 26.6”
VL 1363 mm - 53.7”
VP 1368 mm - 53.9”
See Declaration of conformity attached.
COROB™ FLEX 900
Page 45
TECHNICAL SPECIFICATIONS - 41
8.4 Reference standards
COROB S.p.A. designs, manufactures, and subjects its machines to tests to ensure compliance with safety and
electromagnetic compatibility regulations. Any changes not authorized by COROB S.p.A. may jeopardize this
compliance.
The manufacturer certies, under its own responsibility, that the machine to which this statement refers to,
complies with the essential requirements foreseen by the regulations:
• Machinery Directive 2006/42/EC.
• Electromagnetic Compatibility Directive 2004/108/EC.
The machine complies with all applicable standards.
The equipment complies with the Directive 2002/96/EC and 2003/108/EC on waste electrical and electronic
equipment (WEEE).
8.5 Warranty
In order for the warranty to be valid, please complete the form included in the machine packing, and send it
to the address listed on the form itself.
Contact our authorized and qualied personnel only for all your service needs. Use only original spare
parts for all maintenance and replacement interventions.
Altering or removing the guards and safety devices provided on the machine will not only void the warranty
immediately, but is also dangerous and illegal.
The manufacturer may not be held liable for personal injury or property damage caused by improper use of the
equipment or tampering with the guards and safety devices installed on the machine.
The following shall void the manufacturer’s warranty:
• Improper use of the machine.
• Failure to observe the instructions and maintenance rules set forth in the manual.
• Making or having changes and/or repairs made on the machine by personnel outside the service organization
authorized by the manufacturer and/or made using non-original spare parts.
COROB™ FLEX 900
Page 46
42 - TECHNICAL SPECIFICATIONS
COROB™ FLEX 900
Loading...
