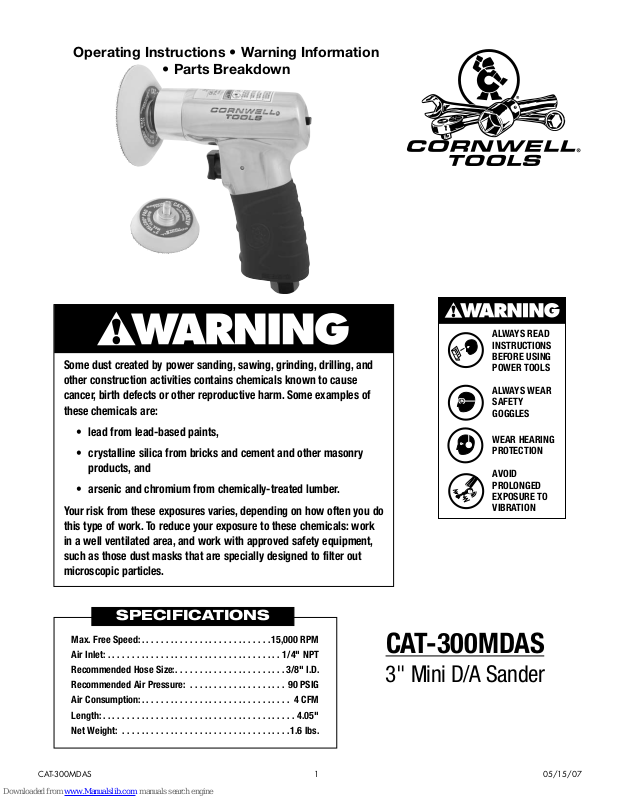

Operating Instructions • Warning Information
• Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY
GOGGLES
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do
this type of work. To reduce your exposure to these chemicals: work
in a well ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to filter out
microscopic particles.
SPECIFICATIONS
Max. Free Speed: . . . . . . . . . . . . . . . . . . . . . . . . . . .15,000 RPM
Air Inlet: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Recommended Hose Size:. . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Recommended Air Pressure: . . . . . . . . . . . . . . . . . . . . 90 PSIG
Air Consumption: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 CFM
Length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.05"
Net Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.6 lbs.
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
CAT-300MDAS
3" Mini D/A Sander
CAT-300MDAS 1 05/15/07
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ THIS INSTRUCTION MANUAL
CAREFULLY AND UNDERSTAND ALL
INFORMATION BEFORE OPERATING
THIS TOOL.
• Always operate, inspect and maintain this
tool in accordance with American National
Standards Institute Safety Code of Portable
Air Tools (ANSI B186.1) and any other
applicable safety codes and regulations.
• For safety, top performance and maximum
durability of parts, operate this tool at 90
psig; 6.2 bar max air pressure with 3/8"
diameter air supply hose.
• Always wear impact-resistant eye and face
protection when operating or performing
maintenance on this tool. Always wear
hearing protection when using this tool.
• High sound levels can cause permanent
hearing loss. Use hearing protection as
recommended by your employer or OSHA
regulation.
• Keep the tool in efficient operating condition.
• Operators and maintenance personnel must
be physically able to handle the bulk, weight
and power of this tool.
• Air under pressure can cause severe injury.
Never direct air at yourself or others.
Always turn off the air supply, drain hose of
air pressure and detach tool from air supply
before installing, removing or adjusting any
accessory on this tool, or before performing
any maintenance on this tool. Failure to do
so could result in injury. Whip hoses can
cause serious injury. Always check for
damaged, frayed or loose hoses and fittings,
and replace immediately. Do not use quick
detach couplings at tool. See instructions for
correct set-up.
• Air powered tools can vibrate during
use. Vibration, repetitive motions or
uncomfortable positions over extended
periods of time may be harmful to your
hands and arms. Discontinue use of tool
if discomfort, tingling feeling or pain occurs.
Seek medical advice before resuming use.
• Do not point or indulge in any horseplay with
this tool.
• Slipping, tripping and/or falling while
operating air tools can be a major cause of
serious injury or death. Be aware of excess
hose left on the walking or work surface.
• Keep body working stance balanced
firm. Do not overreach when operating
and
the tool.
• Place the tool on the work before starting
the tool.
• Anticipate and be alert for sudden changes
in motion during start up and operation of
any power tool.
• Do not carry tool by the hose. Protect the
hose from sharp objects and heat.
• Keep away from rotating end of tool. Do not
wear jewelry or loose clothing. Secure long
hair. Scalping can occur if hair is not kept
away from tool and accessories. Choking
can occur if neckwear is not kept away
from tool and accessories.
• Tool shaft may continue to rotate briefly after
throttle is released. Avoid direct contact with
accessories during and after use. Gloves will
reduce the risk of cuts or burns.
• Never mount a grinding wheel on a sander.
A grinding wheel that bursts can cause very
serious injury or death when not properly
guarded. Inspect backing pad before each
use. Do not use if cracked or damaged.
• Avoid direct contact with moving sanding
pad to prevent pinching or cutting of hands
or other body parts.
• Do not lubricate tools with flammable or
volatile liquids such as kerosene, diesel
or jet fuel.
• Do not force tool beyond its rated capacity.
• Do not remove any labels. Replace any
damaged labels.
• Use accessories recommended by
Cornwell Tools.
CAT-300MDAS 2 05/15/07
PARTS BREAKDOWN - CAT-300MDAS
Ref. # Item # DESCRIPTION QTY
1 * 2" & 3" Velcro
®
Sanding Pad 1
2 RS93302 Guard 1
3 RS93303 Rod Key 1
4 RS50342 Retaining Ring 1
5 RS93305 Ball Bearing 1
6 RS93306 Nut 1
7 RS93307 Orbital Hub 1
8 RS93308 Connector 1
9 RS93309 Clamp Nut 1
10 RS30524 Ball Bearing 1
11 RS93111 Front End Plate 1
12 RS70623 Spindle Collar 1
13 RS93113 Rotor 1
14 RS70520 Rotor Blade 5
15 RS93115K1 Cylinder (Incl. #16) 1
16 RS26216 Steel Ball (Incl. with #15) 1
17 RS93117 Rear End Plate 1
18 RS21114 Ball Bearing (626ZZ) 1
19 RS93119 Regulator 1
20 RS848012 O-Ring 1
CAT-300MDAS 3 05/15/07
Ref. # Item# DESCRIPTION QTY
21 RS93121W Housing 1
22 RS93122A Pin 1
23 RS93123A Trigger 1
24 RS93124 Exhaust Deflector 1
25 RS26212 O-Ring 1
26 RS93126 Bushing 1
27 RS93127 Throttle Seat 1
28 RS93128 Throttle Valve 1
29 RS93129 Throttle Spring 1
30 RS93130 Air Inlet 1
31 RS93131W Comfort Grip 1
Also available separately:
* CAT-300M3VP 3" Velcro
* CAT-300M2VP 2" Velcro
CAT-300DA2320 2" 320 Grit Velcro
CAT-300DA2400 2" 400 Grit Velcro
CAT-300DA2600 2" 600 Grit Velcro
CAT-300DA3320 3" 320 Grit Velcro
CAT-300DA3400 3" 400 Grit Velcro
CAT-300DA3600 3" 600 Grit Velcro
®
®
Pad
Pad
®
Sanding Disc 10PK
®
Sanding Disc 10PK
®
Sanding Disc 10PK
®
Sanding Disc 10PK
®
Sanding Disc 10PK
®
Sanding Disc 10PK
Operating Instructions • Warning Information • Parts Breakdown
AIR SUPPLY
Tools of this class operate on a wide range of air pressures. It is
recommended that air pressure of these tools measures 90 PSI at
the tool while running free. Higher pressure (over 90 psig; 6.2 bar)
raises performance beyond the rated capacity of the tool, which
will shorten tool life because of faster wear and could cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or water in
the air line will cause damage to the tool. Drain the air tank daily.
Clean the air inlet filter screen on at least a weekly schedule. The
recommended hookup procedure can be viewed in the above
figure.
The air inlet used for connecting air supply has standard 1/4" NPT.
Line pressure should be increased to compensate for unusually
long air hoses (over 25 feet). Minimum hose diameter should be
3/8" I.D. and fittings should have the same inside dimensions and
be tightly secured.
OPERATION
Start the sander off the work, set it down on the work evenly
and move it slowly back and forth in wide, overlapping areas.
Additional pressure may be used to make more efficient use of
the tool when material to be cut is thick. Lighter pressure may
be used in delicate sanding or when using edges of sanding pad.
When finished sanding, lift it off the work before stopping the
motor.
NOTE:
DURING OPERATION SAFETY GOGGLES SHOULD ALWAYS
BE WORN TO GUARD AGAINST FLYING RUST AND CHIPS.
LUBRICATION
Lubricate the air motor daily with quality air tool oil. If no air line
oiler is used, run a teaspoon of oil through the tool. The oil can
be squirted into the tool air inlet or into the hose at the nearest
connection to the air supply, then run the tool. The amount of oil to
be used is 1 ounce. Overfilling will cause a reduction in the power
of the tool.
WARNING: After an air tool has been lubricated, oil will discharge
through the exhaust port during the first few seconds of operation.
The exhaust port must be covered with a towel before applying air
pressure to prevent serious injury.
Cornwell warrants its air tools for a period of 1 year to the consumer. We will repair any air tool covered under this warranty which proves to be
defective in material or workmanship during the warranty period. In order to have your tool repaired, return the tool to any Cornwell Authorized
Warranty Center, freight prepaid. Please include a copy of your proof of purchase and a brief description of the problem. The tool will be inspected
and if any part or parts are found to be defective in material or workmanship, they will be repaired free of charge and the repaired tool will be
returned to you freight prepaid.
This warranty gives you specific rights. You may also have other rights which vary from state to state.
The foregoing obligation is Cornwell’s sole liability under this or any implied warranty and under no circumstances shall Cornwell be liable for any
incidental or consequential damages.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you
CAT-300MDAS 4 05/15/07
.
WARRANTY
