Page 1
CornuFé 44 Dual Fuel Range
User Guide
&
Installation Instructions
U107101-11B
This book contains many important safety messages.
Always read and obey all safety messages.
Installer: Leave these instructions with the appliance
Important: Save the installation instructions for the local electrical inspector’s use.
Page 2
Contents
1. Important Safety Information 1
2. Range Overview 5
3. Cooking Tips 12
4. Cooking Table 13
5. Cleaning Your Range 14
6. Troubleshooting 16
7. Installation 19
8. Conversion to LP Gas 35
9. Service and Parts 39

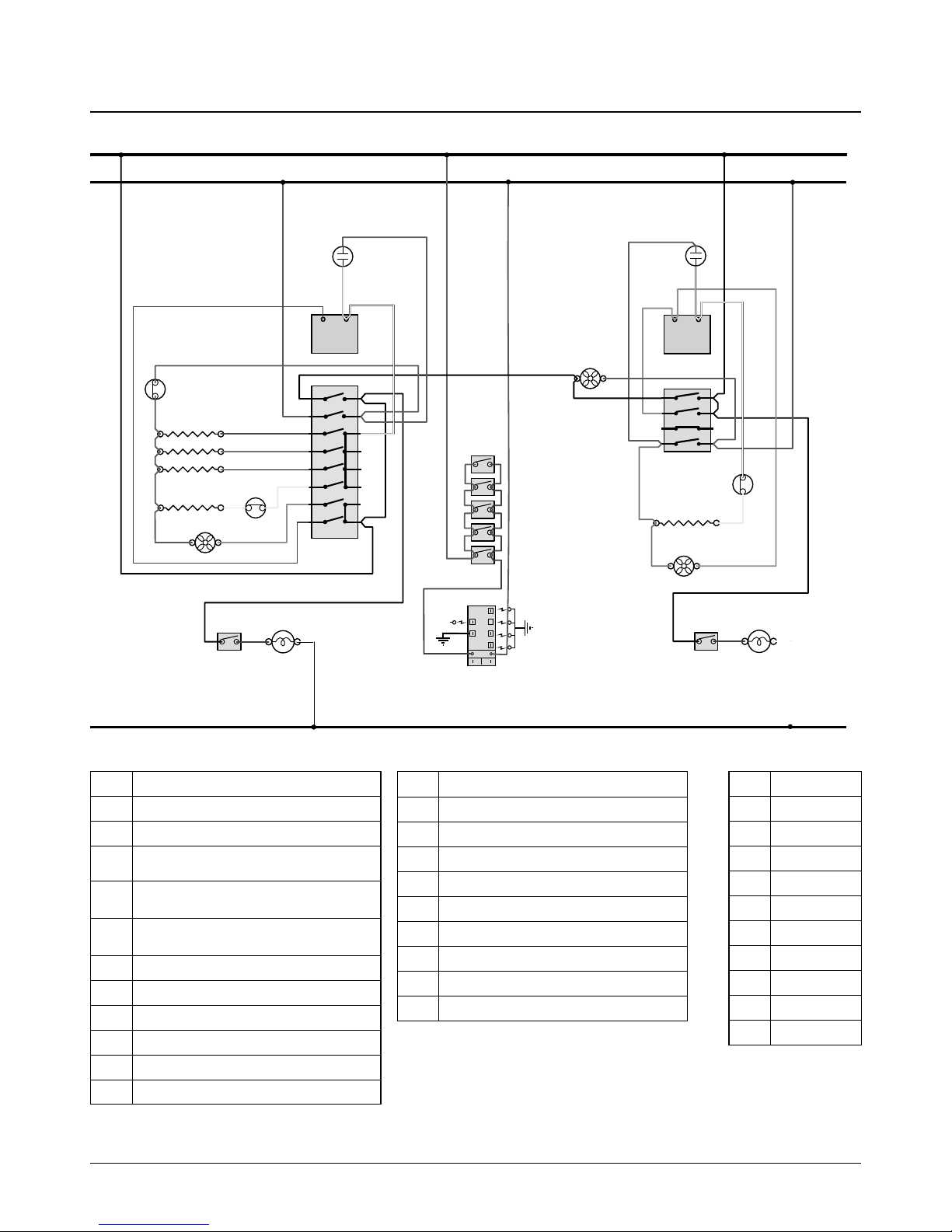

10. Circuit Diagram 40
11. Technical Data 41
12. Warranty 42
Page 3
1
Have your appliance properly installed and grounded by
a qualied technician in accordance with the National
Electrical Code ANSI/NFPA No. 70 – latest edition, and
local code requirements. In Canada, electrical grounding
must be in accordance with the current CSA C22.1
Canadian Electrical Code Part 1 and/or local codes.
Install only as described in the installation section of this
book.
Ask your dealer to recommend a qualied technician and
an authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in
case of an emergency.

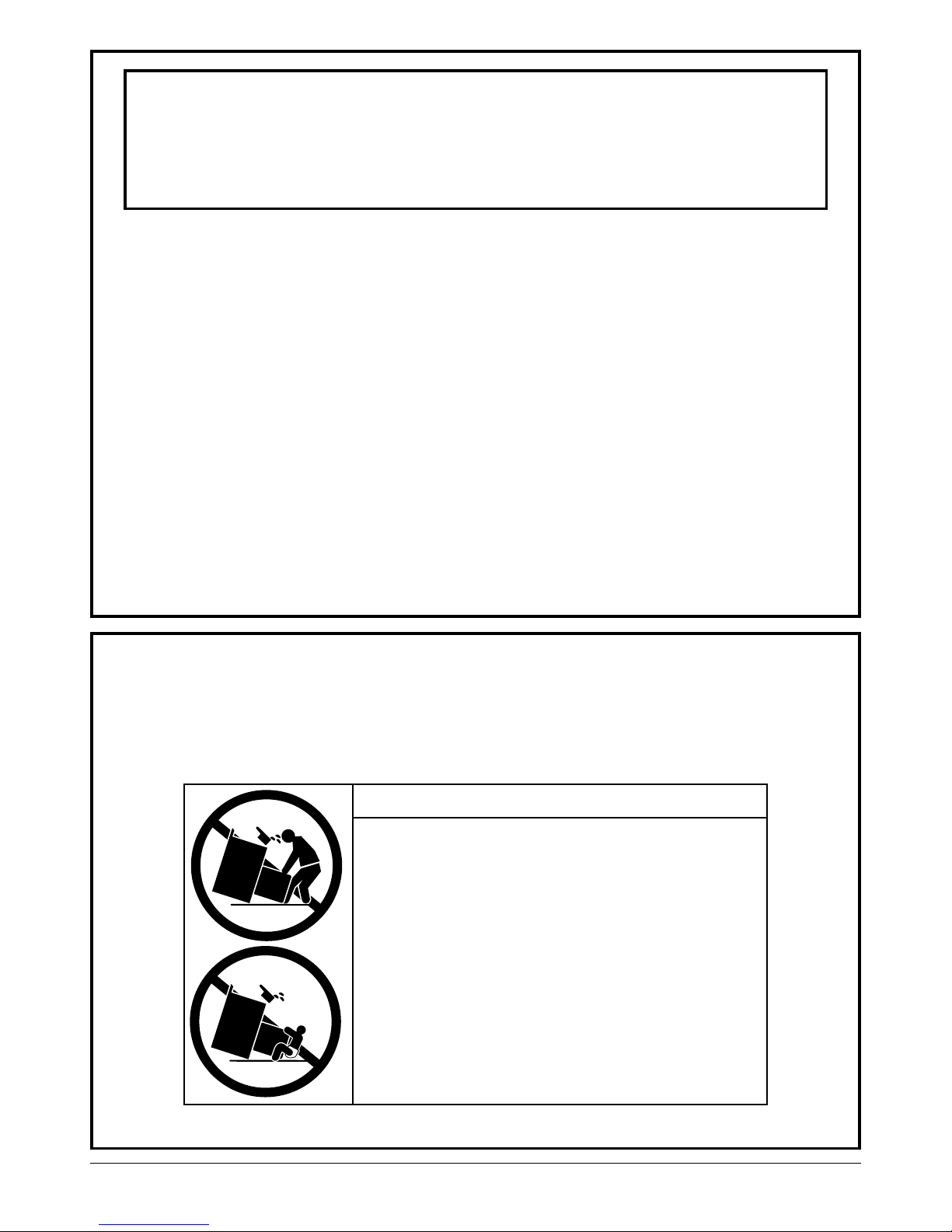

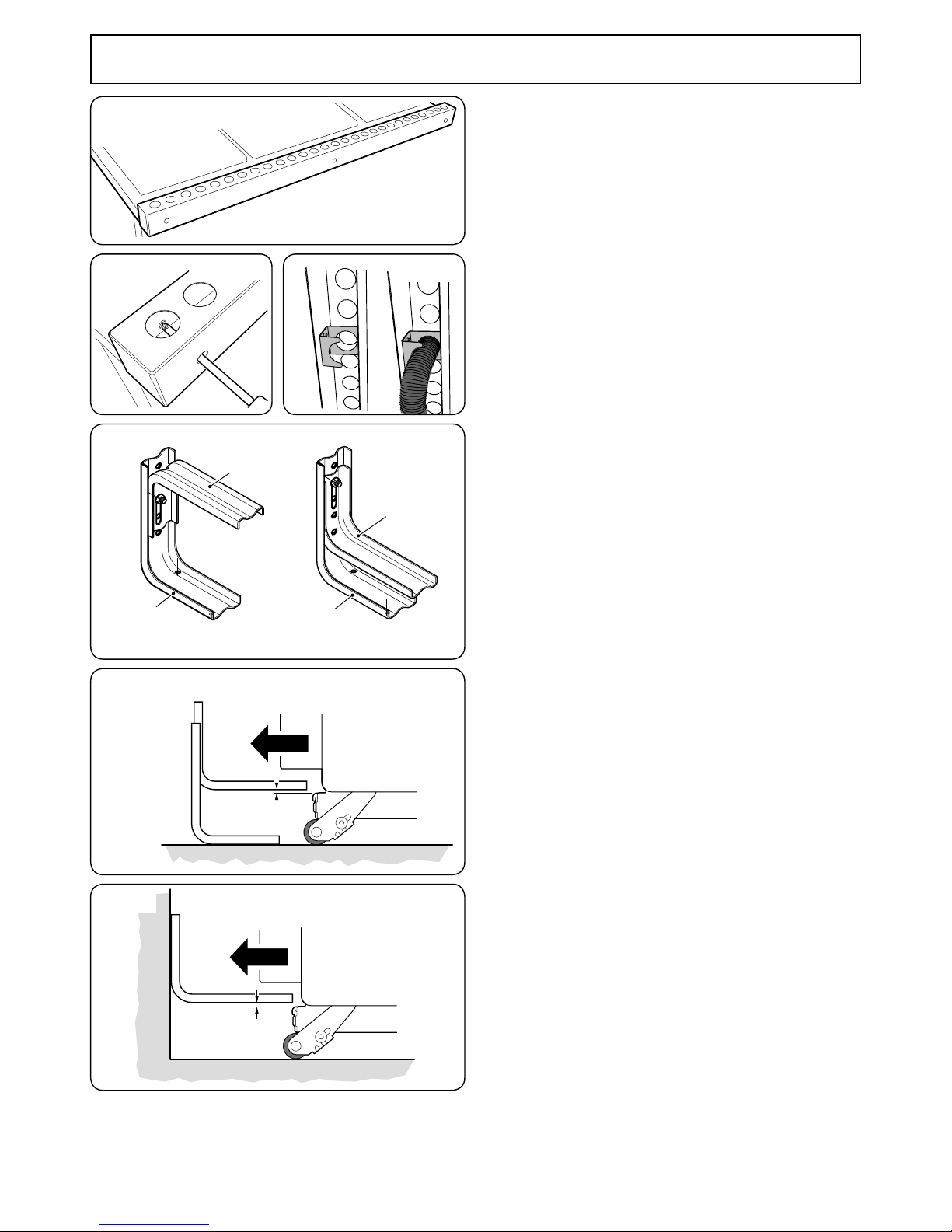

The anti-tip device supplied with this range must be
installed when the appliance is installed. This will reduce
risk of tipping of the appliance from abnormal usage or
by excessive loading of the oven door or storage drawer.
To avoid personal injury do not sit, stand or lean on oven
doors or drawer.
Leaning, sitting or stepping on the doors or drawer of this
range can result in serious injuries and also cause damage
to the range. Do not allow anyone to climb, stand or hang
on any part of the range.
In Case of Fire
DO NOT use water on grease res. Never pick up a
aming pan. Turn the controls o. Smother a aming
pan on a cooktop burner by covering the pan
completely with a well tting lid or baking tray. If
available use a multipurpose dry chemical or foamtype re extinguisher.
If re is in an oven pan, smother by closing oven door. Open
doors and windows or if a hood is installed turn it on to
remove smoke and odor.
To Prevent Fire or Smoke Damage
Before using the range make sure all the packing materials
have been removed.
Always keep the area around the range free from combustible
materials, gasoline, and other ammable vapors and liquids.
If the range is installed near a window, proper precautions
should be taken to prevent curtains from blowing over the
burners.
NEVER leave any items on the range cooktop. The
hot air from an oven vent may ignite ammable
items and may increase pressure in closed
containers, which may cause them to burst. Many
aerosol-type spray cans are EXPLOSIVE when
exposed to heat and may be highly ammable.
Avoid their use or storage near an appliance.
Many plastics will burn and most are damaged by heat. Keep
plastic items away from parts of the range that may become
warm or hot. Do not leave plastic items on the cooktop as
they may burn, melt or soften if left too close to a vent or a
lighted burner.
1. Important Safety Information
Storage should not be installed directly above a range. If
anything is stored above the range, it should be limited to
infrequently used items, which can be safely stored in an area
subjected to heat from a range. Temperatures may be unsafe
for some items such as volatile liquids, cleaners or aerosol
sprays.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging material.
NEVER use this appliance as a space heater to
heat or warm the room. Doing so may result in
overheating of the oven and control knobs.
NEVER cover any slots, holes or passages in the oven
bottom or cover an entire rack with materials such
as aluminum foil. Doing so blocks air ow through
the oven. Aluminum foil linings may also trap heat
causing a re hazard.
User servicing – DO NOT repair or replace any part
of the appliance unless specically recommended in
this User Manual.
All other servicing should be done only by a qualied
technician, this may reduce the risk of personal injury and
damage to the range.
Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip brackets/
screws, or any other part of the product.
DO NOT Leave Children Alone.
Babies, toddlers and young children should not be allowed
near the range at any time. They should never be allowed to
sit or stand on any part of the appliance.
Do not allow children to climb or play around the range. The
weight of a child on an open door may cause the range to tip,
resulting in serious burns or other injury.
Teach them not to play with controls or any other part of the
range.
Never store items of interest to children in the cabinets above
a range or on backguard of a range; children climbing on the
range to reach them could be seriously injured.
DO NOT use the oven for storage.
This instruction is based on safety considerations.
Flammable materials should not be stored in an oven, the
range storage drawer or near the cooktop burners. This
includes paper, plastic and cloth items, such as cookbooks,
plasticware and towels, as well as ammable liquids. Do
not store explosives, such as aerosol cans, on or near the
appliance.
Flammable materials may explode and result in re or
property damage.
Page 4
2
To avoid risk of electrical shock, personal injury,
or death, make sure your range has been properly
grounded and always disconnect it from main power
supply before servicing.
Do not touch cooktop burners or areas near burners.
Gas burners may be hot even if they have been o for
some time. Areas near the gas burners may become hot
enough to cause burns. During and after use, do not touch,
or let clothing touch or other ammable materials contact
the burners or areas near the burners until they have had
enough time to cool. These areas include the rangetop and
backguard.
DO NOT touch heating elements or interior surfaces
of ovens.
Oven heating elements may be hot though they are dark
in color. Interior surfaces of an oven may become hot
enough to cause burns. During and after use, do not touch,
or let clothing or other ammable materials touch heating
elements or interior surfaces of oven until they have had
enough time to cool.
Other range surfaces that may become hot enough to cause
burns are the oven door and oven vent at the base of the
range splashback.
Wear Suitable Clothing
Never wear loose-tting or hanging clothes while using the
range. Be careful when reaching for items stored in cabinets
over the cooktop. Flammable material could be ignited if
brought into contact with a burner ame or hot surface and
may cause severe burns.
Use Only Dry Potholders or Oven Gloves
Moist or damp potholders on hot surfaces may result in
burns from steam. Never let a potholder touch hot heating
elements.
Do not use a towel or other bulky cloth in place of a glove.
They might catch re if they touch a hot surface.
Use dry oven gloves when applicable – using damp gloves
might result in steam burns when you touch a hot surface.
Never operate the range with wet hands.
Important Safety Notice and Warning
The California Safe Drinking Water and Toxic Enforcement Act
of 1986 (Proposition 65) requires the Governor of California to
publish a list of substances known to the State of California to
cause cancer or reproductive harm, and requires businesses
to warn customers of potential exposures to such substances.
This appliance contains or produces a chemical or chemicals
which can cause death or serious illness and which are known
to the state of California to cause cancer, birth defects or
other reproductive harm.
Users of this appliance are hereby warned that the burning
of gas can result in low-level exposure to some of the listed
substances, including benzene, formaldehyde and soot, due
primarily to the incomplete combustion of natural gas or
liquid petroleum (LP) fuels. Properly adjusted burners will
minimize incomplete combustion.
Exposure to these substances can also be minimized by
properly venting with an open window or using a ventilation
fan or hood.
To reduce the risk from substances in the fuel or from fuel
combustion make sure this appliance is installed, operated,
and maintained according to the instructions in this booklet.
IMPORTANT: Never keep pet birds in the kitchen or in
rooms where the fumes from the kitchen could reach.
Birds have a very sensitive respiratory system. Fumes
released due to overheated cooking oil, fat, margarine and
overheated non-stick cookware may be harmful.
IMPORTANT: Save the installation instructions for the local
electrical inspector’s use.
Proper Installation
Be sure your appliance is properly installed and grounded by
a qualied technician.
Conversion
This appliance is supplied set for Natural gas. A conversion kit
for Propane gas is supplied with the range.
Be sure your range is correctly adjusted by a qualied service
technician or installer for the type of gas (Natural or LP) that is
to be used. See the Installation section of these instructions.
WARNING!
These adjustments must be made by a qualied
service technician in accordance with the
manufacturer’s instructions and all codes and
requirements of the authority having jurisdiction.
Failure to follow these instructions could result in
serious injury or property damage. The qualied
agency performing this work assumes responsibility
for the conversion.
User Servicing
Do not repair or replace any part of the appliance unless
specically recommended in the manual. All other servicing
should be referred to a qualied technician.
Cooktop Burners

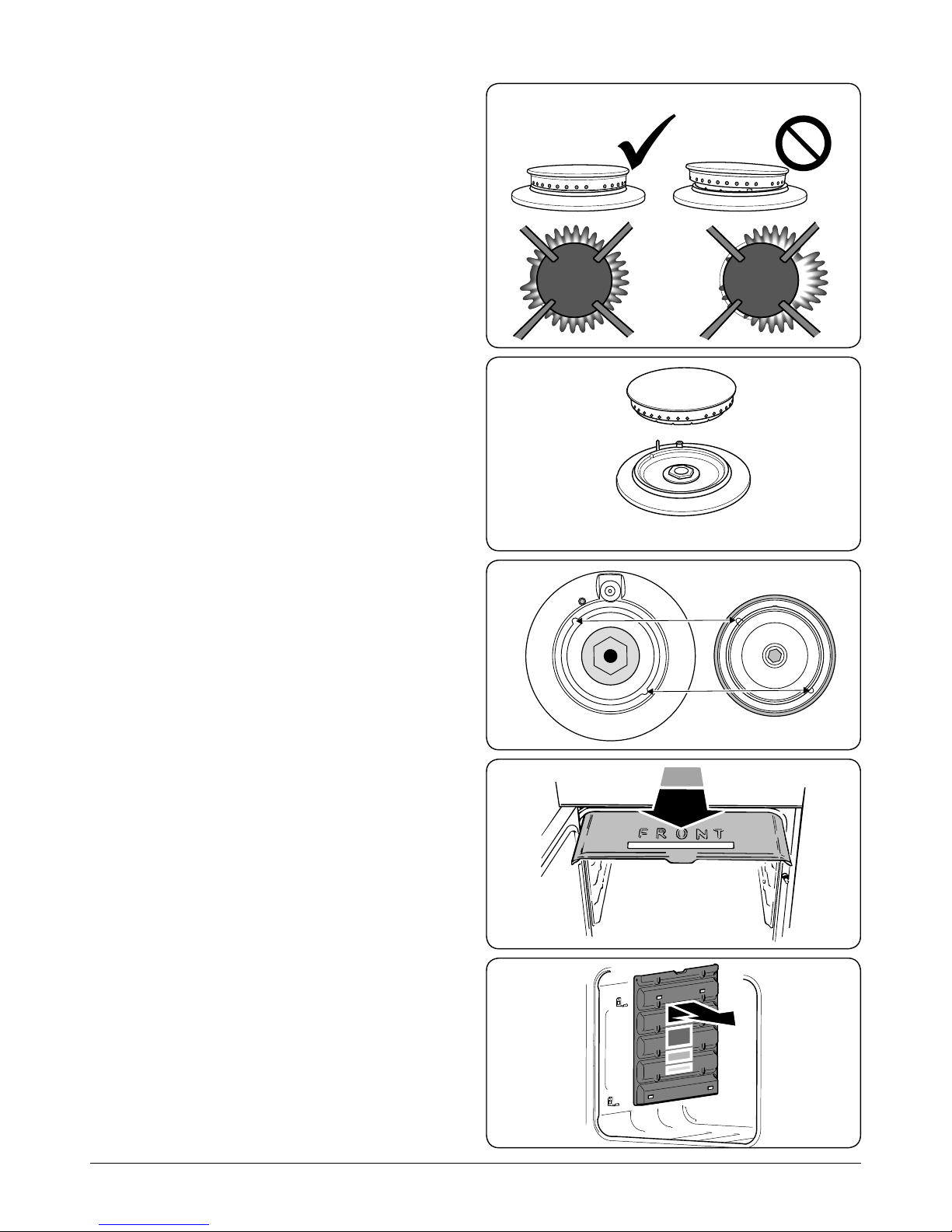

Quality of Flames
On Natural Gas the burners’ ames should be a blueish color
with, at most, a slight yellowish fringe.
On Propane gas the ames may be “softer”. The cooktop
burner ames may have a slight yellowish tip.
If the ame burns with a long white tip you should call for
service.
If the ame is distorted, check that the burner head is
correctly placed over the burner.
MAKE SURE THE FLOW OF COMBUSTION AND
VENTILATION AIR TO THE RANGE IS UNOBSTRUCTED.
Page 5
3

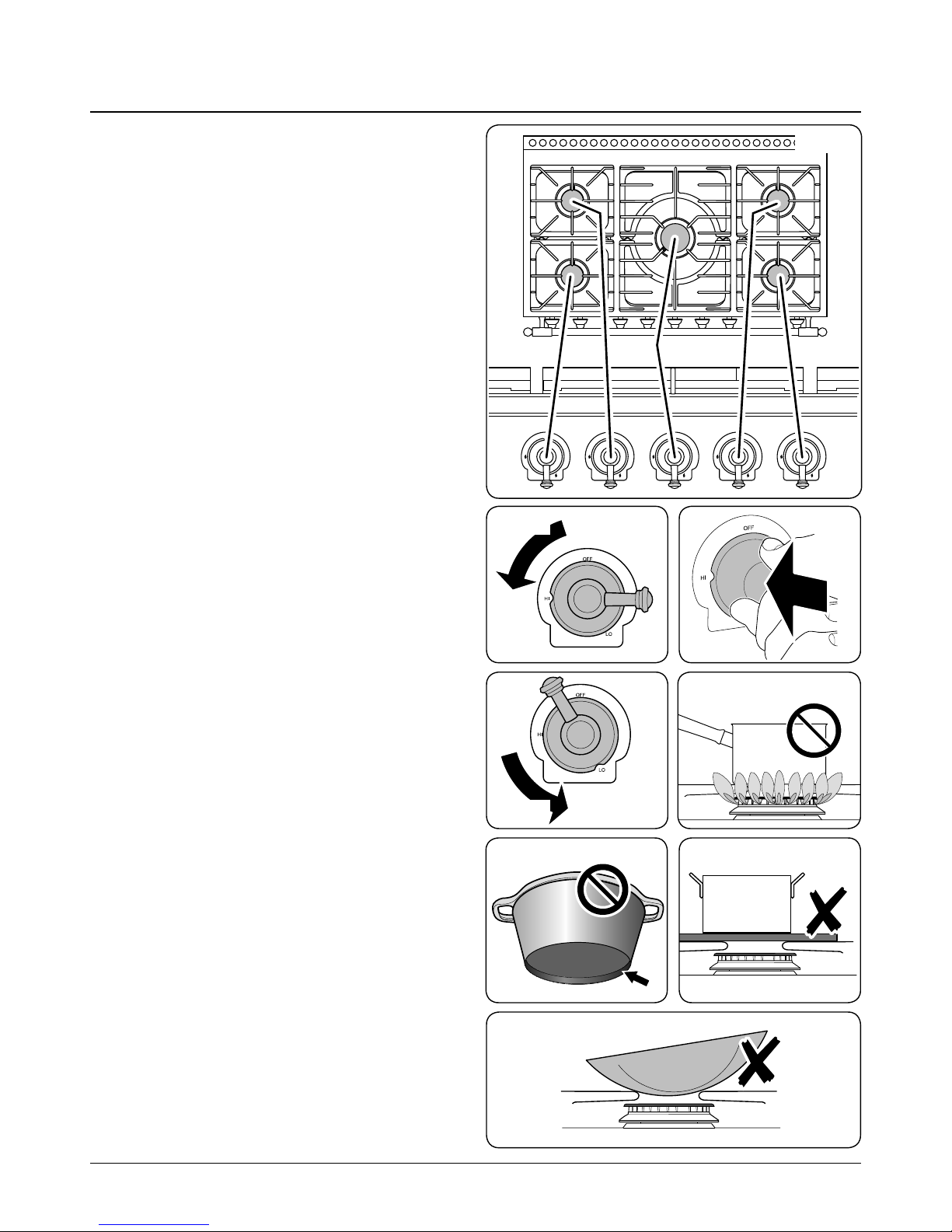

Use the Right Size Pan
This appliance is equipped with burners of dierent sizes.
Use utensils with at bottoms. Do not use unstable pans and
position the handles away from the edge of the cooktop.
Make sure the ames are under the pans. It’s not safe to let
the ames burn up the sides of the pan; the handle may get
too hot.
Proper relationship of utensil to burner will also improve
eciency.
NEVER leave cooktop burners unattended at high
settings. Pans boiling over can cause smoking and
greasy spills may catch on re.
Protective Liners – DO NOT use aluminum foil to
line cooktop bowls or oven bottoms. Foil liners
may result in a risk of electric shock, or re and will
damage the enamel nish. Never allow aluminum
foil to contact the heating elements.
DO NOT use hotplate protectors, foil or hotplate
covers of any description. These may aect the safe
use of your hotplate burners and are potentially
hazardous to health.
Glazed Cooking Utensils – Only certain types of
glass, glass/ceramic, ceramic, earthenware, or
other glazed utensils are suitable for range-top
use without breaking due to the sudden change in
temperature.
Utensil handles should be turned inward and not
over adjacent burners. If handles are left over
adjacent burners they will get hot and may burn.
Use of aluminum pans may cause metallic marking
of the grates. This does not aect the durability of
the enamel and may be cleaned o with a metal
polish.
Ovens
Use Care When Opening Door.
Let hot air and steam escape before removing or
replacing food.
Never heat unopened food containers. Pressure
build up may make container burst and cause injury.
Keep oven vent ducts unobstructed.
Placement of Oven Racks
ALWAYS place oven racks in desired location while
oven is cool. If rack must be moved while oven is hot,
do not let potholder contact hot heating element in
oven.
DO NOT store items of interest to children in
cabinets above a range or on the backguard of a
range – children climbing on the range to reach
items could be seriously injured.
WARNING!
THIS APPLIANCE IS PROVIDED WITH ROLLERS TO
FACILITATE MOVEMENT DURING INSTALLATION.
THE RANGE SHOULD NOT BE MOVED AFTER
INSTALLATION.
General Safety Instructions
This appliance must be installed by a competent person in
accordance with the installation instructions. The installation
must comply with the relevant regulations and also the local
electricity supply company requirements.
This appliance is designed for domestic cooking only. Use for
any other purpose could invalidate any warranty or liability
claim.
The use of a gas cooking appliance results in the production
of heat and moisture in the room in which it is installed.
Make sure that the kitchen is well ventilated: keep natural
ventilation holes open or install a mechanical ventilation
device, (mechanical extractor hood).
Prolonged intensive use of the appliance may call for
additional ventilation, for example opening a window, or
more eective ventilation, for example increasing the level of
mechanical ventilation where present.
The range should be serviced by a qualied service engineer
and only approved parts used. Have the installer show you
the location of the range circuit breaker. Mark it for easy
reference. Always allow the range to cool and then switch
o at the circuit breaker before cleaning or carrying out any
maintenance work, unless specied otherwise in this guide.
All parts of the range become hot with use and will
retain heat even after you have stopped cooking.
Take care when touching range, to minimize the
possibility of burns, always be certain that the
controls are in the OFF position and that it is cool
before attempting to clean the range.
Clean with caution. If a wet sponge or cloth is used to wipe
spills on a hot surface, be careful to avoid steam burns. Some
cleaners can produce noxious fumes if applied to a hot
surface.
Clean only parts listed in this guide.
In the interests of hygiene and safety the range should be
kept clean at all times as a build up in fats and other food
stu could result in a re.
Page 6
4
Always keep combustible wall coverings or curtains etc. a safe
distance away from your range.
DO NOT spray aerosols in the vicinity of the range
while it is in use.
DO NOT store or use combustible materials, or ammable
liquids in the vicinity of this appliance.
Take great care when heating fats and oils, as they will ignite
if they get too hot.
Use a deep fat thermometer whenever possible to prevent
overheating fat beyond the smoking point.
NEVER leave a deep fry pan unattended. Always
heat fat slowly, and watch as it heats. Deep fry pans
should be only a maximum of one third full of fat.
Filling the pan too full of fat can cause spill over
when food is added. If you use a combination of oils
or fats in frying, stir them together before heating,
or as the fats melt.
Foods for frying should be as dry as possible. Frost on frozen
foods or moisture on fresh foods can cause hot fat to bubble
up and over the sides of the pan. Carefully watch for spills or
overheating of foods when frying at high or medium high
temperatures. Never try to move a pan of hot fat, especially a
deep fry pan. Wait until the fat is cool.
When an oven is on, do not use the top of the ue (the round
holes along the back of the range) for warming plates, dishes,
drying dish towels or softening butter.
When using an electrical appliance near the cooktop, be sure
that the cord of the appliance does not come into contact
with the cooktop.
Take care that no water seeps into the appliance.
Make sure that your kitchen is well ventilated at all times. Use
extractor fans or hoods when installed.
The range is designed for cooking foods only and must not
be used for any other purpose.
The oven should NOT be used for heating the kitchen, not
only does this waste fuel but the control knobs may become
overheated.
When the oven is on DO NOT leave the oven door open for
longer than necessary.
The specication of this range should not be altered.
This appliance is heavy, take care when moving it.
When the range is not in use ensure that the control knobs
are in the o position.
Page 7
5
ArtNo.280-0007 - HP Knob Full
Fig.2-2
Fig.2-1
ArtNo.280-0009 - HP Knob Low
Fig.2-3
Fig.2-4
Fig.2-5
The dual fuel range cooker has the following features:
A. 5 hotplate burners including a wok burner
B. A control panel
C. A multi-function oven
D. A fan oven
E. A storage drawer
Cooktop Burners
Note: Before using the cooktop make sure all burners are in
place and all the grates on the range are properly placed.
The drawing by each knob indicates which burner that knob
controls (Fig.2-1).
Each burner has a special Flame Supervision Device (FSD) that
stops the ow of gas if the ame goes out.
When the igniter button is pressed in, sparks will be
made at every burner – this is normal. Do not attempt to
disassemble or clean around any burner while another
burner is on, otherwise an electric shock could result.
To light a burner, press the igniter button, and push in and
turn the associated control knob to the high position as
indicated by ‘HI’ (Fig.2-2).
Keep holding the knob pressed in to let the gas through to the
burner for about 4 seconds (Fig.2-3). The igniter should spark
and light the gas. If, when you let go of the control knob, the
burner goes out, the safety device has not held in. Turn the
control to the OFF position and wait one minute, then try
again this time holding in the control knob for slightly longer.
Adjust the ame height to suit by turning the knob. On this
range the low position is beyond high, not between high and
o. The ‘LO’ marks the low position. Turn the knob towards it
after the contents of a pan have boiled (Fig.2-4).
Make sure ames are under the pans. For safety reasons,
adjust the ames so that they do not extend beyond the
edge of the cooking utensil. This instruction is based on
safety considerations (Fig.2-5).
Pans and kettles with concave bases or down turned base
rims should not be used (Fig.2-6).
Simmering aids, such as asbestos or mesh mats, are NOT
recommended. They will reduce burner performance and
could damage the grates (Fig.2-7).
Avoid using unstable or misshapen pans that may tilt easily
and pans with a very small base diameter e.g. milk pans,
single egg poachers (Fig.2-8).
The minimum pan diameter recommended is 4¾” (12cm) for
the outer burners and 10” (26cm) for the center burner.
If after lighting, a cooktop burner’s ame goes out, turn it
o and leave it for one minute before relighting it.
2. Range Overview
ArtNo.311-0002 Pan with rim
Fig.2-6
Art No. 311-0003 Simmer aids
Fig.2-7
ArtNo.311-0004 T ipping wok
Fig.2-8
Page 8
6
Igniting Cooktop Burners without Electricity
If there is a power failure the cooktop burners can be lit with
a match.
A. Hold a burning match ½” from the burner head, keeping
your hand as far horizontally away from the burner as
possible.
B. Push and turn the burner control knob to HI/lighting
position. As soon as the burner ame lights move your
hand away. With your other hand, keep holding the
knob pressed for a few seconds so that the burner safety
device can ‘sense’ the heat of the ame.
C. Turn the burner control knob to the OFF position when
you have nished using it.
Cleaning
You can remove the burner head for cleaning; see the
‘Cleaning your Range’ section of these instructions.
Note: You should wipe the top surface of the range around
the cooktop burners as soon as possible after spills occur.
Note: Use of aluminum pans may cause metallic marking of
the grates. This does not aect the durability of the enamel
and may be cleaned o with a metal polish.

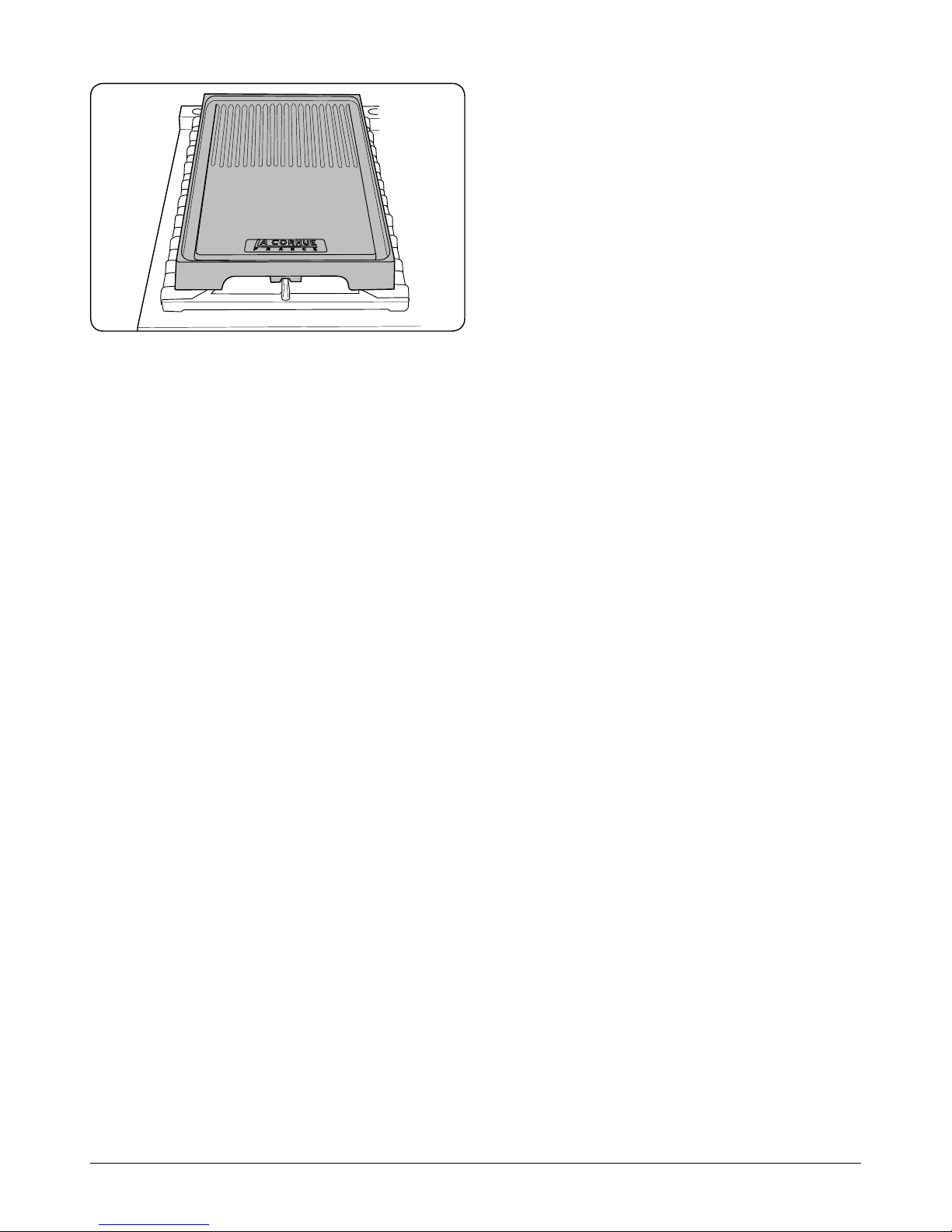

The Griddle (Optional extra)
The griddle ts the left-hand cooktop grids, front to back. It is
designed for cooking food on directly. Do not use pans of any
kind on it. The griddle surface is non-stick and metal cooking
utensils (e.g. spatulas) will damage the surface. Use heat
resistant plastic or wooden utensils.
WARNING!
The griddle will get very hot in use. Take great care.
DO NOT touch it unless you are sure that it has
cooled down.
Do not put it across the grate – it will not t properly and will
be unstable.
Note: Do not put it on the center burner – it is not designed
for the center burner grates and will be unstable.
Using the Griddle
Position the griddle over the maintop burners resting on the
grate.
Check that it is securely located.
The griddle can be lightly brushed with cooking oil before
use. Light the maintop burners. Adjust the ame heights to
suit.
Preheat the griddle for a maximum of 5 minutes before
adding food. Leaving it longer may cause damage.
The ame can be turned down by turning the control knobs
towards the low position marked ‘LO’ on the control panel.
Always leave space around the griddle for the gases to
escape.
Note: Never use two griddles side by side.
After cooking allow the griddle to cool before cleaning.
Fig.2-9
Page 9
7
Convection
element
Broiling elements
Base heat element
Fig.2-10
The Ovens
References to ‘left-hand’ and ‘right-hand’ ovens apply as viewed
from the front of the appliance.
The left-hand oven is a multi-function oven, while the righthand oven is a fan oven.
IMPORTANT: Before using the ovens for the rst time, to
dispel manufacturing odors, turn the oven to 200 °C
(395 °F) in Convection Assisted mode and run for one hour.
To clear the smell make sure the room is well ventilated to
the outside air, by opening windows or turning on your
ventilation hood.
During use the appliance becomes hot. Care should be
taken to avoid touching the heating elements inside the
oven.
The Multi-function Oven

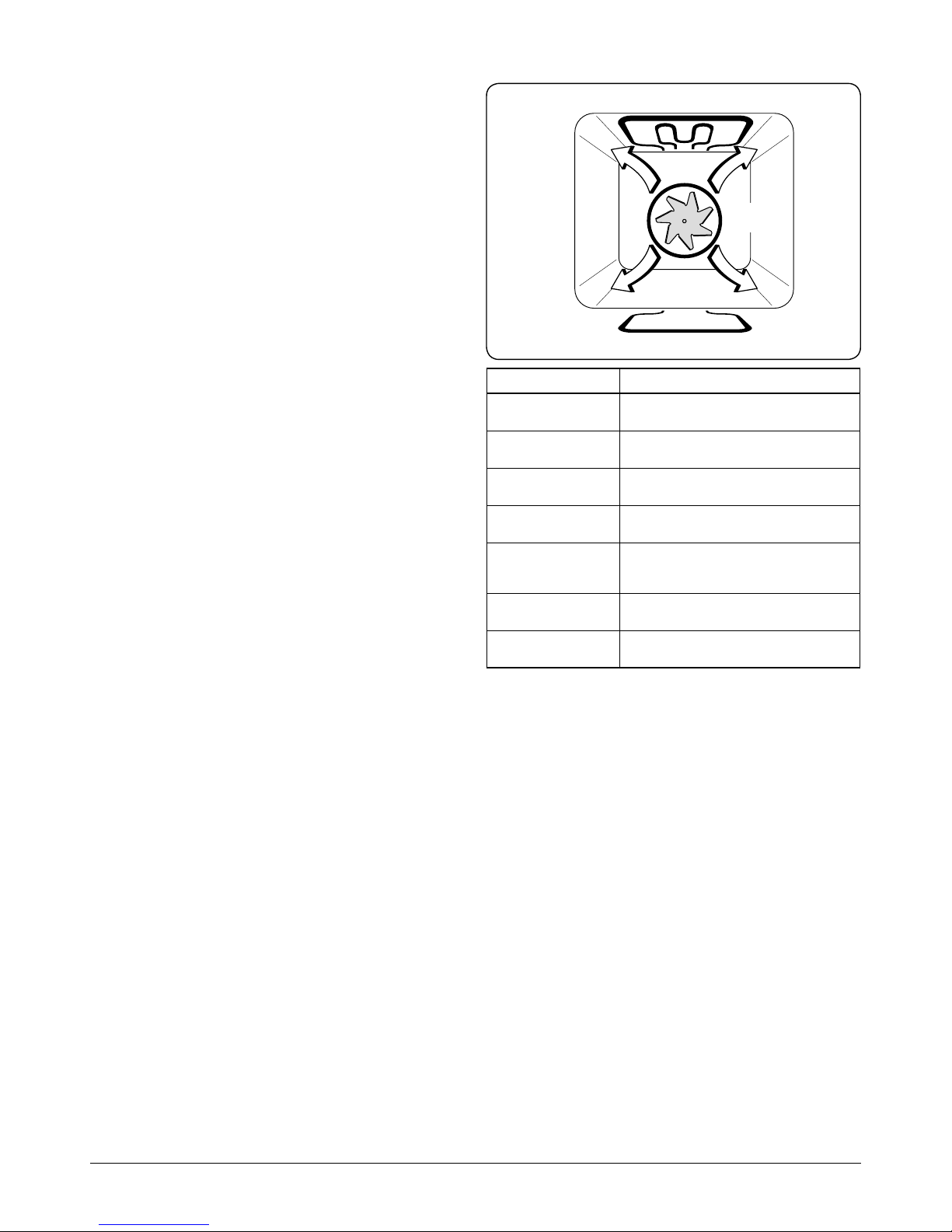

The oven is a multi-function oven (Fig.2-10). In addition to
convection elements around the fans, it is tted with extra
heating elements, in the top of the oven and under the oven
base. Take care to avoid touching the top elements when
placing or removing items from the oven.
The multifunction oven has 3 main cooking functions,
convection, convection assisted and conventional
cooking. These functions should be used to complete most
of your cooking.
The browning element and warming can be used in the
latter part of the cooking process to ne-tune the results to
your particular requirements.
Use convection broiling for all your broiling needs and thaw
and serve to safely thaw small items of frozen food.
Table 2-1 gives a summary of the multi-function modes.
The multi-function oven has many varied uses. We suggest
you keep a careful eye on your cooking until you are familiar
with each function. Remember, not all functions will be
suitable for all food types.
Please remember that all ranges vary – temperatures in your
new ovens may dier to those in your previous range.
Function Use
Thaw & serve
To thaw small items in the oven
without heat
Convection oven
A full cooking function, even heat
throughout, great for baking
Convection broiling
Broiling meat and fish with the door
closed
Convection assisted
A full cooking function good for roasting
and baking
Conventional oven
A full cooking function for roasting
and baking in the lower half of the
oven
Browning element
To brown and crisp cheese topped
dishes
Warming
To crisp up the bases of quiche, pizza
or pastry
Table 2-1
Page 10
8

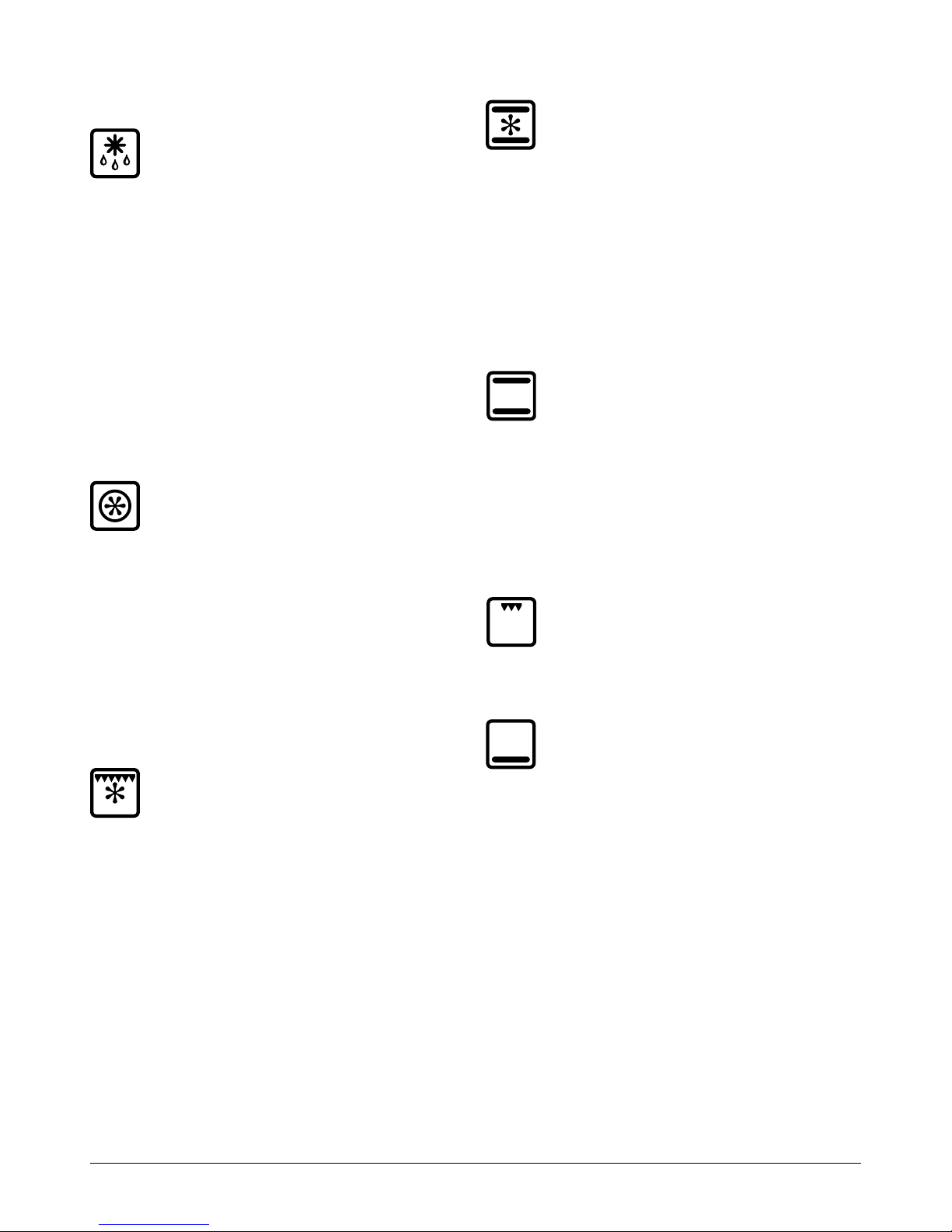

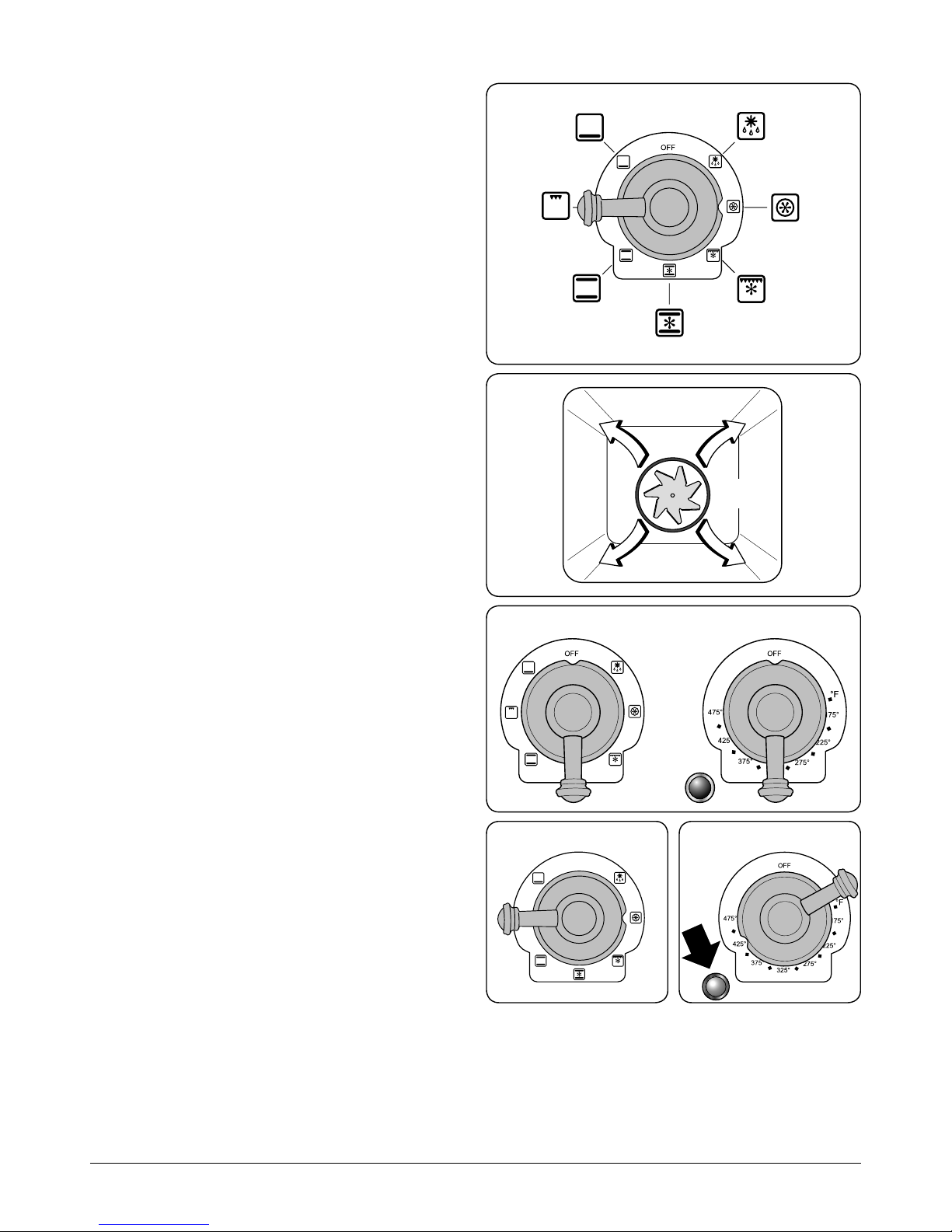

Multi-function Oven Modes
(Fig.2-11)
Thaw and Serve
This function operates the fan to circulate cold air
only. Make sure the temperature control is at 0° and
that no heat is applied. This enables small items
such as desserts, cream cakes and pieces of meat, sh and
poultry to be defrosted.
Thawing in this way speeds up the process and protects the
food from contamination. Pieces of meat, sh and poultry
should be placed on a rack, over a tray to catch any drips. Be
sure to wash the rack and tray after thawing.
Thaw with the oven door closed.
Large items, such as whole chickens and meat roasts should
not be thawed in this way. We recommend this be carried out
in a refrigerator.
Thawing should not be carried out in a warm oven. Ensure
that dairy foods, meat and poultry are completely thawed
before cooking.
Convection Oven
This function operates the fans and the heating
element around them. The fans direct the heat
around the oven so that an even heat is produced
throughout, allowing you to cook large amounts
quickly.
Convection oven cooking is particularly suitable for multirack cooking and is a good ‘all-round’ function. It may be
necessary to reduce the temperature by approximately 10°C
(20°F) for recipes previously cooked in a conventional oven.
If you wish to preheat the oven, wait until the indicator light
has gone out before inserting the food.
To cook on 3 levels, use racks 1, 3 and 5. If required, you can
uuse your broiler pan and rack as an extra level.
Convection Broiling
This function operates the fan while the top
element is on. It produces a more even, less erce
heat than a conventional broiler. For best results,
place the food to be grilled, on the grid in the pan
provided. Thick pieces of meat or sh are ideal for cooking
in this way, as the circulated air reduces the erceness of the
heat from the broiler. The oven door should be kept closed
while cooking is in progress, so saving energy. You will also
nd that the food needs to be watched and turned less than
for normal broiling.
Rack levels 5 and 6 should be used depending on the size of
the food being cooked. For best results we recommend that
the grill pan is not located on the uppermost shelf.
Convection Assisted Oven
This function operates the fans, circulating air
heated by the elements at the top and the base of
the oven. The combination of fan and conventional
cooking (top and base heat) makes this function ideal for
cooking large items that need thorough cooking, such as a
large meat roast. It is also possible to bake on two racks at
one time using racks 2 & 4, although they will need to be
changed over during the cooking time, as the heat at the
top of the oven is greater than at the base, when using this
function.
This is a fast intensive form of cooking; keep an eye on the
food cooking until you have become accustomed to this
function.
Conventional Oven (Top and Base Heat)
This cooking function combines the heat from the
top and base of the oven. The heat at the top of the
oven is greater than the heat at the base, so the
oven will be hotter in the top half than the lower half.
Unless you are cooking food that requires fast intensive
cooking, we suggest you place it on a lower rack.
This cooking mode will take longer to preheat than
convection mode. If you wish to cook one more than one
rack at a time we recommend that you use the convection
function for an even heat thoughout the oven.
Browning Element
This function uses the element in the top of the
oven only. It is a useful function for the browning or
nishing of pasta dishes, vegetables in sauce and
lasagne, the item to be browned being already hot before
switching to the top element.
Warming
This function uses the base element only. It will
crisp up your pizza or quiche base or nish o
cooking the base of a pastry case on a lower rack.
It is also a gentle heat, good for slow cooking of casseroles in
the middle of the oven or for plate warming.
The Browning and Warming functions are useful additions
to your oven, giving you exibility to nish o items to
perfection. With use, you will soon realize how these
functions can combine to extend your cooking skills.
ArtNo.030-0015 - Top & Bottom Symbol
ArtNo.030-0019 - MF Top Element Symbol
ArtNo.030-0020 - MF Bottom Element Symbol
ArtNo.030-0014 - Top & Bottom Fan Symbol
ArtNo.030-0016 - MF Fan Oven Symbol
ArtNo.030-0017 - MF defrost symbol
ArtNo.030-0018 - MF Fan Grill Symbol
Page 11
9
ArtNo.280-0013 - MF Knob With Neon
ArtNo.280-0012 - MF Knob Fan Oven
OFF
Convection
element
ArtNo.280-0016 - MF knob symbols
Convection assisted oven
Conventional
oven
Browning
element
Base heat Defrost
Convection
oven
Convection
broiling
Fig.2-15Fig.2-14
Fig.2-11
Fig.2-12
Fig.2-13
Right-hand Fan Oven
The right-hand oven is a fan oven that circulates hot air
continuously, which means faster, more even cooking
(Fig.2-12).
The recommended cooking temperatures for a fan oven are
generally lower than a conventional oven.
Note: Please remember that all cookers vary so temperatures
in your new ovens may dier to those in your previous
cooker.
Operating the Ovens
Operating the Left-hand Multi-function Oven
The multi-function oven has two controls: a function selector
(Fig.2-13) and a temperature setting knob.
Turn the function selector control to a cooking function. Turn
the oven temperature knob to the temperature required
(Fig.2-14). The oven indicator light (Fig.2-15) will glow until
the oven has reached the temperature selected. It will then
cycle on and o during cooking.
Operating the Right-hand Fan Oven
Turn the oven knob to the desired temperature (Fig.2-14).
The oven indicator light (Fig.2-15) will glow until the oven
has reached the temperature selected. It will then cycle on
and o during cooking.
Page 12
10
General Oven Tips
IMPORTANT: Before using for the rst time, to dispel
manufacturing odors turn the ovens to 200 °C (395 °F) in
Convection Assisted mode and run for one hour. To clear
the smell, make sure the room is well ventilated to the
outside air, by opening windows for example.
The wire racks should always be pushed rmly to the back of
the oven.
Bakeware and meat pans should be placed level centrally
on the oven’s wire racks. Keep all trays and containers away
from the sides of the oven, as over browning of the food may
occur.
Always place baking sheets with the widest part across the
oven.

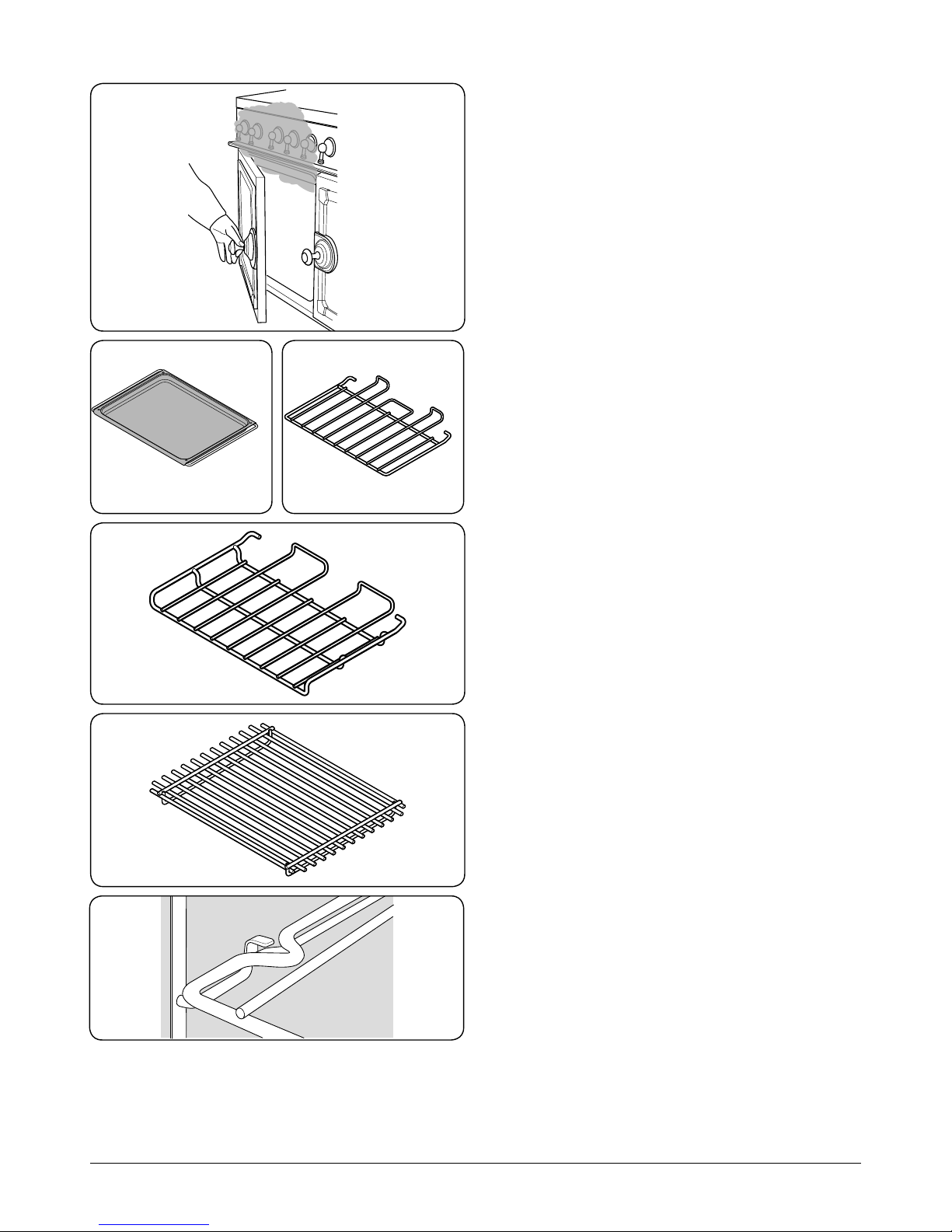

Cooking high moisture content foods can create a ‘steam
burst’, when the oven door is opened. When opening the
oven stand well back and allow any steam to disperse
(Fig.2-16).
When the oven is on, do not leave the door open for longer
than necessary, otherwise the knobs may get very hot.
Always leave a ‘ngers width’ between dishes on the same
rack. This allows the heat to circulate freely around them.
Cover meat when cooking to avoid fat splashes.
To reduce fat splashing when you add vegetables to hot fat
around a roast, dry them thoroughly or brush lightly with
cooking oil.
If you want to brown the base of a pastry dish, preheat the
baking sheet for 15 minutes before placing the dish in the
center of the sheet or use the base heat in the Multifunction
oven.
Where dishes may boil and spill over during cooking, place
them on a baking sheet.
Accessories
Oven Racks
Each oven is supplied with:
1 deluxe oven tray (Fig.2-17)
1 at rack (Fig.2-18)
1 drop rack (Fig 2-19)
The drop rack increases the possibilities for oven rack spacing.
The left-hand oven also contains:
1 deluxe oven trivet (Fig.2-20)
Any shelf can be tted in any of the positions. The oven
shelves are retained when pulled forward but can be easily
removed and retted.
Fig.2-18
Fig.2-19
Fig.2-20
Fig.2-16
Fig.2-17
Fig.2-21
Page 13
11
ArtNo.320-0023
Oven light USA

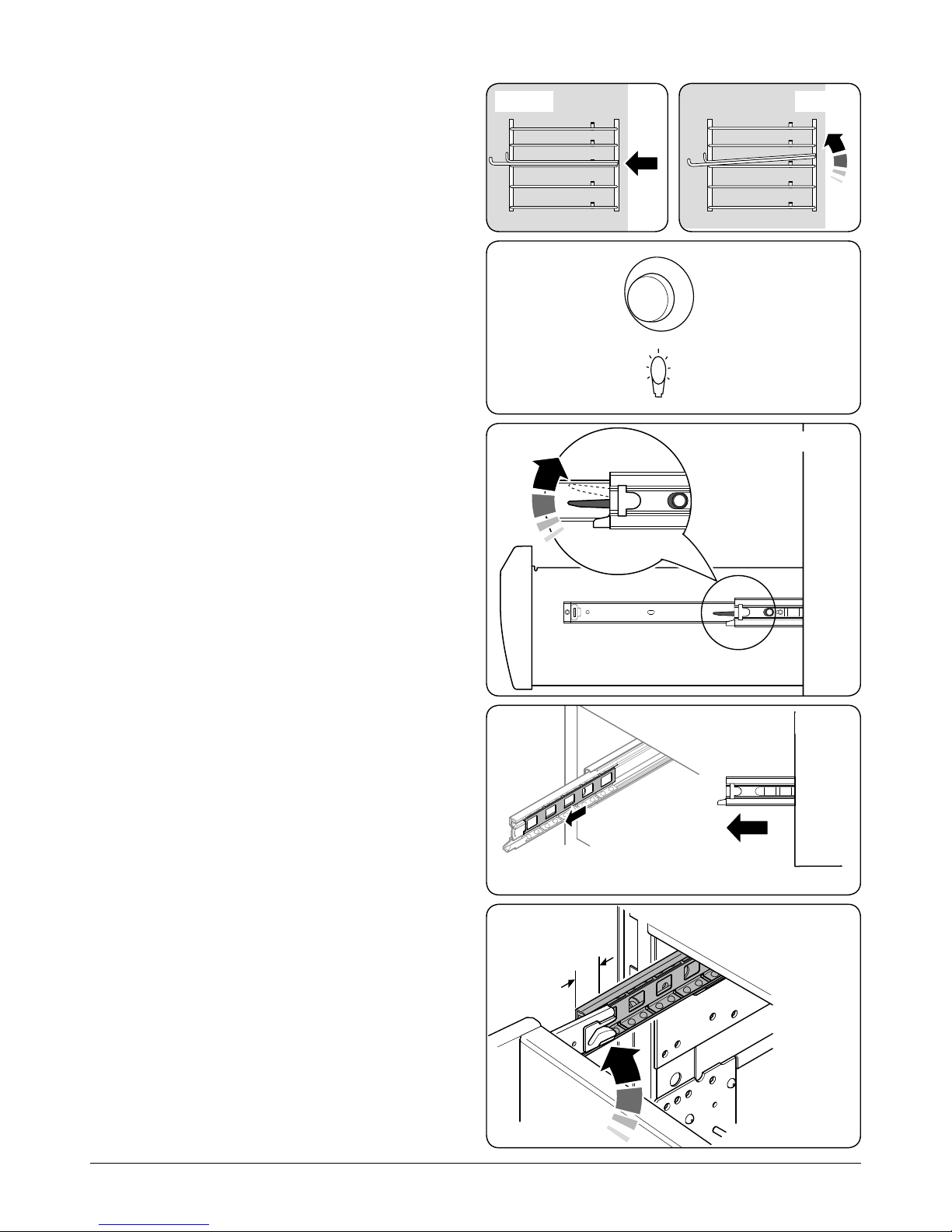

To Remove and Ret the Racks
The rack has a small kink on either side (Fig.2-21). To remove
the rack, line these up with the stops in the rack support
(Fig.2-22). Lift the rack upwards so that it will pass over the
rack stop and then pull it forwards (Fig.2-23).
Ret in the reverse order, making sure to push it fully back.

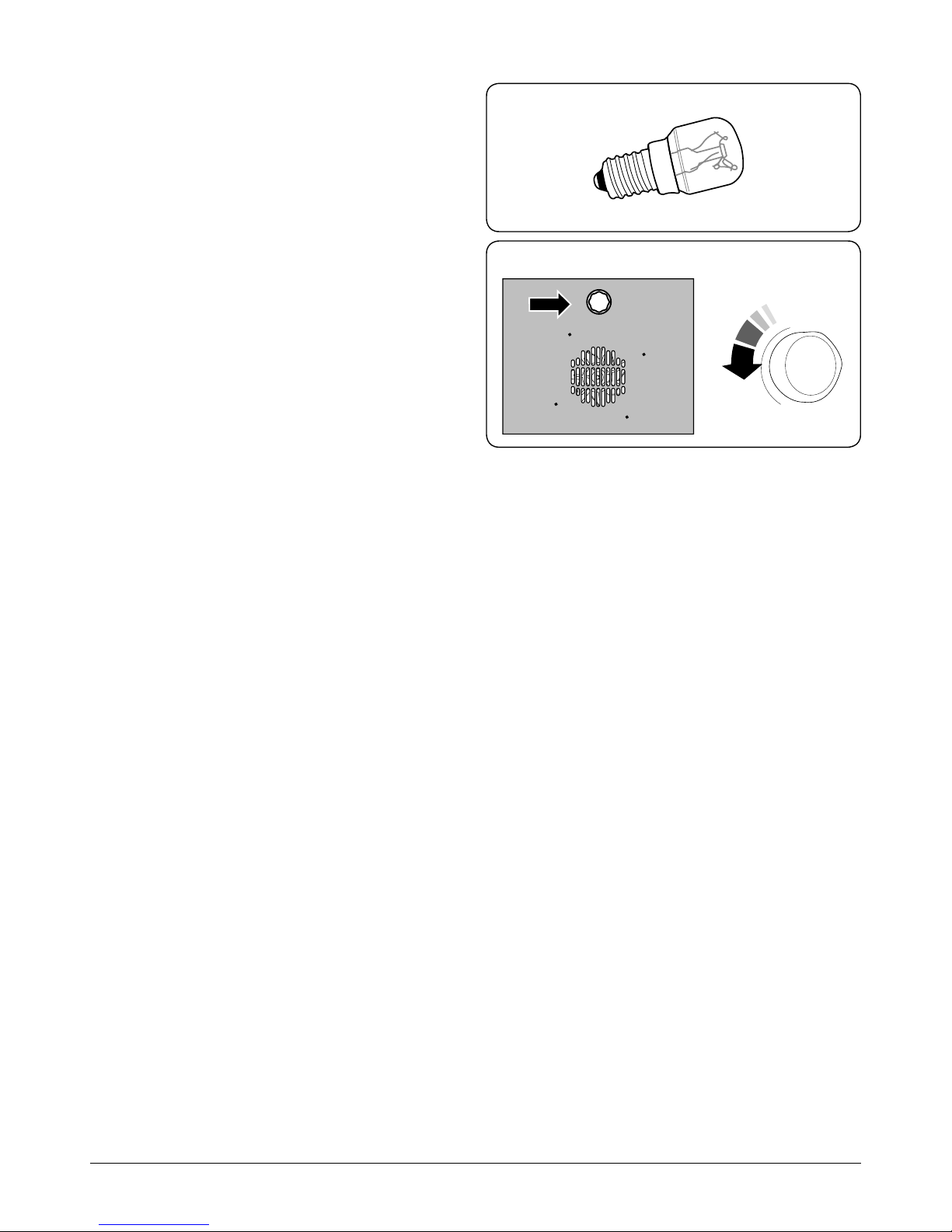

Oven Light
Press the appropriate button to turn on the oven lights.
If one of the oven lights fail, turn o the range circuit breaker
before you change the bulb. See the ‘Troubleshooting’ section
for details on how to change an oven light bulb (Fig.2-24).
Storage
The bottom drawer is for storing oven trays and other
cooking utensils.
It can get very warm, don’t store anything in it, which may
melt or catch re. Never store ammable materials in the
drawer. This includes paper, plastic and cloth items, such as
cookbooks, plastic ware and towels, as well as ammable
liquids. Do not store explosives, such as aerosol cans, on or
near the appliance.
Flammable materials may explode and result in re or
property damage.
The drawer can be removed completely for cleaning, etc.
To Remove the Storage Drawer
Pull the drawer right out.
Push the ends of the plastic clips – down of the left-hand side,
up on the right-hand side – to release the catches holding the
drawer to the side rails (Fig.2-25). At the same time pull the
drawer forwards and away from the side rails.
For safety reasons slide the inner side rails back into the
cavity.
To Fit the Storage Drawer
Slide the inner side rails out until fully extended (Fig.2-26).
Lift the drawer at its sides and locate one of the drawer rails
(approximately 15 mm) onto an inner side rail (Fig.2-27).
Rotate the drawer to locate the remaining drawer rail onto
the opposite inner side rail.
Carefully slide the drawer back into the cavity. Some
resistance will be felt as the drawer rails locate fully onto the
inner side rails.
Fig.2-25
Make sure the inner
rail is forwards
Fig.2-26
Fig.2-22 Fig.2-23
Fig.2-24
15 mm
Approx.
Fig.2-27
Page 14
12
Cooking with a Multi-function Oven
Remember: not all modes are suitable for all food types. The
oven cooking times given are intended for a guide only.
General Oven Tips
The wire racks should always be pushed rmly to the back of
the oven.
Baking trays with food cooking on them should be placed
level with the front edge of the oven’s wire racks. Other
containers should be placed centrally. Keep all trays and
containers away from the back of the oven, as overbrowning
of the food may occur.
3. Cooking Tips
When the oven is on, do not leave the door open for
longer than necessary, otherwise the knobs may get very
hot.
• Alwaysleavea‘‘finger’s width’’betweendishesonthe
same rack. This allows the heat to circulate freely around
them.
• To reducefatsplashingwhenyouaddvegetablestohot
fat around a roast, dry them thoroughly or brush lightly
with cooking oil.
• Wheredishesmayboilandspilloverduringcooking,
place them on a baking tray.
• Sufficientheatrisesoutoftheovenwhilecookingto
warm plates in the grill compartment.
• Ifyouwanttobrownthebaseofapastrydish,preheat
the baking tray for 15 minutes before placing the dish in
the center of the tray.
Page 15
13
4. Cooking Table
ArtNo.050-0019 - Albertine SC
- Shelf position
1
2
3
4
5
The oven control settings and cooking times given in the table below are intended to be used AS A
GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result.
Food is cooked at lower temperature in a fan oven than in a conventional oven. When using recipes,
reduce the fan oven temperature by 25°F (10°C) and the cooking time by 5-10 minutes. The temperature
in the fanned oven does not vary with height in the oven so you can use any
shelf.
ArtNo.030-0015 - Top & Bottom Symbol
Conventional
oven
Rack position
for conventional
cooking
ArtNo.030-0016 - MF Fan Oven Symbol
Convection
oven
Temperature °F Temperature °F Approximate cooking time
Meat
Beef (no bone) 300 2 300 30-35 minutes per 1 lb + 30-35 minutes
375 2 375 20-25 minutes per 1 lb + 20-25 minutes
Lamb 300 2 300 30-35 minutes per 1 lb + 30-35 minutes
375 2 375 20-25 minutes per 1 lb + 20-25 minutes
Pork & veal 300 2 300 35-40 minutes per 1 lb + 35-40 minutes
375 2 375 25-30 minutes per 1 lb + 25-30 minutes
Poultry
Chicken 300 2 300 20-25 minutes per 1 lb + 20-25 minutes
375 2 375 15-20 minutes per 1 lb + 15-20 minutes
Turkey (slow cook) 300 2 300 25-30 minutes per 1 lb + 25-30 minutes
375 2 375 20 minutes per 1 lb + 20 minutes
Turkey (fast cook) 300 2 300 20 minutes per 1 lb + 20 minutes
375 2 375 15 minutes per 1 lb + 15 minutes
Duck/Duckling 300 2 300 20 minutes per 1 lb
Casserole
300 2 300 2-4 hours, according to recipe
Fish
350 2 350 Fillet 15-20 minutes; whole 15-20 minutes per 1 lb
350 2 350 Whole 10 minutes per 1 lb + 10 minutes
350 2 350 Steaks according to thickness
Desserts
Cup cake 325 2 325 20 minutes
Scone 375 2 375 15 minutes
Deep apple pie 350 2 350 45 minutes
Plate tart 350 2 350 45 minutes
Fruit cake 8” x 3.5” 275 2 275 1¾-2 hours
Pu pastry 400 2 400 15-40 minutes according to size
Angel food cake 325 2 325 50-60 minutes
DocNo.031-0004 - Cooking table - electric & fan single cavity
Page 16
14
ArtNo.050-0014 - Cleaning table USA
Burner grates &
top of burner
heads
Burner base
Maintop top
Sides, toe-kick
Control panel
Oven interior
Door handles
Oven racks &
supports
Door inner
Outer door
and drawer
Brass trims
(some models
only)
Copper trims
(some models
only)
Oven Liner
Porcelain enamel
Aluminum
Stainless steel
Painted enamel
Porcelain enamel
or stainless steel
Porcelain enamel
Brass or plated
brass/plastic
Chrome
Porcelain enamel
Porcelain enamel
or stainless steel
Brass
Copper
Porcelain Enamel
Mildly abrasive cleaner such as
Bon Ami ® or Soft Scrub®.
Dishwasher.
As above.
Hot soapy water, non-abrasive
cleaner, soft cloth.
Hot soapy water and soft cloth.
Non-abrasive cleaner, soft cloth.
Branded oven cleaner suitable for
enamel surfaces such as Dawn
Power Dissolver®. Take care not to
damage the oven door seals.
Non-abrasive cleaner, hot soapy
water, soft cloth. Brass handles
can be cleaned with a gentle
brass polish.
Dishwasher. Hot soapy water and
scouring pad.
Mildly abrasive cleaner such as
Bon Ami ® or Soft Scrub® with a
soft cloth.
Multi-surface cleaner, soft cloth.
Non-abrasive cleaner, hot soapy
water, soft cloth. Gentle brass
polish.
Hot soapy water and soft cloth.
Mildly abrasive cleaner such as
Bon Ami ® or Soft Scrub® with a
soft cloth.
Part Finish
Recommended
cleaning method
Essential Information
Before thorough cleaning, turn o the circuit breaker. Allow
the range to cool.
After cleaning remember to switch on the circuit breaker
before using the range.
NEVER use paint solvents, caustic cleaners,
biological powders, bleach, chlorine based bleach
cleaners, coarse abrasives or salt.
DO NOT mix dierent cleaning products – they may
react together with hazardous results.
Recommended cleaning materials are shown in Table 5-1.
Cleaning the Range – Daily Care
Cleaning the range is not a welcomed chore, but it has to be
done to maintain eciency and appearance. Remember it
is better to wipe up any spills as they occur, this will prevent
them burning on and becoming more dicult to remove
later.
Make sure the ow of combustion and ventilation air
to the range is unobstructed – for example, by buildup of fats or grease.
If the ame is distorted, check that the burner head is
correctly placed over the burner base (Fig.5-1).
If the ame burns with a long white tip you should call for
service.
Cleaning for Spills
For spills and boil-overs that occur while cooking, as soon as
possible turn o the burner and allow it to cool. Do not clean
until the area is completely cooled down. Wipe up spills as
soon as possible.
Do not allow surplus water to seep into the range.
Cooktop Burners
The burner heads and caps can be removed for cleaning.
Make sure they are absolutely dry before replacing.
When replacing burner head, make sure this locates properly
within the base (Fig.5-2).
If you look at the bottom of the burner head you will see two
‘pips’; these t into the two notches in the burner base
(Fig.5-3).
Check burner ports are not blocked. If blockage occurs,
remove stubborn particles using a piece of fuse wire.
Stainless Steel Main Top
Lift away pots or pans from main top. Remove grates from
spillage area and carefully place in a sink of warm soapy
water. Wipe loose debris from main top. Avoid using any
abrasive cleaners including cream cleaners on brushed
stainless steel surfaces. For best results use a liquid detergent
cleaner. Rinse with cold water and thoroughly dry with
5. Cleaning Your Range
Table 5-1
Page 17
15
ArtNo.311-0028 - Burner head off
a clean, soft cloth. Make sure all parts are dry before
repositioning.
NEVER use caustic or abrasive cleaners as these will
damage the surface.
Griddle (Optional extra)
Always clean the griddle after use. Allow to cool completely
before removing. Immerse the griddle plate in hot soapy
water. Use a soft cloth or, for stubborn stains, a nylon washing
up brush.
Control Panel and Oven Doors
Avoid using any abrasive cleaners including cream cleaners,
on brushed stainless steel surfaces. For best results use liquid
detergents.
The control panel and control knobs should only be cleaned
with a soft cloth wrung out in clean hot soapy water – but
take care that no surplus water seeps into the appliance. Wipe
with a clean dampened cloth then polish with a dry cloth. The
oven doors should only be cleaned with a soft cloth wrung
out in clean hot soapy water.
Cleaning Brass Parts (Some models only)
Uncoated natural brass is used as part of the authentic nish
on some models and this may tarnish with age. To regain
a polished nish, these areas should be cleaned using a
gentle brass cleaner. Take care the cleaner does not aect
surrounding areas.
Ovens
The side panels can be removed for cleaning and for cleaning
behind them.
Removing the Oven Linings
First remove the shelves. Slide the roof liner forwards and
remove (Fig.5-4).
Removing the Panels to Clean the Enamel
Interior
Some of the lining panels can be removed for cleaning.
If you wish to clean the enamel interior of the oven, you
will need to remove the shelves before removing the ‘Cook
& Clean’ panels . You do not have to remove the support
brackets to remove the panels. Lift each panel upward and
slide forward o the support brackets (Fig.5-15).
Once the panels have been removed, the oven enamel
interior can be cleaned.
Ret in the reverse order.
Fig.5-5
ArtNo.311-0029 - Burner base & head alignment
ArtNo.311-0030 - Burner head fitting
ArtNo.311-0028 - Flame
Fig.5-1
Fig.5-4
Fig.5-3

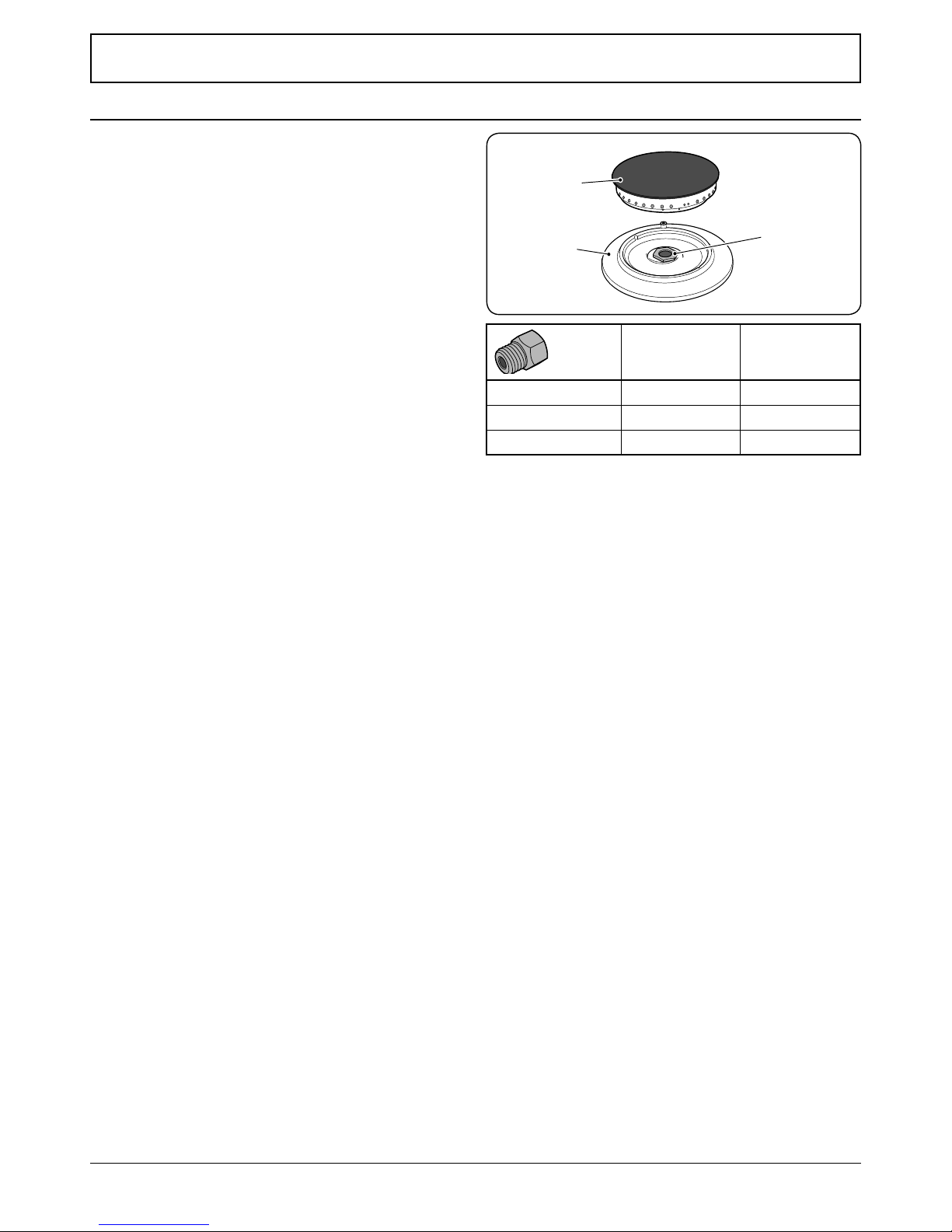

A - Burner head, B - Base
Fig.5-2
Page 18
16
Cooktop ignition or cooktop burners faulty
Is the power on?
Are the sparker (ignition electrode) or burner holes
blocked by debris?
Are the burner heads correctly located? See the section
entitled ‘Cleaning’.
Remember that each cooktop burner has a special
safety device that stops the ow of gas if the ame goes
out. When lighting a cooktop burner the safety device
has to be overridden by holding in the control knob so
that the gas can ow. This allows the ame sensor to
heat up and operate the safety device. Keep holding the
knob pressed in to let the gas through to the burner for
few seconds. The igniter should spark and light the gas.
If, when you let go of the control knob, the burner goes
out, the safety device has not held in. Turn the control to
the o position and wait one minute, then try again this
time holding in the control knob for slightly longer.
Cooktop burners will not light
If only one or all the cooktop burners will not light,
make sure that the parts have been replaced correctly
after wiping or removing for cleaning.
Check that there is not a problem with your gas
supply. You can do this by making sure that other gas
appliances you may have are working.
Do the burners spark when you push in the control
knob? If not check the power is on.
Steam is coming from the oven
When cooking foods with a high water content (e.g.
oven fries) there may be some steam visible at the rear
grille. Take care when opening the oven door, as there
may be a momentary pu of steam when the oven
door is opened. Stand well back and allow any steam to
disperse.
An oven fan is noisy
The sound of the oven fan may change as the oven
heats up – this is perfectly normal.
What cleaning materials are recommended for the range?
See the ‘Cleaning’ section for a full list of recommended
cleaning materials.
We do not recommend corrosive or caustic cleaners
as these may damage your range.
The knobs get hot when I use the oven, can I avoid this?
Yes, this is caused by heat rising from the oven, and
heating them up. Do not leave the oven door open.
6. Troubleshooting
If there is an installation problem and I don’t get my
original installer to come back to x it who pays?
You do. Service organizations will charge for their
service if they are correcting work carried out by your
original installer. It is in your interest to track down your
original installer.
Food is cooking too slowly, too quickly, or burning
Cooking times may dier from your previous
oven. Check that you are using the recommended
temperatures and rack positions. See the oven cooking
guide section of the instructions. The oven control
settings and cooking times are intended to be used
only as a guide. Individual tastes may require the
temperature to be altered either way, to get the results
you want. Try cooking at a higher temperature setting.
The oven is not cooking evenly
If you are cooking a large item, be prepared to turn it
round during cooking.
If two racks are used, check that space has been left for
the heat to circulate. When a baking sheet is put into the
oven, make sure it is placed centrally on the rack.
Check that the door seal is not damaged.
A dish of water when placed on the rack should be the
same depth all over. (For example, if it is deeper at the
back, then the back of the range should be raised up or
the front lowered.)
If the range is not level arrange for your supplier to level
it for you.
Oven not coming on
Is the power on?
If not there may be something wrong with the power
supply. Is the range supply on at the circuit breaker?
If using the multi-function oven, have you set a cooking
function?
Oven temperature getting hotter as the range gets older
If turning the knob down has not worked or only
worked for a short time then you may need a new
thermostat. This should be installed by a service
technician (see the ‘Service and Parts’ section of the
instructions).
Page 19
17
An oven light is not working
The bulb has probably burnt out. You can buy a
replacement bulb (which is not covered under the
warranty) from a good electrical shop. Ask for a 15W
125–130V lamp, FOR OVENS (Fig.6-1).
Turn o the power at the circuit breaker.
Make sure the oven is cool. Open the oven door and
remove the oven racks.
Unscrew the bulb cover by turning counter-clockwise. It
may be very sti (Fig.6-2).
Taking care to protect your ngers in case the bulb
should shatter, unscrew the old bulb.
Screw in the new bulb; screw back the bulb cover. Turn
on the circuit breaker and check that the bulb now
lights.
ArtNo.324-0005 Oven light bulb
Fig.6-1
ArtNo.324-0007 Unscrewing the bulb cover
Fig.6-2
Page 20
18
WARNING!
If the information in this manual is not followed exactly, a re or
explosion may result causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
WARNING!
The anti-tip device supplied with this range must be installed when the appliance is installed. This
will reduce risk of tipping of the appliance from abnormal usage or by excessive loading of the
oven door or storage drawer.
ArtNo.030-0030 - RM tipping
warning symbols
WARNING!
• ALLRANGESCANTIP
• INJURYTOPERSONSCOULDRESULT
• INSTALLANTI-TIPBRACKETPACKEDWITH
RANGE
• SEEINSTALLATIONINSTRUCTIONS
Page 21
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
19
Regulations
Installation of this range must conform with local codes, or in
the absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA.54, latest edition.
In Canada, installation must conform with the current Natural
Gas Installation Code, CAN/CGA-B149.1 or the current
Propane Installation Code, CAN/CGA-B149.2, and with local
codes where applicable.
This range has been design-certied by CSA International
according to ANSI Z21.1, latest edition and CAN/CGA-22.2
latest edition.
Read the instructions before installing or using this appliance.
This range becomes hot in use, the cooktop burners produce
exhaust gases.
The range must be electrically grounded in accordance
with local codes or, in the absence of local codes, in
accordance with the National Electrical Code (ANSI/NFPA 70,
latest edition). In Canada, electrical grounding must be in
accordance with the current CSA C22.1 Canadian Electrical
Code Part 1 and/or local codes. See ‘Electrical Connection’ in
this section.
Important
•
Observe all governing codes and ordinances.
•
The range must be properly grounded.
•
Save these instructions for the local electrical
inspector’s use.
For Your Safety
Do not store or use combustible materials, gasoline or other
ammable vapors and liquids in the vicinity of this or any
other appliance.
If You Smell Gas
• Open windows
• Do not touch electrical switches
• Extinguish any open flame
• Immediately call your gas supplier
Installation Safety Instructions
Improper installation, adjustment, alteration,
service or maintenance can cause injury or property
damage. Refer to this manual. For assistance or
additional information, consult a qualied installer,
service agency, manufacturer (dealer) or the gas
supplier.
Never reuse old exible connectors. The use of old
exible connectors can cause gas leaks and personal
injury. Always use NEW exible connectors when
installing a gas appliance.
Important
• Remove all packing material and literature from oven
before connecting gas and electrical supply to range.
• Have your range installed by a qualified installer.
• Your range must be electrically grounded in accordance
with local codes or, in the absence of local codes, in
accordance with the National Electrical Code (ANSI/
NFPA 70, latest edition).
• Before installing your range on linoleum or any other
synthetic floor covering, make sure the floor covering
can withstand 80 °C (180 °F) without shrinking, warping
or discoloring. Do not install the range over carpeting
unless a sheet of ¼’’ thick plywood or similar insulator is
placed between the range and carpeting.
• Make sure the wall coverings around the range can
withstand heat generated by the range up to 90 °C
(200 °F).
• Avoid placing cabinets above the range. There must be
a gap of at least 31½’’ (80 cm) between the top of the
range and any combustible surface above it.
• If a ventilating hood is installed above the range follow
the installation instructions supplied with the hood.
Items of interest to children should not be stored
above a range – children climbing on the range to
reach items could be seriously injured.
Converting to Propane Gas
This appliance is supplied set for Natural gas.
A conversion kit for Propane gas is supplied with the range.
If the appliance is to be converted this must be done before
installation. The conversion must be performed by a qualied
LP gas installer. See the ‘Conversion’ section at the back of this
installation manual for more details.
7. Installation
Page 22
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
20
Additional materials you may need:
• Gas line shut-off valve.
• Pipe joint sealant or UL-approved pipe thread tape with
Teflon* that resists action of natural and LP gases.
* Teflon: Registered trademark of DuPont
• Flexible metal appliance connector (½’’ I.D.). A 5foot
length is recommended for ease of installation
but other lengths are acceptable. Never use an old
connector when installing a new range.
• Flare union adapter for connection to gas supply line
(¾’’ or ½’’ NPT x ½’’ I.D.).
• Flare union adapter for connection to pressure regulator
on range (½’’ NPT x ½’’ I.D.).
• To protect any floor covering under the range a sheet of
¼’’ thick plywood or equivalent large enough to stand
the range on.
Location of the Range
Do not locate the range where it may be subject to strong
drafts. Any openings in the oor or wall behind the range
should be sealed. Make sure the openings around the base of
the range that supply fresh air for combustion and ventilation
are not obstructed by carpeting or woodwork.
Your range is heavy and can settle into soft oor coverings
such as cushioned vinyl or carpeting. Use care when moving
the range on this type of ooring. It is recommended that the
following instructions be followed to protect your oor.
The range should be installed on a sheet of plywood (or
similar material). When the oor covering ends at the front of
the range, the area that the range will rest on should be built
up with plywood to the same level or higher than the oor
covering.
This will allow the range to be moved for cleaning or
servicing. Also, make sure your oor covering will withstand
80 °C (180 °F); see the ‘Installation Safety Instructions’ section.
Make sure the wall coverings around your range can
withstand the heat generated, up to 90 °C (200 °F), by the
range; see the ‘Installation Safety Instructions’ section.
You will also need the following tools:
1. Electric drill
2. Masonry drill bit & anchors (only required if installing
the range on a stone or concrete oor)
3. Steel tape measure
4. Phillips head screwdriver
5. Flat head screwdriver
6. 2.5mm, 3 mm & 8 mm Allen key (supplied with the
range)
7. Level
8. Open-end or adjustable wrench
9. Pencil and ruler
10. Pipe wrenches
11. 13 mm spanner or socket wrench
Page 23
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
21

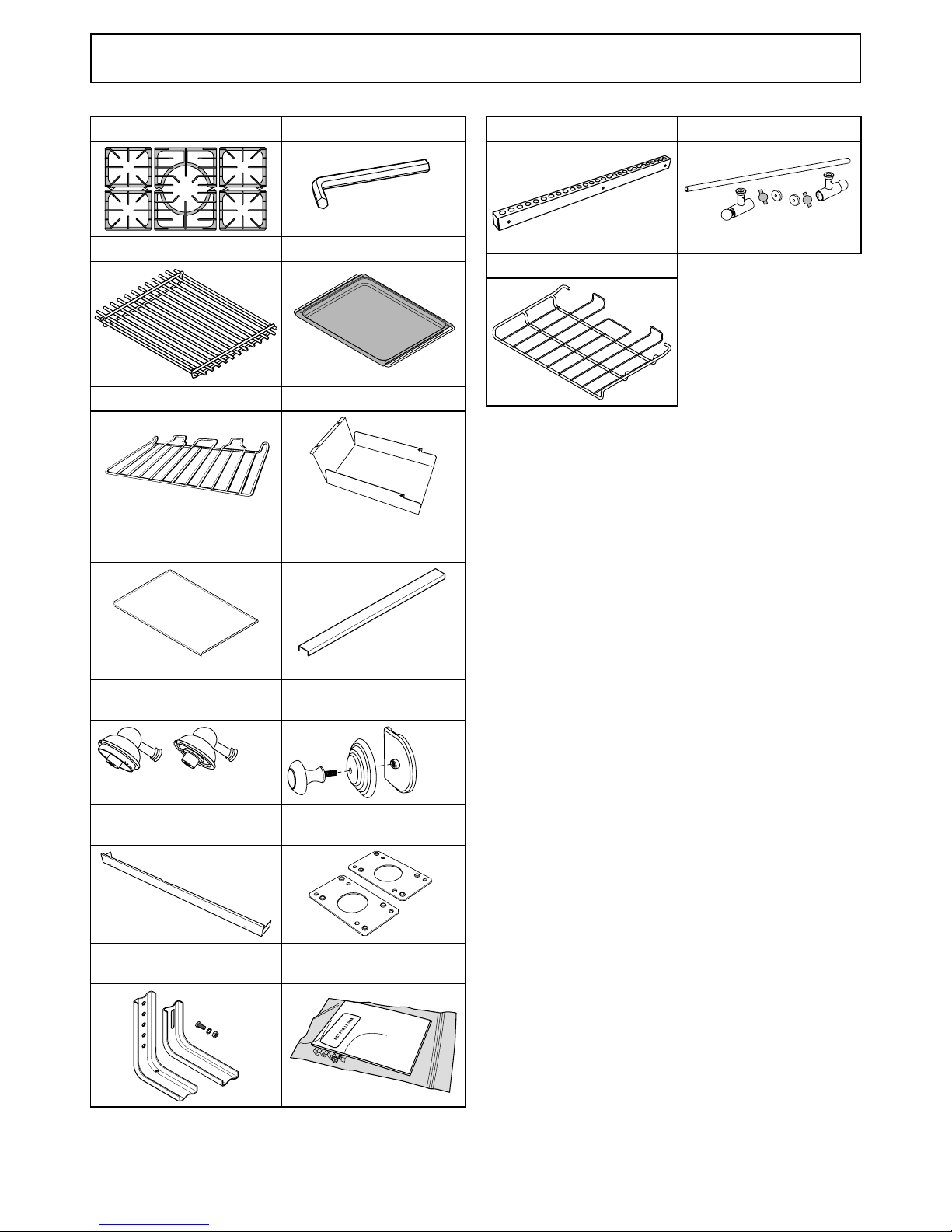

Rear Flue Grille Hand rail and end pieces
2 drop racks
6 grates Allen key
1 deluxe oven trivet 2 deluxe oven trays
2 at oven racks Cooling fan cover kit
Storage drawer mat (in base of
storage drawer)
Side extension kit
ArtNo.326-0005 - Pastry tray
ArtNo.351-0001 - Side extension
panel USA
5 burner control knobs and 3
oven control knobs
2 sets of oven door knob
parts
Toe kick
Reducer plates for conduit
connection
ArtNo.350-0007 - Plinth USA
ArtNo.020-0012 Reducer Plates USA
Anti-tip device
Conversion kit from natural
gas to propane gas
ArtNo.020-0019
Conversion Kit USA
Checking the parts:
Page 24
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
22
ArtNo.280-0001 36” wide oven dimensions
Min 43/” (110 cm) - 43/“ (111 cm)
For Canada, min 44/” (112.5 cm)
Min 31½” (80 cm)
between the top of the cooktop
and a horizontal combustible surface
Maximum 13”
(33 cm)
Min 43/” (110 cm) - 43/“ (111 cm)
recommended to allow for moving the range.
For Canada, min 44/” (112.5 cm)
For electrical and
gas supply zone
Min 35 ⁄” (91cm)
Max 36 /” (93.7cm)
6” (15.2 cm)
16” (40.6 cm)
16” (40.6 cm)
Gas shut-o
valve
Electrical
outlet
Minimum 18”
(46 cm)
Fig.7-1
Fig.7-3
Positioning the Range
Fig.7-1 and Fig.7-2 show the minimum recommended
distances and clearances from the range to nearby surfaces.
You must provide adequate clearances between the range
and adjacent combustible surfaces. These dimensions must
be met for safe use of your range.
The location of the electrical outlet and pipe opening (see
Gas Pipe and Electric Outlet Locations) may be adjusted to
meet specic requirements.
A gap of at least 3” (7.5cm) should be left between each
side of the range ABOVE the cooktop level and any adjacent
vertical surface.
The cooktop surround should be level with, or above, any
adjacent work surface.
For non-combustible surfaces (such as unpainted metal or
ceramic tiles) the gap each side can be reduced from 3” to 1”
(2.5 cm).
A minimum space of 31½” (80 cm) is required between the
top of the cooktop and a horizontal combustible surface. The
maximum depth for cabinets installed above cooktops is 13’’
(33 cm).
The depth of the range is 28
3
/8’’ (72 cm) overall (Fig.7-3).
Any range hood should be installed in accordance with the
hood manufacturer’s instructions.
*Any splashback must be tted in accordance with the
manufacturers instructions. Allowance should be made for the
ue trim, which is tted to the range hob.
For safety reasons curtains must not be sited immediately
behind the range.
We recommend a gap of 43
11
/16” (111 cm) (for Canada 445/16”
(112.5cm)) between units to allow for moving the range.
If a ush t is required (USA only), install the range up to the
unit at one side then install the unit the other side.
*
Fig.7-2
Page 25
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
23

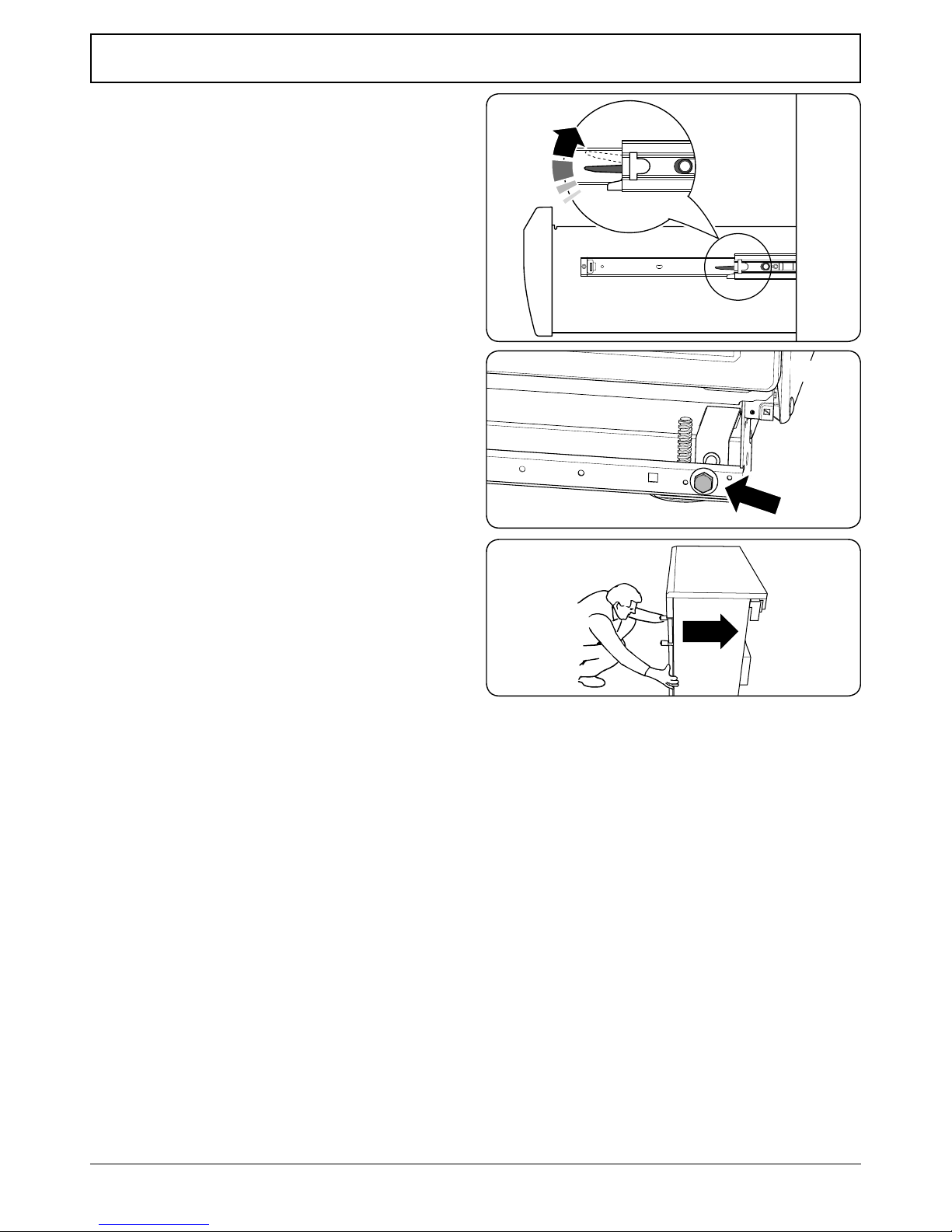

Fig.7-4
Fig.7-5
Fig.7-6
Moving the Range
The range is very heavy. Take great care.
On no account try and move the range while it is
plugged into the electricity or gas supply.
We recommend two people maneuver the range. Make sure
that the oor covering is rmly attached, or removed to
prevent it being disturbed when moving the range around.
To help you, there are two levelling rollers at the back, and
two screw-down leveling feet at the front.
Remove the polystyrene base pack. From the front, tilt the
range backwards and remove the front half of the polystyrene
base.
Repeat from the back and remove the rear half of the
polystyrene base.
Removing the Storage Drawer
Pull the drawer right out.
Push the ends of the plastic clips – down of the left-hand side,
up on the right-hand side – to release the catches holding the
drawer to the side rails (Fig.7-4). At the same time pull the
drawer forwards and away from the side rails.
For safety reasons slide the inner side rails back into the
cavity.
Put the drawer somewhere safe – do not replace it until you
have completed the installation, you will need access to the
area behind the drawer.
Lowering the Two Rear Rollers
To adjust the height of the rear of the range, rst t a 13 mm
spanner or socket wrench onto the hexagonal adjusting
nut (Fig.7-5). Rotate the nut – clockwise to raise – counterclockwise to lower.
Make 10 complete (360°) turns clockwise. Make sure you
lower BOTH REAR ROLLERS.
Completing the Move
Unfold the rear edge of the cardboard base tray. Get a good
grip on the top of the oven cavity panel as you move the
oven. Carefully push the range backwards o the cardboard
base. Remove the base tray.
Position the range close to its nal position, leaving just
enough space to get behind it (Fig.7-6).
Do not replace the storage drawer yet.
IMPORTANT: Remove all tape and packaging. Make sure
the burner heads are properly seated and level. Take the
accessory pack out of the oven. Check to be sure that no
range parts have come loose during shipping.
Page 26
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
24
Cooker
Outer stability
bracket
Floor
Wall
3 mm min
Outer anti-tip
bracket
Range
1/8” (3mm) min
ArtNo.070-0014 - Stability bracket - Wall fitting
Cooker
Stability bracket
Floor
3 mm min
Anti-tip bracket
Range
1/8” (3mm) min
A
B
A
B
ArtNo.280-0029 - Flue Grill
Fig.7-7
ArtNo.280-0030 - Fixing Flue Grill
ArtNo.280-0031 - Flue Extension Fixing
Fig.7-9
Fig.7-10
Fig.7-11
Fig.7-8
A – Outer anti-tip bracket, B – Inner anti-tip bracket
Fig.7-12
Installing the Flue Grille
The ue grille is packed separately (Fig.7-7).
The larger of the holes along the sides are for screwdriver
access and should face to the rear. Use the screws and nuts
supplied to hold the grille in place (Fig.7-8).
Clip the exible extensions of the oven ues to the ue grille
using the clips provided inside the ue grille (Fig.7-9).
Leveling
It is recommended that you use a spirit level on a shelf in one
of the ovens to check for level.
Place the range in its intended position, taking care not to
twist it within the gap between the kitchen units as damage
may occur to the range or the units.
The front feet and rear rollers can be adjusted to level the
range. To adjust the height of the rear of the range turn the
adjusting nuts at the front bottom corners of the range. To set
the front, turn the feet bases to raise or lower.
Anti-Tip Device
WARNING: The range must be secured by the AntiTip bracket supplied. Unless properly installed, the
range could be tipped by leaning on the door. Injury
might result from spilled hot liquids or from the
range itself.
When tting an anti-tip device please refer to the instructions
supplied with the device for further details on tting.
Note: The range must be set to the correct height and leveled
before the anti-tip bracket is installed.
Floor Fixing
Using the screw supplied, assemble the anti-tip bracket base
and anti-tip bracket extension (Fig.7-10).
Using suitable screws and xings, attach the assembled antitip bracket to the oor to give a sucient engagement into
the back of the range.
Adjust and lock the inner anti-tip bracket to give a
1
/8” (3mm)
clearance above the engagement edge in the back of the
range (Fig.7-11).
Wall Fixing
Where oor xing is impractical and provided that the outer
anti-tip bracket can be attached to a solid wall, the anti-tip
device may be attached to a wall (Fig.7-12). Make sure to use
suitable screws and xings.
Page 27
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
25

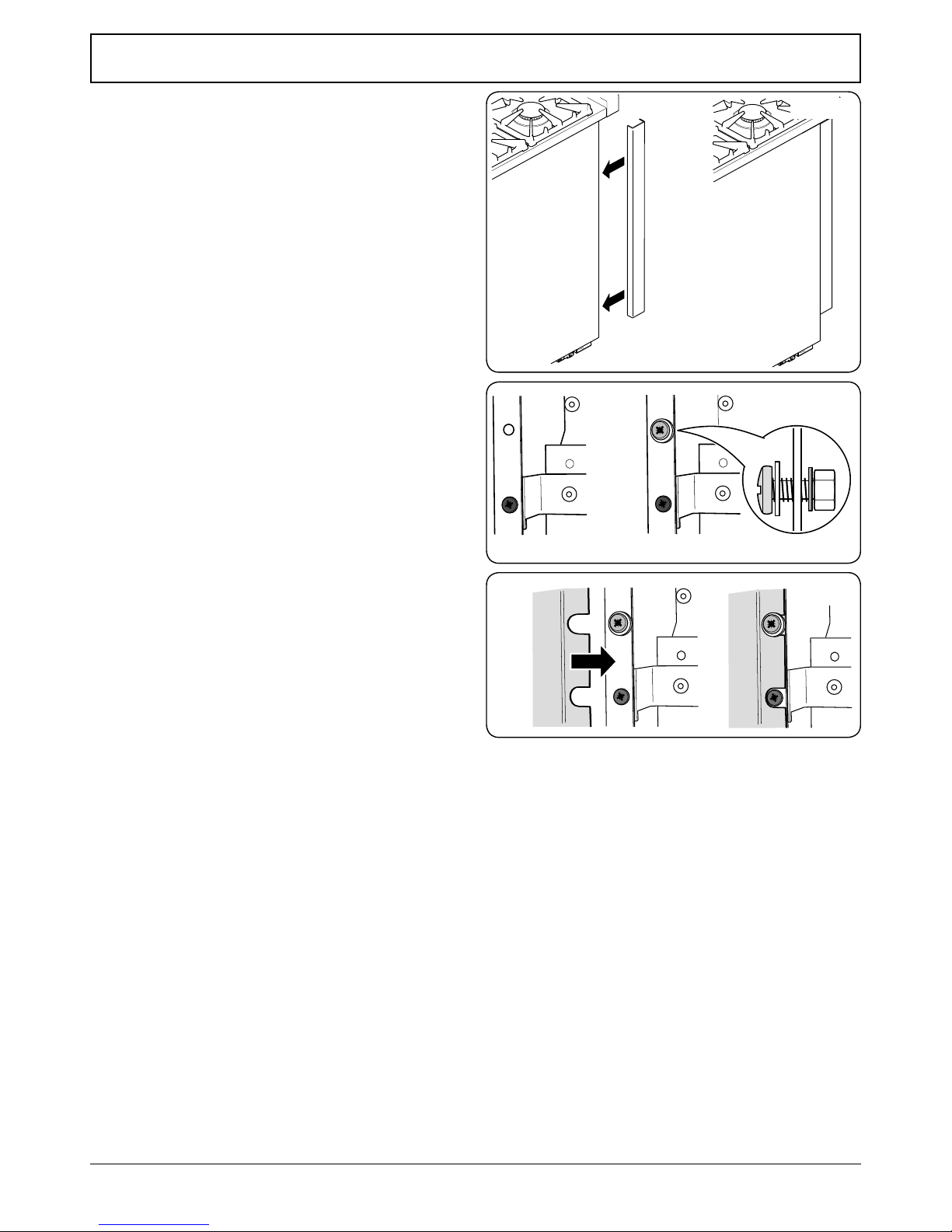

ArtNo.280-0070 - Side extension A
Fig.7-14
ArtNo.280-0071 - Side extension B
Fig.7-15
ArtNo.281-0004 - 90SC
- Fitting the side panel
ArtNo.281-0005 - Albertine SC
- Side panel in place
Fig.7-13
Side Panel Extension kit
Two side extension panels are supplied with the range. These
can be installed where the side of the range is exposed. The
extension installation must be performed by a qualied
gas installer, preferably during installation of the appliance
(Fig.7-13).
Kit Contents:
Side panel extension 2
M5 screw 4
M5 nut 4
Large washer 4
Shakeproof washer 4
Procedure
1. Place a screw and washer in the top hole in the rear
edge of the range side panel. Add a shakeproof washer
and start the nut on the screw threads so that the screw
is loosely held in place. Repeat with the other hole
(Fig.7-14).
2. Slide the side extension in from the side behind the
washers (Fig.7-15).
3. Tighten the top and bottom screws to hold the side
extension in place.
Reposition the range making sure the anti-tip device is reengaged properly when the range is replaced. Failure to take
this precaution could result in tipping of the range and cause
injury.
Note: Check that the extension panel does not foul the mains
lead or gas connection when the cooker is pushed back
Reconnect the electricity supply.
Page 28
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
26

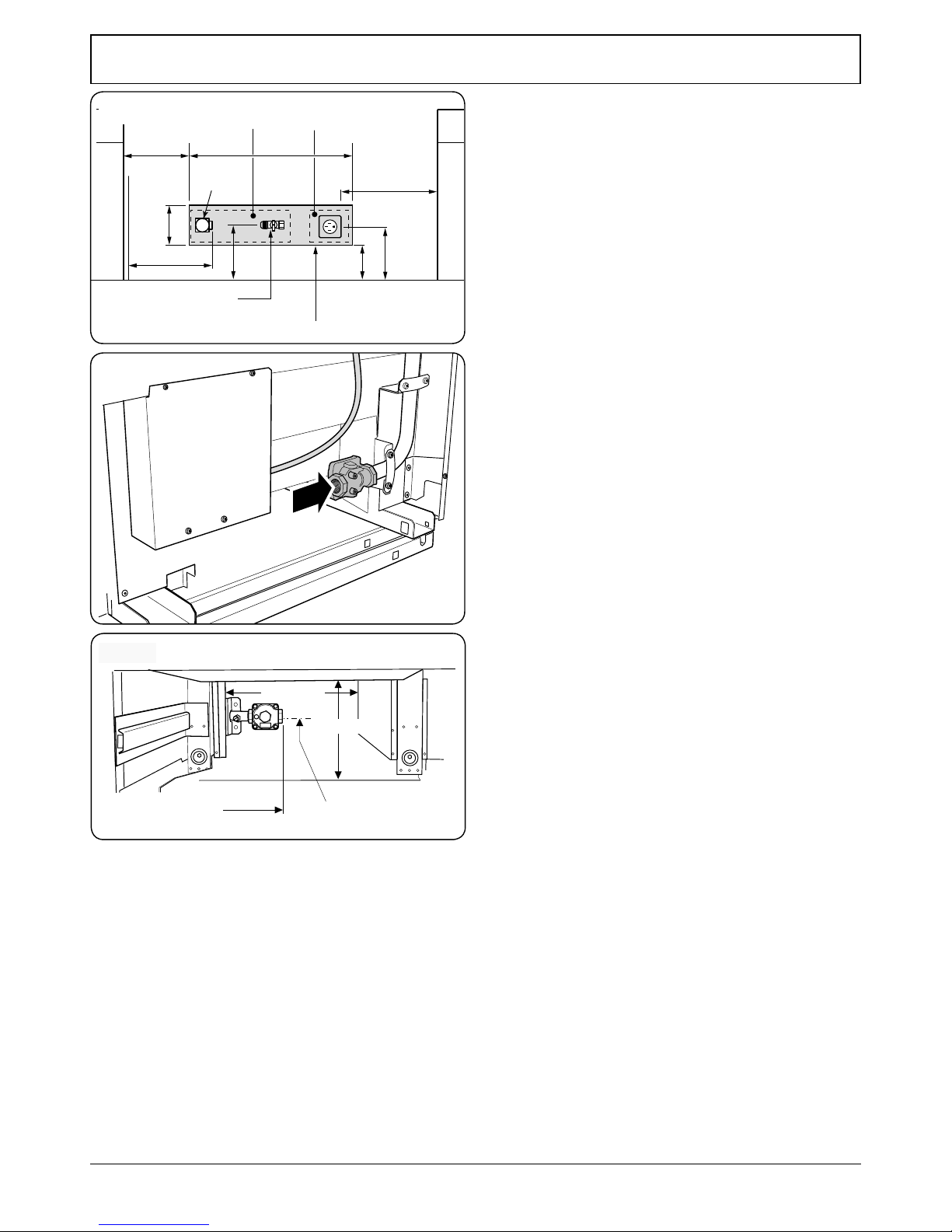

Area accessible through drawer
Gas shut-o valve
Gas supply
zone
Electrical
supply zone
Side of
range
Range gas
inlet
17”
6”
6”
7”
16”
6”
9”
4”
ArtNo280-0074 Connection fron Rear
ArtNo.280-0075 - Opening inside the drawer
8¾” (22.2 cm) from
the side of the range
6“ (15.2 cm) from the oor
with range at lowest point
10¼” (26 cm)
7¾” (19.7 cm)

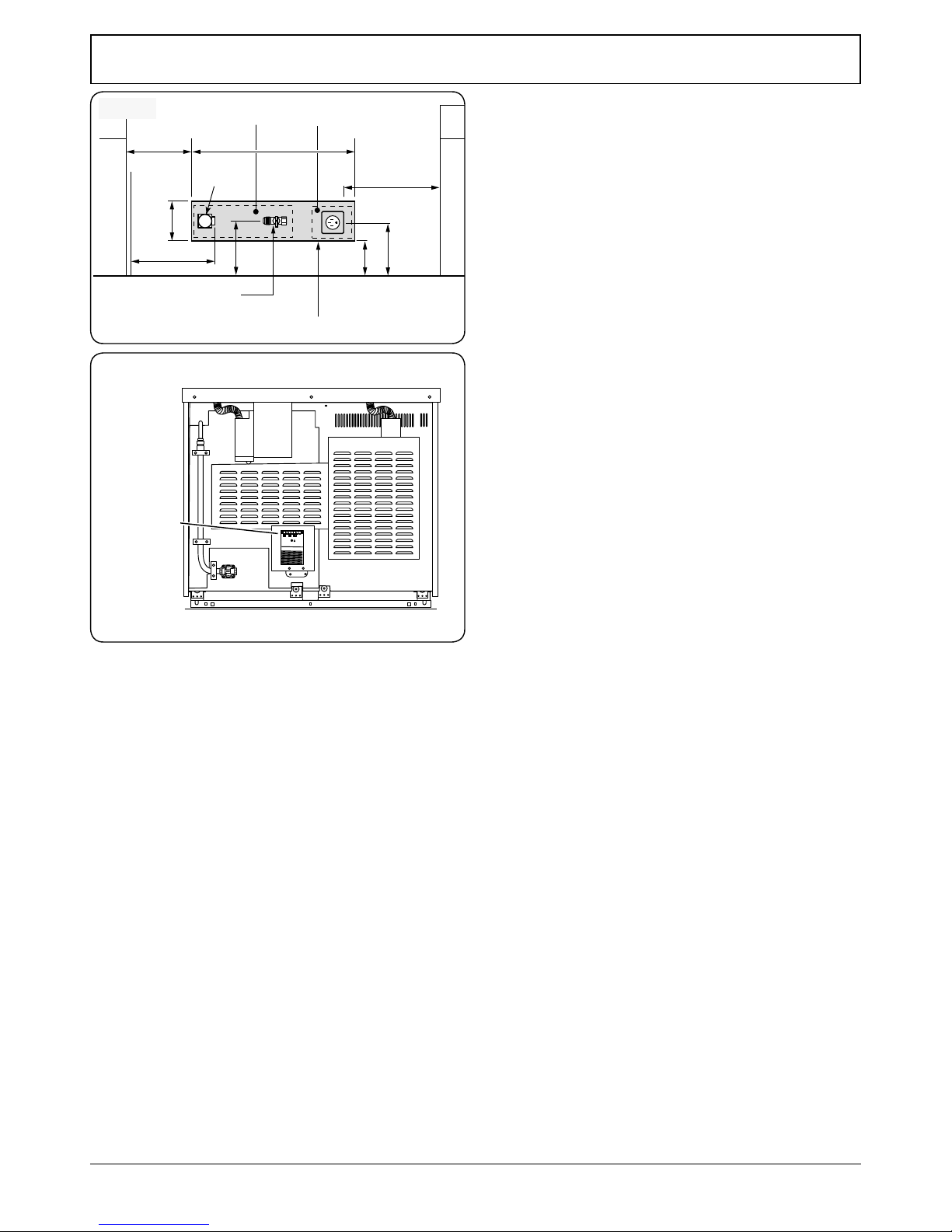

Gas Connection
Installation of this range must conform with local codes or, in
the absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1-latest edition.
In Canada
The range must be installed in accordance with the current
CGA Standard CAN/CGA-B149 – Installation Codes for Gas
Burning Appliances and Equipment and/or local codes.
In The Commonwealth Of Massachusetts
This product must be installed by a licensed plumber or
gas tter when installed within the Commonwealth of
Massachusetts.
A “T” handle type manual gas valve must be installed in the
gas supply line to this appliance.
Gas Supply Requirements
Recommended gas pipe outlet locations are shown in
Fig.7-16, Fig.7-17 and Fig.7-18.
Provide Adequate Gas Supply
Prior to installation, make sure that the local distribution
conditions (nature of the gas and gas pressure) and the
adjustment of the appliance are compatible.
The range is designed to operate at a manifold pressure of 4’’
of water column (1 kPa) on natural gas. A conversion kit for
LP gas (Propane) is supplied with the range. When converted
to LP gas, a pressure of 10’’ of water column (2.49 kPa) is
required.
Make sure you are supplying your range with the correct type
of gas.
If the range is to be used on LP gas, a qualied LP installer
must convert it. We recommend that the range be converted
before installation. This must be done before the range can
be used on LP gas.
For proper operation, the pressure of natural gas supplied to
the regulator must be between 4½’’ and 13’’ of water column
(1.12–3.24 kPa).
For LP gas, the pressure supplied must be between 10’’ and
13’’ of water column (2.49–3.24 kPa).
When checking for proper operation of the regulator, the
inlet pressure must be at least 1’’ (0.25 kPa) greater than the
operating (manifold) pressure as given above.
The pressure regulator located at the inlet of the range
manifold must remain in the supply line regardless of
whether natural or LP gas is being used.
A exible metal appliance connector used to connect the
range to the gas supply line should have an I.D. of ½’’ and be
5 feet in length for ease of installation.
Fig.7-16
Fig.7-17
Fig.7-18
Page 29
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
27

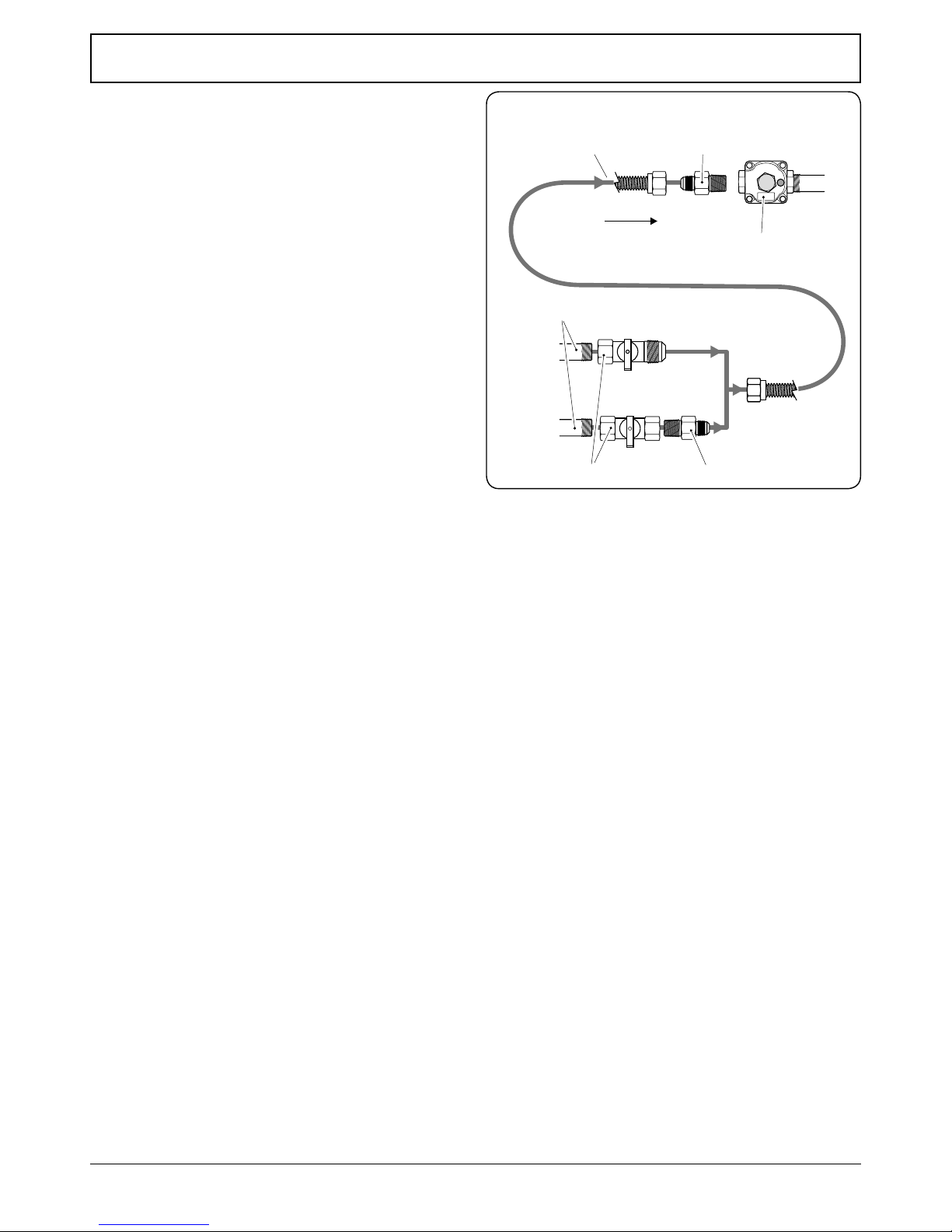

ArtNo.280-0037 Gas Connection
½“ or ¾” gas pipe
Flexible connector Adaptor
Appliance
gas inlet
Pressure regulator
AdaptorGas shut-off valve
Gas supply
OR
Connect the Range to the Gas Supply
Shut o the main gas supply valve before disconnecting the
old range and leave it o until the new hookup has been
completed. Don’t forget to relight the pilot on other gas
appliances when you turn the gas back on.
Because hard piping restricts movement of the range, the
use of a CSA International-certied exible metal appliance
connector is recommended unless local codes require a hardpiped connection.
Never use an old connector when installing a new range.
If the hard piping method is used, you must carefully align
the pipe; the range cannot be moved after the connection is
made.
To prevent gas leaks, put pipe joint compound on, or wrap
pipe thread tape with Teon* around, all male (external) pipe
threads.
A. Install a manual gas line shut-o valve in the gas line in
an easily accessed location outside of the range. Make
sure everyone operating the range knows where and
how to shut o the gas supply to the range.
B. Install a male ½’’ are union adapter to the ½’’ NPT
internal thread elbow at inlet of regulator. Use a backup
wrench on the regulator tting to avoid damage. When
installing the range from the front, remove the 90°
elbow for easier installation.
C. Install male ½’’ or ¾’’ are union adapter to the NPT
internal thread of the manual shut-o valve, taking care
to backup the shut-o valve to keep it from turning.
D. Connect exible metal appliance connector to the
adapter on the range. Position the range to permit
connection at the shut-o valve.
E. When all connections have been made, make sure
all range controls are in the o position and turn on
the main gas supply valve. Use a liquid leak detector
at all joints and connections to check for leaks in the
system. Use a product specically manufactured for
leak detection. Leak testing of the appliance shall
be conducted in accordance to the manufacturer’s
instructions.
DO NOT use a ame to check for gas leaks.
When using test pressures greater than ½ psig (3.5 kPa)
to pressure test the gas supply system of the residence,
disconnect the range and individual shut-o valve from
the gas supply piping. When using test pressures of ½ psig
(3.5 kPa) or less to test the gas supply system, simply
isolate the range from the gas supply system by closing the
individual shut-o valve.
Flexible Connector
Installer: Inform the consumer of the location of the gas
shut-o valve (Fig.7-19).
Fig.7-19
* Teflon: Registered trademark of DuPont
Page 30
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
28
Area accessible through drawer
Gas shut-o valve
Gas supply
zone
Electrical
supply zone
Side of
range
Range gas
inlet
17”
6”
6”
7”
16”
6”
9”
4”
ArtNo280-0078 Electric Connection Cover
Electrical Connection
When installed the range must be electrically grounded in
accordance with local codes or; in the absence of local codes
with the National Electrical Code ANSI/NFPA 70, latest edition.
In Canada the range must be installed in accordance with the
current CSA Standard C22.1 – Canadian Electrical Code Part 1.
Electrical Requirements
For personal safety, do not use an extension cord
with this appliance. Remove the house fuse or open
the circuit breaker before beginning installation.
This appliance must be supplied with the proper voltage
and frequency, and connected to an individual, properly
grounded branch circuit, protected by a circuit breaker or
time-delay fuse, as noted on the rating plate.
Wiring must conform to National Electric Codes. If the electric
service provided does not meet the above specications,
have a licensed electrician install an approved outlet.
Because range terminals are not accessible after range is in
position, exible service conduit or cord must be used.
Provide Proper Electrical Supply
This range must be supplied with 240 V 60 Hz, and
connected to an individual, properly grounded branch circuit
protected by a circuit breaker or time-delay fuse (30 amp).
If the electrical service provided does not meet the above
specications, it is recommended that a licensed electrician
install an approved outlet.
From January 1, 1996, the National Electric Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Connecting Using the Supplied Cord and Plug
Your range is shipped with a 4-prong plug to be used in a
NEMA 14-50R receptacle.
Recommended Electrical Outlet Locations
Locate the electric supply as illustrated (Fig.7-20).
When connecting using a NEMA 14-50R receptacle, if possible
position it so that it can be accessed through the opening
at the rear of the drawer cavity. The range can then be easily
disconnected for servicing, etc.
Plug the range power cord into a properly grounded wall
receptacle.
Connecting if the Supplied Cord and Plug is not
Suitable
To remove the electrical connection cover (Fig.7-21), remove
the screws.
Fig.7-21
Fig.7-20
Electrical
connection
cover
Page 31

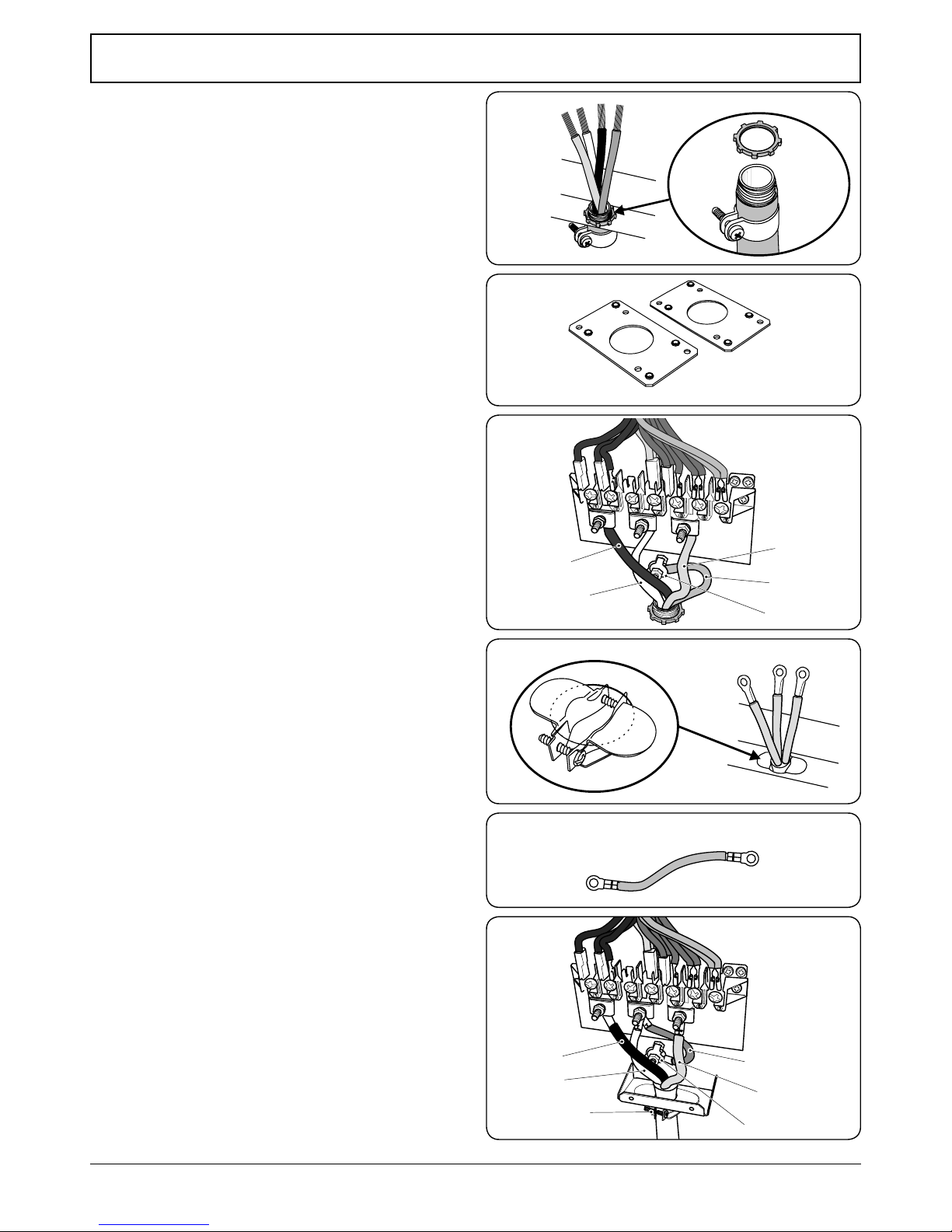

INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
29
ArtNo.280-0041 - Strain relief bracket 3-wire
ArtNo.280-0040 4 Wire Conduit Fitting
ArtNo.280-0039 Reducer Plate
ArtNo.280-0081 - 4 Wire
conduit terminal connection
lac
hite
ed
Green
Ground
ArtNo.280-0082 - 3-Wire conduit connection
train relie
device
hite
lac
ed
Ground strap
Ground
ArtNo.280-0042 Ground Strap
Fig.7-22
Fig.7-23
4-Wire Conduit Installation
Disconnect the supplied power cord from the terminal block
and ground post. Keep the terminal block parts; you will need
them. Remove the strain relief clamp from the power cord
and remove the power cord and strain relief clamp from the
mounting bracket (Fig.7-22).
The range is shipped with reducer plates to give a 1
1
/8’’
diameter opening for conduit connection. Find the reducer
plates (Fig.7-23) in the conversion kit and x them to the
mounting bracket.
Attach a squeeze connector (not supplied with the range) to
your conduit. Insert the conduit through the reducer plates
on the mounting bracket. Allow enough slack to easily attach
the wires to the terminal block.
Note: Do not install the conduit without a squeeze connector.
Attach the wires to the ground post and terminal block
(Fig.7-24).
Note: Make sure the wires are completely inserted into the
terminals and secure connections are made.
Secure the squeeze connector in place in the bracket by
tightening the squeeze connector screws.
Replace the electrical connection cover.
Installing a 3-Wire Power Cord
Disconnect the supplied power cord from the terminal block
and ground post. Keep the terminal block parts; you will need
them. Remove the strain relief clamp from the power cord
and remove the power cord and strain relief clamp from the
mounting bracket. Discard the strain relief clamp.
Note: Do not install the power cord without a strain relief
– use the clamp supplied with the cord.
Install the new strain relief device to the mounting bracket by
removing the two clamping screws, feeding the two halves
(ears rst) through the hole in the mounting bracket and
loosely replacing the screws. Insert the power cord through
the strain relief device but do not tighten the device yet
(Fig.7-25).
A ground strap is supplied in the conversion pack (Fig.7-26).
Attach the ground strap to the ground and center terminal of
the connector block (Fig.7-27).
The neutral or ground wire of the power cord must be
connected to the neutral terminal located in the center of the
connector block. The power leads must be connected to the
outside terminals.
Make sure the connections are tight. Now tighten the strain
relief device to clamp the power cord.
Ret the electrical connection cover.
Fig.7-24
Fig.7-25
Fig.7-26
Fig.7-27
Page 32

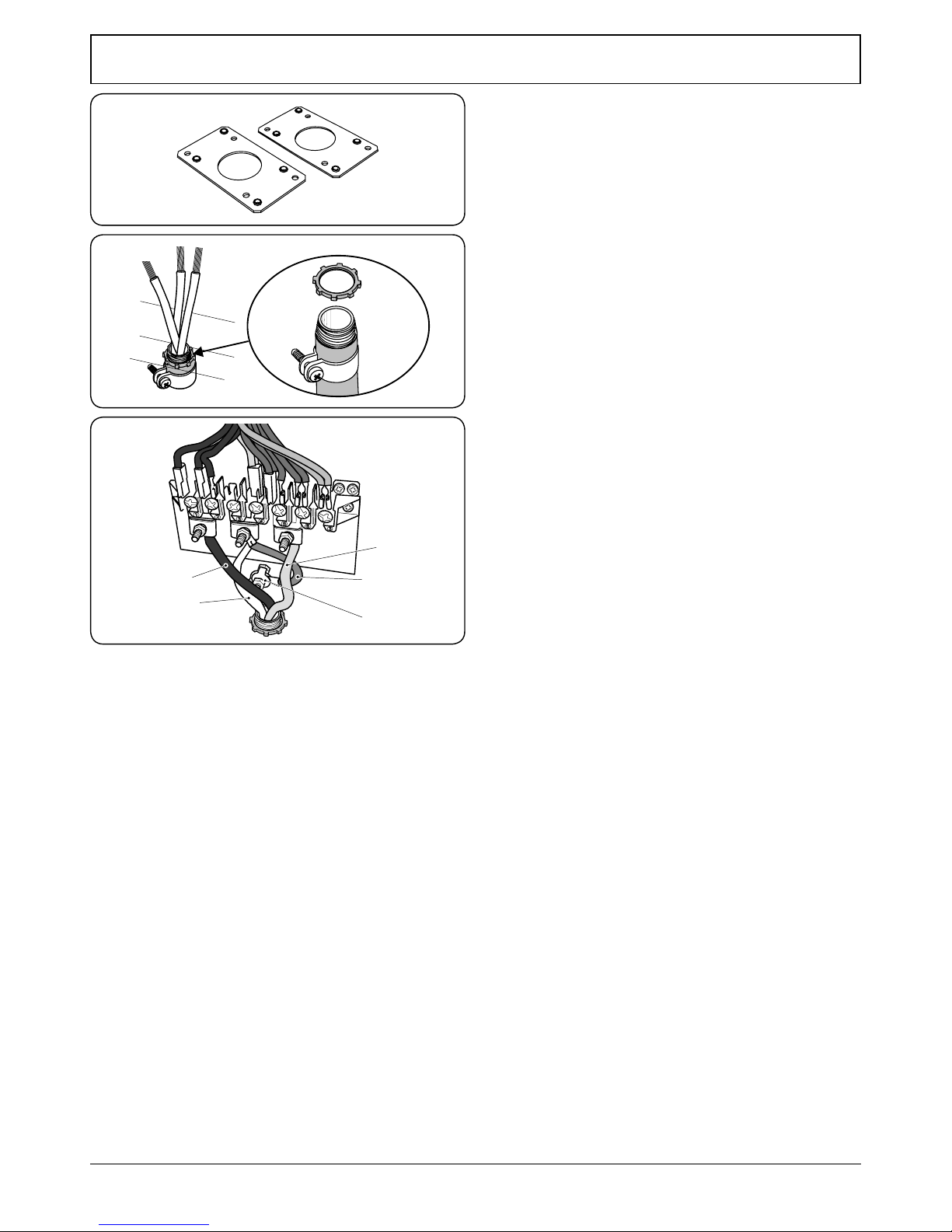

INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
30
ArtNo.280-0039 Reducer Plate
ArtNo.280-0043 3-Wire conduit fitting
ArtNo.280-0083 - 3-Wire conduit connection
lac
hite
ed
Ground strap
gre
Ground
3-Wire Conduit Installation
Disconnect the supplied power cord from the terminal block
and ground post. Keep the terminal block parts; you will need
them. Remove the strain relief clamp from the power cord
and remove the power cord and strain relief clamp from the
mounting bracket.
The range is shipped with reducer plates to give a 1
1
/8’’
diameter opening for conduit connection. Find the reducer
plates (Fig.7-28) in the conversion kit and x them to the
mounting bracket.
Install a squeeze connector (not supplied with the range), to
your conduit. Insert the conduit through the reducer plates
on the mounting bracket. Allow enough slack to easily attach
the wires to the terminal block (Fig.7-29).
Note: Do not install the conduit without a squeeze connector.
Attach the ground strap to the ground and center terminal of
the connector block (Fig.7-30).
The neutral or ground wire of the power cord must be
connected to the neutral terminal located in the center of the
connector block. The power leads must be connected to the
outside terminals.
Note: Make sure the wires are completely inserted into the
terminals and secure connections are made.
Secure the squeeze connector in place in the bracket by
tightening the squeeze connector screws.
Fig.7-28
Fig.7-29
Fig.7-30
Page 33

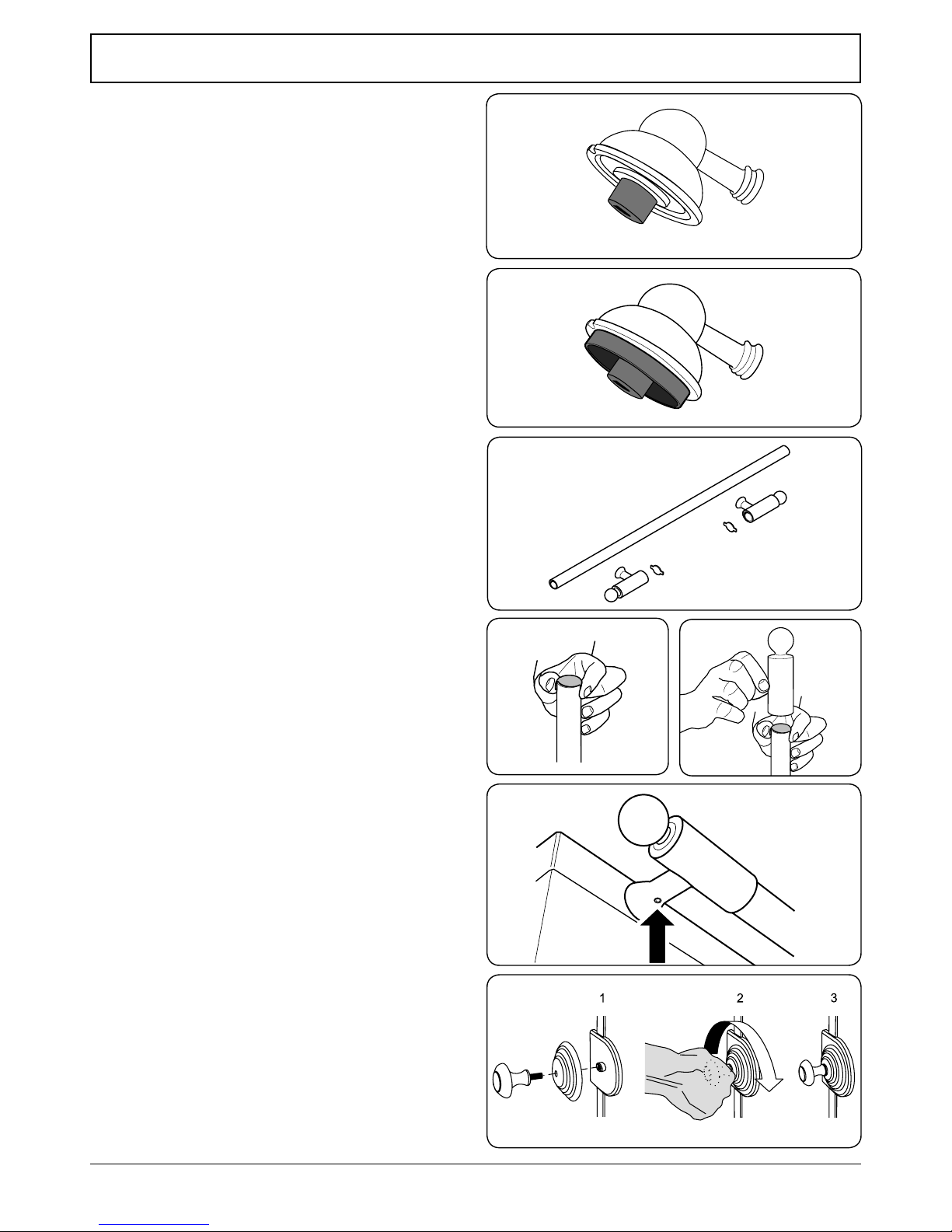

INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
31
ArtNo.280-0045 Burner Knob
ArtNo.280-0053 Door Knob Screw to Door
ArtNo.280-0047 Oven Knob
Seal the Openings
Seal any openings in the wall behind the range and in the
oor under the range when hookups are completed.
IMPORTANT: When all connections are completed make
sure the ow of combustion and ventilation air to the range
is unobstructed.
Assemble the Range
Installing the Control Knobs
The range is supplied with 5 burner control knobs. These are
for the gas controls to the left of the control panel (Fig.7-31).
There are also 3 oven control knobs (Fig.7-32).
Push the multi-function oven selector knob and temperature
knob on to the control spindles at the right-hand side of the
control panel.
Installing the Handrail
Components (Fig.7-33)
Hand rail tube 1
End cap with Allen xing screw 2
Plastic friction cup 2
Hold a friction cup by the tabs on one end of the tube
(Fig.7-34).
Line up one of the end caps to the tube and push it on the
tube over the friction cup (Fig.7-35).
Turn the tube over and push on the other end cap using the
second friction cup, making sure that you do not scratch or
damage the rst end piece and the that the two end pieces
are lined up correctly.
Install the assembled handrail on the projecting mounting
studs on the control panel and hold it in place by tightening
the Allen screws. The Allen screws should be on the underside
(Fig.7-36).
Installing the Door Handle
Assemble the door knob to the door knob base and screw it
to the mounting on the oven door. Hand tighten only – do
not use any tools (Fig.7-37).
Installing the Toe Kick
Remove the 3 screws for the toe kick mounts along the front
bottom edge of the range. Fasten the toe kick using these
screws (alternative color screws can be found in the loose
parts pack).
Fig.7-31
Fig.7-32
Fig.7-33
Fig.7-34 Fig.7-35
Fig.7-36
Fig.7-37
Page 34

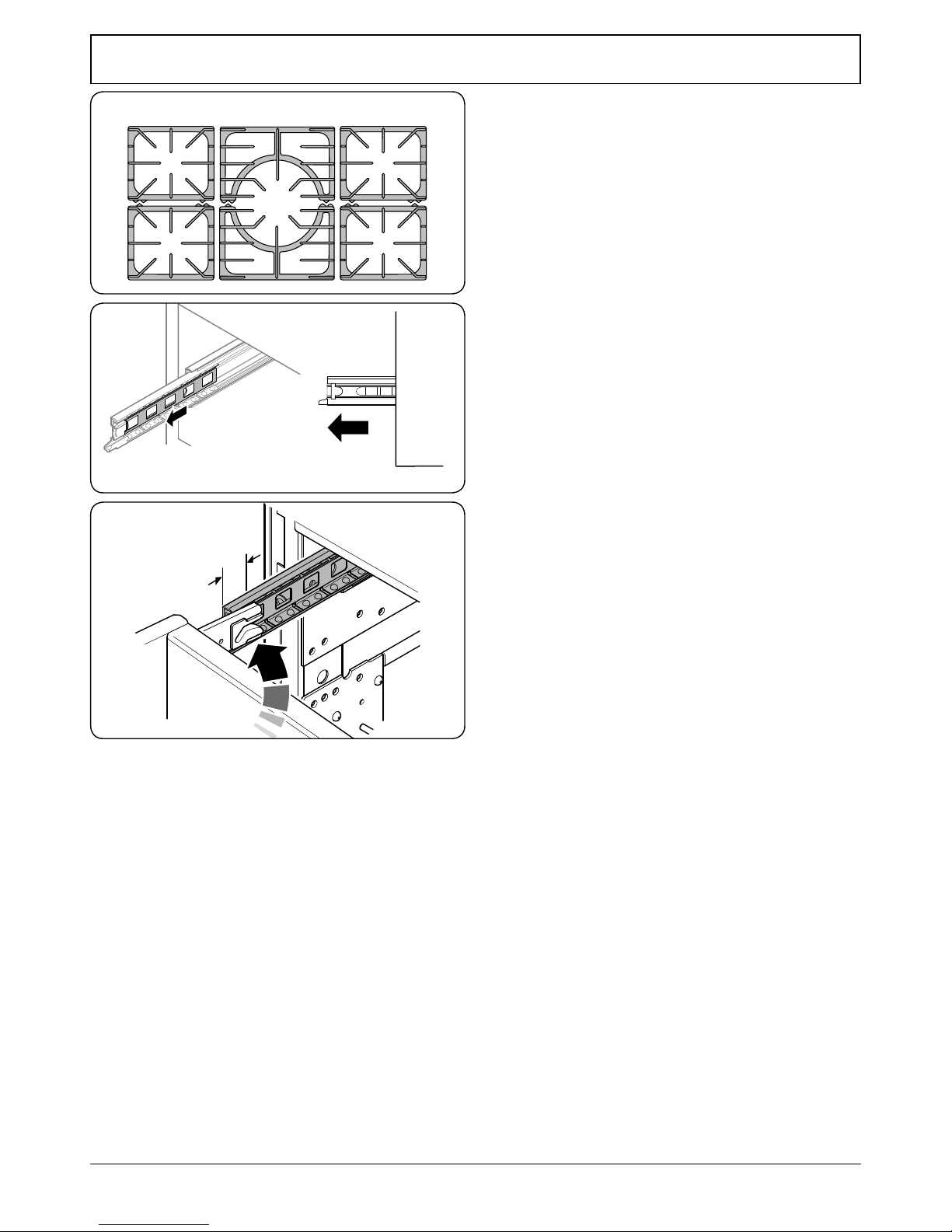

INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
32
Make sure the inner
rail is forwards
ArtNo280-0084 DF Pan Supports
Fitting the Grates
Make sure that the grates are in the correct position and
sitting down (Fig.7-38).
To Fit the Storage Drawer
Slide the inner side rails out until fully extended (Fig.7-39).
Lift the drawer at its sides and locate one of the drawer rails
(approximately 15 mm) onto an inner side rail (Fig.7-40).
Rotate the drawer to locate the remaining drawer rail onto
the opposite inner side rail.
Carefully slide the drawer back into the cavity. Some
resistance will be felt as the drawer rails locate fully onto the
inner side rails.
Fig.7-38
Fig.7-39
15 mm
Approx.
Fig.7-40
Page 35
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
33
Range Operational Checks
Oven Check
Turn on the oven and check that the oven fans start to turn
and that the oven starts to heat up. Turn o the oven.
Oven Light
Press the oven light switch and check that the lights are
working.
Note: The oven light bulbs are not included in the warranty.
Check Ignition of Cooktop Burners
Operation of all cooktop burners should be checked after the
range and gas supply lines have been carefully checked for
leaks.
Check each burner in turn. There is a ame safety device that
stops the ow of gas to the burner if the ame goes out.
There is also a spark ignition system that works when the
knob is pressed in.
For each burner, push in and turn a knob to the lighting
position.
The igniter should spark and light the gas. Keep holding the
knob pressed in to let the gas through to the burner for few
seconds.
If, when you let go of the control knob, the burner goes out,
the safety device has not held in. Turn the control to the
o position and wait one minute, then try again this time
holding in the control knob for slightly longer.
Quality of Flames
If the ame is distorted, check that the burner head is
correctly placed over the burner base.
MAKE SURE THE FLOW OF COMBUSTION AND
VENTILATION AIR TO THE RANGE IS UNOBSTRUCTED.
MAKE SURE ALL CONTROLS ARE LEFT IN THE OFF
POSITION.
Customer Care
Please complete your details in the table at the end of the
‘Using your Range’ section of this guide.
Please inform the user how to operate the range. Place these
instructions into the colored CornuFé folder in the instruction
pack and hand them to the user.
Thank you.
How To Move the Range for Servicing
Follow these procedures to remove appliance for servicing:
• Shut off the gas supply and turn off the circuit breaker.
• Disconnect gas supply tubing to appliance and unplug
the electrical supply cord.
Note: A suitably qualied person should disconnect and
reconnect the gas supply.
The range is very heavy. Take great care. We recommend
two people maneuver the range. Make sure that the oor
covering is rmly attached, or removed to prevent it being
disturbed when moving the range around.
Before attempting to move the range, see ‘Moving the Range’
on page 23.
Replacing the Range
Reverse procedure to reinstall. If gas line has been
disconnected, check for gas leaks after reconnection.
Note: A suitably qualied person should disconnect and
reconnect the gas supply.
The service engineer MUST follow installation instructions
provided with the gas appliance connector and the warning
label attached to the connector.
If the range is removed for any reason, make sure the anti-tip
device is re-engaged properly when the range is replaced.
Failure to take this precaution could result in tipping of the
range and cause injury.
Replace the storage drawer and door.
Page 36
34
WARNING!
If the information in this manual is not followed exactly, a re or
explosion may result causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
WARNING!
The anti-tip device supplied with this range must be installed when the appliance is installed. This
will reduce risk of tipping of the appliance from abnormal usage or by excessive loading of the oven
door or storage drawer.
ArtNo.030-0030 - RM tipping
warning symbols
WARNING
• ALLRANGESCANTIP
• INJURYTOPERSONSCOULDRESULT
• INSTALLANTI-TIPBRACKETPACKEDWITH
RANGE
• SEEINSTALLATIONINSTRUCTIONS
Page 37
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
35
Burner head
Burner base
Brass venturi
Important
• Observeallgoverningcodesandordinances.
• Therangemustbeproperlygrounded.
• Savetheseinstructionsforthelocalelectricalinspector’s
use.
When servicing or replacing gas carrying components
disconnect from gas before commencing operation and
check appliance is gas sound after completion. When
checking for gas leaks use a liquid leak detector at all joints
and connections to check for leaks in the system. Use a
product specically manufactured for leak detection. Leak
testing of the appliance shall be conducted in accordance to
the manufacturer’s instructions.
For Your Safety
DO NOT store or use combustible materials, gasoline or other
ammable vapors and liquids in the vicinity of this or any
other appliance.
Conversion to Propane
This appliance is supplied set for Natural gas. A conversion kit
for Propane gas is supplied with the range.
If the appliance is to be converted this must be done before
installation. The conversion must be performed by a qualied
LP gas installer. After conversion the installation must comply
with the relevant regulations and also the local electricity
supply company requirements. Read the instructions before
converting this appliance.
Failure to convert the appliance correctly could invalidate any
warranty or liability claims and lead to prosecution.
This instruction must be used in conjunction with the rest
of the appliance instruction, in particular for information on
Standards, range positioning, connection hose suitability etc.
When servicing or replacing gas-carrying components
disconnect from gas before commencing operation and
check appliance is gas sound after completion.
DO NOT use reconditioned or unauthorized gas controls.
Orifices
Remove the burner heads. Undo the large brass nuts and
remove the brass venturis and rings (Fig.8-1).
Either:
Use a long socket wrench to access and remove the old
orices.
Or:
Lift up the front of the maintop and prop it up at the
front. Remove the old orices.
Save the orices removed from the appliance for future use.
Install the new orices; see Table 8-1 for orice details.
8. Conversion to LP Gas
Natural Gas Propane Gas
Center burner
205 118
Large Burners
150 99
Right front burner
112 68
Fig.8-1
Table 8-1
Page 38

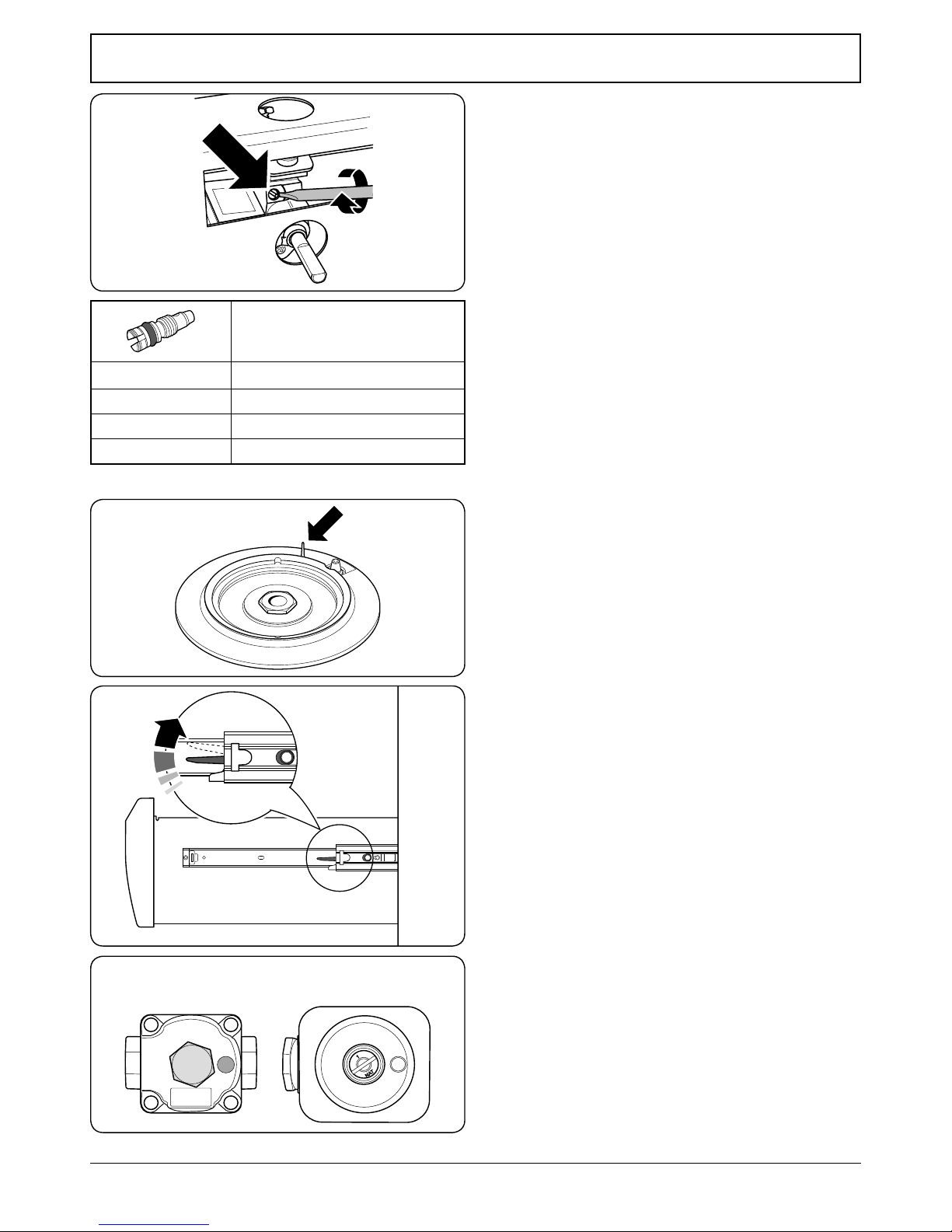

INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
36
ArtNo.102-0005 - Gas regulator types
Type 1 Type 2
Fig.8-4
Replace the rings on the burners. Screw in the hexagon
headed venturi to make tting the burners easier. Do not
tighten yet.
When all the burner bases and venturis have been tted
tighten the venturi nuts.
Valve Adjustment
Removing the Control Panel
Pull o all the control knobs.
Open both oven doors and remove the xing screws
underneath the control panel.
On single oven models the cooling guide, below the control
panel, and its 4 xing screws must be removed to gain access
to the control panel xings.
Remove the 3 xing screws at the top of the control panel.
Pull the control panel forward. Taking care not to damage it,
by protecting it with cloth for example, rest it on the open
oven doors.
Bypass Screw Adjustment
Turn the bypass screw on each control clockwise to the stop
(Fig.8-2).
See Table 8-2 for the correct size.
Reassemble
Replace the control panel and secure with xing screws.
Ret the control panel and cooling guide where tted
If you have lifted the maintop, carefully lower it onto the
range. The burners are protected against the burner ames
going out by Flame Supervision Devices (FSD’s).
Take care when lowering the maintop to locate the FSD
sensor probes (Fig.8-3) in their holes in the cook top and the
burner bases.
Gas Regulator
Pull the drawer right out.
Push the ends of the plastic clips – down of the left-hand side,
up on the right-hand side – to release the catches holding the
drawer to the side rails (Fig.8-4). At the same time pull the
drawer forwards and away from the side rails.
For safety reasons slide the inner side rails back into the
cavity.
The regulator is now accessible.
The regulator may be one of two types (Fig.8-5).
Natural Gas and
Propane Gas
Cooktop Bypass
Center burner
49
Large burners
38
Right front burner
31
Table 8-2
Fig.8-3
Fig.8-5
ArtNo.0102-0011 - Screwing
the control valve bypass screw
Fig.8-2
Page 39
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
37
Type 1
Unscrew the hexagonal nut in the front of the regulator. The
regulator nut has a plastic snap-in converter device on the
underside (Fig.8-6). To convert the regulator snap the device
out of the nut and replace the other way up.
The snap-in converter device is marked to show which gas it
is set for (Fig.8-7). Make sure the device is secure in the base
of the nut and replace the nut to the regulator.
Type 2
The regulator has a bayonet mounted top cap (Fig.8-8).
Using a small coin, press in and turn the cap to remove it.
Turn the cap over so that the letters “LP” are visible on base of
the hollow in the cap. Replace the cap making sure that the
bayonet pins are securely located (Fig.8-9).
Stick on Label
Stick the “NOW ADJUSTED FOR LP GAS” label next to the
ratings label inside the drawer cavity to indicate the gas the
appliance is now set for (Fig.8-10).
ArtNo.102-0007 - Maxitrol converter device positions
ArtNo.103-0006 - Maxitrol cap & converter
Nut
Snap-in converter device
ArtNo.102-0008 - Regulator cap
ArtNo.102-0010 - Adjusted to LP gas label
ArtNo.102-0009 - Gas regulator settings
Type 1 Type 2
Fig.8-6
Fig.8-7
Fig.8-8
Fig.8-9
Fig.8-10
Page 40

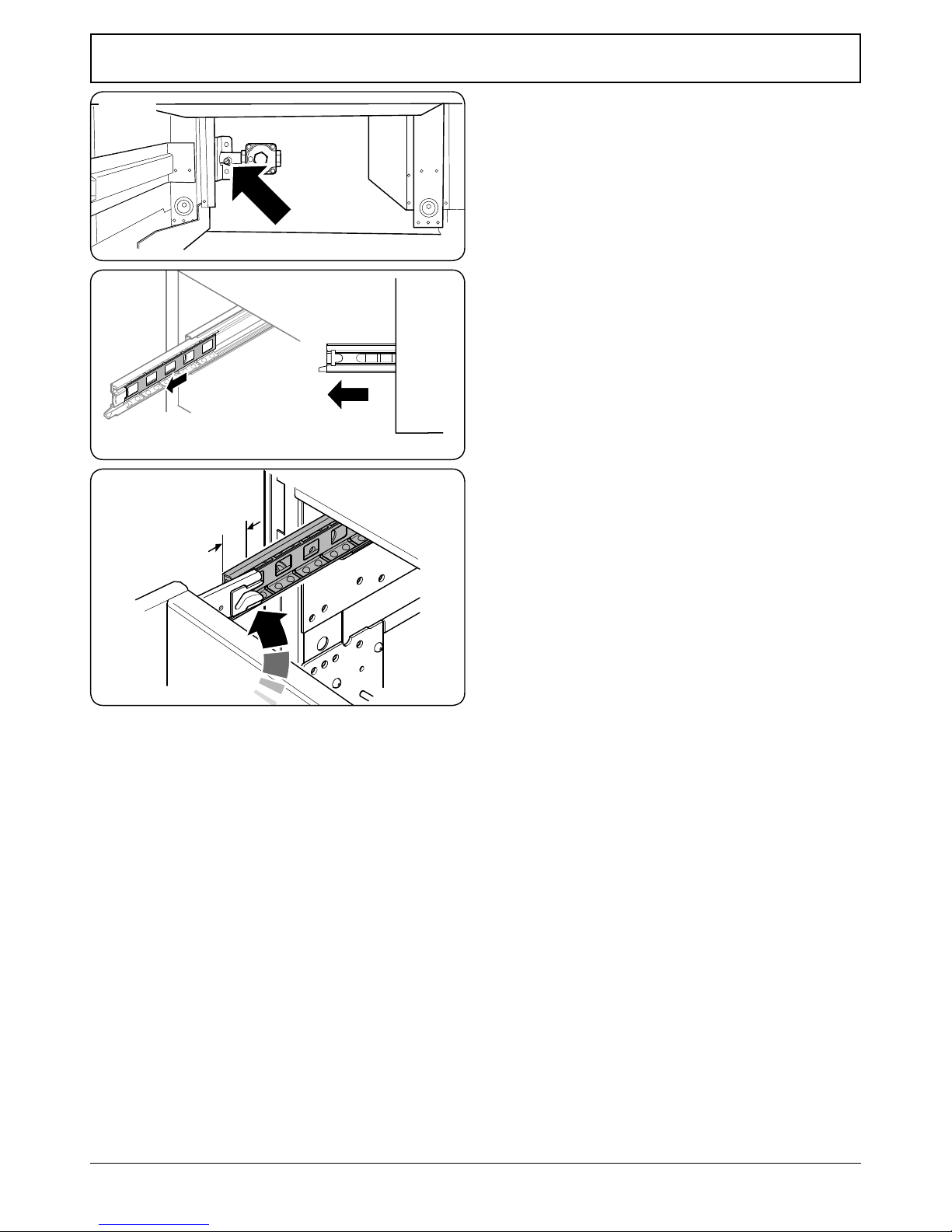

INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
38
Make sure the inner
rail is forwards
ArtNo.102-0011 - Pressure test point
Pressure Testing
Connect the appliance to the gas supply. Check the appliance
is gas sound.
The gas pressure can be measured at the pressure test point
on the appliance side of the pressure regulator (Fig.8-11).
For proper operation, the pressure of LP supplied to the
regulator must be between 10’’ and 13’’ of water column
(2.49 – 3.24 kPa).
When checking for proper operation of the regulator, the
inlet pressure must be at least 1’’ (0.25 kPa) greater than the
operating (manifold) pressure as given above.
The pressure regulator located at the inlet of the range
manifold must remain in the supply line regardless of
whether natural or LP gas is being used.
To Fit the Storage Drawer
Slide the inner side rails out until fully extended (Fig.8-12).
Lift the drawer at its sides and locate one of the drawer rails
(approximately 15 mm) onto an inner side rail (Fig.8-13).
Rotate the drawer to locate the remaining drawer rail onto
the opposite inner side rail.
Carefully slide the drawer back into the cavity. Some
resistance will be felt as the drawer rails locate fully onto the
inner side rails.
Check the appliance is gas sound.
DO NOT use a ame to check for gas leaks.
When using test pressures greater than ½ psig to pressure
test the gas supply system of the residence, disconnect the
range and individual shut-o valve from the gas supply
piping. When using test pressures of ½ psig or less to test
the gas supply system, simply isolate the range from the gas
supply system by closing the individual shut-o valve.
Check the operation of all the burners.
Fig.8-11
Fig.8-12
15 mm
Approx.
Fig.8-13
Page 41
39
Please complete the appliance details opposite and keep
them safe for future reference – this information will enable
us to accurately identify your particular appliance and
help us to help you. Filling this in now will save you time
and inconvenience if you later have a problem with your
appliance. It may also be of benet to keep your purchase
receipt with this leaet. You may be required to produce the
receipt to validate a warranty service visit.
This information is on the appliance data badge. This is
located inside base of drawer cavity. For removal of the
drawer see the ‘Storage’ section of the instructions.
If You Have a Problem
In the unlikely event that you have a problem with your
appliance please refer to the rest of this booklet, especially
the ’Troubleshooting’ section, rst to check that you are using
the appliance correctly.
If you are still having diculty, contact:
La Cornue Service Center
Phone: 877-LACORNUE (7:00 am - 4:00 pm M-F Pacic
time).
Please Note
If your appliance is outside the 3 year warranty period our
service provider may charge for this visit.
If you request an engineer to visit and the fault is not the
responsibility of the manufacturer, our service provider
reserves the right to make a charge.
Appointments not kept by you may be subject to a charge.
Out of Warranty
We recommend that our appliances are serviced regularly
throughout their life to maintain the best performance and
eciency.
Service work should only be carried out by technically
competent and suitably qualied personnel.
Parts
To maintain optimum and safe performance, only use
genuine parts. DO NOT use re-conditioned or unauthorized
gas controls. Contact your retailer.
9. Service and Parts
ArtNo.050-0011 - Installer information table USA
Appliance Serial Number
Color
Name of Appliance
Date of Installation
Retailers Name & Address
Date of Purchase
Installer’s Name & Address
Fuel Type
Page 42
40
10. Circuit Diagram
ArtNo.080-0009 - 90DF - Cornufe circuit diagram
a
b
e
f
c
d
1
2
6
5
4
7
8
2
1
3
P2
P1
P3
P4
P5
P6
P7
P8
12
12
4 P4
3 P3
2 P2
1 P1
bk
bk
r
b
gy
w
b
gy
w
y
or
v
y
y
r
r
r
r
r
r
r
br
r or
vwww
w
br
bk
wvbk
w
vbr
vbr
vbr
vbr
vbr
vr
bk v w
w
gy
gy
gy
gy
y
y
r
r
br
bk
bk
bk
or
or
w
r
bk
bk
or
w
br
or
r
br
bk
r
bk br
r
bk
G
HH
I
I
I
r
N
L1
L2
A1
A2
A3
A4
A5
A6
A7
B1
B2
B3
B4
C1
C2
D1 D2 F1 F2
Code Color
b Blue
br Brown
bk Black
or Orange
r Red
v Violet
w White
y Yellow
g/y Green/yellow
gy Gray
Code Description
A1 Left-hand Multi-function oven thermostat
A2 Left-hand Multi-function oven controller
A3
Left-hand Multi-function oven base
element
A4
Left-hand Multi-function oven top element
(outer pair)
A5
Left-hand Multi-function oven browning
element (inner pair)
A6 Left-hand Multi-function oven fan element
A7 Left-hand Multi-function oven fan
B1 Right-hand oven thermostat
B2 Right-hand oven thermostat control switch
B3 Right-hand oven fan element
B4 Right-hand oven fan
Code Description
C1 Hotplate ignition switches
C2 Spark generator
D1 Left-hand oven light switch
D2 Left-hand oven light
F1 Right-hand oven light switch
F2 Right-hand oven light
G Cooling fan
H Neon
I Thermal cut-out
Page 43
41
11. Technical Data
INSTALLER: Please leave these instructions with the user.
DATA BADGE LOCATION: Inside base drawer of cavity. Remove the drawer
(see Overview > Storage for details).
COUNTRY OF DESTINATION: USA, Canada.
Connections
Electric 240 V 60 Hz
Gas ½” NPT at rear left-hand side
Dimensions
Overall height
minimum 3515/16” (91cm) maximum 367/8” (93.7cm)
Overall width
35½” (90cm); see ‘Positioning of Cooker’.
Overall depth
285/8” (720 mm)
Minimum space for cooktop
31½” (800 mm)
Ratings
Oven
Fan element 2.5 kW
Top element 1.2 kW
Browning element 1.15 kW
Bottom element 1.0 kW
Gas Hob
Bypass
Screw*
Natural Gas 4” WC Propane Gas 10” WC
Input Orice Input Orice
Centre burners 49 17,500 btu/hr 205 17,500 btu/hr 118
Larger burners 38 12,000 btu/hr 150 12,000 btu/hr 99
Right-hand front burner 31 6,000 btu/hr 112 6,000 btu/hr 68
* The valves in this range are tted with adjustable bypass screws. The range is supplied with the bypass screws set for Natural
gas. For LPG conversion the bypass screws must be screwed all the way down.
Oven Efficiencies
Ovens
Left-hand
Multi-function
Right-hand
Convection
Maximum total electric load 240 V 2.5 kW 2.5 kW
Energy eciency class on a scale of A (more ecient) to G (less ecient) A A
Energy consumption based on standard load 0.95 kWh 0.90 kWh
Usable volume (cubic feet) 2.5 2.5
Size Large Large
Time to cook standard load 42.5 minutes 40.5 minutes
Maximum total electric load 240 V (including oven fans, lights, etc.): = 5.1 kW, 22 A.
Note: The maximum input at any time is given as the fanned grill, which is all top elements and the fan.
Page 44
42
Full Three Year Warranty
Covers three years from the date of installation or date of
occupancy for a new previously unoccupied dwelling.
Save your dated receipt or other evidence of the installation/
occupancy date.
La Cornue Will Pay For:
All repair labor and replacement parts found to be defective
due to materials and workmanship.
Any damage due to transit must be reported within 15 days
of delivery.
Cosmetic faults must be reported within 30 days of
installation.
Service must be provided by an Authorized Service Agency
during normal working hours.
For a Service Agency nearest you, please call 877-LACORNUE
(7:00 am - 4:00 pm M-F Pacic time).
La Cornue Will Not Pay For:
1. Service by an unauthorized agency or damage or
repairs due to service by an unauthorized agency or use
of unauthorized parts.
2. Service visits to:
Teach you how to use the appliance.
Correct the installation. You are responsible for
providing electrical wiring and other connecting
facilities.
Reset circuit breakers or replace home fuses.
Replace owner-accessible light bulbs.
3. Damage caused from accident, alteration, misuse,
abuse, improper installation or installation not in
accordance with local electrical codes or plumbing
codes, or improper storage of the appliance.
4. Repairs due to other than normal home use.
5. Service labor during limited warranty period.
6. Travel fees and associated charges incurred when
the product is installed in a location with limited or
restricted access, (i.e., airplane ights, ferry charges,
isolated geographic regions).
Warranty applies to appliances used in residential application:
it does not cover their use in commercial installations.
This warranty is for products purchased and retained in the
50 states of the USA, District of Columbia and Canada. Should
the appliance be sold by the original purchaser during the
warranty period, the new owner continues to be protected
until the expiration date of the original purchaser’s warranty
period.
The warranty applies even if you should move.
LA CORNUE DOES NOT ASSUME ANY RESPONSIBILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation
or exclusion may not apply to you. This warranty gives you
specic legal rights and you may also have other rights that
may vary from state to state or province to province.
If you need service, rst see the ‘Troubleshooting’ section
of the instruction book. Additional help can be found by
checking the ‘Service and Parts’ section.
12. Warranty
Page 45
Page 46
Page 47
Page 48
AGA CONSUMER PRODUCTS
USA
Purcell Murray Company
185 Park Lane,
Brisbane, CA 94005, USA
T: 800-457-1356 or 415-468-6620
F: 415-358-4377
www.lacornueusa.com
www.purcellmurray.com
CANADA
AGA Marvel
1260 E. VanDeinse St.
Greenville, MI 48838
Business (616) 754-5601
Fax: (616) 754-9690
Toll Free Telephone 800-223-3900
www.lacornue.com/ca
www.agamarvel.com
Loading...
