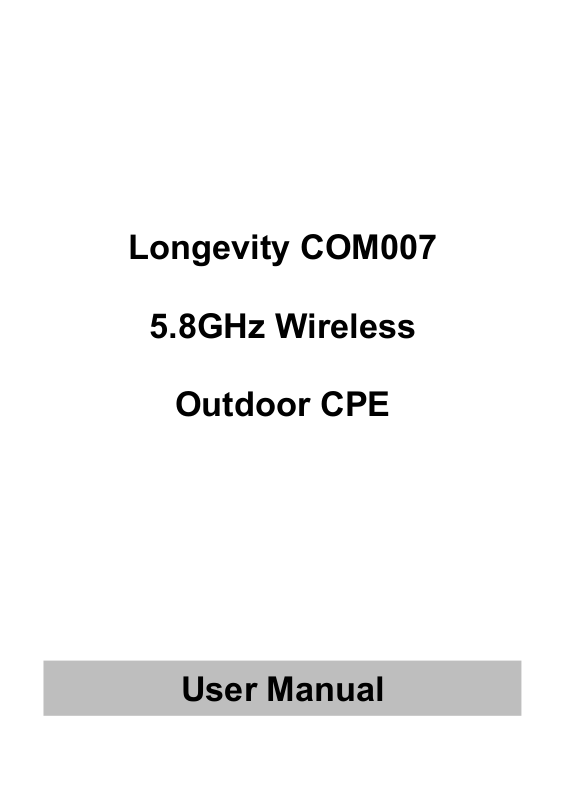

Longevity COM007
User Manual
5.8GHz Wireless
Outdoor CPE
Table of Contents
Important Safeguards and Warnings
Electrical Safety Information
Notice Information
Introduction...................................................................................................................... 2
DIP switch settings
LED indicators
Recommened frequencies in Australia
Application 1 - Network Extender..............................................................................12
Application 2 - Network Video Recorder + Camera
Installation Considerations
FAQs
...............................................................................................................................
.................................................................................................................
.....................................................................................................
.........................................................................................................
..........................................................................................
...................................................................................
..........................................................................
.......................................................................
...............................................
13
14
14
1
1
1
2
3
4
Important Safeguards and Warnings
Please read the following safeguards and warnings carefully before using the product in
order to avoid damages losses and body injuries.
Electrical Safety Information
This product uses 48V POE as power source. Connection to a different power source
than those specified may result in improper operation, damage to the equipment or pose
a fire hazard if the limitations are not followed.
There are no operator serviceable parts inside this equipment. Service should be
provided only by a qualified service technician.
Do not use this product in location that can be submerged by water.
Do not install this product during an electrical storm. There may be a risk of electric shock
from lightning.
Notice Information
All the designs, software and instructions here are subject to change without prior written
notice.
We would not be responsible for any damages and losses caused by improper
operations or installation. Do not allow non-authorized or unqualified personnel with any
kind of intervention to the product.
All trademarks and registered trademarks are the properties of their respective owners.
Please visit our website www.rhinoco.com.au for more information.
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 1 ----
Introduction
Mode
(DIP Switch 1)
ON = Receiver (Connect to network video recorder or PC)
OFF = Transmitter (Connect to network cameras or internet modem)
IP segment
(DIP switch 2-8)
See Table 1
Tx/Rx IP address
(DIP switch 9-10)
Tx/Rx IP address: Since one receiver supports up to 4 transmitters, we need to
set different IP address for the transmitters as follow:
DIP switch 1
DIP switch 9
DIP switch 10
Tx/Rx IP
address
ON
(Receiver
Mode)
ON ↑
ON ↑
x.x.x.1
OFF
(Transmitter
Mode)
OFF ↓
OFF ↓
x.x.x.2
OFF ↓
ON ↑
x.x.x.3
ON ↑
OFF ↓
x.x.x.4
ON ↑
ON ↑
x.x.x.5
where x=IP segment according to Table 1
i.e. the last digit of the receiver must be 1 and those of transmitters is from 2-5.
Switch1
Switch2
Switch3
Switch4
Switch5
Switch6
Switch7
Switch8
Switch9
Switch10
Receiver
ON ↑
ON ↑
ON ↑
ON ↑
ON ↑
ON ↑
ON ↑
ON ↑
ON ↑
ON ↑
Transmitter
OFF ↓
ON ↑
ON ↑
ON ↑
ON ↑
ON ↑
ON ↑
ON ↑
OFF ↓
ON ↑
Longevity COM007 is designed for long distance transmission of IP packets which is
commonly used in PC network and network cameras. The DIP switches enable the
installer/user to set up the device IP address and frequency with ease.
DIP switch settings
Mode IP segment Tx/Rx
IP address
For example, if we want to set up a receiver with IP address 172.19.127.1 and transmitter IP
address 172.19.127.3:
Note
：
1. Turn power off before setting the DIP switches.
2. Unlike ordinary wireless access points, the transmitter/receiver will not broadcast the
SSID.
3. Switch 2-8 of the receiver and transmitter must be the same.
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 2 ----
Power WLAN LAN1 LAN2
LED1 LED2 LED3 LED4
Signal Strength
LED indicators
LED
Status
Description
Power
(Red)
On
Power is on.
Off
Power is off.
WLAN
(Blue)
Flashing
Wireless LAN is connected.
LAN1
On
LAN1 is connected.
LAN2
On
LAN2 is connected.
Signal
LEDs
LED1 On
Signal is too weak.
LED1-2 On
Signal is weak.
LED1-3 On
Signal is good.
LED1-4 On
Signal is strong.
LED4 On ONLY
Signal is excellent.
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 3 ----
Recommened frequencies in Australia
Frequency
(MHz)
Area of installation
IP segment
DIP switch setting
5180
Indoors only
172.19.0.x
172.19.25.x
172.19.50.x
172.19.75.x
172.19.100.x
Different countries apply their own regulations to the allowable channels, allowed users and
maximum power levels within these frequency ranges.
The following table lists the available frequencies in Australia. DO NOT use frequency which
may infringe the regulation to prevent interfere of other radio network devices.
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 4 ----
172.19.125.x
5200
Indoors only
172.19.1.x
172.19.26.x
172.19.51.x
172.19.76.x
172.19.101.x
172.19.126.x
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 5 ----
5220
Indoors only
172.19.2.x
172.19.27.x
172.19.52.x
172.19.77.x
172.19.102.x
172.19.127.x
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 6 ----
5240
Indoors only
172.19.3.x
172.19.28.x
172.19.53.x
172.19.78.x
172.19.103.x
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 7 ----
5745
Indoors and
Outdoors
172.19.20.x
172.19.45.x
172.19.70.x
172.19.95.x
172.19.120.x
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 8 ----
5765
Indoors and
Outdoors
172.19.21.x
172.19.46.x
172.19.71.x
172.19.96.x
172.19.121.x
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 9 ----
5785
Indoors and
Outdoors
172.19.22.x
172.19.47.x
172.19.72.x
172.19.97.x
172.19.122.x
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 10 ----
5805
Indoors and
Outdoors
172.19.23.x
172.19.48.x
172.19.73.x
172.19.98.x
172.19.123.x
Note: You can download the full frequency range DIP switch setting table from:
https://www.rhinoco.com.au/file/download/3934
Disclaimer: We do not guarantee the validity of the information above, please contact your network
administrator for more information.
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
Table 1
---- 11 ----
Application 1 - Network Extender
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
----12----
Application 2 - Network Video Recorder + Camera
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
----13----
Installation Considerations
Mounting Height: For optimum performance, make sure a clear line of sight between the
transmitter and receiver. An elevated location is recommended. Obstacles like trees,
buildings and large steel structures will weaken the wireless signal.
Orientation: Make sure the transmitter and receiver is installed face-to-face to achieve
maximum performance.
FAQs
Q: Do I need a power supply for the transmitter/receiver?
A: No, you don’t. The transmitter/receiver is powered by 48V POE. Use a CAT5e/CAT6
cable, connect one port(Lan1 or LAN2) to a 48V POE network switch or a 48V POE
splitter. Connect the other port to the network device.
Q: WLAN and LAN LEDs don’t turn on when I power up the transmitter/receiver? Why?
A: When power up, it takes about one minute to initialize the device, please wait.
Q: WLAN LED is on now but the signal strength LEDs don’t? Why?
A: The signal strength LEDs will light only when a successful connection is established.
When power up, it takes about three minutes to search the receiver with the same IP
address, please wait.
Q: How to reset the device?
A: Press and hold the RST button for three seconds when power is on.
Q: I connect the CPE as network bridge. How can I test the connection?
A: You can ping both the transmitter and receiver.
For example, if the receiver address is 172.19.0.1 and those of transmitter is 172.19.0.2:
1. Change the IP address of the PC to 172.19.0.xx where xx=6 to 255. Change the subnet
mask to 255.255.0.0
2. Ping the receiver side first (because the receiver is connected to the PC):
In Command mode, type: ping 172.19.0.1 <ENTER>
If the connection is successful, it will reply as follow:
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 14 ----
Pinging 172.19.0.1 with 32 bytes of data:
Reply from 172.19.0.1: bytes=32 time<1ms TTL=64
Reply from 172.19.0.1: bytes=32 time=1ms TTL=64
Reply from 172.19.0.1: bytes=32 time<1ms TTL=64
Reply from 172.19.0.1: bytes=32 time<1ms TTL=64
Ping statistics for 172.19.0.1:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 1ms, Average = 0ms
Note: Make sure 0% loss as the receiver is connected to the PC direct, it should get 100% hit
rate (0% loss).
The connection between the PC and the receiver is established.
Now test the connection between the transmitter and receiver:
3. In Command mode, type: ping 172.19.0.2 <ENTER>
If the connection is successful, it will reply as follow:
Pinging 172.19.0.2 with 32 bytes of data:
Reply from 172.19.0.2: bytes=32 time<1ms TTL=64
Reply from 172.19.0.2: bytes=32 time=1ms TTL=64
Reply from 172.19.0.2: bytes=32 time<1ms TTL=64
Reply from 172.19.0.2: bytes=32 time<1ms TTL=64
Ping statistics for 172.19.0.2:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 1ms, Average = 0ms
Note: The ideal case is to have 100% hit rate (0% loss). If not, adjust the CPE’s orientation,
height and distance to achieve the best performance.
You can also test the connection continuously by typing: ping 172.19.0.2 -t <ENTER>
Press Ctrl-C to stop testing.
4. Type exit to return to Windows platform.
Q: Is there a web platform for the transmitted and receiver?
A: Yes, you can access the web platform by entering the IP address of the
transmitter/receiver. The parameters are tuned for maximum performance when shipped,
DO NOT CHANGE THE PARAMETERS IF YOUR ARE NOT SURE.
For example, if the receiver address is 172.19.0.1 and those of transmitter is 172.19.0.2:
1. Change the IP address of the PC to 172.19.0.xx where xx=6 to 255. Change the subnet
mask to 255.255.0.0
2. Type the IP address of the transmitter/receiver in a web browser:
Example: http://172.19.0.1 <ENTER> (receiver) or http://172.19.0.2 <ENTER>
(transmitter). The default password is “password”.
Longevity COM007 Installation Manual V1.1 Issued 2019-07-24
Copyright © Cornick Pty. Ltd. 2019 http://www.cornick.com.au
---- 15 ----
