Page 1

LED color

RF Power level

RF Power density

LF600/LF30 level

Indication

Action

RED3

-5 dBm up

0.18 w/m

30uT/3uT up

Italy RF safety standard (0.1w/m2)

Caution!

RED2

-10 dBm

0.058 w/m

20uT/2uT

Swiss RF safety standard (0.04w/m2)

Caution!

RED1

-15 dBm

0.018 w/m

10uT/1uT

Russian RF safety standard (0.02w/m2)

Caution!

YELLOW3

-20 dBm

5.8 mw/m

5uT/0.5uT

safe

YELLOW2

-25 dBm

1.8 mw/m

2uT/0.2uT

safe

YELLOW1

-30 dBm

0.58 mw/m

0.5uT/0.05uT

safe

GREEN3

-35 dBm

0.18 mw/m

0.2uT/0.02uT

WiFi Wireless LAN typically in this range

safe

GREEN2

-40 dBm down

0.06 mw/m

0.2uT/0.02uT down

Some signal source around

safe

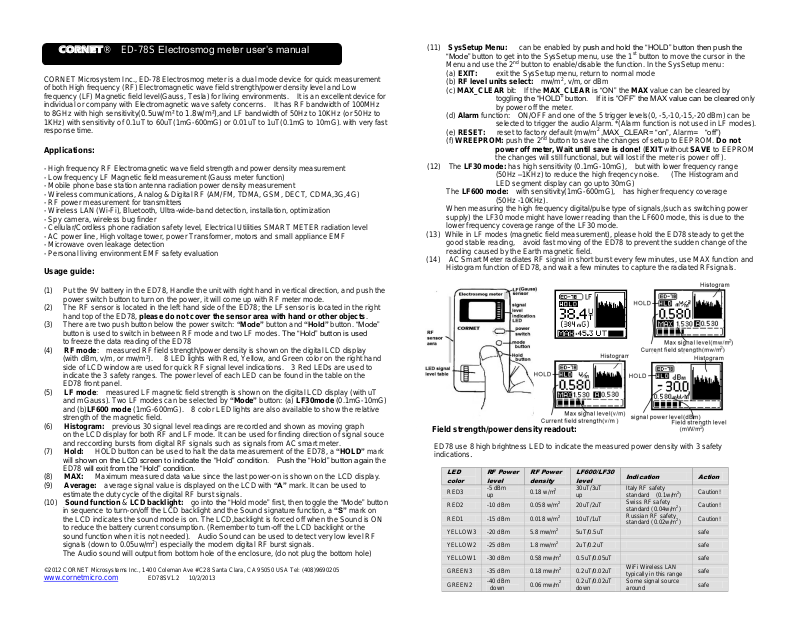

CORNET® ED-78S Electrosmog meter user’s manual

CORNET Microsystem Inc., ED-78 Electrosmog meter is a dual mode device for quick measurement of both High frequency (RF) Electromagnetic wave field strength/power density level and Low frequency (LF) Magnetic field level(Gauss, Tesla) for living environments. It is an excellent device for individual or company with Electromagnetic wave safety concerns. It has RF bandwidth of 100MHz to 8GHz with high sensitivity(0.5uw/m² to 1.8w/m²),and LF bandwidth of 50Hz to 10KHz (or 50Hz to 1KHz) with sensitivity of 0.1uT to 60uT (1mG-600mG) or 0.01uT to 1uT(0.1mG to 10mG). with very fast response time.

Applications:

- High frequency RF Electromagnetic wave field strength and power density measurement

- Low frequency LF Magnetic field measurement (Gauss meter function)

- Mobile phone base station antenna radiation power density measurement

- Wireless communications, Analog & Digital RF (AM/FM, TDMA, GSM, DECT, CDMA,3G,4G)

- RF power measurement for transmitters

- Wireless LAN (Wi-Fi), Bluetooth, Ultra-wide-band detection, installation, optimization

- Spy camera, wireless bug finder

- Cellular/Cordless phone radiation safety level, Electrical Utilities SMART METER radiation level

- AC power line, High voltage tower, power Transformer, motors and small appliance EMF

- Microwave oven leakage detection

- Personal living environment EMF safety evaluation

Usage guide:

(1) Put the 9V battery in the ED78, Handle the unit with right hand in vertical direction, and push the

power switch button to turn on the power, it will come up with RF meter mode.

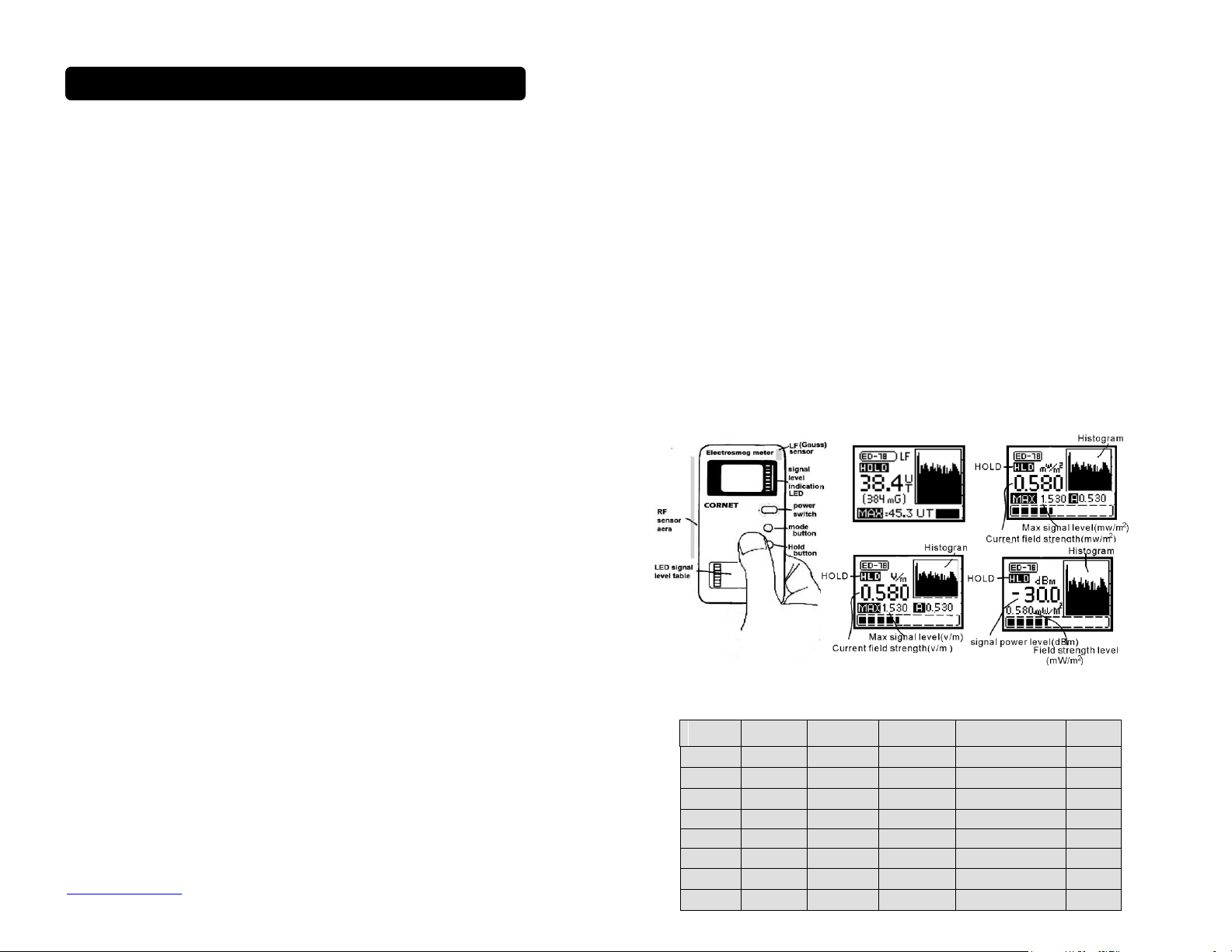

(2) The RF sensor is located in the left hand side of the ED78; the LF sensor is located in the right

hand top of the ED78, please do not cover the sensor area with hand or other objects.

(3) There are two push button below the power switch: “Mode” button and “Hold” button. “Mode”

button is used to switch in between RF mode and two LF modes. The “Hold” button is used to freeze the data reading of the ED78 (4) RF mode: measured RF field strength/power density is shown on the digital LCD display (with dBm, v/m, or mw/m²). 8 LED lights with Red, Yellow, and Green color on the right hand side of LCD window are used for quick RF signal level indications. 3 Red LEDs are used to indicate the 3 safety ranges. The power level of each LED can be found in the table on the ED78 front panel. (5) LF mode: measured LF magnetic field strength is shown on the digital LCD display (with uT and mGauss). Two LF modes can be selected by “Mode” button: (a) LF30mode (0.1mG-10mG)

and (b)LF600 mode (1mG-600mG). 8 color LED lights are also available to show the relative

strength of the magnetic field. (6) Histogram: previous 30 signal level readings are recorded and shown as moving graph on the LCD display for both RF and LF mode. It can be used for finding direction of signal souce

and reccording bursts from digital RF signals such as signals from AC smart meter. (7) Hold: HOLD button can be used to halt the data measurement of the ED78, a “HOLD” mark

will shown on the LCD screen to indicate the “Hold” condition. Push the “Hold” button again the

ED78 will exit from the “Hold” condition. (8) MAX: Maximum measured data value since the last power-on is shown on the LCD display. (9) Average: average signal value is displayed on the LCD with “A” mark. It can be used to

estimate the duty cycle of the digital RF burst signals. (10) Sound function & LCD backlight: go into the “Hold mode” first, then toggle the “Mode” button

in sequence to turn-on/off the LCD backlight and the Sound signature function, a “S” mark on

the LCD indicates the sound mode is on. The LCD,backlight is forced off when the Sound is ON

to reduce the battery current consumption. (Remember to turn-off the LCD backlight or the

sound function when it is not needed). Audio Sound can be used to detect very low level RF

signals (down to 0.05uw/m2) especially the modern digital RF burst signals.

The Audio sound will output from bottom hole of the enclosure, (do not plug the bottom hole)

www.cornetmicro.com ED78SV1.2 10/2/2013

(11) SysSetup Menu: can be enabled by push and hold the “HOLD” button then push the

“Mode” button to get into the SysSetup menu, use the 1st button to move the cursor in the Menu and use the 2nd button to enable/disable the function. In the SysSetup menu: (a) EXIT: exit the SysSetup menu, return to normal mode (b) RF level units select: mw/m2, v/m, or dBm

toggling the “HOLD” button. If it is “OFF” the MAX value can be cleared only by power off the meter.

(d) Alarm function: ON/OFF and one of the 5 trigger levels(0, -5,-10,-15,-20 dBm) can be

selected to trigger the audio Alarm. *(Alarm function is not used in LF modes). (e) RESET: reset to factory default (mw/m2 ,MAX_CLEAR= “on”, Alarm= “off”) (f) WREEPROM: push the 2nd button to save the changes of setup to EEPROM. Do not

power off meter, Wait until save is done! (EXIT without SAVE to EEPROM

the changes will still functional, but will lost if the meter is power off ).

(12) The LF30 mode: has high sensitivity (0.1mG-10mG), but with lower frequency range

(50Hz –1KHz) to reduce the high freqency noise. (The Histogram and

LED segment display can go upto 30mG) The LF600 mode: with sensitivity(1mG-600mG), has higher frequency coverage

(50Hz -10KHz). When measuring the high frequency digital/pulse type of signals,(such as switching power supply) the LF30 mode might have lower reading than the LF600 mode, this is due to the lower frequency coverage range of the LF30 mode.

(13) While in LF modes (magnetic field measurement), please hold the ED78 steady to get the

good stable reading, avoid fast moving of the ED78 to prevent the sudden change of the reading caused by the Earth magnetic field.

(14) AC Smart Meter radiates RF signal in short burst every few minutes, use MAX function and

Histogram function of ED78, and wait a few minutes to capture the radiated RFsignals.

Field strength/power density readout:

ED78 use 8 high brightness LED to indicate the measured power density with 3 safety

indications.

Page 2

NOTE:

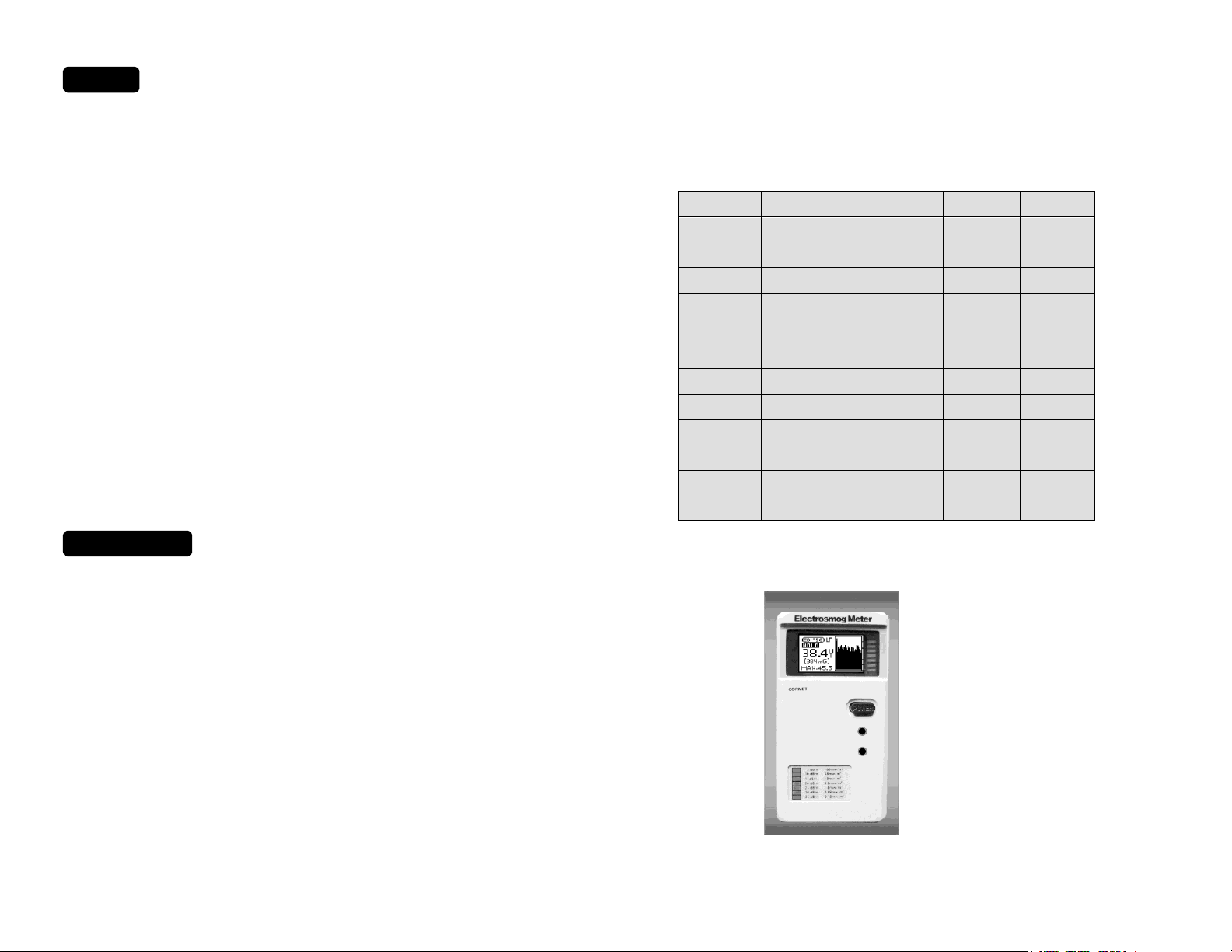

The European Community provided general guidelines in its Council Recommendation of July 1999.1 ICNIRP published similar guidelines in April 1998.2 Table I gives a sampling of the international and national fieldstrength limit values for the general public and continuous exposure (for Reference only !)

950Mhz 1850Mhz

1W/m2 = 1000mW/m2, 1mW/m2 = 1000uW/m2 = 0.1uW/cm2 1uW/m2 =0.001mW/m2 , 1uT = 10mG

International

Council Recommendation 1999/519/EC

42 V/m (4.75W/m2)

59 V/m (9.25W/m2)

International

ICNIRP Guidelines, April 1998

42 V/m (4.75W/m2)

59 V/m (9.25W/m2)

Austria

Ö NORM S1120

49 V/m (6.33W/m2)

61 V/m (10W/m2)

Belgium

Belgisch Staatsblad F.2001-1365

21 V/m (1.18W/m2)

30 V/m (2.31W/m2)

Germany

26. Deutsche Verordnung

42 V/m (4.75W/m2)

59 V/m (9.25W/m2)

Italy

Decreto n. 381, 1998

6 V/m (0.1W/m2) 20 V/m (1W/m2)

The Netherlands

Health Council

51 V/m (6.92W/m2)

83 V/m (18W/m2)

Switzerland

Verordnung 1999

4 V/m (0.04W/m2)

6 V/m (0.1W/m2)

United States

IEEE C95.1

49 V/m (6.33W/m2)

68 V/m (12W/m2)

China

Draft: National Quality Technology Monitoring Bureau

49 V/m (6.33W/m2)

61 V/m (10W/m2)

Japan

Radio-Radiation Protection Guidelines, 1990

49 V/m (6.33W/m2)

61 V/m (10W/m2)

 Most high frequency RF antenna such as Mobile phone base station is vertical polarized

(in vertical direction), therefore while in RF mode, the ED78 is normally used in vertical direction. For LF mode, the LF sensor is located in the top right hand of the ED78 and the meter is normally used in Horizontal position in LF mode. Please rotate the meter to find the maximum reading direction in either case. The maximum reading will also increase as you approach the source. ED78 can be used to find the location of signal source.

 Most of modern communication devices (Mobile phone, Wireless LAN, Wi-Fi, etc.,) use

digital RF burst signals. When measuring this type of signals, several LED lights will blinking at the same time. this is normal and it can be used as an indication of burst type of RF signals. For continues waves (AM/FM) signals, the LED light will be stable. ED78 measures the peak power density of the signal with very fast sampling time. It is more accurate than the needle style of readout which only shown the average value of signal power most of the time.

 Electromagnetic wave field strength/power density reduces very fast with distance

(distance square), keep a good distance from the high frequency RF signal source can reduce the high frequency radiation effect. Alumina foil or window sun reflector film (silver color) can be used as a effective and low cost shielding material for most of RF radiations.

 ED78 is designed for quick living environment RF radiation evaluation and is for reference

use only. Official RF safety radiation measurement procedure is complicate and should be handled by trained technical person with lab instruments. Safety range standard listed below is for reference only. ED78 is not a medical instrument, Please do not use it in medical, legal or other related applications.

 The “SENSOR” mark on the bottom of the back enclosure cover is not used in ED78  ED78 is designed for home and personal use, It is not for commercial rental purpose.  The audio sound output of the sound function is the demodulated RF signal, it is good for

AM and modern digital RF signals (pulse/burst ) detection, it is not for FM or constant amplitude RF signals or LF modes. it is an excellent tool for RF signal type indication.

(different RF signal such as Wifi, GSM, DECT, ….etc.,all has different sound frequency signature of the demodulated RF signal) and for very low level signal dectection.

Specification

Sensor type: Electric field sensor and Magnetic field sensor Frequency range & Sensitivity: RF: 100MHz to 8GHz

RF Peak power measurement: 0.5uw/m² to 1.8w/m² Display type: digital LCD graphic display Unit of measurements: dBm, mw/m², v/m, uT, mG LCD back light: 15 seconds auto-off and manual on/off control Display of data: LCD 4 and 5 digit, 8 LED color segment,

Moving Histogram(level/time) of previous 30 recorded

Data update rate: Sampling rate: 3500/sec. Display update rate: 2/sec. Error rate: +/- 3.5dBm Functions: Hold, Max, Average, Sound signature, Alarm, Sound & Alarm: Audio Sound ON/OFF control, programmable Alarm

Safety standard indication: 3 safety range indication by 3 Red LED Battery used: 9V alkaline battery, (not included) Battery life: >20 hours

www.cornetmicro.com ED78SV1.2 10/2/2013

(-60dBm to +5dBm),(0.5uw/m2 to 1.8w/m2), (14mv/m to 26.2v/m)

LF1: 50Hz to 10KHz (0.1uT to 60uT)/(1mG to 600mG) LF2: 50Hz to 1KHz (0.01uT to 1uT)/(0.1mG to 10mG)

data, Analog segment bar

triggering level
