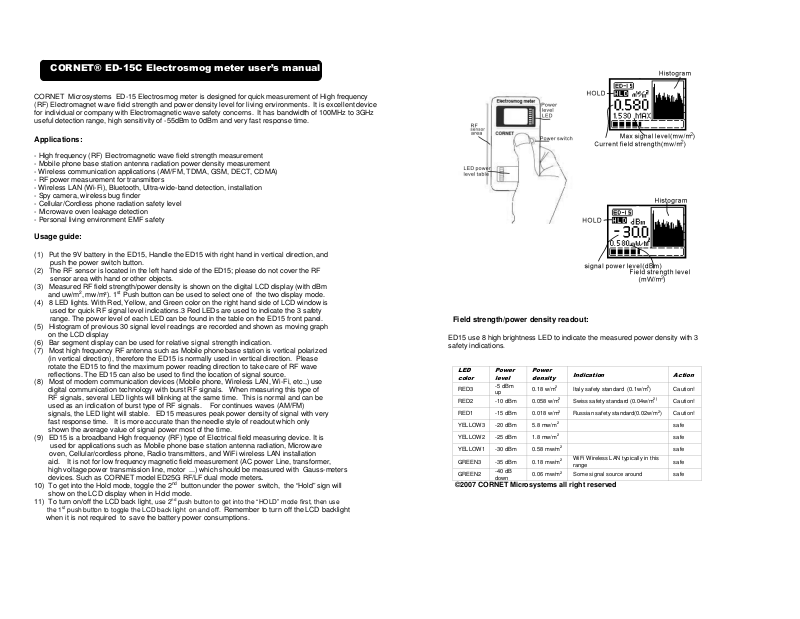

CORNET® ED-15C Electrosmog meter user’s manual
LED
color
Power
level
Power
density
WiFi Wireless LAN typically in this
CORNET Microsystems ED-15 Electrosmog meter is designed for quick measurement of High frequency
(RF) Electromagnet wave field strength and power density level for living environments. It is excellent device
for individual or company with Electromagnetic wave safety concerns. It has bandwidth of 100MHz to 3GHz
useful detection range, high sensitivity of -55dBm to 0dBm and very fast response time.
Applications:
- High frequency (RF) Electromagnetic wave field strength measurement
- Mobile phone base station antenna radiation power density measurement
- Wireless communication applications (AM/FM, TDMA, GSM, DECT, CDMA)
- RF power measurement for transmitters
- Wireless LAN (Wi-Fi), Bluetooth, Ultra-wide-band detection, installation
- Spy camera, wireless bug finder
- Cellular/Cordless phone radiation safety level
- Microwave oven leakage detection
- Personal living environment EMF safety
Usage guide:
(1) Put the 9V battery in the ED15, Handle the ED15 with right hand in vertical direction, and
push the power switch button.
(2) The RF sensor is located in the left hand side of the ED15; please do not cover the RF
sensor area with hand or other objects.
(3) Measured RF field strength/power density is shown on the digital LCD display (with dBm
and uw/m2, mw/m²). 1st Push button can be used to select one of the two display mode.
(4) 8 LED lights. With Red, Yellow, and Green color on the right hand side of LCD window is
used for quick RF signal level indications.3 Red LEDs are used to indicate the 3 safety
range. The power level of each LED can be found in the table on the ED15 front panel.
(5) Histogram of previous 30 signal level readings are recorded and shown as moving graph
on the LCD display
(6) Bar segment display can be used for relative signal strength indication.
(7) Most high frequency RF antenna such as Mobile phone base station is vertical polarized
(in vertical direction), therefore the ED15 is normally used in vertical direction. Please
rotate the ED15 to find the maximum power reading direction to take care of RF wave
reflections. The ED15 can also be used to find the location of signal source.
(8) Most of modern communication devices (Mobile phone, Wireless LAN, Wi-Fi, etc.,) use
digital communication technology with burst RF signals. When measuring this type of
RF signals, several LED lights will blinking at the same time. This is normal and can be
used as an indication of burst type of RF signals. For continues waves (AM/FM)
signals, the LED light will stable. ED15 measures peak power density of signal with very
fast response time. It is more accurate than the needle style of readout which only
shown the average value of signal power most of the time.
(9) ED15 is a broadband High frequency (RF) type of Electrical field measuring device. It is
used for applications such as Mobile phone base station antenna radiation, Microwave
oven, Cellular/cordless phone, Radio transmitters, and WiFi wireless LAN installation
aid. It is not for low frequency magnetic field measurement (AC power Line, transformer,
high voltage power transmission line, motor ...) which should be measured with Gauss-meters
devices. Such as CORNET model ED25G RF/LF dual mode meters.
10) To get into the Hold mode, toggle the 2nd button under the power switch, the “Hold” sign will
show on the LCD display when in Hold mode.
11) To turn on/off the LCD back light,
the 1st push button to toggle the LCD back light on and off.
when it is not required to save the battery power consumptions.
use 2nd push button to get into the “HOLD” mode first, then use
Remember to turn off the LCD backlight
Field strength/power density readout:
ED15 use 8 high brightness LED to indicate the measured power density with 3
safety indications
RED3
RED2 -10 dBm 0.058 w/m2 Swiss safety standard (0.04w/m
RED1 -15 dBm 0.018 w/m2 Russian safety standard(0.02w/m2) Caution!
YELLOW3 -20 dBm 5.8 mw/m2 safe
YELLOW2 -25 dBm 1.8 mw/m2 safe
YELLOW1 -30 dBm 0.58 mw/m2 safe
GREEN3 -35 dBm 0.18 mw/m
GREEN2
©2007 CORNET Microsystems all right reserved
.
-5 dBm
up
-40 dB
down
Indication Action
2
0.18 w/m
0.06 mw/m2 Some signal source around safe
Italy safety standard (0.1w/m2) Caution!
2
range
2)
Caution!
safe
The European Community provided general gui
delines in its Council Recommendation of
Council Recommendation
42 V/m
59 V/m
42 V/m
59 V/m
49 V/m
61 V/m
21 V/m
30 V/m
42 V/m
59 V/m
6 V/m
6 V/m
The
51 V/m
83 V/m
4 V/m
6 V/m
49 V/m
68 V/m
Draft: National Quality Technology
49 V/m
61 V/m
NOTE:
* Electromagnetic wave field strength/power density decades very fast with distance (distance
square), keep a good distance from the high frequency RF signal source can reduce the high
frequency radiation effect. Alumina foil or window sun reflector film (silver color) can be
used as a effective and low cost shielding material for most of RF radiations.
* ED15 is designed for quick living environment RF radiation evaluation and is for reference use
only. Official RF safety radiation measurement procedure is complicate and should be
handled by trained technical person with lab instruments. Safety range standard listed here is for
reference only. ED15 is not a medical instrument, Please do not use it in medical, legal or other
related applications.
July 1999.1 ICNIRP
published similar guidelines in April 1998.2 Table I gives a sampling of the international
and national field-strength limit values for the general public and continuous exposure
(for Reference only !)
950Mhz
1850Mhz
International
International ICNIRP Guidelines, April 1998
Austria ÖNORM S1120
Belgium Belgisch Staatsblad F.2001-1365
Germany 26. Deutsche Verordnung
Italy Decreto n. 381, 1998
Netherlands
Switzerland Verordnung 1999
United States IEEE C95.1
China
Japan
1999/519/EC
Health Council
Monitoring Bureau
Radio-Radiation Protection
Guidelines, 1990
(4.75W/m2)
(4.75W/m2)
(6.33W/m2)
(1.18W/m2)
(4.75W/m2)
(0.1W/m2)
20 V/m
(1W/m2)
(6.92W/m2)
(0.04W/m2)
(6.33W/m2)
(6.33W/m2)
49 V/m
(6.33W/m2)
(9.25W/m2)
(9.25W/m2)
(10W/m2)
(2.31W/m2)
(9.25W/m2)
(0.1W/m2)
20 V/m
(1W/m2)
(18W/m2)
(0.1W/m2)
(12W/m2)
(10W/m2)
61 V/m
(10W/m2)
Specification:
Sensor type: Electric field sensor
Frequency range: 100MHz to 3GHz useful detection range
Sensitivity: -55dBm to 0dBm (25mv/m to 14.8v/m)
Dynamic range: 60 dB
Peak power measurement: 1.5uw/m² to 0.58w/m²
Display type: digital LCD display, LED color segment display
Unit of measurements: dBm, uw/m², mw/m², w/m²
LCD back light: 15 seconds auto-off
Display of data: LCD 3 and 5 digit, 8 LED color segment,
Histogram of 30 reading, LCD Bar segment
Safety standard indication: 3 safety range indication by 3 Red LED
Battery used: 9V alkaline battery, (not included)
Battery life: >20 hours
WARRANTY STATEMENT:
Cornet Microsystems guarantees that every instant CORNET ED15 product is free from physical defects
in material and workmanship under normal use for one (1) year from the date of purchase from Cornet
Microsystems or an authorized Cornet Microsystems agent. This warranty applies only to the original
purchaser and is not transferable. Proof of purchase will be required before any warranty consideration
by Cornet Microsystems occurs. This warranty does not cover any damage caused by negligence, nonauthorized modifications, or parts installed without prior written permission from Cornet Microsystems.
This warranty does not apply if the product has been damaged either by accident, misuse, or
misapplication, or as a result of service to the product by anyone other than Cornet Microsystems.
CORNET MICROSYSTEMS IS NOT RESPONSIBLE FOR ANY LOST PROFITS, LOST SAVINGS OR
OTHER INCIDENTIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF, OR
INABILITY TO USE, THIS PRODUCT. THIS INCLUDES DAMAGE TO PROPERTY AND, TO THE
EXTENT PERMITTED BY LAW, DAMAGES FOR PERSONAL INJURY. THIS WARRANTY IS IN LIEU
OF ALL OTHER WARRANTIES INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
©2007 CORNET Microsystems Inc., 1400 Coleman Ave #C28 Santa Clara, CA 95050 USA
Tel: (408)9690205
www.cornetmicro.com
ED15CV30L 07/07/2010
