Page 1
HOW TO
CORNER
YOURSELF
WITH GREAT
SOUND
Introduction to Cornered
C5, C5TRM, C6, C
6TRM & LS1
Page 2
Contents
INTRODUCTION
Welcome to CORNERED speakers
GETTING STARTED
1. Connect the cables
2. Find the perfect spot
3. Mount the speakers
DAILY USE OF YOUR SPEAKERS
A powerful experience
Cleaning and maintenance
Disposing of electrical appliances
NOTES FOR THE PROFESSIONAL INSTALLER
INSTALLING THE SPEAKER
SPECIFICATIONS
Warranty & service
DECLARATION OF CONFORMITY
Page 3
05
Introduction
Congratulations!
You are up for a great looking and great
sounding experience
With the purchase of your CORNERED speakers, you can enjoy two things in one:
Unique design and excellent sound.
CORNERED speakers feature a one-of-a-kind 90-degree triangular design that makes
for a discreet and elegant installation anywhere in your home - in corners, on the wall,
below the ceiling, on shelves and as a center and rear channel for surround sound.
But good looks aren’t everything. CORNERED speakers also offers excellent sound
quality. In fact, CORNERED speakers reproduce a natural three-dimensional sound
stage that fills your room with sound – and strives at making listening to music one of
your favorite activities.
To get the most out of your CORNERED speakers – and make the installation process
as easy as possible – please take a minute to study this manual.
Enjoy!
Hans V. Madsen / Founder
Page 4
Getting started
06 07
Connecting CorneredInstallation guide
Follow 3 easy steps to install your new
CORNERED speakers, and soon you’ll be
cornered by sound in a class of its own:
1. Connect the cables
2. Find the perfect spot
3. Mount the speakers
1. Connect the cables
Note: It is important that you install the speaker cables BEFORE mounting your new
CORNERED speakers! The speakers are equipped with discreet cable terminals placed
on the front baffle behind the front cover – and it is not possible to run the cables to
the terminals once the speakers have been mounted.
• Remove the front cover to access the cable terminal (the front cover is held in
place with neodymium magnets)
• Make sure the amplifier is turned off
• Run the speaker cable through the tube positioned at the rear of the cabinet
The cable will come out between the woofers on the front plate
• Connect the red plus (+) output from the amplifier to the red plus (+) cable
terminal located to the right of the tube
• Connect the negative minus (-) output from the amplifier to the black minus (-)
input terminal located to the left of the tube
1
2
3
3
<

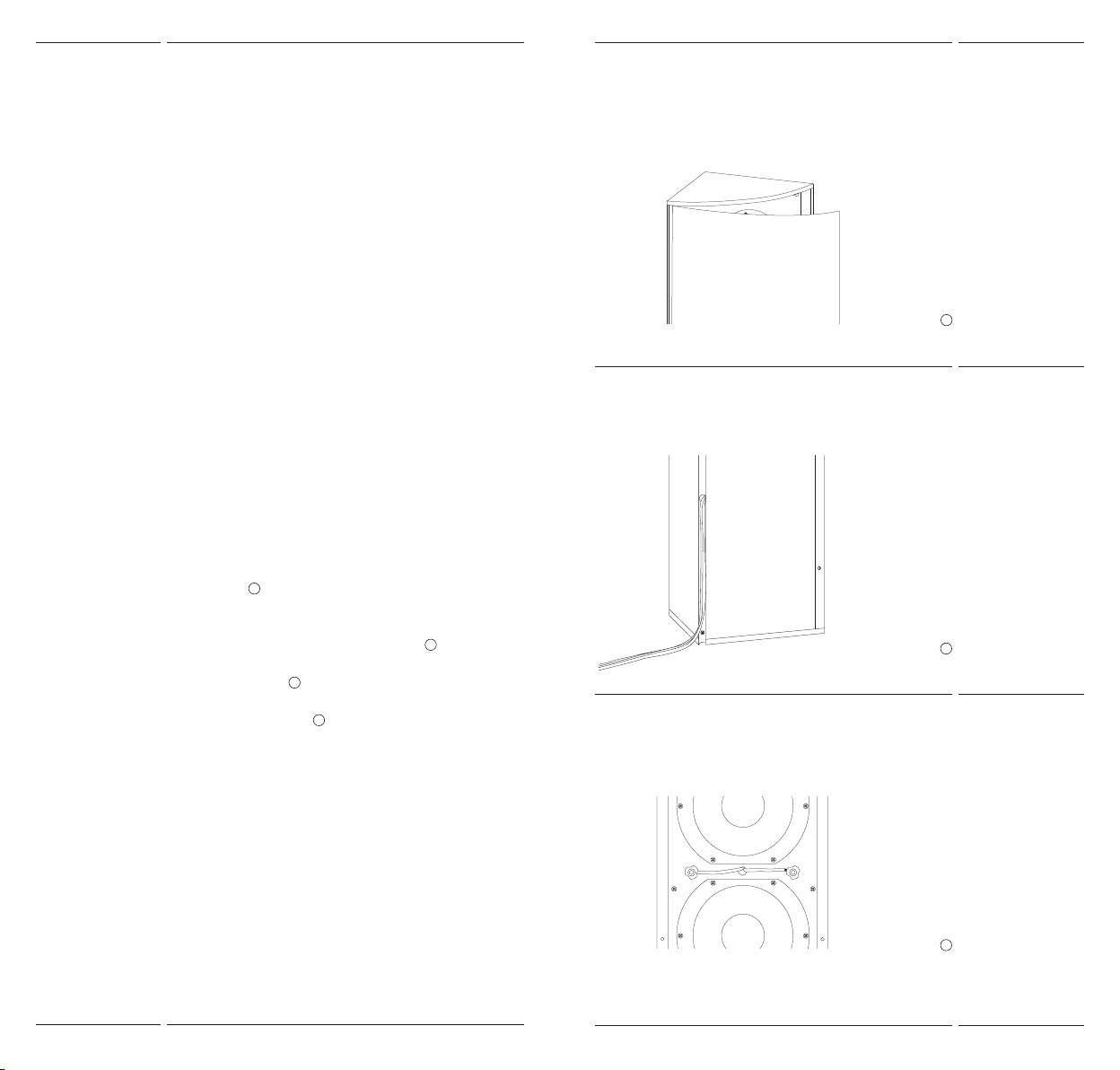

Pull grill out
Push on side of grill
<
1
Remove the front cover
2
Run the speaker cable
Important notes:
• The tube allows for cables with a maximum diameter of 10mm
• For the best result, use speaker cables with a wire thickness of min. 1,5mm2
• If the red amplifier output is connected to the black speaker input (out of phase),
the stereo imaging will be blurred, and the bass output will be dramatically
reduced
• Make sure the terminals are screwed down tight after connecting the cables
• Always use the same type of cables for left and right speaker channels
When you have connected the cables to the terminals, pull the cables tight in the tube
– and you are ready to mount the speakers.
3
Connecting speaker cables
Page 5
2. Find the perfect spot
08 09
PlacementInstallation guide
Designed for versatile positioning
You’ve probably already found the perfect place for your new CORNERED speakers!
The speakers will fit vertically in a corner, horizontally between the wall and the ceil-
ing, above or below your TV as a center channel and of course behind your couch as
rear channels. If you don’t feel like mounting the speakers to the wall, you also have
the option of placing them like traditional speakers on a shelf or on top of a piece of
furniture.
Create a natural 3D sound stage
CORNERED speakers have a very wide dispersion of sound. To get the most out of
the speakers, we recommend as a rule of thumb that you place them with a distance
of minimum 2 meters and maximum 5 meters between the left and right speakers.
Avoid placing objects such as furniture between the speakers and the listening posi-
tion, as this will have a negative influence on the tonal balance of the sound. If you
take these few precautions, your new speakers will reproduce a natural 3-dimensional
sound stage – and give you a clear picture of each of the musicians and their position
on the stage.
3. Mount the speakers
Vertical installation
If you prefer to mount the speaker vertically in a corner, you should:

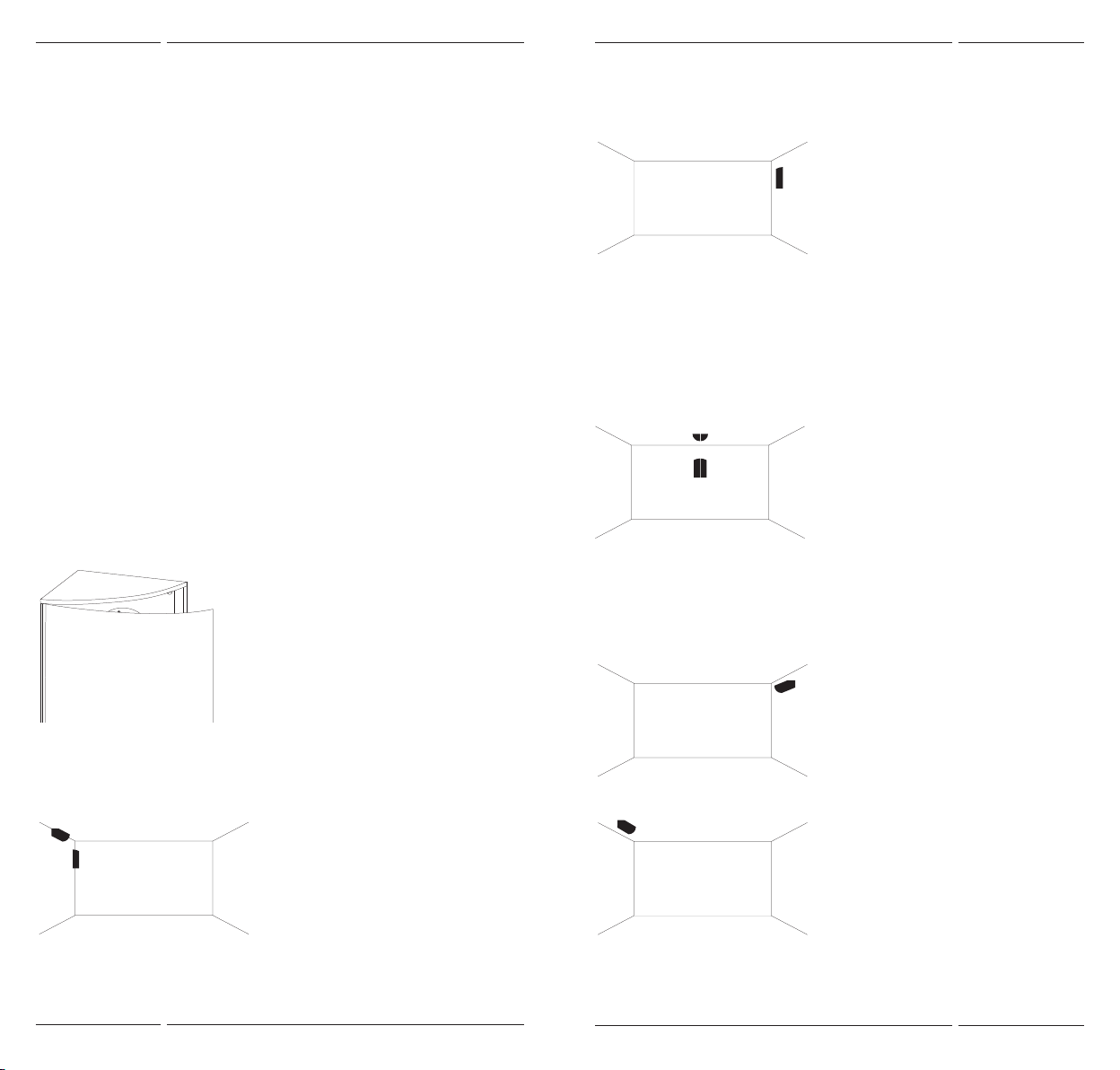

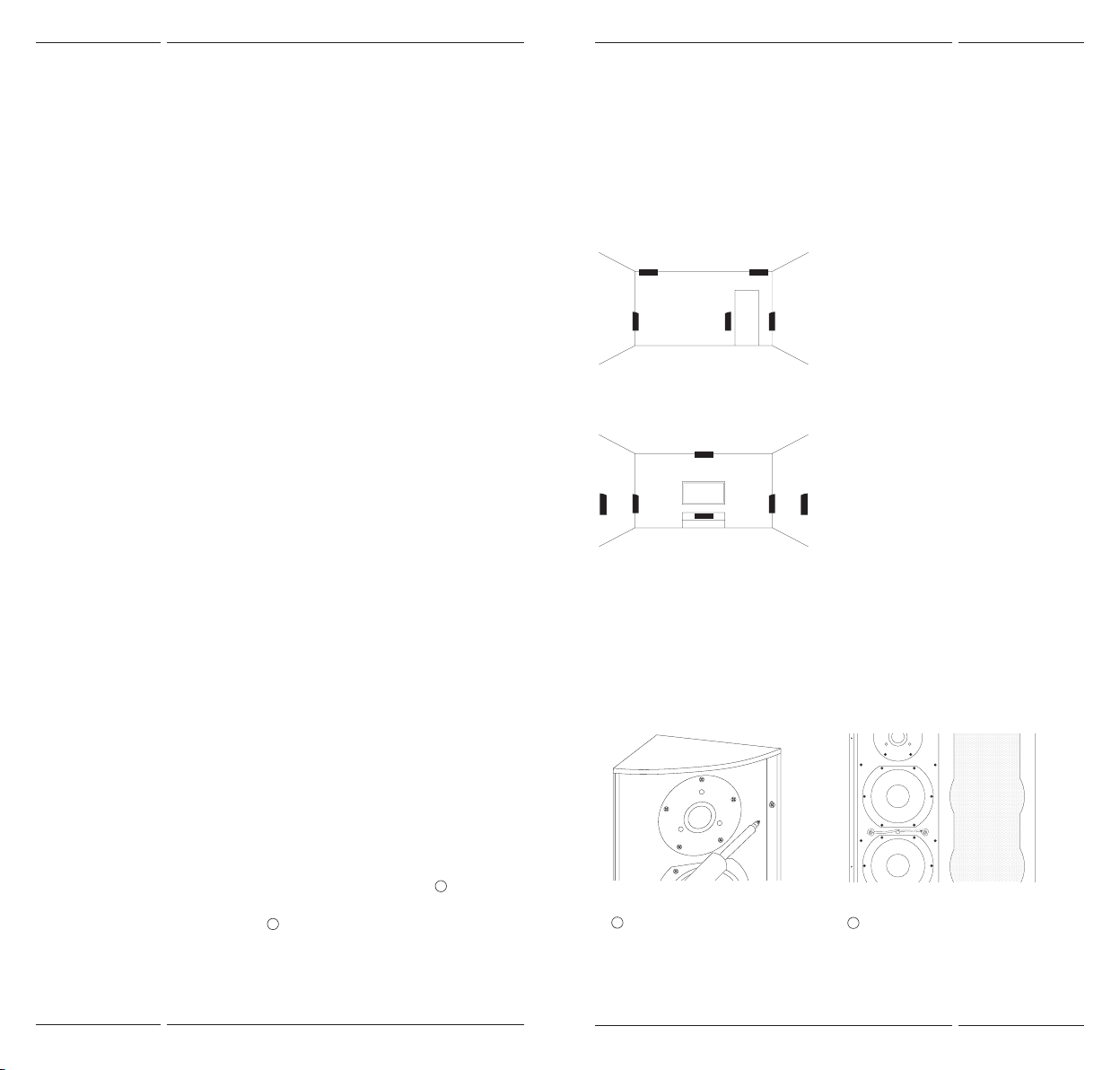

Application examples Stereo
Vertical in corner
Vertical on wall
Horizontal in corner
Application examples Surround
Vertical in corner as front channels
Vertical on wall as rear channels
Horizontal below TV
*Horizontal above TV
*If you wish to have the voice coming exactly
from the TV screen, you have the possibility
of using two centre channels, one below and
one above the TV screen.
• Remove the front cover (you’ll see the mounting holes in the left and right side of
the cabinet)
• Place speakers in desired position
• Mark drilling positions on the wall by shading through the 4 mounting holes
• Drill holes in the wall and use 4mm rawlplugs and 3mm screws
• Reposition the speakers in desired position and mount the screws
1
• Reinstall the front cover while ensuring that it is turned so that the cut outs for the
woofers are placed over the woofers
2
1
Mounting the screws
2
Reinstall the front cover
<<
<
Page 6
Mounting in corners that are not exactly 90 degrees
Even if the corners in your home are not exactly 90 degrees, you can still mount your
new CORNERED speakers in the corner.
10 11
NotesInstallationguide
Daily use of your
• If the corner is less than 90 degrees, simply place the speaker cabinet as deep in
the corner as possible and use all four mounting points. This will leave a little space
behind the cabinet and the walls, but the speakers will still appear with a nice finish
in the corner
• If the corner is more than 90 degrees, we recommend mounting only one of the
sides of the speaker cabinet onto the wall – and leave some air behind the rear of
the cabinet. This will not be visible from the front, and the speakers will still present
themselves with a nice finish in the corner

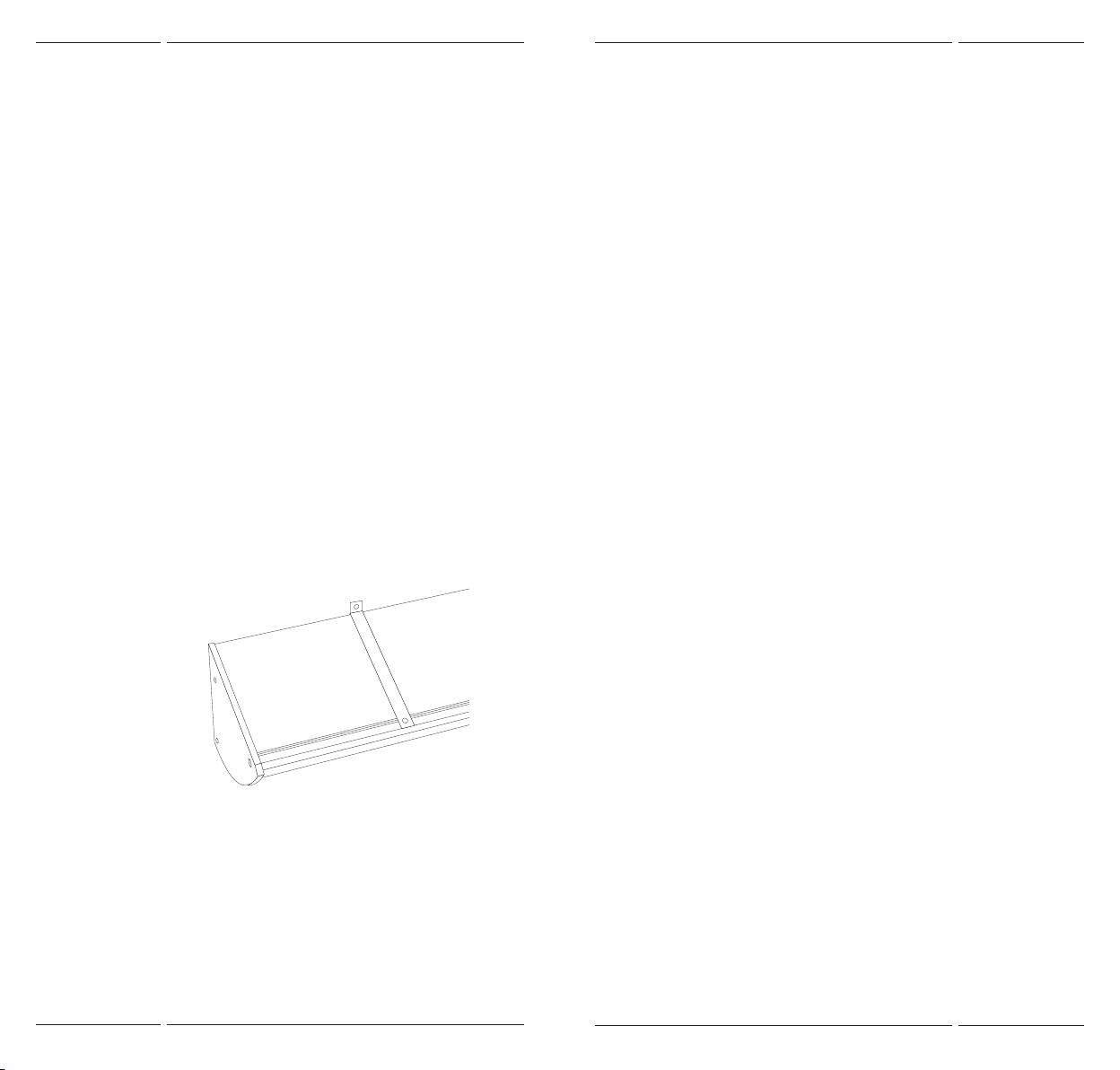

Horizontal installation
If you wish to place the speakers horizontally away from the ceiling, you’ll need to
mount them onto a small bracket. Here’s how you do it:
• Remove the front cover
• Place speakers in desired position
• Mark drilling positions on the wall using only the two lower mounting holes
• Drill holes in the wall
• Insert the bracket in the upper mounting holes and mount the bracket to the wall
• Reinstall the front cover
Mounting the bracket
speakers
How to get the most out of your speakers
A powerful experience
There are many cool things about your new CORNERED speakers. Among others, they
can play very loud for their size and they are very reliable.
Choosing a suitable amplifier
Here’s the deal: Contrary to what many people think, a small amplifier is a greater risk
to the speakers than a big one! The reason being that a small amplifier, if pressed to
the limits, might become unstable and produce distortion or clipping.
This will increase the power more than 10 times to the tweeter, which may cause dam-
age. A large amplifier however, will remain in control while playing loud. As long as the
signal is clean, the speakers will have no problem receiving slightly more power than
they are specified for.
Important notes:
• The tone controls should be set close to the neutral position
• If you hear distortion or mechanical sounds from the speakers, chances are that
your amplifier is overdriven, and volume has to be turned down
• CORNERED speakers have a nominal impedance of 8 ohm – which makes them an
easy load for the amplifier and a great match for all quality amplifiers
Cleaning and maintenance
To keep up the good looks, clean the cabinet with a soft, dry micro-fiber cloth. The
front cover can be vacuumed and wiped carefully with a well-wrung, lint-free cloth
with a mild all-purpose cleaner. If you need to clean the speakers behind the front
cover, avoid wiping the dome tweeter as it can change the geometry of the dome and
reduce the sound quality significantly.
Disposing of electrical appliances
When eventually disposing of the product, do not mix it with general household waste.
There is a separate collection system for used electronic products in accordance with
legislation that requires proper treatment, recovery and recycling. Private households
in the EU member states, Switzerland and Norway may return their used electronic
products free of charge to designated collection facilities or to a retailer (if you pur-
chase a similar new one). For countries not mentioned above, please contact your
local authorities for the correct method of disposal. By doing so, you will ensure that
your disposed product undergoes the necessary treatment, recovery and recycling
and thus prevent potential negative effects on the environment and human health.
Page 7
Notes for the
professional installer
12 13
ProfessionalsInstallationguide
• Three cabinets can be mounted together around a corner, offering 270 degree
coverage
• And four cabinets can be mounted together and hung from the ceiling, offering
360 degree of dispersion
Recommended speaker cables
Speaker cables present the amplifier with different loads. Cables with high capaci-
tance, high inductance and high impedance have a strong negative influence on sound
quality as well as amplifier reliability. So in order to get the most out of the speaker
system, avoid using thin speaker cables.
Installation
Before installing
As CORNERED top-boxes are very light, make sure that the wall structure is solid and
can support the weight of the speaker before installing the speaker. Also, make sure
that you comply with all local health and safety regulations.
A one-person job
The top-boxes are extruded in aluminum and therefore more compact and lighter
than a similar wooden cabinet. At the same time, the aluminum cabinet works as a
large cooling surface, thus reducing power compression significantly. The low weight
allows the products to be installed easily by one person. Drive units and crossover can
be easily accessed behind the front cover, which can be removed without tools in a
matter of seconds.
Safety wire
In installation terms, the CORNERED top-boxes are ‘as much brackets as they are
speakers,’ so no safety wire is needed, just as you don’t need a safety wire from the
wall to a bracket.
Coverage
Wide dispersion even at high frequencies
CORNERED speakers are designed with emphasis on uniform and wide power re-
sponse. Special emphasis is placed on phase through the crossover point and cone/
dome geometry. As an example, the large surround of the tweeter dome ensures very
wide dispersion also at high frequencies.
As a rule of thumb, 2 mm2 (14 AWG) cable can be used for lengths up to 20 meters.
4 mm2 (11 AWG) cable should be used for lengths over 20 meters. For lengths over
50 meters, some amplifiers will become unstable and sound quality and reliability
will be reduced significantly. Cornered speakers will allow for a 10mm cable to be
run through the cable tube, so if you use thick professional installation cable, simply
remove the outer isolation material from the cable and run the separate wires to the
speaker terminals (provided the cable wires have separate isolation). We recommend
the Cornered CSP2 speaker cable designed to fit in corners.
Easy load
Cornered speakers have high Re min., so they are an easy load. Typical pro amplifiers
will run three speakers per channel without problems.
Recommended amplifier
For professional applications we recommend amplifiers with a minimum output on
level with the highest recommended amplifier output in the specifications. If used with
a sub, we recommend a 24 dB Linkwitz-Riley high-pass filter at 80 – 100 Hz.
• One cabinet offers app 90x90 degree dispersion. Cabinets can be coupled to
gether to increase coverage
• Two CORNERED cabinets can be coupled together back to back and mounted
flush onto walls and ceilings while offering 180 degrees of coverage with minimum
phase cancellation between the cabinets
Page 8
Installing the speaker
Installation
Professional applications1514
Vertical on wall away from the corner
1. Remove front cover
2. Mount speaker cable
3. Place speaker at desired position
4. Mark drilling positions on wall using only the
mounting holes at one side of the cabinet
5. Drill holes in wall
6. Reposition speaker at desired position and
mount the screws
7. Reinstall front cover
Before installing
Make sure that the wall structure is solid and can support the weight of the speaker.
Also, make sure that you comply with all local health and safety regulations.
As the speaker is pre-angled, coverage can be adjusted by positioning the cabinet
higher or lower in the room - horizontally or vertically - until the desired coverage is
obtained. See below:
Push on side of grill
<
<
Pull grill out
Remove the front cover
The front cover is fastened with magnets.
Remove it by pushing on it from one
side and pull it outwards
Corner position
1: Remove front cover
2: Mount speaker cable
3. Place speaker at desired position
4: Mark drilling positions on wall by
shading through the mounting holes
behind the front cover
5: Drill holes in wall
6: Reposition speaker at desired position
and mount the screws
7: Reinstall front cover
Two speakers vertical or horizontal
on wall or ceiling
1. Remove front cover
2. Mount speaker cables
3. Screw one side of the cabinets together using
9mm bolts with 4mm diameter.
4. Repeat steps 3 to 6 from above.
One speaker horizontal on wall or in
“under balcony” applications
1. Remove front cover
2. Place speaker at desired position
3. Mark drilling positions on wall using only the
mounting points in one side of the cabinet
4. Lower the hook on the bracket into the
middle mounting hole in cabinet and pull it
towards wall or ceiling.*
5. Mark mounting position through the bracket
screw hole.
6. Drill holes in wall or ceiling
7. Mount the speaker cables
8. Reposition speaker at desired position and
screw the cabinet and bracket into the wall
or ceiling
9. Reinstall front cover
*How to mount the bracket, please refer to
illustration on page 10
Page 9
Facts
Specifications
16 17
Warranty & service
For warranty information, please refer to your local CORNERED distributor or dealer.
Spare parts for your CORNERED speakers are available through your local CORNERED
distributor. In case you are not able to source spare parts locally, please contact us
directly at [email protected].
C6
Power handling, IEC268 125 watt
Power handling, peak 500 watt
Recommended amplifier 125-250 watt
Sensitivity, 2,83V/1m 90 dB
Maximum SPL, long term 111 dB
Maximum SPL, peak 117 dB
Frequency response 70-25.000 Hz (+-3dB)
Nominal impedance 8 ohm
Dispersion 120 x 120 degree
Weight 5,6 kg
Measurement (HxWxD) 502 x 232 x 167 mm
Colour Black - White - Alu
C5
Power handling, IEC268 100 watt
Power handling, peak 400 watt
Recommended amplifier 100-200 watt
Sensitivity, 2,83V/1m 88 dB
Maximum SPL, long term 108 dB
Maximum SPL, peak 114 dB
Frequency response 59-25.000 Hz (+-3dB)
Nominal impedance 8 ohm
Dispersion 120 x 120 degree
Weight 4,1 kg
Measurement (HxWxD) 441 x 213 x 154 mm
Colour Black - White - Alu
C5TRM
Power handling, IEC268 150 watt
Power handling, peak 600 watt
Recommended amplifier 150-300 watt
Sensitivity, 2,83V/1m 90 dB
Maximum SPL, long term 112 dB
Maximum SPL, peak 118 dB
Frequency response 55-20.000 Hz (+-3dB)
Nominal impedance 8 ohm
Dispersion 90 x 90 degree
Weight 4,8 kg
Measurement (HxWxD) 441 x 213 x 154 mm
Colour Black - White - Alu
C6TRM
Power handling, IEC268 250 watt
Power handling, peak 1000 watt
Recommended amplifier 250-500 watt
Sensitivity, 2,83V/1m 92 dB
Maximum SPL, long term 116 dB
Maximum SPL, peak 122 dB
Frequency response 70-20.000 Hz (+-3dB)
Nominal impedance 8 ohm
Dispersion 90 x 90 degree
Weight 5,9 kg
Measurement (HxWxD) 441 x 213 x 154 mm
Colour Black - White - Alu
LS1
Power handling, IEC268 250 watt
Power handling, peak 1000 watt
Recommended amplifier 250-500 watt
Sensitivity, 2,83V/1m 92 dB
Maximum SPL, long term 116 dB
Maximum SPL, peak 122 dB
Frequency response 70-20.000 Hz (+-3dB)
Nominal impedance 8 ohm
Dispersion 90 x 60 degree
Weight 6,4 kg
Measurement (HxWxD) 502 x 232 x 167 mm
Colour Black - White - Alu
Page 10
18CE
Declaration of
c
onformity
Manufacturer:
CORNERED Audio ApS
Rosenkæret 13 2tv
2860 Søborg
Denmark
We, CORNERED Audio ApS, declare under our responsibility that the following
product(s):
C5, C5TRM, C6, C6TRM & LS1
Type: Speaker
…are in conformity with:
COUNCIL DIRECTIVE of 3 May 1989 on the approximation of the laws of the Member
States relating to electromagnetic compatibility (89/336/EEC)
..and has been manufactured in conformity with the following national standards that
implements a harmonized standard:
EN 55013
Limits and methods of measurement of radio disturbance characteristics of broadcast
receivers and associated equipment.
Hans V. Madsen / Founder
18.07.2016
Page 11
01
Contents of the manual are subject to change without notice. CORNERED Audio does not accept any
liability for loss or damage caused or alleged to be caused directly or indirectly by these instructions.
CORNERED Audio makes no guarantee of any kind with regard to these instructions.
Copyright 2016 CORNERED Audio ApS, Denmark.
Loading...
