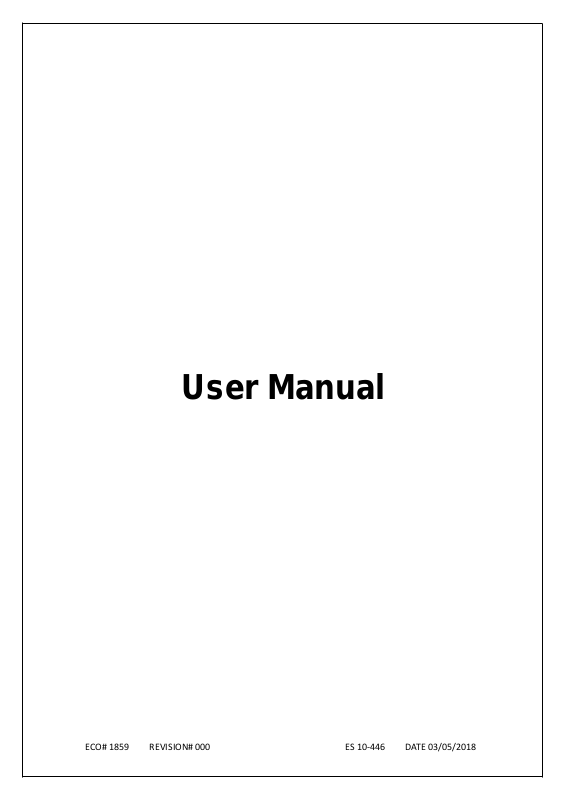

User Manual
ECO# 1859 REVISION# 000 ES 10-446 DATE 03/05/2018
Contents
1 Introduction
2 Wiring and Installation
2.1 Wiring
2.2 Installation
3 Operation Instruction

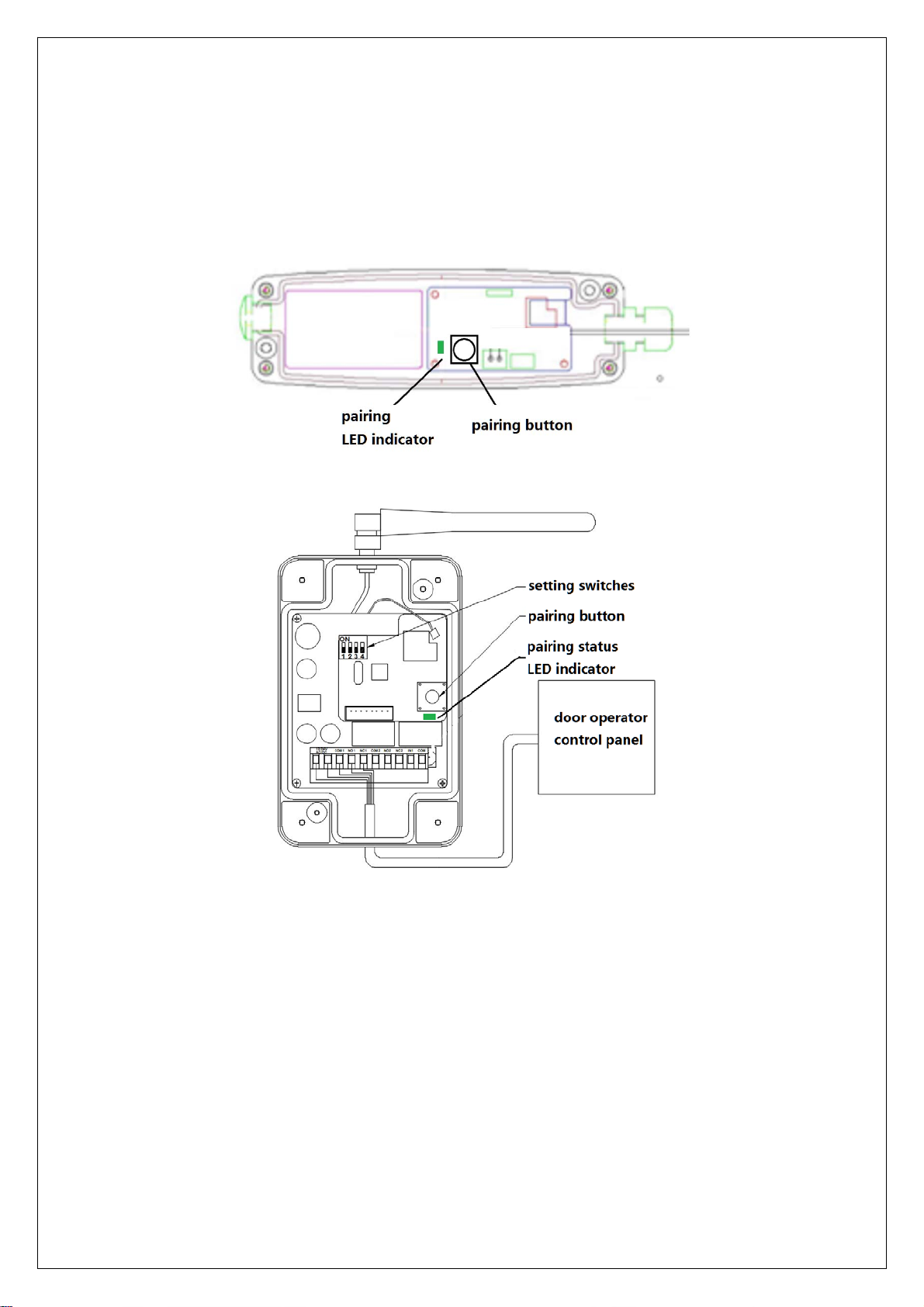

3.1 Pair the units
3.2 Function Test
4 Electrical Characteristic

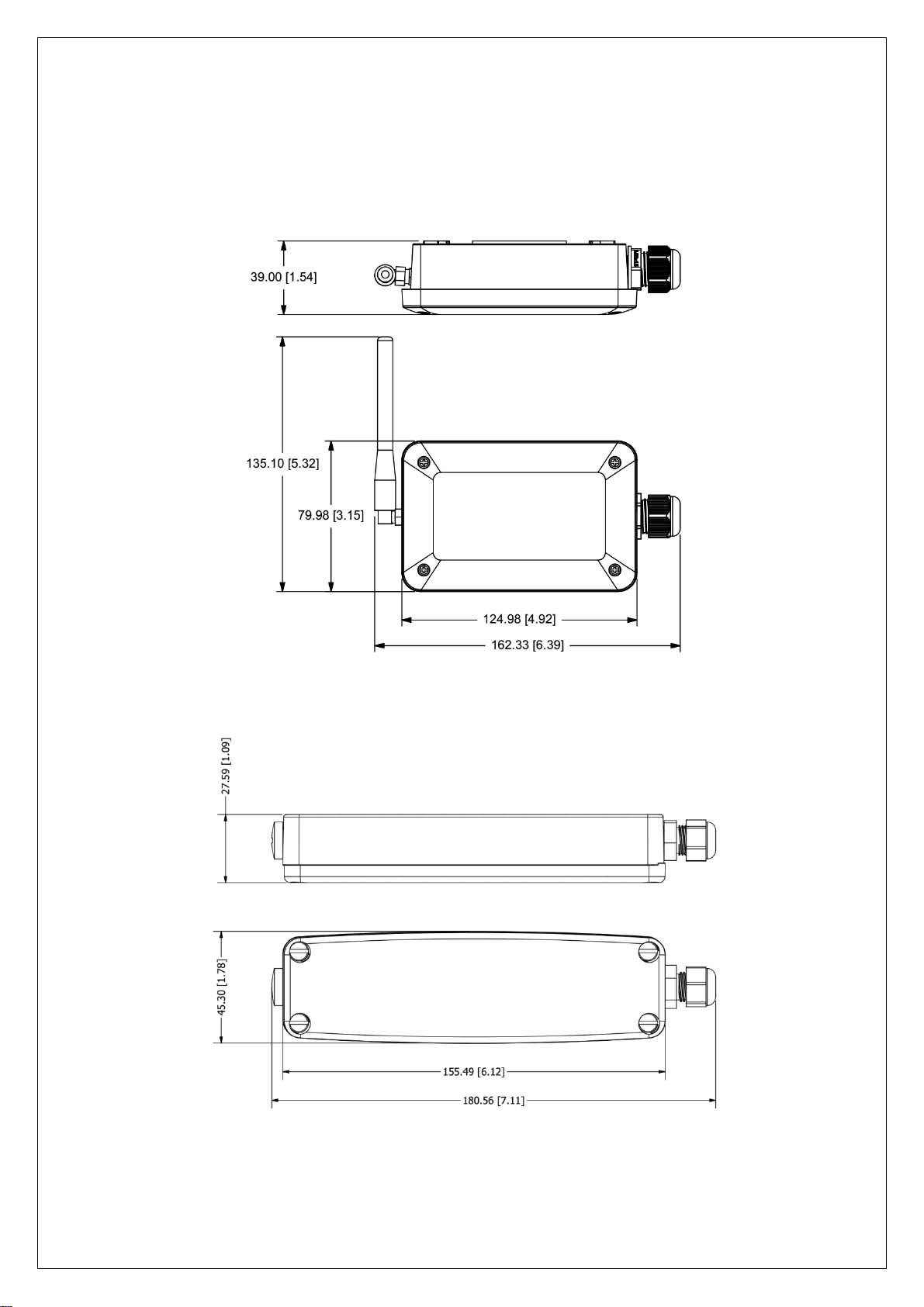

5Dimensions
.................................................................................................................................
..............................................................................................................................
.......................................................................................................................
...................................................................................................................
...................................................................................................................
..................................................................................................................................
................................................................................................................
..................................................................................................................
...............................................................................................................
3
3
3
4
5
5
6
6
7
ECO# 1859 REVISION# 000 ES 10-446 DATE 03/05/2018
1 Introduction
Cornell Phantom Sensing edge wireless kit includes a transmitter and a receiver. When the
sensing edge is lowering with the bottom bar and an obstacle triggers the sensing edge, the
transmitter will send the reverse signal immediately to the receiver. The receiver will output this
reverse signal as a relay output to the door operator to interrupt the door closing process.
2 Wiring and Installation

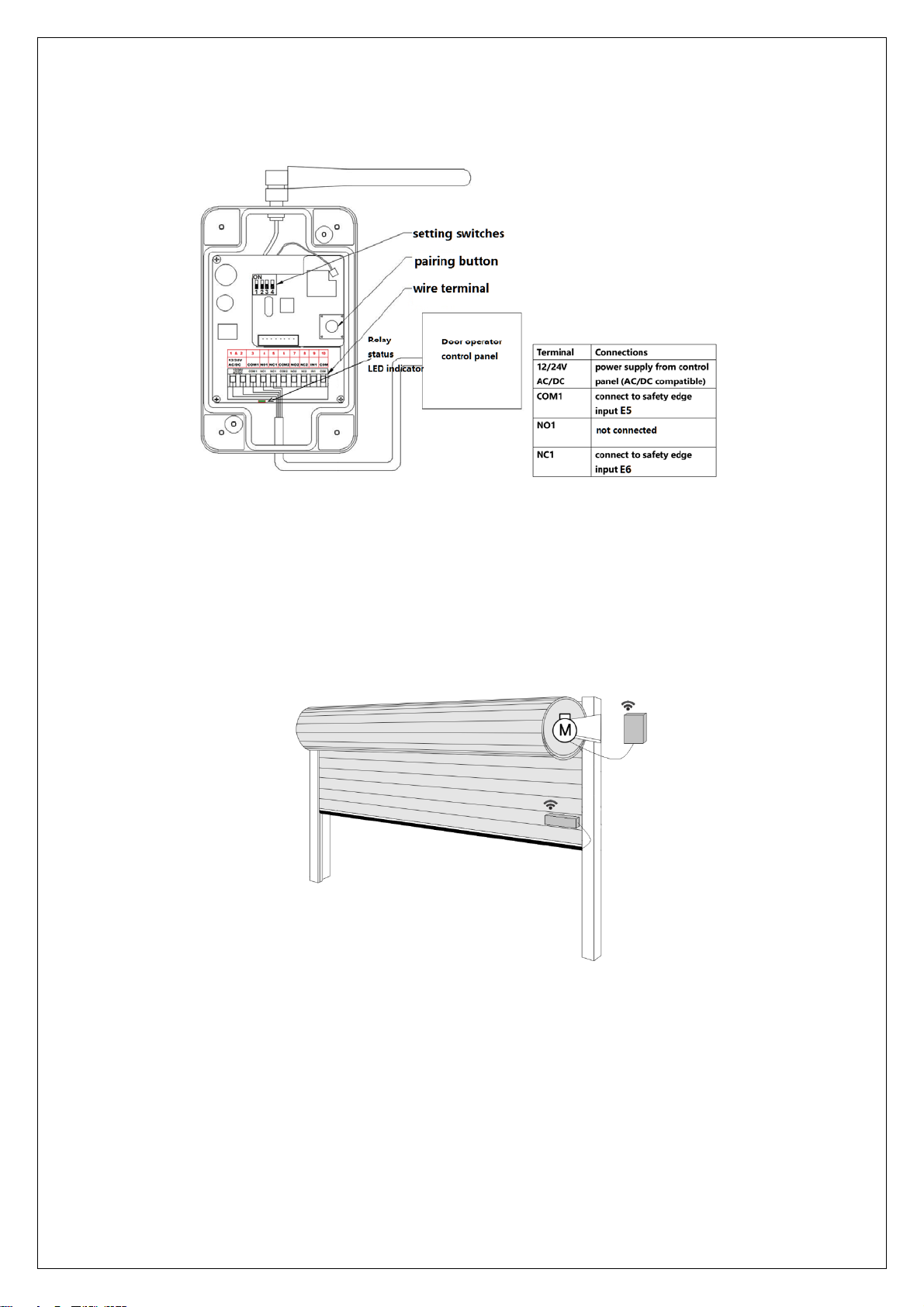

2.1 Wiring
Transmitter wiring:
1. To comply with UL 325, Rev5, the edge terminal should be with 8.2K ohm
resistance when it is not triggered and be closed circuit when it is triggered to maintain
the sensor monitoring function. Wire the sensing edge to the transmitter as shown in
the picture.
2. Insert the battery (come with the factory package) into the battery pack, the LED
light on the PCB will indicate the transmitter starts working.
3. When sensing edge is not triggered, edge triggering indicator light will be off.
Pic 1. Transmitter Wiring
