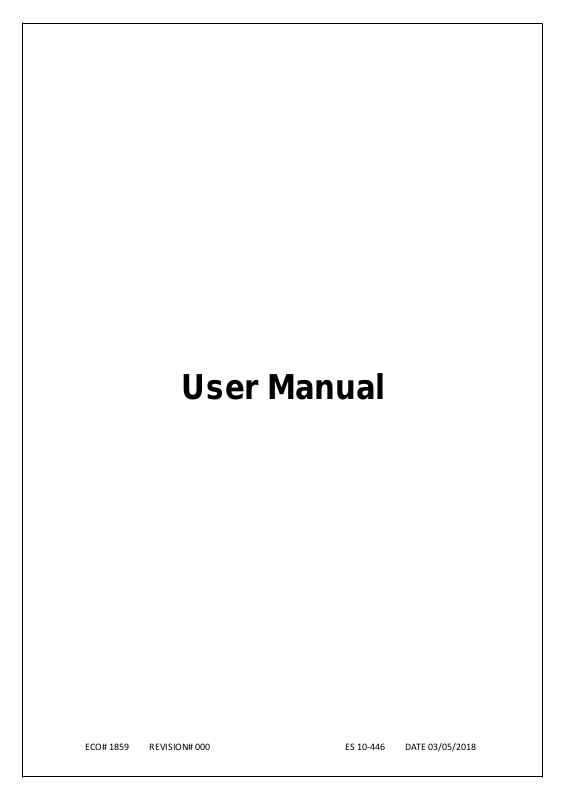

User Manual
ECO# 1859 REVISION# 000 ES 10-446 DATE 03/05/2018
Contents
1 Introduction
2 Wiring and Installation
2.1 Wiring
2.2 Installation
3 Operation Instruction
3.1 Pair the units
3.2 Function Test
4 Electrical Characteristic
5Dimensions
.................................................................................................................................
..............................................................................................................................
.......................................................................................................................
...................................................................................................................
...................................................................................................................
..................................................................................................................................
................................................................................................................
..................................................................................................................
...............................................................................................................
3
3
3
4
5
5
6
6
7
ECO# 1859 REVISION# 000 ES 10-446 DATE 03/05/2018
1 Introduction
Cornell Phantom Sensing edge wireless kit includes a transmitter and a receiver. When the
sensing edge is lowering with the bottom bar and an obstacle triggers the sensing edge, the
transmitter will send the reverse signal immediately to the receiver. The receiver will output this
reverse signal as a relay output to the door operator to interrupt the door closing process.
2 Wiring and Installation
2.1 Wiring
Transmitter wiring:
1. To comply with UL 325, Rev5, the edge terminal should be with 8.2K ohm
resistance when it is not triggered and be closed circuit when it is triggered to maintain
the sensor monitoring function. Wire the sensing edge to the transmitter as shown in
the picture.
2. Insert the battery (come with the factory package) into the battery pack, the LED
light on the PCB will indicate the transmitter starts working.
3. When sensing edge is not triggered, edge triggering indicator light will be off.
Pic 1. Transmitter Wiring
ECO# 1859 REVISION# 000 ES 10-446 DATE 03/05/2018
Receiver Wiring:
Connect the Receiver to the Operator control panel as shown below.
Pic 2. Receiver Wiring
2.2 Installation
1. Mount the transmitter on door bottom bar.
2. Mount the receiver near the door operator as shown blow.
Pic 3. Mount the receiver and transmitter
ECO# 1859 REVISION# 000 ES 10-446 DATE 03/05/2018
3 Operation Instruction
3.1 Pair the units
Pic 4 Transmitter pair b utton a nd LED pair indicator
Pic 5 Receiver pair button and LED pair indicator
Pair the transmitter and receiver
1. Power on the receiver, plug in the transmitter battery pack connector;
2. Press the receiver pair button for 3 seconds, Green LED light on, release the button;
3. Press the transmitter pair button for 3 seconds, Green LED light on and start flashing,
release the button;
4. Transmitter LED light turn from flashing status to solid on for 5 seconds, pairing
complete.
Unlink the transmitter and receiver
1. Press the transmitter pairing button for 3 seconds, Red light on and start flashing, release
button;
2. Red light turn from flashing status to off, disconnection complete;
ECO# 1859 REVISION# 000 ES 10-446 DATE 03/05/2018
：
：
3. Only if transmitter is disconnected from one network, it could be connect to another
network.
3.2 Function Test
1. Install and wire the transmitter and receiver, and then switch the power on; Make
sure the transmitter and receiver are properly paired.
2. For your safety, do not test the sensing edge on the moving door in the beginning;
3. Press the sensing edge, see if the relay in receiver will engage and the LED indicator
for Relay status will switch on when the sensing edge is pressed;
4. Test the unit while the door is closing. When the door is closing, press the sensing
edge, see if the door will stop and reverse.
ATTENTION! USE TOOLS INSTEAD OF YOUR BODY TO TRIGGER THE SENSING EDGE!
4 Electrical Characteristic
Parameter Description
Communication Zigbee 2.4GHz
Trigger react time 140ms
Receiver Power Supply 24V AC/DC Current <100mA
Receiver Dimension 18cm*8cm*4cm
Transmitter Battery 3.6V Lithium-thionyl Chloride Battery 2400mAh * 2
Tr ansmitt e r Battery Life 3 years
Transmitter Dimension 4.5cm*15.5cm*2.7cm
IP rating IP55
ECO# 1859 REVISION# 000 ES 10-446 DATE 03/05/2018
5 Dimensions
Pic 5 Receiver Dimensions Unit: mm[inch]
Pic 6 Transmitter Dimensions Unit: mm[inch]
ECO# 1859 REVISION# 000 ES 10-446 DATE 03/05/2018
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept an y interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be dete rmined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by
CornellCookson Inc. may void the FCC authorization to operate this device.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
RF exposure statement:
The transm itter must not be colocated or operated in conjunction with any other antenna or
transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for
an uncontrolled environment. This equipment should be insta lled and operated with a
minimum distance of 20cm between the radiator and any part of your body.
ECO# 1859 REVISION# 000 ES 10-446 DATE 03/05/2018
