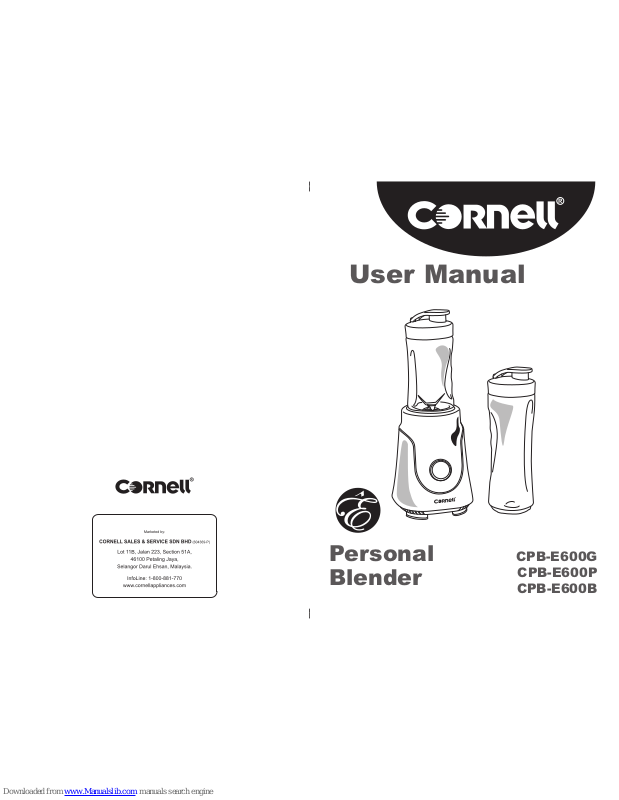

Page 1
Personal
Blender
CPB-E600G
CPB-E600P
CPB-E600B
User Manual
Page 2
3
C O N T E N T S
PRODUCT FEATURES
PARTS IDENTIFICATION
IMPORTANT SAFEGUARDS
OPERATION GUIDE
CLEANING AND MAINTENANCE
4
4
6-7
5
7
6
1. Fill the bottle with
ingredients. Be
sure not to fill
ingredients above
the max (300ml/
600ml) marking.
Clean blender according to the instructions in the “Cleaning and Maintenance”
section.
5. Press and hold
the switch on the
base and the
blender will start
working. To stop
the blender,
release the switch.
2. Fasten the blade
assembly on the
open end of the
bottle.
3. Place the blender
base on a flat and
sturdy surface and
plug it into the
power socket.
6. After the ingredients
are fully blended, turn
off the power before
turning the bottle
counterclockwise to
take out the bottle
from the base.
7. Replace the blade
assembly with the
drinking lid for
takeout.
4. Turn the bottle
upside down and
line up arrow “▲”
on the blade
assembly to the
arrow on the base.
Place the bottle in
the base by
pressing and
simply turn the
bottle clockwise to
lock it into the
base.
OPERATION GUIDE
Page 3
5
1. Blend mixed fruits, vegetables & ice.
2. BPA -free blend bottle.
3. Spill-proof drinking lid.
4. Safety startup system
PRODUCT FEATURES
Spill-proof drinking lid.
PARTS IDENTIFICATION
4
Please read this manual before using the appliance and save it for future reference.
When using electrical appliances, basic safety precautions must always be followed,
including the following:
1. Please read through the instruction before using this appliance and keep this instruction
manual in a safe place.
2. Connect the appliance only to an earthed mains safety socket. The voltage on the
appliance rating label must correspond with that of the mains supply.
3. To protect against the risk of electrical shock, do not immerse the cord plug or motor
base in the water or in any other liquids.
4. Do not let the power cord hang over the edge of the table or counter or touch on hot
surfaces.
5. Never leave the appliance unattended when in use.
6. Close supervision is necessary when used by or near children.
7. The blade is sharp. Handle with care.
8. To avoid the risk of injury, never place the blade assembly on the base without the bottle
properly attached.
9. Do not attempt to bypass the interlock system that powers the unit on.
10. Do not operate the appliance with a damaged cord or plug or after the appliance
malfunctioned or is dropped or damaged in any manner. Return the appliance to an
authorized after sales service center (refer to the warranty card).
11. Always operate on a flat and sturdy surface.
12. Do not use outdoors or for commercial purposes. This appliance is for household
use only.
13. Unplug the blender when not in use, before taking off or putting on parts and before
cleaning.
IMPORTANT SAFEGUARDS
Blend Bottle
Blade Assembly
Main Housing/Motor Base
Page 4
7
OPERATION GUIDE
NOTE:
1. Cut all firm fruits and vegetables into pieces no larger than 1.8cm to 2.5 cm.
2. Do not use the appliance to blend dough, mashed potatoes, meat etc.
3. To crush ice, use only ice cubes and no more than four ice cubes at a time. The size of
the ice cubes must not exceed 2cm. Run for 2 seconds and rest for 2 seconds. Repeat
the steps until the ice cubes are crushed to bits.
4. The blender has a safety startup system. The bottle must be installed on the base
according to the correct directions for the blender to start safely.
5. Donʼt overload the bottle. If the motor stalls, turn the blender off immediately. Unplug the
unit and let it cool for at least 10 minutes
CLEANING AND MAINTENANCE
1. Before cleaning, unplug the appliance and detach the accessories.
2. Use a damp cloth to clean the exterior of the blender base. Do not immerse it in water
or any other liquids.
3. All parts except for the blender motor base can be washed in water.
4. When not using for a long time, keep this appliance well at a ventilated place.
CAUTION: The cutting edges of the blades are very sharp. Be extra careful while
cleaning.
