UF-1 and UFB-1 Valves Training Manual

INTRODUCTION

1. PREVIEW QUESTIONS

Check your current knowledge by taking a few minutes to answer the following questions:

1. What are the flow capacities of a UF-1 valve? _____________________________________ __________________________________________________________________________

2. What are the flow capacities of a UFB-1 valve? ____________________________________ __________________________________________________________________________

3. Which syrup has the greatest pressure drop, diet or sugar?____________________________ __________________________________________________________________________

4. How do juice valves differ from carbonated beverage valves? _________________________ __________________________________________________________________________

5. Can you program “top-off” on a portion control valve? ______________________________ __________________________________________________________________________

6. What components must be replaced when retrofitting SF-1 to UF-1 valves? ______________ __________________________________________________________________________

INTRODUCTION

2. KEY THINGS TO KNOW / DO

• For quality drinks — keep the nozzles and the water/syrup system clean; and have the correct ratio, temperature, and carbonation!

• Set the water/syrup ratio accurately — and leave it alone!

• To set the ratio accurately, set the water flow first, then the syrup!

• Be sure to cool below 40°F the syrup and water before setting the ratio.

UF-1 and UFB-1 Valves Training Manual

3. OVERVIEW

3.1 Product Description

The UF-1 and UFB-1 valve pro vides accurate flo w capability and depe ndability . The UF -1 and UFB-1 valves are capable of flow rates of 1 ½ to 3 ounces per second (high flow), 2 to 4 ounces per second (UFB-1), or 3 to 4 ½ ounces per second (ultra flow). The valve flow control modules are the only parts that differ in the three versions.

Note: The flow rate is also dependent on the capacity of the dispensing, cooling, and

carbonation systems. An ultra flow capacity valve will not make up for a slow

system flow rate or inadequate supplies of cooled water and syrup. The following is a list of Cornelius units and the valve flow rates they support:

Vanguard Vanguard 245 Value Line 2323 (10 circuit cold plate) Premium 2323 (12 circuit cold plate) Venture 2230

INTRODUCTION

Vantage 3030 1522 ED 150 1722 ED 200 2224 ED 250 2230-100 ED 300 DB 90 DF 150 DB 150 DF 200 DB 200 DF 250 DB 250 DB 275 TJ 45 TJ 90

Fast Flow

1.5 to 3.0 oz./sec.

Fast Flow, UFB-1, or Ultra Flow

2 to 4 oz./sec. or 3.0 to 4.5 oz./sec.

TJ 150 TJ 200 TJ 250 TJ 300 TJ 400

UF-1 and UFB-1 Valves Training Manual

There are four varieties of UF-1 and UFB-1 valves:

• The cup activated valve dispenses by means of a lever engaged by the cup.

• A push button valve has a press and hold button on the front cover of the valve.

TM

• The Optifill

valve dispenses with an activation lever but stops after the liquid fills

the cup and touches the lever

• A portion control valve has four programmable drink size buttons that provide timed deliveries, top off, and a manual dispensing button.

INTRODUCTION

Cup

Activated

Valve

Push

Button

Valve

Portion Control Valve

Optifill Valve

TM

The UF-1 and UFB-1 valves are the same as described above with minor differences for juice applications. In the UF-1 and UFB-1 valve concentrate enters the nozzle assembly higher providing a better mix of concentrate and water in the cup. In addition, the orifices for concentrate are larger to avoid clogging. The concentrate diffuser is gray allowing for easy identification.

Note: The beverage (syrup) diffuser must be installed in order to use a diversion tube to

ratio the concentrate valve

.

Note: Concentrate valves have only one hole in their sleeve and are only offered in fast

flow capacities of 1.5 to 3.0 oz./sec.

Syrup outlet

Black diffuser

Concentrate outlet (better mixing)

Gray diffuser

UF-1 and UFB-1 Valves Training Manual

Concentrate valve sleeve

A side water lever kit can be added to a valve allowing for dispensing of water without syrup or concentrate. The side water lever can be added to either a carbonated drink valve or a noncarbonated drink valve.

Post-mix valves control:

• the ON–OFF of syrup and water,

• the flow rates of syrup and water,

• the mixing of the two ingredients as they pour into the cup, and

• in some instances - dispensed portion.

3.2 Dimensions & Capacities

INTRODUCTION

Fast Flow - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 ½ to 3 oz./sec. UFB-1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2 to 4 oz./sec.

Ultra Flow - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 to 4 ½ oz./sec.

has only one hole

Syrup valve sleeve has six holes

Mounting

screw

Water

lever

Operational temperature range:- - - - - - - - - - - - - - 10°C (50°F) to 43°C (110° F) Voltage requirements: - - - - - - - - - - - - - - - - - - - - 22 to 27 VAC (50/60 Hz) Transformer (electronic valves) - - - - - - - - - - - - - - - - - - - - - - 80 VA min. Operating Pressure (flowing)- - - - - - - - - - - - - - - - - - - - syrup = 20 psi min.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - water = 35 psi min.

Concentrates and juices that contain particulates must be dispensed from a juice valve. A slanted drip tray is necessary when using an OptifillTM valve.

1. WATER

1.1 Water Quality

Water quality issues have an affect on dispensing valves. Chloramine, a combination of chlorine and ammonia is responsible for some degradation of rubber components. Chloramine is used in many U. S. water supplies. Its affects can be minimized by installing and maintaining a water filtration system.

Ultra pure water affects the sensitivity of the Optifill™ valve. Because ultra pure water has less mineral content, it reduces the conductivity of the water keeping the circuit open and overfilling the beverage container.

1.2 Water Flow

UF-1 and UFB-1 Valves Training Manual

SYSTEM DETAILS

The size of the orifice in the piston varies depending on whether the piston is used for syrup or water, and whether it is high flow or ultra flow valve.

Note: The notched water piston on the Ultra Flow and UFB-1

valve. results in at least one orifice in the sleeve always open. This eliminates pulsating and smooths water flow at higher flow rates.

In operation the liquid flows through the knife–edged orifice in the bottom of the piston and then out the orifices in the sleeve. The outlet orifice size in the sleeve is regulated by the position of the piston. In the illustration, the piston is restricting approximately 1/2 of the outlet orifices.

Orifice

Sleeve

Notch in

piston

UFB-1 Flow Module

SYSTEM DETAILS

Piston

UF-1 and UFB-1 Valves Training Manual

Lower Fluid Pressure BUT

Knife

edge

Syrup/Water Flow

Lower Fluid Pressure Pushing Against Piston & Spring

Same Volume Of

Syrup/Water Flows

From Orifices

Higher Fluid

Pressure Pushing

Against Piston &

Spring

Higher Fluid Pressure BUT

The position of the piston inside the sleeve is determined by the upward pressure of the liquid against the base of the piston and the downward pressure of the spring inside the piston (not shown here). The pressure of the spring is regulated by the adjusting screw.

If the pressure of the liquid increases, the flow rate through the knife–edged orifice will increase. The piston is moved upward closing off more of the outlet orifices. The same flow rate is thereby maintained.

SYSTEM DETAILS

1.3 Adjusting Flow Rates

Flow rates of the water and syrup are adjusted based on the desired ratio. For example: if the desired ratio is 5:1, then the flow rate of the water is 5 times that of the syrup.

If the desired finished drink total flow rate is 3.0 ounces per second, then the water flow rate is 2.5 oz./sec and the syrup flow rate is 0.5 oz./sec. (The water at 2.5 oz./sec is five times the 0.5 oz./sec syrup flow rate.)

Note: Always adjust water within its range.

Water Flow Rates At Selected Ratios

UF-1 and UFB-1 Valves Training Manual

Water To Syrup

Ratio

2 to 1 1.00 oz./sec. 2.00 oz./sec. 2.50 oz./sec. 3.00 oz./sec. 3 to 1 1.13 oz./sec. 2.25 oz./sec. 2.81 oz./sec. 3.38 oz./sec. 4 to 1 1.20 oz./sec. 2.40 oz./sec. 3.00 oz./sec. 3.60 oz./sec. 5 to 1 1.25 oz./sec. 2.50 oz./sec. 3.13 oz./sec. 3.75 oz./sec. 6 to 1 1.29 oz./sec. 2.57 oz./sec. 3.21 oz./sec. 3.86 oz./sec. 7 to 1 1.31 oz./sec. 2.63 oz./sec. 3.28 oz./sec. 3.94 oz./sec.

Water at 1.5 oz./

sec. Total Flow

Water at 3.0 oz./

sec. Total Flow

Water at 3.75 oz./

sec. Total Flow

Water at 4.5 oz./

sec. Total Flow

1.4 Calculating Flow Rates

The most frequent ratio is 5:1. The charts above list the breakdown for many ratios and flow rates. It is useful to be able to calculate flow rates when a chart is not available.

An example of calculating the water and syrup flow rates giv en the finished drink flo w rate and the water to syrup ratio:

Given:

1. Finished Drink Flow Rate = 3.0 oz./sec.

2. Water to Syrup Ratio = 5 to 1

SYSTEM DETAILS

To calculate Water Flow Rate:

1. Calculate the Total Portions = Water Portion + Syrup Portion

(example 5 + 1 = 6)

2. Calculate Syrup Flow Rate = Finished Drink Flow Rate ÷ Total Portions

(example 3.0 oz./sec ÷ 6 = .5 oz./sec)

3. Calculate Water Flow Rate = Finished Drink Flow Rate – Syrup Flow Rate

(example 3.0 oz./sec - .5 oz./sec = 2.5 oz./sec)

Prove the calculation is correct by adding water flow rate of 2.5 oz./sec + syrup flow rate of .5 oz./sec = finished drink flow rate of 3.0 oz./sec.

Water flowing at 2.5 oz./sec and syrup flowing at .5 oz./sec achieves a ratio of 5:1 and 3.0 oz./sec. flow rate.

UF-1 and UFB-1 Valves Training Manual

2. SYRUP/CONCENTRATE

Syrup should always be precooled before setting the ratio. Syrup takes a path through the valve parallel to the water path. It is introduced in the block, travels through a syrup flow control, banjo, valve head and out the nozzle. Note, concentrate is not cooled.

High sugar syrups are more viscous (thicker) than diet syrups and consequently have more pressure drop within a system. This pressure drop results in less flow at the valve and therefore a slower fill time. Increasing the pump pressure will help overcome the pressure drop caused by high sugar syrups.

3. SETTING RATIOS

If the ratio varies and must be adjusted often, it is probably the result of a restricted syrup system. It is then time to clean and sanitize the syrup tubing and cooling coils and check for other

problems such as syrup pumps, etc. Note: Try raising the pressure on the pump before cleaning. Set the water flow rate first, then adjust the syrup to the desired ratio. This gives the most

accurate valve flow setting possible. Measure the ratio and adjust the syrup flow, if necessary. This will result in uniform flow, better carbonation retention, and improved drink quality.

When using a ratio cup always take these precautions to ensure accuracy:

• After installing the separator tube, open

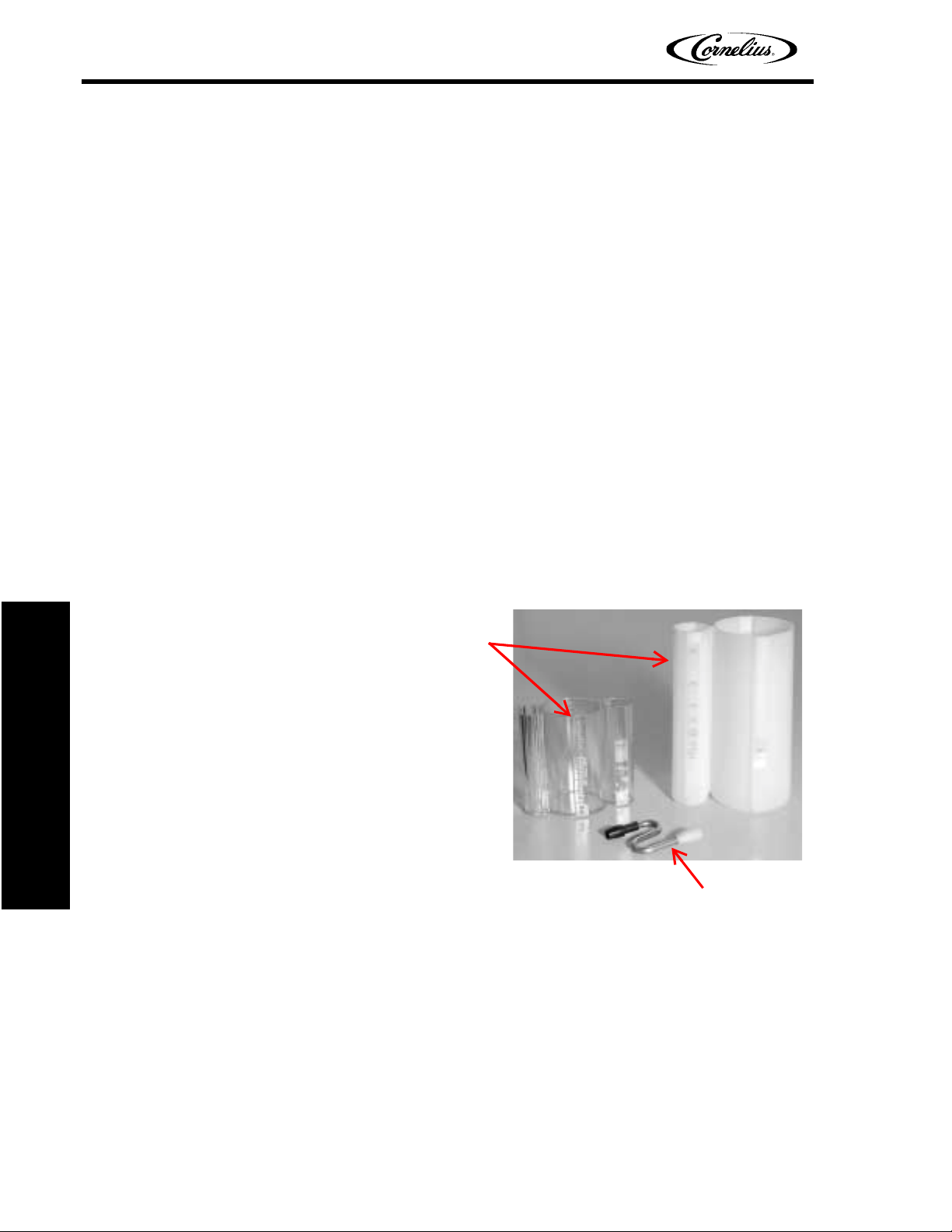

Ratio Cups

the valve to fill the syrup tube before starting the ratio test.

• Clean the cup thoroughly between tests so there is no carry–over from one test to the next.

• Fill the cup to approximately 3/4 full and use approximately the same quantity for each test to ensure accurate set-

SYSTEM DETAILS

tings.

• Take another sample to verify the set-

Syrup Separator

tings.

4. MECHANICAL

4.1 UF-1 and UFB-1 Valve Disassembly

1. Sequence for disassembly (refer to UF-1 Post-mix Dispensing Valve Illustrated Parts List) is as follows:

2. Remove front cover by lifting.

UF-1 and UFB-1 Valves Training Manual

3. Remove valve cover.

4. Unplug wiring harness.

SYSTEM DETAILS

Wiring

Harness

UF-1 and UFB-1 Valves Training Manual

5. Remove valve from mounting block by pushing locking tab to left and push down on top plate of block. .

6. Remove water screw and lever (if it is installed on the valve).

Locking tab

Mounting

screw

Water

lever

SYSTEM DETAILS

7. Remove nozzle – turn left ¼ turn.

8. Remove diffuser assembly. Note: The diffuser must be cleaned daily. Do not use bleach, do not use detergent, do not put in dishwasher. Use lukewarm water or soak in carbonated water.

9. Remove bottom plate by disengaging side tabs.

Tab s

Retainer

wire

10. Remove U-shaped retainer wire from back of valve.

11. Grasp flow control module assembly and pull up. Note: O-rings on bottom of inlets and outlets.

O-rings

12. Note that the flow rate (1 ½ - 3, 3 – 4 ½ or 1 ½ - 3 juice) and date code are printed on the retainer plate.

13. T o disassemble the flo w control: Remove scre ws and pull retainer forward. Remove top flow control subassemblies exposing flow controls. Note the difference between high flow and ultra flow valves.

Note: Top Flow control is an assembly and cannot be dissasembled.

Ultra Flow

notched

piston for

water

UF-1 and UFB-1 Valves Training Manual

Flow rate &

date code

Concentrate valve sleeve has one hole

Syrup valve sleeve

has six holes

14. Pop off solenoid cover. Remove solenoid assembly from valve body by prying with screwdriver. Note: Check plunger for corrosion and dirt – replace as necessary.

Solenoid

plunger

Pry here

Solenoid

cover

Spring

15. Carefully remove banjo lever springs.

SYSTEM DETAILS

UF-1 and UFB-1 Valves Training Manual

16. Then remove 5 screws that secure the valve head to the valve body.

17. To remove the dispensing lever return spring pry the end of the spring and pull up. This spring stops the lever from vibrating.

4.2 Mounting Block Disassembly

To disassemble mounting block:

1. Turn off water and syrup supplies.

Pry here

SYSTEM DETAILS

2. Remove 2 screws from top plate and pull spools out from the bottom of the mounting plate exposing spools and O-rings. Note: When replacing mounting block use replacement O-rings for the inlet fittings.

Block closed (up)

3. When installing a new block, make sure it is locked in the open position..

Block open (down & locked)

O-rings

UF-1 and UFB-1 Valves Training Manual

5. CONTROLS AND ELECTRICAL

All UF-1 and UFB-1 valves have a 24 volt solenoid that should be powered by an 80 kVA rated transformer. Voltage at the coil with the solenoid energized should be 22 and 27 VAC.

5.1 UF-1 and UFB-1 Portion Control Valve

The UF-1 and UFB-1 Portion Control Valves are push and release that dispense for a programmed duration. There are four settings: small, medium, large, and extra-large. There is also a Cancel/Pour rectangular button with red and green arrows. If this button is pressed during dispensing, the flow stops. If the valve is not dispensing and the button is pressed, the valv e dispenses as long as the button is held.

The portion controls are factory programmed to the following default settings:

Portion Size Pour Time

S2 sec.

Portion Control Valve Programming

To set the amount of beverage dispensed, follow this procedure:

1. P ress the hidden program switch until the PGM light turns on. (This light shows only when the programming mode is turned on.)

2. Put desired amount of ice in cup. Press and hold a portion button until the desired level in the appropriate sized cup is reached. Release the button.

3. Continue with other portion buttons that need programming. Portion buttons may be reprogrammed as many times as necessary. Only the last time values entered for each button will be saved when exiting the programming mode.

4. Press the program switch until the PGM light turns off.

PGM lights

(not visible unless in

programming mode)

M3 sec.

L4 sec.

XL 6 sec.

SYSTEM DETAILS

Program switch (hidden)

UF-1 and UFB-1 Valves Training Manual

NOTE: The portion control valve does not have a top-off function. NOTE: When in programming mode, press and release any of the portion size but-

tons to return to the factory portion settings.

NOTE: Portion controls will not operate below 22 volts. This is known as the

“brown-out feature”.

5.2 UF-1 and UFB-1 OptifillTM Valve

The OptifillTM Valve is activ ated b y pressing a cup against the dispensing lever. The valve dispenses only unt il foam from the cup touches the lever*. If a top-of f de lay is set, the v alv e will dispense again a fter a preset delay. This “topping-off” fills the cup after the foam settles. The top-off delay is can be adjusted from 0 to 15 seconds, the factory default is 2 seconds.

*Note: A metal rivet in the valve body supplies electricity through the

beverage being dispensed. When the foaming beverage comes in contact with the metal dispensing lever it completes the electrical circuit and the flow module closes the dispensing valv e — even though the lever is still activated.

SYSTEM DETAILS

Note: The cup must stay in place against the lever for the top-off to operate.

Note: A slanted cup rest must be used with an OptifillTM valve.

OptifillTM Valve Programming

The OptifillTM module provides a timed dispensing function to set water flow rates. To access this function:

1. Press the program switch until the LED turns on.

2. Hold a graduated cup under the valve nozzle without touching the lever. Press the large rectangular switch. The valve dispenses for 2 seconds. The dispensed liquid divided by 2 equals the oz./sec dispensed rate.

3. Press the program switch to exit the program.

4. To program the top off function follow this procedure:

5. Remove the front valve cover.

6. Press the program switch until the LED turns on (can be seen from the top of the module.)

7. Place cup against the lever for initial dispensing. When the foam touches the lever the valve stops and the LED flashes.

8. When the foam in the cup has lowered, press and release the large rectangular button. The valve dispenses a top-off and shuts off when the foam again touches the lever. The LED is now on steady.

9. Press the program switch until the LED turns off.

10. If you wish to disable the top-off, follow steps 1 through 3. Remove the cup from the lever. This will enter a zero value for the delay time and disable the top-off fill. Press the program switch for 3 seconds.

PGM lights

(not visible unless in

programming mode)

UF-1 and UFB-1 Valves Training Manual

Program switch (hidden)

Note: The OptifillTM valve does not have an adjustment for sensitivity.

SYSTEM DETAILS

UF-1 and UFB-1 Valves Training Manual

INSTALLATION

CAUTION — Only trained and certified technicians should service this

unit. ALL WIRING AND PLUMBING MUST CONFORM TO NATIONAL AND LOCAL CODES.

1. INSTALLATION REQUIREMENTS

1.1 Requirements Summary

The beverage dispenser that the UF-1 or UFB-1 v alv e(s) will be installed on should be capable of supplying an adequate flow of water (for the beverage and for cooling) and syrup.

environment: . . . . . . .indoor installation only

temperature: . . . . . . . .50 to 110° F ambient temperature

syrup BIB: . . . . . . . . .60 to 80 psi

carbonated water:. . . .65 to 110 psi

plain water:. . . . . . . . .50 to 110 psi

electrical: . . . . . . . . . .24 volts AC (22-27 volts), 80 VA, 50/60 Hz

1.2 Electrical Requirements

Before connecting electrical power to the beverage dispenser refer to nameplate to see if it requires 50 or 60 Hz power.

DANGER — To avoid possible serious injury or death the ELCB (earth leakage

circuit breaker) must be installed in the electrical circuit of all 50 Hz units.

WARNING — To avoid possible electrical shock the unit must be electrically

grounded using the green grounding screw provided inside the electrical contractor box.

CAUTION — The wiring must be properly grounded and connected through a

15-amp disconnect switch (slow–blow fuse or equivalent HACR circuit breaker). ALL WIRING MUST CONFORM TO NATIONAL AND LOCAL CODES. MAKE SURE UNIT IS PROPERLY GROUNDED.

2. INSTALLATION & START-UP

2.1 UF-1 and UFB-1 Valve Installation Procedure

1. Shut off syrup, unplug carbonator, shut off CO2 and water supply to the unit.

2. Release pressure in lines by activating valves and lifting relief valve of carbonator

INSTALLATION

3. Detach current valves: – Remove front cover by lifting. – Remove valve cover. – Unplug wiring harness. – Remove valve.

3. INSTALLATION CHECKLIST

1. Voltage and proper grounding.

2. Valve properly secured (latched) to block.

3. CO2 pressure to carbonator.

4. Water flow rate.

5. Syrup delivery pressure.

UF-1 and UFB-1 Valves Training Manual

6. Finished product temperature less than 40°F.

7. Water to syrup ratio.

8. Portion size / top-off.

9. Water, syrup, CO2 leaks.

10. Cover secured to valve.

11. Valves flavor correctly marked.

4. RETROFITTING

UF-1 and UFB-1 valves will retrofit any valve with an identical mounting block screw pattern. Note: Replacement of mounting block inlet fitting O-rings (part # 4073) is required when retrofit-

ting valves.

4.1 Mounting Block Removal

To remove valve mounting block from the front panel, take out and save 4 screws. IMPORTANT: Before installing block replace O-rings on each outlet fitting. Lubricate

with Dow 111 or equivalent silicone lubricant. Do not use petroleum jelly.

INSTALLATION

UF-1 and UFB-1 Valves Training Manual

SERVICE

CAUTION — Only trained and certified technicians should service this

SERVICE

1. PREVENTATIVE MAINTENANCE

1.1 Preventative Maintenance Procedures

Preventative Maintenance Procedure Procedure Frequency

unit. ALL WIRING AND PLUMBING MUST CONFORM TO NATIONAL AND LOCAL CODES.

1. Check valve operation (does it dispense prop-

erly)

2. Replace worn or missing parts 6 months

3. Clean valves 6 months

4. Check voltage (22 to 27 VAC with the valve

activated)

5. Check product temperature (less than 40°F) 6 months

6. Check water flow rate (use syrup bypass tube

and ratio cup)

7. Check ratio 6 months

8. Check portion size / top-off 6 months

9. Check for leaks 6 months

NOTE: These procedures should be performed every six months OR after a service

call.

6 months

1.2 Cleaning Valve

1. Remove the valve nozzle and the syrup diffuser.

2. Wash the nozzle and diffuser in water. Soak in carbonated water overnight if possible. Use a soft brush as needed to remove any accumulated syrup deposits.

3. Remove cover and bottom plate and clean with a soft cloth and warm soapy water.

4. Wipe the valve surface with a clean soft cloth.

CAUTION — Do not soak valve components in chlorine.

UF-1 and UFB-1 Valves Training Manual

TROUBLE SHOOTING

Excess Foam

Problem:

excess foam

Check

product

temperature

SERVICE

Temp

?

below 40°

Remove

nozzle

Clean

?

no

Clean

Problem

corrected

above 40°

yes

Check system

Check flow

rates

Correct

?

no

Set flow rate

and ratio

yes

Check system

Problem

corrected

UF-1 and UFB-1 Valves Training Manual

Off Taste

SERVICE

Problem: off taste

Remove

nozzle

Clean

?

no

Clean

Problem

corrected

yes

Check ratio

Correct

?

no

Set ratio

Problem

corrected

yes

Check

system

Valve Stuck Open

Problem: valve

stuck open

Check

solenoid

visually

UF-1 and UFB-1 Valves Training Manual

SERVICE

working

?

no

(solenoid down)

Check for

power at

solenoid

Power

?

no

Clean or

replace

solenoid

Problem corrected

yes

(solenoid up)

dispensing

Replace

switch

Problem

corrected

Check for

damaged

banjos

Damage

?

yes

Replace

banjos

Problem

corrected

no

Undetermined

problem call 800-238-3600

UF-1 and UFB-1 Valves Training Manual

SERVICE

No Product

Problem:

no product

Check

solenoid

visually

Replace

switch

no

Working

?

no

Check

voltage

(22-27 AC)

Power

?

no

Check

switch

Problem

corrected

yes

no

yes

Check

system

Check

transformer

Check

resistance

of coil

40 ohms

?

no

Replace solenoid

yes

Check system

Problem corrected

UF-1 and UFB-1 Valves Training Manual

ATTACHMENTS

The following attachments should be included with this lesson:

UF-1 Post-Mix Dispensing Valve

Illustrated Parts List

AT TA C H M E N T S

Post Mix Valves Critical Grounding Information

Service Bulletin

UF-1 and UFB-1 Valves Training Manual

REVIEW

DATE: _______________________________________________

NAME: ______________________________________________

LOCATION: __________________________________________

The following questions summarize important points in the training lesson on UF-1 and UFB-1 Valves and the UF-1 and UFB-1 Product Manual.

1. What component(s) differ between High Flow and Ultra Flow valves? (circle the correct answer) A. Sleeve B. Piston C. Spring D. All of the above.

2. What two things determine the position of the flow control piston inside the sleeve? (circle the correct answer) A. Flowing pressure and spring pressure B. Syrup and water pressure C. Temperature and pressure D. Syrup and water flow.

3. How might chloramine affect a dispensing valve? (circle the correct answer) A. Restriction in the flow controls

REVIEW

B. Color of the valve body C. Cracking of the flow control D. Degradation of rubber components.

4. If a ratio setting changes, what should you check for? (circle the correct answer) A. Syrup pressure B. Water pressure C. Line restriction D. All of the above.

UF-1 and UFB-1 Valves Training Manual

5. Which flow rate should be set first? (circle the correct answer) A. Syrup B. Water C. Either syrup or water D. Both at the same time.

6. What functions does the Cancel/Pour Button on the Portion Control Valve perform? (circle the two A. Cancel portion B. Manual portion C. Reset default D. All of the above.

7. UF-1 valves control? (circle the correct answer) A. On-Off of syrup and water B. Flow rates of syrup and water C. Mixing of syrup and water D. All of the above.

correct answers)

8. When replacing the UF-1 valve mounting block you must? (circle the correct answer) A. Drill new holes B. Replace the wiring harness C. Replace the inlet fitting D. Replace the inlet fitting O-rings.

9. If the finished drink flow rate is 4.0 oz./sec. and the desired ratio is 7 to 1. What should the water flow rate be? (circle the correct answer) A. 3.0 B. 3.5 C. 4.0 D. 2.5.

10. What is the function of the notch in the Ultra Flow water piston? (circle the correct answer) A. Let dirt pass through B. Prevent carbonation loss C. Used in manufacturing process D. Eliminates pulsing and smooths water flow.

REVIEW

UF-1 and UFB-1 Valves Training Manual

11. Which of the following will cause the valve ratio to change? (circle the correct answer) A. Flow control restrictions B. Low CO

C. Weak BIB pump D. All of the above.

12. What two things are different between a concentrate diffuser and a syrup diffuser? (circle the two A. Color B. Position of the product outer holes C. Size D. Shape.

13. How can you identify a concentrate sleeve? (circle the correct answer) A. Number of outlet holes B. Color C. Shape D. Size.

pressure

2

correct answers)

14. What is the flow rate range of a Fast Flow valve? (circle the correct answer) A. 1.0 to 2.5 oz./sec. B. 1.5 to 3.0 oz./sec. C. 2.5 to 4.0 oz./sec. D. 3.0 to 4.5 oz./sec.

15. What is the flow rate range of a Ultra Flow valve? (circle the correct answer)

REVIEW

A. 1.0 to 2.5 oz./sec. B. 1.5 to 3.0 oz./sec. C. 2.5 to 4.0 oz./sec. D. 3.0 to 4.5 oz./sec.

16. What is the range of a concentrate valve? (circle the correct answer) A. 1.0 to 2.5 oz./sec. B. 1.5 to 3.0 oz./sec. C. 2.5 to 4.0 oz./sec. D. 3.0 to 4.5 oz./sec.

UF-1 and UFB-1 Valves Training Manual

17. What are the three basic steps to set the ratio on a valve?

(circle the thr ee correct answers) A. Adjust syrup ratio B. Set water flow rate C. Set portion size D. Cool product.

18. How can you identify the valve flow rate? (circle the correct answer) A. Decal on inside of cover B. Printed on valve body C. Color of valve D. Printed on flow control retainer.

19. What is the minimum VA transformer required for a valve? (circle the correct answer) A. 40 B. 60 C. 80 D. 100.

20. At what intervals (frequency) should maintenance procedures be performed? (circle the two correct answers) A. Every 30 days B. Every 3 months C. Every 6 months D. After every service call.

REVIEW

UF-1 and UFB-1 Valves Training Manual

NOTES:

_______________________________________________________________________

IMI Cornelius Inc.

www.cornelius.com

Part No. 315222001 February 2, 2005

Cornelius UF-1, UFB-1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

1. PREVIEW QUESTIONS

2. KEY THINGS TO KNOW / DO

3. OVERVIEW

3.1 Product Description

3.2 Dimensions & Capacities

1. WATER

1.1 Water Quality

1.2 Water Flow

SYSTEM DETAILS

1.3 Adjusting Flow Rates

1.4 Calculating Flow Rates

2. SYRUP/CONCENTRATE

3. SETTING RATIOS

4. MECHANICAL

4.1 UF-1 and UFB-1 Valve Disassembly

4.2 Mounting Block Disassembly

5. CONTROLS AND ELECTRICAL

5.1 UF-1 and UFB-1 Portion Control Valve

Portion Control Valve Programming

5.2 UF-1 and UFB-1 OptifillTM Valve

OptifillTM Valve Programming

INSTALLATION

1. INSTALLATION REQUIREMENTS

1.1 Requirements Summary

1.2 Electrical Requirements

2. INSTALLATION & START-UP

2.1 UF-1 and UFB-1 Valve Installation Procedure

3. INSTALLATION CHECKLIST

4. RETROFITTING

4.1 Mounting Block Removal

SERVICE

1. PREVENTATIVE MAINTENANCE

1.1 Preventative Maintenance Procedures

1.2 Cleaning Valve

TROUBLE SHOOTING

ATTACHMENTS

REVIEW
