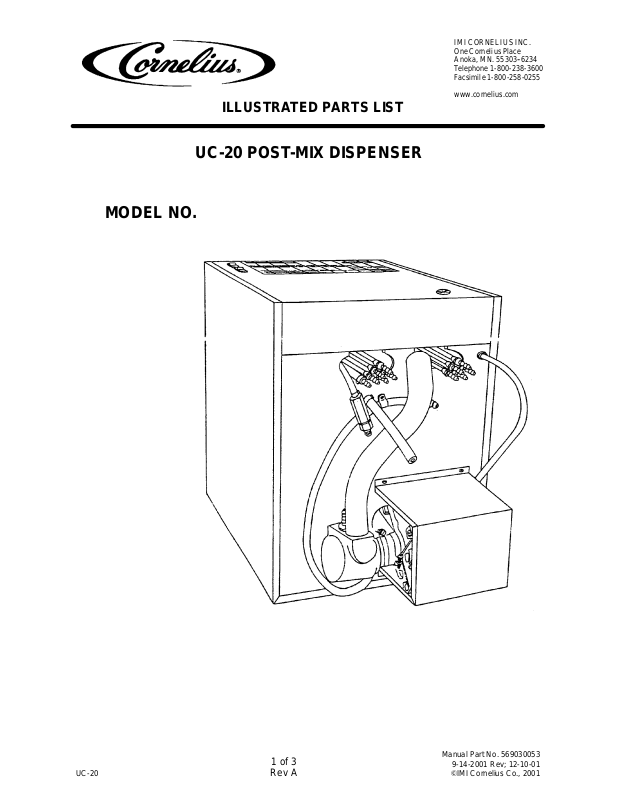

Page 1
MODEL NO.
IMI CORNELIUSINC.
One Cornelius Place
Anoka,MN.55303--6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
UC-20 POST-MIX DISPENSER
UC-20
1of3
Rev A
Manual Part No. 569030053
9-14-2001 Rev; 12-10-01
ãIMI Cornelius Co., 2001
Page 2
ILLUSTRATED PARTS LIST
UC-20 POST-MIX DISPENSER
IMI CORNELIUSINC.
One CorneliusPlace
Anoka,MN.55303--6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
Manual Part No. 569030053
9-14-2001 Rev; 12-10-01
ãIMI Cornelius Co., 2001
FIGURE 1. GENERAL ASSEMBLY
2of3
Rev A
UC-20
Page 3
ILLUSTRATED PARTS LIST
UC-20 POST-MIX DISPENSER
IMI CORNELIUSINC.
One Cornelius Place
Anoka,MN.55303--6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
Item
No.
10 350017 Blade Fan
11 350095 Motor Fan 120V 60HZ
12 230113 Brkt, Mtr Fan
13 320389000 Bushing Snap
14 230280 Box Elec
15 560006961 Cabinet
16 710160252 Cover Box Elec
17 186074001 Control Ice Bank
18 350137 Receptacle Single
19 186564000 Strain Relief
20 710640023 Cord Serv
21 260969 Kit Comp 1/3HP 120V 60HZ
22 398034400 Pin Hitch
23 20223010 Washer Ft .489 I.D.
24 189723000 Grommet Compr
Part No. Name
1 710160390 Grille Gray
2 400284 Screw No. 6 By 5/8” PH
3 550195 Grommet Strip
4 Item Not Used
5 400288 Screw MA No. 6-32 x 1/4” TAPR
6 Item Not Used
7 710160267 Bracket RH Condenser Support
8 550088 Cond Coil
9 230509 Shroud Fan
350096 Motor Fan 230V 50/60HZ
710160431 Motor Asy 120V 60HZ
260967 Kit Comp 1/3HP 230V 50HZ
260972 Comp 1/3HP 240V 60HZ
350148 Relay 1/3HP 120V 60HZ
350151 Relay 1/3HP 230V 50HZ
350152 Relay 1/3HP 220V 60HZ
350108 Overld 1/3HP 115V 60HZ
350106 Overld 1/3HP 230V 50HZ
350107 Overld,1/3HP 220V 60HZ
Item
No.
25 350158 Sleeve Compressor
26 550035 Bushing
27 260151 Evap Coil Assy
28 400105 Fitg Drain 1/4-Barb
29 31525012 O-Ring .301 I.D.
30 400171 Nut Hex 3/8-24
31 30020000 Clamp
32 89053 Tube PVC .250 I.D. (Sold by the
33 400245 Nut Pack 1/2-20
34 398033002 O-Ring .239 I.D.
35 400037 Fitg 1/4-Barb x 1/2-20
36 230041 Brkt, Mtr Agit
37 230304 Heat Sink
38 350082 Motor Agit 120V 60HZ
39 400411 Gasket
40 350007M Blade Agitator 120V 60HZ
41 186610000 Pin Sprg
42 260222 Coil Syr Asy No. 1
43 400244 Nut Pack 7/16-20
44 31525002 O-Ring .176 I.D.
45 77080101 Fitg 1/4-Barb x 7/16-20
46 260196 Coil Carb Wtr Asy
Part No. Name
Foot)
350083 Motor Agit 230V 50HZ
350008 Blade Agitator 230V 50HZ
260223 Coil Syr Asy No. 2
260224 Coil Syr Asy No. 3
260225 Coil Syr Asy No. 4
Compressor Kits include Compressor,
Relay, Overload, Grommets and Sleeves
UC-20
3of3
Rev A
Manual Part No. 569030053
9-14-2001 Rev; 12-10--01
ãIMI Cornelius Co., 2001
