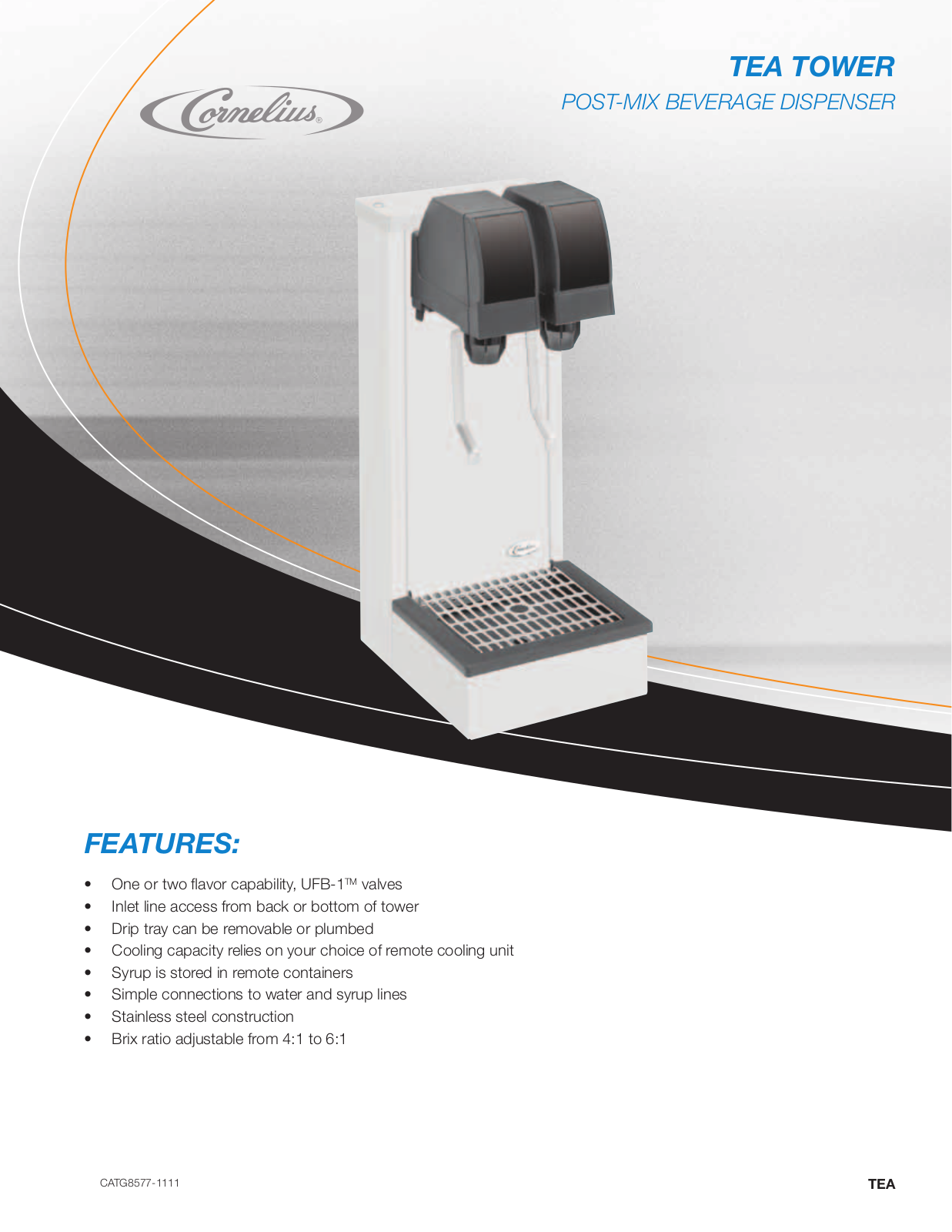

Cornelius TEA TOWER User Manual

TEA TowER

Post-Mix Beverage disPenser

FEATURES:

• One or two flavor capability, UFB-1TM valves

• Inlet line access from back or bottom of tower

• Drip tray can be removable or plumbed

• Cooling capacity relies on your choice of remote cooling unit

• Syrup is stored in remote containers

• Simple connections to water and syrup lines

• Stainless steel construction

• Brix ratio adjustable from 4:1 to 6:1

CATG8577-1111

tea

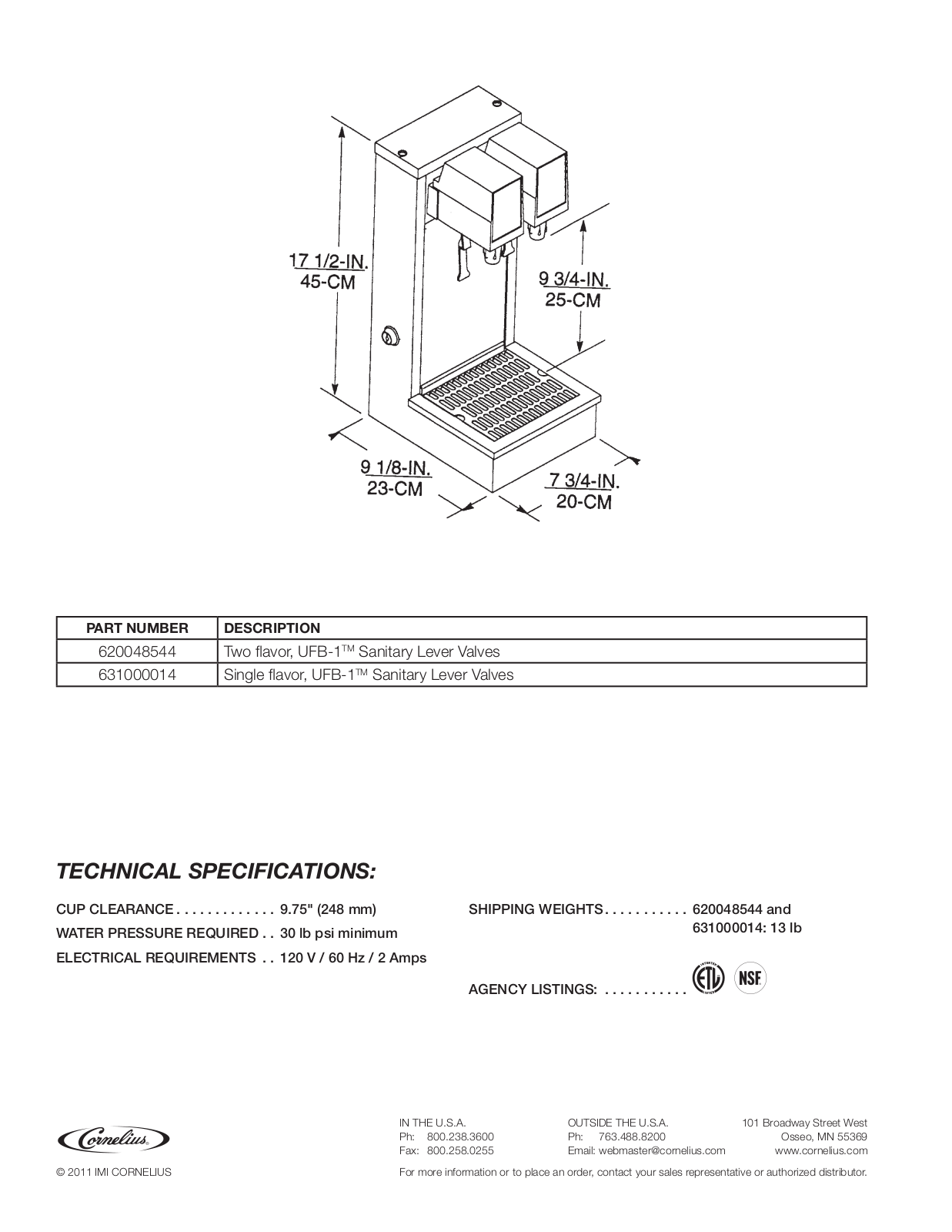

Part Number DescriPtioN

620048544 Two flavor, UFB-1TM Sanitary Lever Valves

TM

631000014 Single flavor, UFB-1

Sanitary Lever Valves

TECHNICAL SPECIFICATIoNS:

CUP CLEARANCE . . . . . . . . . . . . . 9.75" (248 mm)

WATER PRESSURE REQUIRED . . 30 lb psi minimum

ELECTRICAL REQUIREMENTS . . 120 V / 60 Hz / 2 Amps

IN THE U.S.A.
Ph: 800.238.3600
Fax: [phone]

© 2011 IMI CORNELIUS

For more information or to place an order, contact your sales representative or authorized distributor.

SHIPPING WEIGHTS . . . . . . . . . . . 620048544 and

631000014: 13 lb

AGENCY LISTINGS: . . . . . . . . . . .

OUTSIDE THE U.S.A.
Ph: 763.488.8200
Email: [e-mail]

101 Broadway Street West

www.cornelius.com

Osseo, MN 55369
