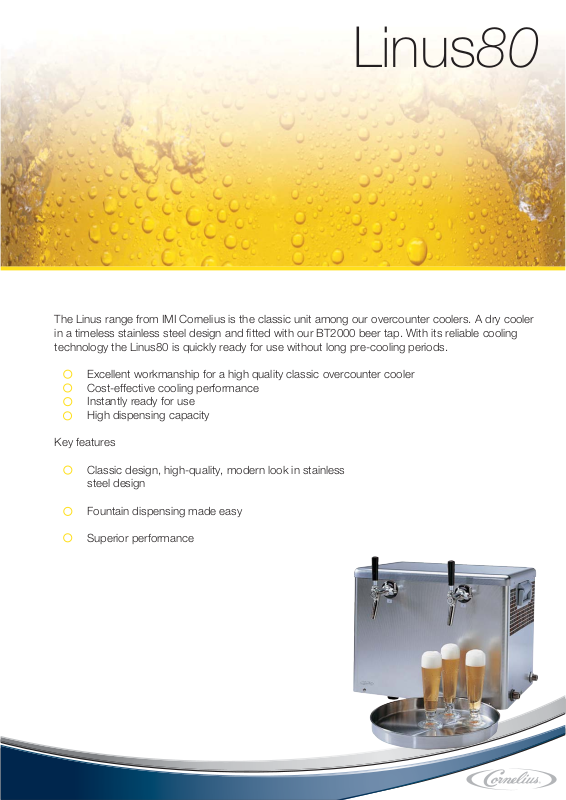

Linus80

The Linus range from IMI Cornelius is the classic unit among our overcounter coolers. A dry cooler
in a timeless stainless steel design and fitted with our BT2000 beer tap. With its reliable cooling
technology the Linus80 is quickly ready for use without long pre-cooling periods.

Excellent workmanship for a high quality classic overcounter cooler
Cost-effective cooling performance
Instantly ready for use
High dispensing capacity

Key features

Classic design, high-quality, modern look in stainless
steel design

Fountain dispensing made easy

Superior performance

346mm

430mm

535mm

Performance:

Dispense capacity in l/hour
continuously with a ∆T of
10ºC (18°C to 8°C):

95 litres

Maximum ambient temperature: 32°C

Heat emission: 1720 watts

Weight:

Equipment weight: 42 kg
Packed weight: 45 kg

Electrical:

Mains supply: 230 v / 50 hz
Power consumption: 610 watts
Supply: 2 m mains cable
euro style plug

Refrigeration:

Compressor: 15 cc / 1/2 hp
Compressor duty
at 0°C Evaporation: 915 watts
Cooling performance continuously: 1106 watts / 951 kcal

Product coils:

Material: Stainless steel
Number of coils: 2
Length of coils: 8 m
Diameter (internal/external): 7 mm or 10 mm

Variations and Ordernumbers Linus80

Overcounter

2 Taps BT 2000, 7 mm 49 1588 207
2 Taps BT 2000, 10 mm 49 1588 200

Ready for use system

2 Taps BT 2000, 7 mm 49 1588 700
2 Taps BT 2000, 10 mm 49 1588 800

Undercounter

2 Lines, 7 mm 49 1588 507
2 Lines, 10 mm 49 1588 500

Control type: Mechanical thermostat

Contact:

Phone: [phone]
Fax: [phone]

www.imi-cornelius.net
[e-mail]

Cooling performance and dispensing capacities at an ambient
temperature of 24°C. 18°C beer ingoing temperature and dispense
temperature not exceeding 8°C.

IMI Cornelius reserves the right to modify the details in the publication as
products and specifications are updated and improved. All data contained
in this literature is correct at time of print. To ensure technical data is accurate
please contact IMI Cornelius prior to placing your order.

1003 02 12/06 2500 14
