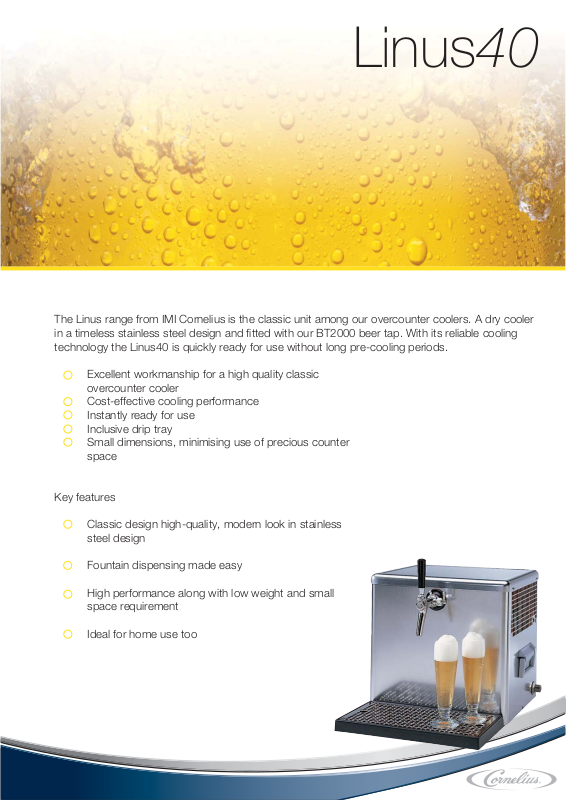

Linus40

The Linus range from IMI Cornelius is the classic unit among our overcounter coolers. A dry cooler
in a timeless stainless steel design and fitted with our BT2000 beer tap. With its reliable cooling
technology the Linus40 is quickly ready for use without long pre-cooling periods.

Excellent workmanship for a high quality classic
overcounter cooler
Cost-effective cooling performance
Instantly ready for use
Inclusive drip tray
Small dimensions, minimising use of precious counter
space

Key features

Classic design high-quality, modern look in stainless
steel design

Fountain dispensing made easy

High performance along with low weight and small
space requirement

Ideal for home use too

310mm

385mm

188mm

376mm

Performance:

Dispense capacity in l/hour
continuously with a ∆T of
10ºC (18°C to 8°C):

43 litres

Maximum ambient temperature: 32°C

Heat emission: 844 watts

Weight:

Equipment weight: 25 kg
Packed weight: 27 kg

Electrical:

Mains supply: 230 v / 50 hz
Power consumption: 345 watts
Supply: 2 m mains cable
euro style plug

Refrigeration:

Compressor: 7.5 cc / 1/5 hp
Compressor duty
at 0°C Evaporation: 408 watts
Cooling performance continuously: 499 watts / 429 kcal

Product coils:

Material: Stainless steel
Number of coils: 1
Length of coils: 8 m
Diameter (internal/external): 7 mm or 10 mm

Variations and Ordernumbers Linus 40

Overcounter

1 Tap BT 2000, 7 mm 49 1571 970

1 Tap BT 2000, 7 mm, 49 1571 971
Aircompressor

1 Tap BT 2000, 7 mm, 49 1571 972
Ready for use

Undercounter

1 Line, 7 mm 49 1571 973

Control type: Mechanical thermostat

Contact:

Phone: [phone]
Fax: [phone]

www.imi-cornelius.net
[e-mail]

Cooling performance and dispensing capacities at an ambient
temperature of 24°C. 18°C beer ingoing temperature and dispense
temperature not exceeding 8°C.

IMI Cornelius reserves the right to modify the details in the publication as
products and specifications are updated and improved. All data contained
in this literature is correct at time of print. To ensure technical data is accurate
please contact IMI Cornelius prior to placing your order.
