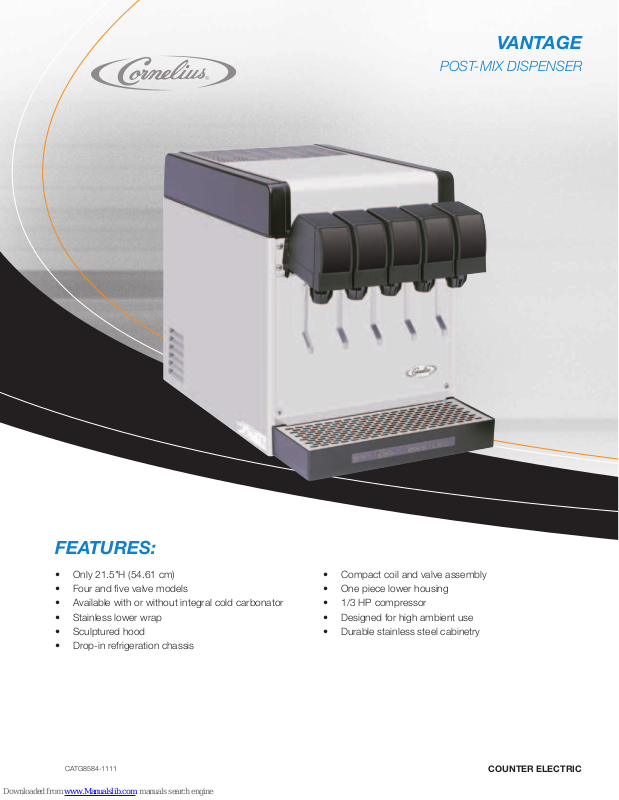

Cornelius 561600166, 561600167, 4923 Specification Sheet

VAnTAgE

post-mix dispenser

FEATURES:

• Only 21.5"H (54.61 cm)

• Four and five valve models

• Available with or without integral cold carbonator

• Stainless lower wrap

• Sculptured hood

• Drop-in refrigeration chassis

CATG8584-1111

• Compact coil and valve assembly

• One piece lower housing

• 1/3 HP compressor

• Designed for high ambient use

• Durable stainless steel cabinetry

counter electric

Part number DescriPtion electrical

561600166 Vantage 4 Flavor, Integral Carbonator

561600167 Vantage 5 Flavor, Integral Carbonator

115 V / 60 Hz / 7.4 Amps

4923 4" Leg Kit

TECHnICAL SPECIFICATIOnS:

COMPRESSOR . . . . . . . . . . . . . . . 1/3 HP

CONDENSER FINISH . . . . . . . . . . Copper, aluminum

CUP CLEARANCE. . . . . . . . . . . . . 9.75" (24cm)

INITIAL AVERAGE ICEBANK. . . . . 14 lb (6.4 kg)

REFRIGERANT . . . . . . . . . . . . . . . R-134a

INTEGRAL CARBONATOR

TANK RESERVE. . . . . . . . . . . . . . . 56 oz (1.65 L)

ICE BANK CONTROL . . . . . . . . . . Electronic

CARBONATOR PUMP

FILL RATE . . . . . . . . . . . . . . . . . . . 2 oz/sec (60 mL)

INLET FITTINGS . . . . . . . . . . . . . . Syrup: 0.25" barb

Water: 0.25" flare
CO

: 0.25" flare

2

VALVES . . . . . . . . . . . . . . . . . . . . . Standard Flow

VALVE TYPES . . . . . . . . . . . . . . . . UF-1 or SF-1

© 2011 IMI CORNELIUS

DRAW PERFORMANCE . . . . . . . . Number of drinks below

4.4°C (40°F):

Integral Carbonator:
24°C (75°F) ambient w/
draw rate of two 12 oz
drinks per minute = 132
& 32°C (90°F) ambient w/
draw rate of two 12 oz
drinks/min = 65

Remote Carbonator:
24°C (75°F) ambient w/
draw rate of two 12 oz
drinks per minute = 193
& 32°C (90°F) ambient w/
draw rate of two 12 oz
drinks/min = 71

SHIPPING WEIGHT . . . . . . . . . . . . 98 lb (44 kg)

AGENCY LISTINGS . . . . . . . . . . . .
