Cornelius 1522, 2123 User Manual

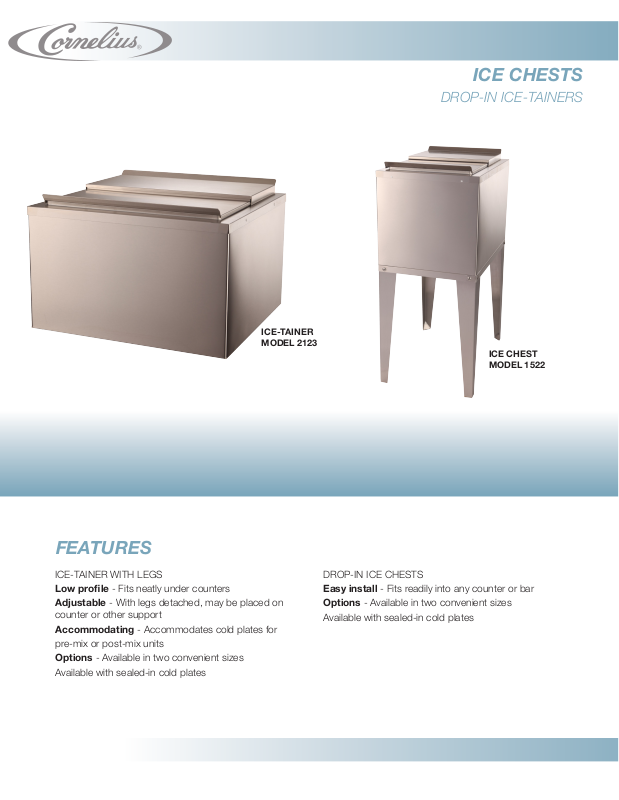

ICE-TAINER
MODEL 2123
ICE CHESTS
DROP-IN ICE-TAINERS
ICE CHEST
MODEL 1522
FEATURES
ICE-TAINER WITH LEGS
Low profile - Fits neatly under counters
Adjustable - With legs detached, may be placed on
counter or other support
Accommodating - Accommodates cold plates for
pre-mix or post-mix units
Options - Available in two convenient sizes
Available with sealed-in cold plates
DROP-IN ICE CHESTS
Easy install - Fits readily into any counter or bar
Options - Available in two convenient sizes
Available with sealed-in cold plates
SHOWN WITH
CUSTOM BASE
SHOWN WITH CUSTOM BASE
INSERTED IN COUNTER
ICE-TAINER MEASUREMENTS
Counter cut out should be 1/4" larger than dimensions A and B Below
Optional: All models can be ordered with custom base for mounting of dispenser.
PART NUMBER MODEL A B C D E F G H
162521000 1522 -IT 15" 22" 14" 33 1/2" 12" 14 1/2" 3 1/2"
162515000 2123-IT 23" 21" 14" 33 1/2" 12" 22 1/2" 3 1/2"
CUSTOM DROP-IN ICE CHEST MEASUREMENTS
162541400 C-1522 15" 22" 13 3/4" 17" 24" 11 3/4" 14 3/4" 3 3/4"
162540000 C-2123 21" 23" 13 3/4" 25" 23" 12" 22 1/2" 3 3/4"
Optional: Leg weld assembly available: 163328000-1522 Ice-Tainer, 163329000-2123 Ice-Tainer
TECHNICAL SPECIFICATIONS
ICE-TAINER
ICE STORAGE CAPACITY ...... 1522: 60 lbs
2123: 80 lbs
CONSTRUCTION ............. Stainless steel
INSULATION ................. Environmentally
friendly foam
ACCEPTABLE COLD PLATE..... 1522: 12" x 18"
2123: 17" x 19"
OPTIONAL COLD PLATE ....... 1522: 13" x 20" 8 circuit
sealed-in cold plate
2123: 19" x 21" 9 circuit
sealed-in cold plate
SHIPPING WEIGHT
WITHOUT COLD PLATE ........ 1522: 32 lbs
2123: 45 lbs
SHIPPING WEIGHT WITH
SEALED-IN COLD PLATE ....... 1522: 103 lbs
2123: 145 lbs
AGENCY LISTING .............
CUSTOM DROP-IN ICE CHESTS
ICE STORAGE CAPACITY ....... 1522: 60 lbs
2123: 80 lbs
CONSTRUCTION.............. Stainless steel with
smooth overlapping rim
INSULATION ................. Environmentally
friendly foam
OPTIONAL COLD PLATE........ 1522: 13" x 20" 8 circuit
sealed-in cold plate
2123: 19" x 21" 9 circuit
pure aluminum sealed-in
cold plate
SHIPPING WEIGHT WITHOUT
COLD PLATE ................. 1522: 32 lbs
2123: 46 lbs
SHIPPING WEIGHT WITH
SEALED-IN COLD PLATE ....... 1522: 106 lbs
2123: 145 lbs
AGENCY LISTING .............
