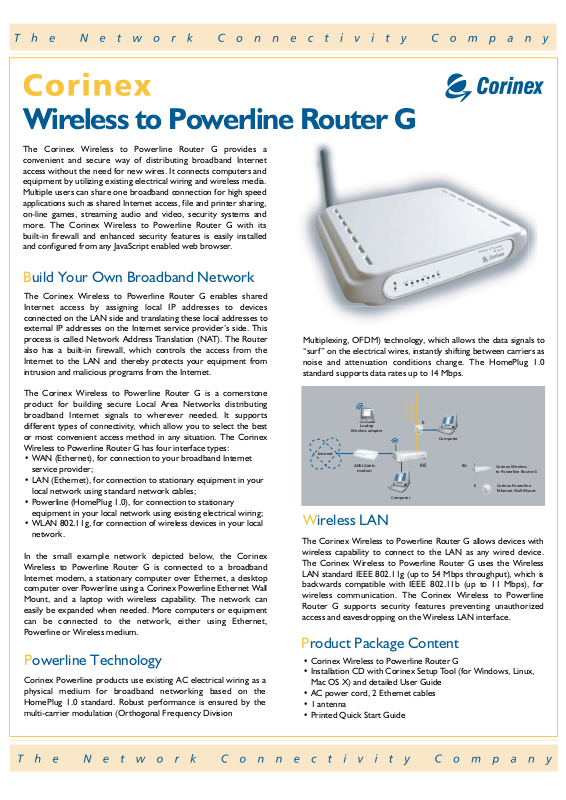

Wireless to Powerline Router G
The Corinex Wireless to Powerline Router G provides a
convenient and secure way of distributing broadband Internet
access without the need for new wires. It connects computers and
equipment by utilizing existing electrical wiring and wireless media.
Multiple users can share one broadband connection for high speed
applications such as shared Internet access, file and printer sharing,
on-line games, streaming audio and video, security systems and
more. The Corinex Wireless to Powerline Router G with its
built-in firewall and enhanced security features is easily installed
and configured from any JavaScript enabled web browser.
Build Your Own Broadband Network
The Corinex Wireless to Powerline Router G enables shared
Internet access by assigning local IP addresses to devices
connected on the LAN side and translating these local addresses to
external IP addresses on the Internet service provider’s side. This
process is called Network Address Translation (NAT). The Router
also has a built-in firewall, which controls the access from the
Internet to the LAN and thereby protects your equipment from
intrusion and malicious programs from the Internet.
The Corinex Wireless to Powerline Router G is a cornerstone
product for building secure Local Area Networks distributing
broadband Internet signals to wherever needed. It supports
different types of connectivity, which allow you to select the best
or most convenient access method in any situation. The Corinex
Wireless to Powerline Router G has four interface types:
• WAN (Ethernet), for connection to your broadband Internet
service provider;
• LAN (Ethernet), for connection to stationary equipment in your
local network using standard network cables;
• Powerline (HomePlug 1.0), for connection to stationary
equipment in your local network using existing electrical wiring;
• WLAN 802.11g, for connection of wireless devices in your local
network.
In the small example network depicted below, the Corinex
Wireless to Powerline Router G is connected to a broadband
Internet modem, a stationary computer over Ethernet, a desktop
computer over Powerline using a Corinex Powerline Ethernet Wall
Mount, and a laptop with wireless capability. The network can
easily be expanded when needed. More computers or equipment
can be connected to the network, either using Ethernet,
Powerline or Wireless medium.
Powerline Technology
Corinex Powerline products use existing AC electrical wiring as a
physical medium for broadband networking based on the
HomePlug 1.0 standard. Robust performance is ensured by the
multi-carrier modulation (Orthogonal Frequency Division
Multiplexing, OFDM) technology, which allows the data signals to
“surf” on the electrical wires, instantly shifting between carriers as
noise and attenuation conditions change. The HomePlug 1.0
standard supports data rates up to 14 Mbps.
Laptop
Wireless adapter
Internet
ADSL/Cable
modem
Wireless LAN
The Corinex Wireless to Powerline Router G allows devices with
wireless capability to connect to the LAN as any wired device.
The Corinex Wireless to Powerline Router G uses the Wireless
LAN standard IEEE 802.11g (up to 54 Mbps throughput), which is
backwards compatible with IEEE 802.11b (up to 11 Mbps), for
wireless communication. The Corinex Wireless to Powerline
Router G supports security features preventing unauthorized
access and eavesdropping on the Wireless LAN interface.
Product Package Content
• Corinex Wireless to Powerline Router G
• Installation CD with Corinex Setup Tool (for Windows, Linux,
Mac OS X) and detailed User Guide
• AC power cord, 2 Ethernet cables
• 1 antenna
• Printed Quick Start Guide
COL
ACT
Computer
ER
W
PO
G
1
1
1
T
AC
powerline
110V / 220V
RG
owerline
to P
ter G
Rou
Wireless
AN
W
N
LA
ACT
4
3
2
CT
A
E
Computer
RG
E
Corinex Wireless
to Powerline Router G
Corinex Powerline
Ethernet Wall Mount
Page 2
Technical Specifications
Hardware
Software
Standard
compliance
Data rate
Cabling Type
LED Status Lights
Unit Dimensions
Interfaces
Memory
Electrical
Parameters
Wireless
Parameters
Environmental
Parameters
Homeplug 1.0
IEEE 802.3, IEEE 802.3u
IEEE 802.11b/g
FCC and UL (US), CE (Europe)
Wireless (802.11g): up to 54 Mbps (6, 9,
12, 18, 24, 36, 48, 54Mbps;
with auto fallback at 802.11b data rate at
1, 2, 5.5, and 11Mbps)
Powerline: up to 14 Mbps
Ethernet: 10/100 Mbps
2 Standard RJ-45 cables for WAN, LAN;
AC power cord
POWER
Link/Activity on WAN
Link/Activity on LAN1-4
Activity and Collision on Powerline
218 mm L x 168 mm W x 53.5 mm H
LAN: 4 x 10/100 Mbps Ethernet Port (RJ-45)
WAN: 1 x 10/100 Mbps Ethernet Port (RJ-45)
AC power connector for both Powerline
networking and power supply
WLAN: 802.11b/g antenna connector
SDRAM: 16MB SDRAM (4MB x 32 Bits)
FLASH: 2MB NOR-Flash (16Bits)
Input Voltage: AC 100V~240V
Line Frequency: 60/50Hz (USA/Europe)
Peak Gain of the Antenna 802.11g:
2.4 GHz => 2dBi
Transmitted Power 802.11g:
Typ. 14dBm @ Normal Temp Range
Receive Sensitivity 802.11g:
11Mbps @ -80 dBm
54Mbps @ -66 dBm Typical
Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)
Operating Humidity 10% to 85% Non-Condensing
Storage Temp: -20ºC to 70ºC (-4ºF to 158ºF)
Storage Humidity 5% to 90% Non-Condensing
Product Specifications
Protocol Support
Supported OS
(Setup Tool)
Powerline network
Wireless LAN
(802.11g)
Security
Management
Other Features
NAT
ARP
HTTP
TCP/IP
ICMP
PPPoE (PAP / CHAP)
PPTP (Microsoft PPTP Client)
Static Routing Protocol
RIPv1 / RIPv2
Wireless Distribution System (WDS)
Broadcom AfterBurner (125Mbps High Speed Mode)
VPN tunnel passing support (PPTP, L2TP, IPsec)
Windows 98, ME, 2000, XP
Linux
Mac OS X
14 Mbps
56 bits DES Key
Wired 802.1x (EAP-MD5)
SSID, Full Channels Support
64/128 bits WEP on 802.11g
802.11i – WPA / AES, TKIP, PSK
Wireless 802.1x
WDS with WPA/PSK
Broadcom AfterBurner (125Mbps High Speed Mode)
Stateful Inspection (SPI) Firewall
MAC & IP filtering
802.1Q Tagged VLAN
QoS – 802.1P, TOS
Wireless 802.1x (EAP-MD5, EAP-PEAP, EAP-LEAP,
EAP-TLS, EAP-TTLS)
Wired 802.1x (EAP-MD5)
802.11i – WPA / AES, TKIP, PSK
56Bit DES Key for Powerline
DMZ
Embedded HTTP Daemon
SNMP v1/v2c Agent
Embedded RADIUS Server (EAP-MD5 only)
Firmware upgrade through Web browser
Zebra & RIPD Terminal (CISCO-like CLI)
UPNP IGD 1.0
DHCP Server/Client
Dynamic DNS client
DNS Proxy
Transparent HTTP Proxy
NTP (Network Time Protocol)
Syslog
Product Code: CXP-RTG
Products features and design may vary by version and region.
Please refer to the Price List for the exact product code
specification for your region.
Corinex Communications Corp.
#670 - 789 West Pender Street
Vancouver, BC
Canada V6C 1H2
Tel: +1 - 604 - 692 0520
Fax: +1 - 604 - 694 0061
Corinex Global, a.s.
Ruzova dolina 19
821 08 Bratislava
Slovak Republic
Tel.: +421 - 2 - 5021 4811
Fax: +421 - 2 - 5556 7309
E-mail: global@corinex.com
E-mail: global@corinex.com
Corinex is a registered trademark of Corinex Communications Corp.
The content of this document is furnished for informational use only, it is subject to change without notice, and it does not represent a commitment on the part of Corinex Communications Corp.
http://www.corinex.com
2004-09-14 ver.1
