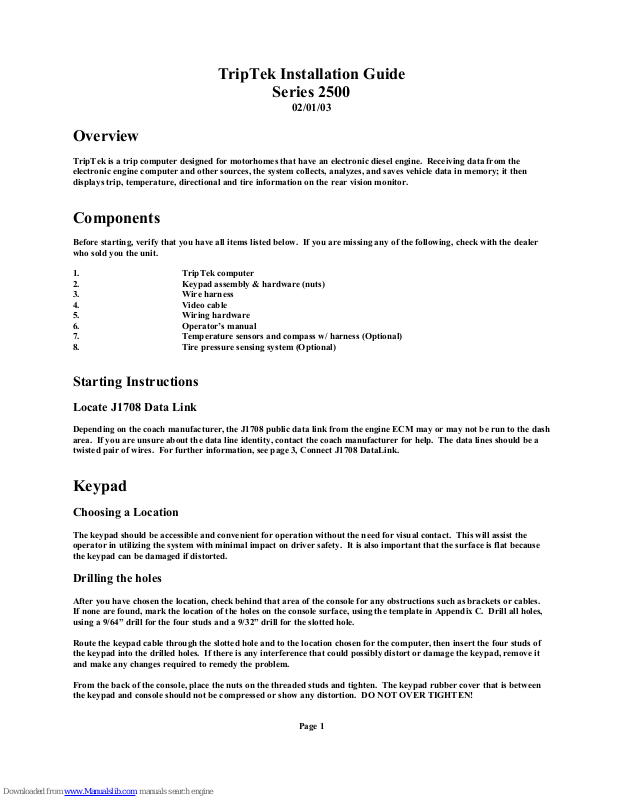

Coretronics TripTek 2500 series Installation Manual

TripTek Installation Guide

Series 2500

02/01/03

Overview

TripTek is a trip computer designed for motorhomes that have an electronic diesel engine. Receiving data from the
electronic engine computer and other sources, the system collects, analyzes, and saves vehicle data in memory; it then
displays trip, temperature, directional and tire information on the rear vision monitor.

Components

Before starting, verify that you have all items listed below. If you are missing any of the following, check with the dealer
who sold you the unit.

1. TripTek computer

2. Keypad assembly & hardware (nuts)

3. Wire harness

4. Video cable

5. Wiring hardware

6. Operator’s manual

7. Temperature sensors and compass w/ harness (Optional)

8. Tire pressure sensing system (Optional)

Starting Instructions

Locate J1708 Data Link

Depending on the coach manufacturer, the J1708 public data link from the engine ECM may or may not be run to the dash
area. If you are unsure about the data line identity, contact the coach manufacturer for help. The data lines should be a
twisted pair of wires. For further information, see page 3, Connect J1708 DataLink.

Keypad

Choosing a Location

The keypad should be accessible and convenient for operation without the need for visual contact. This will assist the
operator in utilizing the system with minimal impact on driver safety. It is also important that the surface is flat because
the keypad can be damaged if distorted.

Drilling the holes

After you have chosen the location, check behind that area of the console for any obstructions such as brackets or cables.
If none are found, mark the location of the holes on the console surface, using the template in Appendix C. Drill all holes,
using a 9/64” drill for the four studs and a 9/32” drill for the slotted hole.

Route the keypad cable through the slotted hole and to the location chosen for the computer, then insert the four studs of
the keypad into the drilled holes. If there is any interference that could possibly distort or damage the keypad, remove it
and make any changes required to remedy the problem.

From the back of the console, place the nuts on the threaded studs and tighten. The keypad rubber cover that is between
the keypad and console should not be compressed or show any distortion. DO NOT OVER TIGHTEN!

Page 1

Temperature Sensors and Compass (Optional)

Refer to Compass and Temperature Installation Manual

Tire Monitor System (Optional)

Refer to Tire Monitor System Installation and Troubleshooting manual

Wire Harness (Standard) - Computer

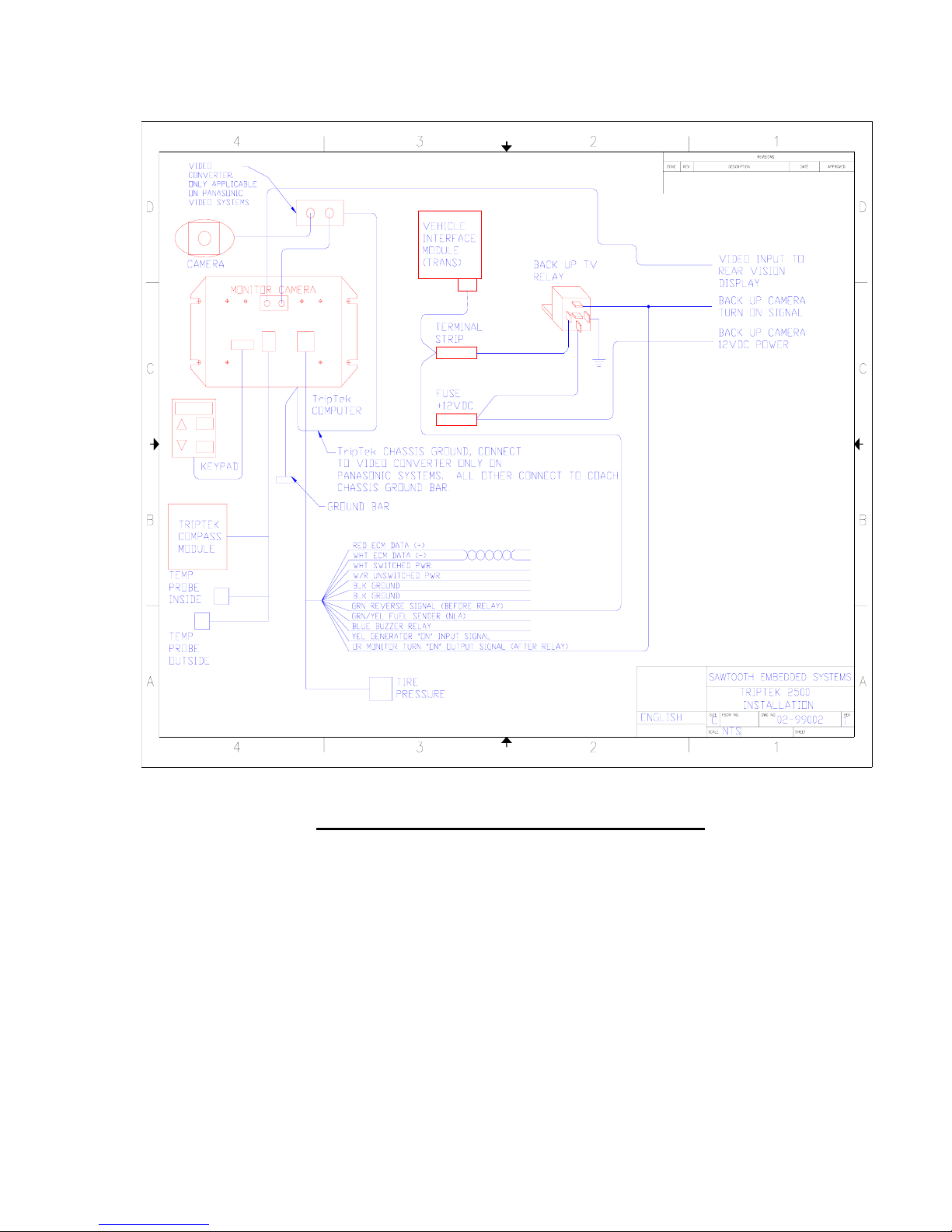

Refer to wiring detail in Appendix A (Dwg. C-02-99002). The wire harness is supplied with the TripTek computer.

If your coach has been pre-wired for the TripTek computer, locate the plug provided by the manufacturer to plug into the
TripTek harness. You may need to contact the manufacturer for the location of these plugs.

If your coach has not been pre wired, continue with the installation below.

Connect the Ground

Locate the BLACK wire in the wire harness and connect it to the same grounding point that is used for the rear vision
system (black wire on Panasonic system). THIS IS VERY IMPORTANT!

Connect to Reverse

Install or verify a relay is in the Reverse line circuit – Ref. Dwg. C-02-99002

Locate the ORANGE wire in the wire harness and connect this wire to the reverse signal wire to the rear vision system,
monitor side of relay (purple/white wire on Panasonic system). Only connect this wire if you are planning on using the
optional tire pressure system.

Locate the GREEN wire in the wire harness and connect this wire to the reverse signal wire on the transmission side of the
relay.

Connect J1708 DataLink

Finding the link.

The J1708 Public Data Link may or may not have it’s own connecter under the dash. This is NOT the six or nine pin
round engine diagnostics connector. If this connector cannot be found, locate the six or nine pin round engine diagnostics
connector. Reach around behind it and locate the twisted pair of wires that go into it. Track those wires back into the
dash. Use Scotch-Loc splices or similar to splice the BLUE (+) and WHITE (-) twisted pair from the TripTek into it.
Make sure you have the polarity correct.

Connect to Generator Hour Meter Signal

Locate the YELLOW wire in the harness and connect it to the generator hour meter positive line.

Connect to Buzzer Relay (Only for optional tire pressure system)

Locate the BLUE wire in the harness and connect it to the in dash warning buzzer relay.

Connect to Chassis Power

Locate the WHITE/RED wire and run it to the chassis fuse panel. It may require additional wire. Find an open fusible
connection to the panel and connect this wire. This wire must have unswitched power. For Panasonic system connect wire
to yellow wire (Panasonic memory power).

Locate the WHITE wire in the harness and run it to a source that has switched power that is only on when the ignition is
on.
