Dell™ 5100MP Projector

Owner's Manual

Model XXX

www.dell.com | support.dell.com

Dell™ 5100MP Projector

Owner’s Manual

Model XXX

www.dell.com | support.dell.com

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use

of your projector.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of

data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal

injury, or death.

____________________

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell , the DELL logo, Dimension, OptiPlex, Dell Precision, Lati- tude, Inspiron, DellNet, PowerApp, PowerEdge, PowerConnect, and PowerVault are trademarks of Dell Inc.; DLP and Texas Instruments are trademarks of Texas Instruments Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation; Macintosh is a registered trademark of Apple Computer, Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Restrictions and Disclaimers

The information contained in this document, including all instructions, cautions, and regulatory approvals and certifications, is based upon statements provided to Dell by the manufacturer and has not been independently verified or tested by Dell. Dell disclaims all liability in connection with any deficiencies in such information.

All statements or claims regarding the properties, capabilities, speeds, or qualifications of the part referenced in this document are made by the manufacturer and not by Dell. Dell specifically disclaims any knowledge of the accuracy, completeness, or substantiation for any such statements.

____________________

June 2005 Rev. A00

1 Your Dell Projector

2 Connecting Your Projector

Connecting to a Computer . . . . . . . . . . . . . . 10

About Your Projector . . . . . . . . . . . . . . . 8

Connecting a Computer with an M1 to D-sub/USB Cable

Connecting a Computer with a D-sub to D-sub Cable

Connecting to a DVD Player

Connecting a DVD Player with an M1 to HDTV Cable

Connecting a DVD Player with a D-sub to

YPbPr Cable . . . . . . . . . . . . . . . . . . . 12

Connecting a DVD Player with a RCA to RCA Cable

Connecting a DVD Player with an S-video Cable

Connecting a DVD Player with a Composite Cable

Connecting a DVD Player with a BNC to VGA cable

Professional Installation Options: Installation

for Driving Automatic Screen . . . . . . . . . . . 15

Installation for wired RS232 remote control: Connection with PC

Connection with Commercial RS232 Control Box: . 17

. . . . . . . . . . . . . . . . 10

. . . . . . . . . . . . . . . . . . . 11

. . . . . . . . . . . 12

. . . . . . . . . . . . . . . . . . . 12

. . 13

. 14

. . . . . . . . . . . . . . . 16

Contents 3

3 Using Your Projector

Turning Your Projector On . . . . . . . . . . . . . . 19

Turning Your Projector Off

Adjusting the Projected Image

Raising the Projector Height

Lowering the Projector Height

. . . . . . . . . . . . . . 19

. . . . . . . . . . . . 20

. . . . . . . . . . . 20

. . . . . . . . . . 20

Adjusting the Projector Zoom and Focus

Adjusting Projection Image Size

Using the Control Panel

. . . . . . . . . . . . . . . 23

Using the Remote Control

Using the On-Screen Display

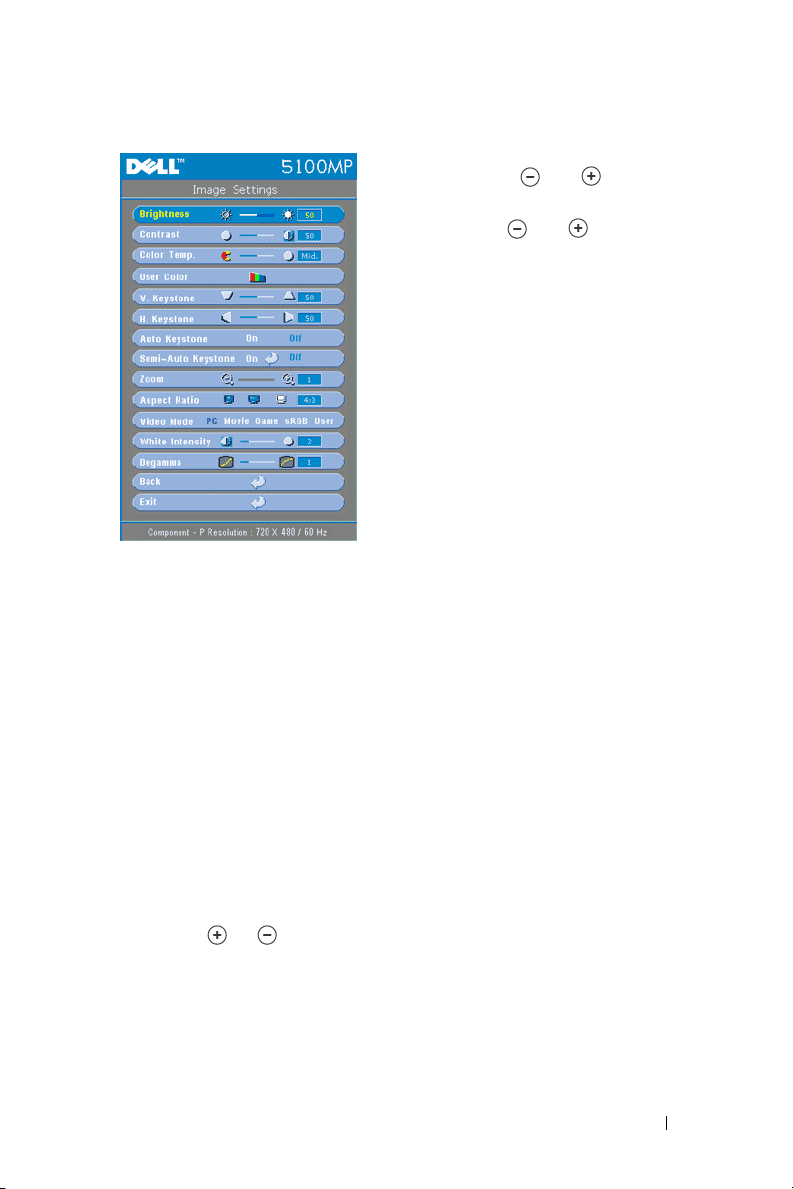

Image Settings

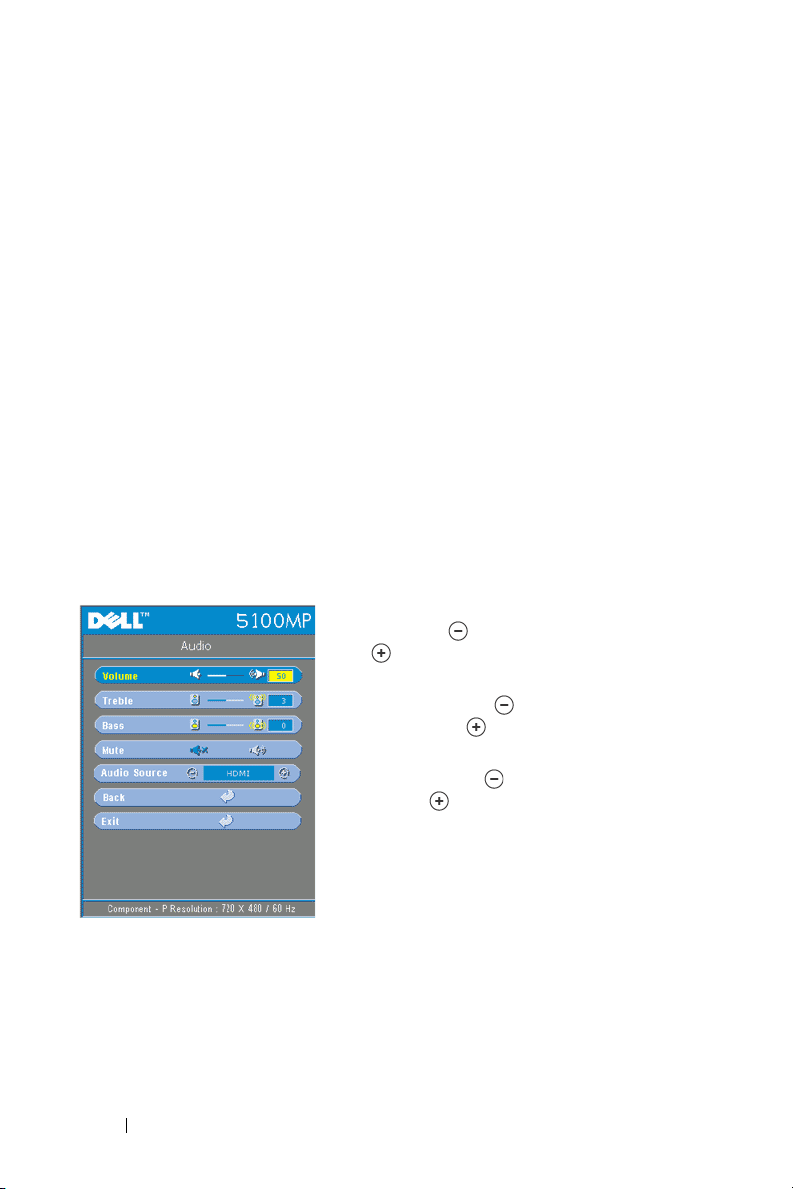

Audio Menu

. . . . . . . . . . . . . . . . . 28

. . . . . . . . . . . . . . . . . . 30

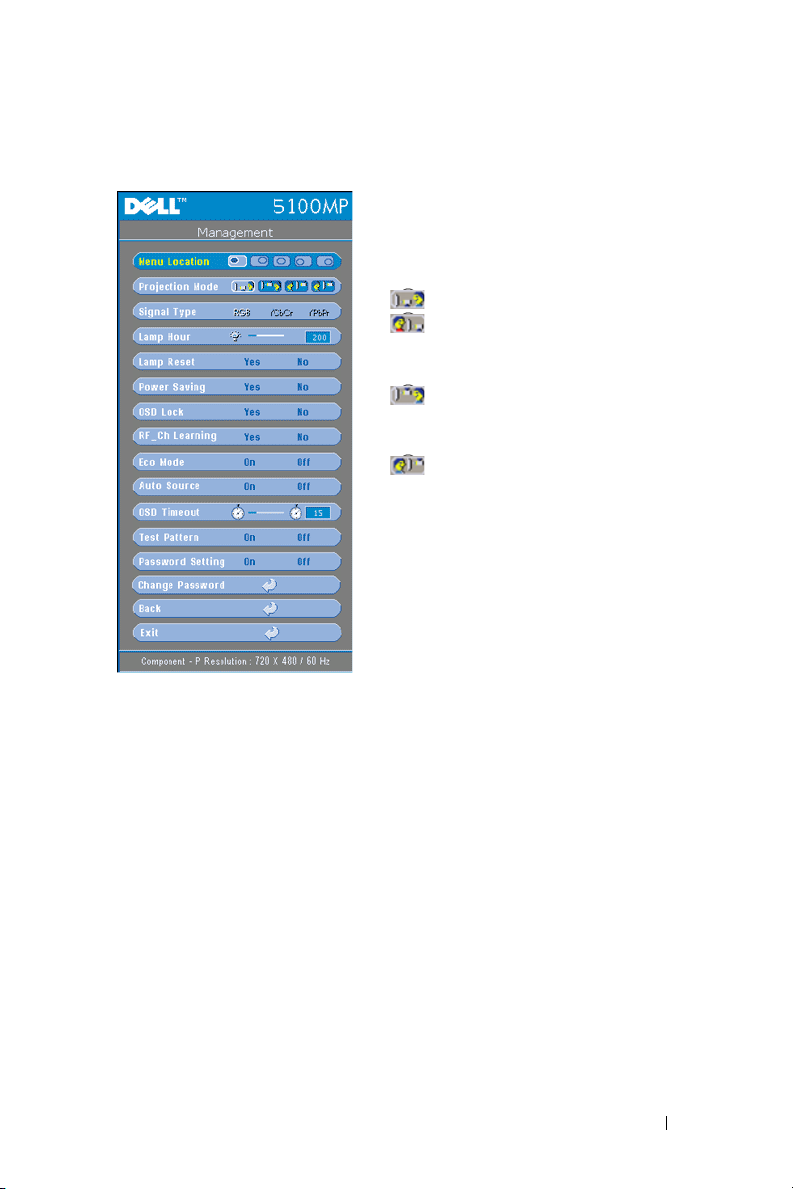

Management Menu

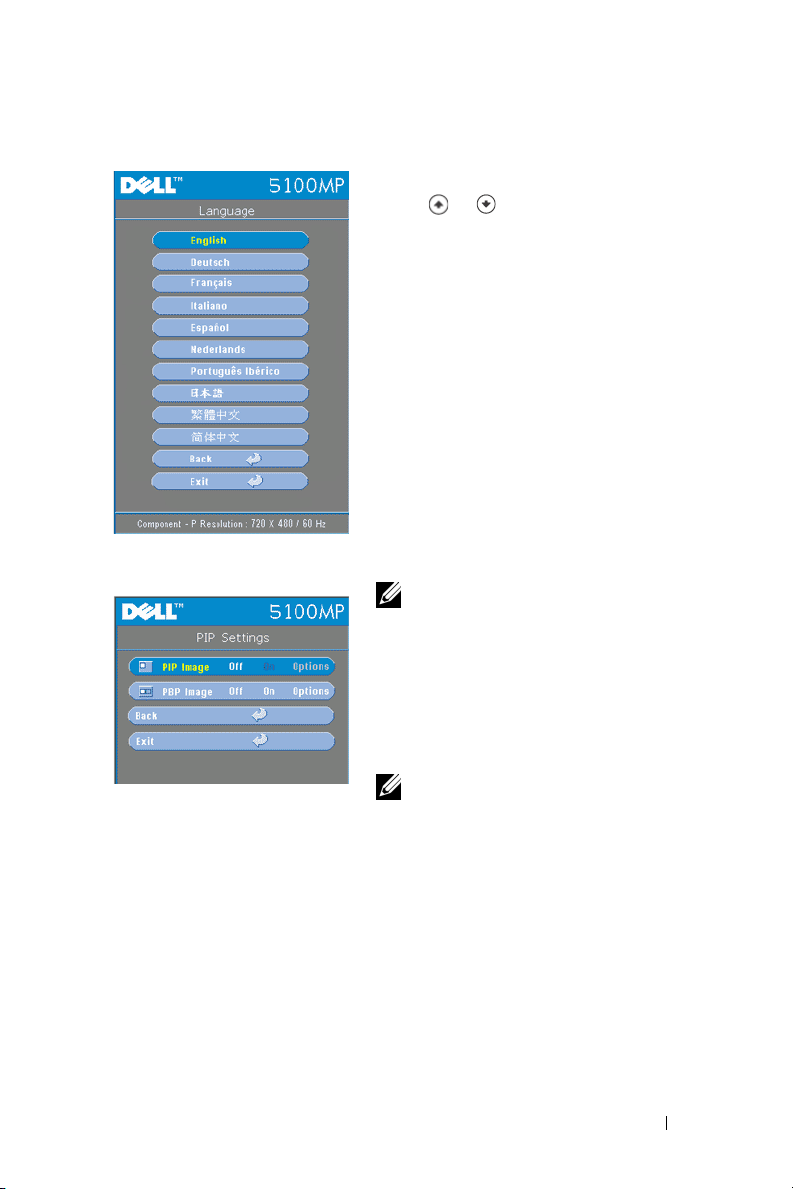

Language Menu

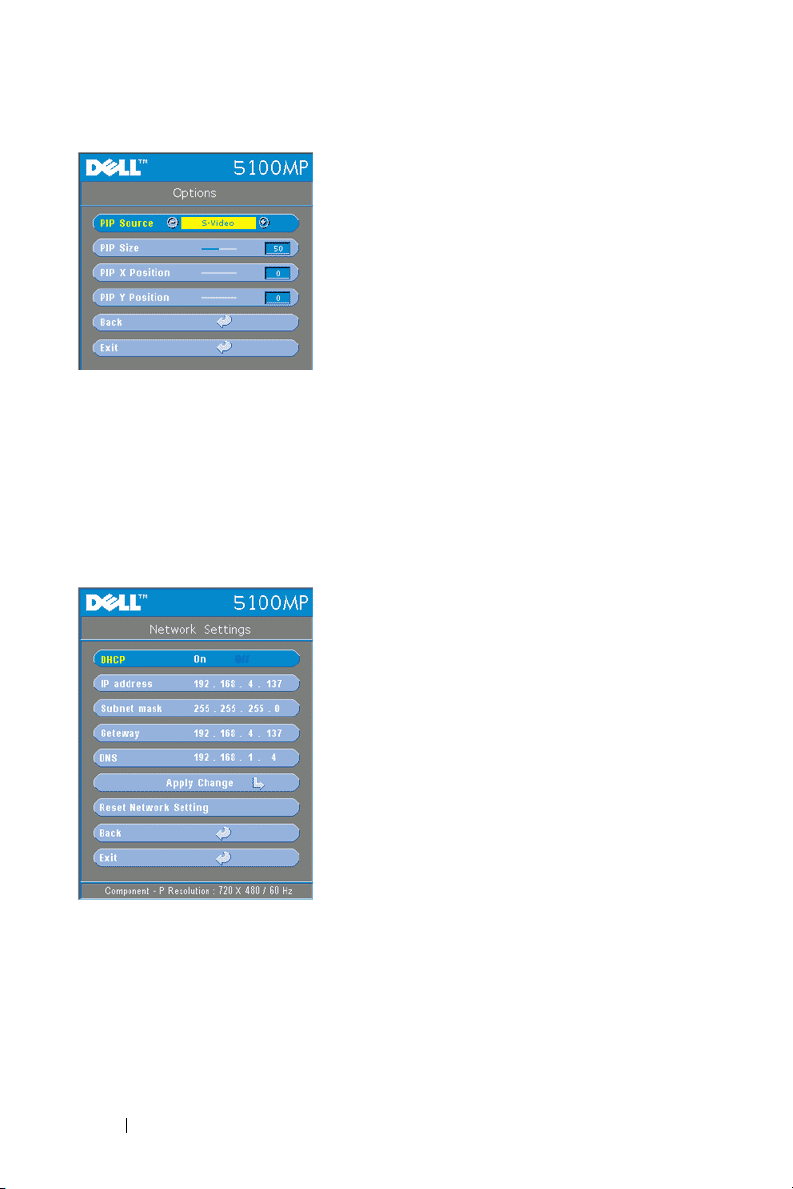

PIP Setting Menu

. . . . . . . . . . . . . . . . 33

Network Settings Menu

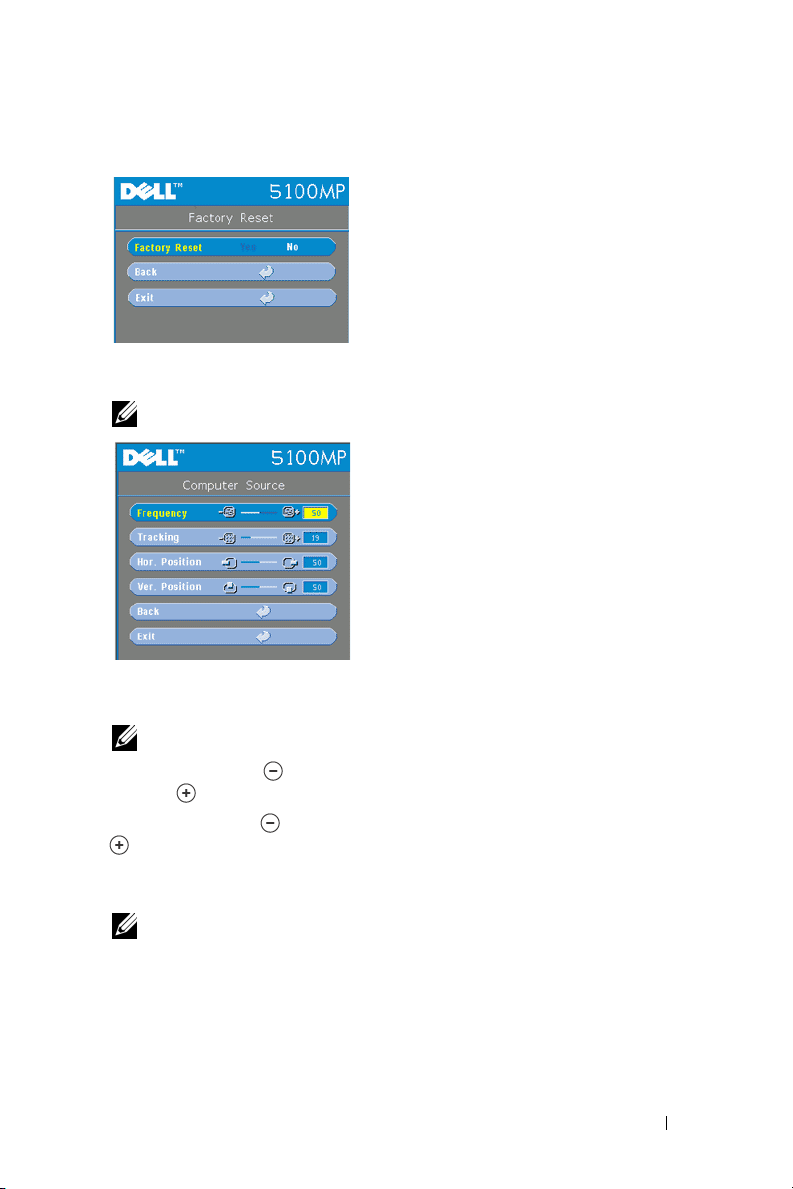

Factory Reset Menu

Computer Source Menu

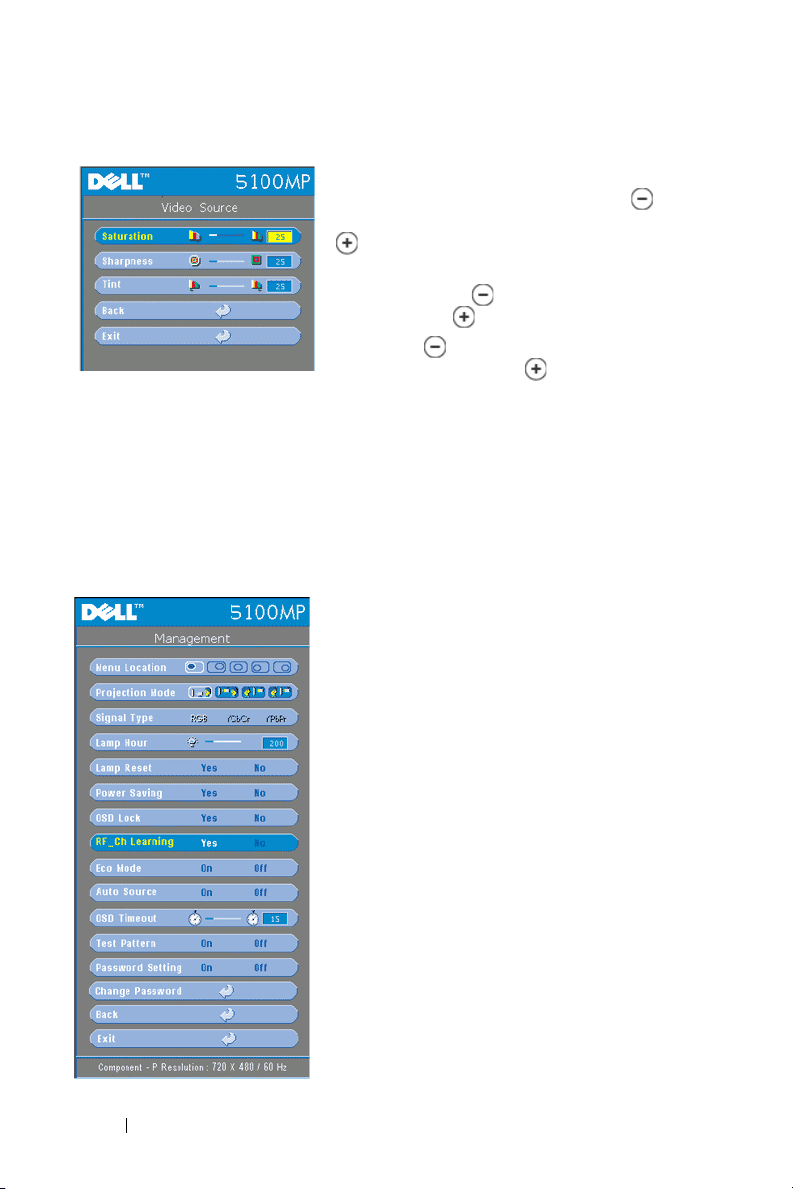

Video Source Menu

RF Learning Connections

. . . . . . . . . . . 22

. . . . . . . . . . . . . . 25

. . . . . . . . . . . . 28

. . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . 34

. . . . . . . . . . . . . . 35

. . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . 35

. . . . . . . . . . . . 36

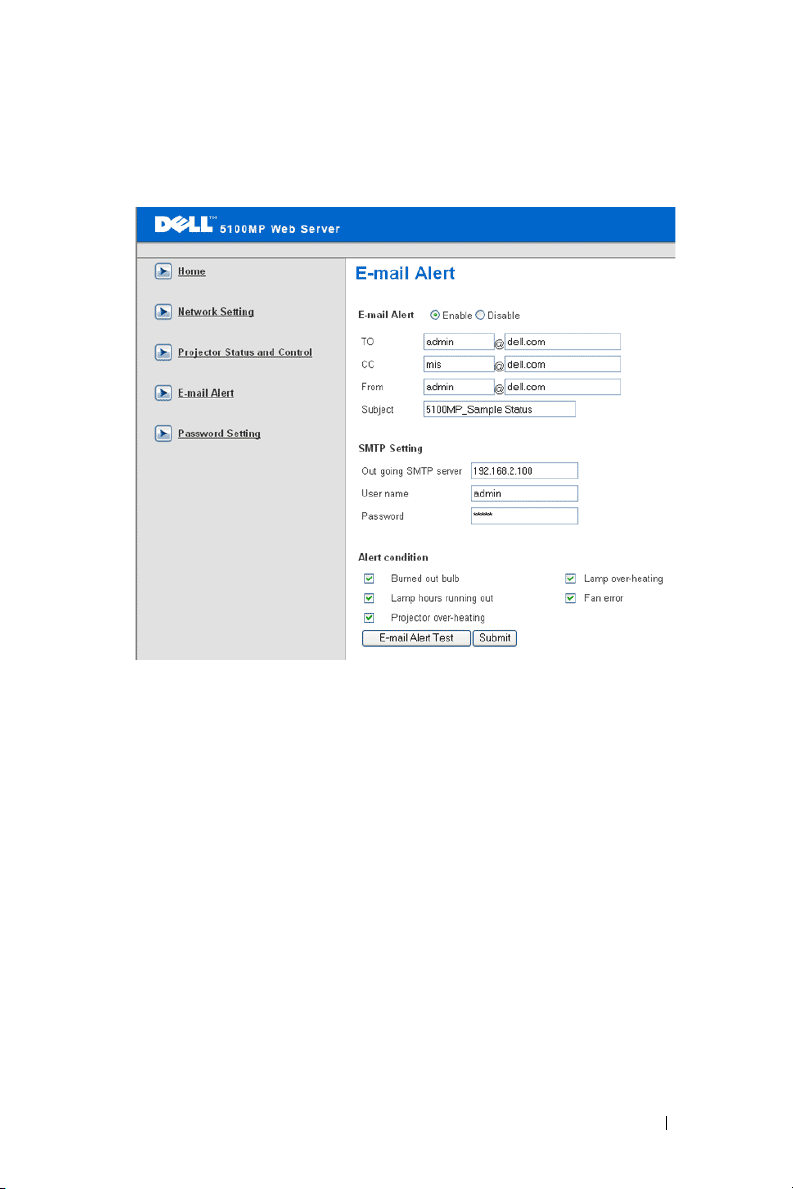

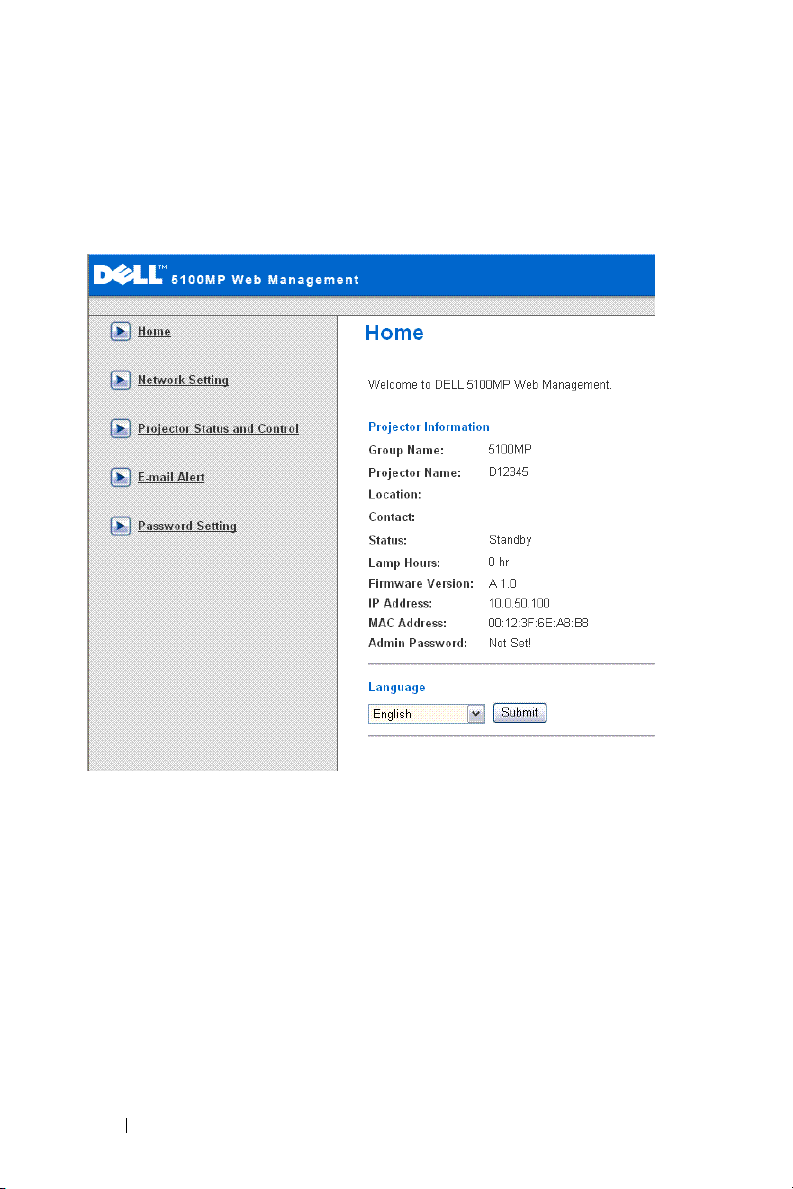

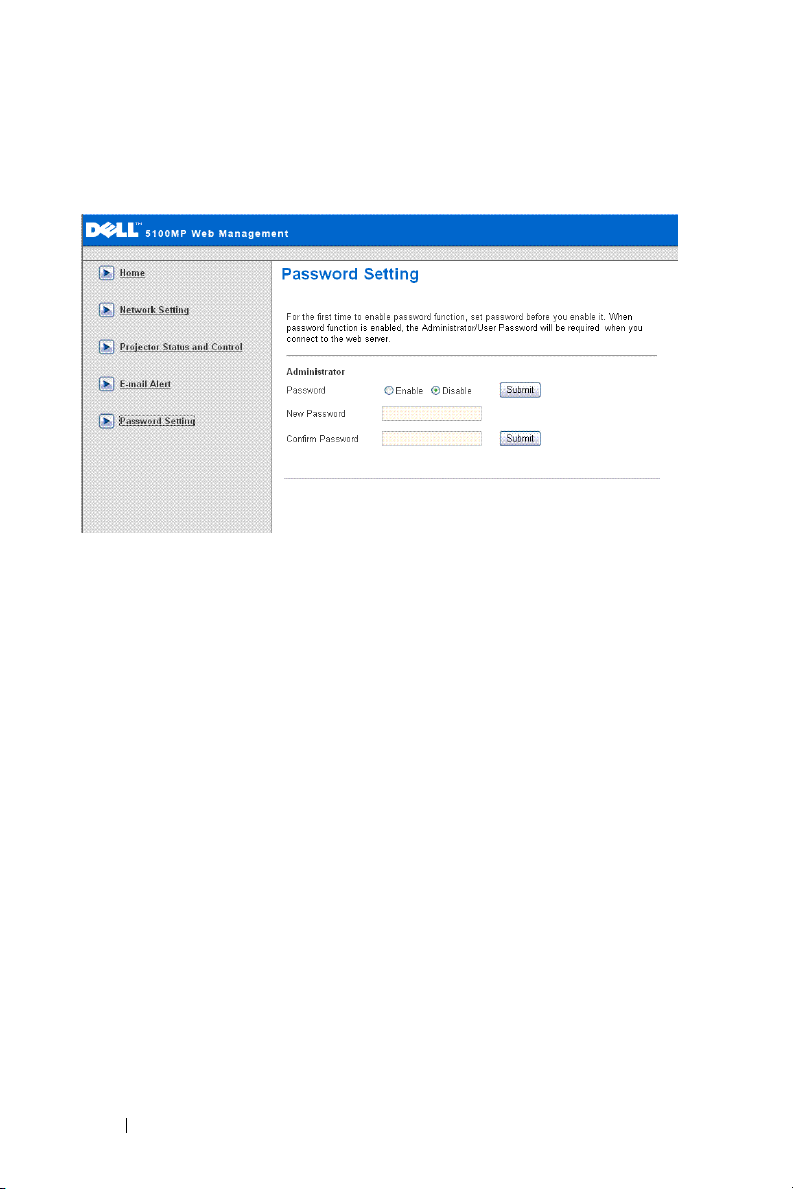

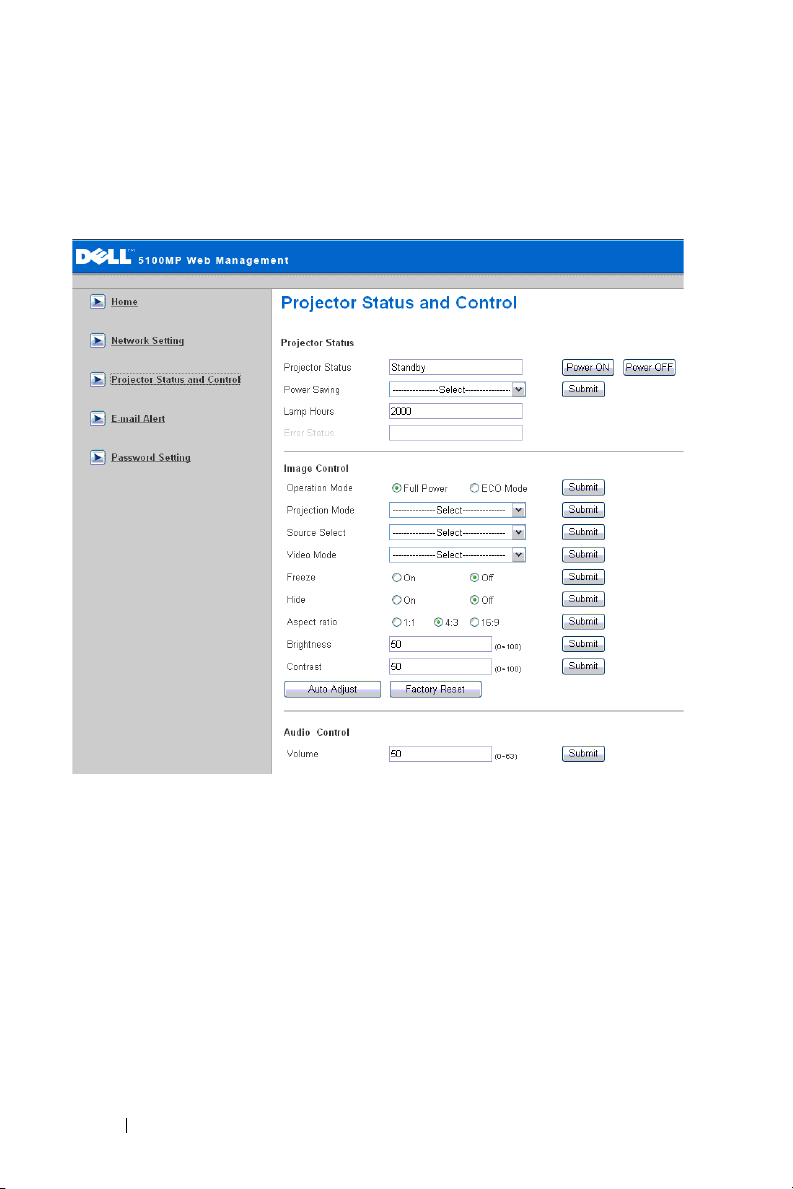

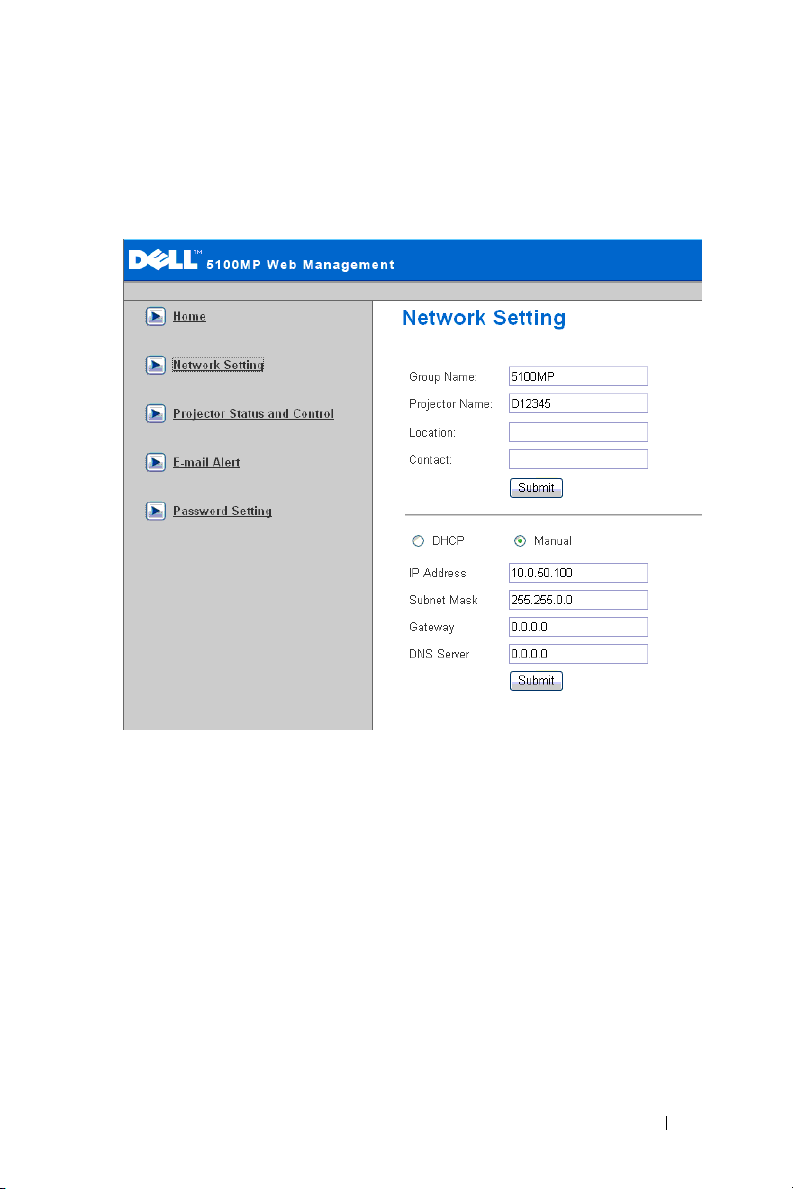

To manage the projector from Web Management

. . . . . . . 21

. 39

4 Troubleshooting Your Projector

Self-diagnostic for Video . . . . . . . . . . . . . . 48

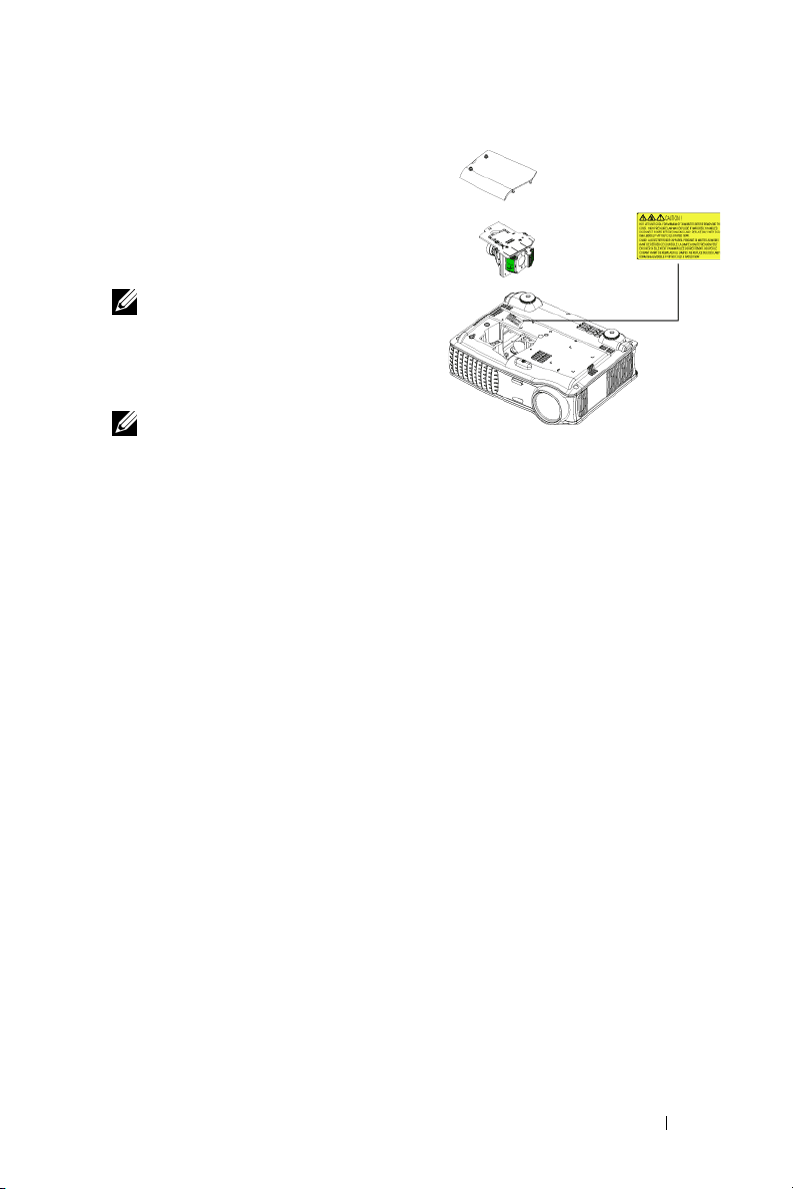

Changing the Lamp . . . . . . . . . . . . . . . . . 48

4 Contents

5 Specifications

6 Contacting Dell

7 Appendix: Regulatory Notices

FCC Notices (U.S. Only) . . . . . . . . . . . . . 85

NOM Information (Mexico Only)

8 Glossary

9 Index

. . . . . . . . . 86

Contents 5

6 Contents

Your Dell Projector

Your projector comes with all the items shown below. Ensure that you have all the items, and contact Dell if anything is missing.

Package Contents

1.8m power cord (3.0m in Americas) 1.8m M1 to D-sub/USB cable

2.0m S-video cable 1.8m Composite Video cable

1.8m RCA to Audio cable 1.8m mini pin to mini pin cable

1.8m M1-A to HDTV cable Remote control

Your Dell Projector 7

Package Contents

Documentation Lens cap

Batteries (2)

www.dell.com | support.dell.com

(continued)

About Your Projector

1 Control panel

2 Elevator button

3 Remote control receiver

4 Lens

5 Focus ring

6 Zoom tab

8 Your Dell Projector

Connecting Your Projector

1 RJ45 network connector

2 HDMI connector

3 VGA input connector

4 M1 signal in connector

5 Video input connector

6 S-video input connector

7 VGA output connector

8 RS232 connector

9 IR receiver

10 Kensington lock hole

11 Power cord con nector

12 12 Volt DC relay output

13 Audio output connector

14 Audio input connector

15 Component video input connector

16 BNC connector

Connecting Your Projector 9

Connecting to a Computer

Connecting a Computer with an M1 to D-sub/USB Cable

www.dell.com | support.dell.com

1 Power cord

2 M1A to D-sub/USB cable

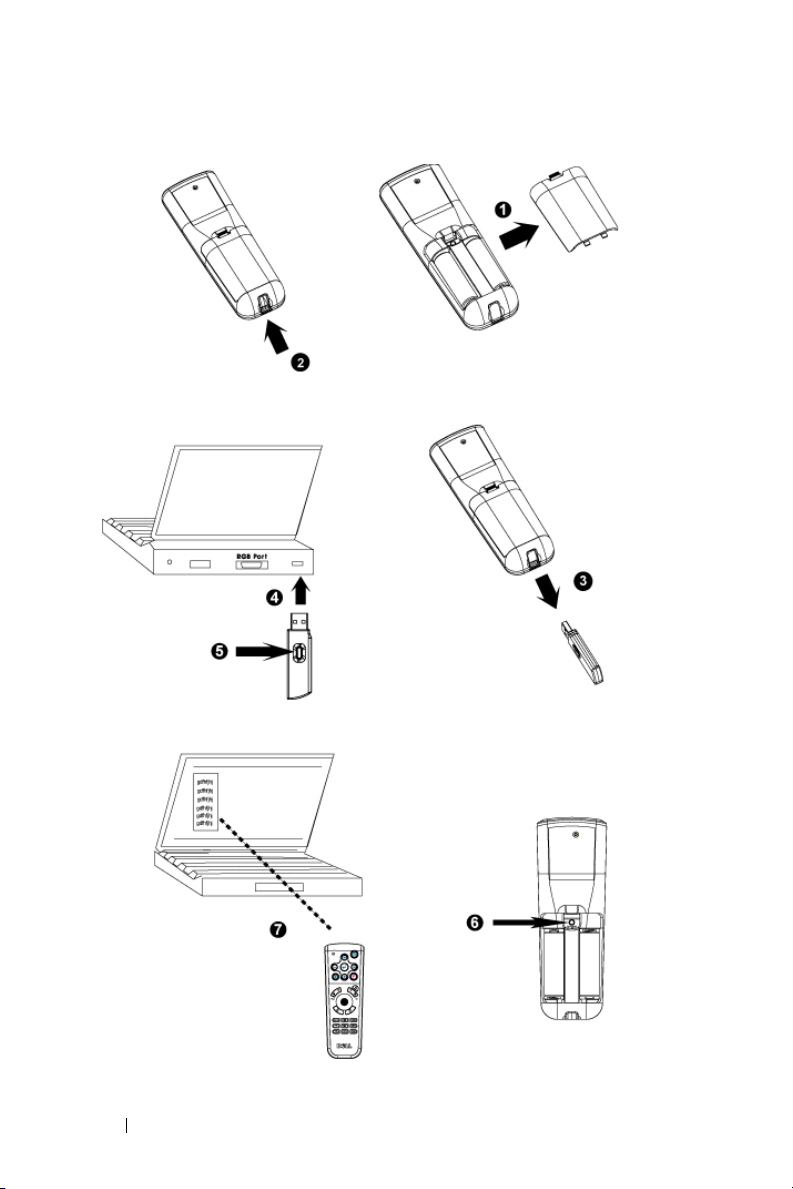

NOTE: The USB cable can not be connected if the USB Dongle is used, for the

USB dongle connection refer to page 37.

10 Connecting Your Projector

Connecting a Computer with a D-sub to D-sub Cable

1 Power cord

2 D-sub to D-sub cable

NOTE: The USB cable can not be connected if the USB Dongle is used, for the

USB dongle connection refer to page 37.

Connecting Your Projector 11

Connecting to a DVD Player

Connecting a DVD Player with an M1 to HDTV Cable

www.dell.com | support.dell.com

1 Power cord

2 M1 to HDTV cable

Connecting a DVD Player with a D-sub to YPbPr Cable

1Power cable

2 D-sub to YPbPr cable

NOTE: The D-sub to YPbPr cable is not provided by Dell. Consult a professional

installer for the cable.

12 Connecting Your Projector

Connecting a DVD Player with a RCA to RCA Cable

1Power cable

2 RCA to RCA component cable

NOTE: The RCA to RCA cable is not provided by Dell. Consult a professional

installer for the cable.

Connecting a DVD Player with an S-video Cable

1Power cable

2 S-video cable

Connecting Your Projector 13

Connecting a DVD Player with a Composite Cable

www.dell.com | support.dell.com

1Power cable

2 Composite video cable

Connecting a DVD Player with a BNC to VGA cable

1Power cable

2BNC to VGA cable

NOTE: The BNC to VGA cable is not provided by Dell. Consult a professional

installer for the cable.

14 Connecting Your Projector

Professional Installation Options: Installation for Driving Automatic Screen

1Power cable

212V DC power cord

3 Automatic screen

Connecting Your Projector 15

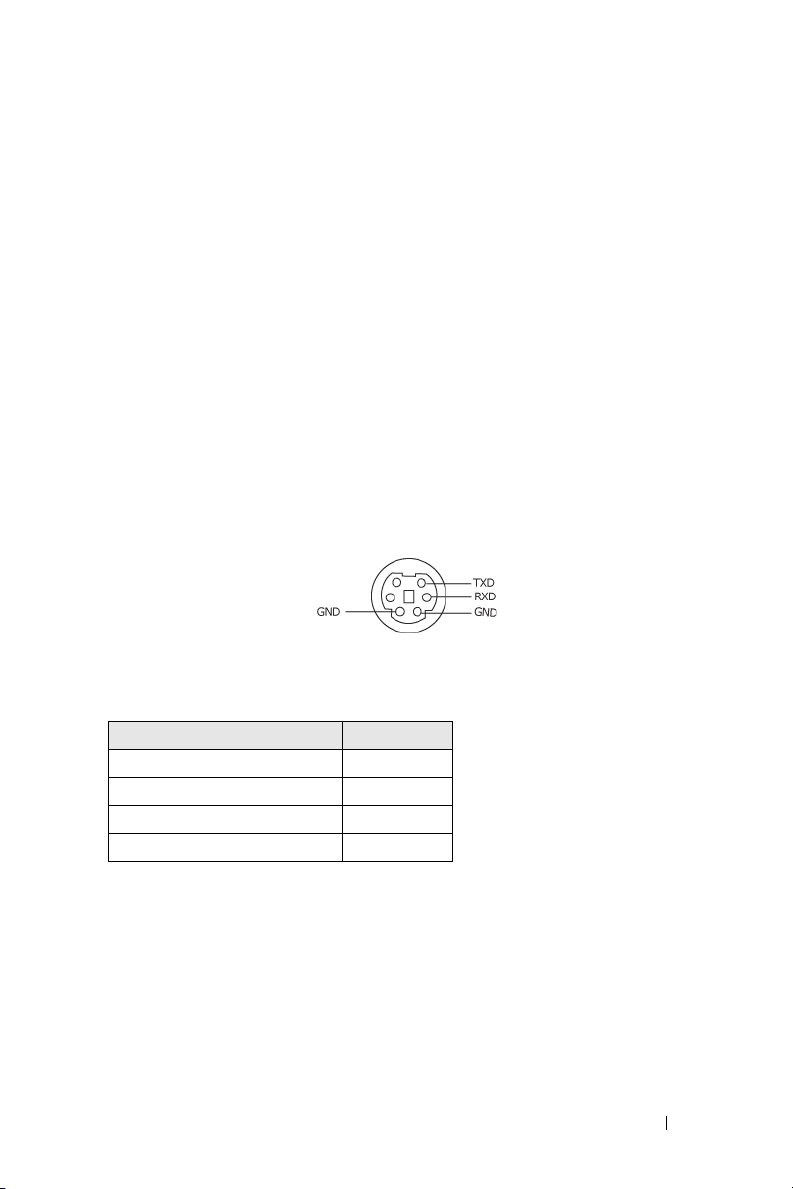

Installation for wired RS232 remote control: Connection with PC

www.dell.com | support.dell.com

1Power cable

2 RS232 cable

NOTE: The RS232 cable is not provided by Dell. Consult a professional installer

for the cable.

16 Connecting Your Projector

Connection with Commercial RS232 Control Box:

1Power cable

2 RS232 cable

3 Commercial RS232 control box

NOTE: The RS232 cable is not provided by Dell. Consult a professional installer

for the cable.

Connecting Your Projector 17

www.dell.com | support.dell.com

18 Connecting Your Projector

Using Your Projector

Turning Your Projector On

NOTE: Turn on the projector before you turn on the source. The power button

light blinks blue until pressed.

Remove the lens cap.

Connect the power cord and appropriate signal cables. For information about connecting the projector, see

Press the power button (see page 23" to locate the power button). The Dell logo displays for 30 seconds.

Turn on your source (computer, DVD player, etc.). The projector automatically detects your source

If the "Searching for signal..." message appears on the screen, ensure that the appropriate cable(s) are securely connected.

If you have multiple sources connected to the projector, press the Source button on the remote control or control panel to select the desired source.

Turning Your Projector Off

NOTICE: Do not unplug the projector before properly shutting down as

explained in the following procedure.

Press the power button.

Press the power button again. The cooling fans continue to operate for 90 seconds and then go to standby mode.

Disconnect the power cord from the electrical outlet.

NOTE: If you press the power button while the projector is running, the "Power

Off the Lamp?" message appears on the screen. To clear the message, press any button on the control panel or ignore the message; the message disappears after 5 seconds.

page 9.

Using Your Projector 19

Adjusting the Projected Image

Raising the Projector Height

Press the elevator button.

Raise the projector to the desired display angle, and then release the button to lock the elevator foot into position.

Use the tilt adjustment wheel to fine-tune the display angle.

Lowering the Projector Height

Press the elevator button.

Lower the projector, and then release the button to lock the elevator foot into

www.dell.com | support.dell.com

position.

1 Elevator button

2 Elevator foot

3 Tilt adjustment wheel

20 Using Your Projector

Adjusting the Projector Zoom and Focus

CAUTION: To avoid damaging the projector, ensure that the zoom lens and

elevator foot are fully retracted before moving the projector or placing the projector in its carrying case.

Rotate the zoom tab to zoom in and out.

Rotate the focus ring until the image is clear. The projector focuses at distances from 4.9 ft to 39.4ft (1.5 m to 12 m).

1 Zoom tab

2 Focus ring

Using Your Projector 21

Adjusting Projection Image Size

www.dell.com | support.dell.com

22 Using Your Projector

Screen (Diagonal)

Screen Size

Distance 4.9' (1.5m) 11.2' (3.4m) 18.0' (5.5m) 25.3' (7.7m) 32.2' (9.8m) 39.4' (12.0m)

* This graph is for user reference only.

Max. 36.9"

Min. 30.8"

Max.

(WxH)

Min.

(WxH)

(93.8cm)

(78.1cm)

29.5" X 22.1" 66.9" X 50.2" 108.3" X 81.2" 151.6" X 113.7" 192.9" X 144.7" 236.2" X 177.2"

(75.0cm X

56.3cm)

24.6" X 18.5" 55.8" X 41.8" 90.2" X 67.7" 126.3" X 94.7" 160.8" X 120.6" 196.9" X 147.6"

(62.5cm X

46.9cm)

83.7"

(212.5cm)

69.7"

(177.1cm)

(170.0cm X

127.5cm)

(141.7cm X

106.3cm)

135.3"

(343.8cm)

112.8"

(286.5cm)

(275.0cm X

206.3cm)

(229.2cm X

171.9cm)

189.5"

(481.3cm)

157.9"

(401.0cm)

(385.0cm X

288.8cm)

(320.8cm X

240.6cm)

241.1"

(612.5cm)

201.0"

(510.4cm)

(490.0cm X

367.5cm)

(408.3cm X

306.3cm)

295.3"

(750.0cm)

246.1"

(625.0cm)

(600.0cm X

450.0cm)

(500.0cm X

375.0cm)

Using the Control Panel

1 Power Turn the projector on and off. For more

information, see page 19 and page 19.

2 Volume Control Press to control the volume, then press or

buttons to decrease or increase the volume.

3 Menu Press to activate the OSD. Use the directional

keys and Menu button to navigate through the OSD.

Using Your Projector 23

4 Source Press to toggle through S-video, Composite

Video, M1-D, D-sub, BNC, Component, HDMI, SCART and M1 sources when multiple sources are connected to the projector.

5 Keystone adjustment Press to adjust image distortion caused by tilting

the projector. (±20 degrees)

6 Enter Press to confirm the selection item.

7 Auto adjust Press to synchronize the projector to the input

source.

Auto adjust does not operate if the on-screen display (OSD) is displayed.

www.dell.com | support.dell.com

8 LCD status display LCD display is for real time projector status.

9 TEMP warning light

• If the TEMP light is solid orange, the projector has overheated. The display automatically shuts down. Turn the display on again after the projector cools down. If the problem persists, contact Dell.

• If the TEMP light is blinking orange, a projector fan has failed and the projector automatically shuts down. If the problem persists, contact Dell.

10 LAMP warning light If the LAMP light is solid orange, replace the

lamp.

11 and buttons Press to adjust the OSD setting.

12 Keystone adjustment Press to adjust image distortion caused by tilting

the projector. (±20 degrees)

13 Up and Down Press to select the OSD items.

14 Brightness and contrast

control

Press to control brightness and contrast, press or to adjust brightness or contrast, then press

and buttons to adjust the value.

24 Using Your Projector

Using the Remote Control

1 Power Turn the projector on and off. For more

information, see page 19 and page 19.

2 Press to adjust the OSD setting.

3 Laser Aim the remote control at the screen, press and

hold the laser button to activate the laser light.

4 Volume Press to increase the volume.

5 Mute Press to mute or un-mute the projector speaker.

6 Volume Press to decrease the volume.

7 Right click Mouse right click.

Using Your Projector 25

8 Video mode The Dell 5100MP Micro-projector has preset

configurations that are optimized for displaying data (PC Graphics) or video (movies, games, etc.). Press Video Mode button to toggle between

PC mode, Movie mode, Game Mode, sRGB, or User mode (for user to setup and save preferred

settings). Pressing the Vide o Mode button once will show the current display mode. Pressing the Video Mode button again will switch between modes.

9 Auto Adjust Press to synchronize the projector to the input

source. Auto Adjust does not operate if the OSD

www.dell.com | support.dell.com

(On-Screen Display) is displayed.

10 Blank screen Press to hide the image, press again to resume

display of the image.

11 Auto keystone Press to enable the auto correction for image

distortion due to tilting the projector.

12 LED light LED indicator.

13 Up button Press to select OSD items.

14 Enter button Press to confirm the selection.

15 Press to adjust the OSD setting.

16 Menu Press to activate the OSD.

17 Down button Press to select OSD items.

18 Page Press to move to previous page.

19 Page Press to move to next page.

20 PC/Mouse control The PC/Mouse control can be used to control

mouse movement. The mouse function is enabled using the M1 cable to connect your computer and the projector.

21 Left click Mouse left click

22 Source Press to switch between Analog RGB, Digital

RGB, Composite, Component-i, S-video, and Analog YPbPr sources.

23 Keystone correction Press to correct the image distortion.

24 PIP Press the PIP button to turn on/off the PIP

screen.

26 Using Your Projector

25 PIP Swap Press the PIP Swap button to swap between the

foreground and background.

1 Laser Warning The remote control is equipped with a Class II

laser that emits laser radiation. To reduce the risk of injury, do not look directly into the laser light, and do not point the laser light into anyone's eyes.

2 Program button Initiate the Learning Mode on the remote for

switching the RF transmission channel by pressing Prgm button.

Using Your Projector 27

3 Wireless USB mouse

dongle

4 Remote cover The back cover of the remote control.

5 Battery chamber The chamber of the battery.

The wireless USB device for controlling PC or Notebook mouse through the remote control.

Using the On-Screen Display

The projector has a multi-language On-Screen Display (OSD) that can be displayed with or without an input source present.

In the Main Menu, press or to navigate through the tabs. Press Enter button on the control panel or the remote control to select a submenu.

www.dell.com | support.dell.com

In the submenu, press or to make a selection. When an item is selected, the color changes to dark gray. Use or on the control panel or the remote control to make adjustments to a setting.

To back to the previous OSD, go to Back tab and press Enter button on the control panel or the remote control.

To exit the OSD, go to Exit tab and press Enter button on the control panel or the remote control.

Image Settings

28 Using Your Projector

BRIGHTNESS—Use

and to

adjust the

brightness of the image.

ONTRAST—Use

and

to control the degree of difference between the brightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

OLOR TEMP.—Adjust the color temperature.

The higher the temperature, the screen appears more blue; the lower the temperature, the screen appears more red. User mode activates the values in the "color setting" menu.

SER COLOR—This mode allows manual

adjustment of red, green, and blue color settings. Modifying these values will automatically change the color temperature

to "user". Press the User Color, then go into the Color Setting Menu.

EYSTONE—Adjust image distortion caused by tilting the projector.

V. K

EYSTONE—Adjust image distortion caused by horizontal shifting of the

H. K

projector orientation.

UTO KEYSTONE—Select On to enable the auto correction for vertical image

distortion due to tilting the projector. Select Off to disable the auto correction.

EMI-AUTO KEYSTONE—Select On and press Enter to activate the Semi-Auto

keystone correction for image distortion. A specific image pattern will be present on the screen once it's been activated and then complete the settings by following below instructions.

• Adjust the projected image display to appropriate location on the screen.

Enter

• Use up, down, left or right button to choose one corner and press

key to

enter keystone correction mode.

Enter

• Use up, down, left or right button to move the angle and press

to confirm.

ZOOM—Press to digitally magnify an image to 10 times on the projection screen and press to reduce the zoomed image.

SPECT RATIO—Select an aspect ratio to adjust how the image appears.

•

1:1

— The input source displays without scaling. Use 1:1 aspect ratio if you are using one of the following: – VGA cable and the computer has a resolution less than SXGA+ (1400 x 1050)

Using Your Projector 29

– Component cable (576p/480i/480p) –S-Video cable – Composite cable

16:9

— The input source scales to fit the width of the screen.

•

4:3

— The input source scales to fit the screen

• Use 16:9 or 4:3 if you are using one of the following: – Computer resolution greater than SXGA+ – Component cable (1080i or 720p)

VIDEO MODE—Select a mode to optimize the display image based on how the projector is being used: Movie, Game, PC, sRGB (provides more accurate color representation), and User (set your preferred settings). If you adjust the settings for White Intensity or Degamma, the projector automatically switches to User.

www.dell.com | support.dell.com

HITE INTENSITY—Setting 0 to maximize the color reproduction and 10 to

maximize the brightness.

EGAMMA—Adjust between 1 and 4 to change the color performance of the display.

The default setting is 3.

Audio Menu

30 Using Your Projector

VOLUME—Press

to decrease the volume

and to increase the volume.

TREBLE—Control the higher frequencies of your audio source.

treble and

BASS—Control the lower frequencies of your audio source. Press

and

press

MUTE—Allow to mute the volume.

UDIO SOURCE—Select HDMI to have the

HDMI output source, and select Audio to have the audio output source.

Press to decrease the

ress to increase the treble

to decrease the bass

to increase the bass.

Management Menu

select Ye s to reset the lamp timer.

MENU LOCATION—Select the location of the OSD on the screen.

ROJECTION MODE—Select how the image

appears:

• Front Projection-Desktop (the default).

• Rear Projection-Desktop-- The projector reverses the image so you can project from behind a translucent screen.

• Front Projection-Ceiling Mount-- The projector turns the image upside down for ceiling-mounted projection.

• Rear Projection-Ceiling Mount-- The projector reverses and turns the image upside down. You can project from behind a translucent screen with a ceiling-mounted projection.

SIGNAL TYPE—Show signal type RGB, YCbCr, YPbPr.

AMP HOUR—Display the operating hours

since the lamp timer reset.

AMP RESET—After you install a new lamp,

OWER SAVING—Select Yes to set the power saving delay period. The delay period is

the amount of time you want the projector to wait without signal input. After that set time, the projector enters power saving mode and turns off the lamp. The projector turns back on when it detects an input signal or you press the power button. After two hours, the projector turns off and you need to press the power button to turn the projector on.

UTO SOURCE—

signals. When the projector is on and you press finds the next available input signal. Select signal. When

Select On (the default) to autodetect the available input

Off

is selected and you press

SOURCE

Off

to lock the current input

SOURCE

, it automatically

, you select which

input signal you want to use.

Using Your Projector 31

OSD LOCK—

pressing the Menu button on control for 15 seconds), and select disable the

Select

Ye s

OSD Lock

to enable

OSD Lock

for hiding the OSD menu. (Or

for hiding the OSD menu. (Or pressing the Menu

button on control for 15 seconds again).

RF_CH LEARNING—

ECO MODE—Select On to use the projector at a lower power level (250 Watts),

which may provide longer lamp life, quieter operating and dimmer luminance output on the screen. Select Off to operate at normal power level (300 Watts).

UTO SOURCE—Select On (the default) to autodetect the available input signals.

When the projector is on and you press SOURCE, it automatically finds the next available input signal. Select Off to lock the current input signal. When Off is selected and you press SOURCE, you select which input signal you want to use.

www.dell.com | support.dell.com

IMEOUT—Adjust the time delay of the OSD Timeout. The Default setting is

OSD T

30 seconds.

EST PATTERN—Select On to come up the built-in Tes t Pa tt e rn for self-testing on

focus and resolution

Refer to page 36.

ASSWORD SETTING—Select On to

set one password for individual. Select Off to disable the password function.

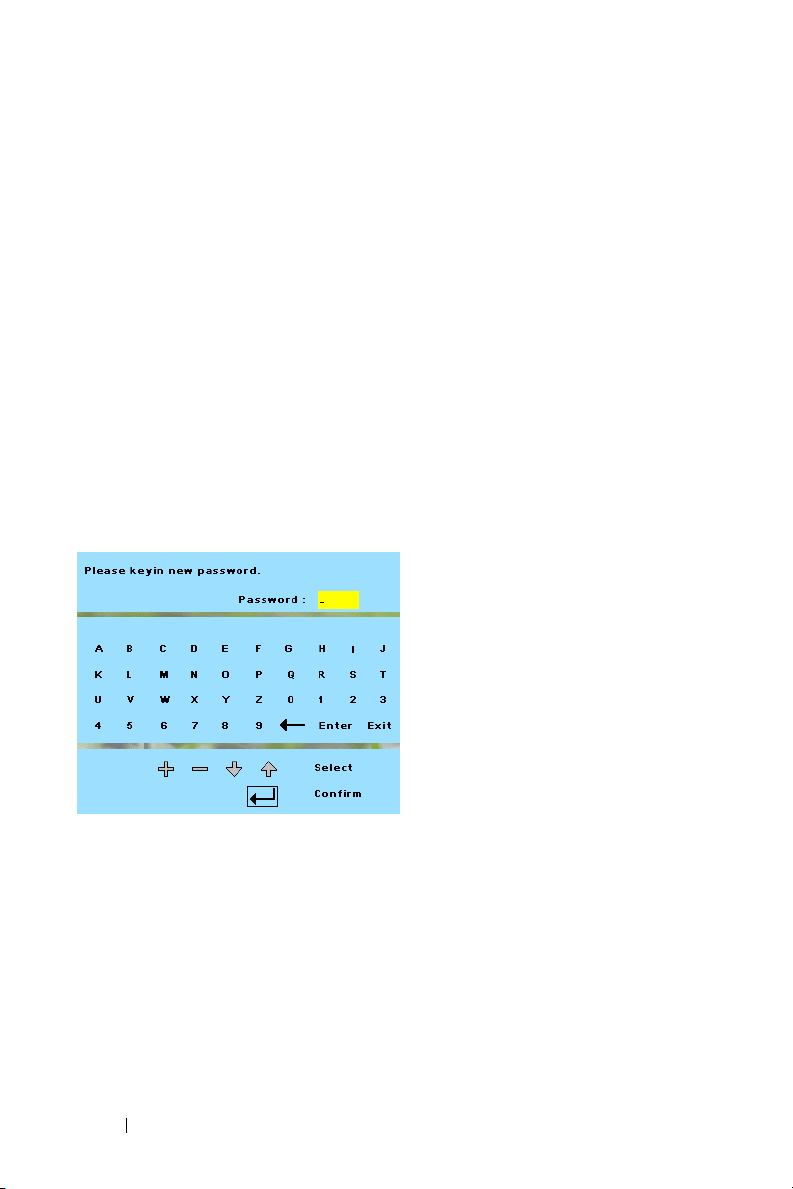

HANGE PASSWORD—Press to change the password to your preference..

32 Using Your Projector

Language Menu

Press or to select the preferred language for the OSD.

PIP Setting Menu

NOTE 1: PIP Image is enabled only when both the following types of signals are connected to the projector.

Type 1: S-Video, Composite Video, M1-D, and

Type 2: D-sub, BNC, Component, HDMI, SCART, M1 signals.

NOTE 2: When swapping the foreground and background displays, the smallest screen size of foreground display will vary depending on different combinations of signal sources for PIP.

Using Your Projector 33

PIP IMAGE —

Select On to enter

Options

select following settings. Select disable the picture-in-picture display function.

PIP SOURCE —Use PIP Source to step through the display source one by one for the foreground display. The possible PIP source is available in the OSD selection depending on the current primary input source. The possible combination of the sources refer to page 54.

IZE —Adjust the image size of the foreground display.

PIP S

OSITION —Horizontally adjust the image position of the PIP display.

PIP X P

www.dell.com | support.dell.com

OSITION —Vertically adjust the image position of the PIP display.

PIP Y P

MAGE —Select On to enable the picture-by-picture display. Select Off to

PBP I

disable the picture-by-picture function.

Network Settings Menu

DHCP —Select On to assign an IP address to

the projector from a DHCP server automatically. Select Off to assign an IP address manually.

DDRESS—Press Enter to set up an IP

IP A

address. Press left or right button to select the number position, up or down button to change the number.

UBNET MASK—Press Enter to set up an subnet

mask number. Press left or right button to select the number position, up or down button to change the number.

ATEWAY—Select to set the default gateway of

the network connected to the projector. Press left or right button to select the number

position, up or down button to change the number.

DNS—Type in the IP address of DNS server on the network connected to the projector. 12 numeric characters are used.

PPLY CHANGE—Press to confirm the settings.

ESET NETWORK SETTING—Press to the default setting.

Off

34 Using Your Projector

Factory Reset Menu

FACTORY RESET—Select Yes to reset the

projector to its factory default settings. Reset items include both computer image and video image settings

Computer Source Menu

NOTE: This menu is only available connected to a computer.

FREQUENCY—Change the display data clock

frequency to match the frequency of your computer graphics card. If you see a vertical flickering bar, use Frequency control to minimize the bars. This is a coarse adjustment.

RACKING—Synchronize the phase of the

display signal with the graphic card. If you experience an unstable or flickering image, use the Tra ck in g to correct it. This is a fine adjustment.

NOTE: Adjust the Frequency first and then the Tracking.

OR. POSITION—Press

to adjust the horizontal position of the image to the

left and to adjust the horizontal position of the image to the right.

VER. POSITION—Press

to adjust the vertical position of the image down and

to adjust the vertical position of the image up.

Video Source Menu

NOTE: This menu is only available with S-video, Video (composite) signal

connected.

Using Your Projector 35

SATURATION—Adjust a video source from black and white to fully saturated color. Press to decrease the amount of color in the image and

to increase the amount of color in the

image.

HARPNESS—Press

to decrease the

sharpness and to increase the sharpness.

TINT—Press

to increase the amount of green in the image and to increase the amount of red in the image.

www.dell.com | support.dell.com

RF Learning Connections

Auto Learning to Change RF Channel Between Remote Controller and Projector

• Power on the projector.

• Press the "Menu" button on control panel, then enter to "

Management

-->

RF_Ch Learning

" menu.

• Select enter the

Yes

with the control buttons to

Learning Standby

mode. The projector will switch to standby mode for

RF Learning

Learning

and display the

menu.

• Open the battery cover on the remote control and press the initiate the

RF Learning

Prgm

button to

process for the

remote control and projector.

Back to Factory Default for the RF Channel

• Select

Yes

RF Learning Setting

menu and then enter the

Default Channel

menu. Select

Reset to Default

, the projector will back to the

RF Reset to

factory default channel.

•Press the

Prgm

button on the remote control for 5 seconds to reset the transmitter to the factory default channel.

36 Using Your Projector

• The successful reset back to the default channel on both ends can be confirmed when the remote control transmitter controls the projector.

Auto Learning to Change RF Channel Between Remote Controller and USB Wireless Dongle

Step 1 Open the cover of the remote control.

Step 2 Push the dongle.

Step 3 Take out the dongle from the remote control.

Step 4 Plug the dongle in the USB port on your desktop or notebook

computer, the dongle will show red .

Step 5 Press the LED button on the dongle and it will flash "red" for

13 seconds.

Step 6 Press the Prgm button in the rear of the remote control, within

13 seconds to initate the RF Learning process.

• If the processes are successful, the dongle LED will remain "red" and stop flashing.

• Checking the mouse function are enable by using the remote control, if it has done, the dongle LED will show a "green" signal.

Step 7 Using the remote control to manage your desktop or notebook

computer.

Using Your Projector 37

www.dell.com | support.dell.com

38 Using Your Projector

To manage the projector from Web Management

Configuring the Network Setting

If the projector is connected to a network, you can access the projector using a web browser by configuring the network setting (TCP/IP). When using the network function, the IP address should be unique. There are two ways for configuring the network setting.

Using the IP Address function on section page 34, or,

Use the AP software to set up network setting for the projector.

Accessing the Web Management

Use Internet Explorer 5.0 and above or Netscape Navigator 7.0 and above and enter the IP address. You can now access the projector from a remote location.

Network Setting

Web Management

menu; See OSD

and manage

Using Your Projector 39

Managing Properties

Home

www.dell.com | support.dell.com

Displays Group name, Projector name, Location, Contact, Lamp hours, Firmware version, IP address, MAC address and Admin password information.

40 Using Your Projector

Network Setting

See OSD section on page 34.

• Set up the Group Name, Projector Name, Location and Contact information in this tab, press

• Choose

DHCP

to assign an IP address to the projector from a

server automatically, or

Submit

to confirm the settings.

Manual

to assign an IP address

manually.

Using Your Projector 41

Projector Status and Control

The function is same as On Screen Display.

www.dell.com | support.dell.com

Manage the projector status and image control and audio control using Projector Status and Control.

42 Using Your Projector

E-mail Alert

Setting the e-mail address, owner and subject in this tab, select the

Condition

, once the alert condition coming up, the

E-mail Alert

will inform

the preseted administer automatically.

Using Your Projector 43

Alert

Password Setting

www.dell.com | support.dell.com

Use Password Setting to set up an administrator password to access the

Management

. When enabling password for the first time, set the password before enabling it. When the password function is enabled, the administrator password will be required for accessing the

44 Using Your Projector

Web Management

Web

Troubleshooting Your Projector

If you experience problems with your projector, see the following troubleshooting tips. If the problem persists, contact Dell.

Problem Possible Solution

No image appears on the screen

• Ensure that the lens cap is removed and the projector turned on.

• Ensure the external graphics port is enabled. If you are using a Dell portable computer, press . For other computers, see your documentation.

• Ensure that all the cables are securely connected. See "Connecting Your Projector" on page 9."

• Ensure that the pins of the connectors are not bent or broken.

• Ensure that the lamp is securely installed (see "Changing the Lamp" on page 48").

• Run Self-diagnostic test. See "Self-diagnostic for Video" on page 48. Ensure that the colors of the test pattern are correct.

Troubleshooting Your Projector 45

Problem

Partial, scrolling, or incorrectly displayed image

(continued)

Possible Solution

•Press the

(continued)

Resync

button on the remote

control or the control panel.

•

If you are using a Dell portable computer, set the resolution of the computer to XGA (1024 x 768):

Right-lick the unused portion of your Windows desktop, click then select

Verify the setting is 1024 x 768 pixels for

Settings

Properties

tab.

the external monitor port.

www.dell.com | support.dell.com

Press .

If you experience difficulty in changing resolutions or your monitor freezes, restart all the equipment and the projector.

If you are not using a Dell portable computer, see your documentation.

The screen does not display your presentation

If you are using a portable computer, press

Image is unstable or flickering Adjust the tracking in the OSD Computer

Source tab.

Image has vertical flickering bar

Image color is not correct

Adjust the frequency in the OSD Computer Source tab.

• If your graphic card output signal is sync on Green, and you would like to display VGA at 60Hz signal, please go into OSD select Management, select Signal Type and then

RGB

select

• Run the Self-diagnostic test (see " diagnostic for video

") for preliminary diagnostic on image color problem. Ensure that the colors of the test pattern are correct.

Image is out of focus 1

Adjust the focus ring on the projector lens.

Ensure that the projection screen is within the required distance from the projector (4.9ft [1.5m] to 39.4ft [12m]).

and

Self-

46 Troubleshooting Your Projector

Problem

The image is stretched when displaying a 16:9 DVD

Image is reversed Select Management from the OSD and adjust

Lamp is burned out or makes a popping sound

LAMP light is solid orange If LAMP light is solid orange, replace the

Interlock failed If the LAMP light is blinking orange, the lamp

TEMP light is solid orange The projector has overheated. The display

TEMP light is blinking

orange

The remote control is not operating smoothly or in very limited range

(continued)

Possible Solution

The projector automatically detects a 16:9 DVD and adjusts the aspect ratio to full screen with a 4:3 (letter-box) default setting.

If the image is still stretched, adjust the aspect ratio as follows:

• If you are playing a 16:9 DVD, select 4:3 aspect ratio type on your DVD player (if capable).

• If you cannot select 4:3 aspect ratio type on your DVD player, select 4:3 aspect ratio in

Image Settings

the

the projection mode.

When the lamp reaches its end of life, it may burn out and may make a loud popping sound. If this occurs, the projector does not turn back on, and displays Lamp Defective in the LCD display until the lamp is replaced. To replace the lamp, see "Changing the Lamp" on page 48.

lamp.

cover is not closed properly. Close the lamp cover properly. If the problem persists, contact Dell.

automatically shuts down. Turn the display on again after the projector cools down. If the problem persists, contact Dell.

A projector fan has failed and the projector will automatically shut down. If the problem persists, contact Dell.

The battery may be low. Check if the laser beam transmitted from the remote is too dim. If so, replace with 2 new AA batteries.

(continued)

menu in the OSD.

Troubleshooting Your Projector 47

Self-diagnostic for Video

Dell 5100MP Projector provides self-diagnostic test of the projector video display (for Video, S-video, Component-i). Use this advanced feature for preliminary selfdiagnostic on your projector when encountering a display problem for video.

After turning on the projector, press "+" and "-" buttons on the control panel simultaneously for 3 seconds and release the buttons when screen goes blank.

Press "+" and "-" buttons again to exit the diagnostic mode.

While in Self-diagnostic mode, the screen will run a seven-color-cycle test as following:

Red--> Green--> Blue--> White--> Watchet Blue--> Dark Green--> Yellow. Ensure that the colors of the test pattern are correct. Contact Dell if the colors are not displayed correctly.

www.dell.com | support.dell.com

Changing the Lamp

Replace the lamp when you see "Lamp is approaching the end of its useful life in full power operation. Replacement suggested! www.dell.com/lamps" appears on the screen. If this problem persists after replacing the lamp, contact Dell.

CAUTION: The lamp becomes very hot when in use. Do not attempt to replace

the lamp until the projector has been allowed to cool down for at least 30 minutes.

CAUTION: Do not touch the bulb or the lamp glass at any time. The bulb may

explode due to improper handling, including the touching of the bulb or the lamp glass.

Turn off the projector and disconnect the power cord.

Let the projector cool for at least 30 minutes.

Loosen the 2 screws that secure the lamp cover, and remove the cover.

Loosen the 2 screws that secure the lamp.

48 Troubleshooting Your Projector

Pull up the lamp by its metal handle.

Reverse steps 1 through 5 to install the new lamp.

Reset the lamp by usage time selecting

Lamp Reset

the left

Management

icon in the OSD

tab.

NOTE: Dell may require that lamps

replaced under warranty be returned to Dell. Otherwise, contact your local waste disposal agency for the address of the nearest deposit site.

NOTE: The lamp contains mercury.

Disposal of this material may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

Troubleshooting Your Projector 49

www.dell.com | support.dell.com

50 Troubleshooting Your Projector

Specifications

Light Valve Single-chip 0.95" SXGA+ DLP™

LVDS (low-voltage differential signaling) technology

Brightness 3000 ANSI Lumens (Max.)

Contrast Ratio 2000:1 Typical (Full On/Full Off)

Uniformity 80% Typical (Japan Standard - JBMA)

Lamp 300-watt user-replaceable 1700-hour

lamp (up to 2200 hours in eco mode)

Number of Pixels 1400 x 1050 (SXGA+)

Displayable Color 16.7M colors

Color Wheel Speed 100~127.5Hz(2X)

Projection Lens F/2.6~2.87, f=39.1~46.92mm with

1.2x manual zoom lens

Projection Screen Size 30.8-295.3 inches (diagonal)

Projection Distance 4.9~39.4 ft (1.5m~12m)

Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M, PAL-

N, SECAM, and HDTV (1080i, 720p, 576i/p, 480i/p) compatibility

Composite video, Component video and S-video capability

H. Frequency 15 kHz- 100 kHz (Analog)

30 kHz- 64 kHz (Digital)

V. Frequency 43 Hz- 120 Hz (Analog)

43 Hz- 85 Hz (Digital)

Power Supply Universal 90-240V AC 50-60Hz with

PFC input

Specifications 51

Power Consumption 400 watts typical, 335 watts in eco

mode

Audio 2 speakers, 3 watts RMS

Noise Level 37dB(A) Full-on mode, 34dB(A) Eco-

mode

Weight 8.2 lbs (3.73 kgs)

Dimensions (W x H x D) External 13 x 10.3 x 4.5 ± 0.04 inches

(329.8 x 261.4 x 115.2 ± 1mm)

Environmental Operating temperature: 5

www.dell.com | support.dell.com

F- 95oF)

(41

Humidity: 80% maximum

Storage temperature: -20

(-4

F to 140oF)

C - 35oC

C to 60oC

Humidity: 80% maximum

Regulatory FCC, CE, VCCI, UL, cUL, TüV- GS,

ICES-003, MIC, C-Tick, GOST, PCBC, CCC, PSB, EZU, NOM, STu V / A r g e n t i n a

Networking Protocol 10/100 Base-T

TCP/IP

ICMP

ARP

SNMP V1.0

SMTP

DHCP

HTTP

I/O Connectors Power: AC power input socket

Computer input: one M1-DA for analog/digital/component, HDTV input signals, one 15-pin D-sub for analog input/ component, HDTV input signals, one BNC R/G/B/H/V for analog RGB input signals.

Computer output: one 15-pin D-sub

52 Specifications

RS232 Pin Assignment

RS232 Protocol

• Communication Settings

Connection settings Va lu e

Baud Rate: 19200

Data Bits: 8

Par ity N one

Stop Bits 1

Video input: 3 RCA connectors for component video/ HDTV input, one mini-DIN 4-pin S-video input, one RCA jack for composite video input

Audio input: one phone jack (diameter

3.5mm)

DC jack 12 volt @ 200mA output, relay control for automatic projection screen control

One RJ45 connector for networking

One HDMI input

One mini-DIN RS232 for wired remote projector control from PC

• Control command Syntax (From PC to Projector)

[H][AC][SoP][CRC][ID][SoM][COMMAND]

• Example: power on the projector

Enter the following code: 0xBE 0xEF 0x10 0x05 0x00 0xC7 0xBF 0x11 0x11 0x01 0x00 0x02

• Control Commands List

Go to support.dell.com to view the latest RS232 code.

Specifications 53

PIP combination sources

Source M1

S-Video PIP PIP PIP PIP PIP PIP PIP PIP PIP

Composite PIP PIP PIP PIP PIP PIP PIP PIP PIP

M1 Digital X X PIP PIP PIP PIP PIP PIP PIP

RGB

M1 Component

VGA Computer

VGA Component

BNC RGB

BNC Component

RCA Component

NOTE: If two sources combination overpass the bandwidth of the scaler, the

projector will show the black image.

www.dell.com | support.dell.com

HDMI SCART

54 Specifications

Compatibility Modes

Mode Resolution (ANALOG) (DIGITAL)

V. Frequency

(Hz)

VGA 640X350 70 31.5 70 31.5

VGA 640X350 85 37.9 85 37.9

VGA 640X400 85 37.9 85 37.9

VGA 640X480 60 31.5 60 31.5

VGA 640X480 72 37.9 72 37.9

VGA 640X480 75 37.5 75 37.5

VGA 640X480 85 43.3 85 43.3

VGA 720X400 70 31.5 70 31.5

VGA 720X400 85 37.9 85 37.9

SVGA 800X600 56 35.2 56 35.2

SVGA 800X600 60 37.9 60 37.9

SVGA 800X600 72 48.1 72 48.1

SVGA 800X600 75 46.9 75 46.9

SVGA 800X600 85 53.7 85 53.7

XGA 1024X768 43.4 35.5 - -

XGA 1024X768 60 48.4 60 48.4

XGA 1024X768 70 56.5 70 56.5

XGA 1024X768 75 60 75 60

XGA 1024X768 85 68.7 - -

SXGA 1280X1024 60 63.98 60 63.98

SXGA 1280X1024 75 79.98 - -

SXGA 1280x1024 85 91.1 --

*SXGA+ 1400x1050 60 63.98 --

*UXGA 1600x1200 60 75 - -

MAC LC13* 640X480 66.66 34.98 - -

MAC II 13* 640X480 66.68 35 - -

MAC 16* 832X624 74.55 49.725 - -

MAC 19* 1024X768 75 60.24 - -

*MAC 1152X870 75.06 68.68 - -

MAC G4 640X480 60 31.35 - -

H. Frequency

(KHz)

V. Frequency

(Hz)

H. Frequency

(KHz)

Specifications 55

MAC G4 640X480 120 68.03 - -

MAC G4 640X480 120 97.09 - -

IMAC DV 640X480 117 60 - -

IMAC DV 800X600 95 60 --

IMAC DV 1024X768 75 60 --

IMAC DV 1152X870 75 68.49 --

IMAC DV 1280X960 75 75 --

IMAC DV 1280X1024 85 91.1 --

* Compressed computer image.

NOTE: UXGA is not supported in the DVI (M1-to-DVI).

www.dell.com | support.dell.com

56 Specifications

Contacting Dell

To contact Dell electronically, you can access the following websites:

• www.dell.com

•

support.dell.com

•

premiersupport.dell.com

government, healthcare, and medium/large business customers, including Premier, Platinum, and Gold customers)

For specific web addresses for your country, find the appropriate country section in the table below.

NOTE: Toll-free numbers are for use within the country for which they are listed. NOTE: In certain countries, technical support specific to Dell Inspiron™ XPS

computers is available at a separate telephone number listed for participating countries. If you do not see a telephone number listed that is specific for Inspiron XPS computers, you may contact Dell through the technical support number listed and your call will be routed appropriately.

When you need to contact Dell, use the electronic addresses, telephone numbers, and codes provided in the following table. If you need assistance in determining which codes to use, contact a local or an international operator.

(technical support)

(technical support for educational,

Country (City) International Access Code Country Code City Code

Anguilla General Support

Antigua and Barbuda

Department Name or Service Area,

Website and E-Mail Address

General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 800-335-0031

1-800-805-5924

Contacting Dell 57

Country (City) International

Department Name or Service Area,

Website and E-Mail Address Access Code Country Code City Code

Argentina (Buenos Aires)

International Access Code: 00

Country Code: 54

City Code: 11

www.dell.com | support.dell.com

We bs it e : www.dell.com.ar

E-mail: us_latin_services@dell.com

E-mail for desktop and portable computers: la-techsupport@dell.com

E-mail for servers and EMC storage products: la_enterprise@dell.com

Customer Care

Tech S up p or t

Tech Support Services

Sales

Aruba General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 0-800-444-0730

toll-free: 0-800-444-0733

toll-free: 0-800-444-0724

0-810-444-3355

toll-free: 800-1578

58 Contacting Dell

Country (City) International Access Code Country Code City Code

Australia (Sydney)

International Access Code:

0011

Country Code: 61

City Code: 2

Department Name or Service Area,

Website and E-Mail Address

E-mail (Australia): au_tech_support@dell.com

E-mail (New Zealand): nz_tech_support@dell.com

Home and Small Business

Government and Business

Preferred Accounts Division (PAD)

Customer Care

Technical Support (portables and desktops)

Technical Support (servers and workstations)

Corporate Sales

Tra n sa c ti on Sa le s

Fax

Area Codes,

Local Numbers, and

Toll-Free Numbers

1-300-655-533

toll-free: 1-800-633-559

toll-free: 1-800-060-889

toll-free: 1-800-819-339

toll-free: 1-300-655-533

toll-free: 1-800-733-314

toll-free: 1-800-808-385

toll-free: 1-800-808-312

toll-free: 1-800-818-341

Contacting Dell 59

Country (City) International

Department Name or Service Area,

Website and E-Mail Address Access Code Country Code City Code

Austria (Vienna)

International Access Code: 900

Country Code: 43

City Code: 1

We bs it e : support.euro.dell.com

E-mail: tech_support_central_europe@de ll.com

Home/Small Business Sales

Home/Small Business Fax

www.dell.com | support.dell.com

Home/Small Business Customer Care

Preferred Accounts/Corporate Customer Care

Home/Small Business Technical Support

Preferred Accounts/Corporate Technical Support

Switchboard

Bahamas General Support

Barbados General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

0820 240 530 00

0820 240 530 49

0820 240 530 14

0820 240 530 16

0820 240 530 14

0660 8779

0820 240 530 00

toll-free: 1-866-278-6818

1-800-534-3066

60 Contacting Dell

Country (City) International Access Code Country Code City Code

Belgium (Brussels)

International Access Code: 00

Country Code: 32

City Code: 2

Bermuda General Support

Bolivia General Support

Brazil

International Access Code: 00

Country Code: 55

City Code: 51

British Virgin Islands

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

E-mail for French-speaking Customers:

support.euro.dell.com/be/fr/email dell/

Technical Support for Inspiron XPS computers only

Technical Support for all other Dell computers

Technical Support Fax

Customer Care

Corporate Sales

Fax

Switchboard

We bs it e : www.dell.com/br

Customer Support, Technical Support

Technical Support Fax

Customer Care Fax

Sales

General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

02 481 92 96

02 481 92 88

02 481 92 95

0271315.65

02 481 91 00

02 481 92 99

02 481 91 00

1-800-342-0671

toll-free: 800-10-0238

0800 90 3355

51 481 5470

51 481 5480

0800 90 3390

toll-free: 1-866-278-6820

Contacting Dell 61

Country (City) International

Department Name or Service Area,

Website and E-Mail Address Access Code Country Code City Code

Brunei

Country Code:

673

Customer Technical Support (Penang, Malaysia)

Customer Service (Penang, Malaysia)

Transaction Sales (Penang, Malaysia)

Canada (North

www.dell.com | support.dell.com

York, Ontario)

International Access Code: 011

Online Order Status:

www.dell.ca/ostatus

AutoTech (automated technical support)

Customer Care (Home Sales/Small Business)

Customer Care (med./large business, government)

Technical Support (Home Sales/Small Business)

Technical Support (med./large bus., government)

Technical Support (printers, projectors, televisions, handhelds, digital jukebox, and wireless)

Sales (Home Sales/Small Business)

Sales (med./large bus., government)

Spare Parts Sales & Extended Service Sales

Cayman Islands General Support

Chile (Santiago)

Country Code: 56

Sales, Customer Support, and Technical Support

City Code: 2

Area Codes,

Local Numbers, and

Toll-Free Numbers

604 633 4966

604 633 4949

604 633 4955

toll-free: 1-800-247-9362

toll-free: 1-800-847-4096

toll-free: 1-800-326-9463

toll-free: 1-800-847-4096

toll-free: 1-800-387-5757

1-877-335-5767

toll-free: 1-800-387-5752

toll-free: 1-800-387-5755

1 866 440 3355

1-800-805-7541

toll-free: 1230-020-4823

62 Contacting Dell

Country (City) International Access Code Country Code City Code

China (Xiamen)

Country Code: 86

City Code: 592

Department Name or Service Area,

Website and E-Mail Address

Technical Support website:

support.dell.com.cn

Technical Support E-mail: cn_support@dell.com

Customer Care E-mail: customer_cn@dell.com

Technical Support Fax

Technical Support (Dell™ Dimension™ and Inspiron)

Technical Support (OptiPlex™, Latitude™, and Dell Precision™)

Technical Support (servers and storage)

Technical Support (projectors, PDAs, switches, routers, and so on)

Technical Support (printers)

Customer Care

Customer Care Fax

Home and Small Business

Preferred Accounts Division

Large Corporate Accounts GCP

Large Corporate Accounts Key Accounts

Large Corporate Accounts North

Large Corporate Accounts North Government and Education

Large Corporate Accounts East

Large Corporate Accounts East Government and Education

Area Codes,

Local Numbers, and

Toll-Free Numbers

592 818 1350

toll-free: 800 858 2969

toll-free: 800 858 0950

toll-free: 800 858 0960

toll-free: 800 858 2920

toll-free: 800 858 2311

toll-free: 800 858 2060

592 818 1308

toll-free: 800 858 2222

toll-free: 800 858 2557

toll-free: 800 858 2055

toll-free: 800 858 2628

toll-free: 800 858 2999

toll-free: 800 858 2955

toll-free: 800 858 2020

toll-free: 800 858 2669

Contacting Dell 63

Country (City) International

Department Name or Service Area,

Website and E-Mail Address Access Code Country Code City Code

Large Corporate Accounts Queue Te am

Large Corporate Accounts South

Large Corporate Accounts West

Large Corporate Accounts Spare Par ts

www.dell.com | support.dell.com

Colombia General Support

Costa Rica General Support

Czech Republic (Prague)

International Access Code: 00

Country Code:

420

We bs it e : support.euro.dell.com

E-mail: czech_dell@dell.com

Technical Support

Customer Care

Fax

Tech Fa x

Switchboard

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 800 858 2572

toll-free: 800 858 2355

toll-free: 800 858 2811

toll-free: 800 858 2621

980-9-15-3978

0800-012-0435

22537 2727

22537 2707

22537 2714

22537 2728

22537 2711

64 Contacting Dell

Country (City) International Access Code Country Code City Code

Denmark (Copenhagen)

International Access Code: 00

Country Code: 45

Dominica General Support

Dominican Republic

Ecuador General Support

El Salvador General Support

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

E-mail:

support.euro.dell.com/dk/da/emai ldell/

Technical Support for Inspiron XPS computers only

Technical Support for all other Dell computers

Customer Care (Relational)

Home/Small Business Customer Care

Switchboard (Relational)

Switchboard Fax (Relational)

Switchboard (Home/Small Business)

Switchboard Fax (Home/Small Business)

General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

7010 0074

7023 0182

7023 0184

3287 5505

3287 1200

3287 1201

3287 5000

3287 5001

toll-free: 1-866-278-6821

1-800-148-0530

toll-free: 999-119

01-899-753-0777

Contacting Dell 65

Country (City) International Access Code Country Code City Code

Finland (Helsinki)

International Access Code: 990

Country Code:

358

City Code: 9

www.dell.com | support.dell.com

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

E-mail:

support.euro.dell.com/fi/fi/emaild ell/

Technical Support

Customer Care

Fax

Switchboard

Area Codes,

Local Numbers, and

Toll-Free Numbers

09 253 313 60

09 253 313 38

09 253 313 99

09 253 313 00

66 Contacting Dell

Country (City) International Access Code Country Code City Code

France (Paris) (Montpellier)

International Access Code: 00

Country Code: 33

City Codes: (1)

(4)

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

E-mail:

support.euro.dell.com/fr/fr/emaild ell/

Home and Small Business

Technical Support for Inspiron XPS computers only

Technical Support for all other Dell computers

Customer Care

Switchboard

Switchboard (calls from outside of France)

Sales

Fax

Fax (calls from outside of France)

Corporate

Technical Support

Customer Care

Switchboard

Sales

Fax

Area Codes,

Local Numbers, and

Toll-Free Numbers

0825 387 129

0825 387 270

0825 823 833

0825 004 700

04 99 75 40 00

0825 004 700

0825 004 701

04 99 75 40 01

0825 004 719

0825 338 339

01 55 94 71 00

01 55 94 71 01

Contacting Dell 67

Country (City) International

Department Name or Service Area,

Website and E-Mail Address Access Code Country Code City Code

Germany (Langen)

International Access Code: 00

Country Code: 49

City Code: 6103

www.dell.com | support.dell.com

We bs it e : support.euro.dell.com

E-mail: tech_support_central_europe@de ll.com

Technical Support for Inspiron XPS computers only

Technical Support for all other Dell computers

Home/Small Business Customer Care

Global Segment Customer Care

Preferred Accounts Customer Care

Large Accounts Customer Care

Public Accounts Customer Care

Switchboard

Greece

International Access Code: 00

Country Code: 30

We bs it e : support.euro.dell.com

E-mail:

support.euro.dell.com/gr/en/email dell/

Technical Support

Gold Service Technical Support

Switchboard

Gold Service Switchboard

Sales

Fax

Grenada General Support

Guatemala General Support

Guyana General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

06103 766-7222

06103 766-7200

0180-5-224400

06103 766-9570

06103 766-9420

06103 766-9560

06103 766-9555

06103 766-7000

00800-44 14 95 18

00800-44 14 00 83

2108129810

2108129811

2108129800

2108129812

toll-free: 1-866-540-3355

1-800-999-0136

toll-free: 1-877-270-4609

68 Contacting Dell

Country (City) International Access Code Country Code City Code

Hong Kong

International Access Code: 001

Country Code:

852

India Technical Support

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.ap.dell.com

Technical Support E-mail: apsupport@dell.com

Technical Support (Dimension and Inspiron)

Technical Support (OptiPlex, Latitude, and Dell Precision)

Technical Support (PowerApp™, PowerE dge™, PowerConnect™, and PowerVault™)

Customer Care

Large Corporate Accounts

Global Customer Programs

Medium Business Division

Home and Small Business Division

Sales (Large Corporate Accounts)

Sales (Home and Small Business)

Area Codes,

Local Numbers, and

Toll-Free Numbers

2969 3188

2969 3191

2969 3196

3416 0910

3416 0907

3416 0908

3416 0912

2969 3105

1600 33 8045

1600 33 8044

1600 33 8046

Contacting Dell 69

Country (City) International Access Code Country Code City Code

Ireland (Cherrywood)

International Access Code: 16

Country Code:

353

City Code: 1

www.dell.com | support.dell.com

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

E-mail: dell_direct_support@dell.com

Technical Support for Inspiron XPS computers only

Technical Support for all other Dell computers

U.K. Technical Support (dial within U.K. only)

Home User Customer Care

Small Business Customer Care

U.K. Customer Care (dial within U.K. only)

Corporate Customer Care

Corporate Customer Care (dial within U.K. only)

Ireland Sales

U.K. Sales (dial within U.K. only)

Fax/Sales Fax

Switchboard

Area Codes,

Local Numbers, and

Toll-Free Numbers

1850 200 722

1850 543 543

0870 908 0800

01 204 4014

0870 906 0010

1850 200 982

0870 907 4499

01 204 4444

0870 907 4000

01 204 0103

01 204 4444

70 Contacting Dell

Country (City) International Access Code Country Code City Code

Italy (Milan)

International Access Code: 00

Country Code: 39

City Code: 02

Jamaica General Support (dial from within

Japan (Kawasaki)

International Access Code: 001

Country Code: 81

City Code: 44

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

E-mail:

support.euro.dell.com/it/it/emaild ell/

Home and Small Business

Technical Support

Customer Care

Fax

Switchboard

Corporate

Technical Support

Customer Care

Fax

Switchboard

Jamaica only)

We bs it e : support.jp.dell.com

Technical Support (servers)

Technical Support outside of Japan (servers)

Technical Support (Dimension and Inspiron)

Technical Support outside of Japan (Dimension and Inspiron)

Technical Support (Dell Precision, OptiPlex, and Latitude)

Technical Support outside of Japan (Dell Precision, OptiPlex, and Latitude)

Area Codes,

Local Numbers, and

Toll-Free Numbers

02 577 826 90

02 696 821 14

02 696 821 13

02 696 821 12

02 577 826 90

02 577 825 55

02 575 035 30

02 577 821

1-800-682-3639

toll-free: 0120-198-498

81-44-556-4162

toll-free: 0120-198-226

81-44-520-1435

toll-free:0120-198-433

81-44-556-3894

Contacting Dell 71

Country (City) International Access Code Country Code City Code

www.dell.com | support.dell.com

Korea (Seoul)

International Access Code: 001

Country Code: 82

City Code: 2

Department Name or Service Area,

Website and E-Mail Address

Technical Support (PDAs, projectors, printers, routers)

Technical Support outside of Japan (PDAs, projectors, printers, routers)

Faxbox Service

24-Hour Automated Order Service

Customer Care

Business Sales Division (up to 400 employees)

Preferred Accounts Division Sales (over 400 employees)

Large Corporate Accounts Sales (over 3500 employees)

Public Sales (government agencies, educational institutions, and medical institutions)

Global Segment Japan

Individual User

Switchboard

Technical Support

Sales

Customer Service (Penang, Malaysia)

Fax

Switchboard

Technical Support (Electronics and Accessories)

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 0120-981-690

81-44-556-3468

044-556-3490

044-556-3801

044-556-4240

044-556-1465

044-556-3433

044-556-3430

044-556-1469

044-556-3469

044-556-1760

044-556-4300

toll-free: 080-200-3800

toll-free: 080-200-3600

604 633 4949

2194-6202

2194-6000

toll-free: 080-200-3801

72 Contacting Dell

Country (City) International Access Code Country Code City Code

Latin America Customer Technical Support

Luxembourg

International Access Code: 00

Country Code:

352

Macao

Country Code:

853

Department Name or Service Area,

Website and E-Mail Address

(Austin, Texas, U.S.A.)

Customer Service (Austin, Texas, U.S.A.)

Fax (Technical Support and Customer Service) (Austin, Texas, U.S.A.)

Sales (Austin, Texas, U.S.A.)

SalesFax (Austin, Texas, U.S.A.)

We bs it e : support.euro.dell.com

E-mail: tech_be@dell.com

Technical Support (Brussels, Belgium)

Home/Small Business Sales (Brussels, Belgium)

Corporate Sales (Brussels, Belgium)

Customer Care (Brussels, Belgium)

Fax (Brussels, Belgium)

Switchboard (Brussels, Belgium)

Technical Support

Customer Service (Xiamen, China)

Transaction Sales (Xiamen, China)

Area Codes,

Local Numbers, and

Toll-Free Numbers

512 728-4093

512 728-3619

512 728-3883

512 728-4397

512 728-4600

or 512 728-3772

3420808075

toll-free: 080016884

02 481 91 00

02 481 91 19

02 481 92 99

02 481 91 00

toll-free: 0800 105

34 160 910

29 693 115

Contacting Dell 73

Country (City) International

Department Name or Service Area,

Website and E-Mail Address Access Code Country Code City Code

Malaysia (Penang)

International Access Code: 00

Country Code: 60

City Code: 4

www.dell.com | support.dell.com

We bs it e : support.ap.dell.com

Technical Support (Dell Precision, OptiPlex, and Latitude)

Technical Support (Dimension, Inspiron, and Electronics and Accessories)

Technical Support (PowerApp, PowerE dge, PowerConnect, an d PowerVault)

Customer Service (Penang, Malaysia)

Tra n sa c ti on Sa le s

Corporate Sales

Mexico

Customer Technical Support

International Access Code: 00

Sales

Country Code: 52

Customer Service

Main

Montserrat General Support

Netherlands

General Support

Antilles

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 1 800 88 0193

toll-free: 1 800 88 1306

toll-free: 1800 88 1386

04 633 4949

toll-free: 1 800 888 202

toll-free: 1 800 888 213

001-877-384-8979

or 001-877-269-3383

50-81-8800

or 01-800-888-3355

001-877-384-8979

or 001-877-269-3383

50-81-8800

or 01-800-888-3355

toll-free: 1-866-278-6822

001-800-882-1519

74 Contacting Dell

Country (City) International Access Code Country Code City Code

Netherlands (Amsterdam)

International Access Code: 00

Country Code: 31

City Code: 20

New Zealand

International Access Code: 00

Country Code: 64

Nicaragua General Support

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

Technical Support for Inspiron XPS computers only

Technical Support for all other Dell computers

Technical Support Fax

Home/Small Business Customer Care

Relational Customer Care

Home/Small Business Sales

Relational Sales

Home/Small Business Sales Fax

Relational Sales Fax

Switchboard

Switchboard Fax

E-mail (New Zealand): nz_tech_support@dell.com

E-mail (Australia): au_tech_support@dell.com

Technical Support (for desktop and portable computers)

Technical Support (for servers and workstations)

Home and Small Business

Government and Business

Sales

Fax

Area Codes,

Local Numbers, and

Toll-Free Numbers

020 674 45 94

020 674 45 00

020 674 47 66

020 674 42 00

020 674 4325

020 674 55 00

020 674 50 00

020 674 47 75

020 674 47 50

020 674 50 00

020 674 47 50

toll-free:

toll-free: 0800 443 563

0800 446 255

0800 444 617

0800 441 567

0800 441 566

001-800-220-1006

Contacting Dell 75

Country (City) International

Department Name or Service Area,

Website and E-Mail Address Access Code Country Code City Code

Norway (Lysaker)

International Access Code: 00

Country Code: 47

We bs it e : support.euro.dell.com

E-mail:

support.euro.dell.com/no/no/emai ldell/

Technical Support

Relational Customer Care

www.dell.com | support.dell.com

Home/Small Business Customer Care

Switchboard

Fax Switchboard

Pan ama General Support

Peru General Support

Poland (Warsaw)

International Access Code: 011

Country Code: 48

City Code: 22

We bs it e : support.euro.dell.com

E-mail: pl_support_tech@dell.com

Customer Service Phone

Customer Care

Sales

Customer Service Fax

Reception Desk Fax

Switchboard

Area Codes,

Local Numbers, and

Toll-Free Numbers

671 16882

671 17575

23162298

671 16800

671 16865

001-800-507-0962

0800-50-669

57 95 700

57 95 999

57 95 806

57 95 998

57 95 999

76 Contacting Dell

Country (City) International Access Code Country Code City Code

Portug al

International Access Code: 00

Country Code:

351

Puerto Rico General Support

St. Kitts and Nevis

St. Lucia General Support

St. Vincent and the Grenadines

Singapore (Singapore)

International Access Code: 005

Country Code: 65

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

E-mail:

support.euro.dell.com/pt/en/emai ldell/

Technical Support

Customer Care

Sales

Fax

General Support

We bs it e : support.ap.dell.com

Technical Support (Dimension, Inspiron, and Electronics and Accessories)

Technical Support (OptiPlex, Latitude, and Dell Precision)

Technical Support (PowerApp, PowerE dge, PowerConnect, an d PowerVault)

Customer Service (Penang, Malaysia)

Tra n sa c ti on Sa le s

Corporate Sales

Area Codes,

Local Numbers, and

Toll-Free Numbers

707200149

800 300 413

800 300 410 or 800 300 411 or 800 300 412 or

21 422 07 10

21 424 01 12

1-800-805-7545

toll-free: 1-877-441-4731

1-800-882-1521

toll-free: 1-877-270-4609

toll-free: 1800 394 7430

toll-free: 1800 394 7488

toll-free: 1800 394 7478

604 633 4949

toll-free: 1 800 394 7412

toll-free: 1 800 394 7419

Contacting Dell 77

Country (City) International Access Code Country Code City Code

Slovakia (Prague)

International Access Code: 00

Country Code:

421

www.dell.com | support.dell.com

South Africa (Johannesburg)

International Access Code:

09/091

Country Code: 27

City Code: 11

Southeast Asian and Pacific Countries

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

E-mail: czech_dell@dell.com

Technical Support

Customer Care

Fax

Tech Fa x

Switchboard (Sales)

We bs it e : support.euro.dell.com

E-mail: dell_za_support@dell.com

Gold Queue

Technical Support

Customer Care

Sales

Fax

Switchboard

Customer Technical Support, Customer Service, and Sales (Penang, Malaysia)

Area Codes,

Local Numbers, and

Toll-Free Numbers

02 5441 5727

420 22537 2707

02 5441 8328

02 5441 7585

011 709 7713

011 709 7710

011 709 7707

011 709 7700

011 706 0495

011 709 7700

604 633 4810

78 Contacting Dell

Country (City) International Access Code Country Code City Code

Spain (Madrid)

International Access Code: 00

Country Code: 34

City Code: 91

Sweden (Upplands Vasby)

International Access Code: 00

Country Code: 46

City Code: 8

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

E-mail:

support.euro.dell.com/es/es/email dell/

Home and Small Business

Technical Support

Customer Care

Sales

Switchboard

Fax

Corporate

Technical Support

Customer Care

Switchboard

Fax

We bs it e : support.euro.dell.com

E-mail:

support.euro.dell.com/se/sv/email dell/

Technical Support

Relational Customer Care

Home/Small Business Customer Care

Employee Purchase Program (EPP) Support

Technical Support Fax

Sales

Area Codes,

Local Numbers, and

Toll-Free Numbers

902 100 130

902 118 540

902 118 541

902 118 539

902 100 130

902 115 236

91 722 92 00

91 722 95 83

08 590 05 199

08 590 05 642

08 587 70 527

20 140 14 44

08 590 05 594

08 590 05 185

Contacting Dell 79

Country (City) International Access Code Country Code City Code

Switzerland (Geneva)

International Access Code: 00

Country Code: 41

City Code: 22

www.dell.com | support.dell.com

Ta i wa n

International Access Code: 002

Country Code:

886

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.euro.dell.com

E-mail: Tech_support_central_Europe@d ell.com

E-mail for French-speaking HSB and Corporate Customers:

support.euro.dell.com/ch/fr/email dell/

Technical Support (Home and Small Business)

Technical Support (Corporate)

Customer Care (Home and Small Business)

Customer Care (Corporate)

Fax

Switchboard

We bs it e : support.ap.dell.com

E-mail: ap_support@dell.com

Technical Support (OptiPlex, Latitude, Inspiron, Dimension, and Electronics and Accessories)

Technical Support (PowerApp, PowerE dge, PowerConnect, an d PowerVault)

Tra n sa c ti on Sa le s

Corporate Sales

Area Codes,

Local Numbers, and

Toll-Free Numbers

0844 811 411

0844 822 844

0848 802 202

0848 821 721

022 799 01 90

022 799 01 01

toll-free: 00801 86 1011

toll-free: 00801 60 1256

toll-free: 00801 65 1228

toll-free: 00801 651 227

80 Contacting Dell

Country (City) International Access Code Country Code City Code

Thailand

International Access Code: 001

Country Code: 66

Trinidad/Tobago General Support

Turks and Caicos Islands

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.ap.dell.com

Technical Support (OptiPlex, Latitude, and Dell Precision)

Technical Support (PowerApp, PowerE dge, PowerConnect, an d PowerVault)

Customer Service (Penang, Malaysia)

Corporate Sales

Tra n sa c ti on Sa le s

General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 1800 0060 07

toll-free: 1800 0600 09

604 633 4949

toll-free: 1800 006 009

toll-free: 1800 006 006

1-800-805-8035

toll-free: 1-866-540-3355

Contacting Dell 81

Country (City) International

Department Name or Service Area,

Website and E-Mail Address Access Code Country Code City Code

U.K. (Bracknell)

International Access Code: 00

We bs it e : support.euro.dell.com

Customer Care website:

support.euro.dell.com/uk/en/ECare/Form/Home.asp

Country Code: 44

City Code: 1344

E-mail: dell_direct_support@dell.com

www.dell.com | support.dell.com

Technical Support (Corporate/Preferred Accounts/PAD [1000+ employees])

Technical Support (direct and general)

Global Accounts Customer Care

Home and Small Business Customer Care

Corporate Customer Care

Preferred Accounts (500–5000 employees) Customer Care

Central Government Customer Care

Local Government & Education Customer Care

Health Customer Care

Home and Small Business Sales

Corporate/Public Sector Sales

Home and Small Business Fax

Uruguay General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

0870 908 0500

0870 908 0800

01344 373 186

0870 906 0010

01344 373 185

0870 906 0010

01344 373 193

01344 373 199

01344 373 194

0870 907 4000

01344 860 456

0870 907 4006

toll-free: 000-413-598-

2521

82 Contacting Dell

Country (City) International Access Code Country Code City Code

U.S.A. (Austin, Te xa s )

International Access Code: 011

Country Code: 1

Department Name or Service Area,

Website and E-Mail Address

Automated Order-Status Service

AutoTech (portable and desktop computers)

Consumer (Home and Home Office)

Technical Support

Customer Service

DellNet™ Service and Support

Employee Purchase Program (EPP) Customers

Financial Services website:

www.dellfinancialservices.com

Financial Services (lease/loans)

Financial Services (Dell Preferred Accounts [DPA])

Business

Customer Service and Technical Support

Employee Purchase Program (EPP) Customers

Printers and Projectors Technical Support

Public (government, education, and healthcare)

Customer Service and Technical Support

Employee Purchase Program (EPP) Customers

Dell Sales

Local Numbers, and

Toll-Free Numbers

toll-free: 1-800-433-9014

toll-free: 1-800-247-9362

toll-free: 1-800-624-9896

toll-free: 1-800-624-9897

toll-free: 1-877-Dellnet

(1-877-335-5638)

toll-free: 1-800-695-8133

toll-free: 1-877-577-3355

toll-free: 1-800-283-2210

toll-free: 1-800-822-8965

toll-free: 1-800-695-8133

toll-free: 1-877-459-7298

toll-free: 1-800-456-3355

toll-free: 1-800-234-1490

toll-free: 1-800-289-3355

or toll-free: 1-800-879-

Area Codes,

3355

Contacting Dell 83

Country (City) International

Department Name or Service Area,

Website and E-Mail Address Access Code Country Code City Code

U.S. Virgin

General Support

Islands

Ven ez ue la General Support

www.dell.com | support.dell.com

Area Codes,

Local Numbers, and

Toll-Free Numbers

1-877-673-3355

8001-3605

84 Contacting Dell

Appendix: Regulatory Notices

FCC Notices (U.S. Only)

Most Dell computer systems are classified by the Federal Communications Commission (FCC) as Class B digital devices. To determine which classification applies to your computer system, examine all FCC registration labels located on the bottom, side, or back panel of your computer, on card-mounting brackets, and on the cards themselves. If any one of the labels carries a Class A rating, your entire system is considered to be a Class A digital device. If all labels carry an FCC Class B rating as distinguished by either an FCC ID number or the FCC logo, ( ), your system is considered to be a Class B digital device.

Once you have determined your system’s FCC classification, read the appropriate FCC notice. Note that FCC regulations provide that changes or modifications not expressly approved by Dell could void your authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

Class A

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

Class B

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:

Appendix: Regulatory Notices 85

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

FCC Identification Information

The following information is provided on the device or devices covered in this document in compliance with FCC regulations:

• Product name: DLP Projector

• Model number: 5100MP/DELL

• Company name:

www.dell.com | support.dell.com

Dell Inc. One Dell Way Round Rock, Texas 78682 USA 512-338-4400

NOM Information (Mexico Only)

The following information is provided on the device(s) described in this document in compliance with the requirements of the official Mexican standards (NOM):

Exporter: Dell Inc.

Importer: Dell Computer de México, S.A. de C.V.

Ship to: Dell Computer de México, S.A. de C.V.

Model Supply Voltage Frequency Current Consumption

5100MP AC 100-240 V 50-60 Hz 2.3 A

One Dell Way Round Rock, TX 78682

Paseo de la Reforma 2620 - 11° Piso Col. Lomas Altas 11950 México, D.F.

al Cuidado de Kuehne & Nagel de México S. de R.L. Avenida Soles No. 55 Col. Peñon de los Baños 15520 México, D.F.

86 Appendix: Regulatory Notices

Glossary

ANSI Lumens— A standard for measuring light output, used for comparing projectors.

Aspect Ratio—The most popular aspect ratio is 4:3 (4 by 3). Early television and computer video formats are in a 4:3 aspect ratio, which means that the width of the image is 4/3 times the height.

Backlit (Backlight)—Refers to a remote control, or a projector control panel, that has buttons and controls that are illuminated.

Bandwidth— The number of cycles per second (Hertz) expressing the difference between the lower and upper limiting frequencies of a frequency band; also, the width of a band of frequencies.

Brightness— The amount of light emitting from a display or projection display or projection device. The brightness of projector is measured by ANSI lumens.

Color Temperature— A method of measuring the whiteness of a light source. Metal halide lamps have a higher temperature compared to halogen or incandescent lights.

Component Video—A method of delivering quality video in a format that contains all the components of the original image. These components are referred to as luma and chroma and are defined as Y'Pb'Pr' for analog component and Y'Cb'Cr' for digital component. Component video is available on DVD players and projectors.

Composite Video — The combined picture signal, including vertical and horizontal blanking and synchronizing signals.

Compression— A function that deletes resolution lines from the image to fit in the display area.

Compressed SVGA— To project an 800x600 image to a VGA projector, the original 800x600 signal must be compressed down. The data displays all the information with only two thirds of the pixels (307,000 vs 480,000). The resulting image is SVGA page size but sacrifices some of the image quality. If you are using an SVGA computers, connecting VGA to a VGA projector. provide better results.

Compressed SXGA— Found on XGA projectors, compressed SXGA handling allows these projectors to handle up to 1280x1024 SXGA resolution.

Compressed XGA— Found on SVGA projectors, compressed XGA handling allows these projectors to handle 1024x768 XGA resolution.

Glossary 87

Contrast Ratio— Range of light and dark values in a picture, or the ratio between

their maximum and minimum values. There are two methods used by the projection industry to measure the ratio:

Full On/Off

— measures the ratio of the light output of an all white image (full

on) and the light output of an all black (full off) image.

ANSI

— measures a pattern of 16 alternating black and white rectangles. The

average light output from the white rectangles is divided by the average light

ANSI

output of the black rectangles to determine the

contrast ratio.

Full On/Off contrast is always a larger number than ANSI contrast for the same projector.

dB— decibel—A unit used to express relative difference in power or intensity, usually between two acoustic or electric signals, equal to ten times the common

www.dell.com | support.dell.com

logarithm of the ratio of the two levels.

Diagonal Screen— A method of measuring the size of a screen or a projected image. It measures from one corner to the opposite corner. A 9FT high, 12FT wide, screen has a diagonal of 15FT. This document assumes that the diagonal dimensions are for the traditional 4:3 ratio of a computer image as per the example above.

DLP— Digital Light Processing—Reflective display technology developed by Texas Instruments, using small manipulated mirrors. Light passes through a color filter is sent to the DLP mirrors which arrange the RGB colors into a picture projected onto screen, also known as DMD.

DMD— digital Micro- Mirror Device— Each DMD consists of thousands of tilting, microscopic aluminum alloy mirrors mounted on a hidden yoke.

DVI— Digital Visual Interface— Defines the digital interface between digital devices such as projectors and personal computers. For devices that support DVI, a digital to digital connection can be made that eliminates the conversion to analog and thereby delivers an unblemished image.

Focal Length— The distance from the surface of a lens to its focal point.

Frequency— It is the rate of repetition in cycles per seconds of electrical signals.

Measured in Hz.

Hz — Frequency of an alternating signal. See Frequency.

Keystone Correction— Device that will correct an image of the distortion

(usually a wide-top narrow-bottom effect) of a projected image caused by improper projector to screen angle.

Laser Pointer— A small pen or cigar sized pointer that contains a small battery powered laser, which can project a small, red (typically), high intensity beam of light that is immediately very visible on the screen.

88 Glossary

Maximum Distance— The distance from a screen the projector can be to cast an

image that is useable (bright enough) in a fully darkened room.

Maximum Image Size— The largest image a projector can throw in a darkened room. This is usually limited by focal range of the optics.

Metal Halide Lamp— The type of lamp used in many medium and all high end portable projectors. These lamps typically have a "half-life" of 1000-2000 hours. That is they slowly lose intensity (brightness) as they are used, and at the "half-life" point, they are half as bright as when new. These lamps output a very "hot" temperature light, similar to mercury vapor lamps used in streetlights.. Their whites are "extremely" white (with slight bluish cast.) and make Halogen lamp's whites look very yellowish by comparison.

Minimum Distance— The closest position that a projector can focus an image onto a screen.

NTSC— The United States broadcast standard for video and broadcasting.

PAL— A European and international broadcast standard for video and

broadcasting. Higher resolution than NTSC.

Power Zoom— A zoom lens with the zoom in and out controlled by a motor, usually adjusted from the projector's control panel and also the remote control.

Reverse Image— Feature that allows you to flip the image horizontally. When used in a normal forward projection environment text, graphics, etc, are backwards. Reverse image is used for rear projection.

RGB— Red, Green, Blue— typically used to describe a monitor that requires separate signals for each of the three colors.

S-Video—A video transmission standard that uses a 4-pin mini-DIN connector to send video information on two signal wires called luminance (brightness, Y) and chrominance (color, C). S-Video is also referred to as Y/C.

SECAM— A French and international broadcast standard for video and broadcasting. Higher resolution than NTSC.

SVGA— Super Video Graphics Array— 800 x 600 pixels count.

SXGA— Super Ultra Graphics Array,—1280 x 1024 pixels count.

UXGA— Ultra Extended Graphics Array—1600 x 1200 pixels count.

VGA— Video Graphics Array—640 x 480 pixels count.

XGA— Extra Video Graphics Array— 1024 x 768 pixels count.

Glossary 89

Zoom Lens— Lens with a variable focal length that allows operator to move the

view in or out making the image smaller or larger.

Zoom Lens Ratio— Is the ratio between the smallest and largest image a lens can projector from a fixed distance. For example, a 1.4:1 zoom lens ratio means that a 10 foot image without zoom would be a 14 foot image with full zoom.

www.dell.com | support.dell.com

90 Glossary

Index

Adjusting the Projected Image 20

Adjusting the Projector Height

lower the projector

Elevator button Elevator foot 20 Tilt adjustment wheel 20

Lowering the Projector Height

Adjusting the Projector Zoom and Focus

Focus ring 21 Zoom tab 21

Changing the Lamp 48 Connecting the Projector

12V DC power cord Automatic screen 15 BNC to VGA cable 14 Commercial RS232 control

box

Composite video cable 14 Connecting a Computer with

a D-sub to D-sub Cable 11

Connecting a Computer with

an M1 to D-sub/USB Cable

Connecting a DVD Player

with a D-sub to YPb-

Pr Cable

Connecting a DVD Player

with an M1 to HDTV Cable

Connecting to a DVD Player

Connection with Commercial

RS232 Control Box

Connection with PC 16 D-sub to D-sub cable 11 D-sub to YPbPr cable 12 Installation for Driving Auto-

matic Screen

M1 to HDTV cable 12 M1A to D-sub/USB cable 10 Power cable 12, 13, 14,

15, 16, 17

Power cord 10, 11, 12 RCA to RCA component cable

RS232 cable 16, 17 To Computer 10

Connection Ports

12 Volt DC relay output Audio input connector 9 Audio output connector 9 BNC connector 9 Component video input con-

nector

HDMI connector 9

Index 91

IR receiver 9 Kensington lock hole 9 M1 signal in connector 9 Power cord connector 9 RJ45 network connector 9 RS232 connector 9 S-video input connector 9 VGA input connector 9 Video input connector 9

Control Panel 23

Dell

contacting

Main Unit 8

Control panel 8 Elevator button 8 Focus ring 8 Lens 8 Remote control receiver 8 Zoom tab 8

On-Screen Display

Audio Menu Computer Source Menu 35 Factory Reset Menu 35 Image Settings Menu 28 Language Menu 33 Management Menu 31 Network Settings Menu 34 PIP Setting Menu 33 Video Source Menu 35

Powering On/Off the Projector

Powering Off the Projector

Powering On the Projector 19

Remote Control 25

Specifications

Audio

Brightness 51 Color Wheel Speed 51 Compatibility Modes 55 Contrast Ratio 51 Dimensions 52 Displayable Color 51 Environmental 52 H. Frequency 51 I/O Connectors 52 Lamp 51 Light Valve 51 Networking Protocol 52 Noise Level 52 Number of Pixels 51 PIP combination sources 54 Power Consumption 52 Power Supply 51 Projection Distance 51 Projection Lens 51 Projection Screen Size 51 Regulatory 52 RS232 Protocol 53 Uniformity 51

92 Index

V. Frequency 51 Video Compatibility 51 Weight 52

support

contacting Dell

Troubleshooting 45

contact Dell 45 Self-diagnostic 48

Index 93

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

IMPORTANT NOTE: FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Coretronic Corporation declared that 5100MP is limited in CH1~78 from 2402 to 2479 MHz by specified firmware controlled in USA.

Coretronic M64ET Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Owner’s Manual

Contents

1 Your Dell Projector

2 Connecting Your Projector

3 Using Your Projector

4 Troubleshooting Your Projector

5 Specifications

6 Contacting Dell

7 Appendix: Regulatory Notices

8 Glossary

9 Index

Your Dell Projector

About Your Projector

Connecting Your Projector

Connecting to a Computer

Connecting a Computer with an M1 to D-sub/USB Cable

Connecting a Computer with a D-sub to D-sub Cable

Connecting to a DVD Player

Connecting a DVD Player with an M1 to HDTV Cable

Connecting a DVD Player with a D-sub to YPbPr Cable

Connecting a DVD Player with a RCA to RCA Cable

Connecting a DVD Player with an S-video Cable

Connecting a DVD Player with a Composite Cable

Connecting a DVD Player with a BNC to VGA cable

Professional Installation Options: Installation for Driving Automatic Screen

Installation for wired RS232 remote control: Connection with PC

Connection with Commercial RS232 Control Box:

Using Your Projector

Turning Your Projector On

Turning Your Projector Off

Adjusting the Projected Image

Raising the Projector Height

Lowering the Projector Height

Adjusting the Projector Zoom and Focus

Adjusting Projection Image Size

Using the Control Panel

Using the Remote Control

Using the On-Screen Display

Image Settings

Audio Menu

Management Menu

Language Menu

PIP Setting Menu

Network Settings Menu

Factory Reset Menu

Computer Source Menu

Video Source Menu

RF Learning Connections

To manage the projector from Web Management

Troubleshooting Your Projector

Self-diagnostic for Video

Changing the Lamp

Specifications

Contacting Dell

Appendix: Regulatory Notices

FCC Notices (U.S. Only)

NOM Information (Mexico Only)

Glossary

Index
