Page 1
STITCH LINE

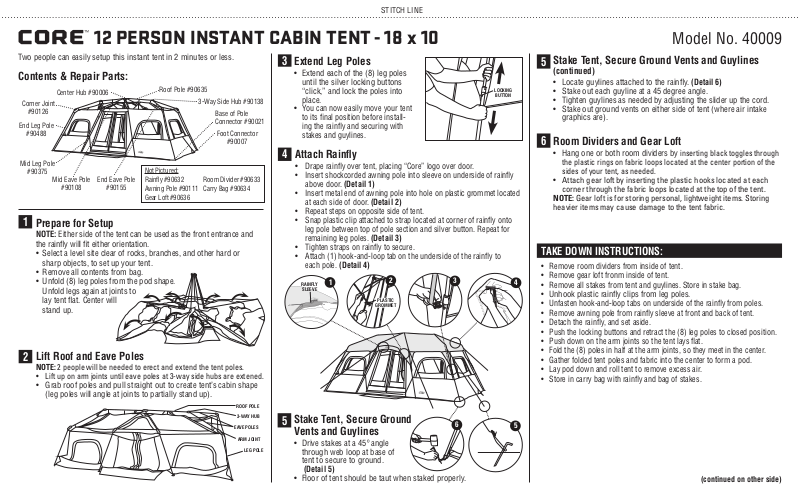

12 PERSON INSTANT CABIN TENT - 18 x 10
Two people can easily setup this instant tent in 2 minutes or less.

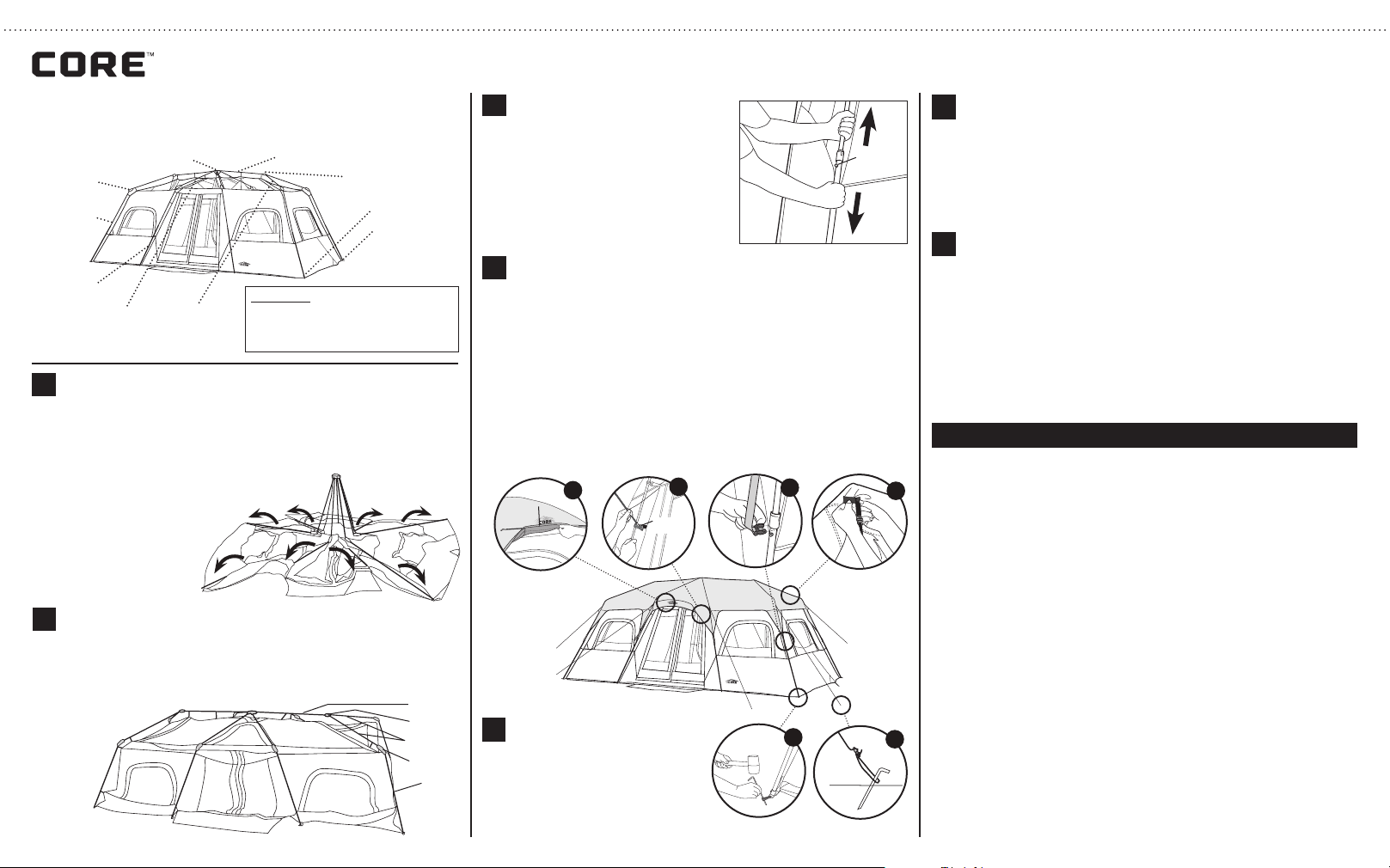

Contents & Repair Parts:
Center Hub #90006
Corner Joint
#90126
End Leg Pole
#90488
Mid Leg Pole
#90375
Mid Eave Pole
#90108
1
Prepare for Setup
End Eave Pole
#90155
NOTE: Either side of the tent can be used as the front entrance and
the rainfly will fit either orientation.
• Select a level site clear of rocks, branches, and other hard or
sharp objects, to set up your tent.
• Remove all contents from bag.
• Unfold (8) leg poles from the pod shape.
Unfold legs again at joints to
lay tent flat. Center will
stand up.
Lift Roof and Eave Poles
2
NOTE: 2 people will be needed to erect and extend the tent poles.
• Lift up on arm joints until eave poles at 3-way side hubs are extened.
• Grab roof poles and pull straight out to create tent’s cabin shape
(leg poles will angle at joints to partially stand up).
Roof Pole #90635
3-Way Side Hub #90138
Base of Pole
Connector #90021
Foot Connector
#90007
Not Pictured:
Rainfly #90632 Room Divider #90633
Awning Pole #90111 Carry Bag #90634
Gear Loft #90636
ROOF POLE
3-WAY HUB
EAVE POLES
ARM JOINT
LEG POLE
Extend Leg Poles
3
• Extend each of the (8) leg poles
until the silver locking buttons
“click,” and lock the poles into
place.
You can now easily move your tent
•
to its final position before install ing the rainfly and securing with
stakes and guylines.
4
Attach Rainfly
•
Drape rainfly over tent, placing “Core” logo over door.
• Insert shockcorded awning pole into sleeve on underside of rainfly
above door. (Detail 1)
• Insert metal end of awning pole into hole on plastic grommet located
at each side of door. (Detail 2)
• Repeat steps on opposite side of tent.
• Snap plastic clip attached to strap located at corner of rainfly onto
leg pole between top of pole section and silver button. Repeat for
remaining leg poles. (Detail 3)
•
Tighten straps on rainfly to secure.
•
Attach (1) hook-and-loop tab on the underside of the rainfly to
each pole. (Detail 4)
1
RAINFLY
SLEEVE
PLASTIC
GROMMET
Stake Tent, Secure Ground
5
Vents and Guylines
2
3
6
• Drive stakes at a 45º angle
through web loop at base of
tent to secure to ground.
(Detail 5)
• Floor of tent should be taut when staked properly.
LOCKING
BUTTON
Model No. 40009
Stake Tent, Secure Ground Vents and Guylines
5
(continued)
• Locate guylines attached to the rainfly.
• Stake out each guyline at a 45 degree angle.
• Tighten guylines as needed by adjusting the slider up the cord.
• Stake out ground vents on either side of tent (where air intake
graphics are).
6
Room Dividers and Gear Loft
• Hang one or both room dividers by
the plastic rings on fabric loops located at the center portion of the
sides of your tent, as needed.
• Attach gear loft by inserting the plastic hooks located at each
corner through the fabric loops located at the top of the tent.
NOTE: Gear loft is for storing personal, lightweight items. Storing
heavier items may cause damage to the tent fabric.
TAKE DOWN INSTRUCTIONS:
• Remove room dividers from inside of tent.
• Remove gear loft fronm inside of tent.
4
• Remove all stakes from tent and guylines. Store in stake bag.
Unhook plastic rainfly clips from leg poles.
•
• Unfasten hook-and-loop tabs on underside of the rainfly from poles.
• Remove awning pole from rainfly sleeve at front and back of tent.
• Detach the rainfly, and set aside.
• Push the locking buttons and retract the (8) leg poles to closed position.
• Push down on the arm joints so the tent lays flat.
• Fold the (8) poles in half at the arm joints, so they meet in the center.
• Gather folded tent poles and fabric into the center to form a pod.
• Lay pod down and roll tent to remove excess air.
• Store in carry bag with rainfly and bag of stakes.
5
(Detail 6)
inserting black toggles through
(continued on other side)
Page 2
FREQUENTLY ASKED QUESTIONS:
• Are replacement parts available? Yes, just call Customer Service at
888-774-5840 for replacement parts. All parts can be replaced.
• The center of the tent won’t stand up. You may have a broken corner
joint. Check all four of the joints (under the fabric sleeves) and call
Customer Service if you need a replacement.
• The poles are not staying extended. Check that all eight silver locking
buttons are popped out. Extend pole farther if button is not locked. It will
“click” into place.
• How do I get everything back in the bag? The trick is to take your time
and remove all the air. Use the weight of the poles to roll the tent on the
ground and force air out. The tent components fit in the bag, it’s the air
that doesn’t.
• What is the air intake? The air intake is a ground vent, designed to help
with air flow throughout the tent, keep the tent cooler in warm weather,
and prevent condensation. It can be staked shut in colder weather.
• How to clean the tent? Clean the tent with a soft sponge, a mild soap
and tepid water. Be sure to scrub gently and remove all soap. Let dry in
sunlight, which also naturally cleans the tent.
• What is the wall plug symbol? That is a port for an electrical cord to
access your tent. The electrical cord can be used on a campsite with power
or with a generator outside your tent. It closes fully when not in use.
• Can the tent be used in the rain? Absolutely. The tent and rainfly have a
waterproof treatment, and the seams have been sealed with waterproof
tape at the factory.
• How many seasons is this tent? This is a three-season tent, recom mended for use during spring, summer and fall.
• What are the dimensions of the tent? The tent is 18’ x 10’ x 80”
(426cm x 274cm x 203cm).
WARNINGS & CAUTIONS:
WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS
TENT FABRIC
This tent is made of flame-resistant fabric which meets CPAI-84 specifications. IT IS NOT FIRE-PROOF. The fabric will burn if left in continuous
contact with any flame source. The application of any foreign substance to
the product fabric may render the flame-resistant properties ineffective.
DO NOT use fuel burning devices inside or near tent materials.
DO NOT permit children to light matches, operate burning appliances, or
handle any flame sources in or near the tent.
• Do not smoke, use matches, candles or open flames of any kind in or near
the tent.
• Do not refuel lanterns, stoves or heaters inside tent.
• Do not cook inside tent.
• Do not store flammable liquids inside tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning strikes
or falling tree limbs in inclement weather.
• For best results in windy conditions, position narrow end of tent into
the wind.
• Secure with all stakes and guylines provided to prevent property damage
or personal injury.
• Under certain conditions (cold weather, high humidity, etc.) condensation
will form on the inside of your tent. Condensation is caused by water
vapor from your breath, perspiration, or any wet clothing inside the tent.
It is NOT LEAKAGE through the tent fabric. It can be minimized by remov ing wet clothing from your tent and by providing good ventilation through
the tent.
• Never store tent, even for a short period of time, without drying it thor oughly and brushing off caked dirt. Do not pack stakes inside your tent.
Use a separate storage bag.
STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.
•
NEVER PULL ON THE TENT TO REMOVE STAKE.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure
to ultraviolet rays from the sun can seriously damage material and/or
cause it to become discolored.
IMPORTANT:
THE ORIGINAL FIRE RETARDENT AND WATER REPELLENT PROTECTIVE
COATINGS MAY BE COMPROMISED IF SPRAYS OR OTHER CHEMICAL
TREATMENTS ARE USED ON THE TENT. FABRIC HAS BEEN FACTORY
TREATED. IT IS HIGHLY WATER-REPELLANT; HOWEVER, IT IS NOT
WATERPROOF. ALL TENTS CAN EXPERIENCE SEAM LEAKAGE DURING
WET WEATHER. IF YOU WANT ADDITIONAL MOISTURE PROTECTION,
TRY A SEAM SEALING COMPOUND ONLY; STRICTLY FOLLOW THE MANUFACTURER’S DIRECTIONS. IT IS RECOMMENDED THAT YOU SEAL THE
TENT DURING THE INITIAL SETUP AS WELL AS PRIOR TO EACH CAMPING
SEASON. SEAM SEALER COMPOUNDS CAN BE PURCHASED AT YOUR
LOCAL CAMPING PRODUCTS OUTLET. FOR MISSING PARTS CALL
1-888-774-5840.
PLEASE DO NOT RETURN THIS PRODUCT TO THE RETAIL STORE.
1-YEAR LIMITED WARRANTY:
Elevate LLC warrants for a period of 1 year from the original date of purchase, this
product against any defects in materials or workmanship. At its discretion, Elevate LLC
may provide replacement parts to original purchaser. Original receipt or proof of purchase
as well as proof of defect is required. Elevate LLC will not be responsible for shipping
costs incurred outside the continental USA. Warranty is valid for the original purchaser one
year from the date of purchase and is not transferable. This Warranty does not cover any
product purchased through non authorized dealers and/or online auction websites.
This Warranty Does Not Cover:
This 1-Year Limited Warranty does NOT cover normal wear and tear, abuse or misuse of
this product including damage from inclement weather conditions, such as wind, rain, or
hail. In case of inclement weather remove all valuables and persons and seek appropriate
shelter. Under no circumstances will Elevate LLC be liable or responsible for any incidental
or consequential damages.
This product is designed and intended for Recreational use only. Prolonged exposure
to UV rays will cause any fabric to fade and deteriorate and is NOT covered by this 1-Year
Limited Warranty.
All replacement products or parts will assume the remaining warranty of the original
product. This warranty gives you specific legal rights. You may also have other rights
which vary from state to state.
To Obtain Warranty Service
Call Toll Free 1-888-774-5840 for warranty service, repair parts, or product questions.
Mon-Fri, 8:00 a.m. – 5:00 p.m. Central Time.
NOTICE: DO NOT RETURN PRODUCT TO RETAIL STORE.
STITCH LINE
Elevate LLC
Overland Park, KS 66221
Made in Bangladesh • Printed in Bangladesh
