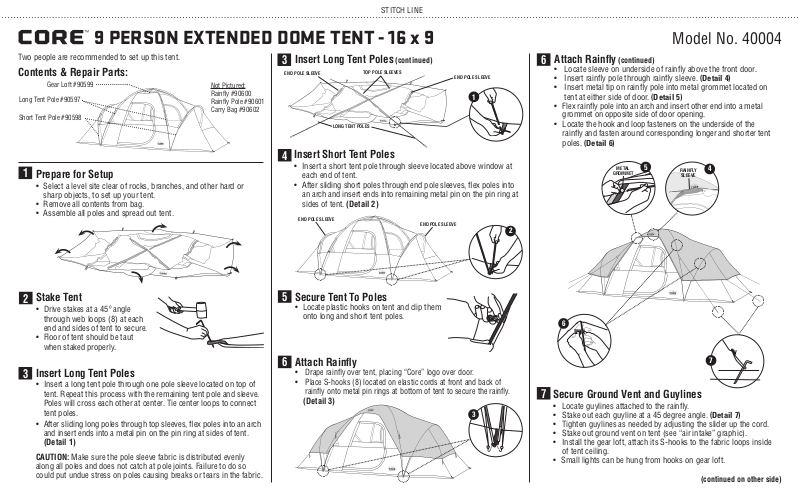

Page 1
STITCH LINE
9 PERSON EXTENDED DOME TENT - 16 x 9
Two people are recommended to set up this tent.
Contents & Repair Parts:
Gear Loft #90599
Long Tent Pole #90597
Short Tent Pole #90598
1

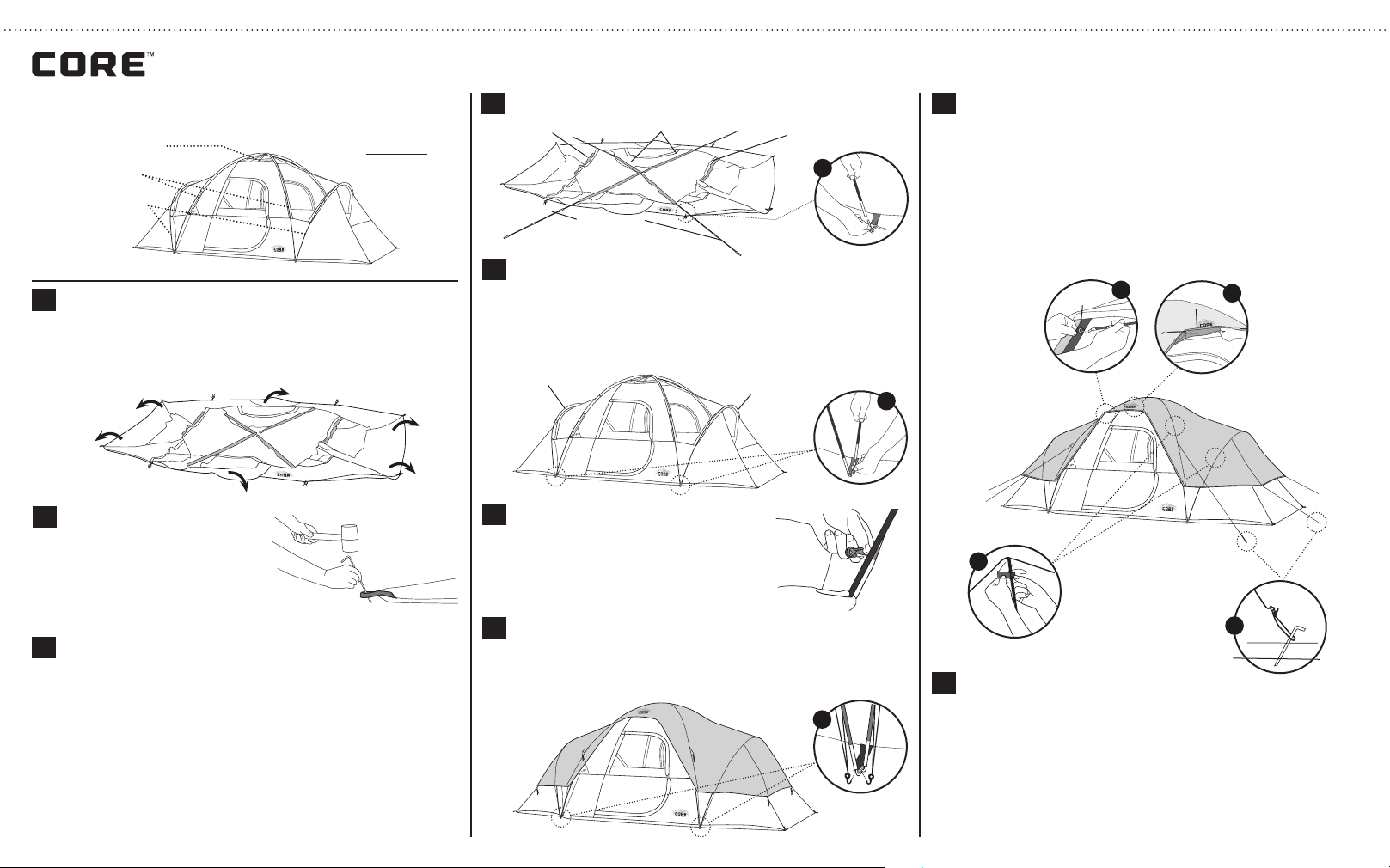

Prepare for Setup
• Select a level site clear of rocks, branches, and other hard or
sharp objects, to set up your tent.
• Remove all contents from bag.
• Assemble all poles and spread out tent.
Stake Tent
2
• Drive stakes at a 45º angle
through web loops (8) at each
end and sides of tent to secure.
• Floor of tent should be taut
when staked properly.
Insert Long Tent Poles
3
• Insert a long tent pole through one pole sleeve located on top of
tent. Repeat this process with the remaining tent pole and sleeve.
Poles will cross each other at center. Tie center loops to connect
tent poles.
• After sliding long poles through top sleeves, flex poles into an arch
and insert ends into a metal pin on the pin ring at sides of tent.
(Detail 1)
CAUTION:
along all poles and does not catch at pole joints. Failure to do so
could put undue stress on poles causing breaks or tears in the fabric.
Make sure the pole sleeve fabric is distributed evenly
Not Pictured:
Rainfly #90600
Rainfly Pole #90601
Carry Bag #90602
Insert Long Tent Poles (continued)
3
END POLE SLEEVE
LONG TENT POLES
Insert Short Tent Poles
4
• Insert a short tent pole through sleeve located above window at
each end of tent.
• After sliding short poles through end pole sleeves, flex poles into
an arch and insert ends into remaining metal pin on the pin ring at
sides of tent. (Detail 2)
END POLE SLEEVE
Secure Tent To Poles
5
• Locate plastic hooks on tent and clip them
onto long and short tent poles.
Attach Rainfly
6
•
Drape rainfly over tent, placing “Core” logo over door.
•
Place S-hooks (8) located on elastic cords at front and back of
rainfly onto metal pin rings at bottom of tent to secure the rainfly.
(Detail 3)
TOP POLE SLEEVES
END POLE SLEEVE
1
END POLE SLEEVE
3
Model No. 40004
Attach Rainfly (continued)
6
• Locate sleeve on underside of rainfly above the front door.
• Insert rainfly pole through rainfly sleeve. (Detail 4)
• Insert metal tip on rainfly pole into metal grommet located on
tent at either side of door. (Detail 5)
• Flex rainfly pole into an arch and insert other end into a metal
grommet on opposite side of door opening.
• Locate the hook and loop fasteners on the underside of the
rainfly and fasten around corresponding longer and shorter tent
poles. (Detail 6)
5
METAL
GROMMET
2
6
Secure Ground Vent and Guylines
7
• Locate guylines attached to the rainfly.
• Stake out each guyline at a 45 degree angle. (Detail 7)
• Tighten guylines as needed by adjusting the slider up the cord.
• Stake out ground vent on tent (see “air intake” graphic).
• Install the gear loft, attach its S-hooks to the fabric loops inside
of tent ceiling.
• Small lights can be hung from hooks on gear loft.
4
RAINFLY
SLEEVE
7
(continued on other side)
Page 2
TAKE DOWN INSTRUCTIONS:
• Remove gear loft from inside of tent.
• Remove stakes from guylines and ground vent. Store in stake bag.
• Disconnect rainfly S-hooks from metal rings located at front and back
of tent.
• Remove rainfly pole from grommets above door on tent then slide out
of rainfly sleeve.
• Unfasten hook-and-loop tabs on underside of the rainfly from poles.
• Remove rainfly. Fold rainfly to length of carry bag and set aside.
• Remove end of tent poles from the pin ring at each corner of the tent and
allow tent to lay flat.
Remove the tent poles by carefully pushing them through the sleeves
•
away from the end at which you are standing.
•
Disassemble all poles and place in pole bag.
•
Remove remaining stakes. Store in stake bag.
•
Fold tent lengthwise 2-3 times. Then, lay bag of poles on short edge
of tent, and roll tent around poles.
• Store in carry bag with rainfly and bag of stakes.
FREQUENTLY ASKED QUESTIONS:
• Are replacement parts available? Yes, just call Customer Service at
888-774-5840 for replacement parts. All parts can be replaced.
• How do I get everything back in the bag? The trick is to take your time
and remove all the air. Use the weight of the poles to roll the tent on the
ground and force air out. The tent components fit in the bag, it’s the air
that doesn’t.
• What is the air intake? The air intake is a ground vent, designed to help
with air flow throughout the tent, keep the tent cooler in warm weather,
and prevent condensation. It can be staked shut in colder weather.
• How to clean the tent? Clean the tent with a soft sponge, a mild soap
and tepid water. Be sure to scrub gently and remove all soap. Let dry in
sunlight, which also naturally cleans the tent.
• What is the wall plug symbol? That is a port for an electrical cord to
access your tent. The electrical cord can be used on a campsite with power
or with a generator outside your tent. It closes fully when not in use.
• Where does the gear loft go? It hangs at the top of the inside of the tent.
There are four hooks sewn onto the corners of the gear loft that attach to
four loops sewn into the tent.
• Can the tent be used in the rain? Absolutely. The tent and rainfly have a
waterproof treatment, and the seams have been sealed with waterproof
tape at the factory.
• How many seasons is this tent? This is a three-season tent, recom mended for use during spring, summer and fall.
• What are the dimensions of the tent? The tent is 16’ x 9’ x 72”
(4.87m x 2.74m x 1.82m).
WARNINGS & CAUTIONS:
WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS
TENT FABRIC
This tent is made of flame-resistant fabric which meets CPAI-84 specifications. IT IS NOT FIRE-PROOF. The fabric will burn if left in continuous
contact with any flame source. The application of any foreign substance to
the product fabric may render the flame-resistant properties ineffective.
DO NOT use fuel burning devices inside or near tent materials.
DO NOT permit children to light matches, operate burning appliances, or
handle any flame sources in or near the tent.
• Do not smoke, use matches, candles or open flames of any kind in or near
the tent.
• Do not refuel lanterns, stoves or heaters inside tent.
• Do not cook inside tent.
• Do not store flammable liquids inside tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning strikes
or falling tree limbs in inclement weather.
• For best results in windy conditions, position narrow end of tent into
the wind.
• Secure with all stakes and guylines provided to prevent property damage
or personal injury.
• Under certain conditions (cold weather, high humidity, etc.) condensation
will form on the inside of your tent. Condensation is caused by water
vapor from your breath, perspiration, or any wet clothing inside the tent.
It is NOT LEAKAGE through the tent fabric. It can be minimized by remov ing wet clothing from your tent and by providing good ventilation through
the tent.
• Never store tent, even for a short period of time, without drying it thor oughly and brushing off caked dirt. Do not pack stakes inside your tent.
Use a separate storage bag.
STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.
•
NEVER PULL ON THE TENT TO REMOVE STAKE.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure
to ultraviolet rays from the sun can seriously damage material and/or
cause it to become discolored.
IMPORTANT:
THE ORIGINAL FIRE RETARDENT AND WATER REPELLENT PROTECTIVE
COATINGS MAY BE COMPROMISED IF SPRAYS OR OTHER CHEMICAL
TREATMENTS ARE USED ON THE TENT. FABRIC HAS BEEN FACTORY
TREATED. IT IS HIGHLY WATER-REPELLANT; HOWEVER, IT IS NOT
WATERPROOF. ALL TENTS CAN EXPERIENCE SEAM LEAKAGE DURING
WET WEATHER. IF YOU WANT ADDITIONAL MOISTURE PROTECTION,
TRY A SEAM SEALING COMPOUND ONLY; STRICTLY FOLLOW THE MANUFACTURER’S DIRECTIONS. IT IS RECOMMENDED THAT YOU SEAL THE
TENT DURING THE INITIAL SETUP AS WELL AS PRIOR TO EACH CAMPING
SEASON. SEAM SEALER COMPOUNDS CAN BE PURCHASED AT YOUR
LOCAL CAMPING PRODUCTS OUTLET. FOR MISSING PARTS CALL
1-888-774-5840.
PLEASE DO NOT RETURN THIS PRODUCT TO THE RETAIL STORE.
1-YEAR LIMITED WARRANTY:
Elevate LLC warrants for a period of 1 year from the original date of purchase, this
product against any defects in materials or workmanship. At its discretion, Elevate LLC
may provide replacement parts to original purchaser. Original receipt or proof of purchase
as well as proof of defect is required. Elevate LLC will not be responsible for shipping
costs incurred outside the continental USA. Warranty is valid for the original purchaser one
year from the date of purchase and is not transferable. This Warranty does not cover any
product purchased through non authorized dealers and/or online auction websites.
This Warranty Does Not Cover:
This 1-Year Limited Warranty does NOT cover normal wear and tear, abuse or misuse of
this product including damage from inclement weather conditions, such as wind, rain, or
hail. In case of inclement weather remove all valuables and persons and seek appropriate
shelter. Under no circumstances will Elevate LLC be liable or responsible for any incidental
or consequential damages.
This product is designed and intended for Recreational use only. Prolonged exposure
to UV rays will cause any fabric to fade and deteriorate and is NOT covered by this 1-Year
Limited Warranty.
All replacement products or parts will assume the remaining warranty of the original
product. This warranty gives you specific legal rights. You may also have other rights
which vary from state to state.
To Obtain Warranty Service
Call Toll Free 1-888-774-5840 for warranty service, repair parts, or product questions.
Mon-Fri, 8:00 a.m. – 5:00 p.m. Central Time.
NOTICE: DO NOT RETURN PRODUCT TO RETAIL STORE.
Elevate LLC
Overland Park, KS 66221
Made in Bangladesh • Printed in Bangladesh
