Core ColourPoint User Manual

USER MANUAL

Battery Wireless Up-light Lithium

ColourPoint User Manual V1_2

1

Contents

Contents ............................................................................................................... 1

Disclaimer ............................................................................................................. 3

Product Modification ........................................................................................... 3

Safety Information................................................................................................ 3

Before You Begin ................................................................................................. 4

Product Overview ................................................................................................. 4

Features ............................................................................................................ 4

Product Contents ............................................................................................. 4

Safety ................................................................................................................ 4

Getting Started ..................................................................................................... 5

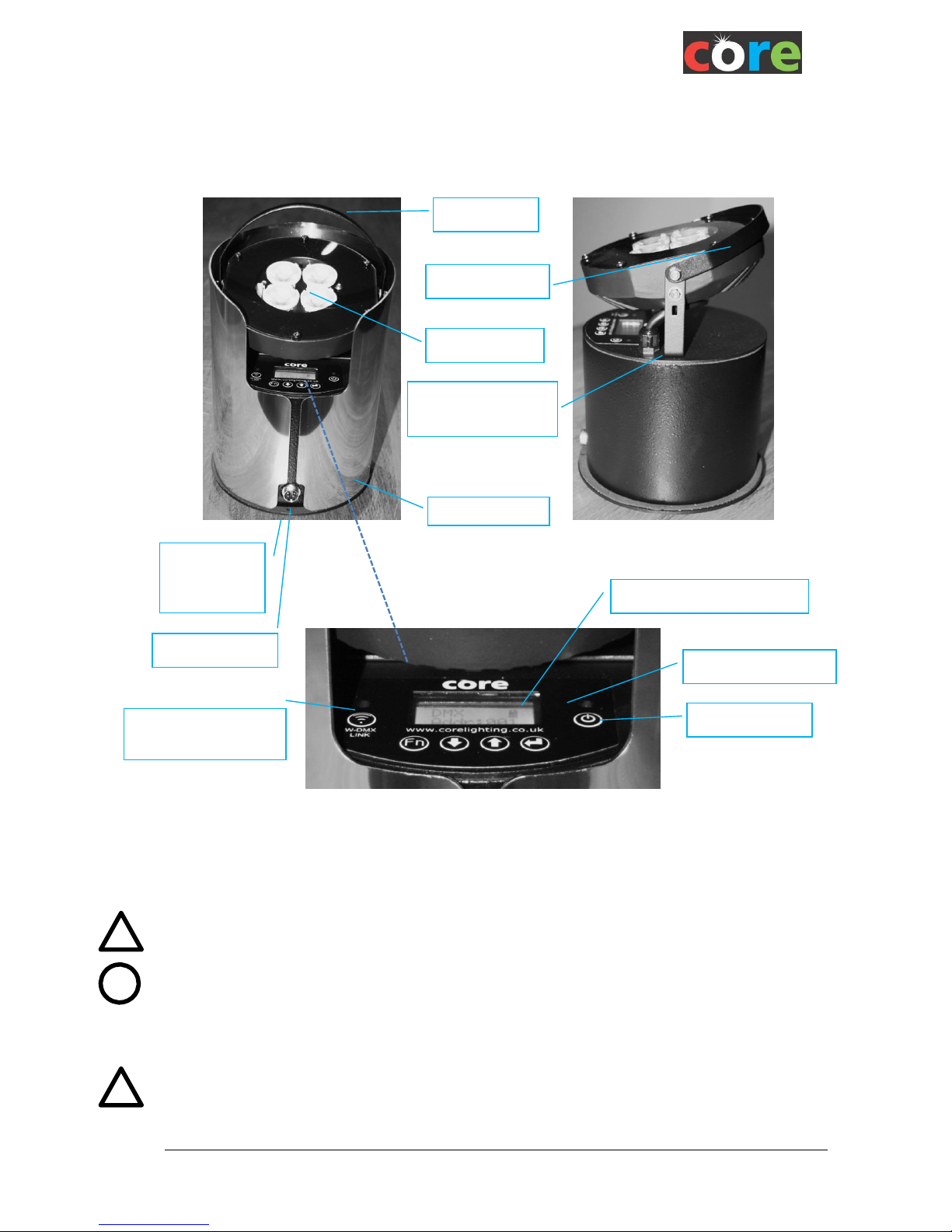

ColourPoint Key Elements .............................................................................. 5

Power ................................................................................................................ 5

Ventilation and Mounting ................................................................................ 5

Operation ................................................................ ................................ .............. 6

Power ................................................................................................................ 6

Charging ........................................................................................................... 6

Control Panel ................................................................................................... 6

External Power (Optional Accessory) ............................................................ 7

Function Modes ................................................................................................... 8

Cust Col ................................ ................................ ................................ ............ 8

Static Operation ............................................................................................... 9

DMX Operation ............................................................................................... 10

Additional Settings ............................................................................................ 13

Power Mode .................................................................................................... 13

Brightness Control ........................................................................................ 13

Soft Dimmer ................................................................................................... 13

Keypad Lock .................................................................................................. 14

ColourPoint User Manual V1_2

2

Mechanical .......................................................................................................... 15

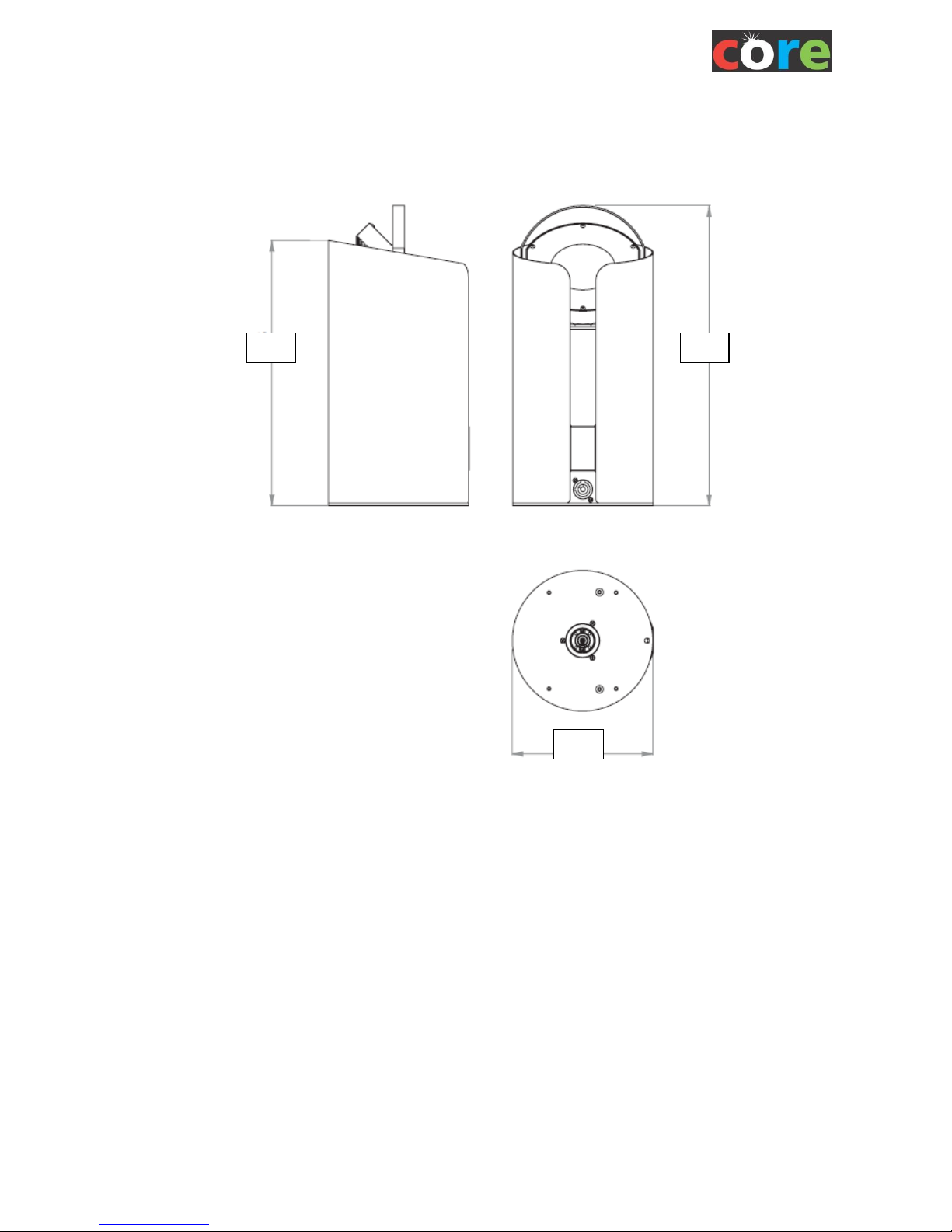

Dimensions .................................................................................................... 15

Antenna .......................................................................................................... 15

Locking ................................................................................................ ........... 15

Warranty ............................................................................................................. 16

Compliance Information ................................................................ .................... 17

System Compliance ....................................................................................... 17

FCC & Industry Canada Statement for Radio Compliance ............................. 17

W-DMX Transmitter & Receiver .................................................................... 17

WEEE & RoHS Statement .................................................................................. 18

ColourPoint User Manual V1_2

3

!

i

Disclaimer

CORE Lighting Limited believe the information in this manual is accurate and complete however
assumes no responsibility for any error or omissions within this document or any other
documentation accompanying the product. We reserve the right to revise this document at any time.
Please see www.corelighting.co.uk/support to download latest version.

Product Modification

This CORE Lighting product has been designed and manufactured to meet the strict requirements
of UK, EU and International safety regulations. Any unauthorised modifications to the product
including replacement of parts with non-standard parts could compromise safety and result in the
product being non-compliant with relevant standards.

There are no user serviceable parts within this product.

Safety Information

Important safety information is contained within this manual. Please read all instructions fully prior to
installation and use of the equipment.

Internationally recognised symbols are used within the document to highlight important messages as
follows:

Critical installation or usage information.
Failure to comply with this information may cause damage to the product, third party
equipment or cause harm or injury

Important installation or usage information.
Failure to comply with this information may cause the product to operate incorrectly

Note: Restrictions apply to transporting this equipment on aircraft
due to the lithium polymer batteries having capacity greater than
100Wh. Please consult IATA Packing Instructions 967 and CORE
Lighting Ltd for further information.

ColourPoint User Manual V1_2

4

!

Before You Begin

The CORE ColourPoint fixture is a battery-powered wireless up-lighter capable of providing portable and
instant architectural and feature lighting anywhere. With high-powered red, green, blue and white LEDs
the fixture is capable of producing any colour or shade of white using combinations of those LEDs. Ideal
for illuminating buildings in colour, both indoors and outdoors, the fixture is powerful enough to light
buildings of 3 or 4 storeys. Lighting effects may be created by connecting to effects generators such as
lighting desks or other CORE Master units using the in-built Wireless DMX receiver. Simply connect
wirelessly to the transmitter of the generator.
The product is designed and manufactured in the UK.
.

Product Overview

Features

 High powered 2000lumen RGBW LEDs equivalent to 5300 Lux @ 2m
 4 x Cree high-powered RGBW LED arrays
 Lithium Ion Battery reducing unit weight to just 4.0Kg
 LEE Filter Colour Library or separate red, green, blue, white control (4Bn colours combinations).
 Wireless DMX wireless slave control (2.4GHz W-DMX from Wireless Solution, Sweden)
 4 or 5 Channel DMX operation
 Intuitive LCD menu
 Designed and Manufactured in the UK
 Operating temperature range -20 to +45 degC or -4 to +113 degF

Product Contents

Please contact your dealer immediately if there are any signs of product damage or parts missing.

Single unit Charging case of six units

 1x ColourPoint wireless LED fixture
 1x Stainless steel shroud
 1x Battery charger
 1x Power cable
 1x Shortform Manual

 6x ColourPoint Wireless LED fixtures
 6x Stainless steel shroud
 1x Charging case
 1x Powercon Cable
 1x Shortform Manual

Safety

 AVOID direct eye exposure to the light source when illuminated
 DO NOT submerge this product in water or expose to excessive water spray
 DO NOT hang this product other than by the means indicated in this manual
 DO NOT leave any flammable material near product whilst operating or charging
 ALWAYS use the supplied charger or charging case
 ALWAYS ensure the charger is connected to the specified voltage
 ALWAYS ensure the charging case lid is open whilst plugged into mains supply
 NEVER connect this product or charger to a dimmer pack
 DO NOT operate thi s fixture if it appears damaged in any way
 DO NOT operate this fixture where the ambient temperature exceeds 45ºC

In the unlikely event that your product develops a fault, please contact your local dealer or
authorised distributor.
Do not attempt to repair yourself unless specifically instructed by CORE Lighting Ltd.
