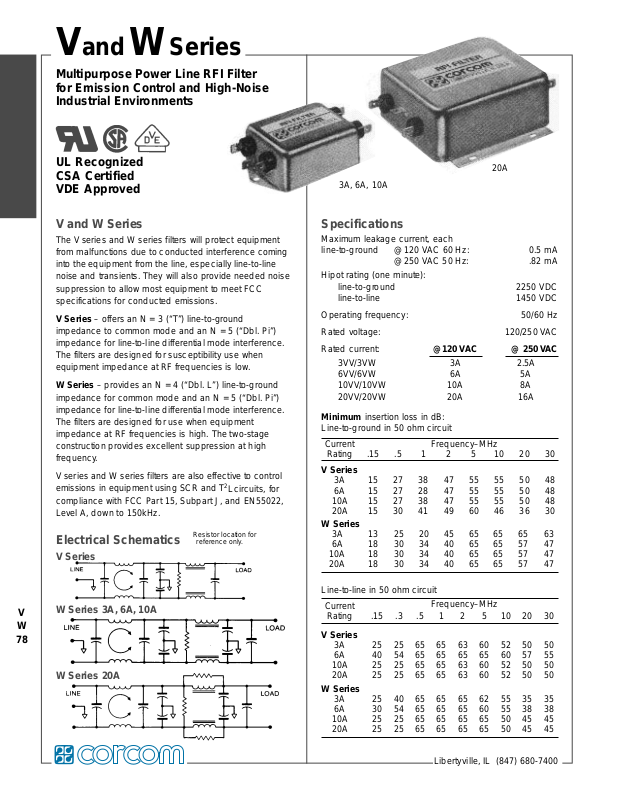

VandWSeries
Multipurpose Power Line RFI Filter
for Emission Control and High-Noise
Industrial Environments
UL Recognized
CSA Certified
VDE Approved
V and W Series
The V series and W series filters will protect equipment
from malfunctions due to conducted interference coming
into the equipment from the line, especially line-to-line
noise and transients. They will also provide needed noise
suppression to allow most equipment to meet FCC
specifications for conducted emissions.
V Series – offers an N = 3 (“T”) line-to-ground
impedance to common mode and an N = 5 (“Dbl. Pi”)
impedance for line-to-line differential mode interference.
The filters are designed for susceptibility use when
equipment impedance at RF frequencies is low.
W Series – provides an N = 4 (“Dbl. L”) line-to-ground
impedance for common mode and an N = 5 (“Dbl. Pi”)
impedance for line-to-line differential mode interference.
The filters are designed for use when equipment
impedance at RF frequencies is high. The two-stage
construction provides excellent suppression at high
frequency.
V series and W series filters are also effective to control
emissions in equipment using SCR and T
compliance with FCC Part 15, Subpart J, and EN55022,
Level A, down to 150kHz.
Electrical Schematics
Resistor location for
V Series
2
Lcircuits, for
reference only.
20A
3A, 6A, 10A
Specifications
Maximum leakage current, each
line-to-ground @ 120 VAC 60 Hz: 0.5 mA
@ 250 VAC 50 Hz: .82 mA
Hipot rating (one minute):
line-to-ground 2250 VDC
line-to-line 1450 VDC
Operating frequency: 50/60 Hz
Rated voltage: 120/250 VAC
Rated current: @120 V AC @ 250 VA C
3VV/3VW 3A 2.5A
6VV/6VW 6A 5A
10VV/10VW 10A 8A
20VV/20VW 20A 16A
Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Rating .15 .5 1 2 5 10 20 30
V Series
3A 15 27 38 47 55 55 50 48
6A 15 27 28 47 55 55 50 48
10A 15 27 38 47 55 55 50 48
20A 15 30 41 49 60 46 36 30
W Series
3A 13 25 20 45 65 65 65 63
6A 18 30 34 40 65 65 57 47
10A 18 30 34 40 65 65 57 47
20A 18 30 34 40 65 65 57 47
Frequency–MHz
V
W
78
W Series 3A, 6A, 10A
W Series 20A
Line-to-line in 50 ohm circuit
Current
Rating .15 .3 .5 1 2 5 10 20 30
V Series
3A 25 25 65 65 63 60 52 50 50
6A 40 54 65 65 65 65 60 57 55
10A 25 25 65 65 63 60 52 50 50
20A 25 25 65 65 63 60 52 50 50
W Series
3A 25 40 65 65 65 62 55 35 35
6A 30 54 65 65 65 60 55 38 38
10A 25 25 65 65 65 65 50 45 45
20A 25 25 65 65 65 65 50 45 45
Frequency–MHz
Libertyville, IL (847) 680-7400
SeriesVandW
Case Styles
Metric shown in italics.
3A, 6A, 10A
Typical dimensions
Terminals: (5) Holes: Dia.(4) Slot:
Mounting holes: Dia. (2)
20VV1/20VW1
.250
6.35
.07
1.8
.188
4.78
.07 x .16
1.8 x 4.1
20VW7 Panel Cutout
.157 DIA.
3.98
1.22
30.99
.219 R.
5.56
C
L
2.30
58.42
1.60
40.64
.75
19.05
MTG. PLANE
2.12
53.85
Case Dimensions
Metric shown in italics.
Part No. (max) (max) (max) ± .015 (max)
3VV1, 3VW1
ABCDE
± .38
3.36 1.82 1.28 2.375 2.78
85.3 46.2 32.5 60.33 70.6
Typical dimensions
Terminals: (5) Holes: Dia.(4) Slot:
.250
6.35
.07
1.8
20VV6/20VW6
2.00
50.8
C
Terminals: No. 8-32 (5) Mounting slots:
Torque: 18 ± 2 in.lb.
A
20VW7
6-32 Insert
2 PLCS.
5.33 ± .025
135.382
.038 x 0.218 ± .01
.965 5.54 ±.25
DIA. SLOTS (2)
.250
6.35
.07 x .16
1.8 x 4.1
.156
x
3.96
6VV1, 6VW1
3.86 2.08 1.53 2.938 3.34
98.0 52.8 38.9 74.63 84.8
10VV1,10VW1
3.86 2.08 1.53 2.938 3.34
98.0 52.8 38.9 74.63 84.8
20VV1, 20VW1
5.23 3.38 1.53 3.75 4.2
132.8 85.9 38.9 95.25 106.7
20VV6, 20VW6
5.34 3.38 1.53 3.76 4.2
135.64 85.9 38.9 95.5 106.7
B
ED
20VW7
5.65 3.12 2.29
143.51 79.25 58.17
Pricing
Consult your local Corcom sales representative for pricing.
Part No. Part No.
(4)
B
V Series W Series
3VV1 3VW1
6VV1 6VW1
10VV1 10VW1
20VV1 20VW1
20VV6 20VW6
20VW7
V
W
79
.047 ± .010
1.19 ±.25
REF.
A
Libertyville, IL (847) 680-7400
