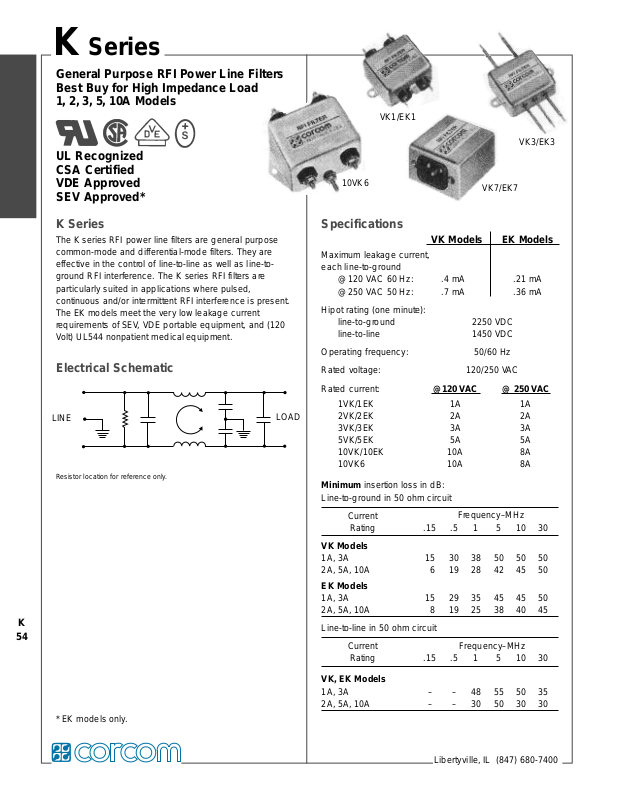

Page 1
KSeries
General Purpose RFI Power Line Filters
Best Buy for High Impedance Load
1, 2, 3, 5, 10A Models
UL Recognized
CSA Certified
VDE Approved
SEV Approved*
10VK6
VK1/EK1
VK3/EK3
VK7/EK7
K Series
The K series RFI power line filters are general purpose
common-mode and differential-mode filters. They are
effective in the control of line-to-line as well as line-toground RFI interference. The K series RFI filters are
particularly suited in applications where pulsed,
continuous and/or intermittent RFI interference is present.
The EK models meet the very low leakage current
requirements of SEV, VDE portable equipment, and (120
Volt) UL544 nonpatient medical equipment.
Electrical Schematic
Power line
LINE
Resistor location for reference only.
LOAD
Device
Specifications
VK Models EK Models
Maximum leakage current,
each line-to-ground
@ 120 VAC 60 Hz: .4 mA .21 mA
@ 250 VAC 50 Hz: .7 mA .36 mA
Hipot rating (one minute):
line-to-ground 2250 VDC
line-to-line 1450 VDC
Operating frequency: 50/60 Hz
Rated voltage: 120/250 VAC
Rated current: @120 V AC @ 250 V AC
1VK/1EK 1A 1A
2VK/2EK 2A 2A
3VK/3EK 3A 3A
5VK/5EK 5A 5A
10VK/10EK 10A 8A
10VK6 10A 8A
Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Rating .15 .5 1 5 10 30
Frequency–MHz
K
54
* EK models only.
VK Models
1A, 3A 15 30 38 50 50 50
2A, 5A, 10A 6 19 28 42 45 50
EK Models
1A, 3A 15 29 35 45 45 50
2A, 5A, 10A 8 19 25 38 40 45
Line-to-line in 50 ohm circuit
Current
Rating .15 .5 1 5 10 30
VK, EK Models
1A, 3A – – 48 55 50 35
2A, 5A, 10A – – 30 50 30 30
Frequency–MHz
Libertyville, IL (847) 680-7400
Page 2
Series K

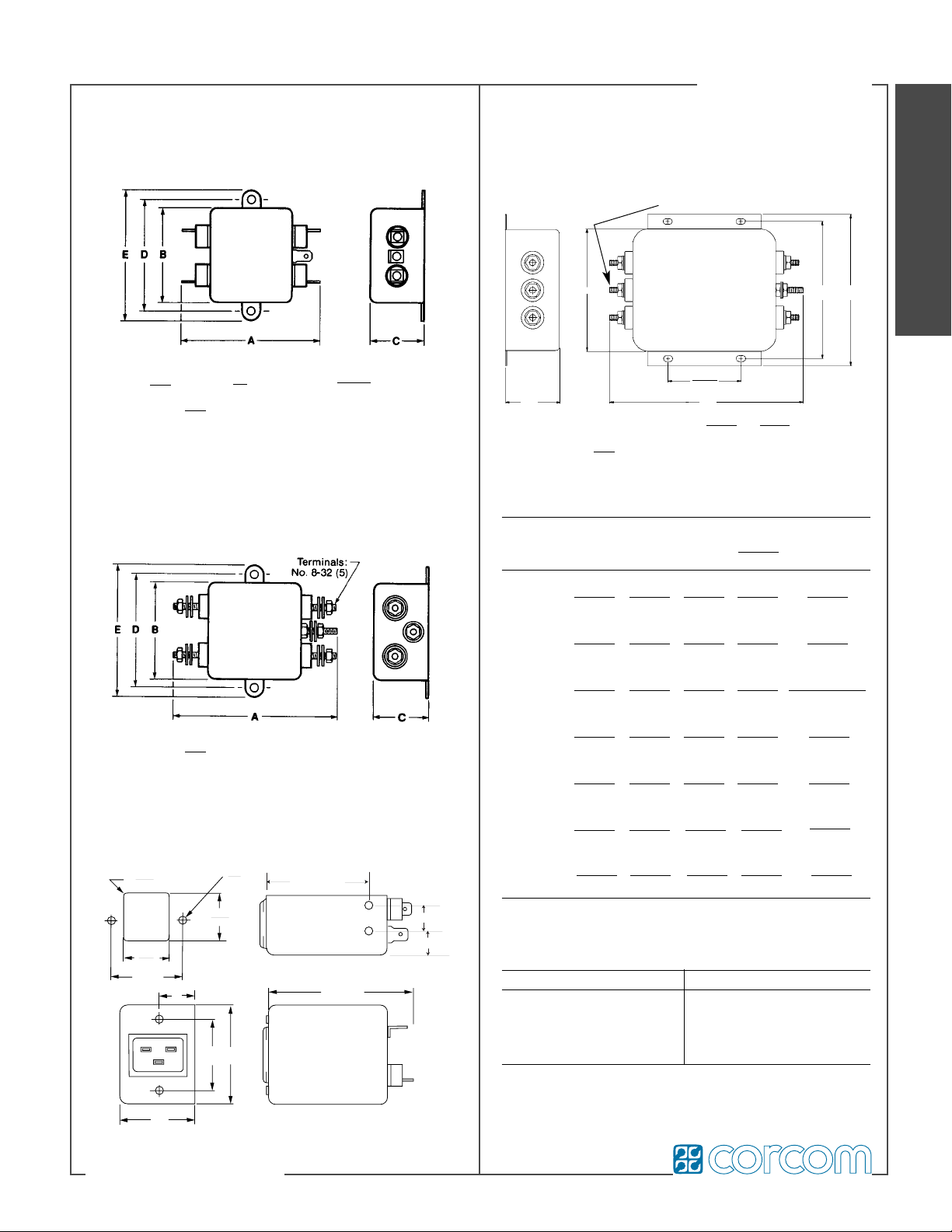

Case Styles
Metric shown in italics.
K1
Typical dimensions
Terminals: (5) Holes: Dia.(4) Slot:
Mounting holes: Dia. (2)
.250
6.35
.188
4.78
K3
.07
1.8
.07 x .16
1.8 x 4.1
Case Dimensions
Metric shown in italics.
Part No. (max) (max) (max) ± .015 (max)
1VK1, 1EK1 3.1 2.07 0.91 2.375 2.81
2VK1, 2EK1
1VK3, 1EK3 1.81 2.07 0.91 2.375 2.81
2VK3, 2EK3
3VK1, 3EK1 3.10 2.07 1.16 2.375 2.81
5VK1, 5EK1
3VK3, 3EK3 1.81 2.07 1.16 2.375 2.81
5VK3, 5EK3
3VK6, 3VK7M 3.21 2.25 1.28 1.575 0.63
3EK7, 3EK7M
5VK7, 5VK7M 3.21 2.25 1.28 1.575 0.63
5EK7, 5EK7M
10VK1, 10EK1 3.35 2.07 1.16 2.375 2.81
10VK3, 10EK3 2.07 2.07 1.16 2.375 2.81
ABC DE
± .38
78.7 52.6 23.1 60.33 71.4
46.0 52.6 23.1 60.33 71.4
78.7 52.6 29.5 60.33 71.4
46.0 52.6 29.5 60.33 71.4
81.5 57.2 32.5 40.01 16.0
81.5 57.2 32.5 40.01 16.0
85.1 52.6 29.5 60.33 71.4
52.6 52.6 29.5 60.33 71.4
†
†
K7 & K7M (with metric inser t)
Typical dimensions
Terminals: (3) Holes: Dia.(2)
Slot:
.250
6.35
.07 x .16
1.8 x 4.1
.07
1.8
10VK6
10VK6 3.46 2.07 1.16 2.375 2.81
87.9 52.6 29.5 60.33 71.4
10VK7, 10VK7M 3.71 2.25 1.28 1.575 0.63
10EK7, 10EK7M
94.2 57.2 32.5 40.01 16.0
†
Pricing
†
±.02
±.5
Consult your local Corcom sales representative for pricing.
Part No. Part No. Part No.
1VK1 10VK3 5EK3
1VK3 10VK6 5EK7
2VK1 10VK7 5EK7M
2VK3 10VK7M 10EK1
3VK1 1EK1 10EK3
3VK3 1EK3 10EK7
3VK7 2EK1 10EK7M
3VK7M 2EK3
5VK1 3EK1
5VK3 3EK3
5VK7 3EK7
5VK7M 3EK7M Line Cord:
10VK1 5EK1 No. GA400
K
55
Torque 18±2 in. lb.
Libertyville, IL (847) 680-7400
Typical dimensions
Mounting holes: Dia. (2)
.188
4.78

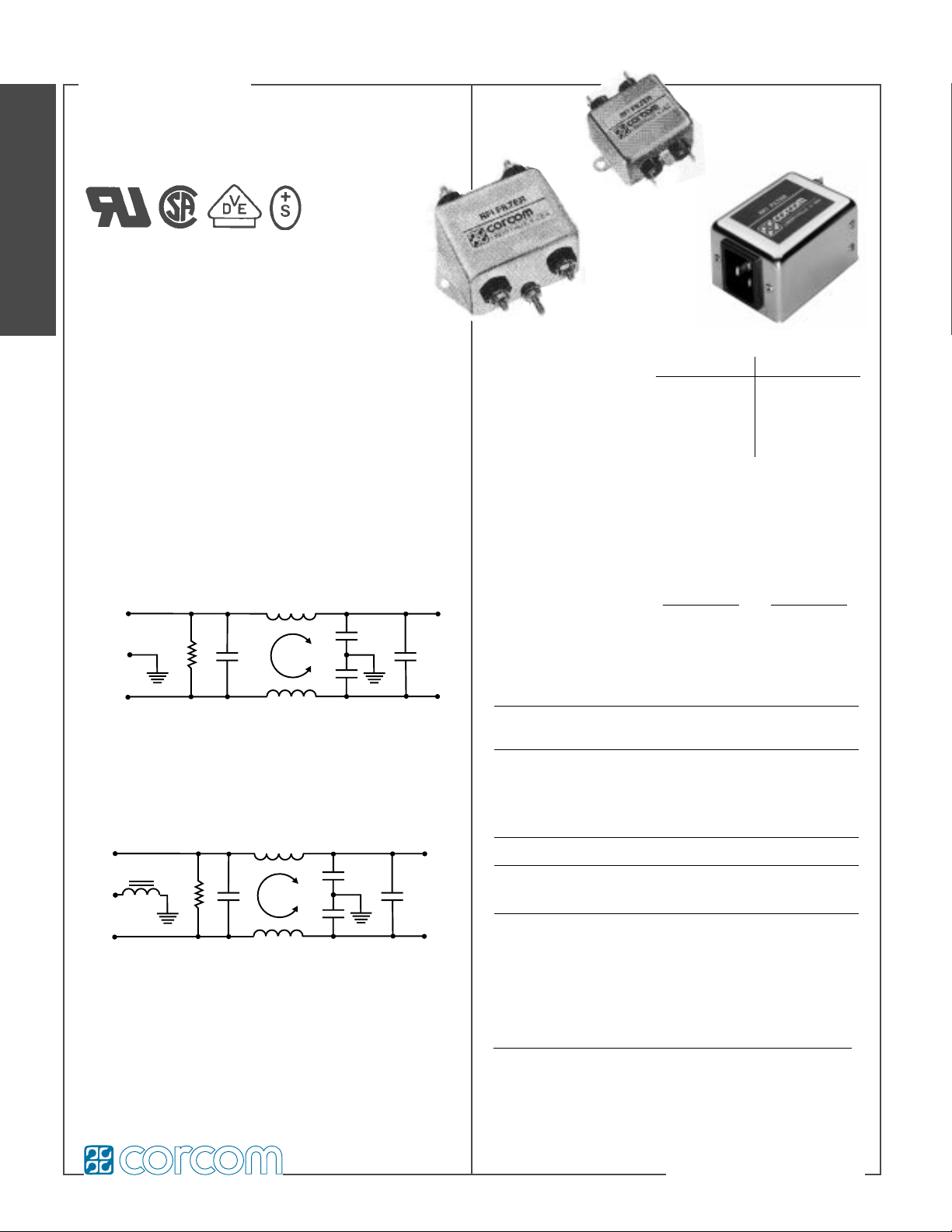

Page 3
KSeries
LOAD
LINE
Power line
Device
General Purpose RFI Power Line Filters
Best Buy for High Impedance Load
20, 30A Models
UL Recognized
CSA Certified
VDE Approved
SEV Approved*
20VK6
20VK1/EK1
20VK7
K Series
The K series RFI power line filters are general purpose
common-mode and differential-mode filters. They are
effective in the control of line-to-line as well as line-toground RFI interference. The K series RFI filters are
particularly suited in applications where pulsed,
continuous and/or intermittent RFI interference is present.
The EK models meet the very low leakage current
requirements of SEV, VDE portable equipment, and (120
Volt) UL544 nonpatient medical equipment.
Electrical Schematics
LINE
30VK6C Model (Inductor in Ground Line)
LINE
LOAD
LOAD
Specifications
VK Models EK Models
Maximum leakage current,
each line-to-ground
@ 120 VAC 60 Hz: .4 mA .21 mA
@ 250 VAC 50 Hz: .7 mA .36 mA
Hipot rating (one minute):
line-to-ground 2250 VDC
line-to-line 1450 VDC
Operating frequency: 50/60 Hz
Rated voltage: 120/250 VAC
Rated current: @120 V AC @ 250 V AC
20VK/20EK 20A 16A
30VK6/30VK6C 30A 25A
Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Rating .15 .5 1 5 10 30
VK Models
20A, 30A, 40A 6 19 28 42 45 50
EK Models
20A 8 1925 384045
Line-to-line in 50 ohm circuit
Current
Rating .15 .5 1 5 10 30
Frequency–MHz
Frequency–MHz
K
56
Resistor location for reference only.
*EK Models only
VK Models
20A 6 6 30 50 30 30
30A 2 4060 655755
40A 2 4060 655755
EK Models
20A, 30A 6 6 30 50 30 30
Libertyville, IL (847) 680-7400
Page 4
Series K
1.145
29.1
D
1.46
37.1
Dia
R
A
C
DB
E
.062
1.60
.157
4.0
Insert (4): 6-32
2.65±.016
.669±.010
.512±.010
Case Styles
Metric shown in italics.
K1
Typical dimensions
Terminals: (5) Holes: Dia.(4) Slot:
Mounting holes: Dia. (2)
20VK6
.250
6.35
.188
4.78
(with metric insert)
.07
1.8
.07 x .16
1.8 x 4.1
Case Style
Metric shown in italics.
30VK6 & 30VK6C,
40VK6 & 40VK6C
C
Terminals: No. 8-32 (5) Slots:
Mounting holes: Dia. (2) Torque: 18 ± 2 in.lb.
.188
4.78
Terminal on 30VK6C and 40VK6C only
2.00
50.8
A
.250
6.35
.156
x (4)
3.96
Case Dimensions
Metric shown in italics.
Part No. (max) (max) (max) ± .015 (max)
ABCD E
± .38
ED
20VK1, 3.35 2.56 1.53 2.938 3.35
20EK1
20VK6
85.1 65.0 38.9 74.63 85.1
3.46 2.56 1.53 2.938 3.35
87.9 65.0 38.9 74.63 85.1
20VK7
3.8 2.28 1.78 1.575 .846 ± .01
96.52 57.91 50.8 40.39 21.49 ± .25
Typical dimensions
Mounting holes: Dia. (2) Torque: 18 ± 2 in.lb.
.188
4.78
30VK6
30VK6C
5.34 3.38 1.53 3.75 4.2
135.6 85.9 38.9 95.25 106.7
5.34 3.38 1.53 3.75 4.2
135.6 85.9 38.9 95.25 106.7
20VK7 (with metric insert)
40VK6
40VK6C
5.34 3.38 1.53 3.75 4.2
135.6 85.9 38.9 95.25 106.7
5.34 3.38 1.53 3.75 4.2
135.6 85.9 38.9 95.25 106.7
Pricing
Consult your local Corcom sales representative for pricing.
Part No. Part No.
20VK1 30VK6
20EK1 30VK6C
20VK6 40VK6
20VK7 40VK6C
K
57
Libertyville, IL (847) 680-7400
