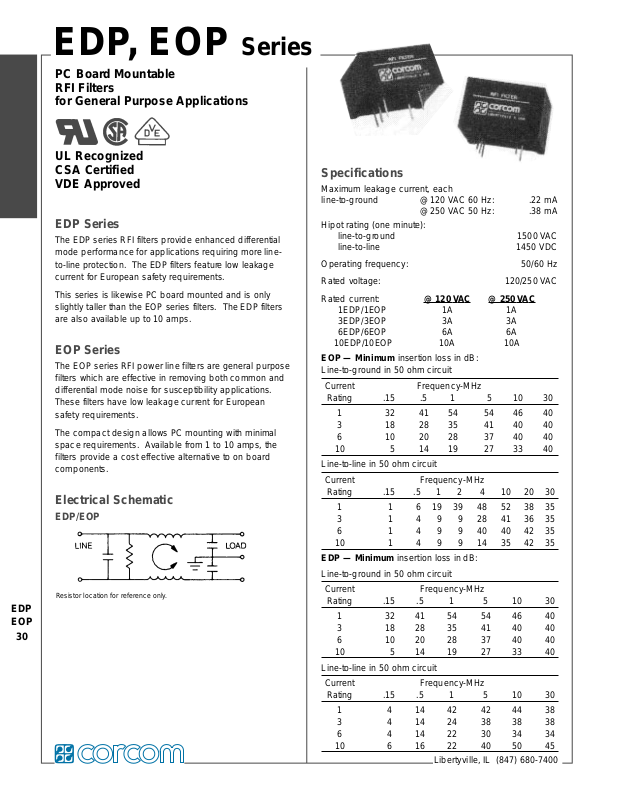

EDP, EOP Series
PC Board Mountable
RFI Filters
for General Purpose Applications
UL Recognized
CSA Certified
VDE Approved
EDP Series
The EDP series RFI filters provide enhanced differential
mode performance for applications requiring more lineto-line protection. The EDP filters feature low leakage
current for European safety requirements.
This series is likewise PC board mounted and is only
slightly taller than the EOP series filters. The EDP filters
are also available up to 10 amps.
EOP Series
The EOP series RFI power line filters are general purpose
filters which are effective in removing both common and
differential mode noise for susceptibility applications.
These filters have low leakage current for European
safety requirements.
The compact design allows PC mounting with minimal
space requirements. Available from 1 to 10 amps, the
filters provide a cost effective alternative to on board
components.
Electrical Schematic
EDP/EOP
Resistor location for reference only.
Specifications
Maximum leakage current, each
line-to-ground @ 120 VAC 60 Hz: .22 mA
@ 250 VAC 50 Hz: .38 mA
Hipot rating (one minute):
line-to-ground 1500 VAC
line-to-line 1450 VDC
Operating frequency: 50/60 Hz
Rated voltage: 120/250 VAC
Rated current: @ 120
1EDP/1EOP 1A 1A
3EDP/3EOP 3A 3A
6EDP/6EOP 6A 6A
10EDP/10EOP 10A 10A
EOP — Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current Frequency-MHz
Rating .15 .5 1 5 10 30
1324154544640
3182835414040
6102028374040
10 5 14 19 27 33 40
Line-to-line in 50 ohm circuit
Current Frequency-MHz
Rating .15 .5 1 2 4 10 20 30
1 1 61939 48 52 3835
3 1 4 9 9 28 41 36 35
6 1 4 9 9 40 40 42 35
10 1 4 9 9 14 35 42 35
EDP — Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current Frequency-MHz
Rating .15 .5 1 5 10 30
1324154544640
3182835414040
6102028374040
10 5 14 19 27 33 40
Line-to-line in 50 ohm circuit
Current Frequency-MHz
Rating .15 .5 1 5 10 30
1 4 14 42 42 44 38
3 4 14 24 38 38 38
6 4 14 22 30 34 34
10 6 16 22 40 50 45
VAC @ 250 VAC
Libertyville, IL (847) 680-7400

Series
EDP, EOP
Case Style
Metric shown in italics.
EDP/EOP
Case Dimensions
Metric shown in italics.
ABC
Part No. (max) (max) (max)
EDP
EOP
1.44 1.24 0.95
36.6 31.5 24.15
1.44 1.24 0.78
36.6 31.5 19.9
Pricing
Consult your local Corcom sales representative for pricing.
Part No. Part No.
1EDP 1EOP
3EDP 3EOP
6EDP 6EOP
10EDP 10EOP
Pins .025 square
LINE
LOAD
.31 ± .02
7.87 ± .5
EDP
EOP
