COP-USA DVR2732TDPR-5M Specsheet

4K DISPLAY

5MP RECORD

5MP PLAYBACK

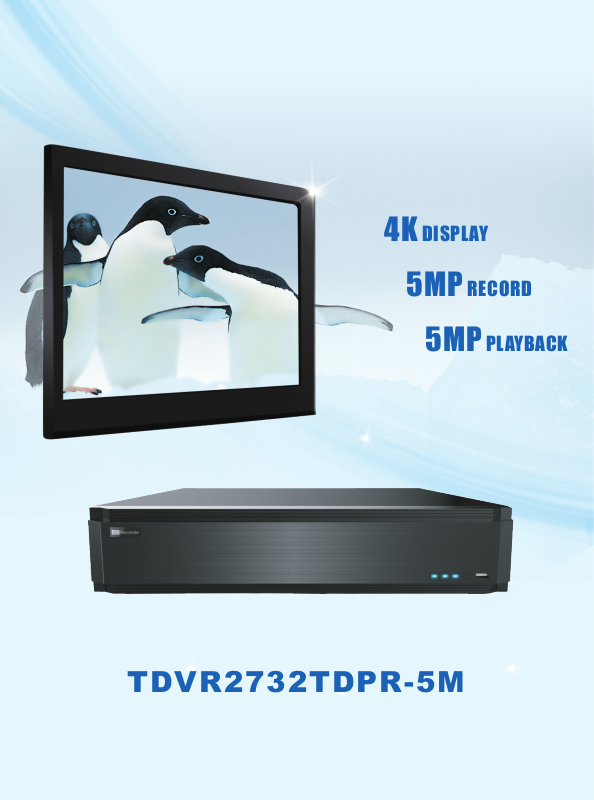

TDVR2732TDPR-5M

TDVR 2 732TD P R-5M

Model

TDVR2716TDPR-5M

TDVR2732TDPR-5M

System

Compression

Standard H.264 High Profile

CPU

Cortex A9

OS

Embedded Linux

Vid eo

Input

BNC 16×

BNC 32×

Resolution

TVI / AHD : 5MP@20fps; 4MP, 3MP, 10 80P , 720 P, WD 1
real ti

me

CVI : 1080P, 720P real time

IP In put /

Access

B

andwidth

IPC / 24Mbps × 4

IPC 4 / 24Mbps ×

Output

HDMI × 1 : 4K × 2K,
VGA × 1 : 19

20 × 1080,

BNC × 1 : CV

BS ( used as

the

main or spot output )

HDMI × 1 : 4K × 2K；
HDMI × 1 : 19

20 × 1080,

VGA × 1 : 19

20 × 1080,

BNC × 1 : CV

BS ( used as

the

main or spot output )

Audio

Input

RCA × 16

Output

RCA × 1

Two-way audio

RCA × 1

Record

Resolution

5MP, 4MP, 4M P lite, 3MP,10 80P, 72 0P, WD1

Frame Rate

5MP : 10 fps ( PAL / NTS C)
4MP / 3MP : 12 f ps (PA

L) / 15 fps (NTSC)

4MP lite /1

080P/720P/WD1: 25 fps (PAL) / 30 f ps (N TSC )

Bit Rate

768Kbps ~ 8Mbps

Mode

Manual, timer, motion, sensor

IP In put

Resolution

4MP / 3MP / 10 80P / 960P / 72 0P

Frame

Rate

25fps (PAL) / 30 fps ( N TSC )

Playback

Playback

16 CH

Search

Tim e sli ce / ti me / ev ent / t ag se arc h

Smart Search

Highlighted color to display the camera record in a
certa

in period of time, diff ere nt co lor s ref ers t o dif fer ent

record events

Function

Play, pau se, F F, FB, di git al zo om, e tc.

Alarm

Mode

Manual, sensor, motion, exception

Input

16

Output

4

Tri gge rin g

Record, snap, preset, e-mail, etc.

Network

Interface

RJ45 10 / 100 / 1000Mbps × 1

Protocol

TCP / IP, PPPo E, DH CP, DNS, DDNS, UPnP, NTP, SMT P

Web C lie nt

Multiple users online

Mobile
Device

OS

iOS, Andriod

Storage

HDD

SATA × 8, ma x 8T per HDD

SATA × 8, e- SATA × 2,
max 8T per

HDD

Backup

Local Backup

U disk, USB mobile HDD

Network
Backup

Yes

Por t

RS485

RS485 × 2, connect to PTZ and keyboard

USB

USB 2.0 × 1 ( front panel ), USB 3.0 × 1 ( rear panel )

Remote

Contr

oller

Yes

Yes

Others

Power Supply

ATX 25 0W

Consumption

≤ 20W

( with

out HDD )

≤ 40W

( with

out HDD )

Dimensions

( mm )

430 × 453 × 100 ( W × D × H )

Wor k

Environment

-10 ～ 50 ℃，10% ～ 90% humidity

4K

5MP TVI Hybrid DVR

ork PTZ Audio

4K Output

H.2

64

DDNS

N

etw

Introduction

TDVR2732TDPR-5M series are 16 / 32 CH 5MP high d efi nit ion h ybr id DV Rs wi th

ability t o c

sta

SOC te

outsta

video i

of p

commerce, ente

onnect an alo g an d IP cameras s imu lta neo usl y, wh ich ado pt the

ndard H.264 high profile compression form at and the most adv anc ed

chnique t o e nsu re rea l ti me rec ord ing in each cha nne l a nd realize

nding robustness of the system. TDV R27 32T DPR-5M sup por t 16 / 32 CH

nput, 16 CH a udi o in put , s imu lta neo us 1 6 C H pl ayb ack . Th e s eri es

roduct can mee t diff ere nt sec uri ty req uir eme nts of home , fina nci al,

rprise, transportation and government, etc.

Cha

racteristics

16 / 32 CH TVI / C VI / AHD v ide o inp ut

16 / 32 CH

4 CH IPC

Adopt standard H.2

video at mu

Intu

operati

Multi

Playback : 16 CH

Search: ti

Express and fl

Penta

DHCP, DD

Remote

confi

Dual str

netw

Multi

Auth

HDMI 4K outp

Support PTZ pr

Support NAT fu

Powerful

5MP / 4MP / 4M P lite / 3MP / 10 80P / 7 20P / WD1 re cor din g

4MP / 3MP / 10 80P / 960P / 72 0P re cor din g

64 high profile compression format to get high-quali ty

ch lower bit rate

itive and user-friendly Graphics User Interface ( GUI ), window style

on by mouse

-mode recording: manual / timer / motion / sensor

simultaneously playback

me slice, time, event ( manual, sensor, motion ), tag search

exible backup via USB, network and so on

plex: preview, record, playback, backup and remote ac ces s

NS, PPPoE network protocol, IE browse and CMS supported

control via IE or CMS : preview, playback, backup, PTZ and

guration

eam technology for local storage with high definition, remote

ork transmission and remote surveillance w ith m obi le de vic e

-user online simultaneously

orization management, log review and device status review

ut, true high resolution display

eset and auto cruise, up to 255 presets and 8 cruises

nction and QRCode scanning by mobile phon e and PAD

smart phone & Pad surveillance with iOS and An dri od OS

MIC

Spe

MS U

M

obile

C

cification

SB

Mouse

E- mai l

ensions

Dim
