Please read this user manual carefully to ensure that you can use the device correctly and safely.
We do not warrant all the content is correct. The contents of this manual are subject to change without notice.
This device should be operated only from the type of power source indicated on the marking label. The voltage of the power must be
verified before using the same. Kindly remove the cables from the power source if the device is not to be used for a long period of time.
Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat.
Do not install this device near water. Clean only with a dry cloth.
Do not block any ventilation openings and ensure proper ventilation around the machine.
Do not power off the DVR when the device is functioning. The correct operation to shut down the DVR is to stop recording first, use
“shut-down” button from the menu, and switch off the main power.
This machine is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or liquid get inside the
machine‟s case, please turn off the device immediately and get it checked by a qualified technician.
Do not try to repair the device by yourself without technical aid or approval.
When this product is in use, the relevant contents of Microsoft, Apple and Google will be involved in. The pictures and screenshots in
this manual are only used to explain the usage of our product. The ownerships of trademarks, logos and other intellectual properties related
to Microsoft, Apple and Google shall belong to the above-mentioned companies.
This manual is suitable for 8/16-channel digital video recorders. All examples and pictures used in the manual are from 16-channel DVR.
1.2 Main Features .................................................................................................................................................................... 1
2.5 Control with Mouse .......................................................................................................................................................... 11
2.5.2 Use Mouse .............................................................................................................................................................................................. 11
3 Basic Function Instruction .......................................................................................................................... 13
3.3 Live Preview .................................................................................................................................................................... 14
3.3.1 Live Playback .......................................................................................................................................................................................... 15
4 Main Menu Setup Guide ............................................................................................................................. 16
4.1.1 System .................................................................................................................................................................................................... 17
4.1.2 Date & Time ............................................................................................................................................................................................ 20
4.2 Live Configuration ........................................................................................................................................................... 21
DVR User Manual
4.2.1 Live ........................................................................................................................................................................................................ 21
4.2.2 Main Monitor .......................................................................................................................................................................................... 21
4.3 Record Configuration ........................................................................................................................................................ 23
4.3.2 Record Bitrate .......................................................................................................................................................................................... 23
4.3.3 Time ....................................................................................................................................................................................................... 24
4.3.5 Recycle Record ........................................................................................................................................................................................ 25
4.5.3 Video Loss .............................................................................................................................................................................................. 31
4.5.4 Other Alarm ............................................................................................................................................................................................. 31
4.5.5 Alarm Out ............................................................................................................................................................................................... 31
4.6.4 Server ..................................................................................................................................................................................................... 34
4.6.5 Other Settings .......................................................................................................................................................................................... 34
4.7 User Management Configuration ........................................................................................................................................ 37
5.1 Time Search ..................................................................................................................................................................... 43
6.1 Check System Information ................................................................................................................................................ 48
6.1.1 System Information ................................................................................................ .................................................................................. 48
6.1.2 Event Information .................................................................................................................................................................................... 48
6.1.3 Log Information ................................................................................................ ....................................................................................... 48
6.1.4 Network Information ................................................................................................................................................................................ 48
6.1.5 Online Information ................................................................................................................................................................................... 48
6.1.6 Record Information ................................................................................................................................................................................... 49
6.3 Disk Management............................................................................................................................................................. 49
6.6.1 On LAN .................................................................................................................................................................................................. 50
6.6.2 On WAN ................................................................................................................................................................................................. 50
6.7 Remote Surveillance through Apple PC .............................................................................................................................. 52
DVR User Manual
6.7.1 On LAN .................................................................................................................................................................................................. 53
6.7.2 On WAN ................................................................................................................................................................................................. 55
6.12 Remote Information ........................................................................................................................................................ 65
7 Mobile Surveillance ..................................................................................................................................... 67
7.1 By Phones with Windows Mobile OS ................................................................................................................................. 67
7.2 By Phones with Symbian OS ............................................................................................................................................. 68
7.3 By Phones with Iphone OS ................................................................................................................................................ 70

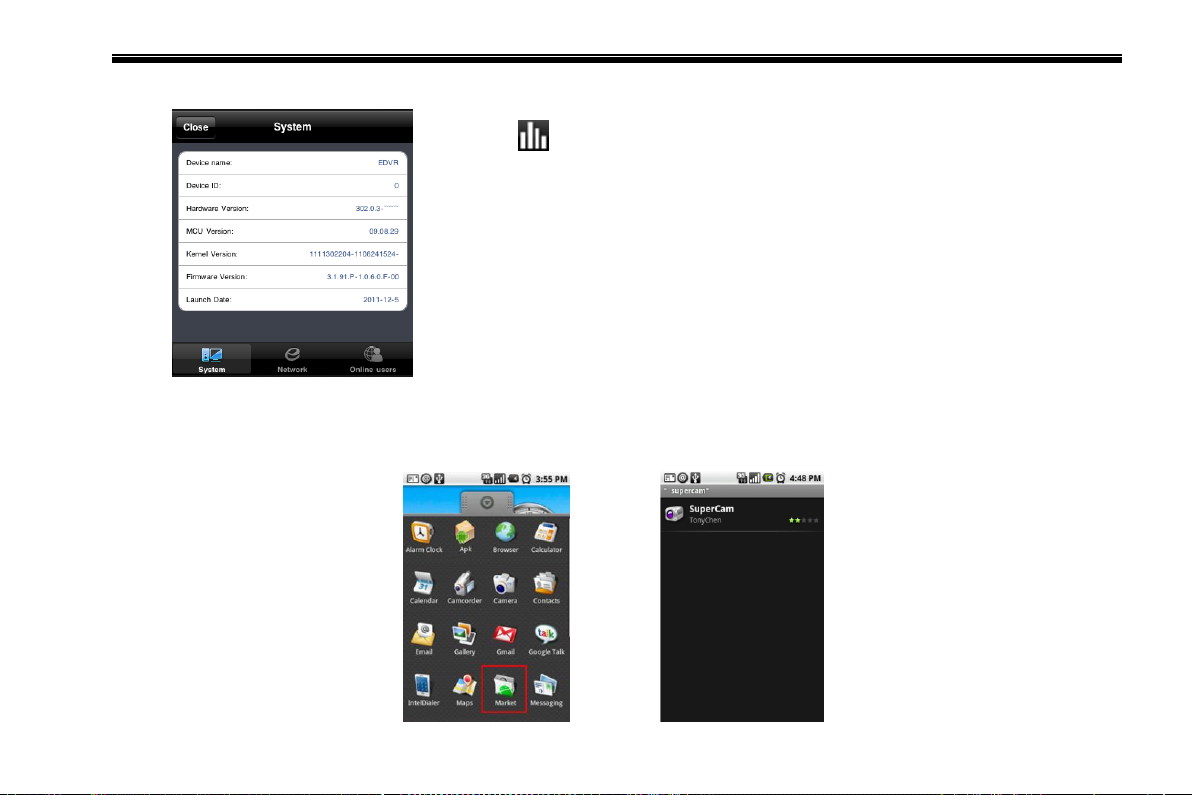

7.4 By Phones with Android OS .............................................................................................................................................. 78

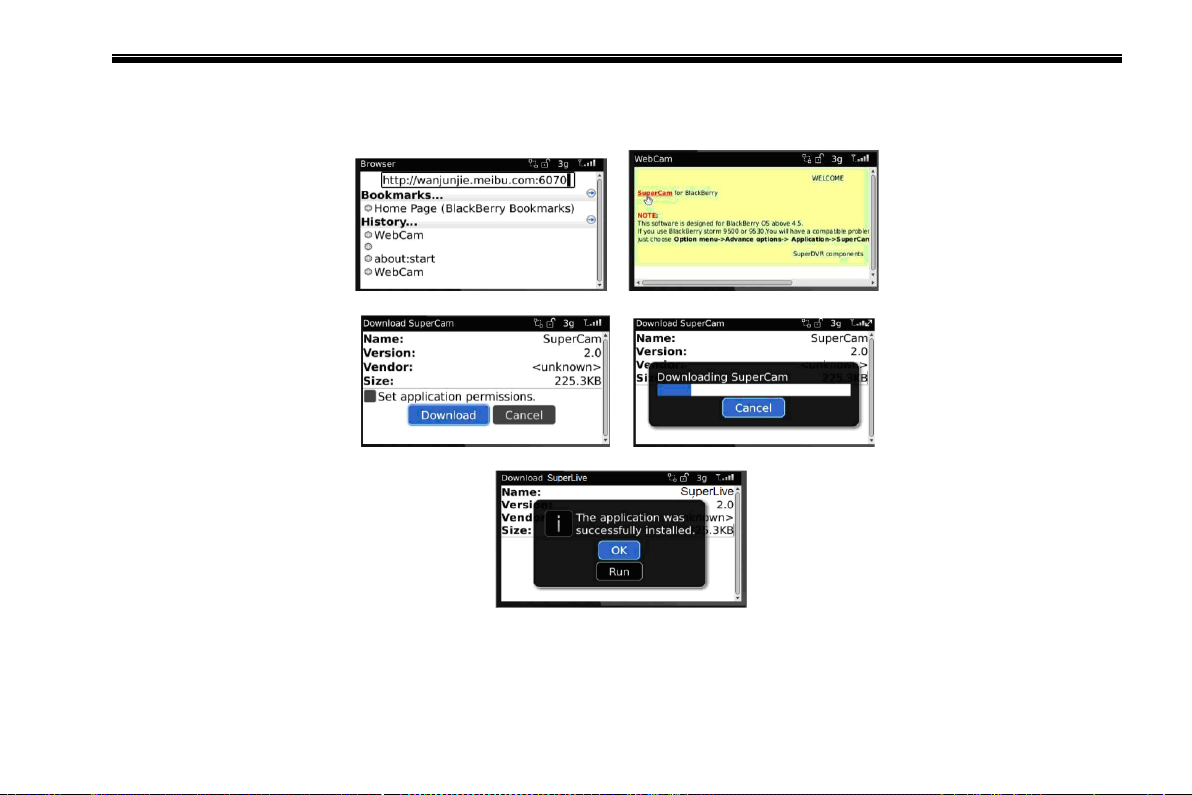

7.5 By Phones with Blackberry OS .......................................................................................................................................... 84
Appendix A FAQ ........................................................................................................................................... 89
Appendix B Calculate Recording Capacity .................................................................................................... 95
Appendix C Compatible Devices ................................................................................................................... 96
Appendix D 8-CH Specifications ................................................................................................................... 98
Appendix E 16-CH Specifications .................................................................................................................. 99
DVR User Manual
1 Introduction
1.1 DVR Introduction
This model DVR (Digital Video Recorder) is designed especially for CCTV system. It adopts high performance video processing chips and
embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.264 with low bit rate, Dual stream,
SATA interface, VGA output mouse supported, IE browser supported with full remote control, mobile view(by phones), etc., which ensure
its powerful functions and high stability. Due to these distinctive characteristics, it is widely used in banks, telecommunication,
transportation, factories, warehouse, and irrigation and so on.
1.2 Main Features
COMPRESSION FORMAT
Standard H.264 compression with low bit rate and better image quality
LIVE SURVEILLANCE
Support VGA /CVBS/HDMI output
Support 8/16-ch SDI video inputs
Support channel security by hiding live display
Display the local record state and basic information
Support USB to make full control
RECORD MEDIA
Support eight SATA HDD to record for a longer time without any limitation
BACKUP
Support USB 2.0 devices to backup
Support built-in SATA DVD writer to backup
1
DVR User Manual
Support saving recorded files with AVI standard format to a remote computer through internet
RECORD & PLAYBACK
Record modes: Manual, Schedule, Motion detection and Sensor alarm recording
Support recycle after HDD full
Resolution, frame rate and picture quality are adjustable
8/16 audio channels available
Two record search mode: time search and event search
Support 8 screen playback simultaneously
Support deleting and locking the recorded files one by one
Support remote playback in Network Client through LAN or internet
ALARM
4 channel alarm output and 8/16 channel alarm input available
Support schedule for motion detection and sensor alarm
Support pre-recording and post recording
Support linked channels recording once motion or alarm triggered on certain channel
Support linked PTZ preset, auto cruise and track of the corresponding channel
PTZ CONTROL
Support various PTZ protocols
Support 128 PTZ presets and 8 auto cruise tracks
Support remote PTZ control through internet
SECURITY
Customize user right: log search, system setup, two way audio, file management, disk management, remote login, live view, manual
record, playback, PTZ control and remote live view
Support 1 administrator and 63 users.
2
DVR User Manual
Support event log recording and checking, events unlimited
NETWORK
Support TCP/IP, DHCP, PPPoE, DDNS protocol
Support IE browser to do remote view
Support setup client connection amount
Support dual stream. Network stream is adjustable independently to fit the network bandwidth and environment.
Support picture snap in remote live
Support remote time and event search, and channel playback with picture snap
Support remote PTZ control with preset and auto cruise
Support remote full menu setup, changing all the DVR parameters remotely
Support mobile surveillance by smart phones , Symbian, Windows phone, Iphone or Gphone, 3G network available
Support CMS to manage multi devices on internet
3
DVR User Manual
2 Hardware Installation
Notice: Check the unit and the accessories after getting the DVR.
Please don‟t power up the unit till the physical installation is complete.
2.1 Install Hard Drive &DVD Writer
2.1.1 Install Hard Drive
Notice: 1. This series supports eight SATA hard drives. Please use the hard drive the manufacturers recommend specially for security and
safe field.
2. Please calculate HDD capacity according to the recording setting. Please refer to “Appendix B Calculate Recording Capacity”.
Step1: Unscrew and Open the top cover
Step2: Connect the power and data cables. Place the HDD onto the bottom case as Fig 2-1.
Step3: Screw the HDD.
Note: For the convenience to install, please connect the power and data cables firstly, and then screw to fix.
Fig 2-1 Connect HDD
2.1.2 Install DVD Writer
Notice: 1. The writers must be the compatible devices we recommend. Please refer to “Appendix C Compatible Devices”.
2. This device is only for backup.
Step1: Unscrew and Open the top cover.
4
DVR User Manual
Name
Description
Power
Switch off-to stop DVR. Use it before turning off the power.
1-10(digital button)
Input number 1-10 or choose channel.
0_ _(digital button)
Input number 0 and the above number together for channels 11to 16
Direction button
Change direction to select items
Enter button
Confirm selection
Backup
The light turns blue when backing up files and data.
Network
The light turns blue when it is able to access the network.
HDD
The light turns blue when reading/writing HDD.
REC
The light turns blue when recording
Playback
The light turns blue when playing video.
MENU button
Enter menu in live
Step2: Unscrew and take the barrier out of the front panel. Then connect the power and data cables. Finally, put the DVD with the holder
into the case, let the screw holes of the case aim at the holder‟s and screw them firmly.
Fig 2-2 Connect the DVD Writer
2.2 Front Panel Descriptions
Notice: The front panel descriptions are only for reference; please make the object as the standard.
5
Name
Description
BACKUP button
Enter backup mode in live
Info button
Check recording data
Search button
Enter into search mode
P.T.Z. button
Enter PTZ mode in live
Audio button
Enable the audio in live
REC button
Record manually
Play/Pause button
Play or pause the record
REW button
Rewind key
FF button
Fast forward
Exit button
Exit the current interface or status
Screen mode button
Choose single, four or multiple channel modes
IR
For remote controller
USB port
To connect external USB devices like USB flash, USB HDD for
backup or update firmware; or connect to USB mouse
2.3 Rear Panel Instructions
DVR User Manual
6
DVR User Manual
Fig 2-3 Rear Panel for 8-CH
Fig 2-4 Rear Panel for 16-CH
7
Item
Name
Description
1
HD SD Video in
HD SDI video signal inputs.
2
Alarm in
Alarm Inputs for connecting sensors
3
HDMI port
Connect to high-definition display device
4
VGA port
VGA output, connect to monitor
5
LAN
Network port
6
USB port
To connect external USB devices like USB flash drive, USB HDD for backup or
updating firmware.
7
GND
Grounding
8
K/B
Connect to keyboard. A is TX+, B is TX-.
9
P/Z
Connect to speed dome. Y is TX+, Z is TX-.
10
CVBS
CVBS output
11
Audio out
Audio output, connect to the sound box
12
MIC in
Talk. Connect to microphone
13
Alarm out
Relay Output. Connect to external alarm.
14
Audio in
Audio input
15
E-SATA
Connect to HDD for backup.
2.4 Remote Controller
It uses two AAA size batteries.
Open the battery cover of the Remote Controller.
Place batteries. Please take care of the polarity (+ and -).
Replace the battery cover.
DVR User Manual
8
DVR User Manual
Button
Function
Power Button
Switch off—to stop DVR. Use it before turning off the power
Record Button
To record manually
-/-- /0-9 Digital Button
Input number or choose camera
Fn1 Button
Unavailable temporarily
Multi Button
To choose multi screen display mode
Next Button
To switch the live image
SEQ
To enter into auto dwell mode
Audio
To enable audio output in live mode
Switch
To switch the output between BNC and VGA
Direction button
To move cursor in setup or pan/title PTZ
Enter Button
To confirm the choice or setup
Menu Button
To enter into menu
Exit Button
To exit the current interface
Focus/IRIS/Zoom/PTZ
To control PTZ camera. Move camera/zoom/IRIS/Focus
Preset Button
To enter into preset setting in PTZ mode
Cruise Button
To enter into cruise setting in PTZ mode
Track Button
To enter into track setting in PTZ mode
Fig 2-5 Remote Controller
9
DVR User Manual
Wiper Button
To enable wiper function in PTZ mode
Light Button
To enable light function in PTZ mode
Clear Button
To return to the previous interface
Fn2 Button
Unavailable temporarily
Info Button
Get information about DVR like firmware version, HDD information
To control playback. Play/Pause/Stop/Previous Section/Next
Section/Rewind/Fast Forward
Snap Button
To take snapshots manually
Search Button
To enter into search mode
Cut Button
To set the start/end time for backup in playback mode
Backup Button
To enter into backup mode
Zoom Button
To zoom in the images
PIP Button
To enter into picture in picture setting mode
Note: You shall press P.T.Z button to enter into PTZ setting mode, choose a channel and press P.T.Z button again to hide the P.T.Z control
panel. Then you can press preset, cruise, track, wiper or light button to enable the relevant function.
Note: Key points to check in case the remote doesn‟t work.
1. Check batteries polarity.
2. Check the remaining charge in the batteries.
3. Check IR controller sensor for any masking.
4. Check the ID of the remote with respect to the DVR.
If it still doesn't work, please try using a good known remote, or contact your dealer.
The interface of remote controller is shown in Fig 2-5 Remote Controller.
Operation processes with remote controller to control multi-DVR
The default device ID of the DVR is 0. It‟s not necessary to reset the device ID when a remote is to be used to control a single DVR.
However when controlling multiple DVRs with multiple remote controllers, you would need to configure the device ID, please refer to
10
DVR User Manual
below steps:
Activate remote controller to control the DVR: Turn the IR sensor of the remote controller towards the IR receiver on the front panel,
press the number key 8 twice on the remote, then input device ID of the DVR to be controlled (Range from: 0-65535; the default device
ID is 0) and press ENTER to confirm.
You can check the device ID of a DVR from System SetupBasicDevice ID. You can also set multiple DVRs with the same device ID
however this can cause interference if the DVRs are kept close to each other.
2.5 Control with Mouse
2.5.1 Connect Mouse
It supports USB mouse through the ports on the rear panel.
Notice: If mouse is not detected or doesn't work, check below steps:
1. Make sure the mouse is plugged in the USB mouse port not the USB port on the front panel.
2. Try with a good know mouse.
2.5.2 Use Mouse
During live:
Double-click on any camera window for the full screen mode. Double-click again to return to the previous screen mode.
Right click to reveal the control menu on the screen. Right click to hide the control menu.
In Configuration:
Click to enter a particular option. Right click to cancel the option or to return to the previous menu.
In order to input a value in a particular screen, move cursor to the input box and click. An input window will appear as Fig 2-6. It supports
digits, alphabets and symbols as inputs. Click Shift button to input Capital letters and symbols; click Shift button again to return.
You can change some values using the mouse wheel, such as time. Move cursor onto the value and roll the wheel when the value blinks.
11
DVR User Manual
Fig 2-6 Digital Numbers and Letters Input Window
It supports mouse drag. For e.g. setting up motion detection area, click customized, hold down the left button and drag to set motion
detection area.
Setting up Schedule: hold left button and drag to set schedule time.
In Playback:
Click to choose the options. Right click to return to live mode.
In Backup:
Click to choose the options. Right click to return to previous picture.
In PTZ Control:
Click left button to choose the buttons to control the PTZ. Click right button to return to live.
Note: Mouse is the default tool for all operations unless an exception, as indicated.
12
DVR User Manual
3 Basic Function Instruction
3.1 Startup & Shutdown
Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expanding
the life of your DVR.
3.1.1 Startup
Step1: Connect with the source power.
Step2: The device will boot and the power LED would turn blue.
Step3 A WIZZARD window will be pop-up and show some information about time zone,time setup,network configuration, record
configuration and disk management. User can setup here and refer to the concrete setup steps from the corresponding chapters. If users
don‟t want to setup Wizard, please click Exit button to exit.
Note: This DVR can only display options on either VGA/HDMI monitor or CVBS monitor at a given point of time. If there is live image
display without menu options, please check if there is display on other device/monitor, or long press „Exit‟ button. Long press Exit key
can switch the output between CVBS and VGA/HDMI.
3.1.2 Shutdown
You can shut down the device by using IR remote controller and mouse.
By IR remote controller:
Step1: Press Power button. This will bring up a shutdown window. Then the unit will shut down by clicking “OK” button.
Step2: Disconnect the power.
By mouse:
Step1: Enter into Menu and select “Shut Down” icon. This will take you to a shutdown window.
13
DVR User Manual
Symbol
Meaning
Green
Manual record
Yellow
Motion detection record
Red
Sensor Alarm record
Blue
Schedule record
Step2: Click OK. Then the unit will power off after a while.
Step3: Disconnect the power
3.2 Login
User can login or log off the DVR system. Once logged off the user cannot do any other
operation except changing the multi-screen display. Notice: The default user name and password is “admin” and 123456”
For complete operational steps for changing password, adding or deleting users.
Please refer to section 4.7 User Management Configuration. Fig 3-1 Login
3.3 Live Preview
Fig 3-2 Live Preview Interface
14
DVR User Manual
3.3.1 Live Playback
Click Play button to play the record. Refer to Figure3-3. User can do complete operation by clicking the buttons on screen.
Fig 3-3 Live Playback
15
DVR User Manual
4 Main Menu Setup Guide
Click right mouse or press menu button on the front panel to display the menu tool bar on the bottom of the screen. Refer to Fig 4-1:
Fig 4-1 Menu Toolbar
Click the icon beside the playback icon to select the time to playback. For example, if 2 minutes is selected and then click playback
button, it will start to playback from the past 2 minutes.
Dwell: Dwell means to display live images from different cameras in a sequence. The images may be displayed as a single channel or in a
grid fashion from different cameras. Dwell mode is enabled only when the chosen display mode is not able to display all the available
cameras.
E-Zoom: Single channel large screen electronic amplification.
Volume: Enable sound.
PTZ: Click the PTZ button to control rotation position, speed and auto scan of the PTZ connected to the IP camera.
Snap: Use this button to take snapshots. These pictures will automatically be saved in the HDD.
Record: Click this button to start/stop recording.
Playback: Click this button to playback the recorded files.
User can click button and drag it anywhere with the left mouse
Click Menu button to pop up a window as Fig 4-2. You can also press MENU button on the front panel or operate with remote
controller to display the main menu. Clicking Setup icon will pop-up the configuration menu:
16
DVR User Manual
Fig 4-2(a) main menu Fig 4-2(b) System Setup
4.1 Basic Configuration
Basic configuration includes three sub menus: system, date & time and DST.
4.1.1 System
Step1: Enter into MenuSetupBasicSystem. Refer to Fig 4-3:
Step2: In this tab you can setup the device name, device ID, video format, max network user, VGA resolution and language. The
definitions for every parameters display as below:
Device Name: The name of the device as it may display on the client end or on CMS, this would help the user to recognize the device
remotely.
Device ID: This ID is used to map the DVR with IR remote controller and speed dome cameras.
Video Format: Two modes: PAL and NTSC. User can select the video format according to the cameras being used.
Password Check: If enabledthe user would need to input the user name and the password for performing corresponding operations.
17
DVR User Manual
Fig 4-3 Basic Configuration-Basic
Show System Time: If selected, displays the current time during live monitoring.
Max Online Users: To set the maximum number of concurrent user logins in the DVR.
Show wizard: If selected, the GUI would launch the startup wizard on every boot, allowing the user to do basic setup.
Video output: The resolution of live display interface, ranges from: VGA800*600, VGA1280*1024 and HDMI.
Note: Switching between VGA and HDMI will change the menu output mode. Please connect to relevant monitor.
Language: To setup the menu language.
Note: After changing the language and video output, the device needs to login again.
Logout After (Minutes): You can setup the screen interval time (30s, 60s, 180s, 300s). If there is no any operation within the setting
period, the device will auto logout and return to the login interface.
No Image When Logout: If selected, there will be no image showing when logout.
19
DVR User Manual
4.1.2 Date & Time
Step1: Enter into MenuSetupBasicDate & Time tab. Refer to Fig 4-4:
Step2: Set the date format, time format, time zone in this interface; checkmark
“sync time with NTP server” to refresh NTP server date; user can also adjust system date
manually.
Step3: Click “Apply” button to save the setting; click “Exit” button to exit the current
interface.
4.1.3 DST
Step1: Enter into MenuSetupBasicDST tab. Refer to Fig 4-5:
Step2: In this interface, enable daylight saving time, time offset, mode, start & end
month/week/date, etc.
Step3: Click “Default” button to restore default setting; click “Apply” button to save the
setting; click “Exit” button to exit the current interface.
Fig 4-4 Basic Configuration-Date &Time
Fig 4-5 Basic Configuration-DST
20
DVR User Manual
4.2 Live Configuration
Live configuration includes three submenus: live, main monitor and mask.
4.2.1 Live
In this tab, user can setup camera name.
Step1: Enter into MenuSetupLiveLive tab. Refer to Fig 4-6:
Note: A soft keyboard will pop up by clicking the camera name. User can self-define the
camera name.
Step2: Checkmark the Show Name when you set your camera name.
Click “Default” button to restore the default setting, click “OK” button to save the
setting.
Step3: Select “All” to setup the same settings for all channels.
Fig 4-6 Live Configuration-Live
4.2.2 Main Monitor
Step1: Enter into MenuSetupLiveMain Monitor tab. Refer to Fig 4-7:
Step2: Select split mode: 1×1, 2×2 and channel. Click button to setup the previous
channel group. Click button to set the latter channel group.
Step3: Set the dwell time.
Step4: Click “Default” to restore default setting; click “Apply” to save the setting; click
“Exit” to exit the current tab.
Fig 4-7 Live Configuration-Main Monitor
4.2.3 Mask
You can setup private mask area on the live image picture. For a given channel a maximum of three areas can be masked.
Setup mask area: click setting button, enter into live image to press left mouse and drag mouse to set mask area. Please refer to the below
21
DVR User Manual
picture. Right click to exit. Click apply button to save the setting.
Delete mask area: select a certain mask area and double click to delete that mask area. Then click apply button to save the setting.
Fig 4-8 Live Configuration-Mask
Setup Mask Area Live Image Mask Area
22
DVR User Manual
Parameter
Meaning
Record
To enable/disable recording for
the channel
Audio
To enable/disable audio recording
for the channel
4.3 Record Configuration
Record configuration includes six sub menus: enable, record bit rate, time, recycle record, stamp and snap.
4.3.1 Enable
Step1: Enter into MenuSetupRecordEnable tab. Refer to Fig 4-9:
Step2: Checkmark record and audio.
Step3: Select All to setup the same settings for all channels.
Fig 4-9 Record Configuration-Enable
4.3.2 Record Bitrate
Step1: Enter into MenuSetupRecordRecord Bitrate tab. Refer to Fig 4-9:
Step2: Setup rate, resolution, quality, encode and max bit stream
Step3: Select “All” to set same settings for all channels.
Step4: Click “Default” button to restore default setting; click “Apply” button to save the setting; click “Exit” button to exit the current
interface.
23
DVR User Manual
Parameter
Meaning
Rate
Range from: 1-15(NTSC)/1-12(PAL)
Resolution
Support 1080P
Quality
The higher the value is, the clearer the
recorded image is. Six options: lowest,
lower, low, medium, higher and highest.
Encode
VBR and CBR
Max bit
stream
Range from: 1536kbps~12288kbps
Note: If the rate value set is over high the maximum resources of the device, the value will be adjusted automatically.
Fig 4-10 Record Configuration-Record Bitrate
4.3.3 Time
Step1: Enter into MenuSetupRecordTime tab. Refer to Fig 4-11:
Pre-alarm record time: The record time prior to actual triggering of an alarm
i.e. record time before motion detection or a sensor alarm was triggered.
Post-alarm record: Set the post recording time after the alarm is finished,
five options: 10s, 15s, 20s, 30s, 60s, 120s, 180s and 300s.
Expire time: The time till which the records would be retained. If the set date
is overdue, the recorded files will be deleted automatically.
Step2: Select “All” to setup all channels with the same parameters.
Step3: Click “Apply” to save the setting; click “Exit” to exit the current
interface.
Fig 4-11 Record Configuration-Time
24
DVR User Manual
4.3.4 Stamp
Stamp:This provides an option to enable or disable the Camera Name and the
Time stamp on the video. You can also choose a position for the stamp on the
screen.
Step1: Enter into MenuSetupRecordStamp tab. Refer to Fig 4-12:
Step2: Checkmark camera name and time stamp; click Setting button. User can
use cursor to drag the camera name and time stamp at random positions. Refer to
below Figures:
Step3: Select “All” to setup all channels with the same parameters.
Fig 4-12 Record Configuration-Stamp
Before Drag After Drag
4.3.5 Recycle Record
This option is used to recycle the HDD space once it is full. If enabled, the system will automatically delete the old records (FIFO,
recycling space) and recycle the space if it is completely utilized. The setting steps are as follows:
Step1: Enter into MenuSetupRecordRecycle Record tab.
Step2: Checkmark the „recycle record‟ box to activate the auto recycling.
Step3: Click “Apply” button to save the setting; click “Exit” button to exit the current interface.
Note: If the option is disabled or not selected, the DVR would stop recording once the HDD is full.
25
Loading...
+ 75 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
