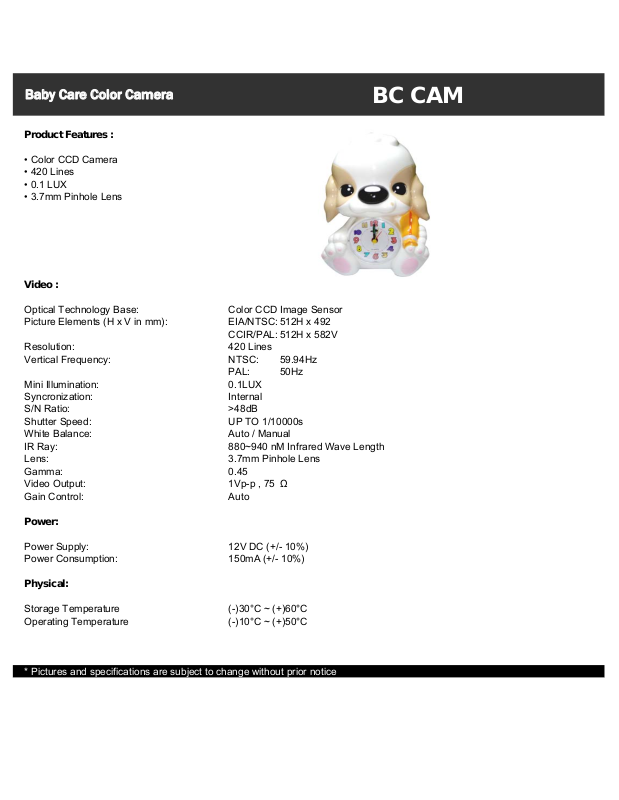

COP-USA BCCAM Specsheet

Baby Care Color Camera

V

Product Features :

• Color CCD Camera

• 420 Lines

• 0.1 LUX

• 3.7mm Pinhole Lens

ideo :

Optical Technology Base: Color CCD Image Sensor
Picture Elements (H x V in mm): EIA/NTSC: 512H x 492

CCIR/PAL: 512H x 582V
Resolution: 420 Lines
Vertical Frequency: NTSC: 59.94Hz

PAL: 50Hz
Mini Illumination: 0.1LUX
Syncronization: Internal
S/N Ratio: >48dB
Shutter Speed: UP TO 1/10000s
White Balance: Auto / Manual
IR Ray: 880~940 nM Infrared Wave Length
Lens: 3.7mm Pinhole Lens
Gamma: 0.45
Video Output: 1Vp-p , 75 Ω
Gain Control: Auto

BC CAM

Power:

Power Supply: 12V DC (+/- 10%)
Power Consumption: 150mA (+/- 10%)

Physical:

Storage Temperature (-)30°C ~ (+)60°C
Operating Temperature (-)10°C ~ (+)50°C

* Pictures and specifications are subject to change without prior notice
