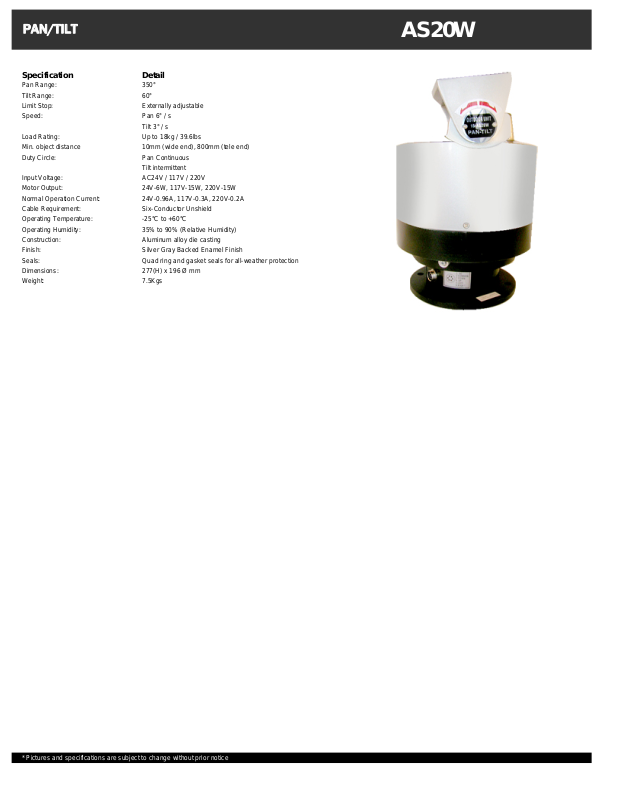

COP-USA AS20W Specsheet

PAN/TILT

Specification Detail

Pan Range: 350°
Tilt Range: 60°
Limit Stop: Externally adjustable
Speed: Pan 6° / s

Tilt 3° / s
Load Rating: Up to 18kg / 39.6lbs
Min. object distance 10mm (wide end), 800mm (tele end)
Duty Circle: Pan Continuous

Tilt intermittent
Input Voltage: AC24V / 117V / 220V
Motor Output: 24V-6W, 117V-15W, 220V-15W
Normal Operation Current: 24V-0.96A, 117V-0.3A, 220V-0.2A
Cable Requirement: Six-Conductor Unshield
Operating Temperature: -25°C to +60°C
Operating Humidity: 35% to 90% (Relative Humidity)
Construction: Aluminum alloy die casting
Finish: Silver Gray Backed Enamel Finish
Seals: Quad ring and gasket seals for all-weather protection
Dimensions: 277(H) x 196 Ø mm
Weight: 7.5Kgs

AS20W

* Pictures and specifications are subject to change without prior notice
