User Manual
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Contents
• Logging into the DVR
• Mouse menu
• Live viewing
• Playback
• Smartphone viewing setup
• Smartphone viewing
• Copy to USB/Disc
• Using Cop player 2 playback software
• Using internet explorer web browser
• DVR settings
• DVR log
• Local record over network
• Copy over network
• Playback over network
• Talkback
• PTZ control
2
3
4
5
9
10
12
16
18
19
20
20
21
22
23
24
1
User Manual
For a user to be able to use any of the DVR features the user must be logged into the DVR.
To log into the DVR use follow the steps:
Using DVR Front Panel Press OK key
Use ◄ ► keys to select username
Using the number keys input password
Press OK key to log in
Using IR Remote Press OK key
Use ◄ ► keys to select username
Using the number keys input password
Press OK key to log in
Using Remote Keyboard Press OK key
Use ◄ ► keys to select username
Using the number keys input
be pressed after each digit IE: 1>enter>1>enter>1>enter etc)
Press OK key to log in
Using Mouse Click right mouse button
Click ◄ ►buttons to select username
Enter password by clicking number buttons
Click OK button
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Logging into the DVR
password (enter button must
2
User Manual
To access mouse menu, click right mouse button.
In PTZ mode the mouse can also b e us ed to control the movement of the PTZ camera.
To access mouse playback menu, click ► button on mouse menu (see above).
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Mouse Menu
A. Hide mouse tool bar
B. Access engineer menu
C. Access playback menu
D. Access the copy menu
E. Enable / disable PTZ mode
F. Audio on/off / Mute alarm
G. Display installer information
H. Display single channel full screen
I. Display 4 channels
J. Display 6 channels (8 and 16 channel DVR only)
K. Display 9 channels (8 and 16 channel DVR only)
L. Display 10 channels (16 channel DVR only)
M. Display 13 channels (16 channel DVR only)
N. Display 16 channels (16 channel DVR only)
O. Start sequence display
Mouse Playback Menu
A. Hide mouse playback bar
B. Rewind
C. Pause
D. Stop
E. Fast forward
F. Frame advance
G. Switch single/multi screen
H. Mute
I. Playback time & date
3
User Manual
Changing Display
To change the camera display on the monitor, press “Display” key. Pressing the “Display” key
multiple times will cycle through all the available screen layouts. If using the mouse press the
right mouse button and select the desired mul ti screen view from the mouse menu.
To bring up a camera full screen:
DVR Front Panel
Infra Red Remote
Remote Keyboard
Mouse
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Live View
• Press desired camera number key.
• Press desired camera number key.
• Press desired number key followed by “enter”.
• Using left mouse button double click desired camera channel,
or right click to display multi screen view.
4
User Manual
Playback By Time
To access Playback enter the Playback menu and select required time.
DVR Front Panel
Infra Red Remote
Remote Keyboard
Mouse
Search Options
Select Date This shows the current date entered in “Enter Time Field”
Available This is the available recordings stored on the HDD(s)
Enter Time This is where the desired date and time are entered
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Playback
• Press key to enter search menu
• Press ◄►▲▼ keys to navigate
• Enter desired time and date using number keys
• Highlight Play button and press OK key to playback time
• Press key to enter search menu
• Press ◄►▲▼ keys to navigate
• Enter desired time and date using number keys
• Highlight Play button and press OK key to playback time
• Press key to enter search menu
• Press ◄►▲▼ keys to navigate
• Enter desired time and date using number keys
• Highlight Play button and press OK key to playback time
• Press Right mouse button
• Press left mouse button on Play
• Enter desired date and time by left clicking in the Enter Time Field.
• Once desired date time is entered left click on Play
5
User Manual
Playback Event
To access Playback By Event menu enter the Playback By Time menu and select Playback By
Event.
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Maximum of 200 events listed per search
DVR Front Panel
• Press key to enter search menu
• Press ◄►▲▼ keys to navigate to Playback By Event and press OK key
• Enter desired Start and End Times using ◄►▲▼ to navigate and number keys to
enter individual values
• Select type of event to search for by selecting desired options in Record Type field
• To select or deselect an option highlight the option and press “ok”
• Highlight Search and press OK key
• Press ◄►▲▼ keys to navigate throu gh event list
• When desired event is highlighted press OK key
•
Infra Red Remote
• Press key to enter search menu
• Press ◄►▲▼ keys to navigate to Playback By Event and press Enter key
• Enter desired Start and End Times using ◄►▲▼ to navigate and number keys to
enter individual values
• Select type of event to search for by selecting desired options in Record Type field
• To select or deselect an option highlight the option and press “Enter” button
• Highlight Search and press Enter key
• Press ◄►▲▼ keys to navigate throu gh event list
• When desired event is highlighted press Enter key to playback event
6
User Manual
Remote Keyboard
Mouse
Search Options
Enter Time This is where you enter the start and end times to search between
Available Recording times available
Record Type Which type of event to s earch for, options are Alarm, M otion, V-Loss or All
Page Select If the amount of events returned in a single search is mor e than can be
displayed at once then multiple pages of events are listed
Previous Day List events from next day or previous day
/Next Day
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
• Press key to enter search menu
• Press ◄►▲▼ keys to navigate to Playback By Event and press Enter key
• Enter desired Start and End Times using ◄►▲▼ to navigate and number keys to
enter individual values (Must remember to press enter after each number)
• Select type of event to search for by selecting desired options in Record Type field
• To select or deselect an option highlight the option and press Enter button
• Highlight Search and press Enter key
• Press ◄►▲▼ keys to navigate throu gh event list
• When desired event is highlighted press Enter key to playback event
• Press right mouse button
• Press left mouse button on Play
• Press left mouse button on Playback by Event
• Enter desired Start and End Times by left clicking in the Enter Time Field.
• Select type of event to search for by selecting desired options in Record Type Field.
To select or deselect an option press left mouse button on de sired option.
• Press left mouse button on Search
• Press left mouse button on page selection bar to change page or page field on the
right to input page numb er manually
• To playback an event double click the desired event in the list
7
User Manual
To control the various playback functions, you can us e the following steps:
Front Panel
Infra Red Remote
Remote Keyboard
Mouse
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Playback Control
• Press ◄►▲▼ keys to change playback speed and direction
• Press Display key to cycle through quad screens or full screen cameras
• Press number keys to bring it up camera full-screen (must be a camera in the current
quad display)
• To forward the video by one frame at a time first pause the video then press the ►
key.
• To exit playback press the Backup key
• Press ◄►▲▼ keys to change playback speed and direction
• Press Display key to cycle through quad screens or full screen cameras
• Press number keys to bring it up camera full-screen (must be a camera in the current
quad display, for channels 10 and onwards press 10+ key followed by number)
• To forward the video by one frame at a time first pause the video then press the ►
key
• To exit playback press the Backup key
• Move joystick ◄►▲▼ or use ◄►▲▼ keys to change playback speed and direction
• Press Displaykey to cycle through quad screens or full screen cameras
• Press number keys to bring up camera full-screen (must be a camera in the current
quad display and must press enter after entering digit)
• To forward the video by one frame at a time first pause the video then press the ►
key or move joystick to the right
• To exit playback press the Backup key
• Press right mouse button to bring up mouse playback menu
• Using left mouse button double click desired camera channel,
or right click to display multi screen view.
8
User Manual
All Inspire DVRs can be viewed on smartphones if they are connected to the internet.
Requirements
Apple iPhone /iPad or smartphones using Android, Symbian or Windows operating systems
GPRS, 3G or Wi-fi connection
DVR connected to the internet
Access to phone App store
Connecting
Connect the D VR to the internet.
Install application
Using the smartphone connect to your phones app store/market place.

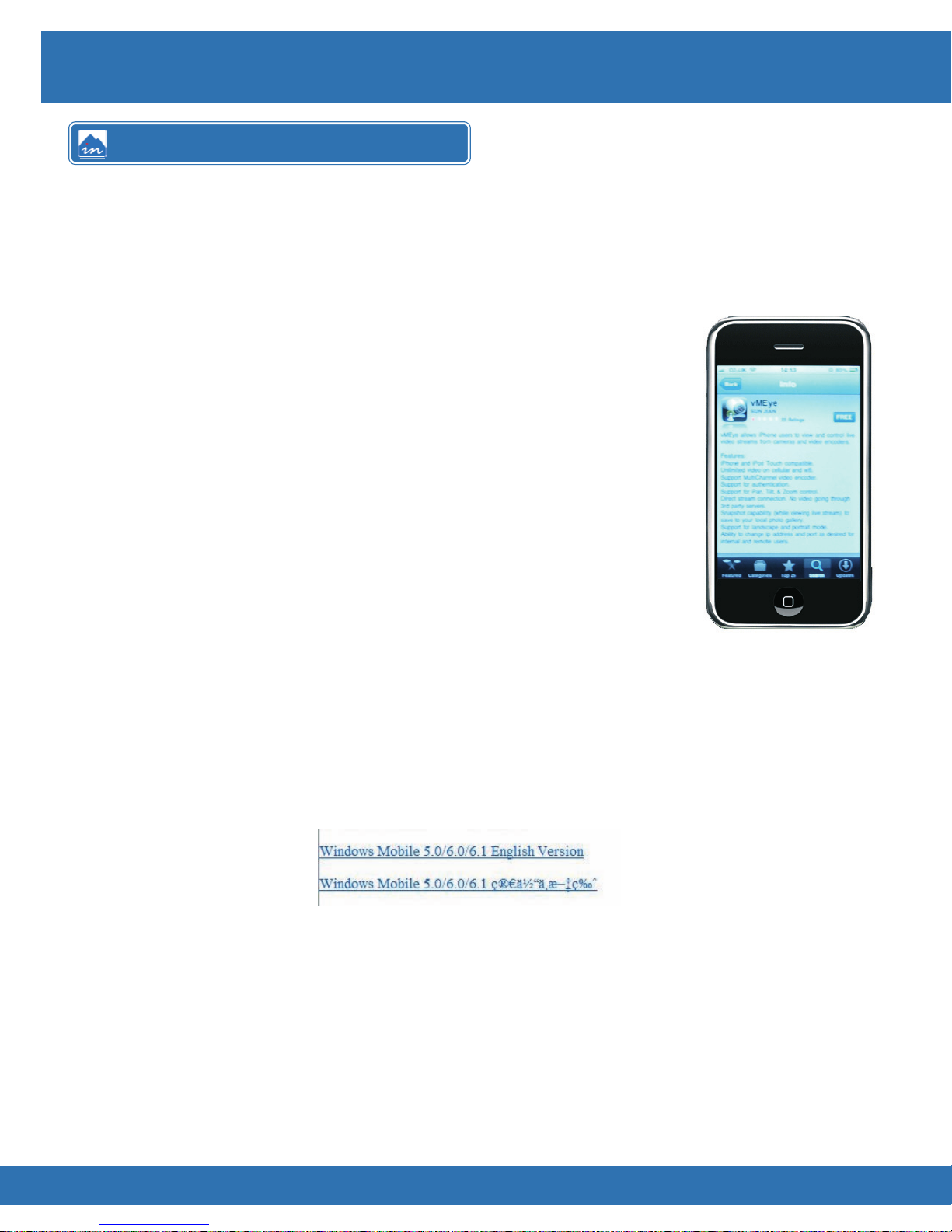

iPhone/iPad
Search for vMeye, download and install this application (it’s free).
Android
Search for vMeye, download and install this application (it’s free).
Symbian
Search for vMeye, download and install this application (it’s free).
Windows 6
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Smartphone Viewing Setup
To connect to the DVR follow these steps:
• Run your phones Internet browser
• In the address bar type the DVR IP Address followed by /download.html
• Example: If the DVR IP Address is 192.168.0.100 then type
http://192.168.0.100/download.html
• When the web page loads choose the correct software for your phone and install
• Once installed run the application and add your DVR settings
• Click connect to connect the DVR
9
User Manual
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Viewing the DVR
This guide shows how to connect using an iPhone, but all smartphone apps require the same
informati on to c on n ect to the DVR.
Smartphone Viewing
• Start vMeye App
• Press Settings button
• Click Add
• Enter device name (for your reference)
• Enter the IP address of the DVR in to Address: (example 84.92.95.178)
• Enter the mobile port number in to PORT: 7050 (this is the DVR default)
• Enter a user ID and password
• Default user ID: Admin (case sensitive)
• Default password: 888888
• Press Save and you DVR settings will be saved
• Click DVR on device list
• Select camera to view
On the free applications, you can only view live images one channel at a time.
10
Application Controls
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
A. Select channel to view
B. PTZ Control
C. Select next channels
D. Connect/Disconnect
E. Take a snapshot and save to iPhone photos
F. Settings
G. App Information
User Manual
11
User Manual
The DVR is capable of copy ing recorded footage to the internal CD/DVD or via USB to a
memory stick, external HDD or external CD/DVD disk drive.

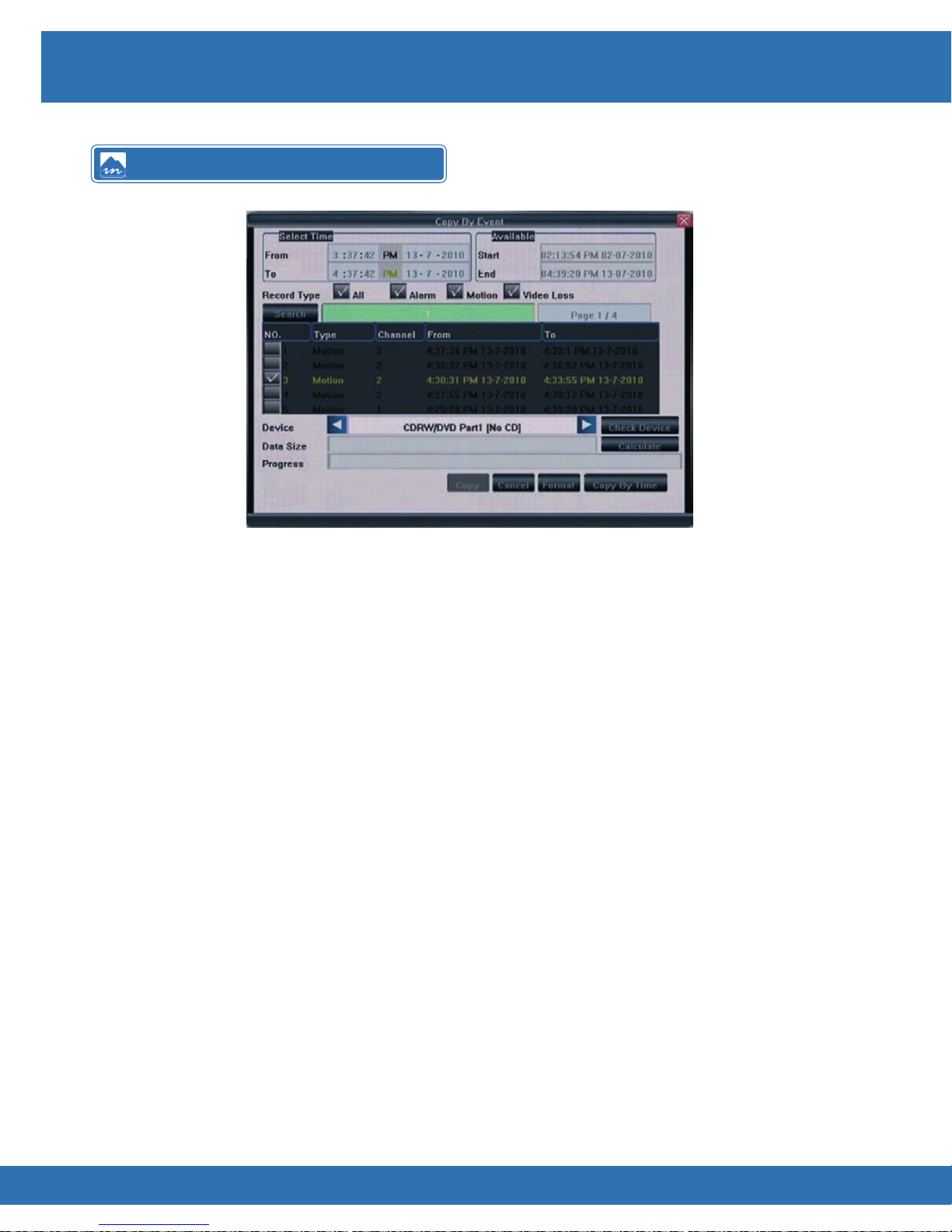

Copy By Time
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Copy To Disk Or USB
DVR Front Panel
• Press Copy key on front panel
• Press ◄►▲▼ keys to navigate
• Enter desired time and date using number keys
• Select desired cameras to be copied
• Select desired File Type (◄► to select)
• Select desired device to copy to (◄► to select)
• Highlight Calculate and press OK to view estim ated Data Size and C opy Time
• Highlight Copy and press OK to start backup
Infra Red Remote
• Press Copy key
• Press ◄►▲▼ keys to navigate
• Enter desired time and date using number keys
• Select desired cameras to be copied
• Select desired File Type (◄► to select)
• Select desired device to copy to (◄► to select)
• Highlight Calculate and press Enter to view estimated Data Size and Copy Time
• Highlight Copy and press Enter to start backup
12
User Manual
Remote Keyboard
Mouse
Copy Options
Select Time This is where the required Start and End Times for backed up video are set
Available This is the available recordings stored on the HDD(s)
Channel This is where the desired channels to be copied are selected
File Type This is where the desired file format for playback on a PC is set. If set to Cop
then the backed up recordings will require the Cop Player 2 software to be
able to view the recordings on a PC. If set to AVI the recordings will
playback in applications such as Windows Media Player on the
majority of PCs
Cop Player This is the option to include the Cop Player 2 software on the backup
media. If copying recordings as Cop format then Cop Player 2 is required
to play the recordings back
Device Select whether backing up to Disk or to USB Media
Data Size This estimates the total size of the backup in megabytes and amount of
time required to perform the backup based on the entered parameters
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
• Press Copy key
• Press ◄►▲▼ keys to navigate
• Enter desired time and date using number keys
• Select desired cameras to be copied
• Select desired File Type (◄► to select)
• Select desired device to copy to (◄► to select)
• Highlight Calculate and press enter to view estimated Data Size and Copy Time
• Highlight Copy and press Enter to start backup
• Right click mouse to bring up mouse menu
• Left click Copy icon
• Enter desired Start and End Times by left clicking in the Select Time Field.
• Left click mouse on required channel boxes
• Select File Type by clicking ◄► icons to change
• Select device by clicking ◄► icons to change
• Press left mouse button on Calculate to view estimated Data Size and C opy Time
• Left click Copy to start the back u p
13
User Manual
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Copy By Event
Front Panel
• Press Copy key on front panel
• Press ◄►▲▼ keys to navigate
• Highlight Copy By Event and press OK
• Enter desired Start and End Times using ◄►▲▼ to navigate and number keys to
enter individual values
• Highlight search and press OK
• Use ▲▼ to move up and down event list and use ◄► to change page
• Press OK on events to copy
• Select desired device to copy to (◄► to select)
• Highlight Calculate and press OK to view estim ated Data Size and C opy Time
• Highlight Copy and press OK to start backup
Infra Red Remote
• Press Copy key
• Press ◄►▲▼ keys to navigate
• Highlight Copy By Event and press Enter
• Enter desired Start and End Times using ◄►▲▼ to navigate and number keys to
enter individual values
• Highlight search and press Enter
• Use ▲▼ to move up and down event list and use ◄► to change page
• Press Enter on events to copy
• Select desired device to copy to (
• Highlight Calculate and press Enter to view estimated Data Size and Copy Time
• Highlight Copy and press Enter to start backup
◄► to
select)
14
User Manual
Remote Keyboard
Mouse
Copy Options
Select Time This is where the desired Start and End times are entered for searching the
event list
Available This is the available recordings stored on the HDD(s)
Record Type Which type of event to search for, options are Alarm, Motion, V-Loss or All
Page Select If the amount of events returned in a single search is more than can be
displayed at once then multiple pages of events are listed
Device Select device to copy to
Data Size This estimates the total size of the backup in megaBytes and amount of
time required to perform the backup based on the entered parameters
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
• Press COPY key
• Press ◄►▲▼ keys to navigate
• Highlight Copy By Event and press Enter
• Enter desired Start and End Times using ◄►▲▼ to navigate and number keys to
enter individual values (remember to press enter after each value)
• Highlight search and press Enter
• Use ▲▼ to move up and down event list and use ◄► to change page
• Press Enter on events to copy
• Select desired device to copy to (◄► to select)
• Highlight Calculate and press Enter to view estimated Data Size and Copy Time
• Highlight Copy and press Enter to start backup
• Right click mouse to bring up mouse menu
• Left click Copy icon
• Left click on Copy By Event
• Enter desired Start and End Times by left clicking in the Select Time Field.
• Select type of event to search for by selecting desired options in Record Type Field.
To select or deselect an option press left mouse button on de sired option.
• Press left mouse button on Search
• Press left mouse button on page selection bar to change page or page field on the
right to input page numb er manually
• To select an event to copy left click the desired event(s) in the list
• Select desired device to copy to (◄► to select)
• Highlight Calculate and press Enter to view estimated Data Size and Copy Time
Highlight Copy and press Enter
•
to start backup
15
User Manual
When making a backup to CD/DVD or via USB media if the file format chosen is Cop then the
Cop Player 2 software is vital in order to playback the recordings.

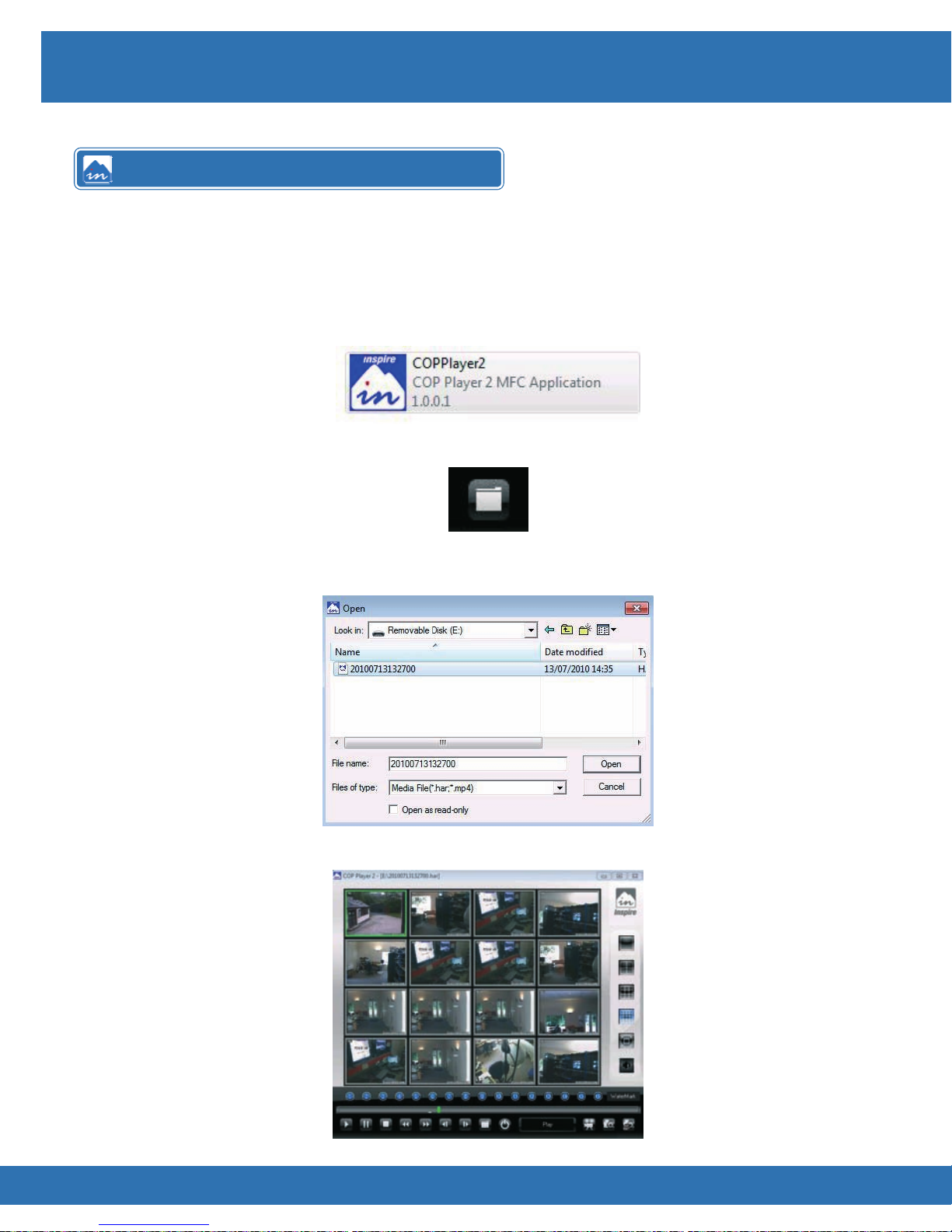

After inserting the disk or USB media containing the copied recordings in to a PC double click
the Cop Player 2 icon. This will run the Cop Player 2 so ftware.
To open a file containing recordings click on the Open File icon
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Using COP Player 2 Software
Click on the file that you wish to playback and then click Open
The Cop player software will now open and display the selected video file.
16
User Manual
To bring a camera up full-screen, double click on desired camera or use the full-screen icon
on the right hand side of the viewer.

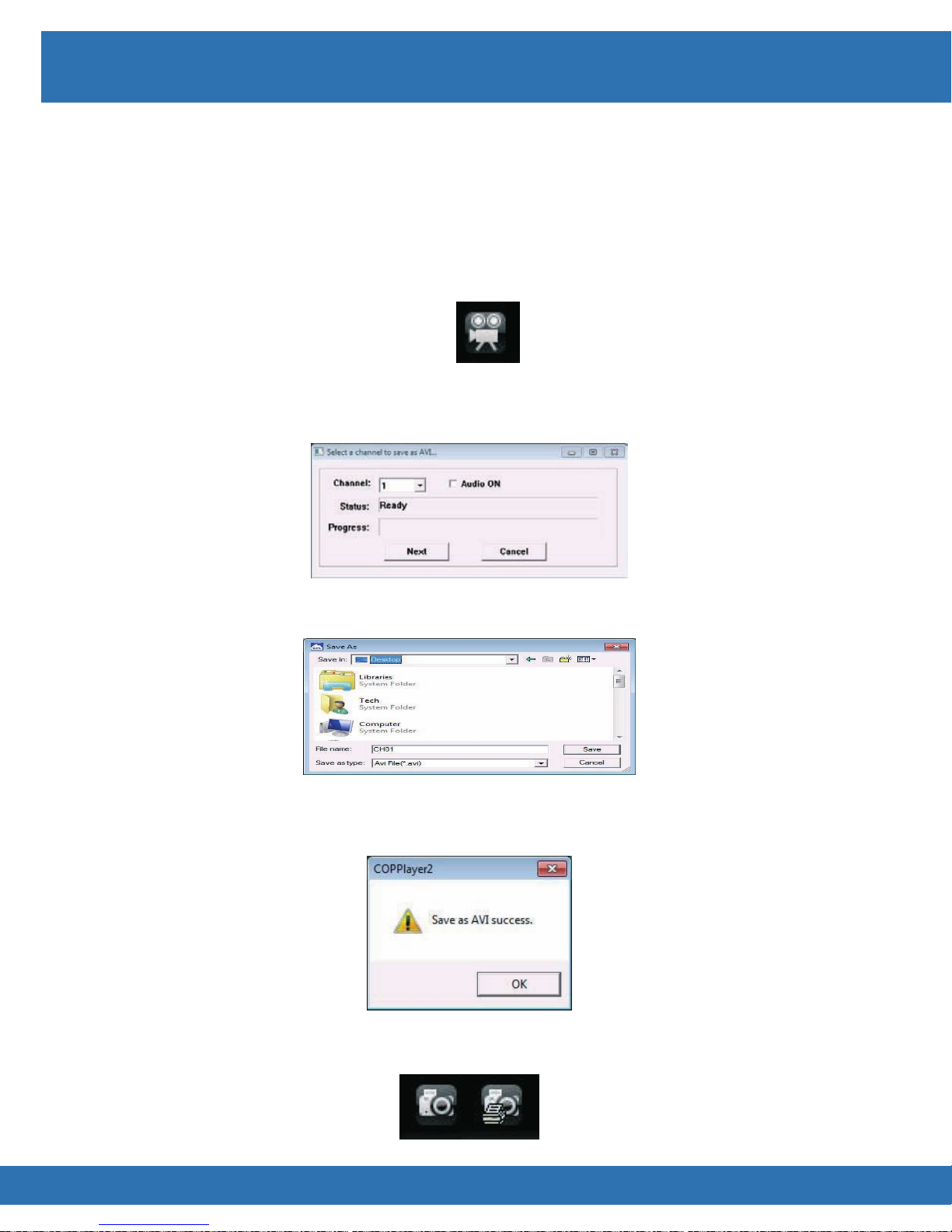

If required, the recordings can be converted to AVI format, this will enable them to be played
back in most viewing applications such as Windows Media Player.
To do this click on the video camera icon at the bottom of the viewer.
Select the camera channel you would like to convert and if you wish to include audio. Then
click next.
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
When prompted, select a destination for the new AVI file to be saved.
The AVI window will disappear and once the AVI conversion is complete the viewer will display
a window to confirm it was completed successfully.
There are also options to save a Snap Shot or Print Image in the bottom right of the viewer.
17
User Manual
Connecting via Apple Mac
Enter the Mac app store and search for “MeyePro”, once installed refer to page 10
“Smartphone Viewing” for app connection settings.
Note: Viewing on a Apple Mac currently only supports live viewing of the DVR, the features
listed below for Windows PC’s are not currently available for Apple Mac.
Connecting via Windows PC

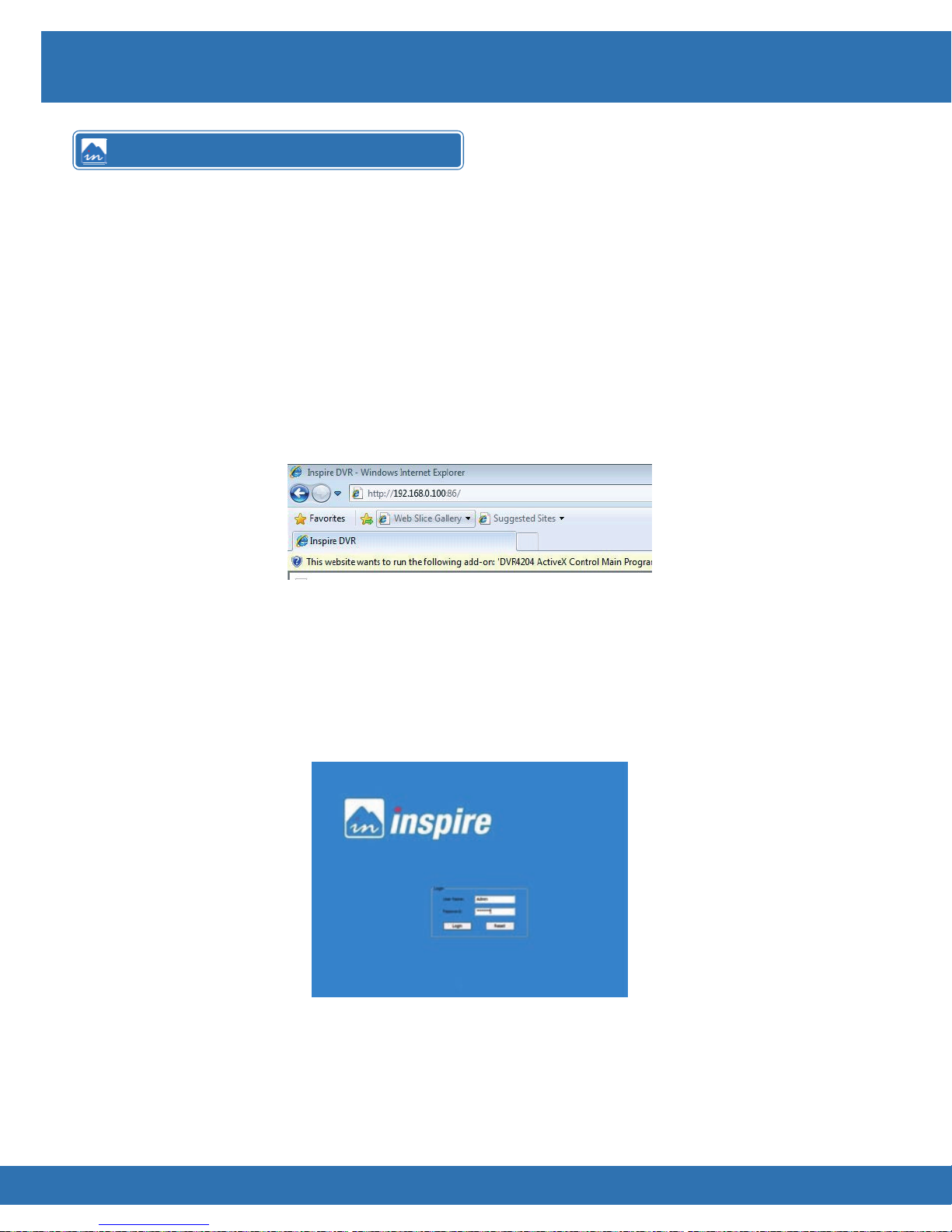

To start, open up Internet Explorer and type the DVR IP address into the address bar and press
enter. (e.g. http://192.168.0.100)
When connecting to the DVR for the first time, instal lation of the DVR Activex control is
required. Usually a pop-up bar will appear.
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Connecting via PC or Apple Mac
Right click on the pop-up bar and choose install.
Note: Depending on internet explorer security settings the ActiveX control may not install, for
further advice contact your network administrator.
Once the ActiveX is installed correctly the user should be presented by the Inspire Log On
screen.
To log in the user mus t type both their Usernam e and Password into the required fields.
Note: Default Username is Admin (case sensitive)
Default Password is 888888
Once the required fields have been entered click login button.
18
User Manual
Live Images

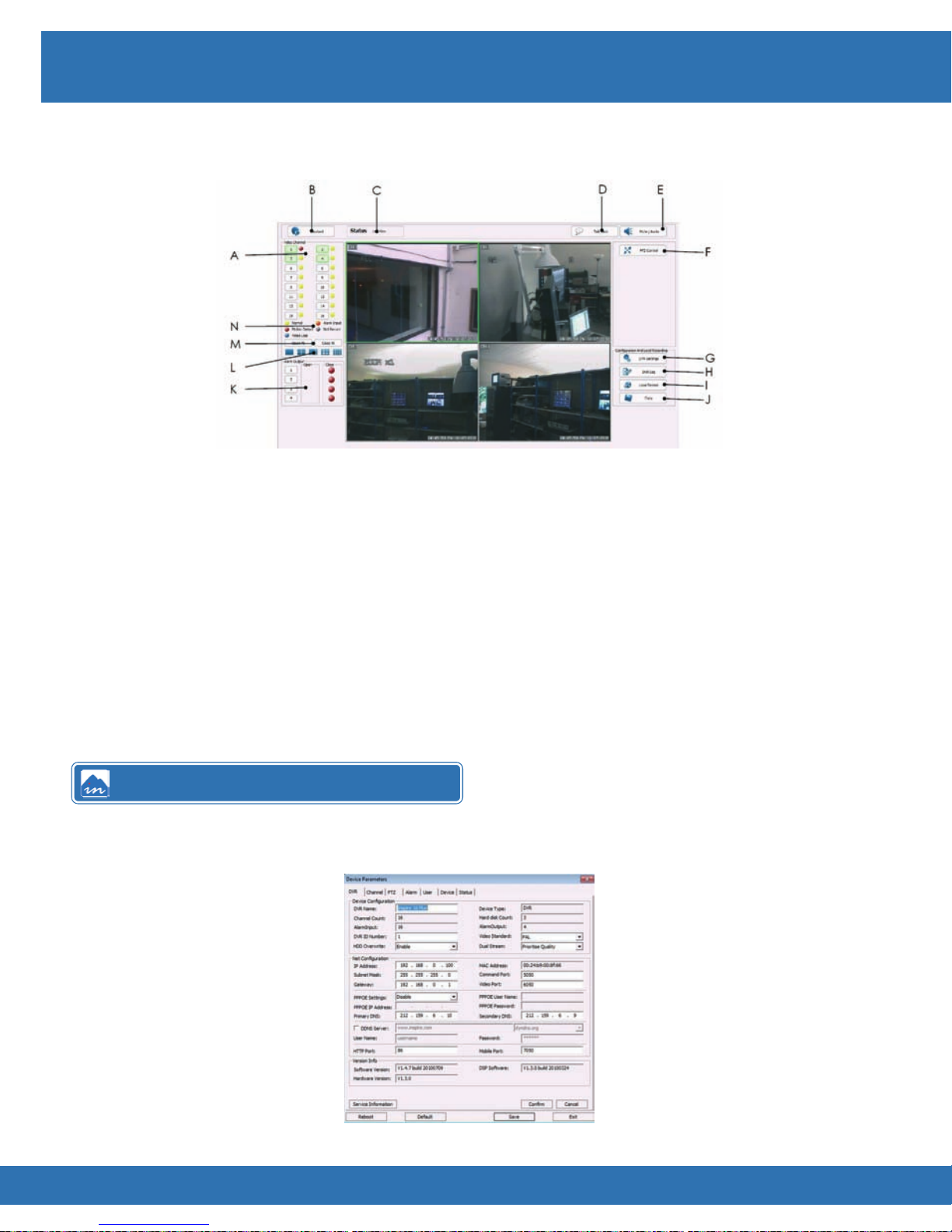

Once logged into the DVR the user will be presented with the live images screen.
The device parameters featur e allows the user to change settings that are saved on the DVR
such as record settings, event settings and more.
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
A. Camera selection
B. Playback
C. Current view mode
D. Talkback
E. Mute audio
F. PTZ control
G. DVR settings
H. DVR log
I. Local record
J. Copy
K. Remote alarm relays
L. Screen view selection
M. Open/close stream
N. Record status indicator
DVR Settings
19
User Manual
The DVR keeps a log of events such as illegal power downs, motion detection events, alarm
input triggers and more.
The user can search for specific times or type of events using the optio n s at the top of the
window.
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2

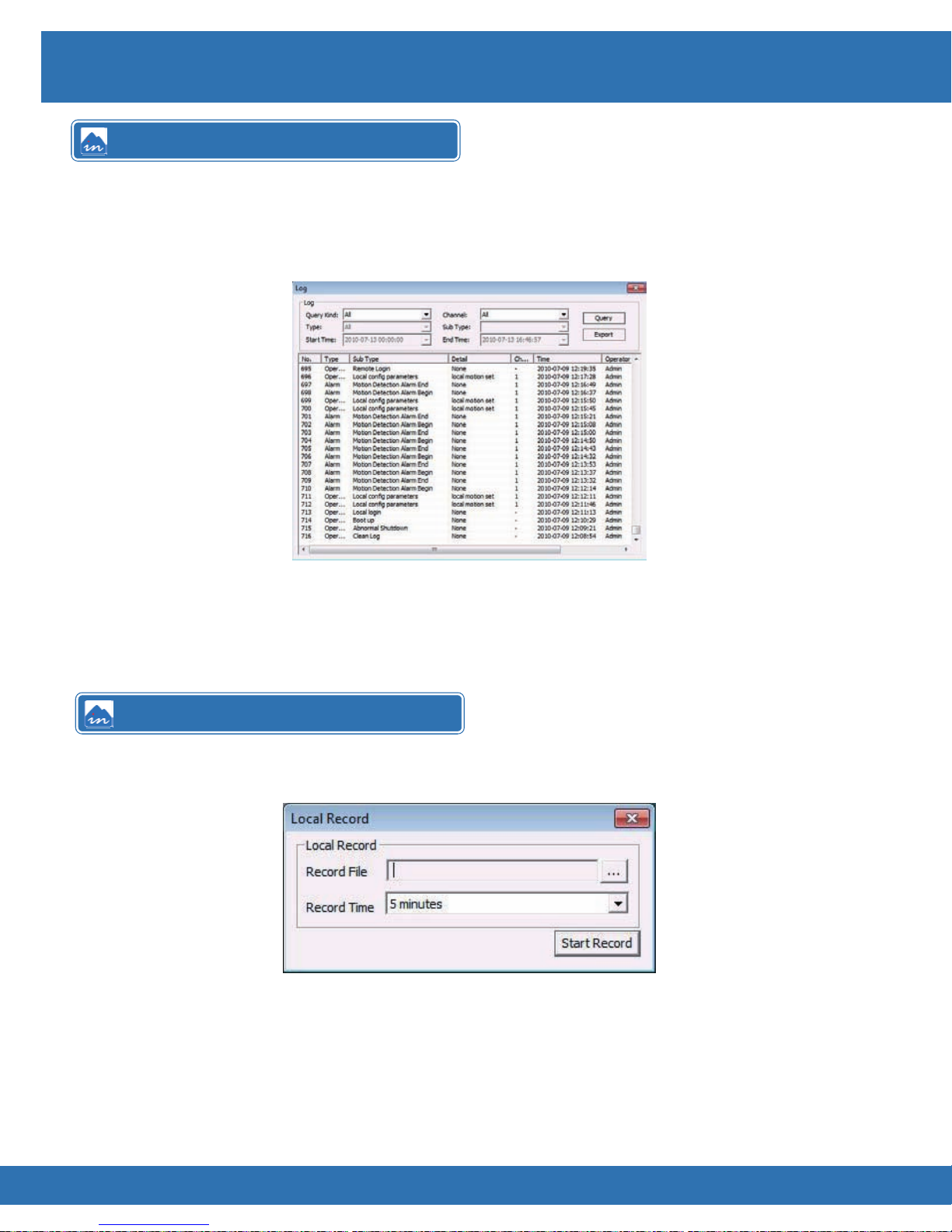

DVR Log
The log can also be exported to the remote PC as a html file. This enables the user to be able
to copy the log to a removable device or even email it.
Note: Searching the full or large sections of the log may take several minutes dependant on
amount of event entries.
Local Record Over Network
If, when viewing the camera images over the network the user would like to save the l ive
stream to the PC, the user can use the Local Record feature.
To use Local Record click the Local Record button and select your file destination, how long to
record the stream for and click Start Record. Local Record can be stopped at any time by
clicking the Stop Record button.
Note: The Cop Player 2 software will be required to playback remote recordings, this can be
downloaded from the Copy Menu.
20
User Manual
If there are recordings on the DVR HDD(s) that need to be retrieved remotely this can be done
using the Copy feature.
To use the Copy feature:
After save destination has been chosen the remote copy will start and the progress bar at the
bottom of the screen will show the copy progress in percent.
Note: The Cop Player 2 software will be required to playback copied recordings, this can be
downloaded by clicking the Cop Player button. Please also note that remote copying
recordings can take a very long time depending on amount of cameras and amount of time
requested.
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Copy Over Network
• Click Copy
• Enter required start and end times (available recordings on HDD(s) are listed above
start tim e dr o p d own box)
• Select cameras to copy in Video Channel field
• Click Query Data Size to get an estimate of the total size of the requested recordings.
• Click Copy and choose file name and destination
21
User Manual
Playback by Time
The viewing of recordings stored on the DVR HDD(s) can be done using the Playback feature.
To playback images enter the desired time in to the Play Time field on the rig ht side of the
browser and click play.
To change playback screen layout click the screen icons on the left of the browser.
Playback by Event
To playback by Motion, Alarm or Video Loss event, click the Playback by Event button in the
top right of the b r o ws e r .
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Playback Over Network
Available recording times stored on the DVR HDD(s) appear at the top right of the web
browser.
To search for an Event select a start and end time in the Start and End ti me fields o n the right
of the browser and click search.
Note: Searches that exceed a 24 hour period may take a long time to return results
To playback an event from the event list clic k the desired event to highlight it and click on
play icon.
22
User Manual
Duplex Talkback
The DVR features a full duplex talkback system. When a microphone is connected to the Line
Input (plus model, or audio input 1 on standard unit), and a broadcast unit is connected to
the audio output of the DVR click the Talkback button at the top of the browser.
Once Talkback has been selected the audio stream from the DVR Line Input will be played
through speakers or a headset connected to the remote PC.
Broadcast
If a microphone is also connected to the PC then when the user talks their voice will be
broadcast out through the DVR audio output.
Audio
The DVR can support up to sixteen microphones (model dependant). To listen to the audio
from a required channel, select the channel in full-screen. The audio will now be played
through the remote PCs speakers or headset, providing microphones are connected to the
audio inputs of the DVR.
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
Talkback
Note: It is not possible to use duplex talkback or broadcast when using audio microphones
with camera in puts.
23
User Manual
PTZ Control
The DVR web browser supports control of PTZ cameras if connected and programmed in the
DVR.
To use the PTZ feature single click on desired camera (green border highlights selected
camera) then press the PTZ button.
This will bring up the PTZ Interface
INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2
PTZ Control
PTZ
Speed Select the speed in which the PTZ camera moves
Note: This may be limited by the capabilities of the PTZ camera connected
◄►▲▼ Pan or Tilt the camera
Zoom Zoom the PTZ camera in or out
Iris Open or close the iris (this will make the image brighter or darker)
Focus Adjust focus far or near
Preset Select preset position then click Go to move to position or Set to save current
position as selected preset number.
24
Loading...
