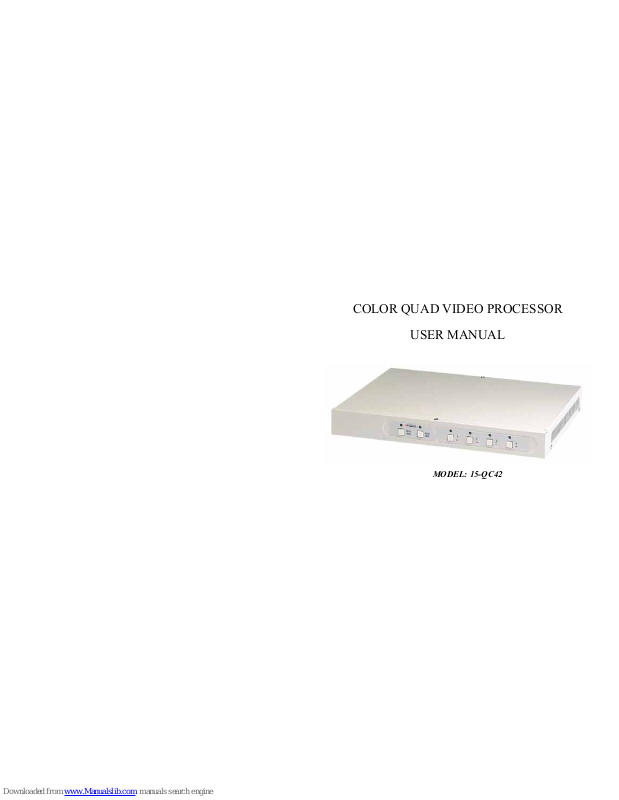

COP Security 15-QC42 User Manual

COLOR QUAD VIDEO PROCESSOR

USER MANUAL

MODEL: 15-QC42

INDEX

1. Important Safeguards --------------------------- Page 2

2. Introduction-------------------------------------------- Page 3

3. Outline--------------------------------------------------- Page 4

4. Installation --------------------------------------------- Page 5

5. Operating Procedure------------------------------- Page 7

6. VCR Playback Mode-------------------------------- Page 8

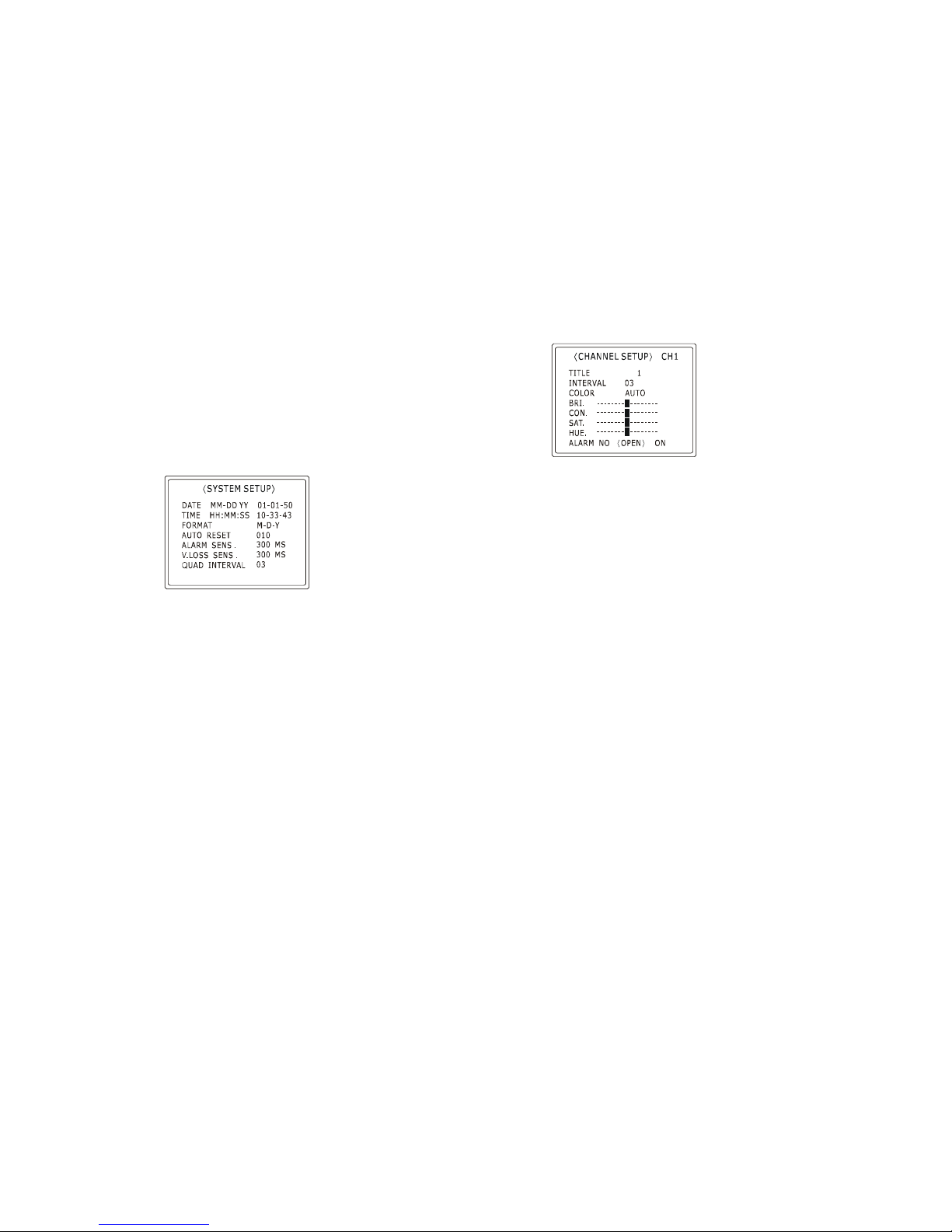

7. Setup Menu-------------------------------------------- Page 9

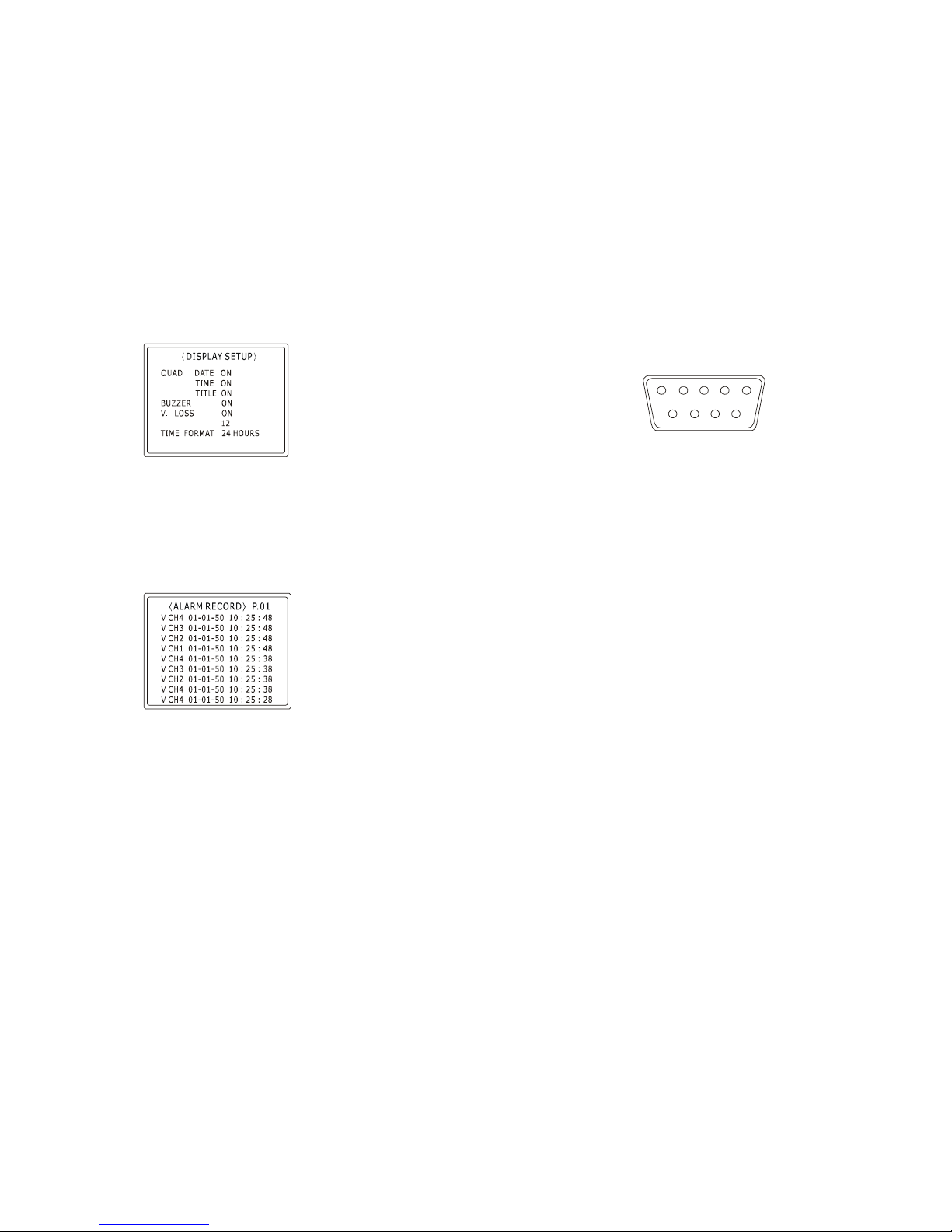

8. Alarm Port----------------------------------------------- Page 12

9. Specification------------------------------------------- Page 13

IMPORTANTSAFEGUARDS

1. Read manual thoroughly before setup or operation of this product.

2. Save this booklet for further reference.

3. Follow the instructions and heed all warning notices.

4. Do not liquid or aerosol cleaners on this product, use a slightly damp cloth only.

Do this only with the unit unplugged from the power source.

5. Do not use accessories not recommended by your dealer or installer with this unit.

6. Keep unit in a dry location. Dampness or moisture will be damage the internal

components.

7. Do not block ventilation openings on unit.

8. Never insert any objects into unit, this could result in fire or electric shock.

Never spill any liquid onto or into unit.

9. If an outdoor cable is connected to this unit, be sure the cable is grounded well.

10. For added protection of this unit during a lightning or electrical storm, or when it

is left unused for a long period of time, unplug it from the wall outlet and

disconnect all cables.

WARNING : Cover removal should only be performed by qualified service personnel.

This unit contains no user serviceable parts.

2

Introduction

Your new quad processor offers high performance with a wide range of features,

including:

⊙Built-in high performance digital video processor which meet CCIR-601 digital

video standard.

⊙In VCR playback mode this unit provide 2X2 zooming and hold still picture on

monitor.

⊙User can set different input video brightness, contrast, hue, saturation individually..

⊙Built-in real-time generator.

⊙Built-in OSD to display date/time, titles and system alarm event.

⊙Auto detect and display video loss.

⊙With alarm port for other security system application.

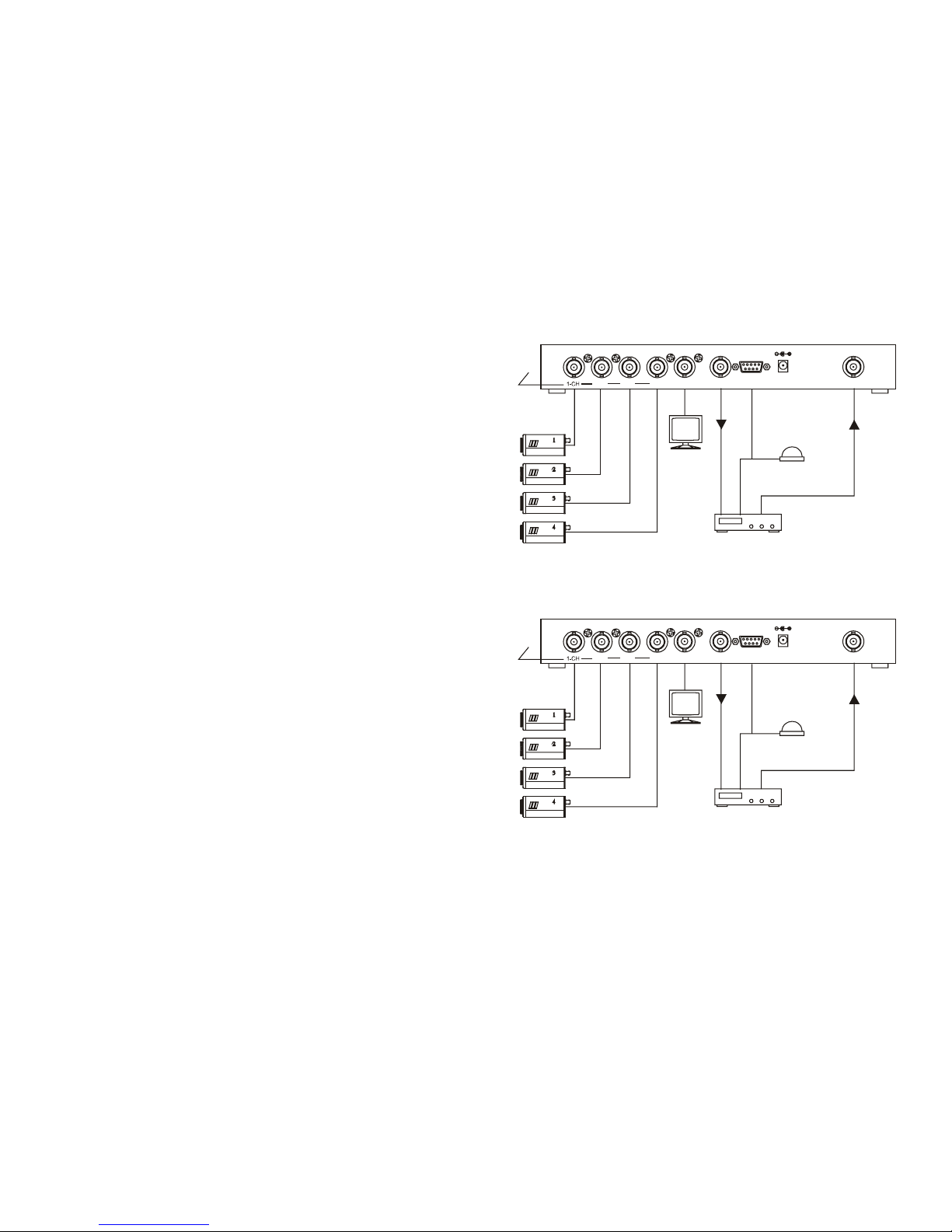

BACK PANEL

MENU
/VCR

QUAD
/SEQ

1.SETUP MENU/VCR MODE 4.SELECT ITEM (in menu)

2.QUAD MODE/SEQUENTIAL 5.CHANGE STATUS (in menu)

3.CAMERA SELECT

FRONT PANEL

2-CH

3-CH

4-CH

MONITOR

VCR OUT

ALARM

DC IN

VIDEO IN

VCR IN

1.VIDEO IN (1~4) 4.ALARM PORT

2.MONITOR OUT 5.POWER IN (DC +12V)

3.VCR OUT (for VCR record) 6.VCR IN (for VCR playback)

43
