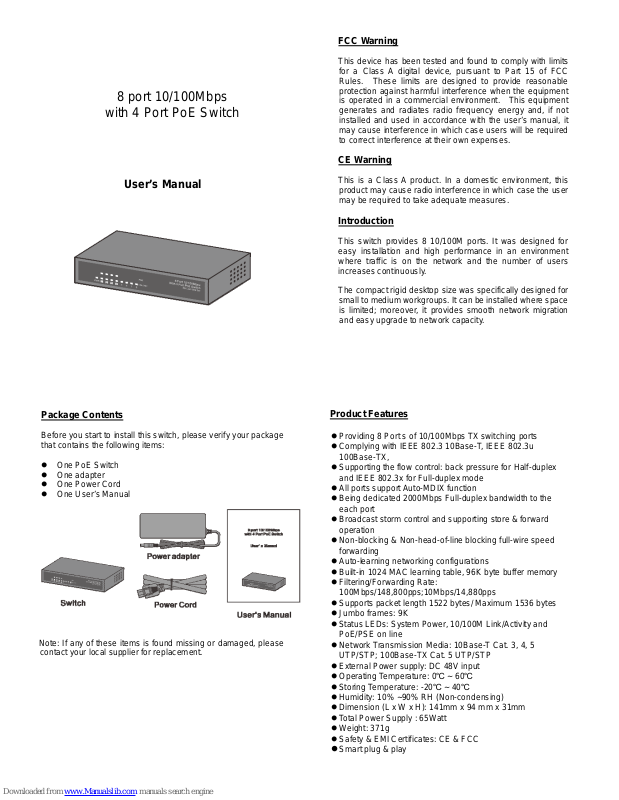

COP Security 15-PS084 User Manual

8 port 10/100Mbps

with 4 Port PoE Switch

User’s Manual

FCC Warning

This device has been tested and found to comply with limits
for a Class A digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates and radiates radio frequency energy and, if not
installed and used in accordance with the user’s manual, it
may cause interference in which case users will be required
to correct interference at their own expenses.

CE Warning

This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the user
may be required to take adequate measures.

Introduction

This switch provides 8 10/100M ports. It was designed for
easy installation and high performance in an environment
where traffic is on the network and the number of users
increases continuously.

The compact rigid desktop size was specifically designed for
small to medium workgroups. It can be installed where space
is limited; moreover, it provides smooth network migration
and easy upgrade to network capacity.

Package Contents

Before you start to install this switch, please verify your package
that contains the following items:

z One PoE Switch
z One adapter
z One Power Cord
z One User’s Manual

Note: If any of these items is found missing or damaged, please
contact your local supplier for replacement.

Product Features

z Providing 8 Port s of 10/100Mbps TX switching ports
z Complying with IEEE 802.3 10Base-T, IEEE 802.3u

100Base-TX,

z Supporting the flow control: back pressure for Half-duplex

and IEEE 802.3x for Full-duplex mode

z All ports support Auto-MDIX function
z Being dedicated 2000Mbps Full-duplex bandwidth to the

each port

z Broadcast storm control and supporting store & forward

operation

z Non-blocking & Non-head-of-line blocking full-wire speed

forwarding

z Auto-learning networking configurations
z Built-in 1024 MAC learning table, 96K byte buffer memory
z Filtering/Forwarding Rate:

100Mbps/148,800pps;10Mbps/14,880pps

z Supports packet length 1522 bytes/ Maximum 1536 bytes
z Jumbo frames: 9K
z Status LEDs: System Power, 10/100M Link/Activity and

PoE/PSE on line

z Network Transmission Media: 10Base-T Cat. 3, 4, 5

UTP/STP; 100Base-TX Cat. 5 UTP/STP

z External Power supply: DC 48V input
z Operating T emperature: 0℃ ~ 60℃
z Storing Temperature: -20℃ ~ 40℃
z Humidity: 10% ~90% RH (Non-condensing)
z Dimension (L x W x H): 141mm x 94 mm x 31mm
z Total Power Supply : 65Watt
z Weight: 371g
z Safety & EMI Certificates: CE & FCC

z Smart plug & play

Front Panel (LEDs)
LED Indicators of 8 Port with 48V-in 10/100M Switch

LED Status Description

On Power is on. Power

Off Power is off.

On Port is for connection.

Off No connection.

LINK/ACT

Flashing Data is transmitting or receiving

Rear Panel (Power

)

DC 48 input

T echnical Specifications

Standards IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX
IEEE 802.3af PoE

Features

Number of Ports:
8 10/100BaseT with RJ-45
Connector

4 PSE Ports with RJ-45 Connector
Data Transfer
Rates

Ethernet :10M/Half-Duplex

20M/Full-Duplex

Fast Ethernet: 100M/Half-Duplex

200M/Full-Duplex
Transmission
Media

10BaseT Cat. 3, 4, 5 UTP/STP

100BaseTX Cat. 5 UTP/STP
LED
Indicators

Per Port:

(TX): 10/100M Link/Act PoE, Per

Unit: Power
Power
Supply’

65 Watts
Power supply 48V-56 DC input

Dimensions 141 x 94 x 31mm (L x W x H)
Weight 371g
Operating
Temperature

0 to 40℃
Storage

Temperature

-20 to 90℃

Humidity 10 to 90% RH (non-condensing)
Certifications FCC Class A, CE
