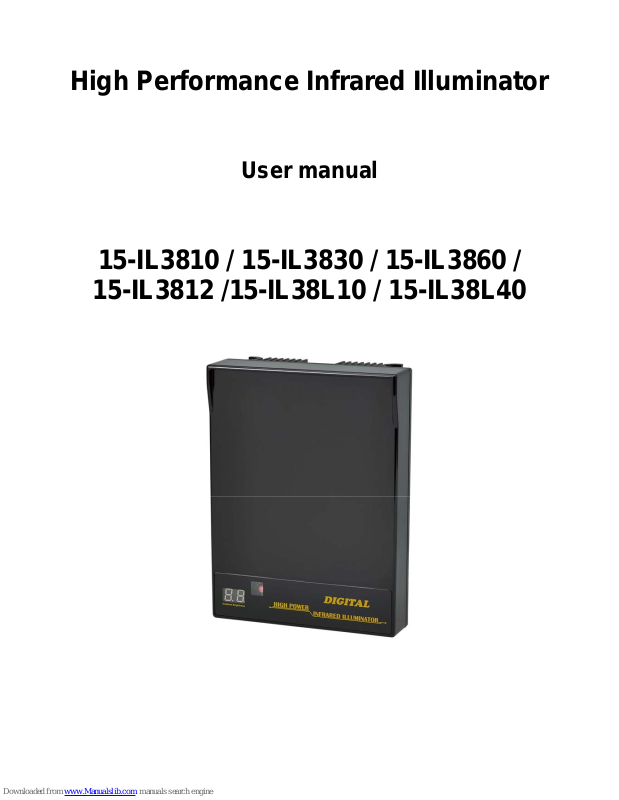

High Performance Infrared Illuminator

User manual

15-IL3810 / 15-IL3830 / 15-IL3860 /

15-IL3812 /15-IL38L10 / 15-IL38L40

1

◆ Description

z Accurate constant circuit drive develops excellent performance of LEDs
z Using high power LEDs, high efficacy and long service life
z Ambient brightness display
z Brightness Adjustable (5 step)
z Delay time Adjustable (2-30 sec)
z External trigger mode (NO or NC) Selectable (Trigger in and Trigger out)

z Light on and light off：ambient brightness adjustable
z Silica gel waterproof circle and water stop line ensure excellent waterproof performance

z Digital light sensor more accurately responses ambient brightness and improve accuracy of

automatic light control

z High efficient twice optical lens processing achieves 90% of the luminous efficiency
z New design, slim body, easy and simple installation
z Supplied with paint steel wall mount bracket
z Improved performance of cameras to get better pictures at night time
z Indoor and outdoor use
z IR Remote control
z 2 year warranty

◆ Specification

ITEM

15-IL38xx 15-IL38Lxx

Quantity of LED

3W high power LEDs

20 pcs

high power Laser LEDs

20 pcs

Wavelength 850nm 850nm
Beam angle 10 -120 degrees 10 - 40 degrees
IR distance 60 - 300m (196 -984 ft) 150 - 350m (492 - 1148 ft)
Day/night switch Auto on/off
Voltage AC / DC24V
Power consumption 40 W 42 W
Front panel Vandal PC
Housing aluminum
Bracket Wall mount bracket
Working temperature

-20°C ~ + 50⁰C (-4 to 122°F)
Protection level IP68 and IK10
Color Black

Dimension

200 x 150 x 57 mm

(Don’t include bracket)

Net weight

1.8kg

(Don’t include bracket)
