COP Security 15-CD453VBIC, 15-CD453VB, 15-CD453VBC, 15-CD453VBI, 15-CD453V Instruction Manual

High Resolution High Sensitivity

HDR Wide Dynamic Dome Camera

INSTRUCTION MANUAL

□15-CD453VB
□15-CD453VBC

□15-CD453VBI

□15-CD453VBIC
□15-CD453V
□15-CD453VC

□15-CD453VI

□15-CD453VIC

1

CONTENTS

PRECAUTION……………………………………………….2
FEATURES….……………………………………………….3
SPECIFICATIONS…………………………………………..3
INSTALLATION……………………………………………...5
OSD MENU OPERATION INSTRUCTION……………….6

2

PRECAUTION

Do not open or modify

Do not adjust the camera's internal circuits or power supply modules,
as it may cause damage to the unit. For internal set up and repair,
please consult our dealer.

Do not put objects inside the unit

Do not put metal objects or flammable substance inside the camera
for it may cause damage to the unit. If water or liquid gets inside of
the camera please disconnect power immediately and contact with
your dealer.

Be careful when handling the unit

Do not drop the camera and avoid it from strong shock or vibration.

Install away from electric or magnetic fields

It may interfere or distort the image when camera is installed close to
electric or magnetic fields. Ex: TV, Speaker, and etc.

Avoid from humidity, dust and heat

a. Do not install the camera in smoky, dusty or steamy areas.
b. Do not install the camera close to heat generating devices (for ex:

spotlights)

Protect the camera carefully from direct exposure to sunlight,
rain, and etc.

Cleaning

Do not touch the CCD directly. If necessary, use a soft cloth
moistened with alcohol to wipe off dust.

3

FEATURES

MODEL:15-CD453VB、15-CD453V、15-CD453VBC、15-CD453VC
15-CD453VBIC、15-CD453VIC、15-CD453VBI、15-CD453VI

l Super Hi- Res. CCD with Star-Light more than 600TV Lines (D/N)
l HDR Wide Dynamic Video Digital Signal Processor (SOC) IC
l Auto / Manual Electronic SHUTTER speed adjustable
l High Sensitivity, Low Smear, excellent anti-blooming
l Japan Original Vari-focal Lens
l On Screen Display (OSD) set-up Menu
l Motion Detection, Privacy Marking, H / V Mirror, Freeze, Negative, Cross Line
l 2X Digital Zoom with Manual Pan / Tilt
l Back Light Compensation adjustable
l S/N Ratio with Auto 3D-DNR
l Challenging High Lighting Condition
l 0 Lux @ 24 IR LEDs, range up to 30M (15-CD453VBI / 15-CD453VBIC /

15-CD453VI / 15-CD453VIC)

l Special Shielding to Eliminate IR Reflections (15-CD453VBI / 15-CD453VBIC)

l IR Cut Removable (15-CD453VBC / 15-CD453VBIC / 15-CD453VIC

15-CD453VC)

l Built-in Video/Power Surge Protection
l Vandal case with Water Resistance(15-CD453VB、15-CD453VBI、

15-CD453VBIC、15-CD453VBC)

SPECIFICATIONS

15-CD453VB 15-CD453VBI 15-CD453VBIC 15-CD453VBC

Model No.

15-CD453V 15-CD453VI 15-CD453VIC 15-CD453VC

Image Pick-up Device 1/3“ CCD Image Sensor (HI- Res.)
Total Picture Elements NTSC: 811 x 507, PAL: 765 x 595
Effective Picture Elements NTSC: 771 x 492, PAL: 753 x 582
Horizontal Resolution 560TV lines (Color) / 600 TV lines (D/N)
Minimum Illumination 0.01 Lux 0 Lux IR ON 0.001 Lux
Auto Iris Lens 3.7~12mm
IR CUT X YES
IR LEDs X 24 x LEDs X
Rotation 3 Axis 2 Axis 2 Axis 3 Axis

4

Digital Zoom 2X, Manual, PAN / TILT
S/N Ratio WITH Auto 3D-DNR

More than 56 dB
Wide Dynamic Range 48dB
Gamma Characteristic 0.45 / 1.0
Auto/Manual Electronic Shutter

NTSC: 1/60s~1/120,000s, PAL: 1/50s~1/120,000s
Digital Slow Shutter 2X~64X
Flickerless Mode YES
Mirror Function HORIZONTAL / VERTICAL / ROTATION
Image Function

FREEZE、NEGATIVE、CROSS LINE
Auto Gain Control ON/OFF (6 ~ 24dB adjustable)
White Balance Auto (ATW, AWB, FIXED, Manual)/ 3200 ~ 10000 ºK
Back Light Compensation ON/OFF (48 Area adjustable)
Motion Detection YES
Video Output 1 Vp-p / 75 Ohms
Day & Night Color Auto (Level adjustable), Color, B/W
Privacy Masking ON/OFF (4 Area adjustable)
Synchronous System EXT / INT.SYNC. / (LINE LOCK OPTION)
Power Supply

AC24/DC12 V

DC12V

AC24/DC12 V

Power Consumption 2W 5W 2W
Operating Temperature -10~65 (14~149)℃℃℉℉
Dimension

Φ

136 (D) X 100 (H) mm

Packing / Weight

1 CTN：12pcs BOX：18(W)X14.7(H)X11.5(D)mm

5

POWER INPUT

BNC(VIDEO OUT)

DUAL POWER

P

O
W
E

R
+

P

O

W

E

R

-

SINGLE POWER

POWER INPUT

BNC(VIDEO OUT)

INSTALLATION

Step1:

Remove the 3 screws from the domes
housing.

Step2:

Attach the base of the housing to the
wall/ceiling by fixing the screws into the
drilled holes.

Step3:

Connect power and video signal (see left)
Ensure the polarity is correct when
connecting power to the terminal block. +/-

Sept 4:

Adjust the cameras focus, angle and
functions.

Step 5:

Attach the domes cover and insert the
screws.

6

OSD K

ey explains

15-CD453VBI、15-CD453VBIC

15-CD453VB、15-CD453VBC

OSD Menu Operation Instruction

SETUP MANU (1/3)

I M A G E

Q U A L I T Y

→

1

I R I S 2

A G C / S E N S 3

G A M M A

4

E N H A N C E

5

I R

S E T T I N G 6

B A C K L I G H T

7

W H I T E

B A L A N C E

SETUP MANU (2/3)

F U N C T I O N M E N U

→

1 M O T I O N D E T E C T

2

D I G I T A L

Z O O M

3

H / V

R E V E R S E

4

F R E E Z

5

C R O S S L I N E

6

M A S K

7

P O S I / N E G A

7

SETUP MANU (3/3)

E X T R A

S E T T I N G

→

1

L A N G U A G E

2

T I T L E 3

R E S E T / S Y N C

1. To display OSD MENU on the screen, press the MENU key for 2 seconds.

2. To turn of OSD MENU on the screen, press the RETURN key.

3. Press UP, DOWN and ENTER keys to move and make the decision.

IRIS

→

P E A K

→

O F F / O N

A

— — █ — — — — — — P

A L C

→ A U T O / O F F

— — █ — — — — — —

A E S

→ A U T O / F I X

O F F

AES SETTING

1. AUTO: To select MANUAL IRIS lens.

2. FIX: To select AUTO IRIS lens.

3. If want to catch the speeding moving object. change the shutter speed as
1/250 , 1/300, 1/350….. till clear picture appears.

8

AGC/SENS

A G C / S E N S

→ A G C → A U T O / F I X

— — — — █ — — — — S E N S

→ A U T O / F I X

— █ — — — — — — — D N R

O N / O F F

GAMMA

G A M M A

→

T Y P E

1 / T Y P E

2

TYPE 1: GAMMA= 0.45
TYPE 2: GAMMA= 1.00

ENHANCE

E N H A N C E

H

G A I N

— — — — — — █ — — — — — —

V

G A I N

— — — — — — █ — — — — — —

When the picture is too sharp to get the clear video output, adjust H Gain / V Gain
to acquire the best image.

IR SETTING

I R S E T T I N G

→

O F F / E X T / A U T O

1. AUTO ━ Color in the daytime and B/W in the nighttime (Low Lux situation)
(15-CD453VB、15-CD453VBC recommended)

2. EXT━ ICR filter controlled by external Infrared signal.(15-CD453VBI、
15-CD453VBIC recommended)

3. OFF━ Color image all the time.

9

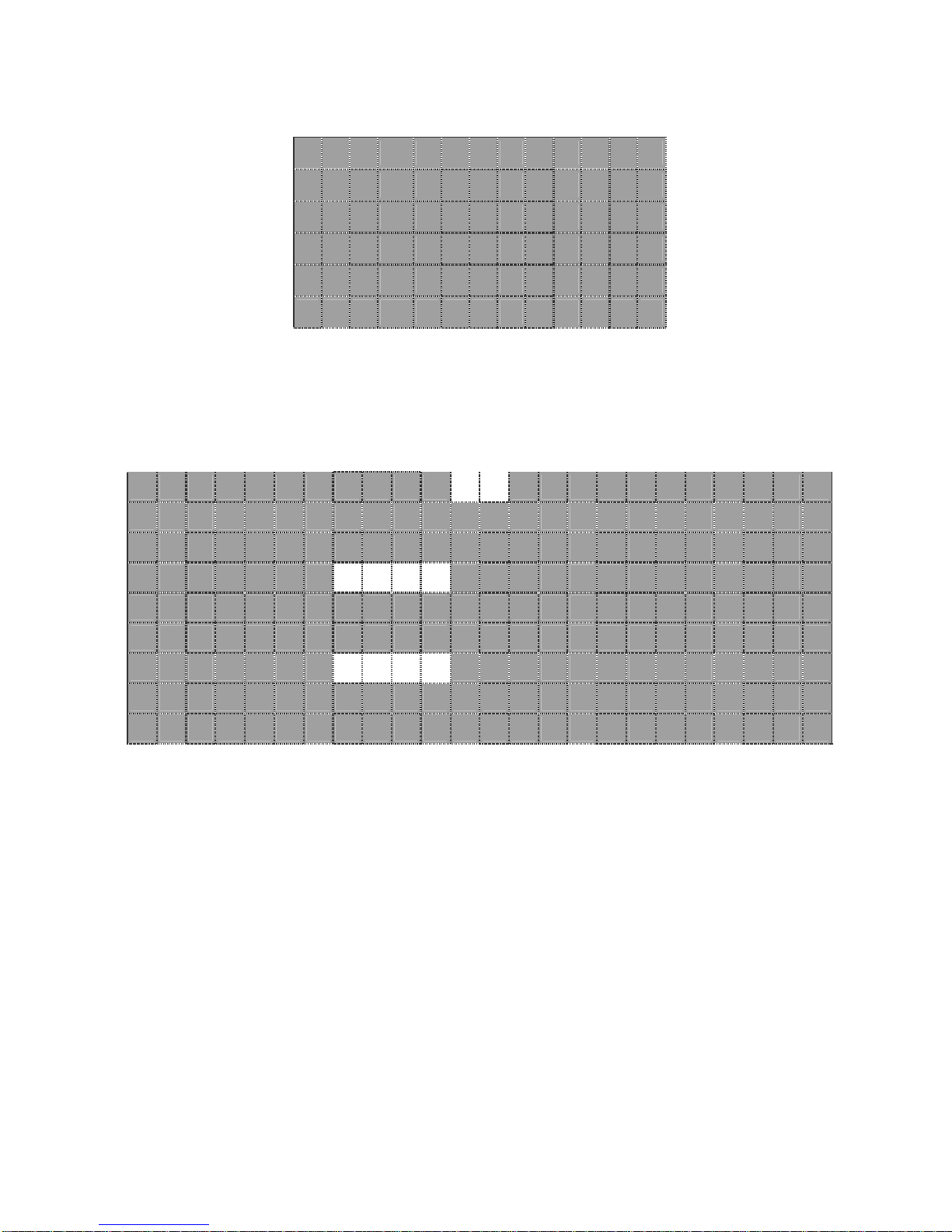

BACK LIGHT

B A C K L I G H T

→ O N / O F F

A R E A

Backlight function is not working.

B A C K L I G H T

→ O N / O F F

A R E A

48 backlight areas can be selected and shown by gray marking.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

WHITE BALANCE

W H I T E B A L A N C E

→

C O L O R

→

A U T O / O N / O F F

W B

→

A T W

R

— — — — █ — — — — B

A W B

R

— — — — █ — — — — B

G A I N

→

R

— Y

— — — — █ — — — —

B

— Y

— — — — █ — — — —

10

MOTION DETECT

M O T I O N

D E T E C T

→

O F F / O N

6 0

→

A R E A

3 0

T I M E

→

1 0

S E C

S E N S

L

— — — — █ — — — — H

D I S P L A Y

O F F / O N

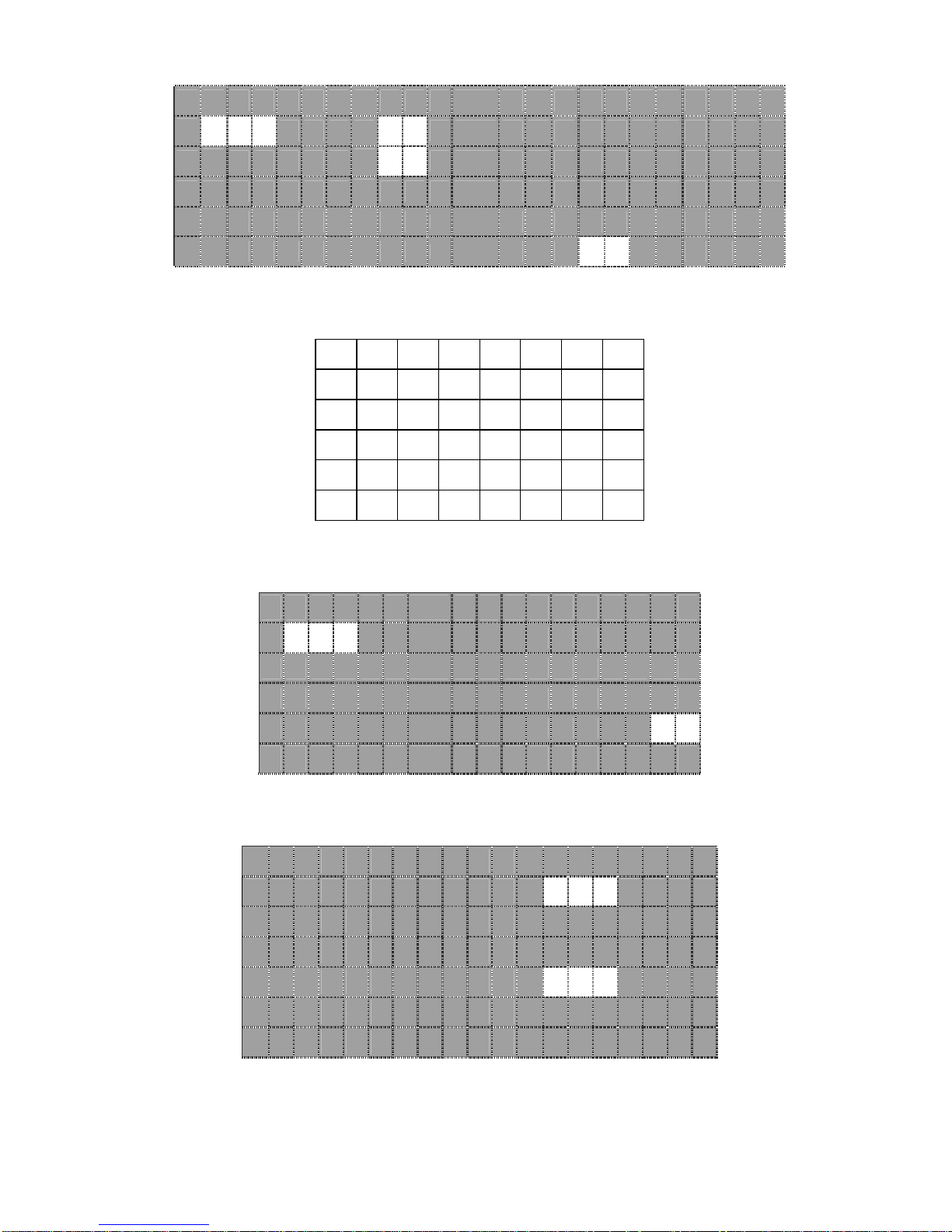

48 motion detection areas can be selected and shown by gray marking.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

DIGITAL ZOOM

D I G I T A L

Z O O M

→

O F F / O N

H - P O S I T I O N = 0 4 4
V - P O S I T I O N = 0 3 1
D I S P L A Y

O F F / O N

H/V REVERSE

H / V R E V E R S E

→

H

R E V E R S E

→

O F F / O N

V

R E V E R S E

→

O F F / O N

11

FREEZE

F R E E Z E → O F F / O N

CROSS LINE

C R O S S L I N E

→ O F F / O N

MASK

M A S K

→

N O = 1

O F F / O N

→

H — S T A R T = 0 0 0

H

— E N D

= 3 8 3

V

— S T A R T = 0 0 0

V

— E N D

= 2 3 9

POSI/NEGA

P O S I / N E G A

→

P O S I / N E G A

LANGUAGE

L A N G U A G E

→ E N G L I S H

中 文

( 繁 體 )

12

TITLE

T I T L E

→

! " # $ % & ' ( ) * + - /

0 1 2 3 4 5 6 7 8 9 : ; < = > ?

@ A B C D E F G H I J K L N M O

P Q R S T U V W X Y Z [ \ ] ^ _

` a b c d e f g h i j k l n o

p q r s t u v w x y z { | } ~

█

P O S I T I O N

→

O F F

U P
D O W N

RESET/SYNC

R E S E T / S Y N C

→

R E S E T

→

O N

P H A S E

→

O F F / O N [ U N D E T E C T E D ]

→

█ — — — — — — — — — — — — — — —

+

[UNDETECTED]: No Line-Lock Signal Input.

VER:20090416

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.

OPERATIONS IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS:(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED. INCLUDING INTERFERENCE

THAT MAY CAUSE UNDESIRABLE OPERATION. .
