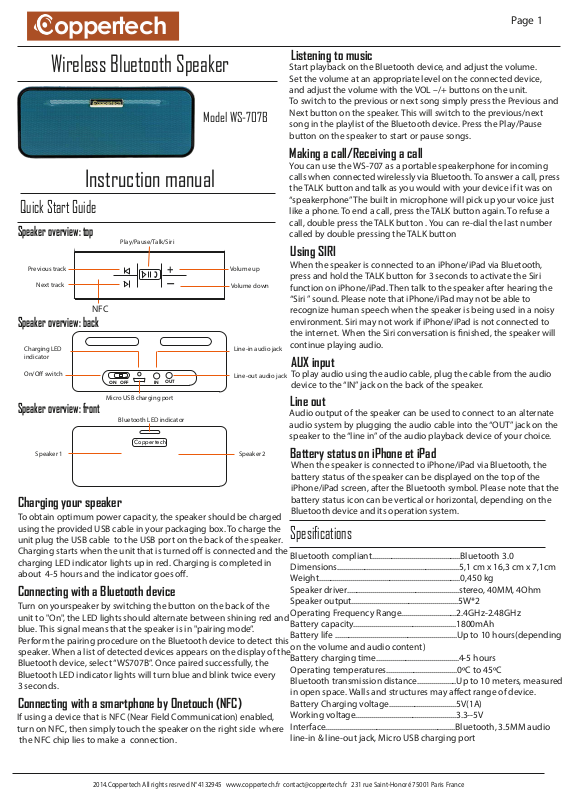

Page 1
oppertech
Wireless Bluetooth Speaker
Model WS-707B
Instruction manual
Quick Start Guide
Speaker overview: top
Previous track
Next track
NFC
Speaker overview: back
Charging LED
indicator
On/O switch
Speaker overview: front
Speaker 1 Speaker 2
Charging your speaker
To obtain optimum power capacity, the speaker should be charged
using the provided USB cable in your packaging box. To charge the
unit plug the USB cable to the USB port on the back of the speaker.
Charging starts when the unit that is turned o is connected and the
charging LED indicator lights up in red. Charging is completed in
about 4-5 hours and the indicator goes o.
Connecting with a Bluetooth device
Turn on yourspeaker by switching the button on the back of the
unit to "On", the LED lights should alternate between shining red and
blue. This signal means that the speaker is in "pairing mode”.
Perform the pairing procedure on the Bluetooth device to detect this
speaker. When a list of detected devices appears on the display of the
Bluetooth device, select “WS707B”. Once paired successfully, the
Bluetooth LED indicator lights will turn blue and blink twice every
3 seconds.
Connecting with a smartphone by Onetouch (NFC)
If using a device that is NFC (Near Field Communication) enabled,
turn on NFC, then simply touch the speaker on the right side where
the NFC chip lies to make a connection.
Play/Pause/Talk/Siri
OUT
ON OFF
Micro USB charging port
Bluetooth LED indicator
IN
Coppertech
+
-
Volume up
Volume down
Line-in audio jack
Line-out audio jack
Page 1
Listening to music
Start playback on the Bluetooth device, and adjust the volume.
Set the volume at an appropriate level on the connected device,
and adjust the volume with the VOL –/+ buttons on the unit.
To switch to the previous or next song simply press the Previous and
Next button on the speaker. This will switch to the previous/next
song in the playlist of the Bluetooth device. Press the Play/Pause
button on the speaker to start or pause songs.
Making a call/Receiving a call
You can use the WS-707 as a portable speakerphone for incoming
calls when connected wirelessly via Bluetooth. To answer a call, press
the TALK button and talk as you would with your device if it was on
“speakerphone” The built in microphone will pick up your voice just
like a phone. To end a call, press the TALK button again. To refuse a
call, double press the TALK button . You can re-dial the last number
called by double pressing the TALK button
Using SIRI
When the speaker is connected to an iPhone/iPad via Bluetooth,
press and hold the TALK button for 3 seconds to activate the Siri
function on iPhone/iPad. Then talk to the speaker after hearing the
“Siri ” sound. Please note that iPhone/iPad may not be able to
recognize human speech when the speaker is being used in a noisy
environment. Siri may not work if iPhone/iPad is not connected to
the internet. When the Siri conversation is nished, the speaker will
continue playing audio.
AUX input
To play audio using the audio cable, plug the cable from the audio
device to the “IN” jack on the back of the speaker.
Line out
Audio output of the speaker can be used to connect to an alternate
audio system by plugging the audio cable into the “OUT” jack on the
speaker to the “line in” of the audio playback device of your choice.
Battery status on iPhone et iPad
When the speaker is connected to iPhone/iPad via Bluetooth, the
battery status of the speaker can be displayed on the top of the
iPhone/iPad screen, after the Bluetooth symbol. Please note that the
battery status icon can be vertical or horizontal, depending on the
Bluetooth device and its operation system.
Spesifications
Bluetooth compliant.............................................Bluetooth 3.0
Dimensions..............................................................5,1 cm x 16,3 cm x 7,1cm
Weight........................................................................0,450 kg
Speaker driver.........................................................stereo, 40MM, 4Ohm
Speaker output......................................................5W*2
Operating Frequency Range............................2.4GHz-2.48GHz
Battery capacity....................................................1800mAh
Battery life ..............................................................Up to 10 hours(depending
on the volume and audio content)
Battery charging time..........................................4-5 hours
Operating temperatures....................................0ºC to 45ºC
Bluetooth transmission distance....................Up to 10 meters, measured
in open space. Walls and structures may aect range of device.
Battery Charging voltage..................................5V(1A)
Working voltage...................................................3.3--5V
Interface..................................................................Bluetooth, 3.5MM audio
line-in & line-out jack, Micro USB charging port
2014.Coppertech All rights resrved N°4132945 www.coppertech.fr [email protected] 231 rue Saint-Honoré 75001 Paris France
Page 2
oppertech
Page 2
Important safety information
Please read these instructions and follow these instructions. Heed all warnings.
WARNINGS:
• To reduce the risk of re or electrical shock, do not expose the
product to rain or moisture.
• Do not expose this apparatus to dripping or splashing, and do
not place objects lled with liquids, such as vases, on or near the
apparatus. As with any electronic products, use care not to spill
liquids into any part of the system. Liquids can cause a failure
and/or a re hazard.
• Do not place any naked ame sources, such as lighted candles,
on or near the apparatus.
• The apparatus not be exposed to excessive heat such as sunshine,
re or the like.
• Do not dismantle, open or shred the apparatus.
• Do not subject battery pack to mechanical shock.
• In the event of a leaking, do not allow the liquid to come in
contact with the skin or eyes. If contact has been made, wash the
aected area with copious amounts of water and seek medical
advice.
• The battery pack gives its best performance when it is operated at
normal room temperature (20°C +/- 5°C).
• The speaker needs to be charged before use. Always use the correct
charger and refer to the manufacturer’s instructions or equipment
manual for proper charging instructions.
• Keep battery pack out of the reach of children.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
• Only use attachments/accessories specied by the manufacturer.
• Unplug this apparatus during lightning storms or when unused
for long periods of time.
Warranty
12 month from the date of purchase.
Covers manufacturing defects.
For waranty service contact: [email protected]
The package includes:
- Coppertech® Bluetooth speaker WS707B
- USB charging cable
- 3.5mm audio cable
This product is in compliance with essential requirements
and other relevant prosions of Directive 1999/5. The complete
Declaration of Conformity is available at [email protected]
2014.Coppertech All rights resrved N°4132945 www.coppertech.fr [email protected] 231 rue Saint-Honoré 75001 Paris France
