Page 1
S2 and S4 series
Network Analyzer
Programming Manual.
Software version 18.1
2018
Page 2
S2VNA and S4VNA SCPI Programming Manual
2
TABLE OF CONTENTS
1 Introduction ..................................................................................................................................... 12
1.1 Programming Manual Scope ...................................................................................................... 13
1.2 Related Documents ....................................................................................................................................... 13
1.3 References ........................................................................................................................................................ 14
2 Connection Setup ................................................................................................................................................. 15
2.1 Overview ........................................................................................................................................................... 15

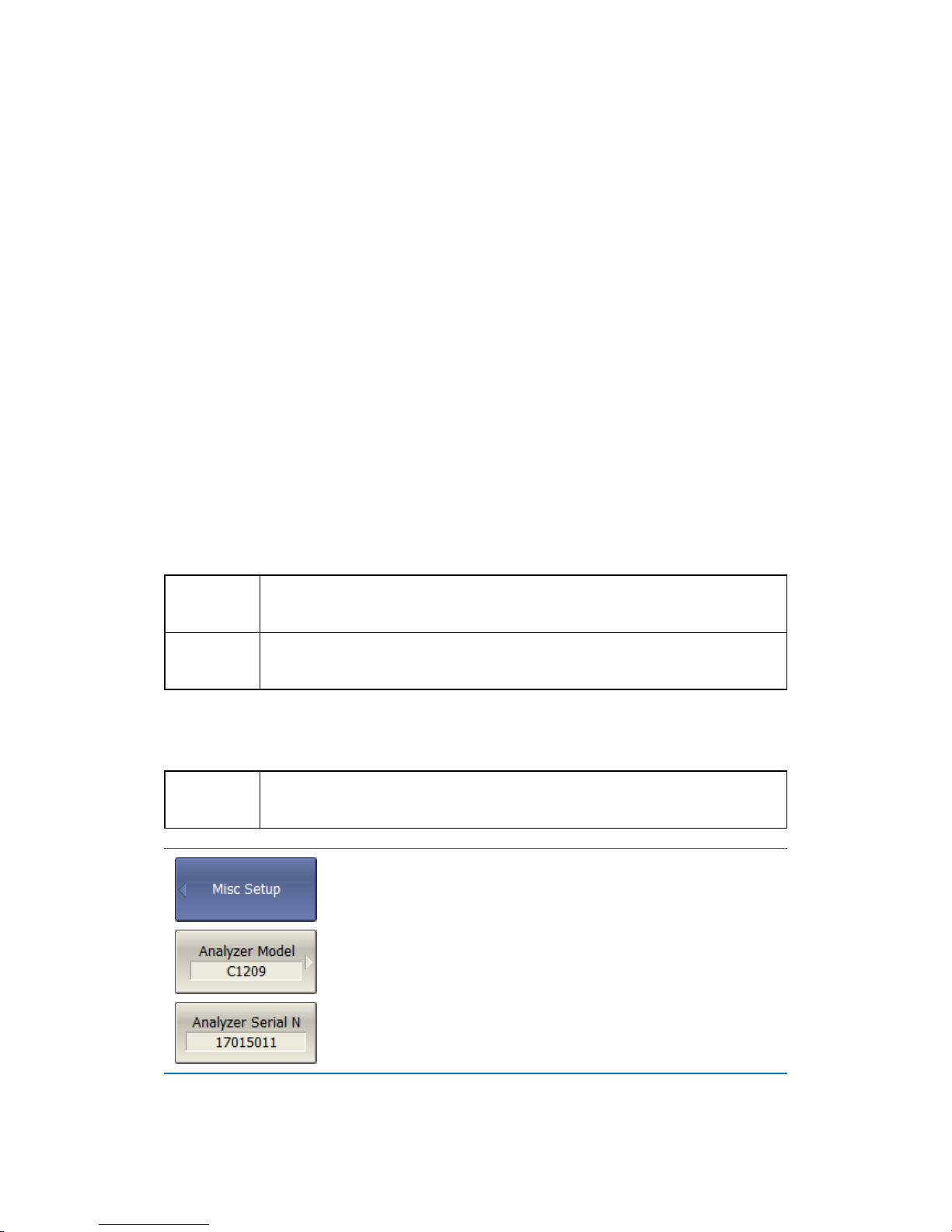

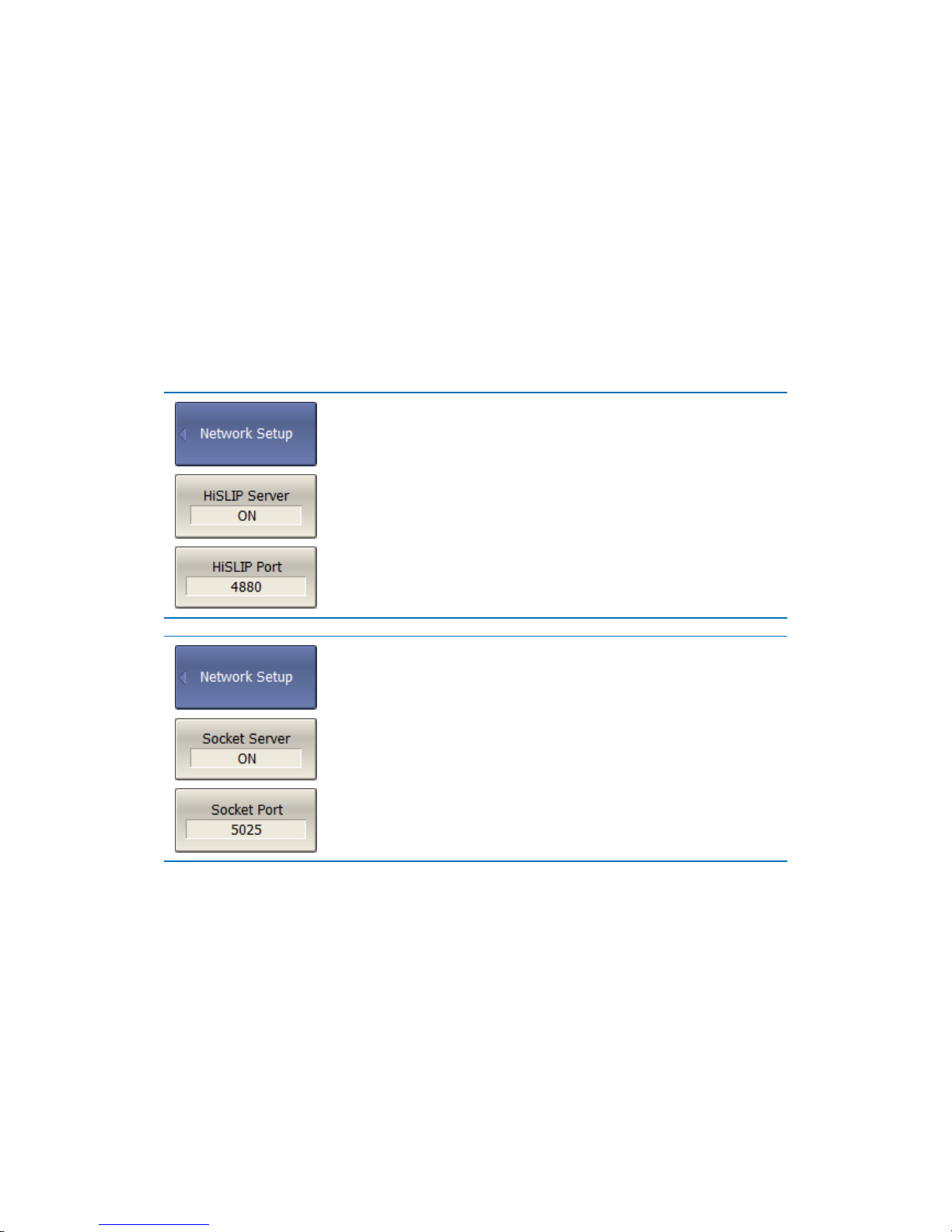

2.2 Analyzer Setting ............................................................................................................................................. 15
2.3 Client Setting .................................................................................................................................................. 16
2.4 VISA Library ..................................................................................................................................................... 17
2.5 Network and Local Configuration ............................................................................................................ 17
2.6 Connecting Multiple Analyzers to Single Computer ......................................................................... 18
2.7 Differences in Use of HiSLIP and Socket Protocols ........................................................................... 19

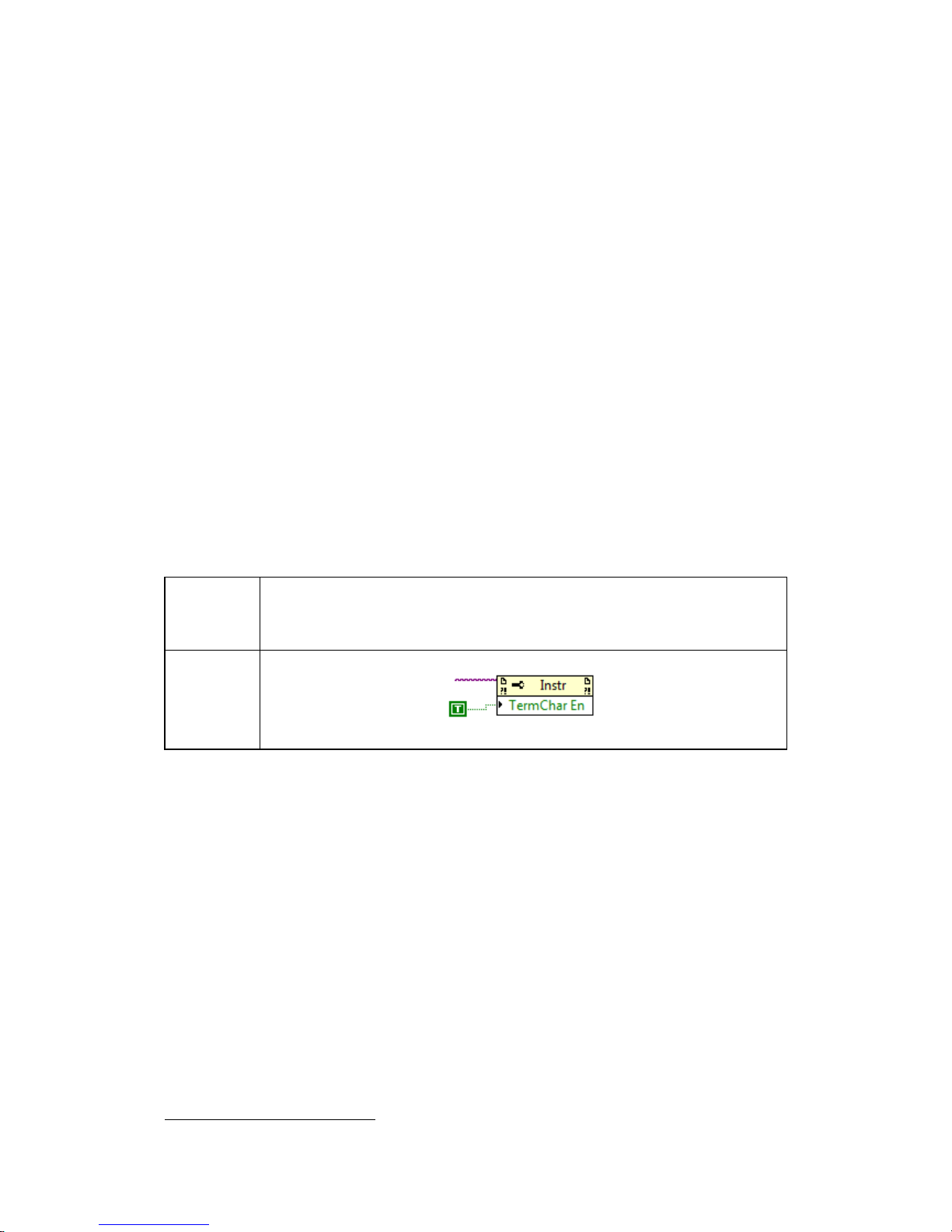

2.7.1 Terminal Character in Messages to Analyzer ................................................................................. 20
2.7.2 Terminal Character in Analyzer Responses ..................................................................................... 21
2.7.3 Interrupted Error ....................................................................................................................................... 21
2.7.4 IEEE488.2 Status Reporting System .................................................................................................. 22
2.7.5 Transfer of Binary Data .......................................................................................................................... 22
3 SCPI Overview ....................................................................................................................................................... 23
3.1 Messages .......................................................................................................................................................... 23

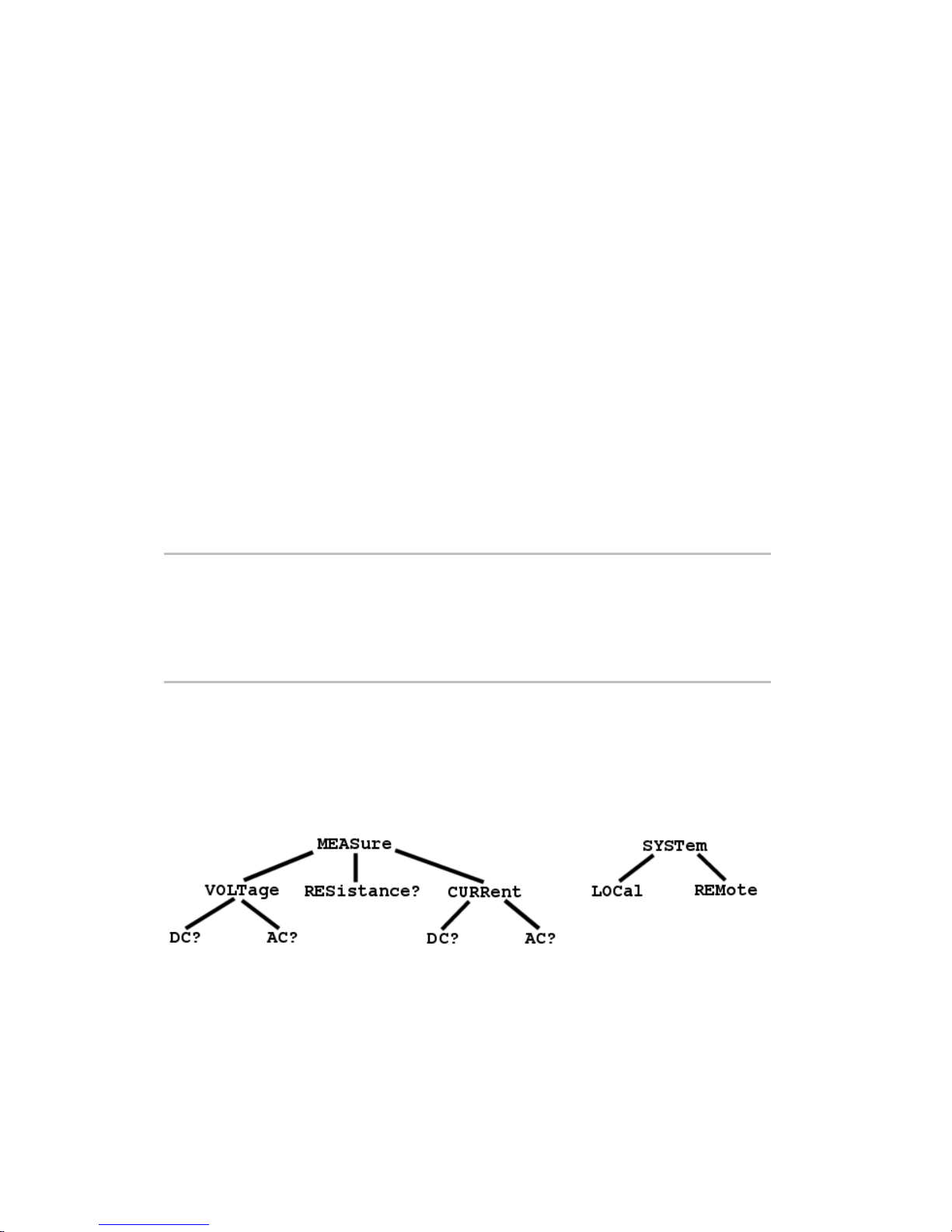

3.2 Command Tree ............................................................................................................................................... 23
3.3 Subsystems ...................................................................................................................................................... 24
3.4 Optional Subsystems .................................................................................................................................... 25
3.5 Long and Short Formats .............................................................................................................................. 25
3.6 Case Sensitivity .............................................................................................................................................. 25
3.7 Parameters ....................................................................................................................................................... 25
3.7.1 Numeric Values ......................................................................................................................................... 26
3.7.1.1
Multiplier Prefixes .............................................................................................................................. 26
3.7.1.2
Notations ............................................................................................................................................... 27
3.7.2 Booleans ...................................................................................................................................................... 27
3.7.3 Character Data ........................................................................................................................................... 27
3.7.4 String Parameters..................................................................................................................................... 28
3.7.5 Numeric Lists ............................................................................................................................................. 28
3.8 Query Commands ........................................................................................................................................... 28
3.9 Numeric Suffixes ............................................................................................................................................ 28
3.10 Compound Commands ........................................................................................................................... 29
3.11 IEEE488.2 Common Commands Overview ...................................................................................... 29
4 Remote Commands .............................................................................................................................................. 31
4.1 Conventions ..................................................................................................................................................... 31
4.1.1 Syntax........................................................................................................................................................... 31
4.1.2 Identifiers .................................................................................................................................................... 32
4.2 IEEE488.2 Common Commands................................................................................................................ 33
*CLS .......................................................................................................................................................................... 33
*ESE .......................................................................................................................................................................... 33
*ESR? ........................................................................................................................................................................ 34
*IDN? ........................................................................................................................................................................ 34
*OPC ......................................................................................................................................................................... 35
*OPC? ....................................................................................................................................................................... 35
*RST .......................................................................................................................................................................... 36
*SRE .......................................................................................................................................................................... 36
*STB? ........................................................................................................................................................................ 37
*TRG ......................................................................................................................................................................... 37
*WAI.......................................................................................................................................................................... 38
4.3 Network Analyzer Commands ................................................................................................................... 39
ABOR ........................................................................................................................................................................ 39
CALC:FSIM:BAL:DEV ............................................................................................................................................ 39
Page 3
S2VNA and S4VNA SCPI Programming Manual
3
CALC:FSIM:BAL:DMC:BPOR:PAR:C .................................................................................................................. 40
CALC:FSIM:BAL:DMC:BPOR:PAR:G ................................................................................................................. 41
CALC:FSIM:BAL:DMC:BPOR:PAR:L .................................................................................................................. 42
CALC:FSIM:BAL:DMC:BPOR:PAR:R.................................................................................................................. 43
CALC:FSIM:BAL:DMC:BPOR:TYPE ................................................................................................................... 44
CALC:FSIM:BAL:DMC:BPOR:USER:FIL............................................................................................................ 45
CALC:FSIM:BAL:DMC:STAT ............................................................................................................................... 46
CALC:FSIM:BAL:PAR:BAL ................................................................................................................................... 47
CALC:FSIM:BAL:PAR:BBAL ................................................................................................................................ 48
CALC:FSIM:BAL:PAR:SBAL ................................................................................................................................. 49
CALC:FSIM:BAL:PAR:SSB ................................................................................................................................... 50
CALC:FSIM:BAL:PAR:STAT ................................................................................................................................. 51
CALC:FSIM:BAL:TOP:BAL ................................................................................................................................... 51
CALC:FSIM:BAL:TOP:BBAL ................................................................................................................................ 52
CALC:FSIM:BAL:TOP:SBAL ................................................................................................................................ 53
CALC:FSIM:BAL:TOP:SSB ................................................................................................................................... 54
CALC:FSIM:BAL:TOP:PROP:STAT .................................................................................................................... 55
CALC:FSIM:EMB:NETW:FIL ................................................................................................................................ 55
CALC:FSIM:EMB:NETW:TYPE ............................................................................................................................ 56
CALC:FSIM:EMB:STAT ......................................................................................................................................... 56
CALC:FSIM:EMB:TOP:A:PORT ........................................................................................................................... 57
CALC:FSIM:EMB:TOP:B:PORT ........................................................................................................................... 58
CALC:FSIM:EMB:TOP:C:PORT ........................................................................................................................... 59
CALC:FSIM:EMB:TYPE ......................................................................................................................................... 60
CALC:FSIM:SEND:DEEM:STAT .......................................................................................................................... 60
CALC:FSIM:SEND:DEEM:PORT:STAT .............................................................................................................. 61
CALC:FSIM:SEND:DEEM:PORT:USER:FIL ...................................................................................................... 61
CALC:FSIM:SEND:PMC:STAT ............................................................................................................................ 62
CALC:FSIM:SEND:PMC:PORT:STAT ................................................................................................................ 62
CALC:FSIM:SEND:PMC:PORT:USER:FIL ......................................................................................................... 63
CALC:FSIM:SEND:ZCON:PORT:Z0 ................................................................................................................... 64
CALC:FSIM:SEND:ZCON:STAT .......................................................................................................................... 65
CALC:FSIM:STAT .................................................................................................................................................. 65
CALC:PAR:COUN ................................................................................................................................................... 66
CALC:PAR:DEF ....................................................................................................................................................... 67
CALC:PAR:SEL ....................................................................................................................................................... 68
CALC:PAR:SPOR .................................................................................................................................................... 68
CALC:CONV ............................................................................................................................................................ 69
CALC:CONV:FUNC ................................................................................................................................................ 70
CALC:CORR:EDEL:TIME ...................................................................................................................................... 71
CALC:CORR:OFFS:PHAS ..................................................................................................................................... 72
CALC:CORR:STAT? ............................................................................................................................................... 73
CALC:DATA:FDAT ................................................................................................................................................. 74
CALC:TRAC:DATA:FDAT ..................................................................................................................................... 74
CALC:DATA:FMEM ............................................................................................................................................... 75
CALC:TRAC:DATA:FMEM .................................................................................................................................... 75
CALC:DATA:SDAT ................................................................................................................................................. 76
CALC:TRAC:DATA:SDAT ..................................................................................................................................... 76
CALC:DATA:SMEM ............................................................................................................................................... 77
CALC:TRAC:DATA:SMEM .................................................................................................................................... 77
CALC:DATA:XAX? ................................................................................................................................................. 78
CALC:TRAC:DATA:XAX? ..................................................................................................................................... 78
CALC:FILT:TIME .................................................................................................................................................... 79
CALC:FILT:TIME:CENT ........................................................................................................................................ 80
CALC:FILT:TIME:SHAP ........................................................................................................................................ 81
CALC:FILT:TIME:SPAN ........................................................................................................................................ 82
Page 4
S2VNA and S4VNA SCPI Programming Manual
4
CALC:FILT:TIME:STAR ........................................................................................................................................ 83
CALC:FILT:TIME:STAT......................................................................................................................................... 84
CALC:FILT:TIME:STOP ........................................................................................................................................ 85
CALC:FORM ............................................................................................................................................................ 86
CALC:FUNC:DATA? .............................................................................................................................................. 87
CALC:FUNC:DOM .................................................................................................................................................. 88
CALC:FUNC:DOM:COUP ..................................................................................................................................... 89
CALC:FUNC:DOM:STAR ...................................................................................................................................... 90
CALC:FUNC:DOM:STOP ...................................................................................................................................... 91
CALC:FUNC:EXEC ................................................................................................................................................. 91
CALC:FUNC:PEXC ................................................................................................................................................. 92
CALC:FUNC:POIN? ............................................................................................................................................... 93
CALC:FUNC:PPOL ................................................................................................................................................. 94
CALC:FUNC:TARG ................................................................................................................................................. 95
CALC:FUNC:TTR.................................................................................................................................................... 96
CALC:FUNC:TYPE ................................................................................................................................................. 97
CALC:LIM ................................................................................................................................................................ 98
CALC:LIM:DATA .................................................................................................................................................... 99
CALC:LIM:DISP .................................................................................................................................................... 100
CALC:LIM:FAIL? .................................................................................................................................................. 100
CALC:LIM:OFFS:AMPL ...................................................................................................................................... 101
CALC:LIM:OFFS:MARK ...................................................................................................................................... 101
CALC:LIM:OFFS:STIM ........................................................................................................................................ 102
CALC:LIM:REP:ALL? ........................................................................................................................................... 103
CALC:LIM:REP:POIN? ........................................................................................................................................ 104
CALC:LIM:REP? ................................................................................................................................................... 104
CALC:MARK .......................................................................................................................................................... 105
CALC:MARK:ACT ................................................................................................................................................. 106
CALC:MARK:BWID .............................................................................................................................................. 106
CALC:MARK:BWID:DATA? ................................................................................................................................ 107
CALC:MARK:BWID:REF ..................................................................................................................................... 108
CALC:MARK:BWID:THR .................................................................................................................................... 109
CALC:MARK:BWID:TYPE................................................................................................................................... 110
CALC:MARK:COUN ............................................................................................................................................. 111
CALC:MARK:COUP ............................................................................................................................................. 112
CALC:MARK:DATA? ............................................................................................................................................ 113
CALC:MARK:DISC ............................................................................................................................................... 114
CALC:MARK:FUNC:DOM ................................................................................................................................... 115
CALC:MARK:FUNC:DOM:COUP ...................................................................................................................... 116
CALC:MARK:FUNC:DOM:STAR ....................................................................................................................... 117
CALC:MARK:FUNC:DOM:STOP ....................................................................................................................... 118
CALC:MARK:FUNC:EXEC .................................................................................................................................. 119
CALC:MARK:FUNC:PEXC .................................................................................................................................. 120
CALC:MARK:FUNC:PPOL .................................................................................................................................. 121
CALC:MARK:FUNC:TARG .................................................................................................................................. 122
CALC:MARK:FUNC:TRAC .................................................................................................................................. 123
CALC:MARK:FUNC:TTR ..................................................................................................................................... 124
CALC:MARK:FUNC:TYPE .................................................................................................................................. 125
CALC:MARK:MATH:FLAT:DATA? ................................................................................................................... 126
CALC:MARK:MATH:FLAT:STAT ...................................................................................................................... 127
CALC:MARK:MATH:FLAT:DOM:STAR ........................................................................................................... 127
CALC:MARK:MATH:FLAT:DOM:STOP ........................................................................................................... 128
CALC:MARK:REF ................................................................................................................................................. 128
CALC:MARK:SET ................................................................................................................................................. 129
CALC:MARK:X ...................................................................................................................................................... 130
CALC:MARK:Y? .................................................................................................................................................... 131
Page 5
S2VNA and S4VNA SCPI Programming Manual
5
CALC:MATH:FUNC ............................................................................................................................................. 132
CALC:MATH:MEM ............................................................................................................................................... 132
CALC:MST ............................................................................................................................................................. 133
CALC:MST:DATA? ............................................................................................................................................... 134
CALC:MST:DOM .................................................................................................................................................. 135
CALC:MST:DOM:STAR ....................................................................................................................................... 136
CALC:MST:DOM:STOP ...................................................................................................................................... 137
CALC:RLIM ........................................................................................................................................................... 137
CALC:RLIM:DATA ............................................................................................................................................... 138
CALC:RLIM:DISP:LINE ....................................................................................................................................... 139
CALC:RLIM:DISP:SEL ......................................................................................................................................... 139
CALC:RLIM:DISP:VAL ........................................................................................................................................ 140
CALC:RLIM:FAIL? ................................................................................................................................................ 140
CALC:RLIM:REP? ................................................................................................................................................. 141
CALC:SMO ............................................................................................................................................................ 142
CALC:SMO:APER ................................................................................................................................................. 143
CALC:TRAN:TIME ............................................................................................................................................... 144
CALC:TRAN:TIME:CENT .................................................................................................................................... 145
CALC:TRAN:TIME:IMP:WIDT ........................................................................................................................... 146
CALC:TRAN:TIME:KBES .................................................................................................................................... 147
CALC:TRAN:TIME:LPFR .................................................................................................................................... 147
CALC:TRAN:TIME:SPAN.................................................................................................................................... 148
CALC:TRAN:TIME:STAR .................................................................................................................................... 149
CALC:TRAN:TIME:STOP .................................................................................................................................... 150
CALC:TRAN:TIME:STAT .................................................................................................................................... 151
CALC:TRAN:TIME:STEP:RTIM ......................................................................................................................... 152
CALC:TRAN:TIME:STIM .................................................................................................................................... 153
CALC:TRAN:TIME:REFL:TYPE ......................................................................................................................... 154
CALC:TRAN:TIME:UNIT .................................................................................................................................... 155
DISP:COL:BACK .................................................................................................................................................. 156
DISP:COL:GRAT................................................................................................................................................... 157
DISP:COL:RES ...................................................................................................................................................... 157
DISP:COL:TRAC:DATA ....................................................................................................................................... 158
DISP:COL:TRAC:MEM ........................................................................................................................................ 159
DISP:ENAB ............................................................................................................................................................ 159
DISP:FSIG .............................................................................................................................................................. 160
DISP:IMAG ............................................................................................................................................................ 160
DISP:HIDE ............................................................................................................................................................. 161
DISP:MAX ............................................................................................................................................................. 161
DISP:SHOW .......................................................................................................................................................... 162
DISP:SPL ............................................................................................................................................................... 162
DISP:UPD .............................................................................................................................................................. 163
DISP:WIND:ACT .................................................................................................................................................. 163
DISP:WIND:ANN:MARK:ALIG .......................................................................................................................... 164
DISP:WIND:ANN:MARK:SING .......................................................................................................................... 165
DISP:WIND:MAX ................................................................................................................................................. 165
DISP:WIND:SPL ................................................................................................................................................... 166
DISP:WIND:TITL ................................................................................................................................................. 167
DISP:WIND:TITL:DATA ..................................................................................................................................... 167
DISP:WIND:TRAC:ANN:MARK:POS:X............................................................................................................ 168
DISP:WIND:TRAC:ANN:MARK:POS:Y ............................................................................................................ 169
DISP:WIND:TRAC:MEM ..................................................................................................................................... 170
DISP:WIND:TRAC:STAT .................................................................................................................................... 171
DISP:WIND:TRAC:Y:AUTO................................................................................................................................ 171
DISP:WIND:TRAC:Y:PDIV ................................................................................................................................. 172
DISP:WIND:TRAC:Y:RLEV ................................................................................................................................. 173
Page 6
S2VNA and S4VNA SCPI Programming Manual
6
DISP:WIND:TRAC:Y:RPOS ................................................................................................................................ 174
DISP:WIND:X:SPAC ............................................................................................................................................ 175
DISP:WIND:Y:DIV ................................................................................................................................................ 176
FORM:BORD ........................................................................................................................................................ 177
FORM:DATA ......................................................................................................................................................... 178
HCOP...................................................................................................................................................................... 179
HCOP:ABOR ......................................................................................................................................................... 179
HCOP:DATE:STAM ............................................................................................................................................. 179
HCOP:IMAG .......................................................................................................................................................... 180
HCOP:PAIN ........................................................................................................................................................... 180
INIT ......................................................................................................................................................................... 181
INIT:CONT ............................................................................................................................................................ 182
MMEM:CAT? ......................................................................................................................................................... 183
MMEM:COPY ........................................................................................................................................................ 183
MMEM:DEL ........................................................................................................................................................... 184
MMEM:LOAD ....................................................................................................................................................... 184
MMEM:LOAD:CHAN ........................................................................................................................................... 185
MMEM:LOAD:CKIT ............................................................................................................................................. 185
MMEM:LOAD:LIM ............................................................................................................................................... 186
MMEM:LOAD:PLOS ............................................................................................................................................ 186
MMEM:LOAD:RLIM ............................................................................................................................................ 187
MMEM:LOAD:SEGM ........................................................................................................................................... 187
MMEM:LOAD:SNP .............................................................................................................................................. 188
MMEM:LOAD:SNP:TRAC:MEM ........................................................................................................................ 188
MMEM:MDIR ........................................................................................................................................................ 189
MMEM:STOR ........................................................................................................................................................ 189
MMEM:STOR:CHAN ........................................................................................................................................... 190
MMEM:STOR:CHAN:CLE .................................................................................................................................. 190
MMEM:STOR:CKIT ............................................................................................................................................. 191
MMEM:STOR:FDAT ............................................................................................................................................ 191
MMEM:STOR:IMAG ............................................................................................................................................ 192
MMEM:STOR:LIM ............................................................................................................................................... 192
MMEM:STOR:PLOS ............................................................................................................................................ 193
MMEM:STOR:RLIM ............................................................................................................................................ 194
MMEM:STOR:SEGM ........................................................................................................................................... 194
MMEM:STOR:SNP .............................................................................................................................................. 195
MMEM:STOR:SNP:FORM ................................................................................................................................. 195
MMEM:STOR:SNP:TYPE:S1P ........................................................................................................................... 196
MMEM:STOR:SNP:TYPE:S2P ........................................................................................................................... 196
MMEM:STOR:SNP:TYPE:S3P ........................................................................................................................... 197
MMEM:STOR:SNP:TYPE:S4P ........................................................................................................................... 197
MMEM:STOR:STYP ............................................................................................................................................ 198
MMEM:TRAN? ..................................................................................................................................................... 199
OUTP ...................................................................................................................................................................... 199
SENS:AVER ........................................................................................................................................................... 200
SENS:AVER:CLE .................................................................................................................................................. 200
SENS:AVER:COUN .............................................................................................................................................. 201
SENS:BAND .......................................................................................................................................................... 202
SENS:BWID ........................................................................................................................................................... 202
SENS:CORR:CLE .................................................................................................................................................. 202
SENS:CORR:COEF .............................................................................................................................................. 203
SENS:CORR:COEF:METH:ERES ...................................................................................................................... 204
SENS:CORR:COEF:METH:OPEN ..................................................................................................................... 204
SENS:CORR:COEF:METH:SHOR ..................................................................................................................... 205
SENS:CORR:COEF:METH:SOLT1 ................................................................................................................... 205
SENS:CORR:COEF:METH:SOLT2 ................................................................................................................... 206
Page 7
S2VNA and S4VNA SCPI Programming Manual
7
SENS:CORR:COEF:METH:SOLT3 ................................................................................................................... 206
SENS:CORR:COEF:METH:SOLT4 ................................................................................................................... 207
SENS:CORR:COEF:METH:THRU ..................................................................................................................... 207
SENS:CORR:COEF:SAVE ................................................................................................................................... 208
SENS:CORR:COLL:ADAP:DEL .......................................................................................................................... 209
SENS:CORR:COLL:ADAP:DEL:UNIT............................................................................................................... 210
SENS:CORR:COLL:ADAP:MED ........................................................................................................................ 211
SENS:CORR:COLL:ADAP:DEL:PERM ............................................................................................................. 211
SENS:CORR:COLL:ADAP:WAV:CUT ............................................................................................................... 212
SENS:CORR:COLL:METH:ADAP:REM ............................................................................................................ 212
SENS:CORR:COLL:CKIT .................................................................................................................................... 213
SENS:CORR:COLL:CKIT:LAB ........................................................................................................................... 213
SENS:CORR:COLL:CKIT:ORD:LOAD .............................................................................................................. 214
SENS:CORR:COLL:CKIT:ORD:OPEN .............................................................................................................. 215
SENS:CORR:COLL:CKIT:ORD:SEL .................................................................................................................. 215
SENS:CORR:COLL:CKIT:ORD:SHOR .............................................................................................................. 216
SENS:CORR:COLL:CKIT:ORD:THRU .............................................................................................................. 217
SENS:CORR:COLL:CKIT:ORD:TRLL ............................................................................................................... 218
SENS:CORR:COLL:CKIT:ORD:TRLT ............................................................................................................... 219
SENS:CORR:COLL:CKIT:ORD:TRLR ............................................................................................................... 220
SENS:CORR:COLL:CKIT:RES ........................................................................................................................... 220
SENS:CORR:COLL:CKIT:STAN:ARB ............................................................................................................... 221
SENS:CORR:COLL:CKIT:STAN:C0 .................................................................................................................. 222
SENS:CORR:COLL:CKIT:STAN:C1 .................................................................................................................. 223
SENS:CORR:COLL:CKIT:STAN:C2 .................................................................................................................. 224
SENS:CORR:COLL:CKIT:STAN:C3 .................................................................................................................. 225
SENS:CORR:COLL:CKIT:STAN:DEL ............................................................................................................... 226
SENS:CORR:COLL:CKIT:STAN:FMAX ............................................................................................................ 227
SENS:CORR:COLL:CKIT:STAN:FMIN ............................................................................................................. 228
SENS:CORR:COLL:CKIT:STAN:L0 .................................................................................................................. 229
SENS:CORR:COLL:CKIT:STAN:L1 .................................................................................................................. 230
SENS:CORR:COLL:CKIT:STAN:L2 .................................................................................................................. 231
SENS:CORR:COLL:CKIT:STAN:L3 .................................................................................................................. 232
SENS:CORR:COLL:CKIT:STAN:LAB ............................................................................................................... 232
SENS:CORR:COLL:CKIT:STAN:LOSS ............................................................................................................. 233
SENS:CORR:COLL:CKIT:STAN:TYPE ............................................................................................................. 234
SENS:CORR:COLL:CKIT:STAN:Z0 .................................................................................................................. 235
SENS:CORR:COLL:CLE ...................................................................................................................................... 235
SENS:CORR:COLL:ECAL:INF? ......................................................................................................................... 236
SENS:CORR:COLL:ECAL:ORI:EXEC ................................................................................................................ 236
SENS:CORR:COLL:ECAL:ORI:STAT ................................................................................................................ 237
SENS:CORR:COLL:ECAL:PATH ....................................................................................................................... 237
SENS:CORR:COLL:ECAL:SOLT1 ..................................................................................................................... 238
SENS:CORR:COLL:ECAL:SOLT2 ..................................................................................................................... 238
SENS:CORR:COLL:ECAL:SOLT3 ..................................................................................................................... 239
SENS:CORR:COLL:ECAL:SOLT4 ..................................................................................................................... 239
SENS:CORR:COLL:ECAL:UCH.......................................................................................................................... 240
SENS:CORR:COLL:ECAL:UTHR:STAT ............................................................................................................ 241
SENS:CORR:COLL:DATA:ISOL ........................................................................................................................ 242
SENS:CORR:COLL:DATA:LOAD ...................................................................................................................... 243
SENS:CORR:COLL:DATA:OPEN ...................................................................................................................... 244
SENS:CORR:COLL:DATA: SHOR ..................................................................................................................... 245
SENS:CORR:COLL:DATA:THRU:MATC ......................................................................................................... 246
SENS:CORR:COLL:DATA:THRU:TRAN .......................................................................................................... 247
SENS:CORR:COLL:ISOL .................................................................................................................................... 248
SENS:CORR:COLL:LOAD .................................................................................................................................. 249
Page 8
S2VNA and S4VNA SCPI Programming Manual
8
SENS:CORR:COLL:OPEN .................................................................................................................................. 250
SENS:CORR:COLL:SHOR .................................................................................................................................. 251
SENS:CORR:COLL:THRU .................................................................................................................................. 252
SENS:CORR:COLL:TRLL ................................................................................................................................... 253
SENS:CORR:COLL:TRLT ................................................................................................................................... 254
SENS:CORR:COLL:TRLR ................................................................................................................................... 254
SENS:CORR:COLL:SUBC ................................................................................................................................... 255
SENS:CORR:COLL:METH:ERES....................................................................................................................... 255
SENS:CORR:COLL:METH:OPEN ..................................................................................................................... 256
SENS:CORR:COLL:METH: SHOR .................................................................................................................... 256
SENS:CORR:COLL:METH:SOLT1 .................................................................................................................... 257
SENS:CORR:COLL:METH:SOLT2 .................................................................................................................... 257
SENS:CORR:COLL:METH:SOLT3 .................................................................................................................... 258
SENS:CORR:COLL:METH:SOLT4 .................................................................................................................... 258
SENS:CORR:COLL:METH:THRU ..................................................................................................................... 259
SENS:CORR:COLL:METH:TRL2 ...................................................................................................................... 259
SENS:CORR:COLL:METH:TRL3 ...................................................................................................................... 260
SENS:CORR:COLL:METH:TRL4 ...................................................................................................................... 260
SENS:CORR:COLL:METH:TYPE? .................................................................................................................... 261
SENS:CORR:COLL:SAVE ................................................................................................................................... 262
SENS:CORR:COLL:SIMP:SAVE ........................................................................................................................ 263
SENS:CORR:EXT:AUTO:CONF ........................................................................................................................ 264
SENS:CORR:EXT:AUTO:DCOF......................................................................................................................... 265
SENS:CORR:EXT:AUTO:LOSS ......................................................................................................................... 265
SENS:CORR:EXT:AUTO:MEAS ........................................................................................................................ 266
SENS:CORR:EXT:AUTO:PORT ......................................................................................................................... 267
SENS:CORR:EXT:AUTO:RES ............................................................................................................................ 267
SENS:CORR:EXT:AUTO:STAR ......................................................................................................................... 268
SENS:CORR:EXT:AUTO:STOP ......................................................................................................................... 269
SENS:CORR:EXT ................................................................................................................................................. 270
SENS:CORR:EXT:PORT:FREQ ......................................................................................................................... 271
SENS:CORR:EXT:PORT:INCL ........................................................................................................................... 272
SENS:CORR:EXT:PORT:LDC ............................................................................................................................ 273
SENS:CORR:EXT:PORT:LOSS .......................................................................................................................... 274
SENS:CORR:EXT:PORT:TIME .......................................................................................................................... 275
SENS:CORR:INF? ................................................................................................................................................ 276
SENS:CORR:IMP .................................................................................................................................................. 276
SENS:CORR:OFFS:CLE ...................................................................................................................................... 277
SENS:CORR:OFFS:COLL:CLE ........................................................................................................................... 277
SENS:CORR:OFFS:COLL:LOAD ....................................................................................................................... 278
SENS:CORR:OFFS:COLL:METH:SMIX2 ........................................................................................................ 279
SENS:CORR:OFFS:COLL:OPEN ....................................................................................................................... 279
SENS:CORR:OFFS:COLL:PMETer ................................................................................................................... 280
SENS:CORR:OFFS:COLL:SHOR ....................................................................................................................... 281
SENS:CORR:OFFS:COLL:THRU ....................................................................................................................... 282
SENS:CORR:OFFS:COLL:SAVE ........................................................................................................................ 283
SENS:CORR:REC ................................................................................................................................................. 284
SENS:CORR:REC:COLL:ACQ ............................................................................................................................ 284
SENS:CORR:REC:COLL:RCH:ACQ ................................................................................................................... 285
SENS:CORR:REC:COLL:TCH:ACQ ................................................................................................................... 285
SENS:CORR:REC:OFFS:AMPL ......................................................................................................................... 286
SENS:CORR:STAT ............................................................................................................................................... 287
SENS:CORR:TRAN:TIME:FREQ ....................................................................................................................... 287
SENS:CORR:TRAN:TIME:LOSS ....................................................................................................................... 288
SENS:CORR:TRAN:TIME:RVEL ........................................................................................................................ 288
SENS:CORR:TRAN:TIME:STAT ........................................................................................................................ 289
Page 9
S2VNA and S4VNA SCPI Programming Manual
9
SENS:CORR:TRIG:FREE..................................................................................................................................... 290
SENS:CORR:TYPE? ............................................................................................................................................. 291
SENS:DATA:CORR? ............................................................................................................................................ 292
SENS:DATA:RAWD? ........................................................................................................................................... 293
SENS:FREQ ........................................................................................................................................................... 294
SENS:FREQ:DATA? ............................................................................................................................................. 295
SENS:FREQ:CENT ............................................................................................................................................... 296
SENS:FREQ:SPAN ............................................................................................................................................... 297
SENS:FREQ:STAR ............................................................................................................................................... 298
SENS:FREQ: STOP .............................................................................................................................................. 299
SENS:OFFS ........................................................................................................................................................... 300
SENS:OFFS:PORT:DATA? ................................................................................................................................. 300
SENS:OFFS:PORT:DIV ....................................................................................................................................... 301
SENS:OFFS:PORT:MULT .................................................................................................................................. 302
SENS:OFFS:PORT:OFFS .................................................................................................................................... 303
SENS:OFFS:PORT:STAR ................................................................................................................................... 304
SENS:OFFS:PORT:STOP ................................................................................................................................... 305
SENS:OFFS:REC:DATA? .................................................................................................................................... 306
SENS:OFFS:REC:DIV .......................................................................................................................................... 307
SENS:OFFS:REC:MULT...................................................................................................................................... 308
SENS:OFFS:REC:OFFS ....................................................................................................................................... 309
SENS:OFFS:REC:STAR ....................................................................................................................................... 310
SENS:OFFS:REC:STOP ...................................................................................................................................... 311
SENS:OFFS:SOUR:DATA? ................................................................................................................................. 312
SENS:OFFS:SOUR:DIV ....................................................................................................................................... 313
SENS:OFFS:SOUR:MULT .................................................................................................................................. 314
SENS:OFFS:SOUR:OFFS ................................................................................................................................... 315
SENS:OFFS:SOUR:STAR ................................................................................................................................... 316
SENS:OFFS:SOUR:STOP ................................................................................................................................... 317
SENS:OFFS:TYPE ................................................................................................................................................ 318
SENS:ROSC:SOUR .............................................................................................................................................. 319
SENS:SEGM:DATA .............................................................................................................................................. 320
SENS:SWE:POIN ................................................................................................................................................. 321
SENS:SWE:POIN:TIME ...................................................................................................................................... 322
SENS:SWE:TYPE ................................................................................................................................................. 323
SENS:VOLT:DC:RANG:UPP .............................................................................................................................. 324
SERV:CHAN:ACT? ............................................................................................................................................... 324
SERV:CHAN:COUN? ........................................................................................................................................... 325
SERV:CHAN:TRAC:ACT? ................................................................................................................................... 325
SERV:CHAN:TRAC:COUN? ............................................................................................................................... 325
SERV:PORT:COUN? ............................................................................................................................................ 326
SERV:SWE:FREQ:MAX? ..................................................................................................................................... 326
SERV:SWE:FREQ:MIN? ...................................................................................................................................... 326
SERV:SWE:POIN? ................................................................................................................................................ 327
SOUR:POW ........................................................................................................................................................... 327
SOUR:POW:CENT ............................................................................................................................................... 328
SOUR:POW:PORT ............................................................................................................................................... 329
SOUR:POW:PORT:CORR ................................................................................................................................... 330
SOUR:POW:PORT:CORR:COLL ....................................................................................................................... 330
SOUR:POW:PORT:CORR:COLL:TABL:LOSS:DATA .................................................................................... 331
SOUR:POW:PORT:CORR:COLL:TABL:LOSS ................................................................................................ 332
SOUR:POW:PORT:CORR:DATA ....................................................................................................................... 333
SOUR:POW:PORT:COUP................................................................................................................................... 334
SOUR:POW:SLOP ............................................................................................................................................... 335
SOUR:POW:SLOP:STAT .................................................................................................................................... 336
SOUR:POW:SPAN ............................................................................................................................................... 337
Page 10
S2VNA and S4VNA SCPI Programming Manual
10
SOUR:POW:STAR................................................................................................................................................ 338
SOUR:POW:STOP ............................................................................................................................................... 339
STAT:OPER? ......................................................................................................................................................... 339
STAT:OPER:COND? ............................................................................................................................................ 340
STAT:OPER:ENAB ............................................................................................................................................... 340
STAT:OPER:NTR ................................................................................................................................................. 341
STAT:OPER:PTR .................................................................................................................................................. 341
STAT:PRES ........................................................................................................................................................... 342
STAT:QUES:COND? ............................................................................................................................................ 342
STAT:QUES:ENAB ............................................................................................................................................... 343
STAT:QUES:LIM:CHAN:COND? ....................................................................................................................... 343
STAT:QUES:LIM:CHAN:ENAB.......................................................................................................................... 344
STAT:QUES:LIM:CHAN:NTR ............................................................................................................................ 344
STAT:QUES:LIM:CHAN:PTR ............................................................................................................................. 345
STAT:QUES:LIM:CHAN?.................................................................................................................................... 345
STAT:QUES:LIM:COND? ................................................................................................................................... 346
STAT:QUES:LIM:ENAB ...................................................................................................................................... 346
STAT:QUES:LIM:NTR ......................................................................................................................................... 347
STAT:QUES:LIM:PTR ......................................................................................................................................... 347
STAT:QUES:LIM? ................................................................................................................................................ 348
STAT:QUES:NTR ................................................................................................................................................. 348
STAT:QUES:PTR .................................................................................................................................................. 349
STAT:QUES:RLIM:CHAN:COND? .................................................................................................................... 349
STAT:QUES:RLIM:CHAN:ENAB ....................................................................................................................... 350
STAT:QUES:RLIM:CHAN:NTR ......................................................................................................................... 350
STAT:QUES:RLIM:CHAN:PTR .......................................................................................................................... 351
STAT:QUES:RLIM:CHAN? ................................................................................................................................. 351
STAT:QUES:RLIM:COND? ................................................................................................................................ 352
STAT:QUES:RLIM:ENAB ................................................................................................................................... 352
STAT:QUES:RLIM:NTR ...................................................................................................................................... 353
STAT:QUES:RLIM:PTR ...................................................................................................................................... 353
STAT:QUES:RLIM? ............................................................................................................................................. 354
STAT:QUES? ......................................................................................................................................................... 354
SYST:BEEP:COMP:IMM ..................................................................................................................................... 354
SYST:BEEP:COMP:STAT ................................................................................................................................... 355
SYST:BEEP:WARN:IMM ..................................................................................................................................... 355
SYST:BEEP:WARN:STAT ................................................................................................................................... 356
SYST:COMM:ECAL:TEMP:SENS? .................................................................................................................... 356
SYST:COMM:ECAL:IMP ..................................................................................................................................... 357
SYST:COMM:ECAL:THRU ................................................................................................................................. 357
SYST:COMM:ECAL:CHEC .................................................................................................................................. 358
SYST:CORR ........................................................................................................................................................... 358
SYST:CYCL:TIME:MEAS? .................................................................................................................................. 359
SYST:DATE ........................................................................................................................................................... 359
SYST:ERR? ............................................................................................................................................................ 360
SYST:FREQ:EXT:RFP:POW ............................................................................................................................... 360
SYST:FREQ:EXT:RFP:PSL ................................................................................................................................. 361
SYST:FREQ:EXT:LOP:POW .............................................................................................................................. 362
SYST:FREQ:EXT:LOP:PSL ................................................................................................................................. 363
SYST:LOC .............................................................................................................................................................. 363
SYST:PORT:SWIT:DEL ....................................................................................................................................... 364
SYST:PRES ............................................................................................................................................................ 364
SYST:READy? ....................................................................................................................................................... 365
SYST:REM ............................................................................................................................................................. 365
SYST:RWL ............................................................................................................................................................. 366
SYST:HIDE ............................................................................................................................................................ 366
Page 11
S2VNA and S4VNA SCPI Programming Manual
11
SYST:SHOW ......................................................................................................................................................... 366
SYST:TEMP:SENS? ............................................................................................................................................. 367
SYST:TIME ............................................................................................................................................................ 367
SYST:TERM .......................................................................................................................................................... 368
TRIG........................................................................................................................................................................ 368
TRIG:AVER ............................................................................................................................................................ 369
TRIG:EXT:DEL ...................................................................................................................................................... 370
TRIG:EXT:SLOP ................................................................................................................................................... 371
TRIG:EXT:POS ..................................................................................................................................................... 372
TRIG:OUTP:FUNC ............................................................................................................................................... 373
TRIG:OUTP:POL .................................................................................................................................................. 374
TRIG:OUTP:STAT ................................................................................................................................................ 374
TRIG:POIN ............................................................................................................................................................ 375
TRIG:SING ............................................................................................................................................................. 376
TRIG:SCOP ............................................................................................................................................................ 377
TRIG:SOUR ........................................................................................................................................................... 378
TRIG:STAT? .......................................................................................................................................................... 379
TRIG:WAIT ............................................................................................................................................................ 379
5 Programming Tips ............................................................................................................................................. 380
5.1 Program Sweep Initiation and Waiting ................................................................................................ 380
5.2 External Trigger ........................................................................................................................................... 381
5.3 Waiting for Calibration Commands ...................................................................................................... 382
5.4 VISA Timeout Considerations .................................................................................................................. 382
5.5 Receiving Data Arrays in Text Form ...................................................................................................... 383
5.6 Receiving Data Arrays in Binary Form .................................................................................................. 383
Appendix 1. IEE488.2 Status Reporting System................................................................................................ 385
Appendix 2. Error Codes ............................................................................................................................................ 391
Appendix 3. Programming Examples .................................................................................................................... 394
Page 12
S2VNA and S4VNA SCPI Programming Manual
12
1 Introduction
This Manual contains information about the CMT Network Analyzer remote control and its data communication, carried out by means of user program through a computer network.
This manual describes the analyzer command system and the network protocols used to deliver commands. The commands sent to the analyzer and the responses from it are text messages conforming to the SCPI (Standard Commands for Programmable Instruments) specification. The text messages are delivered over computer networks using HiSLIP or TCP/IP Socket network protocols.
HiSLIP (High-Speed LAN Instrument Protocol) — a network protocol intended for remote control of measuring and testing equipment, is based on the TCP/IP network protocol. HiSLIP is developed by the consortium IVI Foundation as the successor to GPIB1 and VXI-112 protocols. The user program, as a rule, relies on the implementation of the HiSLIP protocol in the VISA library.
TCP/IP Socket is a general-purpose network protocol. The user program can connect to the analyzer using the TCP/IP Socket protocol both directly and through the VISA library.
VISA (Virtual Instrument Software Architecture) is a widely used software input­output interface in the field of testing and measurement for controlling devices from a personal computer. It is a library of functions for C / C ++, C #, Visual Basic, MATLAB, LabVIEW and others. The VISA library unifies access to all measuring instruments, regardless of the protocol and equipment used. The VISA library is installed on the client side, that is, on the computer where the user program is executed. The VISA library is available on the websites of many companies for free download. There are versions for Linux, Mac OS, Windows.
Section 2 of the manual describes how to establish a network connection between the user program and the analyzer using the HiSLIP or TCP/IP Socket protocol. It shows the differences between the HiSLIP and TCP/IP Socket protocols in terms of writing user programs.
Sections 3 and 4 of the manual describe general information about SCPI and the analyzer command system, respectively.
Section 5 of the manual focuses on recommendations about programming in some specific situations.
Appendixies 1 through 3 contain information about the IEE488.2 Status Reporting System, Error Codes, and Sample Programs.
1
GPIB is a bus interface that connects measurement and test equipmet to a computer.
2
VXI-11 is a network protocol for remote control of measurement and test equipmet.
Page 13
S2VNA and S4VNA SCPI Programming Manual
13
Note. Analyzers support an alternative remote control technology based on COM. Its description is contained in a separate manual.
1.1 Programming Manual Scope
This programmer's manual covers the 2-port and 4-port models of the CMT network analyzers listed below.
The 2-port network analyzers controlled by the S2VNA softwar are:
Planar 304/1
Planar 804/1
Planar 814/1
S5048
S5065
S5085
S7530
S5180
C1209
C1220
C2220
C2209
C4209
C4220
The 4-port network analyzers controlled by the S4VNA software are:
Planar 808/1
С1409
C1420
C2409
C4409
1.2 Related Documents
Before reading this Manual, familiarize yourself with Analyzer Operating Manual.
Page 14
S2VNA and S4VNA SCPI Programming Manual
14
1.3 References
IEEE Standard 488.2–1992, IEEE Standard Codes, Formats, Protocols and Common Commands for Use with ANSI/IEEE Std 488.1–1987. IEEE, New York, NY, 1992.
Standard Commands for Programmable Instruments (SCPI),
http://www.ivifoundation.org/specifications
High-Speed LAN Instrument Protocol (HiSLIP),
http://www.ivifoundation.org/specifications
VISA specifications, http://www.ivifoundation.org/specifications
Page 15
S2VNA and S4VNA SCPI Programming Manual
15
2 Connection Setup
2.1 Overview
To enable remote control of the analyzer, the user must enable the HiSLIP server or Socket server in the settings of the analyzer's program. After that the analyzer’s program waits for connection from the user program (client).
HiSLIP server and Socket server use various network protocols based on TCP/IP protocol. HiSLIP is a specialized protocol developed for measuring and test equipment. TCP/IP Socket is a general-purpose protocol.
It is possible to simultaneously enable both HiSLIP and Socket servers in the analyzer program. In this case, the client determines the connection protocol. When using the VISA library, the client selects the protocol by specifying it in the address string of the analyzer.
After a connection has been established on the initiative of the client, the latter can send text commands and read the results of the measurements. The command set is the same for both protocols and is described in sections 3 and 4.
The VISA library hides the details of protocol implementation from the user and provides an uniform I/O interface. Nevertheless, there are some minor differences in programming methods using the HiSLIP and TCP/IP Socket protocols, which are described later in Section 2.7.
Usually the user program and the analyzer program run on different computers connected by the local network. However, it is possible that the user and analyzer program runs on the same computer. In the latter case, the client specifies the IP address of the analyzer's computer – 127.0.0.1 or the network name of the analyzer's computer – localhost.
Multiple analyzer programs can be executed on the same computer (when several USB analyzer blocks are connected). In this case, remote control of each analyzer is possible. For this purpose, the user must specify a unique TCP/IP port number in the settings of each analyzer program.
One analyzer program does not limit the number of simultaneously connected clients. Clients themselves are responsible for the absence of conflicts in the remote control of the analyzer. The HiSLIP protocol supports the exclusive or shared lock of the analyzer by the client. For more details about locks, see the VISA manual.
2.2 Analyzer Setting
Page 16
S2VNA and S4VNA SCPI Programming Manual
16
For remote access to the analyzer it is necessary to make the following settings in its program:
Enable HiSLIP server and/or Socket server;
Configure the TCP/IP port number (optional).
Configuring the TCP/IP port number is necessary in the only case where several analyzer programs are simultaneously executed on the same computer, and these programs require remote remote control. In other cases, you should leave the default TCP/IP port number: for the HiSLIP server - 4880, and for the Socket server – 5025.
To enable remote control of the analyzer using the HiSLIP protocol, press the following softkeys:
System
> Misc Setup > Network Setup > HiSLIP Server
[ON/OFF].
To change the TCP/IP port number of the HiSLIP server, use the following softkeys:
System
> Misc Setup > Network Setup > HiSLIP Port.
To enable remote control of the analyzer using the Socket protocol, press the following softkeys:
System
> Misc Setup > Network Setup > Socket Server
[ON/OFF].
To change the TCP/IP port number of the Socket server, use the following softkeys:
System
> Misc Setup > Network Setup > Socket Port.
2.3 Client Setting
If the client is a user program that works through the VISA library, the easiest way to configure the network connection with the Analyzer is using a special graphical utility from VISA package (for example, NI-MAX, Keysight Connection Expert).
According to the manual for the above utilities, add a new network device, specifying the network name or IP address of the Analyzer's computer, and the protocol. As a result of successful connection to the Analyzer, the VISA address of
Page 17
S2VNA and S4VNA SCPI Programming Manual
17
the analyzer will be automatically generated and displayed. The VISA address of the Analyzer is used later in the user program in order to open the connection.
The format of the VISA address for the HiSLIP and Socket protocols:
HiSLIP TCPIP[board]::host address[::HiSLIP device name[,HiSLIP port]][::INSTR]
Socket TCPIP[board]::host address::port::SOCKET
Examples of VISA address for HiSLIP and Socket protocols:
HiSLIP TCPIP0::192.168.0.1::hislip0::INSTR
TCPIP0::localhost::hislip0::INSTR
Socket TCPIP0::192.168.0.1::5025::SOCKET
TCPIP0::localhost::5025::SOCKET
If the client is a user program that does not use the VISA library, then only the TCP/IP Socket protocol is available to it. In this case, the user program establishes a connection using the IP address of the analyzer's Socket server.
The format of the IP address of the analyzer's Socket server:
Socket host address:port
Examples of the IP address of the analyzer's Socket server:
Socket 192.168.0.1:5025
localhost:5025
2.4 VISA Library
Using the VISA (Virtual Instrument Software Architecture) library is most common approach. The VISA library is a widely used software input-output interface in the field of testing and measurement for controlling devices from a personal computer. It is a library of functions for C/C ++, C #, Visual Basic, MATLAB, LabVIEW and others.
The VISA Library unifies access to all measuring instruments, regardless of the protocol and equipment used.
The VISA library is installed on the client side, that is, on the computer where the user program is executed. The VISA library is available on the websites of many companies for free download. There are versions for Linux, Mac OS, Windows
2.5 Network and Local Configuration
Page 18
S2VNA and S4VNA SCPI Programming Manual
18
A network configuration involves executing a user program and analyzer program on different computers connected by a local area network.
The local configuration involves executing the user program and the analyzer program on the single computer.

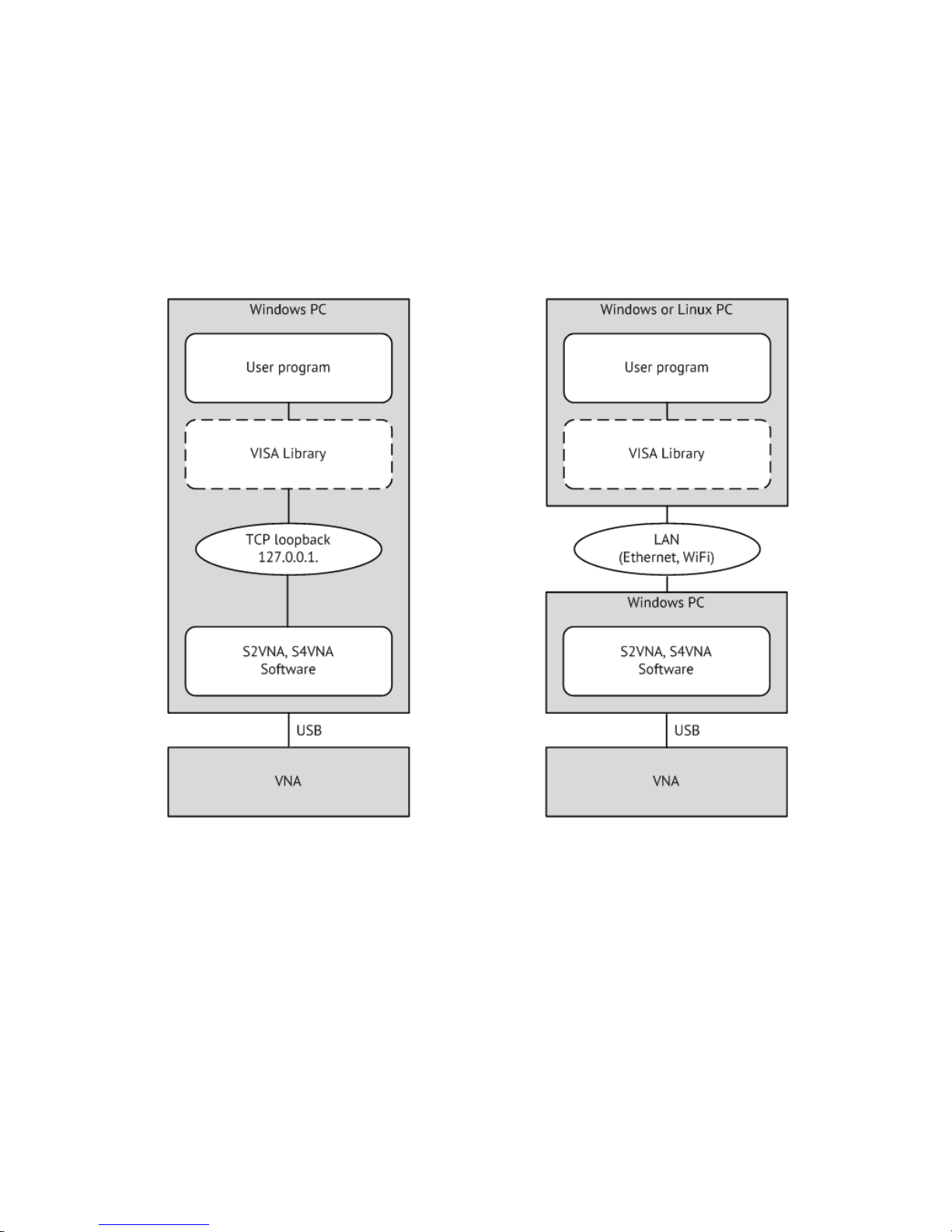

The figure shows the local configuration on the left and the network configuration on the right.
The local configuration is possible due to to the standard TCP/IP stack function
–
TCP loopback. The TCP loopback function allows network applications to communicate in a standard way within a single computer. The most widely used IP address in the TCP loopback mechanism is 127.0.0.1. Instead of the numeric address 127.0.0.1, it is possible to use the symbolic name localhost.
Note: The network configuration does not restrict the client in choosing the OS. The local configuration limits the client in choosing the OS – only Windows.
2.6 Connecting Multiple Analyzers to Single Computer
Page 19
S2VNA and S4VNA SCPI Programming Manual
19
This section describes in detail how to configure the remote control of the multiple analyzer programs executed simultaneously on a single computer (provided several USB analyzer hardware units connected to the single computer).
It is recommended that you create a separate folder for each analyzer with
the software. This allows you to save individual settings for each analyzer.
It is recommended that each copy of the software be linked to a specific
hardware unit by its serial number or model (see at the end of this section).
Assign a unique TCP/IP port number for each copy of the software for the
HiSLIP or Socket protocol used. For example, if HiSLIP is used, assign port 4880 to the first analyzer, 4881 to the second, and so on. When assigning a port number, the user must ensure that the port number is not used by other programs.
Use the analyzer's address in the user program with the mandatory
indication of the TCP/IP port number assigned to the analyzer, as in the examples given.
Examples of the VISA address for the HiSLIP and Socket protocols with the indication of the TCP/IP port:
HiSLIP TCPIP0::192.168.0.1::hislip0,4880::INSTR
TCPIP0::192.168.0.1::hislip0,4881::INSTR
Socket TCPIP0::192.168.0.1::5025::SOCKET
TCPIP0::192.168.0.1::5026::SOCKET
Examples of the TCP/IP address of the analyzer's Socket server with the indication of the port:
Socket 192.168.0.1:5025
192.168.0.1:5026
To link the analyzer program to the analyzer model, press the softkeys:
System
> Misc Setup > Analyzer Model
To link the analyzer program to the analyzer serial number, press the softkeys:
System
> Misc Setup > Analyzer Serial N
2.7 Differences in Use of HiSLIP and Socket Protocols
Page 20
S2VNA and S4VNA SCPI Programming Manual
20
This section describes the differences in the methods of writing user programs due to the use of different HiSLIP and TCP/IP Socket protocols. It is assumed that the user program works through the VISA library.
The list of differences in a brief form is given below. Then a detailed description of each item is given.
1. The terminal character <newline> in the commands sent to the analyzer.
2. The terminal character <newline> in the analyzer's responses.
3. Determine the interrupted violation of the messages exchange protocol of IEEE488.2.
4. Support for the IEEE488.2 Status Reporting System.
5. Support the transfer of binary data.
2.7.1 Terminal Character in Messages to Analyzer
The user program sends variable-length text messages to the analyzer. The end of the message, according to IEEE488.2, is transmitted either by protocol means (not by a symbol), or by the symbol <newline> ('\n', 0x0A, 10), or both methods together.
The HiSLIP has a mechanism for transmitting the end of the message by protocol means, while the Socket protocol does not. This makes the following requirements for programs sending commands to analyzer:
Programs using the Socket protocol shall send a <newline> character at the
end of the message;
Programs using the HiSLIP protocol may send the <newline> symbol at the
end of the message.
Note for the graphical language LabVIEW when using the Socket protocol: to be able to enter the symbol <newline> at the end of the message, you need to right-click on the string constant and enable '\' Codes Display. The <newline> character is entered as '\n'.
Note for the textual languages: it is recommended to use to the symbol <newline> at the end of the message regarless of the protocol used.
Page 21
S2VNA and S4VNA SCPI Programming Manual
21
2.7.2 Terminal Character in Analyzer Responses
When using the HiSLIP protocol, the analyzer terminates messages with the symbol <newline> + the protocol defined end of message (not symbolic).
When using the Socket protocol, the analyzer terminates messages only with the <newline> symbol, since the Socket protocol does not have the protocol defined end of message.
Depending on the protocol used, you need to make the following settings for the VISA library so that it correctly determines the end of the message from the analyzer:
When using the HiSLIP protocol – no settings are required, the VISA library
functions normally with default settings;
When using the Socket protocol, the user program must set the attribute
VI_ATTR_TERMCHAR_EN to TRUE (completion of the read operation when the <newline> character is received).
Examples of setting up the VISA library using the Socket protocol:
C/C++ viSetAttribute(instr, VI_ATTR_TERMCHAR_EN, VI_TRUE);
LabVIEW
2.7.3 Interrupted Error
The HiSLIP protocol meets the requirements of the IEEE Std 488.2 message exchange protocol to detect an interrupted error3. The interrupted error indicates that the Analyzer received an incoming message (command or query) before the client accepted a response from the previous request. In other words, the client is required to read the result of each query before sending the next query or command. If the client fails to do so, the protocol generates an error message and the response from the previous query is cleared by the protocol.
The Socket protocol does not detect the interrupted error. Multiple queries can be sent to the analyzer without a read operation between them. Answers from
3
The analyzer implements the synchronized mode of the HiSLIP protocol.
VISA resource name
Page 22
S2VNA and S4VNA SCPI Programming Manual
22
queries will be returned in the order in which they were sent. The client himself determines from which request a specific answer has been received.
2.7.4 IEEE488.2 Status Reporting System
The HiSLIP protocol fully supports the analyzer's IEEE488.2 Status Reporting System described in the appendix, while the Socket protocol supports it only partially. The Socket protocol does not support the following functions:
The MAV (message available) bit in the Status Byte;
SRQ (service request) generation - request from the analyzer, implemented
by callback functions in the VISA library;
Read the Status Byte using the dedicated function – viReadSTB.
2.7.5 Transfer of Binary Data
By default, data from the analyzer is sent in text form. To increase the speed of the exchange, the user has the option to enable binary data transfer. The transfer of binary data is enabled by the FORMat:DATA command and is effective for commands that transfer large data ammounts. A list of such commands is given in the description of the FORMat:DATA command.
The HiSLIP protocol supports the transfer of binary data, since it provides the protocol defined end of message (not symbolic).
The Socket protocol does not support the transfer of binary data, since it use the <newline> byte as the end of the message, which can occur in binary data.
Page 23
S2VNA and S4VNA SCPI Programming Manual
23
3 SCPI Overview
The analyzer implements a set of commands based on the standard SCPI-1999 (Standard Commands for Programmable Instruments). This is a set of instructions oriented to the exchange of symbolic messages.
SCPI was developed by the SCPI Consortium (currently supported by the IVI Foundation). The main details of the SCPI standard are described below. More information about the SCPI standard can be downloaded from the IVI Foundation website.
3.1 Messages
The SCPI is text message oriented protocol. The commands are sent as character messages. One message can contain one or several commands. The answer from instrument is read out as a text message by default. Optionaly an instrument can be programmed to output a binary data.
Note
The Analyzer supports the binary data output when
using HiSLIP protocol.
The Analyzer does not support the binary data output when using TCP/IP Socket protocol.
3.2 Command Tree
The SCPI commands are organized in a tree structure. For example:
Page 24
S2VNA and S4VNA SCPI Programming Manual
24
Each tree structure forms a functional system. The base of the tree is called root, e.g. MEASure and SYSTem. Each functional system can have subsystems of lower level. The final nodes are called leaves. The entire sequence from root to the leaf makes up the command. For example, part of SOURCe functional system looks as follows:
:SOURce :POWer :CENTer :STARt :SPAN :STOP [:LEVel] :SLOPe [:DATA] :STATe
This SOURce branch has several levels, where CENTer, STARt, SPAN, STOP, DATA, STATe are the leaves, which represent the following six commands:
:SOURce:POWer:CENTer
:SOURce:POWer:STARt
:SOURce:POWer:SPAN
:SOURce:POWer:STOP
:SOURce:POWer[:LEVel]:SLOPe[:DATA]
:SOURce:POWer[:LEVel]:SLOPe:STATe
The tree can contain subsystems and leaves with the same names if they belong to different branches, e.g. CENTer leaf is on the tips of different branches:
:SOURce :SENSe :POWer :FREQuency :CENTer :CENTer
3.3 Subsystems
A colon (':') separates the subsystems. The subsystems, which follow the colon are of a lower level. For example, in command:
:SOURce:POWer:STARt
the start power STARt is a part of POWer subsystem, which is a part of SOURce subsystem. The stop power is also a part of :SOURce:POWer subsystem. It is specified by:
:SOURce:POWer:STOP
The first colon in the line can be omitted, for example:
SOURce:POWer:STOP
Page 25
S2VNA and S4VNA SCPI Programming Manual
25
3.4 Optional Subsystems
Some subsystems can be specified as optional, if omission of such a subsystem will not lead to ambiguity. This means that the subsystem can be omitted in command line. The optional subsystems are bracketed ("[]"). For example, if full command specification is written as:
SOURce:POWer[:LEVel]:SLOPe[:DATA]
subsystems LEVel and DATA are optional. Therefore the both commands are valid:
SOURce:POWer:LEVel:SLOPe:DATA
SOURce:POWer:SLOPe
3.5 Long and Short Formats
Each keyword in a command specification has a long format and a short format. The short format of a command is indicated by capital letters. For example, a command specification:
SENSe:FREQuency:CENTer
can be written as:
SENS:FREQ:CENT
SENS:FREQ:CENTer
Only long or short form of each keyword is acceptable. For example, the following specification is incorrect:
:SENS:FREQuen:CEN
3.6 Case Sensitivity
The commands are not case sensitive. Upper case and lower case letters are only used to indicate the long and short formats of a command specification. For example, the following commands are equivalent:
SENS:FREQ:STAR
sens:freq:star
3.7 Parameters
The commands can have parameters. The parameters are separated from the command by a space. If a command has several parameters, they are separated by commas (',').
Page 26
S2VNA and S4VNA SCPI Programming Manual
26
3.7.1 Numeric Values
The numeric values are integer or real numbers. These parameters can have measurement units. For example:
SENS:FREQ 1000000000
SENS:FREQ 1000 MHz
SENS:FREQ 1 GHz
SENS:FREQ 1E9
3.7.1.1 Multiplier Prefixes
The SCPI standard allows specification of the numeric values with multiplier prefix to the measurement units.
Prefix Multiplier
A 1e–18 F 1e–15 P 1e–12 N 1e–9 U 18–6 M 1e–3 K 1e3 MA 1e6 G 1e9 T 1e12 PE 1e15 EX 1e18
There are two exceptions to the above designation: prefix M in combination with HZ or OHM means 1e6 (Mega), and not 1e–3 (milli), i.e. MHZ means Megahertz, same as MAHZ.
Page 27
S2VNA and S4VNA SCPI Programming Manual
27
3.7.1.2 Notations
The SCPI standard allows numeric value specification in different notations. Decimal notation is used by default. To use other notations, specify the numeric values in the following way:
Notation Prefix Example
Binary #B
#B11001010 = 202
10
Octal #Q
#Q107 = 71
10
Hexadecimal #H
#H10FF = 4351
10
3.7.2 Booleans
The booleans can assume two values: logical yes and logical no (ON and OFF), and specified in command as:
ON or 1
– logical yes
OFF or 0
– logical no
For example:
DISPlay:ENABle OFF
DISPlay:ENABle 0
3.7.3 Character Data
The SCPI standard allows specification of parameters as character data, as in the following command:
TRIGger:SOURce {BUS|IMMediate|EXTernal}
the possible values of the character data – "BUS", "IMMediate", "EXTernal".
The character data have long and short format, and the formats are specified in accordance with the same rules as described in Section 3.5.
Apart from that, the character data can be combined with numerical parameters. For example:
SENSe:FREQuency:STARt {MINimum|MAXimum|<value>}
The following specifications are acceptable:
Page 28
S2VNA and S4VNA SCPI Programming Manual
28
SENSe:FREQuency:STARt MIN
SENSe:FREQuency:STARt maximum
SENSe:FREQuency:STARt 1000000
3.7.4 String Parameters
In some cases, the Analyzer can accept parameters made of character strings. Such strings are enclosed with single quotes (') or double quotes ("). For example, the file name in the state saving command:
MMEMory:STORe "state01.sta"
3.7.5 Numeric Lists
The numeric lists (<numeric list>) are used to specify a variable number of numerical parameters, for example:
CALC:LIMit:DATA 2,1,1E9,3E9,0,0,2,1E9,3E9,–3,–3
3.8 Query Commands
The query commands read out the parameter values from the Analyzer. After a query command has been sent, the response should return via remote control interface.
The query commands has a question mark ('?') in the end of the command. Many of the commands have two forms. The form with a question mark writes the parameter, the form without a question mark reads out the parameter. For expample:
SENSe:FREQuency:STARt 1MHz
SENSe:FREQuency:STARt?
3.9 Numeric Suffixes
The Analyzer contains several items of the same type, such as 16 channels, each of which in turn contains 16 traces, etc. A numeric suffix is used to denote the item number in a command. The suffix is added to the keyword of the item (channel, trace, etc). For expample, in the following specification the channel number <Ch> and trace number <Tr> indicate the channel and trace, to which this command is addressed:
CALCulate<Ch>:PARameter<Tr>:DEFine
Page 29
S2VNA and S4VNA SCPI Programming Manual
29
According to this specification, the command referred to the trace 2 of the channel 1 will be written as follows:
CALC1:PAR2:DEF
The numeric suffix can be omitted. In this case, it is 1 by default. For example, the following commands are equivalent:
CALC:PAR:DEF
CALC1:PAR1:DEF
3.10 Compound Commands
It is possible to enter more than one command in the same command line. The commands in the line are separated by a semicolon (';'). The specification of the first command is valid for the following command, except for the last leaf before the semicolon. For expample:
SENS:FREQ:STAR 1 MHZ;STOP 2MHZ
If you need to start the next command from the highest level of the structure, this command should start from a colon (':'):
SENS:FREQ:STAR 1 MHZ;:CALC:PAR:DEF S21
3.11 IEEE488.2 Common Commands Overview
A SCPI compatible Analyzer must support a set of common commands of IEEE488.2 standard. These commands start with an asterix ('*'). The list of such commands see below:
*CLS
*ESE
*ESE?
*ESR?
*IDN?
*OPC
*OPC?
*RST
*SRE
*SRE?
*STB?
*TRG
*WAI
These commands are used for resetting, state queries, etc.
Page 30
S2VNA and S4VNA SCPI Programming Manual
30
Page 31
S2VNA and S4VNA SCPI Programming Manual
31
4 Remote Commands
4.1 Conventions
The following conventions are used throughout the Manual.
4.1.1 Syntax
The following symbols are used in command syntax:
<> identifiers enclosed in angular brackets indicated that a particular
type of data must be specified
[] part enclosed in square brackets can be omitted
{} part enclosed in curly brackets indicates that you must select one
of the items in this part. Individual items are separated by a vertical bar "|"
Space space separates commands from parameters
, comma separates adjacent parameters
… ellipses indicates that parameters in that part are omitted
Page 32
S2VNA and S4VNA SCPI Programming Manual
32
4.1.2 Identifiers
Identifier Parameter Description
<numeric>
Number
{<integer>|<real>}
<frequency>
Frequency
<numeric>
{[HZ]|KHZ|MHZ|GHZ}
<power>
Power
<numeric>
{[DBM]|DBMW|DBW|KW|W|MW|UW|NW}
<time>
Time
<numeric>
{[S]|MS|US|NS|PS|FS}
<phase>
Phase
<numeric>
{[DEG]|MADEG|KDEG|MDEG|UDEG}
<stimulus>
Stimulus
{<frequency>|<power>|<time>}
<numeric list>
Numeric List
<numeric 1>,<numeric 2>,...<numeric N>
<bool>
Boolean parameter
{0|1|ON|OFF}
<char>
Character parameter
Predefined set of character strings without quotes
<port>
Port Number
<integer>
<string>
String parameter
Quoted string
Page 33
S2VNA and S4VNA SCPI Programming Manual
33
4.2 IEEE488.2 Common Commands
*CLS
*CLS
Description
Clears the following:
• Error Queue
• Status Byte Register
• Standard Event Status Register
• Operation Status Event Register
• Questionable Status Event Register
• Questionable Limit Status Event Register
• Questionable Limit Channel Status Event Register
(no query)
Target
Status Reporting System
Equivalent Softkeys
None
*ESE
*ESE
<numeric>
*ESE?
Description
Sets or reads out the value of the Standard Event Status Enable
Register.
(command/query)
Target
Status Reporting System
Parameter
<numeric>
0 to 255
Query Response
<numeric>
Preset Value
0
Equivalent Softkeys
None
Page 34
S2VNA and S4VNA SCPI Programming Manual
34
*ESR?
*ESR?
Description
Reads out the value of the Standard Event Status Register.
Executing this command clears the register value.
(query only)
Target
Status Reporting System
Query Response
<numeric>
Equivalent Softkeys
None
*IDN?
*IDN?
Description
Reads out the Analyzer identification string.
(query only)
Target
Analyzer
Query Response
The identification string in format: <manufacturer>, <model>, <serial
number>, <software version>/<hardware version>.
For example: CMT, C1209, 08080188, 16.2/01
Equivalent Softkeys
None
Page 35
S2VNA and S4VNA SCPI Programming Manual
35
*OPC
*OPC
Description
Sets the OPC bit (bit 0) of the Standard Event Status Register at the
completion of all pending operations.
The pending operation caused by the command
TRIG:SING
only.
(no query)
Target
Status Reporting System
Equivalent Softkeys
None
*OPC?
*OPC?
Description
Reads out the "1" at the completion of all pending operations. The
query blocks the execution of the user program until execution of all previous instructions.
The query *OPC? can be used for waiting for the end of a sweep initiated by the command TRIG:SING.
(query only)
Target
Analyzer
Query Response
1
Related Commands
TRIG:SING
Equivalent Softkeys
None
Page 36
S2VNA and S4VNA SCPI Programming Manual
36
*RST
*RST
Description
Restores the default settings of the Analyzer.
There is difference from presetting the Analyzer with
SYST:PRES
command – in this case all channels are set to Hold.
(no query)
Target
Analyzer
Related Commands
SYSTem:PRESet
Equivalent Softkeys
None
*SRE
*SRE
<numeric>
*SRE?
Description
Sets or reads out the value of the Service Request Enable Register
(command/query)
Target
Status Reporting System
Parameter
<numeric>
0 to 255
Query Response
<numeric>
Preset Value
0
Equivalent Softkeys
None
Page 37
S2VNA and S4VNA SCPI Programming Manual
37
*STB?
*STB?
Description
Reads out the value of the Status Byte Register
(query only)
Target
Status Reporting System
Query Response
<numeric>
Equivalent Softkeys
None
*TRG
*TRG
Description
Generates a trigger signal and initiates a sweep under the following conditions.
6. Trigger source is set to the BUS (set by the command TRIG:SOUR BUS), otherwise an error occurs and the command is ignored.
7. Analyzer must be in the trigger waiting state, otherwise (the analyzer is in the measurement state or hold state) an error occurs and the command is ignored.
The command is completed immediately after the generation of the trigger signal.
(no query)
Target
Analyzer
Related Commands
TRIG:SOUR
Equivalent Softkeys
None
Page 38
S2VNA and S4VNA SCPI Programming Manual
38
*WAI
*WAI
Description
Delays the execution by the analyzer of the next command till the
completion of the command TRIG:SING.
In absence of a pending command TRIG:SING the command *WAI is equivalent to an empty operation.
A query that follows the command *WAI blocks the execution of the user program till the completion of the command TRIG:SING, similarly to the query *OPC?.
(no query)
Target
Analyzer
Related Commands
TRIG:SING
Equivalent Softkeys
None
Page 39
S2VNA and S4VNA SCPI Programming Manual
39
4.3 Network Analyzer Commands
ABOR
ABORt
Description
Aborts the sweep. The channels in the Single trigger initiation
mode transit to the Hold state. The channels in the Continuous trigger initiation mode transit to the trigger waiting state, if the trigger source is set to Internal, the channel immediately starts a new sweep.
(no query)
Related Commands
INIT:CONT
Equivalent Softkeys
Stimulus > Trigger > Restart
CALC:FSIM:BAL:DEV
CALCulate
<Ch>
:FSIMulator:BALun:DEVice
<char>
CALCulate
<Ch>
:FSIMulator:BALun:DEVice?
Description
Selects the type of balanced device of the balance-unbalance
fixture simulation function
(command/query, S4 only).
Target
The channel
<Ch>={[1]|2|...16}
Parameter
<char>
Specifies type of the balanced device:
SBALanced : Unbalance-Balance (3 ports)
BBALanced : Balance-Balance (4 ports)
SSBalanced : Unbalance-Unbalance-Balance (4 ports)
BALanced : Balance (2 ports)
Query Response
{SBAL|BBAL|SSB|BAL}
Preset Value
BBAL
Equivalent Softkeys
Analysis > Fixture Simulator > Topology > Device > {SE-Bal | Bal-Bal | SE-
SE-Bal | Bal }
Page 40
S2VNA and S4VNA SCPI Programming Manual
40
CALC:FSIM:BAL:DMC:BPOR:PAR:C
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:PARameters:C
<numeric>
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:PARameters:C?
Description
Sets or reads out the capacitance value of the C element of the
differential matching circuit.
(command/query)
Target
Balanced Port
<Bpt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Bpt>={[1]|2}, 1 or 2 for the Bal-Bal topology, always 1 for the SE-Bal,
SE-SE-Bal and Bal topology.
Parameter
<numeric>
the capacitance value of the C element of the differential
matching circuit from 1e–18 to 1e18.
Unit
F (Farad)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > Diff Matching > Bal Port n > C
Page 41
S2VNA and S4VNA SCPI Programming Manual
41
CALC:FSIM:BAL:DMC:BPOR:PAR:G
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:PARameters:G
<numeric>
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:PARameters:G?
Description
Sets or reads out the conductance value of the G element of the
differential matching circuit.
(command/query)
Target
Balanced Port
<Bpt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Bpt>={[1]|2}, 1 or 2 for the Bal-Bal topology, always 1 for the SE-Bal,
SE-SE-Bal and Bal topology.
Parameter
<numeric>
the conducitance value of the G element of the differential
matching circuit from 1e–18 to 1e18.
Unit
S (Siemens)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > Diff Matching > Bal Port n > G
Page 42
S2VNA and S4VNA SCPI Programming Manual
42
CALC:FSIM:BAL:DMC:BPOR:PAR:L
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:PARameters:L
<numeric>
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:PARameters:L?
Description
Sets or reads out the inductance value of the L element of the
differential matching circuit.
(command/query)
Target
Balanced Port
<Bpt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Bpt>={[1]|2}, 1 or 2 for the Bal-Bal topology, always 1 for the SE-Bal,
SE-SE-Bal and Bal topology.
Parameter
<numeric>
the inducitance value of the L element of the differential
matching circuit from 1e–18 to 1e18.
Unit
S (Henry)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
0
Note
If both elements L and R are equal to zero, then L and R elements are
omited in the sheme. If any element L or R is not zero, then zero value of the rest element means short circuit.
Equivalent Softkeys
Analysis > Fixture Simulator > Diff Matching > Bal Port n > L
Page 43
S2VNA and S4VNA SCPI Programming Manual
43
CALC:FSIM:BAL:DMC:BPOR:PAR:R
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:PARameters:R
<numeric>
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:PARameters:R?
Description
Sets or reads out the resistance value of the R element of the
differential matching circuit.
(command/query)
Target
Balanced Port
<Bpt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Bpt>={[1]|2}, 1 or 2 for the Bal-Bal topology, always 1 for the SE-Bal,
SE-SE-Bal and Bal topology.
Parameter
<numeric>
the resistance value of the L element of the differential
matching circuit from 1e–18 to 1e18.
Unit
Ω (Ohm)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
0
Note
If both elements L and R are equal to zero, then L and R elements are
omited in the sheme. If any element L or R is not zero, then zero value of the rest element means short circuit.
Equivalent Softkeys
Analysis > Fixture Simulator > Diff Matching > Bal Port n > R
Page 44
S2VNA and S4VNA SCPI Programming Manual
44
CALC:FSIM:BAL:DMC:BPOR:TYPE
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:TYPE
<char>
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:TYPE?
Description
Selects the type of the differential matching circuit for the
specified balanced port number Bpt of the channel Ch.
(command/query)
Target
Balanced Port
<Bpt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Bpt>={[1]|2}, 1 or 2 for the Bal-Bal topology, always 1 for the SE-Bal,
SE-SE-Bal and Bal topology
Parameter
<char> Specifies the
differential matching circuit
:
NONE
: No-circuit
PLPC
: Shunt L – Shunt C
USER
:
User defined circuit by touchstone file
Query Response
{NONE|PLPC|USER}
Preset Value
NONE
Related Commands
CALC:FSIM:BAL:DEV
Equivalent Softkeys
Analysis > Fixture Simulator > > Diff Matching > Bal Port n > {None |
Shunt L - Shunt C | User }
Page 45
S2VNA and S4VNA SCPI Programming Manual
45
CALC:FSIM:BAL:DMC:BPOR:USER:FIL
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:USER:FILename
<string>
CALCulate<Ch>:FSIMulator:BALun:DMCircuit:BPORt<
Bpt
>:USER:FILename?
Description
Specifies a file defining the 2-port network which is used in the
differential matching circuit, for the specified balanced port number Bpt of the channel Ch. The *.s2p file contains the circuit S– parameters in Touchstone format.
(command/query)
Target
Balanced Port
<Bpt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Bpt>={[1]|2}, 1 or 2 for the Bal-Bal topology, always 1 for the SE-Bal,
SE-SE-Bal and Bal topology
Parameter
<srting>
, up to 256 characters
Notes
If the full path of the file is not specified, the \FixtireSim subdirectory of
the application directory will be searched for the file.
Related Commands
CALC:FSIM:BAL:DMC:BPOR:TYPE
Equivalent Softkeys
Analysis > Fixture Simulator > > Diff Matching > Bal Port n > User File
Page 46
S2VNA and S4VNA SCPI Programming Manual
46
CALC:FSIM:BAL:DMC:STAT
CALCulate
<Ch>
:FSIMulator:BALun:DMCircuit:STATe {OFF|ON|0|1}
CALCulate
<Ch>
:FSIMulator:BALun:DMCircuit:STATe?
Description
Turns ON/OFF the differential matching circuit function.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > Diff Matching > Diff Matching
Page 47
S2VNA and S4VNA SCPI Programming Manual
47
CALC:FSIM:BAL:PAR:BAL
CALCulate
<Ch>
:FSIMulator:BALun:PARameter
<Tr>
:BALanced[:DEFine]
<char>
CALCulate
<Ch>
:FSIMulator:BALun:PARameter
<Tr>
:BALanced[:DEFine]?
Description
Selects the measurement parameter of the fixture simulation
function when the device type is BALanced.
(command/query)
Target
Trace
<Tr>
of channel
<Ch>
,
<Tr>={[1]|2|...16} <Ch>={[1]|2|...16}
Parameter
<char>
Specifies the measurement parameter:
SDD11
SCD11
SDC11
SCC11
Query Response
{SDD11|SCD11|SDC11|SCC11}
Preset Value
SDD11
Related Commands
CALC:FSIM:BAL:DEV
Equivalent Softkeys
Analysis > Fixture Simulator > Measurement > {Sdd11|Scd11|Sdc11|
Scc11 }
Page 48
S2VNA and S4VNA SCPI Programming Manual
48
CALC:FSIM:BAL:PAR:BBAL
CALCulate
<Ch>
:FSIMulator:BALun:PARameter
<Tr>
:BBALanced[:DEFine]
<char>
CALCulate
<Ch>
:FSIMulator:BALun:PARameter
<Tr>
:BBALanced[:DEFine]?
Description
Selects the measurement parameter of the fixture simulation
function when the device type is BBALanced.
(command/query)
Target
Trace
<Tr>
of channel
<Ch>
,
<Tr>={[1]|2|...16} <Ch>={[1]|2|...16}
Parameter
<char>
Specifies the measurement parameter:
SDD11
SDD21
SDD12
SDD22
SCD11
SCD21
SCD12
SCD22
SDC11
SDC21
SDC12
SDC22
SCC11
SCC21
SCC12
SCC22
IMB1 : Imbalance1
IMB2 : Imbalance1
CMRR : Sdd21/Scc21
Query Response
{SDD11|SDD21|SDD12|SDD22|SCD11|SCD21|SCD12|SCD22|SDC11|SDC21| SDC12|SDC22|SCC11|SCC21|SCC12|SCC22|IMB1|IMB2|CMRR}
Preset Value
SDD11
Related Commands
CALC:FSIM:BAL:DEV
Equivalent Softkeys
Analysis > Fixture Simulator > Measurement > {Sdd11|… CMRR }
Page 49
S2VNA and S4VNA SCPI Programming Manual
49
CALC:FSIM:BAL:PAR:SBAL
CALCulate
<Ch>
:FSIMulator:BALun:PARameter
<Tr>
:SBALanced[:DEFine]
<char>
CALCulate
<Ch>
:FSIMulator:BALun:PARameter
<Tr>
:SBALanced[:DEFine]?
Description
Selects the measurement parameter of the fixture simulation
function when the device type is SBALanced.
(command/query)
Target
Trace
<Tr>
of channel
<Ch>
,
<Tr>={[1]|2|...16} <Ch>={[1]|2|...16}
Parameter
<char>
Specifies the measurement parameter:
SSS11
SDS21
SSD12
SCS21
SSC12
SDD22
SCD22
SDC22
SCC22
IMB : Imbalance
CMRR1 : Sds21/Scs21
CMRR2 : Ssd12/Ssc12
Query Response
{SSS11|SDS21|SSD12|SCS21|SSC12|SDD22|SCD22|SDC22|SCC22| IMB|CMRR1|CMRR2}
Preset Value
SSS11
Related Commands
CALC:FSIM:BAL:DEV
Equivalent Softkeys
Analysis > Fixture Simulator > Measurement > {Sss11|… CMRR2 }
Page 50
S2VNA and S4VNA SCPI Programming Manual
50
CALC:FSIM:BAL:PAR:SSB
CALCulate
<Ch>
:FSIMulator:BALun:PARameter
<Tr>
:SSBalanced[:DEFine]
<char>
CALCulate
<Ch>
:FSIMulator:BALun:PARameter
<Tr>
:SSBalanced[:DEFine]?
Description
Selects the measurement parameter of the fixture simulation
function when the device type is SSBalanced.
(command/query)
Target
Trace
<Tr>
of channel
<Ch>
,
<Tr>={[1]|2|...16} <Ch>={[1]|2|...16}
Parameter
<char>
Specifies the measurement parameter:
SSS11
SSS21
SSS12
SSS22
SDS31
SDS32
SSD13
SSD23
SCS31
SCS32
SSC13
SSC23
SDD33
SCD33
SDC33
SCC33
IMB1 : Imbalance1
IMB2 : Imbalance2
IMB3 : Imbalance3
IMB4 : Imbalance4
CMRR1 : Sds31/Scs31
CMRR2 : Sds32/Scs32
Query Response
{SSS11|SSS21|SSS12|SSS22|SDS31|SDS32|SSD13|SSD23|SCS31|SCS32| SSC13|SSC23|SDD33|SCD33|SDC33|SCC33|IMB1|IMB2|IMB3|IMB4|CMRR1| CMRR2}
Preset Value
SSS11
Equivalent Softkeys
Analysis > Fixture Simulator > Measurement > {Sss11|… CMRR2 }
Page 51
S2VNA and S4VNA SCPI Programming Manual
51
CALC:FSIM:BAL:PAR:STAT
CALCulate
<Ch>
:FSIMulator:BALun:PARameter
<Tr>
:STATe {OFF|ON|0|1}
CALCulate
<Ch>
:FSIMulator:BALun:PARameter
<Tr>
:STATe?
Description
Turns ON/OFF the BalUn function for the specified trace.
(command/query)
Target
Trace <Tr> of channel <Ch>,
<Tr>={[1]|2|...16} <Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > BalUn
CALC:FSIM:BAL:TOP:BAL
CALCulate
<Ch>
:FSIMulator:BALun:TOPology:BALanced[:PPORts]
<port1>,<port2>
CALCulate
<Ch>
:FSIMulator:BALun:TOPology:BALanced[:PPORts]?
Description
Sets or reads out the ports assigned to the balanced device when
its type is "BALance".
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameters
<port1> First port number
<port2> Second port number
Query Response
<port1>, <port2>
Preset Value
1,2
Related Commands
CALC:FSIM:BAL:DEV
Equivalent Softkeys
Analysis > Fixture Simulator > Topology > Port 1 (bal)
Page 52
S2VNA and S4VNA SCPI Programming Manual
52
CALC:FSIM:BAL:TOP:BBAL
CALCulate
<Ch>
:FSIMulator:BALun:TOPology:BBALanced[:PPORts]
<port1>,<port2>
,
<port3>,<port4>
CALCulate
<Ch>
:FSIMulator:BALun:TOPology:BBALanced[:PPORts]?
Description
Sets or reads out the ports assigned to the balanced device when
its type is "BBALance".
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameters
<port1> First port number
<port2> Second port number
<port3> Third port number
<port4> Fourth port number
Query Response
<port1>, <port2>, <port3>, <port4>
Preset Value
1,2,3,4
Related Commands
CALC:FSIM:BAL:DEV
Equivalent Softkeys
Analysis > Fixture Simulator > Topology > Port 1 (bal), Port 2 (bal)
Page 53
S2VNA and S4VNA SCPI Programming Manual
53
CALC:FSIM:BAL:TOP:SBAL
CALCulate
<Ch>
:FSIMulator:BALun:TOPology:SBALanced[:PPORts]
<port1>,<port2>
,
<port3>
CALCulate
<Ch>
:FSIMulator:BALun:TOPology:SBALanced[:PPORts]?
Description
Sets or reads out the ports assigned to the balanced device when
its type is "SBALance".
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameters
<port1> First port number
<port2> Second port number
<port3> Third port number
Query Response
<port1>, <port2>, <port3>
Preset Value
1,2,3
Related Commands
CALC:FSIM:BAL:DEV
Equivalent Softkeys
Analysis > Fixture Simulator > Topology > Port 1 (se) , Port 2 (bal)
Page 54
S2VNA and S4VNA SCPI Programming Manual
54
CALC:FSIM:BAL:TOP:SSB
CALCulate
<Ch>
:FSIMulator:BALun:TOPology:SSBalanced[:PPORts]
<port1>,<port2>
,
<port3>,<port4>
CALCulate
<Ch>
:FSIMulator:BALun:TOPology:SSBalanced[:PPORts]?
Description
Sets or reads out the ports assigned to the balanced device when
its type is "SSBalance".
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameters
<port1> First port number
<port2> Second port number
<port3> Third port number
<port4> Fourth port number
Query Response
<port1>, <port2>, <port3>, <port4>
Preset Value
1,2,3,4
Related Commands
CALC:FSIM:BAL:DEV
Equivalent Softkeys
Analysis > Fixture Simulator > Topology > Port 1 (se), Port 2 (se), Port 3
(bal)
Page 55
S2VNA and S4VNA SCPI Programming Manual
55
CALC:FSIM:BAL:TOP:PROP:STAT
CALCulate
<Ch>
:FSIMulator:BALun:TOPology:PROPerty:STATe {OFF|ON|0|1}
CALCulate
<Ch>
:FSIMulator:BALun:TOPology:PROPerty:STATe?
Description
Turns ON/OFF the BalUn property indication on the screen.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > Topology > Property
CALC:FSIM:EMB:NETW:FIL
CALCulate
<Ch>
:FSIMulator:EMBed:NETWork
<Nk>
:FILename
<string>
CALCulate
<Ch>
:FSIMulator:EMBed:NETWork
<Nk>
:FILename?
Description
Sets or reads out the name of 4-port touchstone file (*.s4p) of the
4-port network embedding/de-embedding feature. The file contains the circuit S–parameters in Touchstone format.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
,
The Network
<Nk>={[1]|2}
Parameter
<srting>
, up to 256 characters
Notes
If the full path of the file is not specified, the \FixtireSim subdirectory of
the application directory will be searched for the file.
Equivalent Softkeys
Analysis > Fixture Simulator > De–Embedding S4P > File (ntwk1), File
(ntwk2)
Page 56
S2VNA and S4VNA SCPI Programming Manual
56
CALC:FSIM:EMB:NETW:TYPE
CALCulate
<Ch>
:FSIMulator:EMBed:NETWork
<Nk>
:TYPE
<char>
CALCulate
<Ch>
:FSIMulator:EMBed:NETWork
<Nk>
:TYPE?
Description
Selects the processing type of the 4-port network embedding/de-
embedding feature. (command/query, S4 only)
Target
The channel
<Ch>={[1]|2|...16}
,
The Network
<Nk>={[1]|2}
Parameter
<char> Specifies
processing
type:
NONE : No processing
EMBed : Embedding
DEEMbed : De-Embedding
Query Response
{NONE|EMB|DEEM}
Preset Value
NONE
Equivalent Softkeys
Analysis > Fixture Simulator > De–Embedding S4P > Type (ntwk1), Type
(ntwk2) > {None| Embed| De-Embed}
CALC:FSIM:EMB:STAT
CALCulate
<Ch>
:FSIMulator:EMBed:STATe {OFF|ON|0|1}
CALCulate
<Ch>
:FSIMulator:EMBed:STATe?
Description
Turns ON/OFF the 4-port network embedding/de-embedding
feature (command/query, S4 only).
Target
The channel
<Ch>={[1]|2|...16}
Parameter
{ON|1} : ON {OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > De–Embedding S4P > De–Embedding S4P
Page 57
S2VNA and S4VNA SCPI Programming Manual
57
CALC:FSIM:EMB:TOP:A:PORT
CALCulate
<Ch>
:FSIMulator:EMBed:TOPology:A:PORTs
<port1>,<port2>
CALCulate
<Ch>
:FSIMulator:EMBed:TOPology:A:PORTs?
Description
Sets or reads out the test port assignment when the Topology is
set to A, for the 4-port network embedding/de-embedding feature.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameters
<port1> First port number
<port2> Second port number
Query Response
<port1>, <port2>
Preset Value
1,2
Related Commands
CALC:FSIM:EMB:TYPE
Equivalent Softkeys
Analysis > Fixture Simulator > De–Embedding S4P > Ports
Page 58
S2VNA and S4VNA SCPI Programming Manual
58
CALC:FSIM:EMB:TOP:B:PORT
CALCulate
<Ch>
:FSIMulator:EMBed:TOPology:B:PORTs
<port1>,<port2>,<port3>
CALCulate
<Ch>
:FSIMulator:EMBed:TOPology:B:PORTs?
Description
Sets or reads out the test port assignment when the Topology is
set to B, for the 4-port network embedding/de-embedding feature.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameters
<port1> First port number
<port2> Second port number
<port3> Third port number
Query Response
<port1>, <port2>, <port3>
Preset Value
1,2,3
Related Commands
CALC:FSIM:EMB:TYPE
Equivalent Softkeys
Analysis > Fixture Simulator > De–Embedding S4P > Ports
Page 59
S2VNA and S4VNA SCPI Programming Manual
59
CALC:FSIM:EMB:TOP:C:PORT
CALCulate
<Ch>
:FSIMulator:EMBed:TOPology:C:PORTs
<port1>,<port2>,<port3>
,
<port4>
CALCulate
<Ch>
:FSIMulator:EMBed:TOPology:C:PORTs?
Description
Sets or reads out the test port assignment when the Topology is
set to B, for the 4-port network embedding/de-embedding feature.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameters
<port1> First port number
<port2> Second port number
<port3> Third port number
<port4> Fourth port number
Query Response
<port1>, <port2>, <port3>, <port4>
Preset Value
1,2,3,4
Related Commands
CALC:FSIM:EMB:TYPE
Equivalent Softkeys
Analysis > Fixture Simulator > De–Embedding S4P > Ports
Page 60
S2VNA and S4VNA SCPI Programming Manual
60
CALC:FSIM:EMB:TYPE
CALCulate
<Ch>
:FSIMulator:EMBed:TYPE
<char>
CALCulate
<Ch>
:FSIMulator:EMBed:TYPE?
Description
Selects the Topology for the 4-port network embedding/de-
embedding feature.
(command/query, S4 only)
Target
The channel
<Ch>={[1]|2|...16}
Parameter
<char> Specifies
Topology
:
A :
Topology
A
B :
Topology B
C :
Topology C
Query Response
{A|B|C}
Preset Value
A
Equivalent Softkeys
Analysis > Fixture Simulator > De–Embedding S4P > Topology > {A| B| C}
CALC:FSIM:SEND:DEEM:STAT
CALCulate
<Ch>
:FSIMulator:SENDed:DEEMbed:STATe {OFF|ON|0|1}
CALCulate
<Ch>
:FSIMulator:SENDed:DEEMbed:STATe?
Description
Turns ON/OFF the 2-port network de–embedding function.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > De–Embedding > De–Embedding
Page 61
S2VNA and S4VNA SCPI Programming Manual
61
CALC:FSIM:SEND:DEEM:PORT:STAT
CALCulate
<Ch>
:FSIMulator:SENDed:DEEMbed:PORT
<Pt>
:STATe {OFF|ON|0|1}
CALCulate
<Ch>
:FSIMulator:SENDed:DEEMbed:PORT
<Pt>
:STATe?
Description
Turns ON/OFF the 2-port network de–embedding function for
specified port.
(command/query)
Target
Port
<Pt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Pt>={[1]|2} for S2VNA or {[1]|2|3|4} for S4VNA
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > De–Embedding > Port n
CALC:FSIM:SEND:DEEM:PORT:USER:FIL
CALCulate
<Ch>
:FSIMulator:SENDed:DEEMbed:PORT
<Pt>
:USER:FILename
<string>
CALCulate
<Ch>
:FSIMulator:SENDed:DEEMbed:PORT
<Pt>
:USER:FILename?
Description
Sets or reads out the name of *.s2p file of the de–embedded circuit
of the 2-port network de–embedding function. The file contains the circuit S–parameters in Touchstone format.
(command/query)
Target
Port
<Pt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Pt>={[1]|2} for S2VNA or {[1]|2|3|4} for S4VNA
Parameter
<srting>
, up to 256 characters
Notes
If the full path of the file is not specified, the \FixtireSim subdirectory of
the application directory will be searched for the file.
Equivalent Softkeys
Analysis > Fixture Simulator > De–Embedding > S–parameters File
Page 62
S2VNA and S4VNA SCPI Programming Manual
62
CALC:FSIM:SEND:PMC:STAT
CALCulate
<Ch>
:FSIMulator:SENDed:PMCircuit:STATe {OFF|ON|0|1}
CALCulate
<Ch>
:FSIMulator:SENDed:PMCircuit:STATe?
Description
Turns ON/OFF the 2-port network embedding function.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > Embedding > Embedding
CALC:FSIM:SEND:PMC:PORT:STAT
CALCulate
<Ch>
:FSIMulator:SENDed:PMCircuit:PORT
<Pt>
:STATe {OFF|ON|0|1}
CALCulate
<Ch>
:FSIMulator:SENDed:PMCircuit:PORT
<Pt>
:STATe?
Description
Turns ON/OFF the 2-port network embedding function for each
port.
(command/query)
Target
Port
<Pt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Pt>={[1]|2} for S2VNA or {[1]|2|3|4} for S4VNA
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > Embedding > Port n
Page 63
S2VNA and S4VNA SCPI Programming Manual
63
CALC:FSIM:SEND:PMC:PORT:USER:FIL
CALCulate
<Ch>
:FSIMulator:SENDed:PMCircuit:PORT
<Pt>
:USER:FILename
<string>
CALCulate
<Ch>
:FSIMulator:SENDed:PMCircuit:PORT
<Pt>
:USER:FILename?
Description
Sets or reads out the name of *.s2p file of the embedded circuit of
the 2-port network embedding function. The file contains the circuit S–parameters in Touchstone format.
(command/query)
Target
Port
<Pt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Pt>={[1]|2} for S2VNA or {[1]|2|3|4} for S4VNA
Parameter
<string>
, up to 256 characters
Notes
If the full path of the file is not specified, the \FixtireSim subdirectory of
the application directory will be searched for the file.
Equivalent Softkeys
Analysis > Fixture Simulator > Embedding > S–parameters File
Page 64
S2VNA and S4VNA SCPI Programming Manual
64
CALC:FSIM:SEND:ZCON:PORT:Z0
CALCulate
<Ch>
:FSIMulator:SENDed:ZCONversion:PORT
<Pt>
:Z0[:R]
<numeric>
CALCulate
<Ch>
:FSIMulator:SENDed:ZCONversion:PORT
<Pt>
:Z0[:R]?
Description
Sets or reads out the value of the impedance for port impedance
conversion function.
(command/query)
Target
Port
<Pt>
of channel
<Ch>
,
<Ch>={[1]|2|...16} <Pt>={[1]|2} for S2VNA or {[1]|2|3|4} for S4VNA
Parameter
<numeric>
the impedance value from 1e–6 to 1e6
Unit
Ω (Ohm)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
50
Equivalent Softkeys
Analysis > Fixture Simulator > Port Z Conversion > Port n Z0
Page 65
S2VNA and S4VNA SCPI Programming Manual
65
CALC:FSIM:SEND:ZCON:STAT
CALCulate
<Ch>
:FSIMulator:SENDed:ZCONversion:STATe {OFF|ON|0|1}
CALCulate
<Ch>
:FSIMulator:SENDed:ZCONversion:STATe?
Description
Turns ON/OFF the port impedance conversion function.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > Port Z Conversion > Port Z Conversion
CALC:FSIM:STAT
CALCulate
<Ch>
:FSIMulator:STATe {OFF|ON|0|1}
CALCulate
<Ch>
:FSIMulator:STATe?
Description
Turns ON/OFF the fixture simulation function.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameter
{ON|1} : ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Fixture Simulator > Fixture Simulator
Page 66
S2VNA and S4VNA SCPI Programming Manual
66
CALC:PAR:COUN
CALCulate
<Ch>
:PARameter:COUNt
<numeric>
CALCulate
<Ch>
:PARameter:COUNt?
Description
Sets or reads out the number of traces in the channel.
(command/query)
Target
The channel
<Ch>={[1]|2|...16}
Parameter
<numeric>
The number of the traces in the channel from 1 to 16
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
1
Equivalent Softkeys
Display > Num of Traces
Page 67
S2VNA and S4VNA SCPI Programming Manual
67
CALC:PAR:DEF
CALCulate
<Ch>
:PARameter
<Tr>
:DEFine
<char>
CALCulate
<Ch>
:PARameter
<Tr>
:DEFine?
Description
Selects the measurement parameter of the trace.
(command/query)
Target
Trace
<Tr>
of channel
<Ch>
,
<Tr>={[1]|2|...16} <Ch>={[1]|2|...16}
Parameter
<char>
Specifies parameter:
S11, S12, S13, S14, : S – parameter
S21, S22, S23, S24,
S31, S32, S33, S34,
S41, S42, S43, S44
A, B, C, D or : Test receiver
T1, T2, T3, T4
R1, R2, R3, R4 : Reference receiver
AUX1, AUX2 or : DC Voltage V1, V2
Query Response
{S11|S12|S13|S14|S21|S22|S23|S24|S31|S32|S33|S34|S41|S42|S43| S44|R1(n)|R2(n)|R3(n)|R4(n)|A(n)|B(n)|C(n)|D(n)|V1(n)|V2(n)},
Where n is the stimulus port number;
Preset Value
Depends on the trace number.
Equivalent Softkeys
Measurement > S11 | S21 | S12 | S22 …
Measurement > Absolute
Page 68
S2VNA and S4VNA SCPI Programming Manual
68
CALC:PAR:SEL
CALCulate
<Ch>
:PARameter
<Tr>
:SELect
Description
Selects the active trace in channel.
(no query)
Target
Trace
<Tr>
of channel
<Ch>
,
<Tr>={[1]|2|...16} <Ch>={[1]|2|...16}
Notes
If the trace number is greater than the number of the traces displayed in
the channel, an error occurs and the command is ignored.
Related Commands
CALC:PAR:COUN
Equivalent Softkeys
Display > Active Trace/Channel > Active Trace
CALC:PAR:SPOR
CALCulate
<Ch>
:PARameter
<Tr>
:SPORt
<port>
CALCulate
<Ch>
:PARameter
<Tr>
:SPORt?
Description
Sets or reads out the number of the stimulus port, when
performing absolute measurements.
(command/query)
Target
Trace
<Tr>
of channel
<Ch>
,
<Tr>={[1]|2|...16} <Ch>={[1]|2|...16}
Parameter
<port>
the number of the stimulus port
Out of Range
Error occurs. The command is ignored.
Query Response
<port>
Preset Value
1
Equivalent Softkeys
Measurement > Absolute > { A(1) | B(1) | R1(1) | A(2) | B(2) | R2(2) }
Page 69
S2VNA and S4VNA SCPI Programming Manual
69
CALC:CONV
CALCulate
<Ch>
[:SELected]:CONVersion[:STATe] {OFF|ON|0|1}
CALCulate
<Ch>
[:SELected]:CONVersion[:STATe]?
Description
Turns ON/OFF the S–parameter conversion function.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Conversion > Conversion
Page 70
S2VNA and S4VNA SCPI Programming Manual
70
CALC:CONV:FUNC
CALCulate
<Ch>
[:SELected]:CONVersion:FUNCtion
<char>
CALCulate
<Ch>
[:SELected]:CONVersion:FUNCtion?
Description
Sets or reads out the S–parameter conversion function type.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<char>
Specifies parameter:
ZREFlection : Reflection equivalent impedance
ZTRansmit : Transmission equivalent impedance
YREFlection : Reflection equivalent admittance
YTRansmit : Transmission equivalent admittance
INVersion : Inverse S–parameter
ZTSHunt : Shunt equivalent impedance
YTSHunt : Shunt equivalent admittance
CONJugation : S–parameter conjugate
Query Response
{ZREF|ZTR|YREF|YTR|INV|ZTSH|YTSH|CONJ}
Preset Value
ZREF
Equivalent Softkeys
Analysis > Conversion > { Zr | Zt | Yr | Yt | 1/S | Z Trans–Shunt |
Y Trans–Shunt | Conjugation }
Page 71
S2VNA and S4VNA SCPI Programming Manual
71
CALC:CORR:EDEL:TIME
CALCulate
<Ch>
[:SELected]:CORRection:EDELay:TIME
<time>
CALCulate
<Ch>
[:SELected]:CORRection:EDELay:TIME?
Description
Sets or reads out the value of the electrical delay.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<time>
the electrical delay value from –10 to 10
Unit
s (second)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
0
Equivalent Softkeys
Scale > Electrical Delay
Page 72
S2VNA and S4VNA SCPI Programming Manual
72
CALC:CORR:OFFS:PHAS
CALCulate
<Ch>
[:SELected]:CORRection:OFFSet:PHASe
<phase>
CALCulate
<Ch>
[:SELected]:CORRection:OFFSet:PHASe?
Description
Sets or reads out the value of the phase offset.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<phase>
the phase offset value from –360 to 360
Unit
° (degree)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
0
Equivalent Softkeys
Scale > Phase Offset
Page 73
S2VNA and S4VNA SCPI Programming Manual
73
CALC:CORR:STAT?
CALCulate
<Ch>
[:SELected]:CORRection:STATus?
Description
Reads out the interpolation/extrapolation status of the error
correction.
(query only)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Query Response
Trace represents S-parameter:
NONE : Correction not applied
COR : Correction applied exactly
C? : Correction interpolated
C! : Correction extrarpolated
Trace represents absolute parameter:
NONE : Correction not applied
RC : Correction applied exactly
RC? : Correction interpolated
RC! : Correction extrarpolated
Equivalent Softkeys
None
Page 74
S2VNA and S4VNA SCPI Programming Manual
74
CALC:DATA:FDAT
CALCulate
<Ch>
[:SELected]:DATA:FDATa
<numeric list>
CALCulate
<Ch>
[:SELected]:DATA:FDATa?
CALC:TRAC:DATA:FDAT
CALCulate
<Ch>
:TRACe
<Tr>
:DATA:FDATa
<numeric list>
CALCulate
<Ch>
:TRACe
<Tr>
:DATA:FDATa?
Description
Reads out or writes the formatted data array.
The formatted data array is the data, whose processing is completed including the formatting as the last step. Such data represent the data trace values as they are shown on the screen.
The array size is 2N, where N is the number of measurement points.
For the n–th point, where n from 1 to N:
<numeric 2n–1>
real number in rectangular format, real part in
polar and Smith chart formats;
<numeric 2n>
0 in rectangular format, imaginary part in polar
and Smith chart formats.
(Command/Query)
Target
CALCulate<Ch>[:SELected]:DATA:FDATa
- the active trace of channel,
CALCulate<Ch>:TRACe<Tr>:DATA:FDATa
- the trace <Tr> of channel,
<Ch>={[1]|2|...16} <Tr>={[1]|2|...16}
Query Response
<numeric 1>, <numeric 2>
, …
<numeric 2N>
Notes
When data is being written it is recommended to hold the sweep before
and update the screen after write.
Related Commands
CALC:FORM
Equivalent Softkeys
None
Page 75
S2VNA and S4VNA SCPI Programming Manual
75
CALC:DATA:FMEM
CALCulate
<Ch>
[:SELected]:DATA:FMEMory
<numeric list>
CALCulate
<Ch>
[:SELected]:DATA:FMEMory?
CALC:TRAC:DATA:FMEM
CALCulate
<Ch>
:TRACe
<Tr>
:DATA:FMEMory
<numeric list>
CALCulate
<Ch>
:TRACe
<Tr>
:DATA:FMEMory?
Description
Reads out or writes the formatted memory array.
The formatted memory array is the data, whose processing is completed including the formatting as the last step. Such data represent the memory trace values as they are shown on the screen.
The array size is 2N, where N is the number of measurement points.
For the n–th point, where n from 1 to N:
<numeric 2n–1>
real number in rectangular format, real part in
polar and Smith chart formats;
<numeric 2n>
0 in rectangular format, imaginary part in polar
and Smith chart formats.
(Command/Query)
Target
CALCulate<Ch>[:SELected]:DATA:FMEMory
- the active trace of channel,
CALCulate<Ch>:TRACe<Tr>:DATA:FMEMory
- the trace <Tr> of channel,
<Ch>={[1]|2|...16} <Tr>={[1]|2|...16}
Query Response
<numeric 1>, <numeric 2>
, …
<numeric 2N>
Related Commands
CALC:MATH:MEM
CALC:FORM
Equivalent Softkeys
None
Page 76
S2VNA and S4VNA SCPI Programming Manual
76
CALC:DATA:SDAT
CALCulate
<Ch>
[:SELected]:DATA:SDATa
<numeric list>
CALCulate
<Ch>
[:SELected]:DATA:SDATa?
CALC:TRAC:DATA:SDAT
CALCulate
<Ch>
:TRACe
<Tr>
:DATA:SDATa
<numeric list>
CALCulate
<Ch>
:TRACe
<Tr>
:DATA:SDATa?
Description
Reads out or writes the corrected data array.
The corrected data array is the data, whose processing is completed excluding the formatting as the last step. Such data represent S–parameter complex values.
The array size is 2N, where N is the number of measurement points.
For the n–th point, where n from 1 to N:
<numeric 2n–1>
the real part of corrected measurement;
<numeric 2n>
the imaginary part of corrected measurement.
(Command/Query)
Target
CALCulate<Ch>[:SELected]:DATA:SDATa
- the active trace of channel,
CALCulate<Ch>:TRACe<Tr>:DATA:SDATa
- the trace <Tr> of channel,
<Ch>={[1]|2|...16} <Tr>={[1]|2|...16}
Query Response
<numeric 1>, <numeric 2>
, …
<numeric 2N>
Notes
When data is being written it is recommended to hold the sweep before
and update the screen after write.
Equivalent Softkeys
None
Page 77
S2VNA and S4VNA SCPI Programming Manual
77
CALC:DATA:SMEM
CALCulate
<Ch>
[:SELected]:DATA:SMEMory
<numeric list>
CALCulate
<Ch>
[:SELected]:DATA:SMEMory?
CALC:TRAC:DATA:SMEM
CALCulate
<Ch>
:TRACe
<Tr>
:DATA:SMEMory
<numeric list>
CALCulate
<Ch>
:TRACe
<Tr>
:DATA:SMEMory?
Description
Reads out or writes the corrected memory array.
The corrected memory array is the data, whose processing is completed excluding the formatting as the last step. Such data represent S–parameter complex values.
The array size is 2N, where N is the number of measurement points.
For the n–th point, where n from 1 to N:
<numeric 2n–1>
the real part of corrected measurement memory;
<numeric 2n>
the imaginary part of corrected measurement
memory.
(Command/Query)
Target
CALCulate<Ch>[:SELected]:DATA:SMEMory
- the active trace of channel,
CALCulate<Ch>:TRACe<Tr>:DATA:SMEMory
- the trace <Tr> of channel,
<Ch>={[1]|2|...16} <Tr>={[1]|2|...16}
Query Response
<numeric 1>, <numeric 2>
, …
<numeric 2N>
Related Commands
CALC:MATH:MEM
Equivalent Softkeys
None
Page 78
S2VNA and S4VNA SCPI Programming Manual
78
CALC:DATA:XAX?
CALCulate
<Ch>
[:SELected]:DATA:XAXis?
CALC:TRAC:DATA:XAX?
CALCulate
<Ch>
:TRACe
<Tr>
:DATA:XAXis?
Description
Reads out the X-axis values array.
The X-axis values array is the frequency, power or time values array depending on the trace setup. The array contains real values.
The array size is N, where N is the number of measurement points.
For the n–th point, where n from 1 to N:
<numeric n>
the X-axis value;
(Query only)
Target
CALCulate<Ch>[:SELected]:DATA:XAXis?
- the active trace of channel,
CALCulate<Ch>:TRACe<Tr>:DATA:XAXis?
- the trace <Tr> of channel,
<Ch>={[1]|2|...16} <Tr>={[1]|2|...16}
Query Response
<numeric 1>, <numeric 2>
, …
<numeric N>
Related Commands
SENS:SWE:TYPE
CALC:TRAN:TIME:STAT
Equivalent Softkeys
None
Page 79
S2VNA and S4VNA SCPI Programming Manual
79
CALC:FILT:TIME
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME[:TYPE]
<char>
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME[:TYPE]?
Description
Sets or reads out the gate type of the gating function.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<char> Specifies
the gate type
:
BPASs : Bandpass type
NOTCh : Notch type
Query Response
{BPAS|NOTC}
Preset Value
BPAS
Equivalent Softkeys
Analysis > Gating > Type
Page 80
S2VNA and S4VNA SCPI Programming Manual
80
CALC:FILT:TIME:CENT
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:CENTer
<time>
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:CENTer?
Description
Sets or reads out the gate center value of the gating function.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<time>
the center value of the gate, the range varies depending on the
frequency span and the number of points
Unit
s (second)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
0
Equivalent Softkeys
Analysis > Gating > Center
Page 81
S2VNA and S4VNA SCPI Programming Manual
81
CALC:FILT:TIME:SHAP
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:SHAPe
<char>
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:SHAPe?
Description
Sets or reads out the gate shape of the gating function.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<char> Specifies
the gate shape
:
MAXimum : Maximum shape
WIDE : Wide shape
NORMal : Normal shape
MINimum : Minimum shape
Query Response
{MAX|WIDE|NORM|MIN}
Preset Value
NORM
Equivalent Softkeys
Analysis > Gating > Shape > { Maximum | Wide | Normal | Minimum }
Page 82
S2VNA and S4VNA SCPI Programming Manual
82
CALC:FILT:TIME:SPAN
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:SPAN
<time>
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:SPAN?
Description
Sets or reads out the gate span value of the gating function.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<time>
the span value of the gate, the range varies depending on the
frequency span and the number of points
Unit
s (second)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
2e–8
Equivalent Softkeys
Analysis > Gating > Span
Page 83
S2VNA and S4VNA SCPI Programming Manual
83
CALC:FILT:TIME:STAR
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:STARt
<time>
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:STARt?
Description
Sets or reads out the gate start value of the gating function.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<time>
the start value of the gate, the range varies depending on the
frequency span and the number of points
Unit
s (second)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
–1e–8
Equivalent Softkeys
Analysis > Gating > Start
Page 84
S2VNA and S4VNA SCPI Programming Manual
84
CALC:FILT:TIME:STAT
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:STATe {OFF|ON|0|1}
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:STATe?
Description
Turns ON/OFF the gating function.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Gating > Gating
Page 85
S2VNA and S4VNA SCPI Programming Manual
85
CALC:FILT:TIME:STOP
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:STOP
<time>
CALCulate
<Ch>
[:SELected]:FILTer[:GATE]:TIME:STOP?
Description
Sets or reads out the gate stop value of the gating function.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<time>
the stop value of the gate, the range varies depending on the
frequency span and the number of points
Unit
s (second)
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
+1e–8
Equivalent Softkeys
Analysis > Gating > Stop
Page 86
S2VNA and S4VNA SCPI Programming Manual
86
CALC:FORM
CALCulate
<Ch>
[:SELected]:FORMat
<char>
CALCulate
<Ch>
[:SELected]:FORMat?
Description
Sets or reads out the trace format.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<char> Specifies the
trace format
:
MLOGarithmic : Logarithmic magnitude PHASe : Phase GDELay : Group delay time SLINear : Smith chart format (Lin) SLOGarithmic : Smith chart format (Log) SCOMplex : Smith chart format (Real/Imag) SMITh : Smith chart format (R + jX) SADMittance : Smith chart format (G + jB) PLINear : Polar format (Lin) PLOGarithmic : Polar format (Log) POLar : Polar format (Real/Imag) MLINear : Linear magnitude SWR : Voltage standing wave ratio REAL : Real part IMAGinary : Imaginary part UPHase : Expanded phase
Query Response
{MLOG|PHAS|GDEL|SLIN|SLOG|SCOM|SMIT|SADM|PLIN|PLOG| POL|MLIN|SWR|REAL|IMAG|UPH}
Preset Value
MLOG
Equivalent Softkeys
Format > { Log Mag | Phase | Group Delay | Lin Mag | SWR | Real | Imag |
Phase > 180 }
Format > Smith > { Log/Phase | Lin/Phase | Real/Imag | R+jX | G+jB }
Format > Polar > { Log/Phase | Ling/Phase | Real/Imag }
Page 87
S2VNA and S4VNA SCPI Programming Manual
87
CALC:FUNC:DATA?
CALCulate
<Ch>
[:SELected]:FUNCtion:DATA?
Description
Reads out the data array, which is the
CALC:FUNC:EXEC
command
analysis result.
The array size is 2N, where N is the number of points.
For the n–th point, where n from 1 to N:
<numeric 2n–1> the response value in n–th measurement point;
<numeric 2n> the stimulus value in n–th measurement point.
Always set to 0 for the analysis of mean value, standard deviation, and peak–to–peak value.
(query only)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Query Response
<numeric 1>, <numeric 2>
, …
<numeric 2N>
Related Commands
CALC:FUNC:EXEC
CALC:FUNC:POIN?
Equivalent Softkeys
None
Page 88
S2VNA and S4VNA SCPI Programming Manual
88
CALC:FUNC:DOM
CALCulate
<Ch>
[:SELected]:FUNCtion:DOMain[:STATe] {OFF|ON|0|1}
CALCulate
<Ch>
[:SELected]:FUNCtion:DOMain[:STATe]?
Description
Specify whether an arbitrary range or the
entire sweep
range is used
when the
CALC:FUNC:EXEC
command is executed.
(command/query)
Target
All traces of channel
<Ch>
(if the coupling is set to ON by the
CALC:FUNC:DOM:COUP command), the active trace of channel <Ch> (if otherwise),
<Ch>={[1]|2|...16}
Parameter
Select the following :
{ON|1} : Arbitrary range {OFF|0} : Entire sweep range
Query Response
{0|1}
Preset Value
0
Related Commands
CALC:FUNC:EXEC
CALC:FUNC:DOM:COUP
Equivalent Softkeys
None
Page 89
S2VNA and S4VNA SCPI Programming Manual
89
CALC:FUNC:DOM:COUP
CALCulate
<Ch>
[:SELected]:FUNCtion:DOMain:COUPle {OFF|ON|0|1}
CALCulate
<Ch>
[:SELected]:FUNCtion:DOMain:COUPle?
Description
If the
arbitrary range turned ON by the
CALC:FUNC:DOM:STAT
command, specifies whether all
traces of channel use the same range
(coupling) or each trace uses individual range when the
CALC:FUNC:EXEC
command is executed.
(command/query)
Target
All traces of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
1
Related Commands
CALC:FUNC:EXEC
Equivalent Softkeys
None
Page 90
S2VNA and S4VNA SCPI Programming Manual
90
CALC:FUNC:DOM:STAR
CALCulate
<Ch>
[:SELected]:FUNCtion:DOMain:STARt
<stimulus>
CALCulate
<Ch>
[:SELected]:FUNCtion:DOMain:STARt?
Description
Sets the start value of the analysis range of the
CALC:FUNC:EXEC
command.
(command/query)
Target
All traces of channel
<Ch>
(if the coupling is set to ON by the
CALC:FUNC:DOM:COUP
command), the active trace of channel <Ch> (if
otherwise),
<Ch>={[1]|2|...16}
Parameter
<stimulus>
the start value of analysis range
Unit
{ Hz |s |dBm }
Query Response
<numeric>
Preset Value
0
Related Commands
CALC:FUNC:DOM
Equivalent Softkeys
None
Page 91
S2VNA and S4VNA SCPI Programming Manual
91
CALC:FUNC:DOM:STOP
CALCulate
<Ch>
[:SELected]:FUNCtion:DOMain:STOP
<stimulus>
CALCulate
<Ch>
[:SELected]:FUNCtion:DOMain:STOP?
Description
Sets the stop value of the analysis range of the
CALC:FUNC:EXEC
command.
(command/query)
Target
All traces of channel
<Ch>
(if the coupling is set to ON by the
CALC:FUNC:DOM:COUP command), the active trace of channel <Ch> (if otherwise),
<Ch>={[1]|2|...16}
Parameter
<stimulus>
the stop value of analysis range
Unit
{ Hz |s |dBm }
Query Response
<numeric>
Preset Value
0
Related Commands
CALC:FUNC:DOM
Equivalent Softkeys
None
CALC:FUNC:EXEC
CALCulate
<Ch>
[:SELected]:FUNCtion:EXECute
Description
Executes the analysis specified by the
CALC:FUNC:TYPE
command.
The analysis result can be read out by the
CALC:FUNC:DATA?
command.
(no query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Related Commands
CALC:FUNC:TYPE
CALC:FUNC:DATA?
Equivalent Softkeys
None
Page 92
S2VNA and S4VNA SCPI Programming Manual
92
CALC:FUNC:PEXC
CALCulate
<Ch>
[:SELected]:FUNCtion:PEXCursion
<numeric>
CALCulate
<Ch>
[:SELected]:FUNCtion:PEXCursion?
Description
Sets the lower limit for the peak excursion value when executing
the peak search with the
CALC:FUNC:EXEC
command.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<numeric>
the lower limit of the peak excursion value, varies depending
on the data format
Unit
{ dB |° |s }
Query Response
<numeric>
Preset Value
3.0
Related Commands
CALC:FUNC:EXEC
Equivalent Softkeys
None
Page 93
S2VNA and S4VNA SCPI Programming Manual
93
CALC:FUNC:POIN?
CALCulate
<Ch>
[:SELected]:FUNCtion:POINts?
Description
Reads out the number of points (data pairs) of the analysis result
by the
CALC:FUNC:EXEC
command.
Always reads out 1, when the search is executed for the maximum, minimum, mean, standard deviation, peak, and peak–to–peak values. The actual number of points is read out, when the search is executed for all peak or all targets.
(query only)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Query Response
<numeric>
Related Commands
CALC:FUNC:EXEC
Equivalent Softkeys
None
Page 94
S2VNA and S4VNA SCPI Programming Manual
94
CALC:FUNC:PPOL
CALCulate
<Ch>
[:SELected]:FUNCtion:PPOLarity
<char>
CALCulate
<Ch>
[:SELected]:FUNCtion:PPOLarity?
Description
Selects the polarity when performing the peak search with the
CALC:FUNC:EXEC
command.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<char> Specifies the
polarity
:
POSitive : Positive peaks
NEGative : Negative peaks
BOTH : Both positive peaks and negative peaks
Query Response
{POS|NEG|BOTH}
Preset Value
POS
Related Commands
CALC:FUNC:EXEC
Equivalent Softkeys
None
Page 95
S2VNA and S4VNA SCPI Programming Manual
95
CALC:FUNC:TARG
CALCulate
<Ch>
[:SELected]:FUNCtion:TARGet
<numeric>
CALCulate
<Ch>
[:SELected]:FUNCtion:TARGet?
Description
Selects the target level when performing the search for the trace
and the target level crosspoints with the
CALC:FUNC:EXEC
command.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<numeric>
the target value, varies depending on the data format
Unit
{ dB |° |s }
Query Response
<numeric>
Preset Value
0
Related Commands
CALC:FUNC:EXEC
Equivalent Softkeys
None
Page 96
S2VNA and S4VNA SCPI Programming Manual
96
CALC:FUNC:TTR
CALCulate
<Ch>
[:SELected]:FUNCtion:TTRansition
<char>
CALCulate
<Ch>
[:SELected]:FUNCtion:TTRansition?
Description
Selects the transition type when performing the search for the
trace and the target level crosspoints with the
CALC:FUNC:EXEC
command.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<char> Specifies the
transition
:
POSitive : Positive peaks
NEGative : Negative peaks
BOTH : Both positive peaks and negative peaks
Query Response
{POS|NEG|BOTH}
Preset Value
POS
Related Commands
CALC:FUNC:EXEC
Equivalent Softkeys
None
Page 97
S2VNA and S4VNA SCPI Programming Manual
97
CALC:FUNC:TYPE
CALCulate
<Ch>
[:SELected]:FUNCtion:TYPE
<char>
CALCulate
<Ch>
[:SELected]:FUNCtion:TYPE?
Description
Selects the type of analysis executed with the
CALC:FUNC:EXEC
command.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
<char> Specifies the
transition
:
PTPeak : Peak–to–peak (difference between the maximum value
and the minimum value)
STDEV : Standard deviation
MEAN : Mean value
MAXimum : Maximum value
MINimum : Minimum value
PEAK : Search for peak
APEak : Search for all the peaks
ATARget : Search for all targets
Query Response
{PTP|STDEV|MEAN|MAX|MIN|PEAK|APE|ATAR}
Preset Value
PTP
Related Commands
CALC:FUNC:EXEC
Equivalent Softkeys
None
Page 98
S2VNA and S4VNA SCPI Programming Manual
98
CALC:LIM
CALCulate
<Ch>
[:SELected]:LIMit[:STATe] {OFF|ON|0|1}
CALCulate
<Ch>
[:SELected]:LIMit[:STATe]?
Description
Turns ON/OFF the limit test.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Limit Test > Limit Test
Page 99
S2VNA and S4VNA SCPI Programming Manual
99
CALC:LIM:DATA
CALCulate
<Ch>
[:SELected]:LIMit:DATA
<numeric list>
CALCulate
<Ch>
[:SELected]:LIMit:DATA?
Description
Sets the data array, which is the limit line in the limit test function.
The array size is 1 + 5N, where N is the number of limit line segments.
For the n–th point, where n from 1 to N:
<numeric 1>
the number of limit line segments N is from 0 to
100. Setting 0 clears the limit line.
<numeric 5n–3>
type of the n–th limit line segment
0: Off. 1: Upper limit 2: Lower limit 3: Single Point limit
<numeric 5n–2>
the stimulus value in the start point of the n–th
segment
<numeric 5n–1>
the stimulus value in the end point of the n–th
segment
<numeric 5n–0>
the response value in the start point of the n–th
segment
<numeric 5n+1>
the response value in the end point of the n–th
segment
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Query Response
<numeric 1>, <numeric 2>
, …
<numeric 5N+1>
Notes
If the array size is not 1 + 5N, where N is <numeric 1>, an error occurs. If
<numeric 5n–3> is less than 0 or more than 2, an error occurs. When <numeric 5n–2>, <numeric 5n–1>, <numeric 5n–0>, and <numeric 5n+1>
elements are out of allowable range, the value is set to the limit, which is closer to the specified value.
Equivalent Softkeys
Analysis > Limit Test > Edit Limit Line
Page 100
S2VNA and S4VNA SCPI Programming Manual
100
CALC:LIM:DISP
CALCulate
<Ch>
[:SELected]:LIMit:DISPlay[:STATe] {OFF|ON|0|1}
CALCulate
<Ch>
[:SELected]:LIMit:DISPlay[:STATe]?
Description
Turns ON/OFF the limit line display of the limit test function.
(command/query)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Parameter
{ON|1}
: ON
{OFF|0} : OFF
Query Response
{0|1}
Preset Value
0
Equivalent Softkeys
Analysis > Limit Test > Limit Line
CALC:LIM:FAIL?
CALCulate
<Ch>
[:SELected]:LIMit:FAIL?
Description
Reads out the limit test result.
(query only)
Target
The active trace of channel
<Ch>
,
<Ch>={[1]|2|...16}
Query Response
1
: Fail
0
: Pass
Equivalent Softkeys
None
