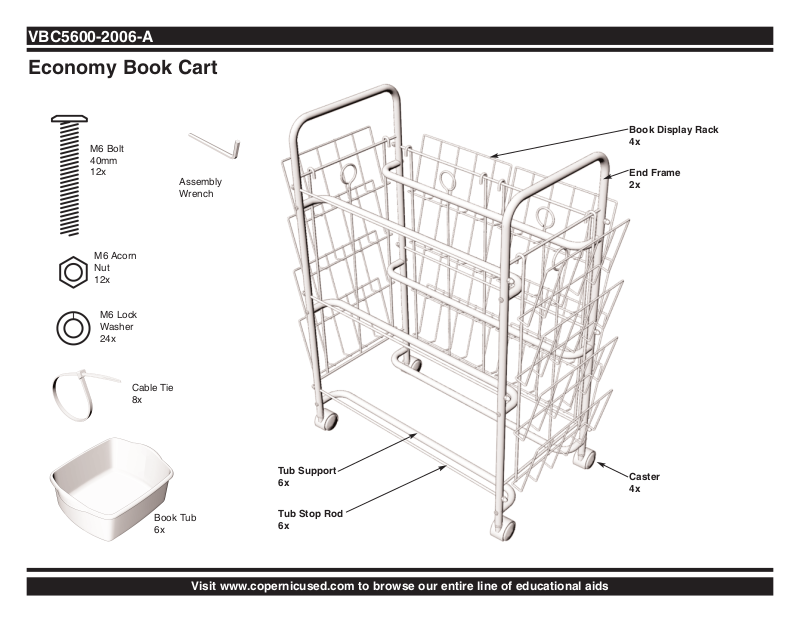

VBC5600-2006-A

Economy Book Cart

M6 Bolt
40mm
12x

Assembly
Wrench

M6 Acorn
Nut
12x

M6 Lock
Washer
24x

Book Display Rack
4x

End Frame
2x

Cable Tie
8x

Book
6x

Tub Support
6x

ub

T

Tub Stop Rod
6x

Visit www.copernicused.com to browse our entire line of educational aids

Caster
4x

NOTE: Do not tighten any fasteners until the unit is completely assembled

1 Insert Casters into the End Frames

- Push each caster in by hand until fully seated

2 Install the 6 Tub Stop Rods

-Use acorn nuts and lock washers

-Hand tighten only

3 Install the 6 Tub Supports to the End Frames

- Use 40mm bolts, and lock washers

- Hand tighten only

2

4 Tighten All Fasteners

- NOTE: 24 in total

- Use the included assembly wrench for the bolts (12)

- Use an adjustable wrench for the acorn nut (12)

5 Install the Book Display Racks

- Hook the top of each rack over the upper rods

6 Secure the Book Display Racks

- Use cable ties (2 for each rack)

- Wrap each tie around the rack and lower rods

- Pull tightly

- Trim the ends with scissors

3

6

5

PULL

1

TIGHT
