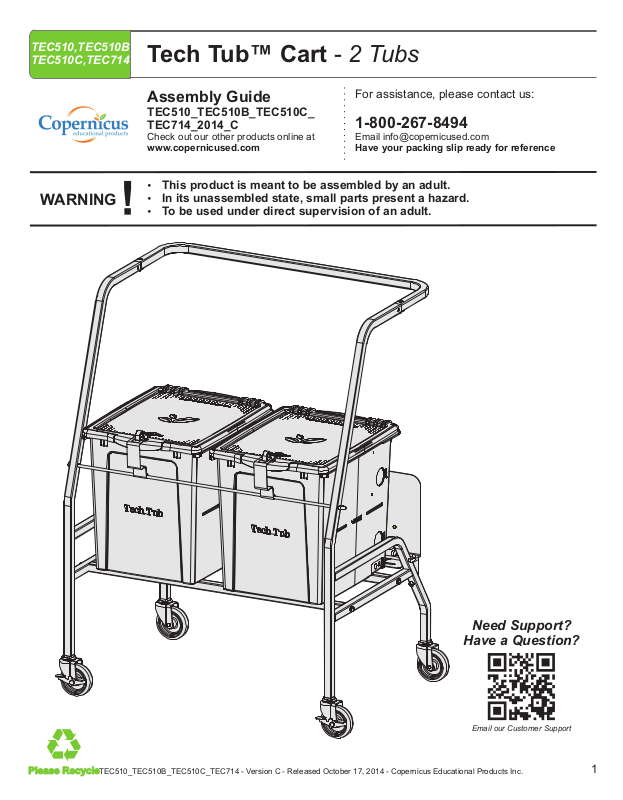

Copernicus TEC714 User Manual
TEC510,TEC510B
TEC510C,TEC714
Tech Tub™ Cart - 2 Tubs
WARNING
Assembly Guide
TEC510_TEC510B_TEC510C_
TEC714_2014_C
Check out our other products online at
www.copernicused.com
?This product is meant to be assembled by an adult.
?In its unassembled state, small parts present a hazard.
?To be used under direct supervision of an adult.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Please Recycle
Need Support?
Have a Question?
Email our Customer Support
TEC510_TEC510B_TEC510C_TEC714 - Version C - Released October 17, 2014 - Copernicus Educational Products Inc.
1
TEC510,TEC510B
TEC510C,TEC714
Tech Tub™ Cart - 2 Tubs
Assembly Guide
TEC510_TEC510B_TEC510C_
TEC714_2014_B
Check out our other products online at
www.copernicused.com
Dear Educator,
Thank you for purchasing one of our products. I hope the assembly of your Tech Tub™ Cart went well.
If you have any questions, or concerns, or ideas for how we can improve, please call us at 1-800-267-8494,
where someone will be happy to help.
Enjoy using your new product, and happy teaching,
Jim Phillips
President
We do not inherit the earth
from our ancestors, we
borrow it from our children.
NORTH AMERICAN
PROVERB
Change is the end result of
all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the lives
of others.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Education is the most
powerful weapon which you
can use to change the world.
NELSON MANDELA
PERICLES
Customer Service - FAQ’s
For missing parts and other issues regarding your Tech Tub™ &
Tech Tub™ Cart:
Please call Copernicus Customer Service, where we will be happy to help.
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at vanessa@copernicused.com
10
Year
Frame
Warranty
5
Year
Tub and Lid
Warranty
Frame
TEC510_TEC510B_TEC510C_TEC714 - Version C - Released October 17, 2014 - Copernicus Educational Products Inc.
1
Year
Component
Warranty
Validate Your Warranty
To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a drawing to win a Copernicus Product for your classroom at the same time!
?
?
?
Need Tech Support?
Have a Question?
Email our Tech Support Service
2
Warning! Hazard Risks!
Please read the warnings below for important safety information regarding your product.
Failure to read these warnings or to follow the instructions below could result in personal
injury or damage to your product that could void your warranty.
In its unassembled state, this product contains parts that can be hazardous to small children. This
Small
Parts
Adult
Supervision
Indoor Use
Only
product should be assembled by an adult.
This product is to be used under the supervision of an adult.
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture. The internal components are not sealed from the
environment.
Powerbar
Specifications
Electronic
Equipment
Cable Trip
Hazard
Electrical Shock
Read your powerbar’s electrical specifications. Only plug in devices that are approved for use
with this powerbar. Connect the supplied power bar directly to a wall outlet. Do not connect to
another power bar or use an extension cord. Unplug when not in use.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage
to your equipment or personal injury.
Ensure that any cables extending across the floor to your product are properly bundled and
marked to avoid tripping or falling which may lead to personal injury.
Do not install or use the electrical components of this unit during a lightening storm.
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless
otherwise specified.
TEC510_TEC510B_TEC510C_TEC714 - Version C - Released October 17, 2014 - Copernicus Educational Products Inc.
3
TEC510,TEC510B
TEC510C,TEC714
WARNING
!
Tech Tub™ (2)
Tech Tub™ Cart - 2 Tubs
Please note that in its unassembled state, this product contains parts
that can be hazardous to small children. This product should be
assembled by an adult.
Main Frame - Connector (1)
Powerbar Tray (1)
(Base TEC510B Option)
Locking System (2)
Rod (2)
Main Frame (2)
3" Caster With Brake (2)
Stretcher (2)
3" Caster Without Brake (2)
TEC510_TEC510B_TEC510C_TEC714 - Version C - Released October 17, 2014 - Copernicus Educational Products Inc.
4
TEC510,TEC510B
TEC510C,TEC714
Tech Tub™ Cart - Parts
Before beginning, you should have:
Additional tools required:
Adjustable wrench (2)
OR
7/16 in
Rubber Mallet
Screwdriver
++
Phillips #2
Contents - TEC2-0
Main Frame
2x
Rod
2x
3” Caster
Without Brake
2x
3” Caster
With Brake
2x
In TEC510-0
Hardware
Actual Size
10-24” x 7/8”
A
Machine Screw (430137)
2x
1/4” x 1-3/4” Bolt
B
(43007)
4x
1/4” Lock Washer
C
(43010)
4x
1/4” Lock Nut
D
(430101)
2x
Contents - TEC-AC32050
(Comes with TEC510B)
Main Frame
- Connector
1x
Stretcher
2x
Locking System
2x
TEC510_TEC510B_TEC510C_TEC714 - Version C - Released October 17, 2014 - Copernicus Educational Products Inc.
Hook & Loop Straps
2x
Powerbar Tray
1x
Hardware
Actual Size
1/4” x 1-1/4” Bolt
E
(43005)
2x
1/4” Lock Nut
F
(430101)
2x
Cable Ties
4x
In TEC510-B
5
TEC510,TEC510B
TEC510C,TEC714
Tech Tub™ Cart - Parts
Before beginning, you should have:
Contents - TEC500
(Comes with TEC510)
Tech Tub™ - Premium
(TEC500)
2x
OR
Contents - TEC57
(Comes with TEC510B)
Tech Tub™ - Base
(TEC57)
2x
Contents - TEC700
(Comes with TEC714)
Tech Tub™ - Premium 7
Device (TEC700)
2x
OR
Contents - TEC500C
(Comes with TEC510)
Tech Tub™ Chromebooks (TEC500C)
2x
Premium 5
TEC510_TEC510B_TEC510C_TEC714 - Version C - Released October 17, 2014 - Copernicus Educational Products Inc.
6
