Copernicus IS2 User Manual
IS2
R
Standard Royal Inspiration Station
Assembly Guide
IS2_2013_A
Check out our other products online at
www.copernicused.com
?This product is meant to be assembled by an adult.
WARNING
?In its unassembled state, small parts present a hazard.
?To be used under direct supervision of an adult.
Check out some of our
other great products!
www.copernicused.com
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference

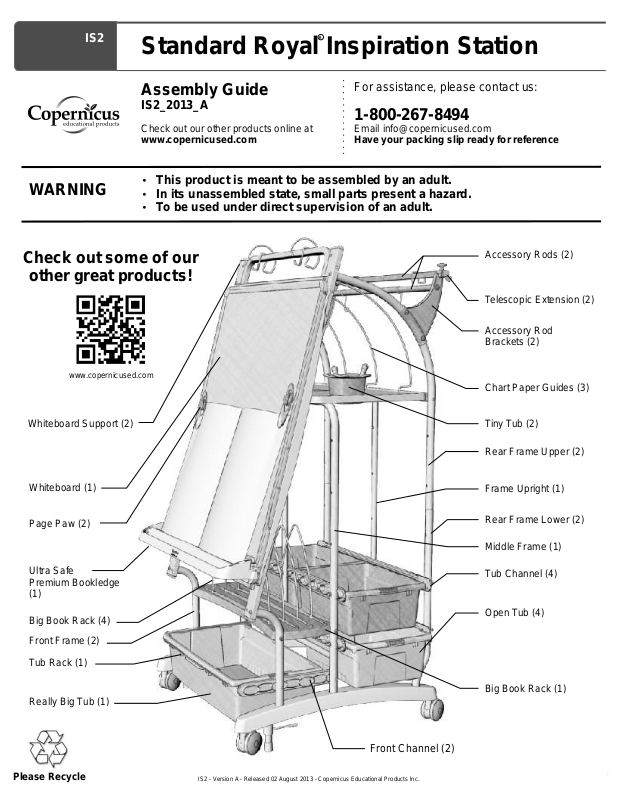

Accessory Rods (2)
Telescopic Extension (2)
Accessory Rod
Brackets (2)
Chart Paper Guides (3)
Whiteboard Support (2)
Whiteboard (1)
Page Paw (2)
Ultra Safe
Premium Bookledge
(1)
Big Book Rack (4)
Front Frame (2)
Tub Rack (1)
Really Big Tub (1)
Tiny Tub (2)
Rear Frame Upper (2)
Frame Upright (1)
Rear Frame Lower (2)
Middle Frame (1)
Tub Channel (4)
Open Tub (4)
Big Book Rack (1)
Please Recycle
Front Channel (2)
IS2 - Version A - Released 02 August 2013 - Copernicus Educational Products Inc.
IS2
R
Royal Inspiration Station - Parts
Before beginning, you should have:
Additional tools required :(Not to Scale)
Adjustable wrench
Rubber mallet
Contents - Box 1
(numbers in brackets are individual part numbers)
Whiteboard
1x
(32104)
Whiteboard
Support
2x
(23211)
Front
Frame
2x
(33029)
Rear Frame
Lower
2x
(33030)
Rear Frame
Upper
2x
(33031)
Middle Frame
1x
(33032)
Stretcher - 27.5”
1 Bottom, 1 Top
2x
(33035)
Frame Upright - 32”
1x
(33033)
Book Ledge
1x
(PABL30)
Base
2x
(23210)
Chart Paper
Hooks
2x
(310171)
Accessory Rod
Brackets & Knob
1 Left, 1 Right
2x
(23207 - Set)
(23207L)
(23207R)
Telescoping
Extension
1Left, 1 Right
2x
(330141 - Set)
Big Book
Rack
1x
(23205)
Top Shelf
1x
(23206)
Tub Rack
1x
(31058)
Square
Accessory
Rod
1x
(33027)
Round
Accessory
Rod
1x
(33028)
Chart Paper
Guide
3x
(31059)
Big Book
Divider
4x
(31060)
Page Paw
2x
(AC450-0)
Individual
S-Hook
2x
(31018)
Individual
Tub Channel
4x
(23208)
Rear Hanging
Hook
Chart Paper
2x
(31061)
Support
1x
(33034)
2
IS2 - Version A - Released 02 August 2013 - Copernicus Educational Products Inc.
Front
Channel
1 Left, 1
Right
2x
(23209 - Set)
(23209R)
(23209L)
IS2
Continued:
R
Royal Inspiration Station - Parts
Hardware Actual Size
Bag = (43201)
(numbers in brackets are individual part numbers)
- Box 1
A
M6 x 65mm Bolt
4x
(43265)
B
M6 x 40mm Bolt
20x
(43240)
C
M6 x 30mm Bolt
4x
(43230)
D
M6 x 25mm Bolt
6x
(43225)
E
M6 x 20mm Bolt
20x
(43220)
F
M6 Barrel Nut
28x
(43272)
Contents - Box 2
Open Tub
4x
(1xCC4068-C)
(1xCC4068-R)
(1xCC4068-Y)
Tiny Tub
2x
(1xCC4072-G)
(1xCC4072-O)
Really Big Tub
1x
(CC4073-B)
10 lbs Weight Limit
15 lbs Weight Limit
G
6mm Lock Washer
26x
(43273)
H
8mm Lock Washer
28x
(43274)
Driver for Cordless Drill
(Not to Scale)
1x
(43280)
Optional use for faster assembly
Allen Key
2x
(43281)
I
M6 Nut
4x
(43270)
J
6mm Acorn Nut
4x
(43271)
Caster
4x
(41003C)
Individual
3
IS2 - Version A - Released 02 August 2013 - Copernicus Educational Products Inc.
2 Person
Tips for Assembly - Using this Manual
Watch for These Helpful Symbols
lThis symbol denotes a 2 Person Task. For safety, please ensure that there are two people
working on steps displaying this symbol
lWatch for this symbol throughout the Assembly Instructions. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done correctly.
lThe Star symbol highlights an advisory note
Before You Begin
Layout and identify all of the included parts
l
The hardware has been packed according to size, separate them based on those sizes
l
Read the assembly instructions over once to familiarize yourself with them
l
Please note that in its unassembled state, this product contains parts that can be a hazard
l
to small children; it should be assembled by an adult.
As You Assemble the Unit
lFollow the steps in sequence
lBefore beginning each step, find the part(s) that you need for that step
lPay attention to the labeling on the parts, they are there to help direct you at certain stages
lThe title of each step states what you will be doing. Review the text and the pictures as you
build the unit.
After Assembly; Before Use
lRemove the plastic film from the Whiteboard before writing on it
Don’t forget to check out our tips for your whiteboard at:
www.copernicused.com
Life
Time
Frame
Warranty
“My idea of education is to unsettle the minds of the young and inflame their intellects.” - Robert Maynard Hutchins
4
Life
Time
Tub
Warranty
To validate your five year frame warranty & lifetime tub warranty, submit the ON-LINE form at
www.copernicused.com
IS2 - Version A - Released 02 August 2013 - Copernicus Educational Products Inc.
Validate Your Warranty On-Line
Actual Size:
1
You will need: (Not to Scale)
Base x 2 Front Frame x 2 Rear Frame Lower x 2 Caster x 4
B G
x 4 x 4
Note: Do not tighten any fasteners unless prompted
Install Front Frame, Rear Frame Lower & Casters
You should begin the installation with
the brakes in the up position
!
Top View - Looking Down on Unit
Front
of unit
Ensure Frame
pieces are square
with the Base
Note orientation
!
G
G
B
Brake
Press Casters firmly into the Side Frame:
- Casters will click into place
- If necessary, place a wrench between
!
the wheels & tap in with a rubber mallet
5
IS2 - Version A - Released 02 August 2013 - Copernicus Educational Products Inc.
B
