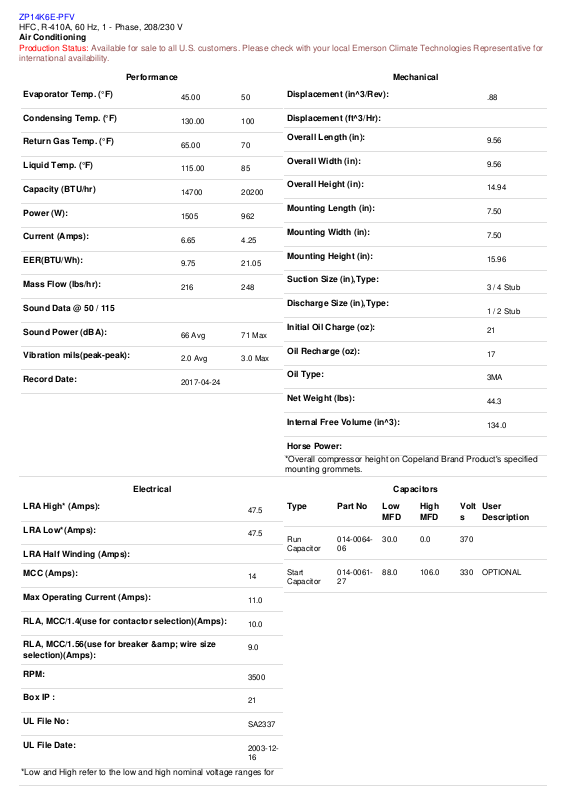

ZP14K6E-PFV
HFC, R-410A, 60 Hz, 1 - Phase, 208/230 V
Air Conditioning
Production Status: Available for sale to all U.S. customers. Please check with your local Emerson Climate Technologies Representative for
international availability.
Evaporator Temp. (°F)
Condensing Temp. (°F)
Return Gas Temp. (°F)
Liquid Temp. (°F)
Capacity (BTU/hr)
Power (W):
Current (Amps):
EER(BTU/Wh):
Mass Flow (lbs/hr):
Sound Data @ 50 / 115
Sound Power (dBA):
Vibration mils(peak-peak):
Record Date:
Performance
45.00 50
130.00 100
65.00 70
115.00 85
14700 20200
1505 962
6.65 4.25
9.75 21.05
216 248
66 Avg 71 Max
2.0 Avg 3.0 Max
2017-04-24
Displacement (in^3/Rev):
Displacement (ft^3/Hr):
Overall Length (in):
Overall Width (in):
Overall Height (in):
Mounting Length (in):
Mounting Width (in):
Mounting Height (in):
Suction Size (in),Type:
Discharge Size (in),Type:
Initial Oil Charge (oz):
Oil Recharge (oz):
Oil Type:
Net Weight (lbs):
Mechanical
.88
9.56
9.56
14.94
7.50
7.50
15.96
3 / 4 Stub
1 / 2 Stub
21
17
3MA
44.3
Electrical
LRA High* (Amps):
LRA Low*(Amps):
LRA Half Winding (Amps):
MCC (Amps):
Max Operating Current (Amps):
RLA, MCC/1.4(use for contactor selection)(Amps):
RLA, MCC/1.56(use for breaker & wire size
selection)(Amps):
RPM:
47.5
47.5
14
11.0
10.0
9.0
3500
Internal Free Volume (in^3):
134.0
Horse Power:
*Overall compressor height on Copeland Brand Product's specified
mounting grommets.
Capacitors
Type Part No Low
MFD
Run
Capacitor
Start
Capacitor
014-0064-0630.0 0.0 370
014-0061-2788.0 106.0 330 OPTIONAL
High
MFD
VoltsUser
Description
Box IP :
UL File No:
UL File Date:
21
SA2337
2003-1216
*Low and High refer to the low and high nominal voltage ranges for
Page 2
which the motor is approved.
Alternate Applications
Refrigerant Voltage Phase Frequency Application
