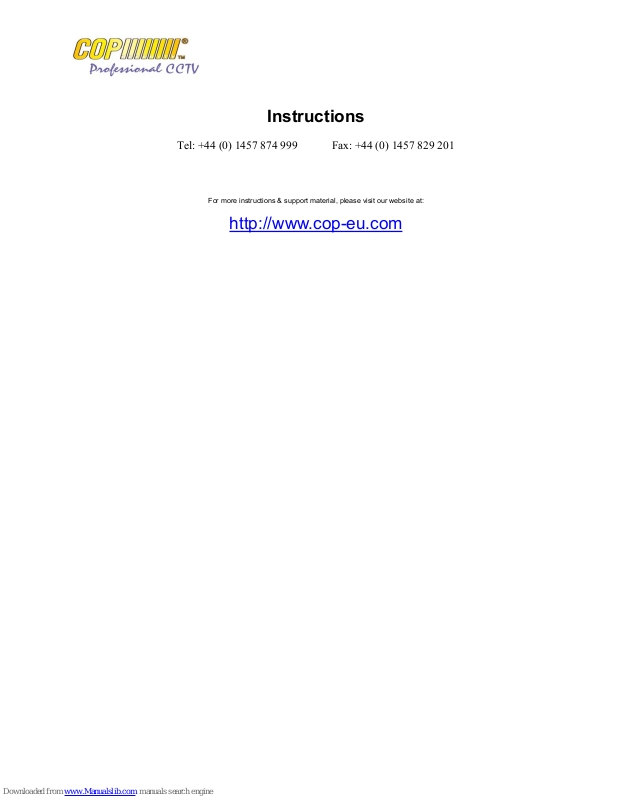

Page 1
Instructions
Tel: +44 (0) 1457 874 999 Fax: +44 (0) 1457 829 201
For more instructions & support material, please visit our website at:
http://www.cop-eu.com
Page 2
Color DSP Vari-focal Zoom Camera
ITEM NO.: 15-CM35VA, 15-CM35HVA
FEATURES
1/4” DSP Color CCD(15-CM35VA), 1/3” DSP Color CCD(15-CM35HVA),
Vari-focal lens: 2.7mm~12mm
Resolution 380 TV lines(15-CM35VA), Resolution 520 TV lines(15-CM35VA)
Auto gain control (AGC)
Auto white balance
Auto switch on while under 2 Lux by Photo Conductor (CdS)
Build-in 7 high illumination infrared LED’s
DC 12V operation
Indoor and outdoor use, IP65 waterproof metal finger type
Adjustable sun/weather shield
OVERVIEW
INSTALLATION
1. Use the screws to fix the bracket on the wall.
2. Connect BNC connector to the video output of camera.
3. Connect DC Jack to the power of DC12V.
4. Use the bracket to connect camera.
5. Adjust the view of camera.
Caution for Installation
1. Avoid places where there is direct sunlight.
2. Do not directly touch the CCD element. If necessary, use a soft cloth moistened with alcohol to
wipe off the dust.
3. Avoid places where temperatures exceed 45
o
C or more.
4. Avoid places where there is frequent vibrations or shocks.
5. Please input power regulator DC 12V.
6. When any abnormalities occur, make sure to unplug the unit and contact your local dealer
Page 3
PACKING
1.
Camera
2.
Bracket
3.
User Manual
×1
×1
×1
SPECIFICATION
ITEMS 15-CM35VA 15-CM35HVA
TYPE COLOR
PICK UP DEVICE 1/4” CCD IMAGE SENSOR 1/3” CCD IMAGE SENSOR
PICTURE ELEMENTS NTSC: 512 H x 492 V – PAL: 512 H x 582 V
HORIZONTAL RESOLUTION 380 Lines 520 Lines
MINI ILLUMINATION 0 lux with 7 IR LED’s
VERTICAL FREQUENCY NTSC: 60 Hz – PAL: 50 Hz
SCANNING SYSTEM 2:1 INTERLACE
S/N RATIO 46 dB
ELECTRONIC SHUTTER NTSC: 1/60~1/100,000 sec. PAL: 1/50~1/100,000 sec.
LENS 2.7~12 mm
VIDEO OUTPUT 1 Vp-p, 75 Ohms
AUDIO OUTPUT 2Vp-p (Max)
GAMMA. 0.45
DIMENSIONS W×H×D mm
¢64× 103 (w/o bracket)
WEIGHT g. 250
POWER SUPPLY
12 VDC (+ /
–0.5V)
POWER CONSUMPTION IR LED OFF: 100mA IR LED ON: 160mA
STORAGE TEMPERATURE
–30 to + 60℃
OPERATING TEMPERATURE
–10 to + 45℃
C-20040719
