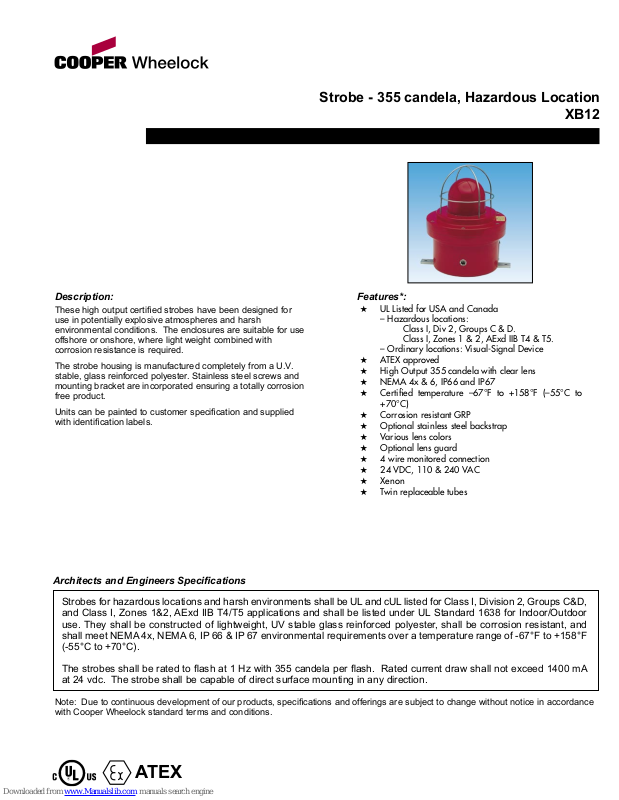

Cooper Wheelock XB12 Specification

Strobe - 355 candela, Hazardous Location

XB12

Description:

These high output certified strobes have been designed for
use in potentially explosive atmospheres and harsh
environmental conditions. The enclosures are suitable for use
offshore or onshore, where light weight combined with
corrosion resistance is required.

The strobe housing is manufactured completely from a U.V.
stable, glass reinforced polyester. Stainless steel screws and
mounting bracket are incorporated ensuring a totally corrosion
free product.

Units can be painted to customer specification and supplied
with identification labels.

Architects and Engineers Specifications

Features*:

★ UL Listed for USA and Canada
– Hazardous locations:
Class I, Div 2, Groups C & D.
Class I, Zones 1 & 2, AExd IIB T4 & T5.
– Ordinary locations: Visual-Signal Device

★ ATEX approved
★ High Output 355 candela with clear lens
★ NEMA 4x & 6, IP66 and IP67
★ Certified temperature –67°F to +158°F (–55°C to

+70°C)

★ Corrosion resistant GRP
★ Optional stainless steel backstrap
★ Various lens colors
★ Optional lens guard
★ 4 wire monitored connection
★ 24 VDC, 110 & 240 VAC
★ Xenon
★ Twin replaceable tubes

Strobes for hazardous locations and harsh environments shall be UL and cUL listed for Class I, Division 2, Groups C&D,
and Class I, Zones 1&2, AExd IIB T4/T5 applications and shall be listed under UL Standard 1638 for Indoor/Outdoor
use. They shall be constructed of lightweight, UV stable glass reinforced polyester, shall be corrosion resistant, and
shall meet NEMA 4x, NEMA 6, IP 66 & IP 67 environmental requirements over a temperature range of -67°F to +158°F
(-55°C to +70°C).

The strobes shall be rated to flash at 1 Hz with 355 candela per flash. Rated current draw shall not exceed 1400 mA
at 24 vdc. The strobe shall be capable of direct surface mounting in any direction.

Note: Due to continuous development of our products, specifications and offerings are subject to change without notice in accordance
with Cooper Wheelock standard terms and conditions.

ATEX

Specification

Certification: UL Listed for USA and Canada:
– Hazardous locations:
Class I, Div 2 Groups C & D.
Class I, Zones 1 & 2 AExd IIB T4/T5.
UL Listing No: E187894.
– Ordinary locations: Visual-Signal Device.
UL listing No. S8128.

Cert. No. 99 ATEX 2196
Material: Body: – Glass reinforced polyester (GRP).

Lens: – Toughened Glass.
Cover Screws + Backstrap: – Stainless steel 316.

Finish: Natural black or painted to customer specification.
Weight: 15-1/2lb./7.0Kg.

Certified Temperature:

–67°F to +131°F (–55°C to +55°C) ordinary

Ingress Protection: NEMA 4x & 6, IP66 & IP67.
Terminals: 6 off suitale for up to 10 AWG conductor size

Labels: Duty/Tag Label optional.
Entries: 2 x 1/2" NPT

ATEX approved: EExd IIB T4/T5

–67°F to +158°F (–55°C to +70°C) hazardous
locations

locations

For Colored Lenses

Color Red Blue Amber Green Yellow
Multiplying

Factor 0.15 0.12 0.51 0.49 0.86
The photometric data has been verified by BSI. A report is available if required.

DC AC50/60 Hz
Voltage 24 110 240
XB12

Tube Energy
(Joules) 21 21 21

Peak Current
Consumption
(mA) 1400 350 185

Effective
Intensity (Cd) 355 355 355

Peak Intensity (Cd)

Power Consumption
(Watts)

NOTE: The Cd figures are for a clear lens

@ 1Hz flash rate.

123691 123691 123691

33.6 38.5 44.4

Configuration Options:

The following code is designed to help in the selection of the correct unit. Build up the reference number by inserting the code for each
component into the appropriate box.

Certification Voltage Flash Rate Lens Color Lens Guard Unit Fixing Earth Continuity Tag/Duty Label Options Unit Finish

XB12

Certification Code
UL UL

UL

(ordinary locations)

Voltage Code
24V d.c. 024

110V a.c. 110
240V a.c. 240

Standard Models

Series Model Number Order Code Decription

XB12 XB12UL02406RNBNNNR 109204-001 Strobe, Red Lens, 355 candela, 24 VDC, Red finish

XB12 XB12UL02406CNBNNNR 109204-002 Strobe, Clear Lens, 355 candela, 24 VDC, Red finish

XB12 XB12UL02406RNBNNNN 109204-003 Strobe, Red Lens, 355 candela, 24 VDC, Black finish

UW

Flash Rate Code
60/min 06
Other flash rates

available, please specify.

Color Code
Red R

Blue B
Green G
Amber A
Yellow Y
Clear C

Guard Code
None N

Yes Y

Unit Fixing Code
Direct Mounting D

Backstrap B

N

Label Code
None N

Yes Y*
*(Please specify)

Continuity Code
None N

Options Code
Blanking Plug P

None N

Finish Code
Natural Black N

Red R
Blue B
Yellow Y
Grey G
White W
Special Finish S

273 Branchport Avenue
Long Branch, NJ 07740
Phone: [phone]
Fax: [phone]
www.cooperwheelock.com

WE ENCOURAGE AND SUPPORT NICET CERTIFICATION

3 YEAR WARRANTY

Made in USA

XB12 10/06
